1 R400NG AIS RECEIVER WITH GPS AND ETHERNET

R400NG
6
2 DOCUMENT
2.1 About This Manual
This Manual provides installation, operating Instructions and fault-finding procedures for the
equipment to which it relates.
After installation, this manual should remain with the vessel to which it relates.
This manual may also be made available in electronic Portable Document Format (PDF). In PDF
format, the following categories are all enabled as active hyperlink references: (1) The titles of each
section; (2) document cross-references; (3) the table of contents.
This document may therefore be navigated quickly and effectively by using a mouse or other pointing
device to activate each of these hyperlinks. This is a printer friendly document, designed to be
printed 2-sided as a booklet with A5 pages on A4 stock paper.
Document name:
Date:
Details:
Author:
SLR400NG-MA-v01r03
2015-10-21
First issue
MB
SLR400NG-MA-v05r01
2018-01-31
Updated Format
JS
R400NG-MA-v06r01
2018-10-18
Product Name Change & Formatting
TSI

R400NG
7
3 NOTICE
3.1 Copyright
The copyright and all rights of a like nature in respect of this publication in any part of the world are
the property of COMAR SYSTEMS LTD. (COMAR).
No part of this document may be reproduced or transmitted in any form or by any means, whether
electronic, mechanical, photocopying, recording or otherwise, nor stored in any information retrieval
system of any kind, nor used for tendering or manufacturing, nor communicated to any other person
without the written permission of COMAR.
The recipient of this document, as its registered holder, must exercise due diligence in ensuring that
the above conditions are observed (Errors and Omissions Excepted).
Any enquires relating to this document or its contents should be addressed, in writing, in the first
instance to COMAR SYSTEMS LTD.
COMAR SYSTEMS
Vittlefields Technology Centre
Forest Road
NEWPORT
Isle of Wight
PO30 4LY
UNITED KINGDOM
tel: [phone]
email: [e-mail]
web: www.comarsystems.com
COMAR SYSTEMS reserves the right to make changes to its products and specifications without notice

R400NG
8
4 GENERAL NOTICES
SAFETY: Make sure the power supply is switched off before you make any electrical
connections to the unit.
INSTALLATION: This equipment must be installed in accordance with the instructions
provided in this manual. Failure to do so could result in poor performance, personal injury
and/or damage to your vessel and/or connected equipment.
CABLES: The supplied cables should only be cut, shortened or lengthened by an
appropriate supplier.
COMPASS: The compass safe distance of this unit is 0.5 m or greater for 0.3° deviation.
In accordance with a policy of continual development and product improvement, hardware and
software may be upgraded from time to time, and future versions of equipment may therefore not
correspond exactly with this manual.
When necessary, upgrades to the product will be accompanied by updates or addenda to this
manual. Information contained in this manual is liable to change without notice.
Comar Systems Ltd. disclaims any liability for consequences arising from omissions or inaccuracies
in this manual and any other documentation provided with this product.
~
i
i
i

R400NG
9
5 INTRODUCTION
5.1 Background to AIS
AIS is an Automatic Identification System. For improved safety and specifically for collision
avoidance reasons, vessels need to know the position, details and navigational intentions of other
vessels within VHF range.
IMO regulations covering most commercial vessels worldwide have been passed requiring that AIS
transponders are fitted to all commercial vessels over 300 grt on international voyages.
The transponders use VHF frequencies to:
● Transmit details of their own vessel
● Receive details from other vessels or navigation aids within VHF range
5.2 The R400NG

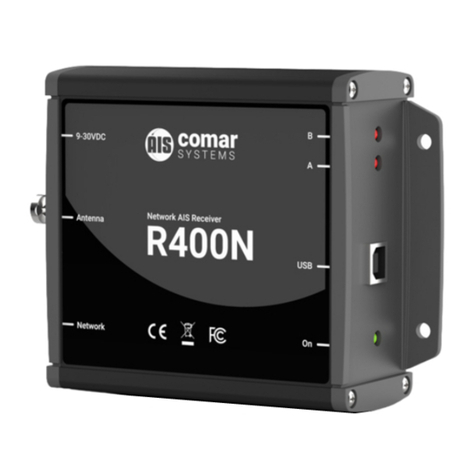

The R400NG is an AIS receiver unit with built in GPS Receiver and Ethernet interface, designed
specifically for coastal monitoring of AIS equipped vessels.
Connected to an Ethernet Network and directly or via a Router to a PC running compatible software,
AIS data transmitted from ships within range can be displayed on the screen giving a visual
interpretation of the traffic within VHF range. The unit can also be mounted at a remote location and
AIS data sent over the Internet to a fixed IP address for use on a dedicated server.
Information transmitted from vessels fitted with AIS transponders includes:
• Name of Vessel
• Call Sign
• Type of Vessel
• Speed (SOG)
• Course (COG)
• Heading
• Position
• Navigational Status
• Vessel Dimensions
• MMSI Number
• IMO Number
• Draft
• Rate of Turn
• Size of Vessel
• Status
• Destination
• ETA
• Cargo
Note: Not all the above information is necessarily transmitted by each vessel.

R400NG
10
6 PARTS LIST
Before proceeding with the installation of the R400NG, check the contents of the box which should
include:
● The R400NG AIS Receiver Unit
● Universal 100-250VAC/12VDC Power Supply
● Power Cable
● Antenna Connector Adaptor
● Network Cable
● R400NG Installation CD
● This Manual
7 INSTALLATION
7.1 Mounting
The R400NG Receiver can be mounted to a suitable bulkhead or shelf.
● Hint: Select a location away from excessive heat sources, avoid high levels of vibration and
shock.
7.2 Power Connection
Connect the power cable to the vessels 12V dc supply and plug the 2.1mm jack into the rear of the
R400NG and switch on the power.
● Hint: The unit will accept 9-30V dc from a source capable of supplying 1 Amp. The centre
pin is Positive.
7.3 Antenna Installation
A VHF antenna is not supplied as the type of antenna and cable requirements differ for each
installation. An antenna can be acquired from a local marine electronics outlet.
Shore based reception is governed by local terrain, however an open view to the sea with an antenna
mounted in the clear at a height of approximately 20 metres will achieve 25 miles plus, higher gain
antenna can be used on shore to further increase the range.
● Hint: The antenna connector type is BNC, 50Ω
● Hint: The higher the antenna is located, the greater the range
● Hint: Mount the antenna with a relatively clear view of the horizon. Large obstructions that
might shade the antenna should be avoided.
● Hint: A higher gain antenna will increase reception range.

R400NG
11
● Hint: Normally an omni-directional antenna is recommended; however a directional antenna
such as a 3 element Yagi can be used to increase range in one particular direction.
8 CONFIGURATION
8.1 Connection to a Network
The R400NG can be connected to a standard PC, Network Router or Switch. Note if connecting
directly to a PC you will need a crossover cable.
When connected to a network the yellow LED on the network connection should be on. If no yellow
LED is shown then the unit has not detected a link. The green LED will blink when data is transmitted
or received.
The CD included with the product contains the program
Digi Device Discovery
utility program for
setting up and configuring the unit.

R400NG
12
8.2 Configuring the Network
To install the Digi Device Discovery program on your PC run the “Device Discovery” installation
executable file in the “Device Discovery” folder on the CD, and follow the set up wizard.
When the Device Discovery software is installed, select “Device Discovery” from the installed
applications.
If you have installed the R400NG on your local network, the device will be displayed as a Connected
ME device.

R400NG
13
9 DISCOVERY TROUBLESHOOTING TIPS
9.1 Firewalls:
Check to make sure that any software firewalls (common examples are Windows Firewall and most
popular Anti-Virus software) are disabled. These can block the discovery process, also any physical
firewall will almost certainly block the discovery process as well.
9.2 Trouble discovering a Digi device using Windows XP:
Trouble discovering a Digi device using Windows XP with Service Pack 2: You will need to make
sure that the Windows Firewall is disabled. By default it is enabled and will block the port that the
discovery software uses to discover Digi. To disable the firewall go to Start> Settings> Control
Panel> Windows Firewall; then click the off button to disable it.
9.3 Routers or Switches:
Is there a router between the computer running the discovery utility and the Digi device itself?
Normally, routers will block the discovery process. If possible remove them and use a hub instead.
If there is a switch in between this may or may not be a problem. Occasionally they are configured
to block the discovery traffic. If unsure use a hub or a direct Ethernet cable connection, also in case
the port on your Router/Switch/Hub is at fault, try an alternative port as well.
9.4 Cabling:
If nothing else works try using a direct crossover Ethernet cable directly between the computer and
the Digi device. Another option is to try another Ethernet cable.
9.5 Ethernet LED:
Check the Ethernet Link LED on the Digi device. Is it lit solid? If not, there is not a valid network
connection and it will not be possible to discover the device.
9.6 Network Adapters:
Make sure the proper network adapter is enabled, also ensure all other network adapters are
disabled. If more than one network adapter is enabled, this can cause the discovery process to fail.

R400NG
14
10 CONFIGURING THE NETWORK SETTINGS
Device Discovery has the facility to quickly configure the unit to your own network, select
Configure
Network Settings
, this brings up a new window which will give you the choice of letting Windows
assign an IP address, or alternatively you can give the unit a fixed IP address.
Alternatively you can select
Open Web Interface
, which will open a login dialog box, the default
username is
root
and the default password is
dbps
. Once entered it will connect you directly to the
internal web browser, and open it on its home page as below:
However if you wish to use your favourite browser then simply navigate to the IP address that has
been assigned to the unit, for example http://192.168.1.200.
Configure the device to your requirements. Use the help function F1, for assistance.

R400NG
15
11 GPS RECEIVER
The R400NG contains an integral GPS receiver allowing positional data and AIS data to be output
together from the receiver.
A standard active 5 volts dc GPS antenna with a gain between 10 and 30 dB needs to be connected
to the TNC connector on the rear of the R400NG for the GPS receiver to work.
By default the GPS receiver will output the following NMEA messages:
GPGGA, GPGSA, GPGSV, GPRMC
11.1 GPS Receiver Technical Specification
● Channels: 12 Parallel Channels
● Frequency: 1575.42 MHz
● WAAS: Yes
● Datum: Default WGS84
● Update Rate: 1 sec
● Hot Start: 6 sec
● Warm Start: 35 sec
● Cold Start: 45 sec

R400NG
16
12 OPERATION
Operation of the R400NG unit is fully automatic and only requires power, VHF, GPS and data cable
connection.
On powering up the unit:
● The green LED marked ON should illuminate
● The Channel LEDs should come on briefly then go off
● The Channel A and B LEDs should flash momentarily when information from nearby
transceivers is received
Data is then output for visual or textual viewing on compatible electronic charting systems or other
systems or devices.
12.1 Range of AIS
The AIS reception range is similar to that normally associated with Marine VHF Radiotelephone.
Range is dependent on height of antenna and also type of antenna, the higher and better antenna
installed the greater the reception range.
Typically an antenna mounted on the rail of a yacht will achieve 15 miles, mounted on the masthead
will increase this to 20 miles. Shore based reception is governed by local terrain, however an open
view to the sea with an antenna mounted in the clear at a height of approximately 20 metres will
achieve 25 miles plus, higher gain antenna can be used on shore to further increase the range.

R400NG
17
13 TROUBLESHOOTING
13.1 No power LED is displayed
● Check the power supply and that the unit is connected correctly to a 12 or 24V dc supply
● Check the polarity of the supply is correct. The center pin of the 2.1mm jack is positive
13.2 Channel 1 and Channel 2 LEDs do not flash
● Check that a VHF antenna is fitted and correctly connected
● Check that the antenna is correctly positioned, i.e. at a suitable location to visibly ‘see’
vessels
13.3 Channel 1 and Channel 2 lights flash, but no data is received
If the red channel lights flash then data is being received from nearby vessels.
● Check that the correct data cable is connected to the PC or NMEA device
● Check on the PC application or device that the correct port is assigned and the correct baud
rate is setup. The correct baud rate is 38,400
13.4 I can receive ships on my display, but no names are shown
● Remember that the names of ships as well as other static information are only sent every 6
minutes or when requested by another station

R400NG
18
14 SPECIFICATION
R400NG is a compact dual channel synthesized VHF Receiver designed to receive and decode all
transmissions from vessels fitted with Class A or B AIS transceivers, Aids to Navigation, and SARTS.
14.1 Electrical
Power Supply Range:
9 - 30 Volts dc
Power Consumption:
300mA @ 12 V dc
Output
Baud Rate:
38,400 Baud (38.4Kb)
Format:
ITU/ NMEA 0183
Output Message:
AIS: VDM. GPS: GGA,GSA,GSV,RMC
14.2 Receiver
Frequency:
Channel A 161.975 MHz
Channel B 162.025 MHz
Channel Spacing:
25 kHz
Sensitivity:
> -112 dBm @ 20% MER
Demodulation:
GMSK
Data Rate:
9600
Antenna Impedance:
50 Ω
14.3 Physical
Dimensions:
L130 x W105 x H46 mm
Weight:
600 g
Mounting:
4 mounting holes in end plates
Connectors:
AIS Antenna BNC, GPS Antenna TNC
Ethernet Port:
RJ-45
Power:
2.1 mm Phono plug
Indicators:
On (Green), Channel A (Red), Channel B (Red)
Designed to Meet:
IEC 61993-2; CE Approval to EN 60945:
EN 6100-6-1/2; FCC part 15

R400NG
19
15 TRANSMISSION SPECIFICATION
15.1 Class A Units
● Static information Every 6 minutes, or when data has been amended, or on request.
● Dynamic information This is dependent on speed and course alteration.
15.1.1 Table of Class A Shipborne Mobile Equipment Reporting Intervals
Ship's Dynamic Conditions
Reporting Interval
Ship at anchor or moored and not moving faster than 3 knots
3 Minutes
Ship at anchor or moored and moving faster than 3 knots
10 Seconds
Ship 0-14 knots
10 Seconds
Ship 0-14 knots and changing course
3 1/3 Seconds
Ship 14-23 knots
6 Seconds
Ship 14-23 knots and changing course
2 Seconds
Ship >23 knots
2 Seconds
Ship >23 knots and changing course
2 Seconds
15.2 Class B Units
● Static information Every 6 minutes
● Dynamic information Every 3 minutes if speed is less than 2 knots Every 30 seconds if speed
is greater than 2 knots

R400NG
20
16 COPYRIGHT
The copyright and all rights of a like nature in respect of this publication in any part of the world are
the property of Comar Systems Ltd. (COMAR).
No part of this document may be reproduced or transmitted in any form or by any means, whether
electronic, mechanical, photocopying, recording or otherwise, nor stored in any information retrieval
system of any kind, nor used for tendering or manufacturing, nor communicated to any other person
without the written permission of COMAR.
The recipient of this document, as its registered holder, must exercise due diligence in ensuring that
the above conditions are observed (Errors and Omissions Excepted).
Any enquires relating to this document or its contents should be addressed, in writing, in the first
instance to COMAR.
17 LIMITED WARRANTY
Comar Systems Ltd warrants this product to be free from defects in materials and manufacture for
one year from the date of purchase. Comar Systems Ltd will, at its sole option, repair or replace any
components that fail in normal use. Such repairs or replacement will be made at no charge to the
customer for parts and labour. The customer is, however, responsible for any transportation costs
incurred in returning the unit to Comar Systems Ltd.
This warranty does not cover failures due to abuse, misuse, accident or unauthorised alteration or
repairs.
The above does not affect the statutory rights of the consumer.
Note: Every effort has been made to ensure that all information contained in this manual is accurate
at the time of going to press. We therefore cannot take any responsibility for the content of this manual
and advise that you take normal steps to ensure that the information is at its most current when you
are reading this manual.
