Aisin BTK-503 User manual

1
Bluetooth Speaker BTK-503 User Manual

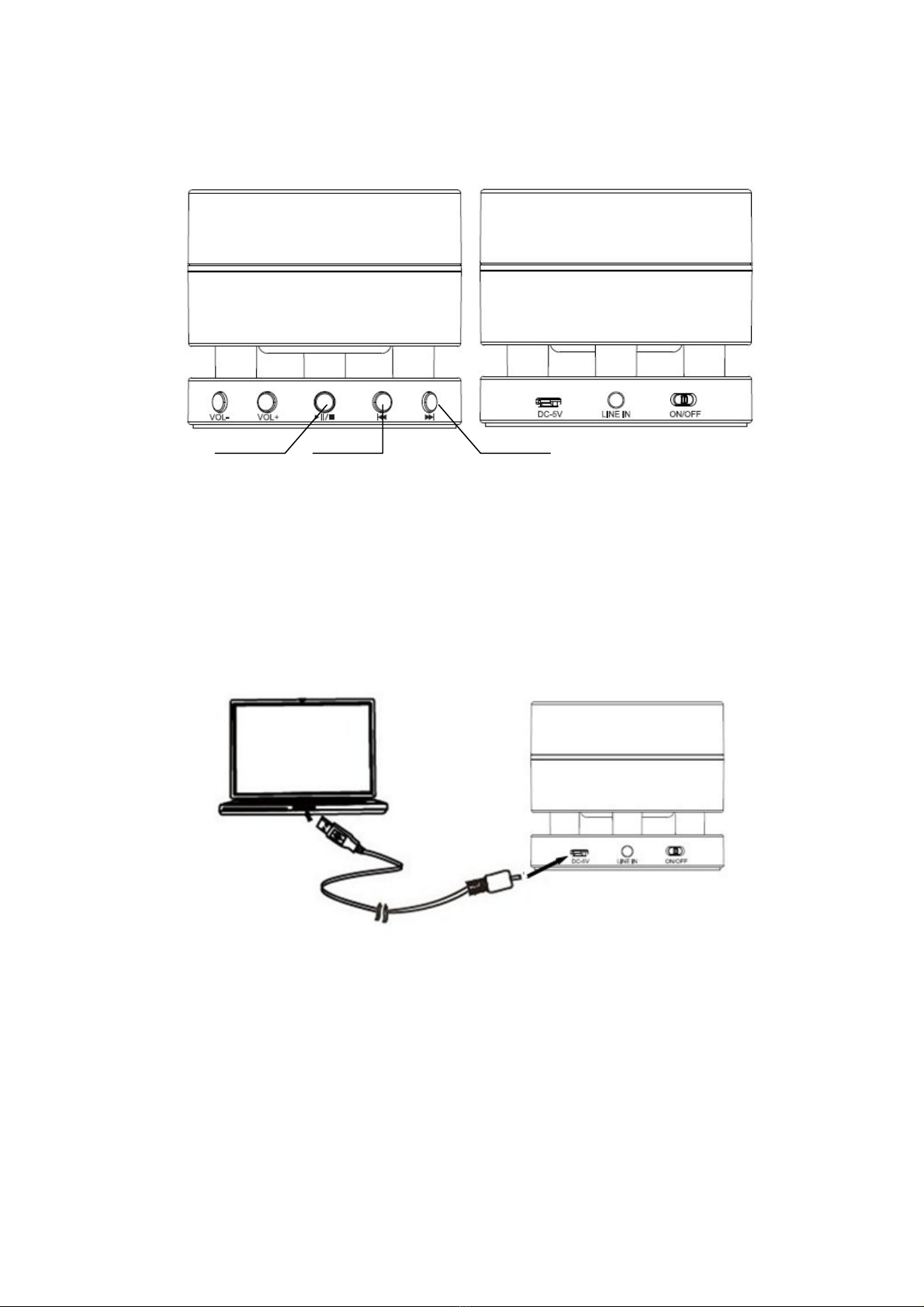

Playingon/off PREV NEXT
Checking the accessories
Make sure that you have the following items with your speaker: USB Charging cable, 3.5mm audio cable & Manual.
Charging the speaker
Your speaker uses a rechargeable battery. You must charge the battery fully before using the speaker for
the first time.
1. Plug the USB Cable into PC socket.
2. Connect the USB Cable with speaker as it shown on the picture. The red indicator of headset will turn
on when charging.
3. When the battery is fully charged, the red indicator will turn blue
1) When the speaker is in low battery, the indicator will flash red and tone as “battery low” once in a
minute.
2) The speaker will be fully charged in approximately 5-6 hours.

2
3) Remove the USB cable from the PC socket
IMPORTANT: The speaker can be used while charging.
BASIC OPERATIONS
Turning Speaker on/off
1. To turn the speaker on
Switch the “on/off”Button to the left, you will hear a tone “power on”. The speaker is now turned on.
2. To turn the speaker off
Switch the “on/off”Button to the right, you will hear a tone “power off”. The speaker will be turned off.
3. When the speaker is on low battery, blue indicator will flash red during standby mode and will voice for
“battery low”. Please charge the speaker.
Pairing
Pairing will create a unique and enciphered wireless link between two Bluetooth enabled devices, such as
your Bluetooth phone and Bluetooth speaker.
1. Ensure that the speaker is on standby mode or playing mode.
2. Press and hold the “playing on/off”Button for about 2 seconds until the indicator light alternately
flashes blue and red. You will hear a tone “pairing”, which means the speaker has been in pairing mode.
3. Set your Bluetooth phone to discover the speaker by following your phone's guide. Typically, the steps
involve going to a ‘Setup’, 'Connect', or ‘Bluetooth’ menu on your phone and then selecting the option to
discover Bluetooth devices.
4. Your phone will find the speaker and ask if you want to pair with it. Confirm this by pressing the “Yes”
or “OK” key.
5. Enter a passkey or PIN code “0000” (4 zeros), then press the “Yes” or “OK” key.
Note: If the Bluetooth version of your Bluetooth mobile phone is V3.0, you will not need to enter a Passkey
(Pin code) during above pairing process.
6. You will hear a tone “connected”, it means your phone has been connected with the speaker.
Playing on/off
1. Make sure that your phone connected with the speaker.
2. Find music in your phone and play on, the song will be playing from the speaker.
3. Press “Playing on/off” button when playing on, the song will be stop.
Changing music

3
When the speaker is playing on, press “PREV” or “NEXT” button once to change music.
This feature may vary due to user’s operation mode and mobile phone settings.
Adjust the volume
1. Press “VOL-” to decrease the volume and you will hear a beep when it is minimum
2. Press “VOL+” to increase the volume and you will hear a beep when it is maximum.
Making a call
Using the phone’s keypad
1. Dial number on the keypad or select the contact name from the contact list of your mobile phone.
2. Press phone’s “send/call” key.
This feature may vary due to user’s operation mode and mobile phone settings. You may need to transfer
the call from phone to the speaker----see “transferring a call” part.
Voice Dialing
Please ensure your mobile phone supports voice dialing function and the voice tag assigned for this
feature.
Connected with one mobile phone:
1. Press “PREV” or “NEXT” Button for 2 seconds.
2. You’ll then hear the voice-activation tone, say the name of the person you wish to call.
3. Press “PREV” or “NEXT” Button for 2 seconds to stop the voice dialing.
Ending a call
1. Shortly press “Playing on/off” Button once during a call.
2. End a call from phone’s keypad.
Answering a call
1. Press the “Playing on/off” button briefly, when you receiving an incoming call.
2. Answer the call via your phone’s keypad. You may then need to transfer the call to the speaker by
pressing the “Playing on/off” Button for 2 seconds (depending on your phone setting).
Last number redialing
Connected with one mobile phone: Shortly press “Playing on/off” Button twice to make the last number
redial.
Rejecting an incoming call
Press and hold “Playing on/off” Button for 2 seconds to reject a call.
Transferring a call
Spesker to phone: Press and hold “Playing on/off” Button for 2 seconds during a call, then release it.
Phone to speaker : Press and hold “Playing on/off” Button for 2 seconds during a call, then release it.

4
Note: For different mobile phone setting, you could only transfer a call by press the mobile phone’s
keypad. Depend on your phone type, the actual operation may vary.
Muting the Microphone
You can put a call on hold by muting the microphone.
To turn on/turn off the Muting Microphone function: Press the “VOL+” Button & “VOL-” Button at the same
time.
Delete the pairing records
When the speaker is on standby mode, press “VOL+” Button & “VOL-” Button for 5 seconds.
DFU mode
Connected USB cable with speaker, press “PREV” or “NEXT” button for 5 seconds when speaker is on
standby mode or playing mode.
Crash and reset
Connected USB cable with speaker and press “VOL+” & “VOL-” button once to reset the speaker.
Adjust the EQ
When the speaker in on playing mode, press “NEXT” button for 2 seconds, it will switch circularly among
“normal”, “bass”, “treble”.
Storage of the speaker
1. Always store the speaker with the power off and make sure it is safely protected.
2. Avoid storage at high temperatures (above 60℃) such as in a hot vehicle or in direct sunlight. (Storage
at high temperatures can damage performance and reduces battery life).
3. Do not expose the speaker or any of its supplied parts to rain or other liquids.
Product Specifications
Bluetooth Compliance: Bluetooth Version4.0 Specifications
Support Bluetooth HSP, HFP, A2DP and AVRCP Profiles
Multipoint A2DP connection
Wire audio support (line in)
Play time: 8-10 hours
Talk time: 12 hours
Standby Time: 1500 hours
Speaker output power: 3W*1
Wight: 166g
Size: ψ70mm*60mm
Setting bass boost
Support iPhone battery indication
Range: 10M

5
Frequency responds range: 100Hz~20 kHz
*Depending on the phone type and usage, the actual time may vary.
Correct disposal of this product
(Waste Electrical & Electronic Equipment)This marking shown on the product or its literature,
indicates that it should not be disposed with other household wastes at the end of its working life.
To prevent possible harm to the environment or human health from uncontrolled waste disposal, please
separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of
material resources. Household users should contact either the retailer where they purchased this product,
or their local government office, for details of where and how they can take this item for environmentally
safe recycling. Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product should not be mixed with other commercial wastes for disposal.
Bluetooth® is a trademark owned by Bluetooth SIG, Inc.
