SERVICE MANUAL
DATA
COLOR TELEVISION
TV-F2400 U
S/M Code No. 09-007-431-9R1
REVISION
• This Service Manual is the “Revision Publishing” and replaces “Simple
Manual” (S/M Code No. 09-005-431-9T1).
• This Service Manual does not include “ADJUSTMENT”. This item will be
issued in the next Supplement.

– 2 –
SPECIFICATIONS
Tuner System Frequency synthesized tuner
TV System NTSC-M
Channel Coverage VHF: 2 to 13
UHF: 14 to 69
CATV: 5A, A-1 to A-5, A to W,
W+1 to W+84
Program Memory 181
Antenna Input 75 ohms, unbalanced
Picture Tube 24 in.
Screen Size 478 (W) x 359 (H) mm
(187/8x 141/4in.)
598 mm (diagonal) (235/8in.)
Video Input 1 Vp-p 75 ohms
Audio Input 0.5 Vrms., more than 33 k ohms
Speaker 120 x 60 mm (43/4 x 23/8in.)
Operating Voltage 120 V AC, 60 Hz
Power Consumption 125 W
Phones Jack Stereo-mini jack
Operating Temperature 5 °C – 40 °C
Operating Humidity 35 % – 80 %
Dimensions 690 (W) x 506 (H) x 485 (D) mm
(271/4x 20 x 191/8in.)
Weight 33.7 kg (74.14 lbs.)
• Design and specifications are subject to change without
notice.
ACCESSORIES / PACKAGE LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
1 8A-JE7-951-010 RC UNIT,RC-ZVT24
2 8A-JE5-901-010 IB,U (ESF) -F2400/2000
3 87-B30-311-010 ADAPTOR,300 75 TSN-02
4 8A-JE5-904-010 BAT,R6P ATC
!

– 3 –
NOTICES BEFORE REPAIRING
To make the best use of this equipment, make sure to
obey the following items when repairing (or mending).
1. Do not damage or melt the tunicate of the leading
wire on the AC1 side, including the power supply
cord.
2. Do not soil or stain the letters on the spec.
inscription plates, notice labels, fuse labels, etc.
3. When repairing the part extracted from the
conducted side of the board pattern, fix it firmly
with applying bond to the pattern and the part.
4. Restore the following items after repairing.
1) Conditions of soldering of the wires (especially,
the distance on the AC1 side).
2) Conditions of wiring, bundling of wires, etc.
3) Types of the wries.
4) Attachment conditions of all types of the insulation.
5. After repairing, always measure the insulation
resistance and perform the voltage-withstand test
(See Fig-1).
1) The insulation resistance must be 1 MΩ
when applying 500V per second.
2) In the voltage withstand test, apply 1 kV for 1
minute and check that the GO lamp lights.
* Breaking current set to 10 mA.
* Connect the safety checker as shown in Fig-1,
then measure the resistance and perform the test.
* Do not touch the equipment during testing.
* For details of the safety checker, refer to the supplied
Operation manual.

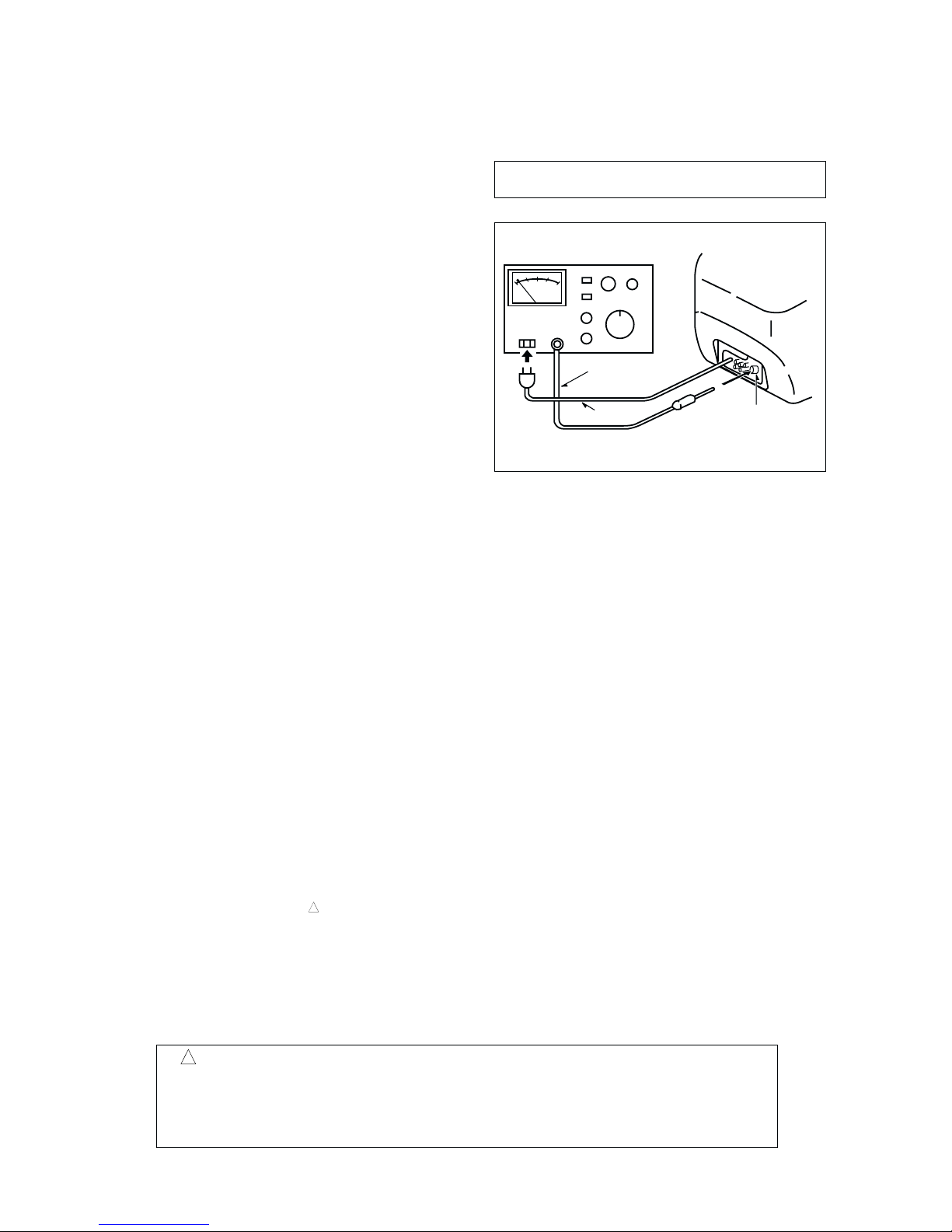

Fig-1
Safety checker (Model 7110, etc.)
Earth cable
AC cable Connecttheearthcable
tothe outsidemetal part
terminal.
Insulation resistance: 1 MΩ(500 V/s)
Voltage-withstand: 1 kV for 1 minute
Safety Components Symbol
This symbol is given to important parts which serve to maintain the safety of the product, and which
are made to confirm to special Safety Specifications.
Therefore, when replacing a component with this symbol make absolutely sure that you use a
designated part.
!
When servicing and checking on the TV, note the followings.
board. The inside wiring is designed not to get close to
the pyrogenic parts and high voltage parts. Therefore,
put these parts in the original positions.
5. Take care of the cathode-ray tube.
By setting an explosion-proof cathode-ray tube in this
equipment, safety is secured against implosion.
However, when removing it or servicing from the
back, it gives out shock that is dangerous. Take
enough care to deal with it.
6. Avoid an X-ray.
Safety is secured against an X-ray by giving
considerations to the cathode-ray tube and the high
voltage peripheral circuit, etc. Therefore, when
repairing the high voltage peripheral circuit, use the
designated parts and do not change the circuit.
Repairing, except indicates, causes rising of high
voltage, and the cathode-ray tube emits an X-ray.
7. Perform a safety check after servicing.
Confirm that the screws, parts and wiring which were
removed in order to service are put in the original
positions, or whether there are deteriorated portions
around the places serviced.
1. Keep the notices.
As for the places which need special attentions, they
are indicated with labels or seals on the cabinet,
chassis and parts. Make sure to keep the indications
and notices in the operation manual.
2. Avoid an electric shock.
There is a high voltage part inside. Avoid an electric
shock while the electric current is flowing.
3. Use the designated parts.
The parts in this equipment have the specific
characteristics of incombustibility and withstand voltage
for safety.
Therefore, use a part which has the same character
as the replaced part. Especially as to the important
parts for safety which is indicated in the circuit
diagram or the table of parts with a mark, the
designated parts must be used.
4. Put parts and wires in the original position after
assembling or wiring.
There are parts which use the insulation material such
as a tube or tape for safety, or which are assembled so
that these parts do not make contact with the printed
!

– 4 –
Anode cap
CRT GND
Hook CRT
CRT GND
Grip
DISASSEMBLY INSTRUCTIONS

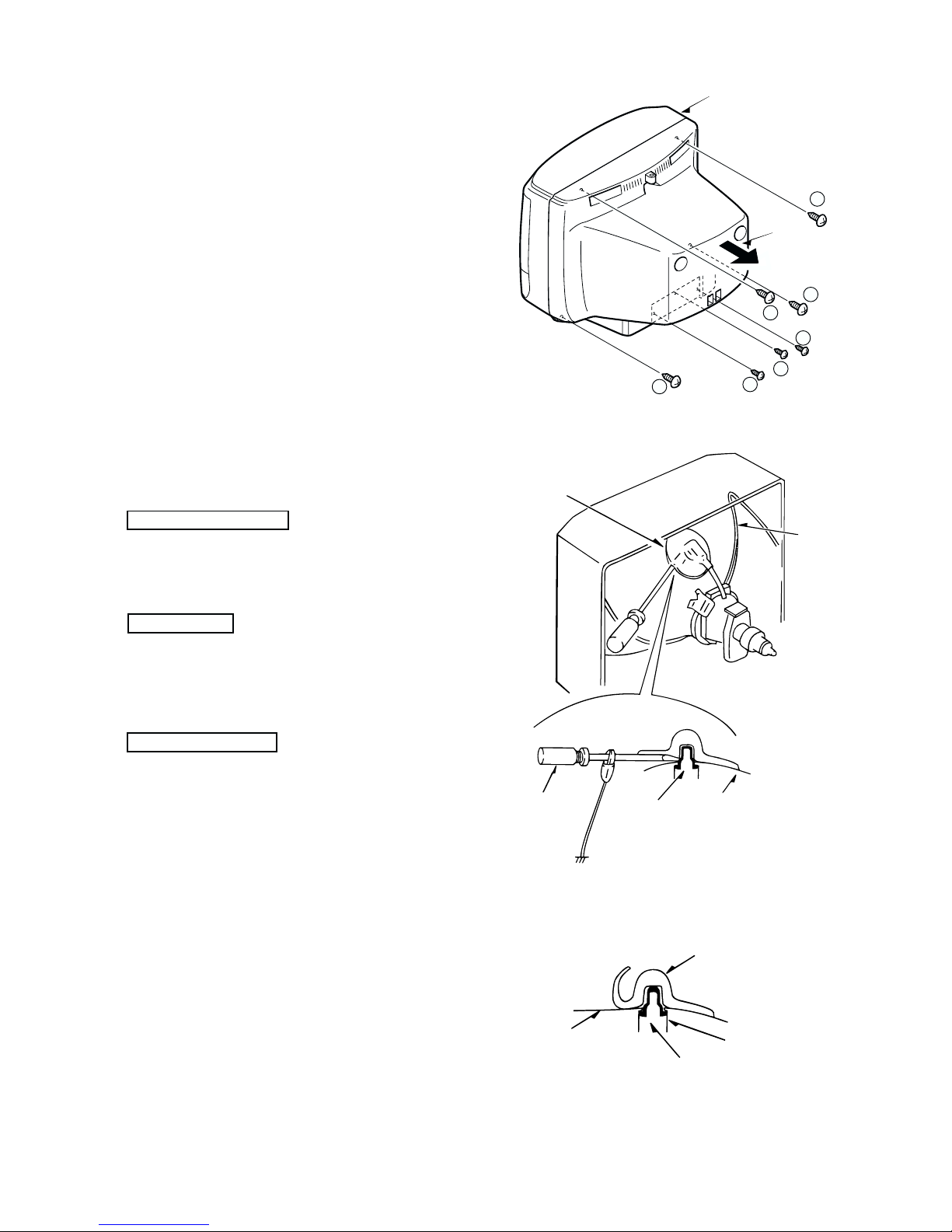

1. REAR CABINET REMOVAL
(1) Remove four screws 1, and three screws 2, then
remove the rear cabinet in the direction of the arrow.
(See Figure1-1)
Figure 1-1
2. HIGH-VOLTAGE CAP (ANODE CAP) REMOVAL
2-1. Cautions before Removing
Discharge the anode voltage
(1) The anode voltage is not discharged completely from the
CRT of this unit even after the power is turned off. Be
sure to discharge the residual anode voltage before
removing the anode cap.
Do not use pliers
(2) Do not use pliers, etc. to remove the anode cap. If you
usedpliers and bent thehook to remove thecap,the spring
characteristics of the hook could be lost, and when
reinstalled, the cap would come off from the CRT anode
button easily, causing an accident.
Do not turn the anode cap
(3) If the anode cap is turned in the direction of its
circumference, the hook is likely to come off.
2-2. Anode Cap Removal
Discharge the anode voltage. (See Figure 2-1)
(1) Connect a flat-bladed screwdriver to the CRT GND via
an alligator clip.
(2) Use a testertocheckthe end of the screwdriverandground
of the TV for continuity.
(3) Touch the hook with the end of the screwdriver.
Caution : Be careful not to damage the anode cap.
(4) Turn over the anode cap.
Caution : Be careful not to damage the anode cap.
Figure 2-1
Figure 2-2
Anode cap
CRT
Hook
Anode button
Front cabinet
Rear
cabinet
1
1
1
122
2

–5 –

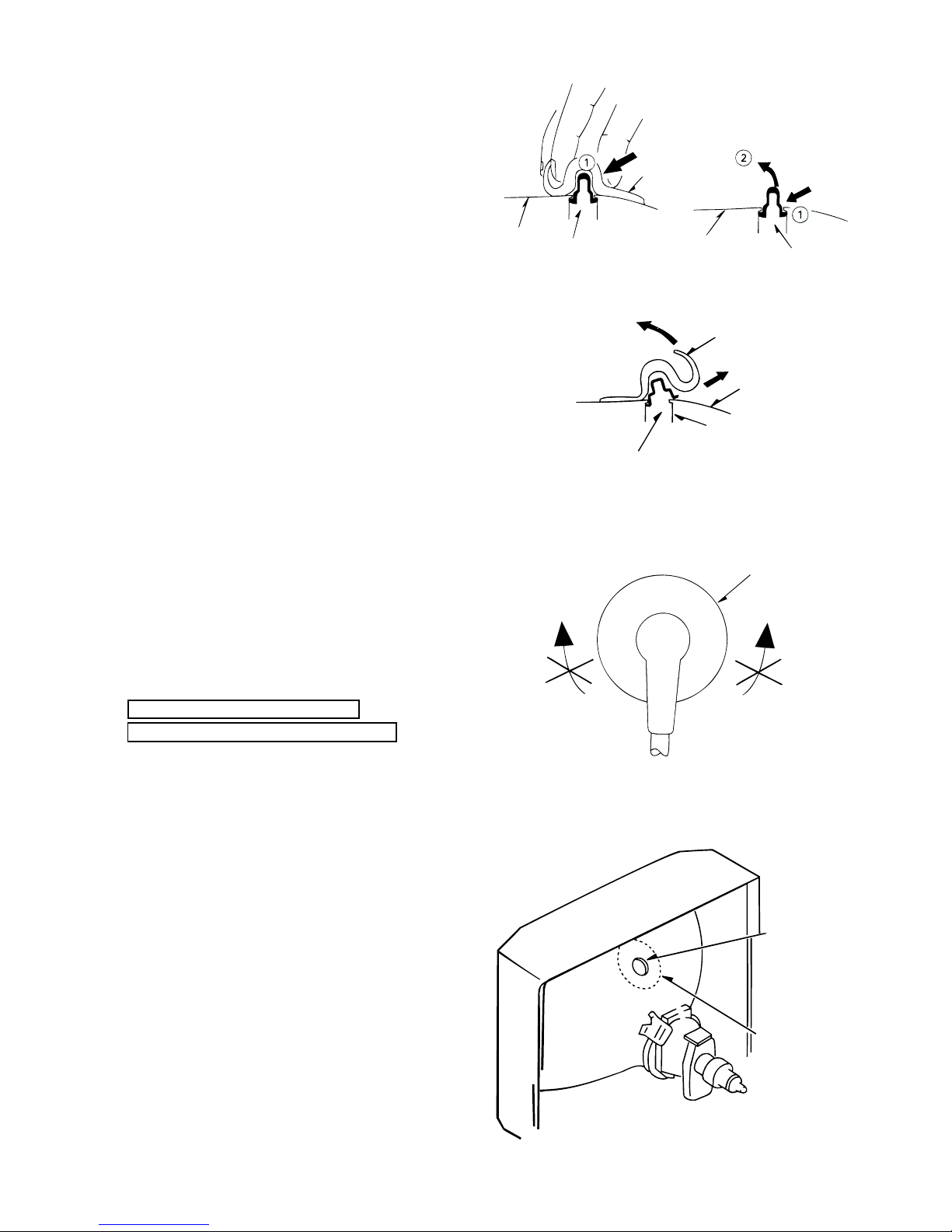

(5) Push the anode cap with your thumb in the direction of
arrow 1as shown in the figure, then lift the cap in the
direction of arrow 2to release the hook on one side.
(See Figure 2-3)
(6) Turn over the anode cap on the side where the hook was
released and pull out the cap in the direction opposite to
that on which the cap was pushed. (See Figure 2-4)
Caution : Do not pull out the anode cap straight up.
:Do not pull the cap forcibly. After removing
the cap, check that the hook is not deformed.
Figure 2-3
3. ANODE CAP REINSTALLTION
Observe the cautions carefully so that no accident occurs
due to a defect in installing the anode cap and so it does
not come off.
3-1. Caution before Reinstalling
Never turn the anode cap after installing it
Never re-use the hook when it has been deformed
(1) If the anode cap is turned after it is installed, it may come
off. Therefore, arrange the high-voltage cable before
attaching the anode cap. (See Figure 3-1)
(2) If you have attached the anode cap before arranging the
high-voltage cable, arrange the cable carefully so the cap
does not turn.
3-2. Anode cap reinstallation
(1) Use a clean cloth moistened slightly with alcohol to clean
the installation section. (See Figure 3-2)
Caution : Check that the installation section is free from
dust, foreign matter, etc.
(2) Coat the anode cap installation circumference with an
appropriate amount of the specified silicone grease (KS-
650N).
Caution : Be careful that silicone grease does not enter
the anode button.
CRT CRT
Anode cap
Hook Hook
Anode cap
Hook
Anode button
CRT
Left Right
Anode cap
Anode button
Installation
section
Figure 2-4
Figure 3-1
Figure 3-2

–6 –

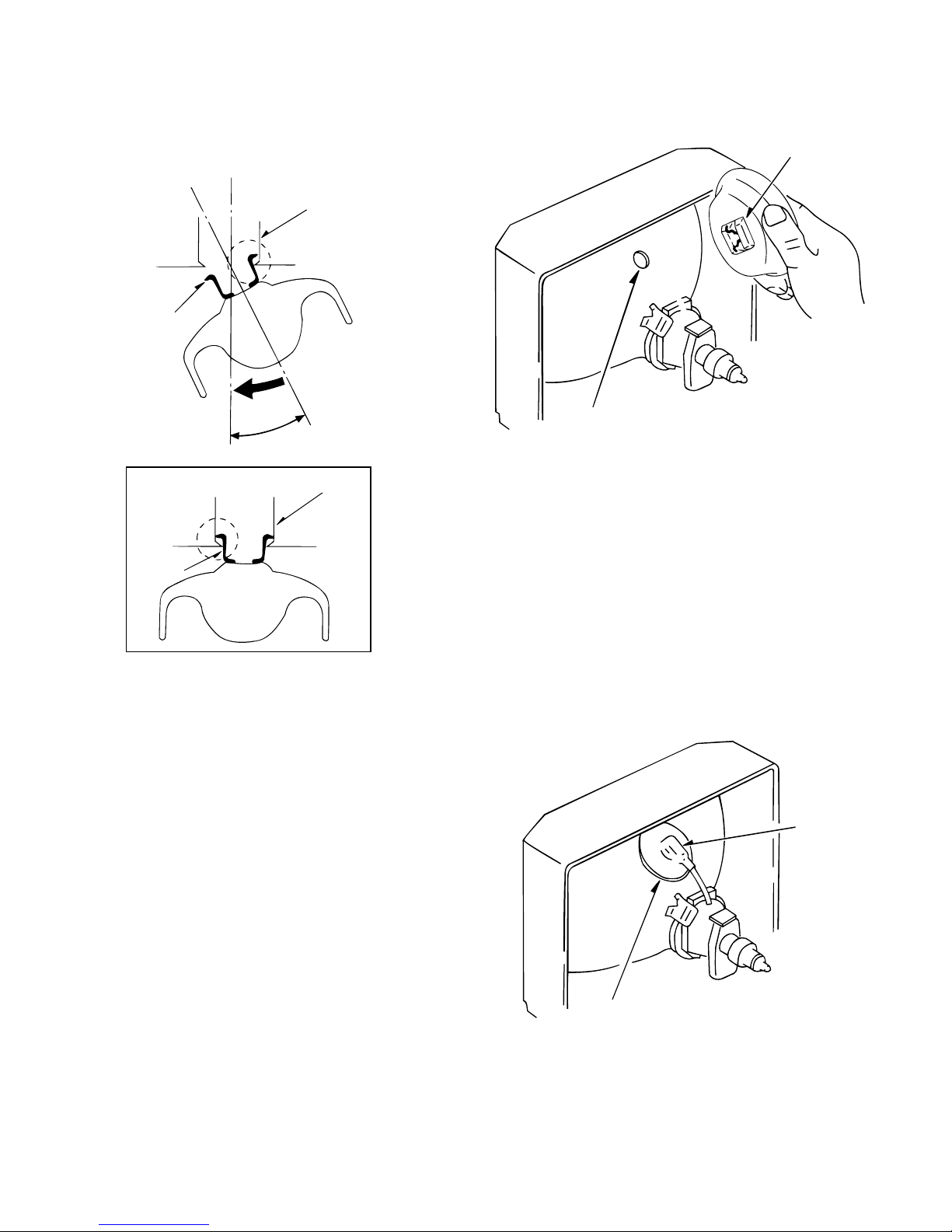

(3) Eliminate twisting, etc. of the high-voltage cable and
arrange it so that no twisting occurs. (See Figure 3-3)
Caution : If the cable is not arranged correctly, the anode
capcould turn and cause aninstallationdefect.
(4) Turn over the rubber cap symmetrically on the left and
right. (See Figure 3-4)
Caution : Take great care not to damage the anode cap.
Figure 3-3
(5) Fit your forefinger over the projection at the center of the
cap and hold the cap between your thumb and middle
finger. (See Figure 3-5)
Figure 3-4
Figure 3-5
High-voltage cable Anode cap

–7 –
(6) Apply the hook on one side to the anode button as shown
on the figure. (See Figure 3-6)
Caution : Check that the hook is held securely.
(7) Apply the hook on the other side to the anode button as
shown in Figure 3-7.
(8) Pull the anode cap slightly with the rubber cap turned
over and visually check that the hook is engaged securely.
(9) Release your hand from the rubber cap of the anode cap.
Caution : Cover the anode cap so that it does not lift.
(10) Hold the skirt of the andoe cap slightly to improve the
close contact between the cap and CRT.
(11) Check that the anode cap is in close contact with the CRT.
(See Figure 3-8)
Figure 3-8
Figure 3-7
Figure 3-6
Anode button
Skirt
Hook
Anode button
Anode button
Hook
Anode button
Hook
30°

– 8 –

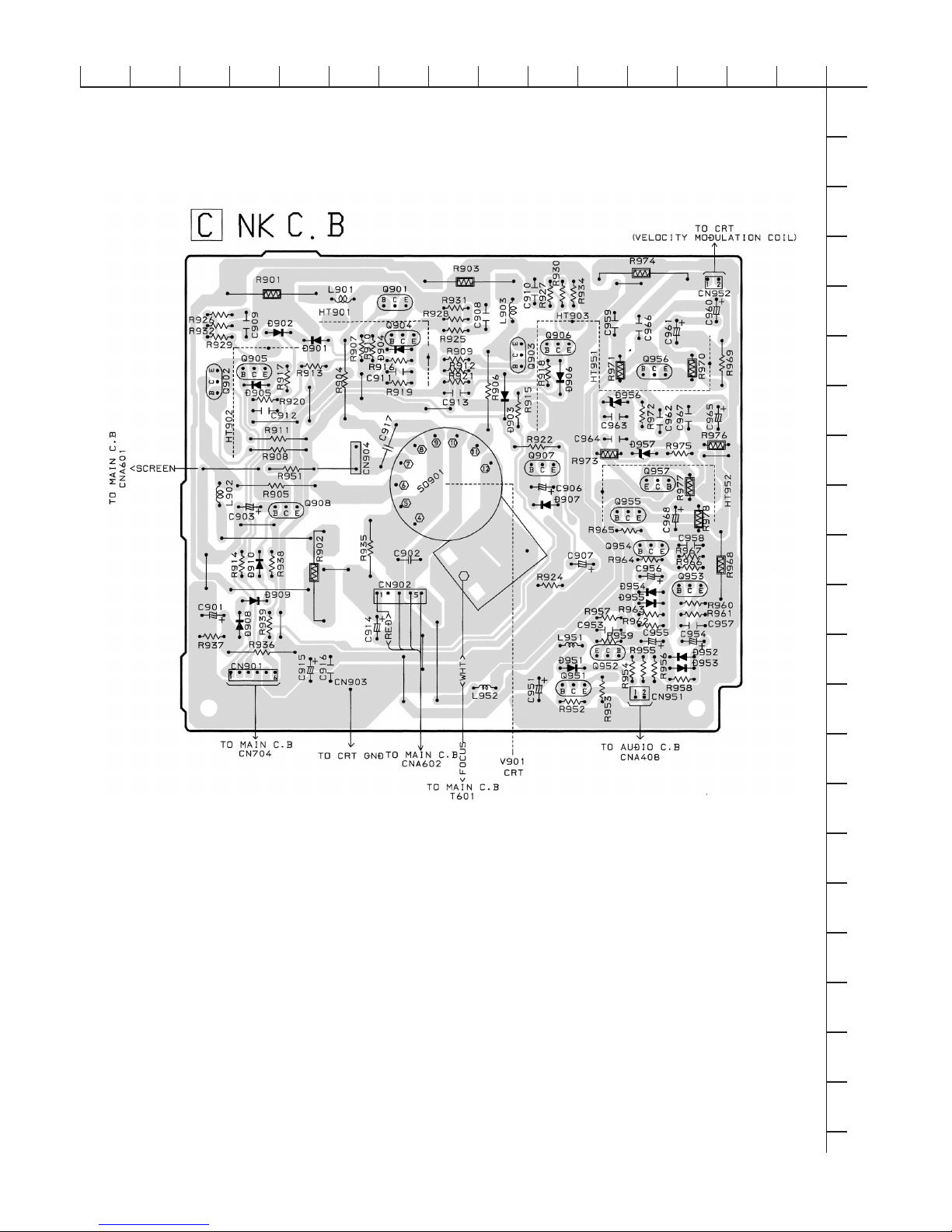

4. NK C.B REMOVAL
(1) Disconnect CN903 (CRT GND).
(2) Disconnect CN901, CN902, CN951, CN952.
(3) Remove the NK C.B in the direction of arrow 1.
(See Figure 4-1)
5. MAIN C.B REMOVAL
(1) Remove connector (CN404).
(2) Remove connector (CN882).
(3) Remove connector (CN807).
(4) Pull out the MAIN C.B in the direction of the arrow 2
(See Figure 4-1).
Figure 4-1
CN882
(Power cord)
CN807
CN901
CN903 CN951
CN404
AUDIO C.B
MAIN
C.B

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
– 9 –
ELETRICAL MAIN PARTS LIST
IC
8A-JE7-621-010 IC,M37272MA-052SP
87-A91-538-010 RCR UNIT,SBX1981-72P
87-A21-378-010 IC,S-24C04BDP-1A
87-A20-611-080 IC,M51943BSL-700A
87-001-536-010 IC,NJM78M05FA
8Z-JBJ-605-010 IC,TA1268N
87-A21-103-040 C-IC,MM1454XFBE
87-A21-022-040 C-IC,BA3880FS
87-A21-554-010 IC,TA1216AN
87-A21-283-010 IC,AN5277
87-A21-220-010 IC,MM1311AD
87-A21-219-010 IC,TC90A45P
87-A21-456-010 IC,LA7833
87-070-417-010 IC,NJM4558DD
8Z-JBH-605-010 IC,CXA2104S
87-A21-468-010 IC,STR-F6626
87-A21-491-010 IC,SE125N
87-020-969-010 IC,NJM78M09FA
87-A20-389-010 IC,NJM7809FA
TRANSISTOR
87-A30-065-080 TR,2SC2785FE
87-026-269-080 TR,DTA114ES
87-A30-066-080 TR,2SA1175FE
87-026-219-080 TR,DTA144ES
87-026-218-080 TR,DTC144ES
89-324-122-080 C-TR,2SC2412KR
89-110-372-080 C-TR,2SA1037K(R)
87-A30-062-080 C-TR,KRC104S
89-324-820-080 TR,2SC2482
87-A30-366-010 TR,2SD2580
87-A30-363-010 TR,2SD2531
89-110-154-080 TR,2SA1015Y
89-318-155-080 TR,2SC1815GR
87-026-463-080 TR,2SA933SRS
89-110-913-080 TR,2SA10910
87-A30-344-010 TR,2SC5147D
87-026-462-080 TR,2SC1740SRS
89-407-742-080 TR,2SD774
89-118-370-010 TR,2SA1837
89-347-930-010 TR,2SC4793
DIODE
87-070-110-010 LED,SLP-181B-51 RED
87-017-932-080 ZENER,MTZJ6.2B
87-020-465-080 DIODE,1SS133
87-002-743-080 ZENER,MTZJ33B
87-A40-235-080 ZENER,MTZJ9.1C
87-A40-690-080 ZENER,MTZJ11B
87-A40-286-080 DIODE,RGP10JE-5025
87-A40-348-080 ZENER,MTZJ3.3A
87-A40-234-080 ZENER,MTZJ5.6A
87-A40-318-080 ZENER,RM26 V1
87-070-092-080 DIODE,S5566B
87-A40-735-090 DIODE,ERC06-15
87-A40-001-080 ZENER,MTZJ12C
87-017-593-090 DIODE,RGP15J
87-017-654-060 DIODE,GBU6JL6131
87-A40-856-080 DIODE,UF4007
87-A40-828-080 DIODE,AK 04
87-A40-825-090 DIODE,RN 1Z
87-A40-734-010 DIODE,FML-G12S
87-A40-354-090 DIODE,UF3GL-6251
8Z-JBH-606-010 VRIS,TNR15G271K
87-A40-553-080 DIODE,1N4003 LES
87-017-650-080 DIODE,1SS119
87-A40-503-080 ZENER,MTZJ39B
MAIN C.B
C001 87-010-405-080 CAP,E 10-50 M 11L SME
C002 87-018-209-080 CAP,TC U 0.1-50 Z F UP050
C003 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C004 87-018-127-080 CAP,TC U 470P-50 K B UP050
C005 87-010-401-080 CAP,E 1-50 M 11L SME
C006 87-018-209-080 CAP,TC U 0.1-50 Z F UP050
C007 87-010-248-080 CAP,E 220-10 M 11L SME
C008 87-018-123-080 CAP,TC U 220P-50 K B UP050
C009 87-010-401-080 CAP,E 1-50 M 11L SME
C010 87-018-131-080 CAP,TC U 1000P-50 K B UP050
C011 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C012 87-018-119-080 CAP,TC U 100P-50 K B UP050
C013 87-018-119-080 CAP,TC U 100P-50 K B UP050
C014 87-010-263-080 CAP,E 100-10 M 11L SME
C015 87-018-119-080 CAP,TC U 100P-50 K B UP050
C016 87-018-131-080 CAP,TC U 1000P-50 K B UP050
C017 87-018-128-080 CAP,TC U 560P-50 K B UP050
C018 87-018-109-080 CAP,TC U 22P-50 J SL UP050
C019 87-018-109-080 CAP,TC U 22P-50 J SL UP050
C020 87-018-119-080 CAP,TC U 100P-50 K B UP050
C021 87-018-109-080 CAP,TC U 22P-50 J SL UP050
C022 87-018-109-080 CAP,TC U 22P-50 J SL UP050
C023 87-018-123-080 CAP,TC U 220P-50 K B UP050
C024 87-018-209-080 CAP,TC U 0.1-50 Z F UP050
C025 87-018-119-080 CAP,TC U 100P-50 K B UP050
C101 87-010-404-080 CAP,E 4.7-50 M 11L SME
C104 87-010-248-080 CAP,E 220-10 M 11L SME
C105 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C106 87-A10-207-080 CAP,TC U 0.01-50 K B UP050
C112 87-018-109-080 CAP,TC U 22P-50 J SL UP050
C113 87-018-109-080 CAP,TC U 22P-50 J SL UP050
C201 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C202 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C203 87-010-400-080 CAP,E 0.47-50 M 11L SME
C204 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C205 87-010-237-080 CAP,E 1000-16 M SME
C206 87-A10-287-080 CAP,M 2200P-50 J
C207 87-010-400-080 CAP,E 0.47-50 M 11L SME
C208 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C209 87-010-385-080 CAP,E 220-25 M SME
C210 87-A11-080-080 CAP,TC U 47P-50 J CH
C211 87-A11-080-080 CAP,TC U 47P-50 J CH
C212 87-A11-080-080 CAP,TC U 47P-50 J CH
C213 87-A11-082-080 CAP,TC U 56P-50 J CH
C214 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C229 87-018-149-080 CAP,TC U 15P-50 J CH UP050
C301 87-010-403-080 CAP,E 3.3-50 M 11L SME
C302 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C305 87-018-126-080 CAP,TC U 390P-50 K B UP050
C306 87-010-405-080 CAP,E 10-50 M 11L SME
C307 87-A10-299-080 CAP,M 0.022-50 J
C308 87-010-401-080 CAP,E 1-50 M 11L SME
C309 87-018-147-080 CAP,TC U 10P-50 J CH UP050
C311 87-018-209-080 CAP,TC U 0.1-50 Z F UP050
C312 87-018-209-080 CAP,TC U 0.1-50 Z F UP050
C313 87-018-209-080 CAP,TC U 0.1-50 Z F UP050
C314 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C315 87-018-123-080 CAP,TC U 220P-50 K B UP050
C317 87-010-402-080 CAP,E 2.2-50 M 11L SME
C318 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C319 87-010-237-080 CAP,E 1000-16 M SME
C321 87-010-404-080 CAP,E 4.7-50 M 11L SME
C322 87-A10-295-080 CAP,M 0.01-50 J
C323 87-016-280-080 CAP,E 3.3-50 M BP SME
C324 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C325 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C326 87-A10-307-080 CAP,M 0.1-50 J
C327 87-018-134-080 CAP,TC U 0.01-16 N Y UP050

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
– 10 –
!
C328 87-010-405-080 CAP,E 10-50 M 11L SME
C329 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C330 87-010-401-080 CAP,E 1-50 M 11L SME
C331 87-010-544-080 CAP,E 0.1-50 M 11L SME
C332 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C333 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C334 87-018-209-080 CAP,TC U 0.1-50 Z F UP050
C335 87-015-997-010 CAP,E 2200-16 M SME
C336 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C337 87-018-130-080 CAP,TC U 820P-50 K B UP050
C338 87-010-405-080 CAP,E 10-50 M 11L SME
C339 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C340 87-018-118-080 CAP,TC U 82P-50 J B UP050
C341 87-018-118-080 CAP,TC U 82P-50 J B UP050
C342 87-018-150-080 CAP,TC U 18P-50 J CH UP050
C343 87-A10-307-080 CAP,M 0.1-50 J
C344 87-A10-307-080 CAP,M 0.1-50 J
C501 87-010-405-080 CAP,E 10-50 M 11L SME
C504 87-010-393-080 CAP,E 100-35 M SME
C505 87-018-131-080 CAP,TC U 1000P-50 K B UP050
C508 87-010-398-090 CAP,E 2200-35 M SME
C509 87-A11-245-080 CAP,M/P 0.1-100 J TF-ECQV
C510 87-010-405-080 CAP,E 10-50 M 11L SME
C605 87-A10-972-090 CAP,M/P 0.015-1.25K H DKRG
C607 87-A12-351-090 CAP,M/P 0.013-800 H DKRG
C608 87-A10-833-010 CAP,CER 1000P-2K K R LONG
C609 87-A10-975-090 CAP,M/P 0.68-250 J
C610 87-A10-833-010 CAP,CER 1000P-2K K R LONG
C611 87-010-963-080 CAP,E 2.2-160 M 11L SME
C612 87-010-976-080 CAP,CER 1000P-500 K B DD10
C613 87-016-373-080 CAP,E 10-250 M SME
C614 87-010-976-080 CAP,CER 1000P-500 K B DD10
C615 87-A10-843-080 CAP,CER 680P-1K K R
C616 87-A10-843-080 CAP,CER 680P-1K K R
C617 87-A12-082-090 CAP,E 1000-35 SMG
C618 87-A10-301-080 CAP,M 0.033-50 J
C619 87-A11-987-080 CAP,CER 6800P-250 K R HR
C620 87-010-395-080 CAP,E 330-35 M SME
C621 87-018-131-080 CAP,TC U 1000P-50 K B UP050
C622 87-A11-124-080 CAP,TC U 2200P-50 K B
C623 87-A12-171-080 CAP,E 4.7-50 K SH
C624 87-010-975-080 CAP,CER 330P-500 K B DD10
C626 87-010-405-080 CAP,E 10-50 M 11L SME
C627 87-010-975-080 CAP,CER 330P-500 K B DD10
C629 87-A10-469-080 CAP,CER 2200P-500 K B DD10
C630 87-010-405-080 CAP,E 10-50 M 11L SME
C631 87-010-263-080 CAP,E 100-10 M 11L SME
C655 87-A11-354-090 CAP,E 100-160 M SMG
C714 87-010-221-080 CAP,E 470-10 M SME
C720 87-015-464-080 CAP,E 4.7-16 BP
C721 87-A10-292-080 CAP,M 5600P-50 J
C722 87-A10-296-080 CAP,M 0.012-50 J
C723 87-010-401-080 CAP,E 1-50 M 11L SME
C724 87-010-404-080 CAP,E 4.7-50 M 11L SME
C725 87-010-405-080 CAP,E 10-50 M 11L SME
C726 87-010-404-080 CAP,E 4.7-50 M 11L SME
C727 87-010-112-080 CAP,E 100-16 M 11L SME
C728 87-015-464-080 CAP,E 4.7-16 BP
C729 87-010-404-080 CAP,E 4.7-50 M 11L SME
C730 87-015-464-080 CAP,E 4.7-16 BP
C731 87-A10-288-080 CAP,M 2700P-50 J
C733 87-016-301-080 CAP,TN 3.3-16 K DN
C734 87-015-464-080 CAP,E 4.7-16 BP
C735 87-016-302-080 CAP,TN 10-16 K DN
C736 87-010-401-080 CAP,E 1-50 M 11L SME
C737 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C802 87-018-131-080 CAP,TC U 1000P-50 K B UP050
C804 87-A11-308-090 CAP,M/P 0.033-630 J ECQF6(ZH)
C805 87-A10-846-080 CAP,CER 3300P-1K K R
C806 87-A12-298-090 CAP,E 820-200 M 25B SMH
C807 87-A10-568-010 CAP,PP 1000P-630 J APH
C808 87-010-384-080 CAP,E 100-25 M 11L SME
C809 87-018-131-080 CAP,TC U 1000P-50 K B UP050
C810 87-018-129-080 CAP,TC U 680P-50 K B UP050
C811 87-018-131-080 CAP,TC U 1000P-50 K B UP050
C813 87-018-131-080 CAP,TC U 1000P-50 K B UP050
C814 87-010-260-080 CAP,E 47-25 M 11L SME
C815 87-010-260-080 CAP,E 47-25 M 11L SME
C816 87-010-405-080 CAP,E 10-50 M 11L SME
C817 87-010-398-090 CAP,E 2200-35 M SME
C818 87-018-209-080 CAP,TC U 0.1-50 Z F UP050
C820 87-010-405-080 CAP,E 10-50 M 11L SME
C821 87-010-405-080 CAP,E 10-50 M 11L SME
C822 87-018-209-080 CAP,TC U 0.1-50 Z F UP050
C824 87-010-237-080 CAP,E 1000-16 M SME
C826 87-010-976-080 CAP,CER 1000P-500 K B DD10
C829 87-010-384-080 CAP,E 100-25 M 11L SME
C831 87-010-405-080 CAP,E 10-50 M 11L SME
C834 87-A10-733-090 CAP,E 220-160 M SK
C835 87-A10-833-010 CAP,CER 1000P-2K K R LONG
C838 87-010-397-010 CAP,E 1000-35 M SME
C842 87-012-370-010 CAP,CER 3300P-250 M E ECKD
C843 87-012-370-010 CAP,CER 3300P-250 M E ECKD
C844 87-012-370-010 CAP,CER 3300P-250 M E ECKD
C845 87-012-370-010 CAP,CER 3300P-250 M E ECKD
C846 87-A10-207-080 CAP,TC U 0.01-50 K B UP050
CF201 84-LB3-626-080 FLTR,TPS4.5MB2
CF202 84-LB3-627-080 FLTR,SFSH 4.5MDB SIF
CN001 87-009-195-010 CONN,5P V WHT EH
CN601 87-099-762-010 CONN,5P V TBL-P BOSS
CN701 87-A60-628-010 CONN,11P V 2MM JMT
CN705 87-009-262-010 CONN,8P V 52147
CN706 87-099-186-010 CONN,6P V WHT EH
CN707 87-A61-126-080 MALE, 1P TP42097
CN807 82-481-649-010 CONN,2P V VT-50P
CNA101 8Z-JE5-637-010 CONN ASSY,1P PS-MAIN
CNA103 8A-JE5-627-010 CONN ASSY,2P MAIN-S
CNA602 8Z-JE5-632-010 CONN ASSY,5P V WHT TV-NK-1
CNA604 8Z-JE5-638-010 CONN ASSY,1P FBT-PS
CNA704 8A-JE5-617-010 CONN ASSY,6P V WHT TV-NK-2
CNA801 8A-JE5-619-010 CONN ASSY,3P V MAIN-PS
CNA803 8Z-JE5-636-010 CONN ASSY,2P PS-MAIN 5V
FB001 87-008-372-080 FLTR,EMI BL01 RN1
FB002 87-008-372-080 FLTR,EMI BL01 RN1
FB003 87-008-372-080 FLTR,EMI BL01 RN1
FB004 87-008-372-080 FLTR,EMI BL01 RN1
FB005 87-008-372-080 FLTR,EMI BL01 RN1
FB006 87-008-372-080 FLTR,EMI BL01 RN1
FB007 87-008-372-080 FLTR,EMI BL01 RN1
FB301 87-003-320-080 F-BEAD,-9.0 FBR07HA121NB-00
FB601 87-003-223-080 F-BEAD, BL02RN2
FB602 87-003-223-080 F-BEAD, BL02RN2
FB801 87-003-320-080 F-BEAD,-9.0 FBR07HA121NB-00
FB802 87-003-320-080 F-BEAD,-9.0 FBR07HA121NB-00
FB803 87-003-320-080 F-BEAD,-9.0 FBR07HA121NB-00
FB804 87-003-320-080 F-BEAD,-9.0 FBR07HA121NB-00
FB805 87-003-320-080 F-BEAD,-9.0 FBR07HA121NB-00
FB806 87-003-320-080 F-BEAD,-9.0 FBR07HA121NB-00
FB807 87-003-320-080 F-BEAD,-9.0 FBR07HA121NB-00
FR601 87-029-158-060 RES,FUSE 1-1W J
FR608 87-A00-628-090 RES,FUSE 0.68-1W J RF 1SL12.5
FR610 87-A00-628-090 RES,FUSE 0.68-1W J RF 1SL12.5
FR801 87-A00-770-090 RES,FUSE 0.1-1W J RF1SL12.5
HL001 84-LB3-216-010 HLDR,LED
J702 87-A60-324-110 JACK,PIN 6P Y-W-R W/SW
L002 87-005-614-080 COIL,100UH J LAV35
L003 87-005-614-080 COIL,100UH J LAV35
L101 87-005-614-080 COIL,100UH J LAV35
L201 8Z-JBR-612-010 COIL,SIF 4.5MHZ 504BN
L203 87-005-612-080 COIL,68UH J LAV35
!
!
!
!

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
– 11 –
!
!
!
!
!
!
!
!
!
L204 87-003-282-080 COIL,12UH J LAL02
L205 8Z-JBH-610-010 COIL,PIF-SQ57EL349A 45.75MHZ
L206 87-005-614-080 COIL,100UH J LAV35
L207 87-003-147-080 COIL,22UH J LAL02
L208 87-003-143-080 COIL,4.7UH K LAL02
L301 87-003-097-080 COIL,1.0UH K LAL02
L302 87-005-614-080 COIL,100UH J LAV35
L303 87-005-614-080 COIL,100UH J LAV35
L304 87-003-282-080 COIL,12UH J LAL02
L604 87-A50-607-080 COIL,3.9MH J LHL10
L606 8Z-JE5-621-010 COIL,HLC ZJE-5
L607 87-A50-541-010 COIL,1MH 1.5AP-P
L701 87-005-614-080 COIL,100UH J LAV35
L801 87-A50-170-010 COIL,390UH RCH106
L803 87-A50-176-080 COIL,33UH-PJ87
PR601 87-A90-429-080 FUSE,1.25A 125V A 251
PR801 87-A90-409-080 FUSE,1.5A 125V A 251
PR802 87-A90-210-080 FUSE,7A 125V 251
PR803 87-A90-070-080 FUSE,3.5A 125V 251
PS801 87-A90-717-010 P-COUPLER,PC123FY2
PT801 8A-JE5-622-010 PT,U SW AJE-5
R315 87-025-380-080 RES,M/F 15K-1/6W F
R316 87-025-427-080 RES,M/F 27K-1/6W F
R506 87-A00-143-090 RES,M/F 1.0-1W J RSF(S)
R508 87-A00-653-090 RES,M/F 270-1W J RSF(S)
R604 87-A00-565-090 RES,M/F 1.2K-7W J RSU7
R612 87-A00-629-090 RES,M/F 5.6-1W J RSF(S)
R626 87-A00-676-090 RES,M/F 100-7W J RSV7
R723 87-A00-130-080 RES,M/F 62K-1/6W F
R801 87-A00-661-010 RES,CEM 27-2W J BGR2U
R802 87-A00-160-090 RES,M/F 33-2W J RSF(S)
R803 87-A00-356-090 RES,M/F 22-2W J RSS2X
R804 87-A00-633-090 RES,CEM 0.47-10W J RGC
R805 87-A00-170-090 RES,M/F 82K-3W J RSF(S)
R806 87-A00-380-090 RES,M/F 39K-3W J RSS H2
R811 87-A00-646-090 RES,CEM 0.1-5W K RGC5
R824 87-A00-315-090 RES,M/F 1K-1W J RSF(S)
R833 87-A00-199-090 RES,M/F 12K-3W J RSF(S)
R834 87-A00-223-090 RES,M/F 47K-2W J RSF(S)
R844 87-A00-254-090 RES,M/F 0.68-2W J
RY801 87-A91-390-010 RELAY,AC12V G5PA-1-8
S002 87-A91-525-080 SW,TACT SKQNLA
S003 87-A91-525-080 SW,TACT SKQNLA
S004 87-A91-525-080 SW,TACT SKQNLA
S005 87-A91-525-080 SW,TACT SKQNLA
S006 87-A91-525-080 SW,TACT SKQNLA
S007 87-A91-525-080 SW,TACT SKQNLA
S801 87-A91-410-010 SW,AC PUSH 1-1-1 ESB92SH1B
SFR501 87-024-429-080 SFR,1K H RH063MC
SFR601 87-024-434-080 SFR,22K H RH063MC
SFR602 87-024-429-080 SFR,1K H RH063MC
SFR603 87-A90-385-080 SFR,22K H DIA6 EVM
SWF201 8Z-JBH-633-010 FLTR,SAW M1969M
T601 8Z-JE5-606-010 FBT,D NX-4523 ZJE-5
T602 85-JT2-653-010 PT,HDT-TV141-2
TH801 87-A91-579-010 POS-THMS,PTH451BG3R0Q140
TU101 8Z-JBE-610-010 TU UNIT,USA ENV56D74G3
X001 87-A70-124-080 VIB,CER 8.0MHZ
X301 87-A70-007-080 VIB,XTAL 3.58MHZ AQC-1001
X302 87-030-327-010 VIB,CER 503.500KHZ CSB F30

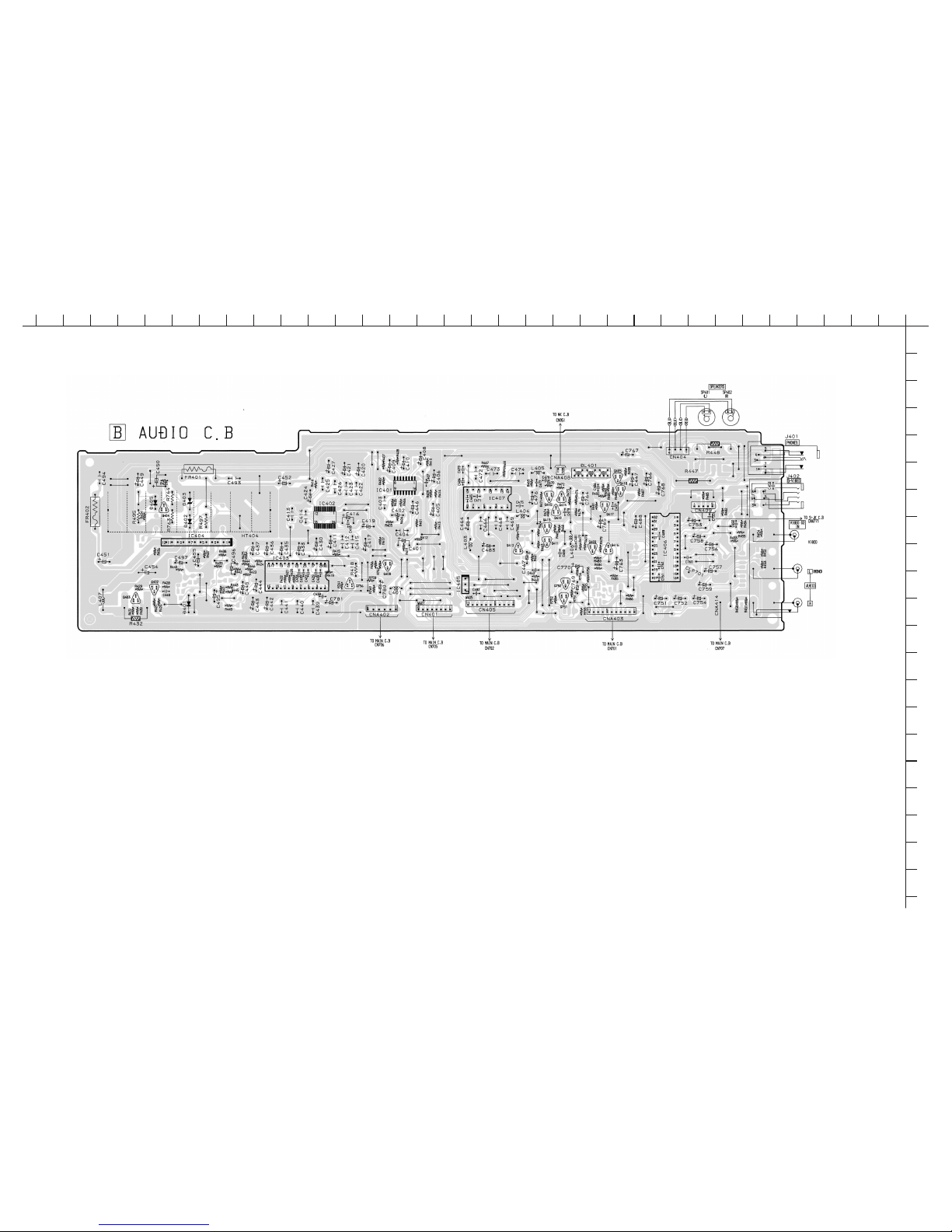

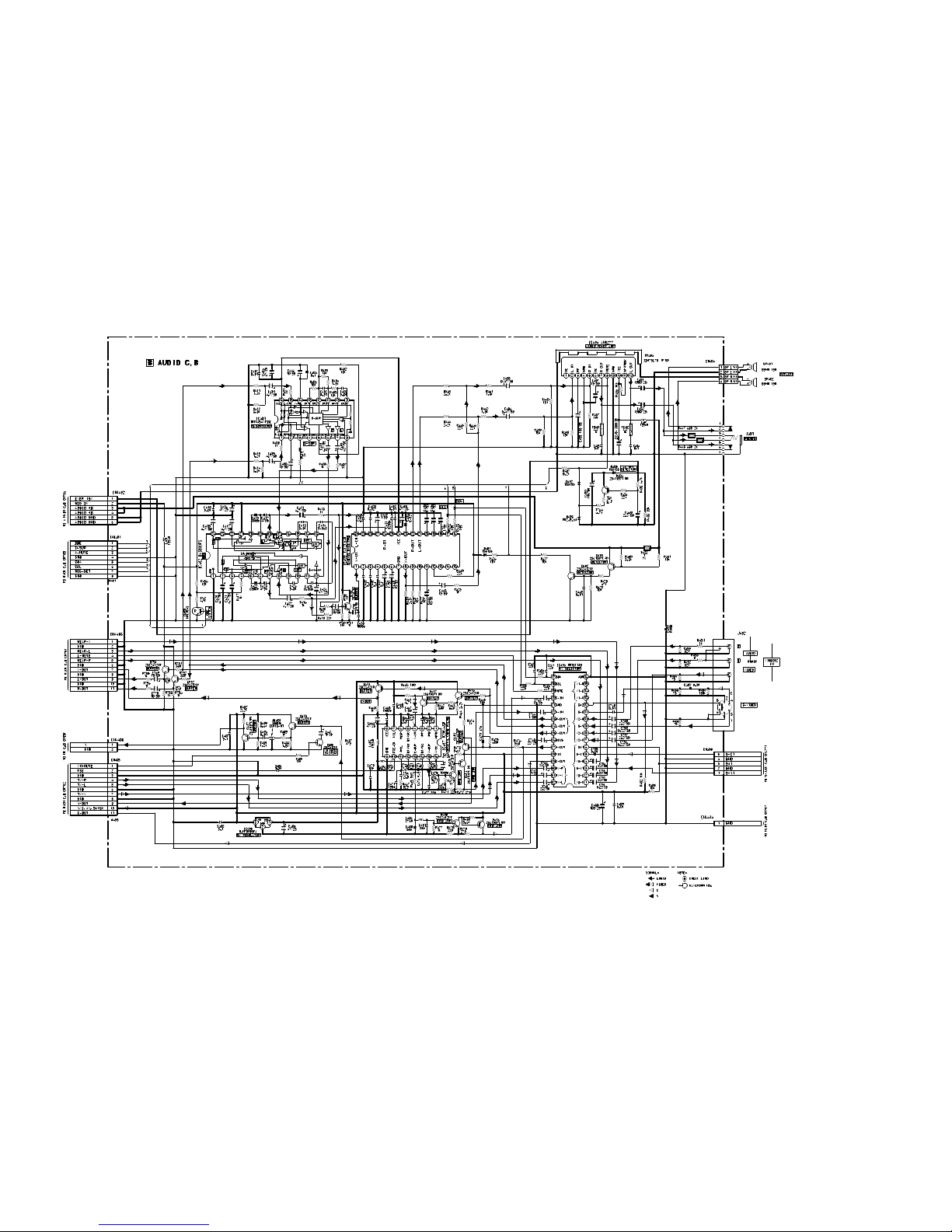

AUDIO C.B
C401 87-010-404-080 CAP,E 4.7-50 M 11L SME
C402 87-A10-295-080 CAP,M 0.01-50 J
C403 87-A10-295-080 CAP,M 0.01-50 J
C404 87-A10-307-080 CAP,M 0.1-50 J
C405 87-010-404-080 CAP,E 4.7-50 M 11L SME
C406 87-010-260-080 CAP,E 47-25 M 11L SME
C407 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C408 87-010-405-080 CAP,E 10-50 M 11L SME
C409 87-010-404-080 CAP,E 4.7-50 M 11L SME
C410 87-010-404-080 CAP,E 4.7-50 M 11L SME
C411 87-010-404-080 CAP,E 4.7-50 M 11L SME
C413 87-A10-295-080 CAP,M 0.01-50 J
C414 87-A10-305-080 CAP,M 0.068-50 J
C415 87-A10-293-080 CAP,M 6800P-50 J
C416 87-010-260-080 CAP,E 47-25 M 11L SME
C417 87-010-404-080 CAP,E 4.7-50 M 11L SME
C418 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C419 87-010-404-080 CAP,E 4.7-50 M 11L SME
C420 87-010-404-080 CAP,E 4.7-50 M 11L SME
C421 87-010-404-080 CAP,E 4.7-50 M 11L SME
C422 87-A10-293-080 CAP,M 6800P-50 J
C424 87-010-260-080 CAP,E 47-25 M 11L SME
C425 87-A10-305-080 CAP,M 0.068-50 J
C426 87-A10-295-080 CAP,M 0.01-50 J
C427 87-010-404-080 CAP,E 4.7-50 M 11L SME
C428 87-010-189-080 C-CAP,S 8200P-50 K B
C429 87-012-365-080 C-CAP,S 0.027-25 K B
C430 87-010-401-080 CAP,E 1-50 M 11L SME
C431 87-010-189-080 C-CAP,S 8200P-50 K B
C432 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C433 87-010-260-080 CAP,E 47-25 M 11L SME
C434 87-012-365-080 C-CAP,S 0.027-25 K B
C435 87-010-401-080 CAP,E 1-50 M 11L SME
C436 87-010-401-080 CAP,E 1-50 M 11L SME
C437 87-010-401-080 CAP,E 1-50 M 11L SME
C438 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C439 87-A10-307-080 CAP,M 0.1-50 J
C440 87-A10-307-080 CAP,M 0.1-50 J
C441 87-A10-307-080 CAP,M 0.1-50 J
C442 87-010-401-080 CAP,E 1-50 M 11L SME
C443 87-010-405-080 CAP,E 10-50 M 11L SME
C444 87-010-405-080 CAP,E 10-50 M 11L SME
C445 87-010-405-080 CAP,E 10-50 M 11L SME
C446 87-010-405-080 CAP,E 10-50 M 11L SME
C447 87-010-405-080 CAP,E 10-50 M 11L SME
C448 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C449 87-010-402-080 CAP,E 2.2-50 M 11L SME
C450 87-010-247-080 CAP,E 100-50 M SME
C451 87-010-388-080 CAP,E 1000-25 M SME
C452 87-010-388-080 CAP,E 1000-25 M SME
C453 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C454 87-010-399-090 CAP,E 3300-35 M SME
C455 87-010-393-080 CAP,E 100-35 M SME
C460 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C464 87-010-260-080 CAP,E 47-25 M 11L SME
C465 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C466 87-A10-295-080 CAP,M 0.01-50 J
C467 87-010-401-080 CAP,E 1-50 M 11L SME
C468 87-A10-295-080 CAP,M 0.01-50 J
C469 87-A10-295-080 CAP,M 0.01-50 J
C470 87-010-154-080 C-CAP,S 10P-50 D CH GRM
C471 87-012-155-080 C-CAP,S 180P-50 J CH GRM
C472 87-A10-295-080 CAP,M 0.01-50 J
C473 87-A10-295-080 CAP,M 0.01-50 J
C474 87-A10-295-080 CAP,M 0.01-50 J
C475 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C476 87-010-260-080 CAP,E 47-25 M 11L SME
C477 87-010-316-080 C-CAP,S 33P-50 J CH GRM
C478 87-010-316-080 C-CAP,S 33P-50 J CH GRM
C479 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C480 87-010-316-080 C-CAP,S 33P-50 J CH GRM
C481 87-010-316-080 C-CAP,S 33P-50 J CH GRM
C482 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C483 87-010-260-080 CAP,E 47-25 M 11L SME
C484 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C486 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C487 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
!

KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
– 12 –
C488 87-010-384-080 CAP,E 100-25 M 11L SME
C489 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C492 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C493 87-A10-307-080 CAP,M 0.1-50 J
C494 87-A10-307-080 CAP,M 0.1-50 J
C495 87-010-400-080 CAP,E 0.47-50 M 11L SME
C496 87-010-400-080 CAP,E 0.47-50 M 11L SME
C497 87-010-405-080 CAP,E 10-50 M 11L SME
C751 87-010-545-080 CAP,E 0.22-50 M 11L SME
C752 87-010-402-080 CAP,E 2.2-50 M 11L SME
C753 87-010-545-080 CAP,E 0.22-50 M 11L SME
C754 87-010-402-080 CAP,E 2.2-50 M 11L SME
C755 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C756 87-010-545-080 CAP,E 0.22-50 M 11L SME
C757 87-010-402-080 CAP,E 2.2-50 M 11L SME
C758 87-010-545-080 CAP,E 0.22-50 M 11L SME
C759 87-010-402-080 CAP,E 2.2-50 M 11L SME
C760 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C761 87-010-314-080 C-CAP,S 22P-50 J CH GRM
C762 87-010-314-080 C-CAP,S 22P-50 J CH GRM
C763 87-010-405-080 CAP,E 10-50 M 11L SME
C764 87-010-401-080 CAP,E 1-50 M 11L SME
C765 87-010-382-080 CAP,E 22-25 M 11L SME
C766 87-010-402-080 CAP,E 2.2-50 M 11L SME
C767 87-010-401-080 CAP,E 1-50 M 11L SME
C768 87-010-402-080 CAP,E 2.2-50 M 11L SME
C769 87-010-405-080 CAP,E 10-50 M 11L SME
C770 87-010-405-080 CAP,E 10-50 M 11L SME
C780 87-010-405-080 CAP,E 10-50 M 11L SME
C781 87-010-405-080 CAP,E 10-50 M 11L SME
CN401 87-009-314-010 CONN,8P V 51048
CN404 8Z-JE5-640-010 CONN ASSY,4P SP-25
CN404 87-049-469-010 CONN,4P V WHT EH
CN405 87-009-317-010 CONN,11P V 51048
CN409 87-009-033-010 CONN,5P V WHT PH
CNA402 8A-JE7-610-010 CONN ASSY,6P V WHT AU-MAIN
CNA403 8A-JE7-611-010 CONN ASSY,11P V WHT AU-VD
CNA408 8Z-JE7-663-010 CONN ASSY,2P COMB-NK
CNA414 8A-JE7-626-010 CONN ASSY,1P AU-MAIN
DL401 87-A91-598-010 DELAY LINE,350NS EQFK5-MT
FR401 87-A00-478-090 RES,FUSE 2.2-1W J
FR402 87-A00-478-090 RES,FUSE 2.2-1W J
J401 87-A60-420-010 JACK,3.5 ST (MSC)
J402 87-A61-296-010 JACK,PIN 3P +S ALL GOLD YKC22-
L401 87-005-614-080 COIL,100UH J LAV35
L403 87-005-614-080 COIL,100UH J LAV35
L404 87-005-614-080 COIL,100UH J LAV35
L405 87-003-284-080 COIL,27UH J LAL02
L406 87-003-284-080 COIL,27UH J LAL02
L407 87-A50-555-010 COIL,100UH K 7212M-101K
R432 87-A00-739-090 RES,M/F 1-7W K RSV7
R447 87-A00-667-090 RES,M/F 680-2W J RSF(S)
R448 87-A00-667-090 RES,M/F 680-2W J RSF(S)
W401 8A-JE7-612-010 F-CABLE,8P 2.0 70MM
W405 8A-JE7-613-010 F-CABLE,11P 2.0 70MM

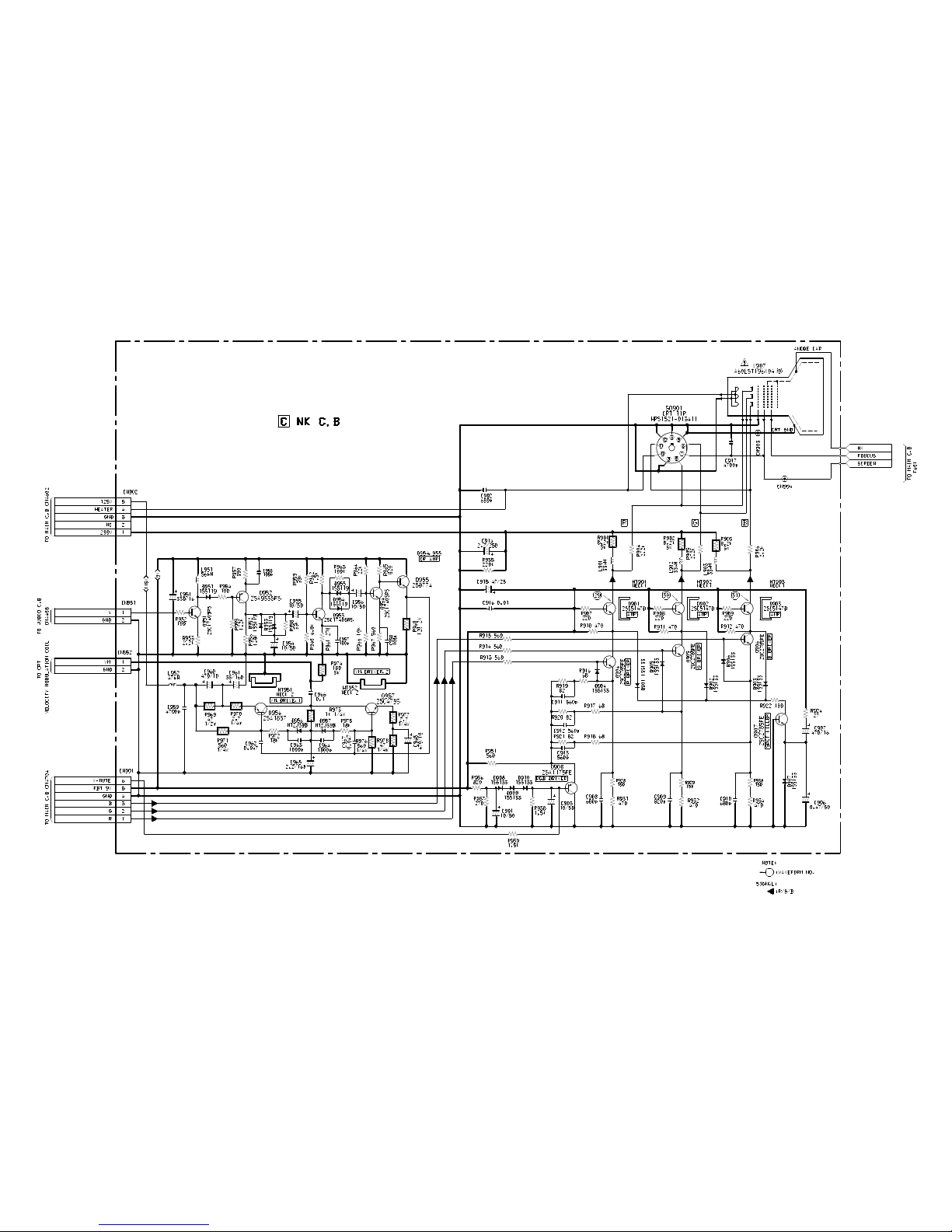

NK C.B
C901 87-010-405-080 CAP,E 10-50 M 11L SME
C902 87-010-968-080 CAP,CER 680P-2K K B
C903 87-010-405-080 CAP,E 10-50 M 11L SME
C906 87-010-400-080 CAP,E 0.47-50 M 11L SME
C907 87-010-235-080 CAP,E 470-16 M SME
C908 87-A11-108-080 CAP,TC U 680P-50 J CH
C909 87-A11-110-080 CAP,TC U 820P-50 J CH
C910 87-A11-108-080 CAP,TC U 680P-50 J CH
C911 87-A11-106-080 CAP,TC U 560P-50 J CH
C912 87-A11-106-080 CAP,TC U 560P-50 J CH
C913 87-A11-106-080 CAP,TC U 560P-50 J CH
C914 87-A10-052-080 CAP,E 2.2-250
C915 87-010-260-080 CAP,E 47-25 M 11L SME
C916 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C917 87-010-970-090 CAP,CER 4700P-2K K B DE
C951 87-010-381-080 CAP,E 330-16 M SME
C953 87-018-119-080 CAP,TC U 100P-50 K B UP050
C954 87-010-405-080 CAP,E 10-50 M 11L SME
C955 87-010-405-080 CAP,E 10-50 M 11L SME
C956 87-010-405-080 CAP,E 10-50 M 11L SME
C957 87-018-122-080 CAP,TC U 180P-50 K B UP050
C958 87-018-119-080 CAP,TC U 100P-50 K B UP050
C959 87-A10-050-010 CAP,CER 4700P-500 K
C960 87-010-221-080 CAP,E 470-10 M SME
C961 87-A12-168-080 CAP,E 33-160 M SMG
C962 87-A12-010-080 CAP,M/P 0.047-250 J ECQE2
C963 87-A10-283-080 CAP,M 1000P-50 J
C964 87-A10-283-080 CAP,M 1000P-50 J
C965 87-010-963-080 CAP,E 2.2-160 M 11L SME
C966 87-A12-014-080 CAP,M/P 0.1-250 J ECQE2
C967 87-A10-303-080 CAP,M 0.047-50 J
C968 87-010-221-080 CAP,E 470-10 M SME
CN901 87-009-034-010 CONN,6P V WHT PH
CN902 87-009-195-010 CONN,5P V WHT EH
CN903 87-A61-126-080 MALE, 1P TP42097
CN904 87-A61-060-080 CONN,1P V RED TP00706
CN951 87-009-030-010 CONN,2P V WHT PH
CN952 8A-JE7-620-010 CONN ASSY,2P VM-NK
CN952 87-099-043-010 CONN,2P V WHT EH
L901 87-005-608-080 COIL,33UH J LAV35
L902 87-005-608-080 COIL,33UH J LAV35
L903 87-005-608-080 COIL,33UH J LAV35
L951 87-005-482-080 COIL,56UH J FLR50
L952 87-005-481-080 COIL,47UH J FLR50
R901 87-A00-242-090 RES,M/F 8.2K-3W J RSF(S)
R902 87-A00-242-090 RES,M/F 8.2K-3W J RSF(S)
R903 87-A00-242-090 RES,M/F 8.2K-3W J RSF(S)
R968 87-022-382-090 RES,M/F 120-2W J
R969 87-A00-638-080 RES,M/F 47-1/2W J SPR
R970 87-A00-634-080 RES,M/F 2.7-1/4W J SPR
R971 87-A00-636-080 RES,M/F 560-1/4W J SPR
R973 87-A00-637-080 RES,M/F 1K-1/4W J SPR
R974 87-022-556-090 RES,M/F 180-3W J
R976 87-A00-636-080 RES,M/F 560-1/4W J SPR
R977 87-A00-634-080 RES,M/F 2.7-1/4W J SPR
R978 87-A00-635-080 RES,M/F 47-1/4W J SPR
SO901 8A-JE7-670-010 SOCKET,CRT 11P HPS1521-013411

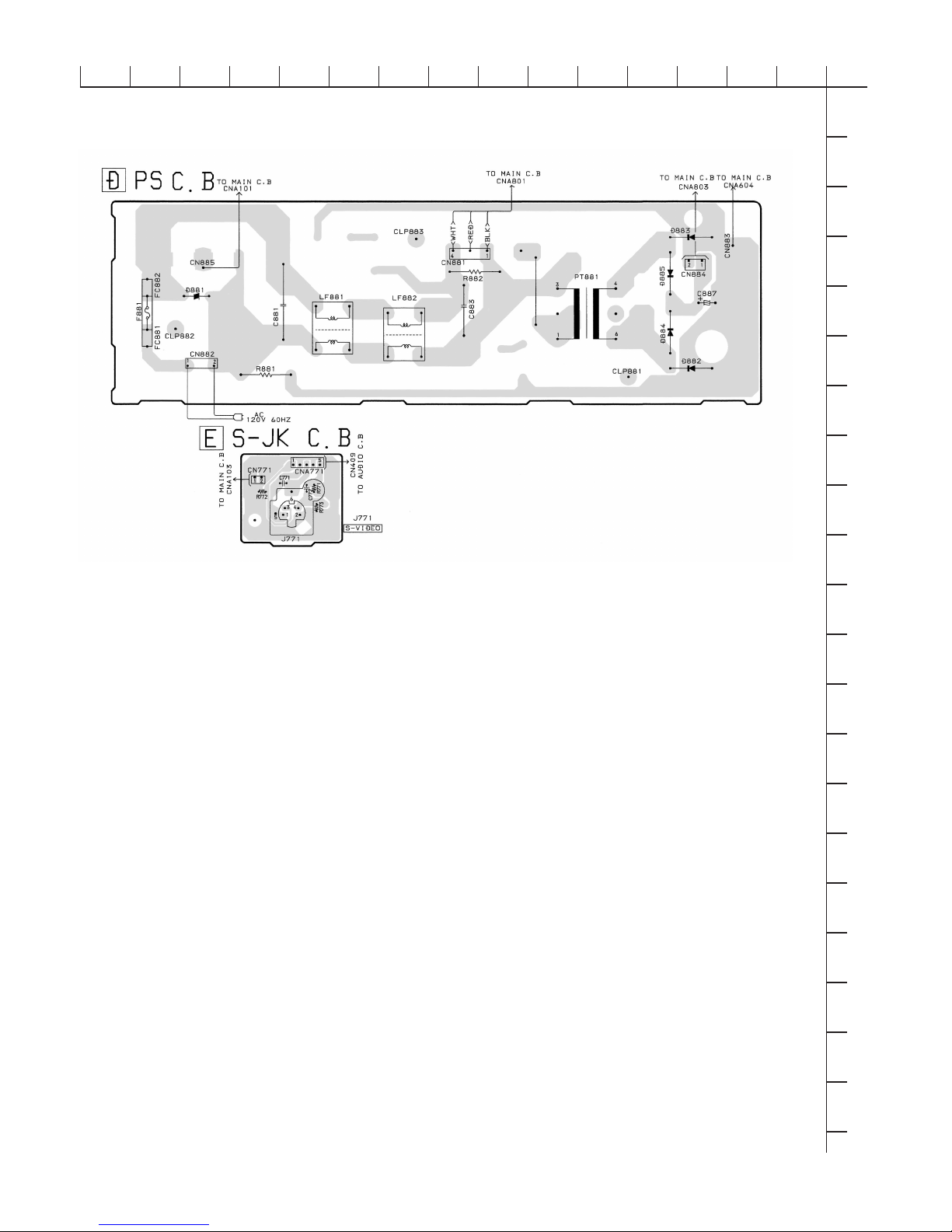

S-JK C.B
C771 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C772 87-010-197-080 C-CAP,S 0.01-25 K B C2012
CN771 87-009-345-010 CONN,2P H WHT PH
CNA771 8Z-JE5-631-010 CONN ASSY,5P S-JK
J771 87-A61-174-010 JACK,Y/CYKF51-5558
PS C.B
!C881 87-A10-688-090 CAP,M/P 0.22-275 K (B81133)
!C883 87-A10-688-090 CAP,M/P 0.22-275 K (B81133)
C887 87-010-388-080 CAP,E 1000-25 M SME
CN881 87-A61-299-010 CONN,4P B 5-VB
CN882 87-099-674-010 CONN,2P V VA
CN883 87-A61-126-080 MALE, 1P TP42097
CN884 87-A60-937-010 CONN,2P V VH
CN885 87-A61-126-080 MALE, 1P TP42097
F881 87-A91-106-010 FUSE,5A 125V T SER233
FC881 87-033-213-080 FUSE CLAMP,PFC5000
FC882 87-033-213-080 FUSE CLAMP,PFC5000
LF881 87-A91-453-010 FLTR,LINE PLH10A7003R6P02B1
LF882 87-A91-626-010 FLTR,LINE ELF21V018A
PT881 8Z-JBH-614-010 PT,US TP8155T
R881 87-023-102-080 RES,SD 4.7M-1/2W K
!
!
!
!
!
!
!
!
!

– 13 –
TRANSISTOR ILLUSTRATION
E C B
2SA1091-O
2SC1815
2SC2482
2SA1837
2SC4793
2SD2531
2SA933S
2SA1175FE
2SC1740SRS
2SC2785FE
B C E
E
B
C
E C B
2SA1037
2SC2412K
KRC104S
2SD2580
B C E
B C E
2SC5147D
2SA1015Y
E C B
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
2SD774
DTA114ES
DTA144ES
DTC144ES

WIRING – 1 (MAIN)
– 14 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

– 15–

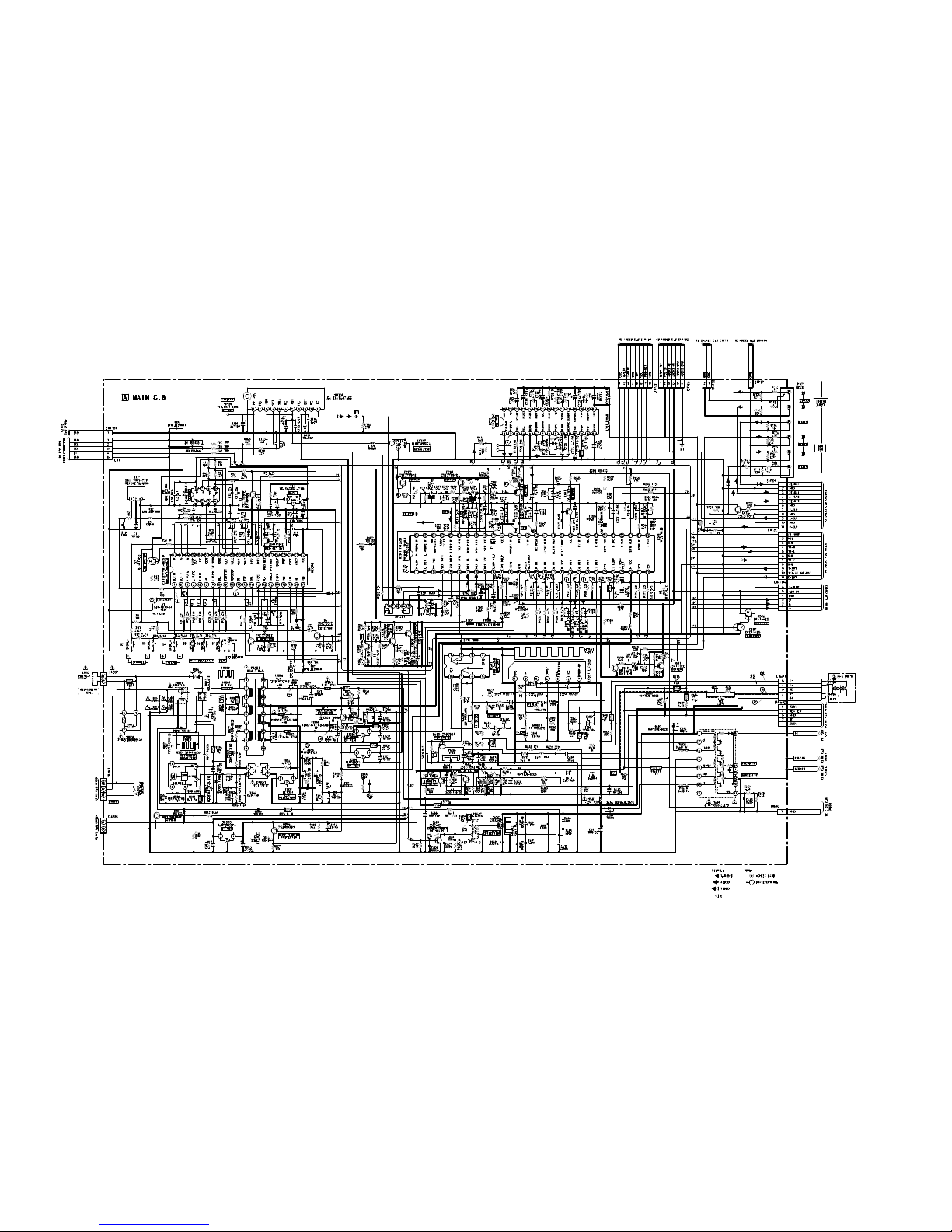

SCHEMATIC DIAGRAM–1(MAIN)

WIRING – 2 (AUDIO)
– 16–
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

– 17–
SCHEMATIC DIAGRAM– 2(AUDIO)

WIRING – 3 (NK)
– 18 –
123456789101112131415
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

– 19–
SCHEMATIC DIAGRAM–3 (NK)

WIRING – 3 (PS / S-JK)
– 20 –
123456789101112131415
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
