SERVICE MANUAL
DATA
COLOR TELEVISION
TV-S2011 U
S/M Code No. 09-011-416-8S3
SUPPLEMENT
• This Service Manual contains information about the difference between
TV-S2011 (U5AL) and TV-S2011 (U). If requiring other information, see
Service Manual of TV-S2011 (U), (S/M Code No. 09-99C-416-8R2).

– 2 –
Tuner System Frequency synthesized tuner
TV System NTSC-M
Channel Coverage VHF: 2 to 13
UHF: 14 to 69
CATV: 5A, A-1 to A-5, A to W,
W+1 to W+84
Program Memory 181
Antenna Input 75 ohms, unbalanced
Picture Tube 20"
Screen Size 406 (W) X 305 (H) mm
(16 x 121/8in.)
508 mm (diagonal) (20 in.)
Video Input 1 Vp-p 75 ohms
Audio Input 0.5 Vrms., 33 k ohms more
Speaker 103 X 45 mm (41/8X 113/16 in.)
Operating Voltage 120 V AC, 60 Hz
Power Consumption 85 W
Phones Jack Stereo-mini jack
Operating Temperature 5°C – 40°C
Operating Humidity 35% – 80%
Dimensions 580 (W) X425 (H) X 491 (D) mm
(227/8x 163/4x 193/8in.)
Weight 22 kg (48.4 lbs.)
SPECIFICATIONS
• Design and specifications are subject to change without notice.
ACCESSORIES / PACKAGE LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
2 8Z-JBE-910-210 IB,U(ESF) S2011/1311 -NEW

– 3 –
When servicing and checking on the TV, note the followings.
NOTICES BEFORE REPAIRING
To make the best use of this equipment, make sure to
obey the following items when repairing (or mending).
1. Do not damage or melt the tunicate of the leading
wire on the AC1 side, including the power supply
cord.
2. Do not soil or stain the letters on the spec.
inscription plates, notice labels, fuse labels, etc.
3. When repairing the part extracted from the
conducted side of the board pattern, fix it firmly
with applying bond to the pattern and the part.
4. Restore the following items after repairing.
1) Conditions of soldering of the wires (especially,
the distance on the AC1 side).
2) Conditions of wiring, bundling of wires, etc.
3) Types of the wries.
4) Attachment conditions of all types of the insulation.
5. After repairing, always measure the insulation
resistance and perform the voltage-withstand test
(See Fig-1).
1) The insulation resistance must be 1.5 to 3.0 MΩ
when applying 500V per second.
2) In the voltage withstand test, apply 1 KV for 1
minute and check that the GO lamp lights.
* Breaking current set to 10 mA.
* Connect the safety checker as shown in Fig-1,
then measure the resistance and perform the test.
* Do not touch the equipment during testing.
* For details of the safety checker, refer to the supplied
Operation manual.
not to get close to the pyrogenic parts and high
voltage parts. Therefore, put these parts in the
original positions.
5. Take care of the cathode-ray tube.
By setting an explosion-proof cathode-ray tube in this
equipment, safety is secured against implosion.
However, when removing it or servicing from the
back, it gives out shock that is dangerous. Take
enough care to deal with it.
6. Avoid an X-ray.
Safety is secured against an X-ray by giving
considerations to the cathode-ray tube and the high
voltage peripheral circuit, etc. Therefore, when
repairing the high voltage peripheral circuit, use the
designated parts and do not change the circuit.
Repairing, except indicates, causes rising of high
voltage, and the cathode-ray tube emits an X-ray.
7. Perform a safety check after servicing.
Confirm that the screws, parts and wiring which were
removed in order to service are put in the original
positions, or whether there are deteriorated portions
around the places serviced.
Fig-1
Insulation resistance: 1.5 to 3.0 MΩ(500 V/s)
Voltage-withstand: 1 KV for 1 minute
1. Keep the notices.
As for the places which need special attentions, they
are indicated with labels or seals on the cabinet,
chassis and parts. Make sure to keep the indications
and notices in the operation manual.
2. Avoid an electric shock.
There is a high voltage part inside. Avoid an electric
shock while the electric current is flowing.
3. Use the designated parts.
The parts in this equipment have the specific
characteristics of incombustibility and withstand
voltage for safety.
Therefore, use a part which has the same character
as the replaced part. Especially as to the important
parts for safety which is indicated in the circuit
diagram or the table of parts with a mark, the
designated parts must be used.
4. Put parts and wires in the original position after
assembling or wiring.
There are parts which use the insulation material
such as a tube or tape for safety, or which are
assembled so that these parts do not make contact
with the printed board. The inside wiring is designed
!
Safety checker (Model 7110, etc.)
Earth cable
AC cable Connect the earth cable
to the outside metal part
terminal.
Safety Components Symbol
This symbol is given to important parts which serve to maintain the safety of the product, and which
are made to confirm to special Safety Specifications.
Therefore, when replacing a component with this symbol make absolutely sure that you use a
designated part.
!

– 4 –
!
!
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
IC
8Z-JBH-622-010 IC,M37272M8-183SP
87-A91-538-010 RCR UNIT,SBX1981-72P
87-A21-133-080 IC,BMR-0101D
87-A21-788-010 IC,KIA7809API
87-A21-239-010 IC,TA1201CN
87-A21-378-010 IC,S-24C04BDP-1A
87-002-421-010 IC,NJM2233BL
87-A21-090-010 IC,LA4600
87-027-666-010 IC,TC4052BP
87-070-237-010 IC,LA7832
8Z-JBH-605-010 IC,CXA2104S
87-A21-290-010 IC,STR30110
TRANSISTOR
87-026-269-080 TR,DTA114ES
89-327-854-080 TR,2SC2785F
89-111-755-080 TR,2SA1175F
89-110-154-080 TR,2SA1015Y
87-026-245-080 TR,DTC114ES
87-A30-176-010 TR,2SC1573A P/Q/R
89-320-012-080 TR,2SC2001L
87-A30-050-010 TR,2SD2499
DIODE
87-017-931-080 ZENER,MTZJ5.6B
87-002-743-080 ZENER,MTZJ 33B
87-070-136-080 ZENER,MTZJ5.1B
87-A40-523-080 ZENER,MTZJ9.1B
87-A40-348-080 ZENER,MTZJ3.3A
87-A40-611-080 ZENER,MTZJ3.9B
87-020-465-080 DIODE,1SS133
87-A40-520-080 ZENER,MTZJ11B
87-A40-286-080 DIODE,RGP10JE-5025
87-070-274-080 DIODE,1N4003 SEM
87-A40-824-090 DIODE,RU3LFB1
87-A40-328-010 DIODE,GBU4JL
MAIN C.B
BT301 87-JBC-625-010 CONN ASSY,5P V WHT TV-NK
BT601 87-JBG-626-010 CONN ASSY,4P V WHT TV-NK
C1 87-A12-091-080 CAP,E 10-50 SMG
C2 87-018-134-080 CAPACITOR,TC-U 0.01-16
C3 87-018-134-080 CAPACITOR,TC-U 0.01-16
C4 87-018-196-080 CAP, CER 1500P-16V
C5 87-A12-087-080 CAP,E 1-50 SMG
C7 87-A12-063-080 CAP,E 220-10 SMG
C15 87-018-123-080 CAP, CER 220P-50V
C16 87-A12-087-080 CAP,E 1-50 SMG
C17 87-018-131-080 CAP, CER 1000P-50V
C18 87-018-128-080 CAP, CERA-SOL SS 560P
C19 87-A12-083-080 CAP,E 0.1-50 SMG
C23 87-018-123-080 CAP, CER 220P-50V
C24 87-018-131-080 CAP, CER 1000P-50V
C101 87-A12-090-080 CAP,E 4.7-50 SMG
C104 87-A12-063-080 CAP,E 220-10 SMG
C201 87-018-134-080 CAPACITOR,TC-U 0.01-16
C202 87-018-134-080 CAPACITOR,TC-U 0.01-16
C203 87-A12-086-080 CAP,E 0.47-50 SMG
C204 87-018-134-080 CAPACITOR,TC-U 0.01-16
C205 87-A12-068-080 CAP,E 470-16 SMG
C206 87-A10-287-080 CAP,M 2200P-50 J
C207 87-A12-086-080 CAP,E 0.47-50 SMG
C208 87-018-134-080 CAPACITOR,TC-U 0.01-16
C209 87-A12-066-080 CAP,E 47-16 SMG
C210 87-018-115-080 CAP, CER 47P-50V
C211 87-018-115-080 CAP, CER 47P-50V
C214 87-A12-086-080 CAP,E 0.47-50 SMG
C215 87-A12-086-080 CAP,E 0.47-50 SMG
C301 87-A12-091-080 CAP,E 10-50 SMG
C302 87-A12-091-080 CAP,E 10-50 SMG
C303 87-A12-091-080 CAP,E 10-50 SMG
C304 87-A12-091-080 CAP,E 10-50 SMG
C305 87-018-134-080 CAPACITOR,TC-U 0.01-16
C306 87-A12-061-080 CAP,E 47-10 SMG
C307 87-A10-299-080 CAP,M 0.022-50 J
C308 87-A12-086-080 CAP,E 0.47-50 SMG
C309 87-018-147-080 CAP,TC-U 10P-50 CH
C310 87-018-119-080 CAP, CER 100P-50V
C311 87-A11-148-080 CAP, TC U 0.1-50 ZF
C312 87-A11-148-080 CAP, TC U 0.1-50 ZF
C313 87-A11-148-080 CAP, TC U 0.1-50 ZF
C314 87-018-134-080 CAPACITOR,TC-U 0.01-16
C315 87-018-131-080 CAP, CER 1000P-50V
C316 87-A10-378-080 CAP,E 2.2-50 K SH
C317 87-A12-088-080 CAP,E 2.2-50 SMG
C318 87-018-134-080 CAPACITOR,TC-U 0.01-16
C319 87-016-251-080 CAP,E 220-16 M SMG
C320 87-018-196-080 CAP, CER 1500P-16V
C321 87-A12-090-080 CAP,E 4.7-50 SMG
C323 87-010-379-080 CAP,E 22-16 M 11L SME
C324 87-A12-086-080 CAP,E 0.47-50 SMG
C325 87-A12-086-080 CAP,E 0.47-50 SMG
C328 87-A12-091-080 CAP,E 10-50 SMG
C330 87-A12-087-080 CAP,E 1-50 SMG
C332 87-018-134-080 CAPACITOR,TC-U 0.01-16
C334 87-018-134-080 CAPACITOR,TC-U 0.01-16
C335 87-A10-918-080 CAP,E 100-16 SMG
C336 87-A11-148-080 CAP, TC U 0.1-50 ZF
C338 87-A12-086-080 CAP,E 0.47-50 SMG
C341 88-707-959-810 CAP,M 0.39-50 J TF
C342 87-A12-087-080 CAP,E 1-50 SMG
C343 87-018-131-080 CAP, CER 1000P-50V
C401 87-A12-068-080 CAP,E 470-16 SMG
C402 87-A12-068-080 CAP,E 470-16 SMG
C403 87-A12-068-080 CAP,E 470-16 SMG
C404 87-A10-918-080 CAP,E 100-16 SMG
C405 87-A12-090-080 CAP,E 4.7-50 SMG
C406 87-A12-084-080 CAP,E 0.22-50 SMG
C407 87-A12-084-080 CAP,E 0.22-50 SMG
C410 87-A12-091-080 CAP,E 10-50 SMG
C411 87-A12-091-080 CAP,E 10-50 SMG
C412 87-A12-091-080 CAP,E 10-50 SMG
C413 87-A12-091-080 CAP,E 10-50 SMG
C414 87-A12-091-080 CAP,E 10-50 SMG
C501 87-A12-373-080 CAP,M 0.056-100 J CP
C502 87-A10-831-080 CAP,E 1000-25 M SMG
C503 87-A12-087-080 CAP,E 1-50 SMG
C504 87-A12-087-080 CAP,E 1-50 SMG
C508 87-A10-469-080 CAP,CER 2200P-500 K B DD10
C510 87-018-131-080 CAP, CER 1000P-50V
C511 87-A12-079-080 CAP,E 100-35 SMG
C512 87-018-127-080 CAP, CER 470P-50V
C601 87-016-373-080 CAP,E 10-250 M SME
C603 87-010-974-080 CAP,CER 220P-500 B
C604 87-010-396-080 CAP,E 470-35 SME
C605 87-A10-831-080 CAP,E 1000-25 M SMG
C606 8Z-JBH-626-010 CAP,M/P 0.30-250 J A TYPE
C607 87-A11-321-090 CAP,E 100-160 M 105 YXA
C608 8Z-JBJ-602-010 CAP,CER 220P-2K K BN
C609 87-016-482-010 CAP,PP 6800P-1.6K J DKR
C610 87-010-974-080 CAP,CER 220P-500 B
C611 87-010-974-080 CAP,CER 220P-500 B
C612 87-A12-091-080 CAP,E 10-50 SMG
C613 87-A12-088-080 CAP,E 2.2-50 SMG
C617 87-016-215-080 CAP,E 1-160 M TWSS
!
!
!

– 5 –
!
!
!
!
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
!
!
C620 88-130-102-080 RES,1K-1/4W J
C703 87-015-464-080 CAP,E 4.7-16 BP
C704 87-A10-292-080 CAP,M 5600P-50 J
C705 87-A10-296-080 CAP,M 0.012-50 J
C706 87-A12-087-080 CAP,E 1-50 SMG
C707 87-A12-090-080 CAP,E 4.7-50 SMG
C708 87-A12-091-080 CAP,E 10-50 SMG
C709 87-A12-090-080 CAP,E 4.7-50 SMG
C710 87-A10-918-080 CAP,E 100-16 SMG
C711 87-015-464-080 CAP,E 4.7-16 BP
C712 87-A12-090-080 CAP,E 4.7-50 SMG
C713 87-015-464-080 CAP,E 4.7-16 BP
C714 87-A10-288-080 CAP,M 2700P-50 J
C716 87-016-301-080 CAP,TN 3.3-16K DN
C717 87-015-464-080 CAP,E 4.7-16 BP
C718 87-016-302-080 CAP,TN 10-16K DN
C719 87-A12-087-080 CAP,E 1-50 SMG
C801 87-A10-374-010 CAP,M/P 0.1-275 K RMR
C804 87-A10-374-010 CAP,M/P 0.1-275 K RMR
C807 87-A10-831-090 CAP,E 1000-25 M SMG
C808 87-A12-071-080 CAP,E 47-25 SMG
C809 87-A11-148-080 CAP, TC U 0.1-50 ZF
C810 87-010-405-080 CAP,E 10-50 M 11L SME
C811 87-A10-867-090 CAP,CER 2200P-2K K R
C812 87-A10-867-090 CAP,CER 2200P-2K K R
C813 8Z-JBE-604-090 CAP,E 560U-200K
C815 87-A11-319-080 CAP,E 22-160 M 105 YXA
C816 87-012-388-010 CAP,CER 2200P-125M E DE
C817 87-A11-319-080 CAP,E 22-160 M 105 YXA
C818 87-A10-831-090 CAP,E 1000-25 M SMG
CF201 84-LB3-626-010 FLTR,TPS4.5MB2
CF202 87-008-574-080 FLTR,SFSH4.5MCB
CN1 87-009-195-010 CONN,5P B5BEH
CN401 87-049-469-010 CONN,4P V
CN601 87-A60-933-010 CONN,4P V B04(5-3)B-DVS-L
CN801 87-099-674-010 CONN,2P VA V
CN802 82-481-649-010 CONN,2P V TV-50P
CNA601 8Z-JBH-638-010 CONN ASSY,5P V W 320-600-US
D1 87-070-110-010 LED,SLP-181B-51 RED
D820 8Z-JBH-606-010 VRIS,TNR15G271K
F801 87-035-489-010 FUSE,4A 125V T237
FB1 8Z-JBH-635-080 COIL,CORE BL01RN1-A62
FB2 8Z-JBH-635-080 COIL,CORE BL01RN1-A62
FB3 8Z-JBH-635-080 COIL,CORE BL01RN1-A62
FB100 8Z-JBH-636-010 F-BEAD,2.7-5.5-4 FSOB060
FC801 87-A90-160-080 FUSE CLAMP,FC 51F
FC802 87-A90-160-080 FUSE CLAMP,FC 51F
FR401 87-029-151-090 RES,FUSE 10-2W J
FR601 87-A00-063-060 RES,FUSE 2.2-1/2W J R-TYPE
FR602 87-A00-056-060 RES,FUSE 1.5-2W J R-TYPE
FR603 87-A00-056-060 RES,FUSE 1.5-2W J R-TYPE
FR604 87-A00-050-060 RES,FUSE 2.2-1W J R-TYPE
FR605 87-A00-650-090 RES FUSE,2.2K 1W J RF1S
HL1 84-LB3-216-010 HLDR,LED
J401 87-A60-322-110 JACK,PIN 3P Y-W-R W/SW
J402 8Z-JBH-616-010 JACK,PIN 3P Y
J403 87-A60-420-010 JACK,3.5 ST (MSC)
JW1 8Z-JBH-635-080 COIL,CORE BL01RN1-A62
JW16 87-003-147-080 COIL,22UH J LAL02
JW26 8Z-JBH-635-080 COIL,CORE BL01RN1-A62
L1 87-003-147-080 COIL, 22UH J LAL02
L2 87-005-614-080 COIL 100UH LAV35 J
L201 8Z-JBR-612-010 COIL,SIF 4.5MHZ 504BN
L203 87-003-148-080 COIL BIAS 33UH
L204 87-003-282-080 COIL,12UH
L205 8Z-JBH-610-010 COIL,PIF-SQ57EL349A 45.75MHZ
L206 87-005-612-080 COIL,68UH J LAV35
L207 87-003-147-080 COIL, 22UH
L602 87-A50-040-010 COIL,2.2MH
L603 8Z-JBE-606-010 COIL,LINEARITYSH5L8409
L604 8Z-JBE-608-010 COIL,CHOKEELC08D560E
L701 87-005-614-080 COIL 100UH LAV35 J
L801 8Z-JBH-613-010 FLTR,LINE ELF18N016A
R107 87-A00-331-090 RES,M/F 27K-2W J RSF(S)
R110 87-A00-160-090 RES,M/F 33-2W J RSF(S)
R307 87-025-427-080 RES,M/F 27K-1/6W F
R308 88-121-681-080 RES,680-1/8W J
R309 87-025-380-080 RES,M/F 15K-1/6W F
R312 87-A00-356-090 RES,M/F 22-2W J RSS2X
R601 88-130-154-080 RES,150K-1/4W J
R602 88-121-223-080 RES,22K-1/8W J
R603 88-121-473-080 RES,47K-1/8W J
R606 87-A00-795-050 RES,M/F 0.47-1/2W J
R607 88-140-332-080 RES,3.3K-1/2W J
R610 87-A00-548-090 RES,M/F 5.6K-2W J ERGS
R611 87-A00-548-090 RES,M/F 5.6K-2W J ERGS
R624 87-A00-654-090 RES,FUSE 150-2W J RF2S
R706 87-A00-130-080 RES,M/F 62K-1/6W F
R801 8Z-JBH-629-080 RES,SD 2.2M-1/2W K ERC 12UG
R809 87-A00-277-090 RES,CEM 2.2-10W J RGC
R811 8Z-JBE-603-090 RES,CEM 180-20W J ZY
R816 87-025-425-080 RES,M/F 12K-1/6W F
RY801 87-A90-358-010 RELAY,12V LK1AF
SF201 8Z-JBH-633-010 FLTR,SAW M1969-US
SW1 87-A90-712-080 SW,TACT EVQ11L07K
SW2 87-A90-712-080 SW,TACT EVQ11L07K
SW3 87-A90-712-080 SW,TACT EVQ11L07K
SW4 87-A90-712-080 SW,TACT EVQ11L07K
SW5 87-A90-712-080 SW,TACT EVQ11L07K
SW6 87-A90-712-080 SW,TACT EVQ11L07K
SW7 87-A90-712-080 SW,TACT EVQ11L07K
T601 8Z-JBE-620-010 FBT,US 21 ST
T602 85-JT2-653-010 PT,HDT-TV141-2
T603 8Z-JBH-612-010 FLTR,PULSE ELF15N005A
T801 8Z-JBH-614-010 PT,US TP8155T
TH801 87-A90-996-010 POS-THMS,S1481-B50-A10
TU101 8Z-JBE-610-010 TU UNIT,USA ENV56D74G3
X1 87-030-212-080 CERA LOCK CST8.0M
X301 87-A70-007-080 VIB,XTAL 3.58MHZ AQC-1001
X302 87-030-327-010 VIB,CER CSB503F30
NK C.B
C901 87-A10-833-090 CAP,CER 1000P-2K K R
C902 87-018-126-080 CAP,TC-U 390P-50 B
C903 87-018-126-080 CAP,TC-U 390P-50 B
C904 87-018-126-080 CAP,TC-U 390P-50 B
C907 87-A12-068-080 CAP,E 470-16 SMG
C908 87-A12-066-080 CAP,E 47-16 SMG
CN901 87-049-469-010 CONN,4P V
CN902 87-009-033-010 CONNECTOR, 5P
CN904 87-A60-485-010 CONN,2P V LV GRA
L901 87-005-615-080 COIL,120UH J LAV35
R904 87-A00-165-090 RES,M/F 15K-2W J RSF(S)
R905 87-A00-165-090 RES,M/F 15K-2W J RSF(S)
R906 87-A00-165-090 RES,M/F 15K-2W J RSF(S)
S901 86-LBR-670-010 SOCKET,CRT 9P HPS1521
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!

WIRING – 1 (MAIN)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
– 6–
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

– 7 –

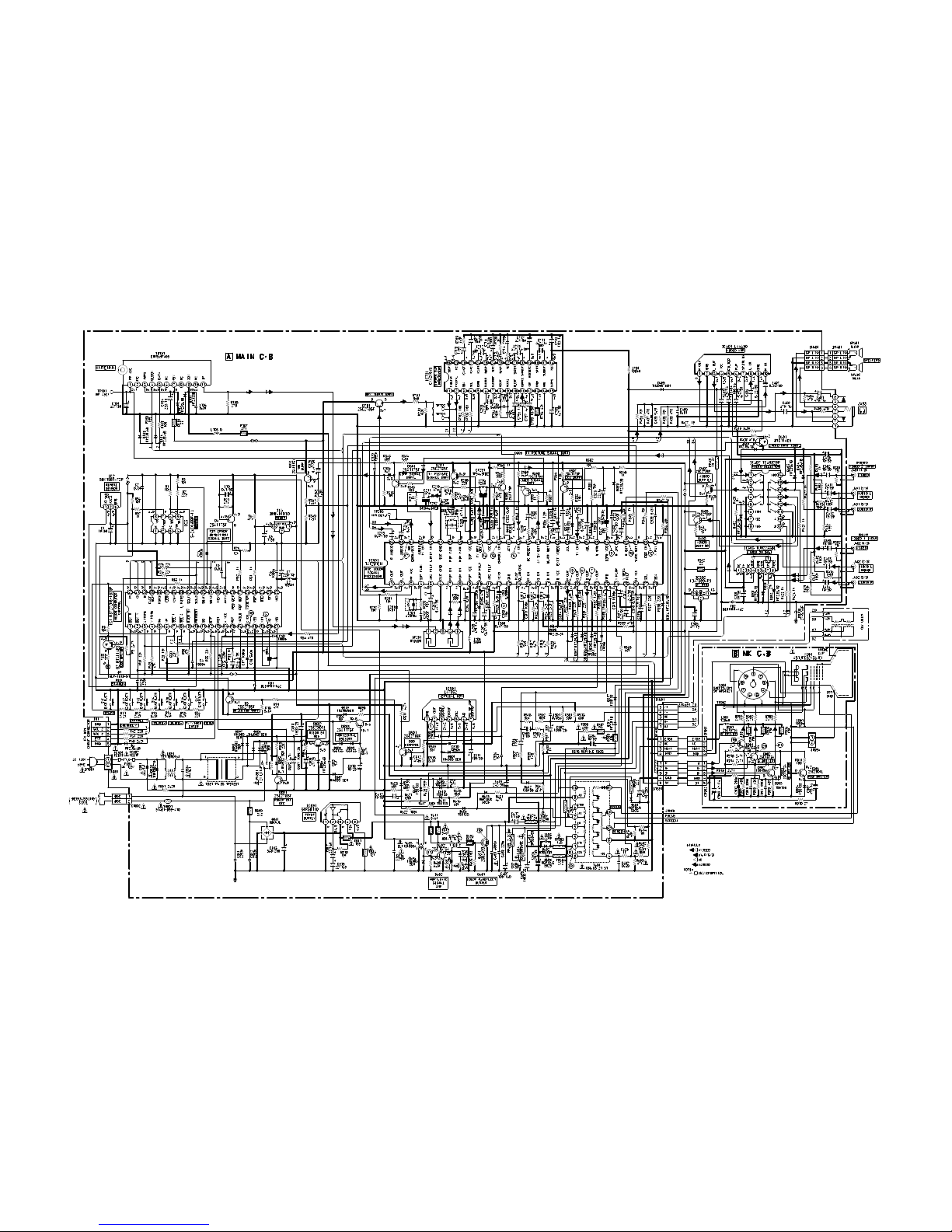

SCHEMATIC DIAGRAM – 1 (MAIN / NK)

WIRING – 2 (NK)
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
– 8–

– 9 –
MECHANICAL EXPLODED VIEW 1 / 1
c
D
C
10
13
8
b
a
C
E
C
14
PWB
cF
15
11
12
H
H
H
A 16
17
7
PWB
a
b
C
C
A
B
1
2
3
LENS
RC
9
4
5
6
19
HT-SINK
G
7
A
18

– 10 –
MECHANICAL PARTS LIST 1 / 1
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
COLOR NAME TABLE
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange PT Transparent Pink
LA Aqua Blue GL Light Green
!
!
!
1 87-054-086-010 BADGE,AIWA 52.5
2 8Z-JBE-003-010 PANEL,FR S2011 UL
3 86-LBB-007-010 LENS,LED
4 88-JBJ-009-010 GRILLE,SPKR R ST
5 86-LBU-201-010 HLDR,AC CORD
6 8Z-JBH-618-010 AC CORD,US BLK
7 87-A91-412-010 SPKR,F 4*10 8OHM 5W S0410J06
8 8Z-JBE-002-010 CABI,FR UL
9 88-JBJ-008-010 GRILLE,SPKR L ST
10 8Z-JBE-611-110 CRT,ASSY:A51JFC82X36(C)
11 84-LB3-205-010 SPR-E,EARTH
12 86-LBN-622-110 CONN ASSY,1P CRT-GND
13 8Z-JBE-605-010 DGC,21’US
14 8Z-JBE-007-010 CABI,REAR UL
15 87-A90-332-010 HLDR,SF-2001 HV CABLE
16 8Z-JBE-010-010 PANEL,REAR U MPI
17 8Z-JBW-602-110 CONN ASSY,4P V WHT SP20
18 84-LB3-216-010 HLDR,LED
19 8Z-JBH-201-010 HLDR,FBT ST
A 87-067-680-010 BVI T3+3-10
B 87-067-758-010 BVT2+3-12 W/O SLOT
C 87-067-844-010 BVT2+4-16 BLK
D 86-LBB-206-010 S-SCREW,ASSY TV5-40 W20
E 87-B10-071-010 BVT2+3-16 W/O SLOT B
F 87-067-761-010 TAPPING SCREW, BVT2+3-10
G 87-751-074-410 VT2+2.6-8 W/0 CUT
H 87-067-579-010 TAPPING SCREW, BVT2+3-8
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:[phone]
Printed in Singapore9820543 0251431
