Ⅰ、Before Using
1. Features
External 360-degree surround sound
microphone, all-round collection of audio,
ultra-high sensitivity, weak sound can be clearly
captured; the main structure of the separation
of the design to avoid electromagnetic
interference at work affect the recording effect；
PCM high quality recording, recording the
highest PCM 1536kbps / 48KHz lossless stereo
files, support MP3, WAV dual format recording,

5
the use of high sensitivity differential stereo
microphone, recording high sensitivity, strong
stereo；
Support storage TF card expansion, real-
time expansion of storage space, the maximum
support 128GB capacity；
This machine adopts aluminum alloy metal
body and frame, strong wear resistance,
compression and anti-drop, can withstand high
strength use；
This machine supports bookmark function,
can play up to 10 bookmarks; support
stopwatch and alarm clock function；
Support external line input (Line in),
support the timer off function；
Intelligent power detection, battery life
automatically save the recording file;
Built-in clock chip and the second
generation of recording time stamp technology
to support the machine directly to see the

6
recording file time;
Support FM FM listening and recording
function, MP3 playback and repeat function;
Support noise reduction function and
recording file editing function, you can cut the
recording file, split, insert and other operations；
2. Safety Information
In order to avoid short circuit, do not place
the product in the damp water.
Do not place the product near heating
equipment or direct sunlight.
Be careful not to squeeze the cable,
especially the plug.
Special Statement: Please read this manual
carefully before using this product, and if the
data is lost due to human operation or force
majeure, the Company will not be responsible
for any loss. In particular to remind the user
careful operation, pay attention to the data
backup.
Use the following guidelines when using
headphones:
Adjust to the appropriate volume, do not

7
use the headphones for a long time.
In particular, be careful not to adjust the
volume to the headphones so the range.
Do not tune the volume to cover the
surroundings.
Be careful or pause the use of headphones
in case of danger.
Do not use headphones while driving a car,
cycling, skateboarding. Otherwise it will lead to
traffic accidents, and violation of relevant laws
and regulations。

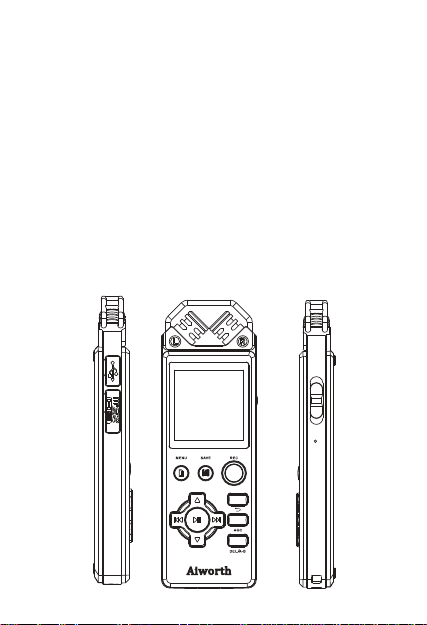

3. Product schematic

8
Ⅱ、Voice recorder
Note ： Short press means press within 1
seconds;long press means hold press for 2-3
seconds.

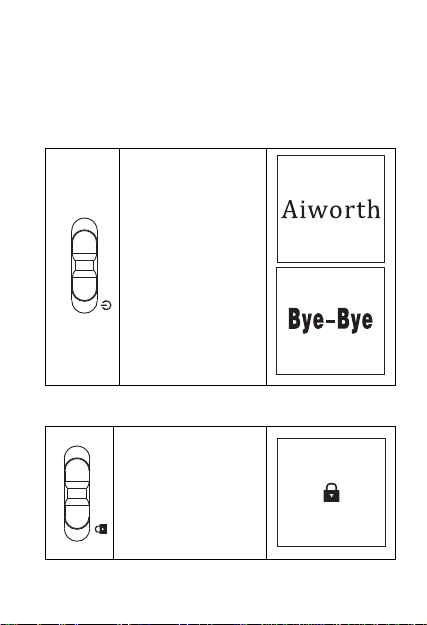

1 Turn on/off
Hole switch
down for 2
seconds to turn
on/off voice
recorder.
When turning off
will display 1,2,3
and “BYE-
BYE”,off.
2 Key lock
Switch up to lock
all the key.

9

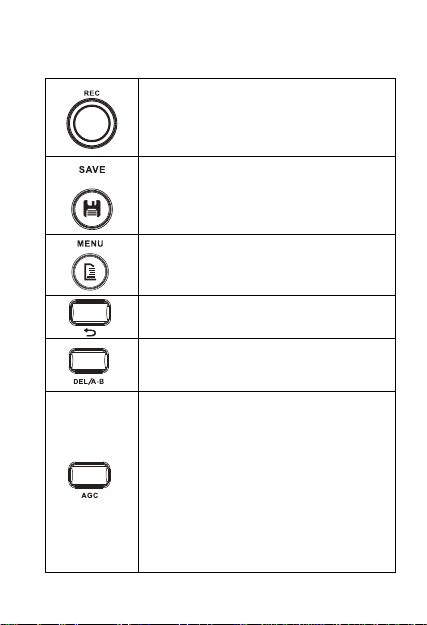

3 Key description
After turned on,anytime press
this button,start recording.
When recording,press save
button,recording stop and
saved.
Menu button,you could setting
all option in the menu.
Back button,back to last menu.
Short press set A-B repeat;
Long press for delete files.
Before recording,press AGC
button to set the Auto Gain
Control.
With this function,when the
sound is too loud or silent,could
be adjusted to the normal nature
sound

10
previous;
Volume up when
playing.
In the menu to next;
Volume down
when
playing.
When recording or
playing,short press
to again
to continue.
When playing,short
press
to previous one,long
press to fast
forward.
When
press to next one,long
press to back forward.
tIn mhee tnuo
pause, press
playing, short

11
4 LINE-IN REC
3.5mm audio in jacket,you could
recording Radio、CD、VCD、
DVD by line-in recording.
In the recording setting,select
LINE-IN recording,and connect
you player via line-in cable,then
press REC button to start
recording.
Headphone jacket,listen files by
your headphone
NOTE:This device built in rechargeable
lithium battery,if don’t use it for long
time,please power off the device.
When Power indicator is“ ”,please charge
the device.Battery runs out,device will auto
power off,if recording,will auto saved first then
power off.
5Microphone REC
LINE IN

12
1、After turned on,anytime press REC button
start recording,and REC indicator light.
2 、 to pause,press
again to continue.
3、Press“SAVE” to stop recording and save.

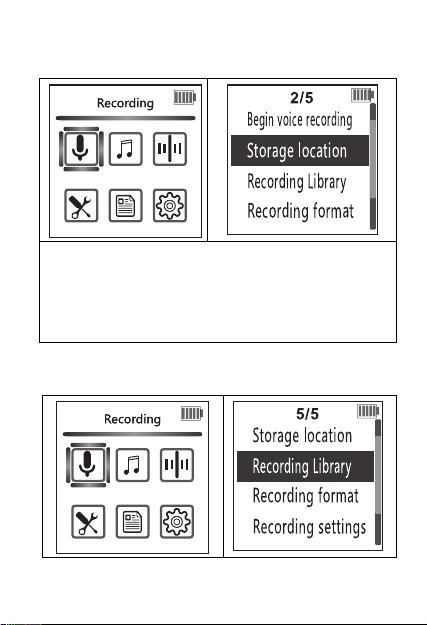

Press“ PLAY / PAUSE ”

13
6 Save position
1、In the menu,goes to Recordings,and enter
the Save position,press PLAY/PAUSE to
enter.Then you could select where your
recorded files saved.Flash or TF CARD,and
press PLAY/PAUSE to confirm.
7 Recording settings

14
1、In the menu,goes to Recordings,and enter
the Recording settings,press PLAY/PAUSE to
enter.
2 、There Record folder,Bit rate,Record
activated
8Recording bit rate
Recording bit rate:
MP3 format ： 192kbps 128kbps 64kbps
32kbps
WAV format：1536kbps 1024kbps 768 kbps
512kbps
Bit rate larger, recorded voice more clearer,
need more space to save.
Ⅲ、Files manage and play
from,
AVR(Voice recording),Monitor,Red
LED indicator.

15
1.Folders
There 4 folders:A/B/C/MUSIC;folders A/B/C are
recorded files saved,MUSIC is for music files
2.Folder view
1、In the menu,goes to Recordings,and enter
the Folder view,press PLAY/PAUSE to enter
2、Recorded files named as year/month/
day,01is the number.
Example:17101201 means the first recorded
file on 2017/10/12
3、Default directory are A、B、C、
MUSIC；
3.Delete files

16
Long press DEL button to
delete files,press
PLAY/PAUSE
to confirm.
4.Play files
1、In folder view,press PLAY/PAUSE to play
file
2 、 When playing,press volume button to
adjust play volume
3 、 When playing,press A-B set the start
point,press again to set end point,then
will playing A-B repeat.And then press
again to cancel A-B repeat.

17
4、Short press PLAY/PAUSE to pause,press
again to continue.
5.Play settings
When playing,press MODE
button goes to play settings.
EQ setting:Off,Rock,Funk,Hip
hop,Jazz,Classical,Techno,Cust
om
Play mode：
Repeat 1：Repeat play 1 file
Repeat all：repeat play all files
View playing ：Only play 10
seconds each files
Playing now
Play mode
Sound setting
T-Mark
Playing now
Play mode
Sound setting
T-Mark
Equalizer
Variable speed play
Repetition setting
Repeat play
Random play

18
Shuffle：Shuffle play all files.
Bookmarks:enter add
bookmark,then select a empty
bookmark(hh;mm;ss),press
PLAY/PAUSE to confirm,
it will back to play
interface,and current time
will add as a bookmark.10
bookmarks as most.
File cutting ：Playing to the
point you want to cut and
pause.Then press MODE,select
file cutting,and confirm.And
this file is cut as you want.
（Only support WAV format）
Browse play
All repeat
Repeat play off
Single repetition
File clipping
Play mode
Sound setting
T-Mark
File segmentation
File clipping
Sound setting
T-Mark
Edit success
then

19
File cut apart：Playing to the
point you want to cut apart
and pause.Then press
MODE,select file cut apart,and
confirm.And the file is been
cut as two files（Only support
WAV format）
File insert ：Playing to the
point you want to insert
and pause.Then press
MODE,
select file
insert,and
will start recording,
insert
the new recording.
（Only
support WAV format）
File connect：Playing to the
point you want to connect and
pause.Then press MODE,select
file connect,and confirm.Then
will start a new recording and
saved.Follow the original files.
（Only support WAV format）
Insert file
File segmentation
File clipping
Connection file
Insert file
File segmentation
File clipping
Edit success
Connection file
Insert file
File segmentation
File clipping
File cut apart
confirm.
Then

20
When playing and in the
menu,press NEXTor PRE, you
will find a NOW
PLAYING
press PLAY/
PAUSE quick enter to
playing
interface.

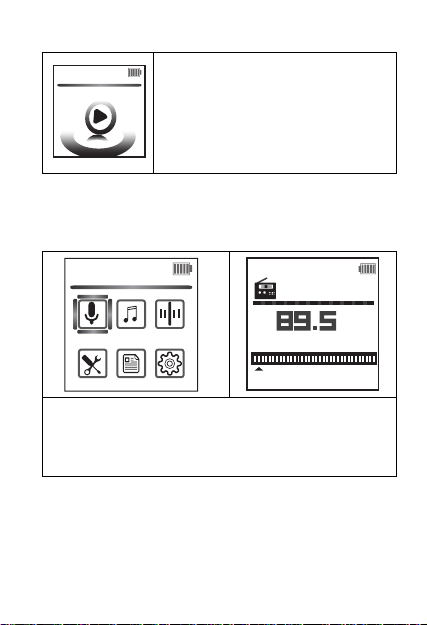

ⅣFM Radio
1 Enter FM Radio
1、In the menu,select FM radio and enter；
2、FM radio works must plug in headphone
as antenna
2 Auto search and FMREC
Playing now
Recording
CH01
87 108
MHz
interface, and
