AJAZZ AK816 User manual

auzz NACODEXX
Ak816 three-mode hot-swap mechanical keyboard
User Manual

Thank you very much for purchasing our AJAZZ three-mode hot-swap
mechanical keyboard. This product has various cool functions and
lighting effects. I hope it can bring you a new operating experience.
For more customized settings and functions, please visit and
download the driver: http://www.a-jazz.com/
Technical Parameter
Brand: AJAZZ
Model: AK816
Transmission mode: wired, bluetooth, 2.4G three-mode
Interface type: key line sepa rated Type-C interface
Product size: 327.5<136.5x40.38mm
Product weight: 990g
Shell material: ABS injection molding
Keycap material: PBT ball cap MDA three-color single-sided sublimation
Wire length: 1.8M
Lighting effects: RGB, 18 kinds of lighting effects
Key layout: 81 key layout
Support system: Windows2000/WindowsXP/Vista/Windows 7/8/10
0)
Caps Cock s D F
Shift
—Backspace Del
Pgdn
0440
Shift
aaa=ooo

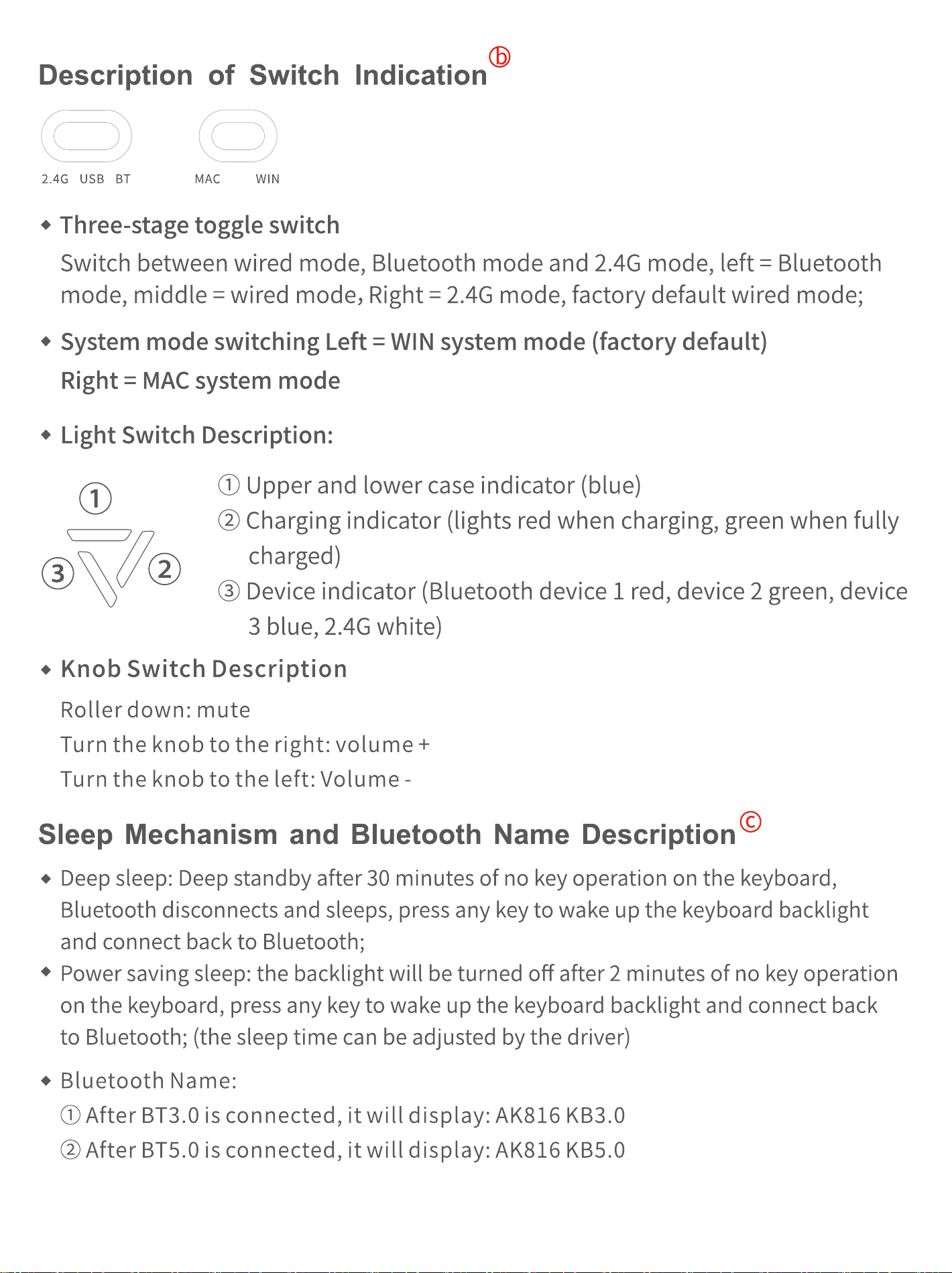

Description of Switch Indication
2.4G USB BT MAC WIN
• Three-stage toggle switch
Switch between wired mode, Bluetooth mode and 2.4G mode, left = Bluetooth
mode, middle = wired mode, Right = 2.4G mode, factory default wired mode;
• System mode switching Left = WIN system mode (factory default)
Right = MAC system mode
• Light Switch Description:
O Upper and lower case indicator (blue)
@ Charging indicator (lights red when charging, green when fully
charged)
@ Deviceindicator (Bluetooth device 1 red, device 2 green, device
3 blue, 2.4G white)
• Knob Switch Description
Roller down: mute
Turn the knob to the right: volume +
Turn the knob to the left: Volume -
Sleep Mechanism and Bluetooth Name Description
• Deep sleep: Deep standby after 30 minutes of no key operation on the keyboard,
Bluetooth disconnects and sleeps, press any key to wake up the keyboard backlight
and connect back to Bluetooth;
• Power saving sleep: the backlight will be turned off after 2 minutes of no key operation
on the keyboard, press any key to wake up the keyboard backlight and connect back
to Bluetooth; (the sleep time can be adjusted by the driver)
• Bluetooth Name:
O After BT3.0 is connected, it will display: AK816 KB3.0
@ After BT5.0 is connected, it will display: AK816 KB5.0

Light Mode Operation Instructions
• FN + Light effect switching, 18 light effects cycle in turn
FN + Multi-function Key Description
• FN + Multi-function Key Description
• FN+1!/2@/3#: Three sets of game lighting effects can be customized
• FN+I! : Default FPS mode— W/A/S/D/t /
FN+2@: Default LOL mode—Q/W/E/R/D/G/F/B/V/L-Ctrl/L-Alt/Tab/Space/1-6/Esc
• FN+3#: Default 37-key office mode: A-Z 26 English letters /[/]/;/' /./,/// t /
• Record/save lighting mode for the above three game mode lighting effects,
press one button for one color during recording, a total of 8 colors
• FN+up, down, left and right arrow keys: t = light brightness + (five gears are the
brightest by default) / FN+ = light brightness - (five gears)
• FN + Left and right arrow key N+: FN+<—=dynamic light direction switch /
• FN++= switch backlight color
: light speed - (five gears default third gear)
• Lightspeed + (five gears)
• FN + space bar: long press for 3 seconds to 5 seconds, the keyboard light flashes
3 times, clear the light effect, and restore the factory settings
Operation Instruction of key Compound Function
Key combination
FN+F6
Function description
Media Player
Volume down
Volume increase
Mute
Player/stops playing
Last song

FN+F9
FN+FIO
F N + F 11
FN+F12
FN+WIN key-L
F N + HOME
FN+DEL
FN+PGUP
FN+PGDN
Play/ Pause
Next song
Mail
Browser
My computer
Calculator
Turn off/on keyboard (lighting Default on)
Lock the WIN key, then press to unlock, the
WIN key will light up in white after locking
INS
END
PRTSC
pAUSE
Wired, Bluetooth and 2.4G Connection
• Wired Mode: Connect the keyboard to the USB cable, toggle the switch to the USB gear,
and the keyboard flashes red light is the wired connection mode;
• Bluetooth Mode: toggle the switch to BT gear, (this product supports control and storage
of 3 Bluetooth devices, through FN+Q, FN+W,FN+Eselects and calls between three
Bluetooth devices that have been paired successfully. When pressing once to switch
paired devices, the device indicator light will flash slowly and enter the reconnecting
state. If the switch is successful, the device indicator light will return to long light.)
Press and hold for 3 seconds when the Bluetooth pairing is performed. The device light
flashes rapidly. Bluetooth device 1 is successfully connected, the device indicator light
is solid red, Bluetooth device 2 is successfully connected, the device indicator light is
solid green, Bluetooth device 3 is successfully connected, the device indicator light is
solid blue

• After switching, the receiver can be used by plugging it into the computer (the device
indicator light will be white after the connection is successful)
• Note: The factory keyboard and receiver have been paired successfully. Press and hold
the FN+Rkey combination to match the code, the device indicator light flashes rapidly
in white to enter the code, and the computer can be plugged into the receiver at this
time (connect the USB cable in any wireless mode to charge the device)
Hot swap operation steps
Hot-swappable: can replace different shafts, customize your favorite tactile and auditory
feedback, the triangular shaft seat is compatible with most mechanical shafts.
O Pull out the keycap with a key puller
@Proofreading pins and holes
@The shaft puller pulls out the switches
@ Press the shaft vertically
