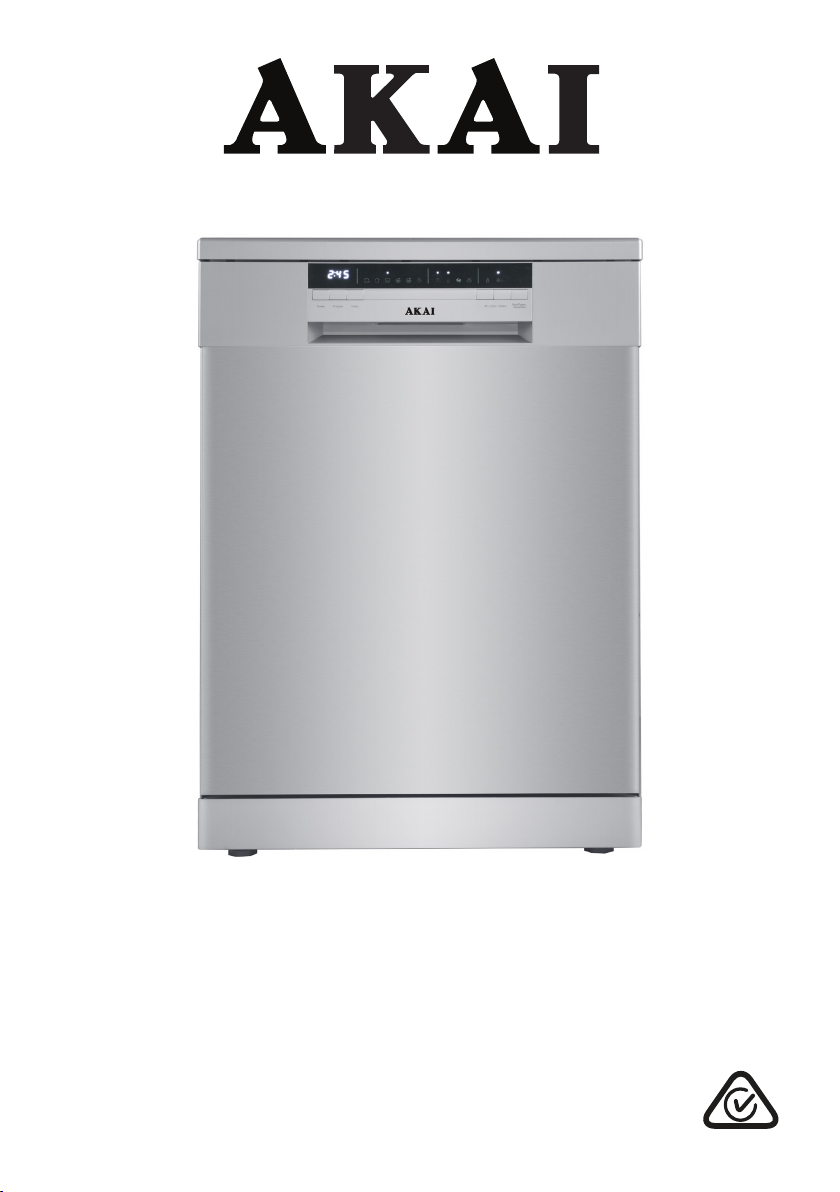

Akai AK-DW15P User manual

15 Place Setting Dishwasher
INSTRUCTION MANUAL
MODEL: AK-DW15P

After Sales Support
(AU) 1300 886 649 (NZ) 0800 836 761 | [e-mail]
2
Contents
03 General Safety Instructions
06 Product Overview
10 Installation
14 Features
16 Instructions
28 FAQs and Troubleshooting Guide
32 Other Useful Information

After Sales Support
(AU) 1300 886 649 (NZ) 0800 836 761 | [e-mail]
3
General Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
Read this manual thoroughly before first use, even if you are familiar with this type
of product. The safety precautions enclosed herein reduce the risk of fire, electric
shock and injury when correctly adhered to. Keep the manual in a safe place for
future reference, along with any warranty information and your purchase receipt. If
applicable, pass these instructions on to the next owner of the appliance.
Always follow basic safety precautions and accident prevention measures when
using an electrical appliance, including the following:
Pay particular attention to safety messages that follow the words:
DANGER, WARNING and CAUTION.
These words are used to alert you to a potential hazard that can seriously
injure you and others. The instructions will tell you how to reduce the chance
of injury and let you know what can happen if the instructions are not followed.
DANGER means that failure to read this safety statement may result in severe
personal injury.
WARNING means that failure to read this safety statement may result in
extensive product damage or serious personal injury.
CAUTION means that failure to read this safety statement may result in
minor or moderate personal injury, property or equipment damage.
Electrical safety and cord handling
• Voltage: Before connecting and turning on the appliance, ensure the electrical voltage
and circuit frequency correspond to those indicated on the appliance rating label.
• WARNING! Ensure the outlet is properly earthed to the ground. If unsure, consult
a qualified electrician or a service representative. Improper connection of the
equipment grounding conductor can result in the risk of an electric shock if the
appliance malfunctions.
• WARNING! Do not modify the cord and plug provided with the appliance; if it does
not fit the outlet, have a proper outlet installed by a qualified electrician.
• WARNING! If the supply cord is damaged, do not use the appliance. A damaged
cord must be replaced by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard. Contact our after sales support centre.
• Connection: Do not use an adaptor; do not use an extension cord. We recommend
you connect the appliance to a separate circuit serving only this appliance.
• Power cord: Do not kink or damage the power cord. Position it out of the way so
no one steps on or places anything on the cord or against it.

After Sales Support
(AU) 1300 886 649 (NZ) 0800 836 761 | [e-mail]
4
General Safety Instructions (Cont.)
• Inserting/removing the plug: Before you insert or remove the plug, make sure
the appliance is switched off and the power is switched off at the electrical outlet.
Remove by grasping the plug, do not pull on the cord.
• CAUTION! To reduce the risk of electric shock, do not immerse the unit, cord or plug
in water or other liquid. Do not expose it to rain or moisture.
• RCD: Unless your home is already fitted with a residual current device (safety
switch), we recommend installing an RCD with a rated residual operating current
not exceeding 30mA to provide additional safety protection when using electrical
appliances. See your electrician for professional advice.
Installation
• DANGER! Under certain conditions, hydrogen gas may be produced in a hot-water
system that has not been used for two weeks or more. Hydrogen gas is explosive!
If the hot-water system has not been used for such a period of time, before using
the dishwasher, turn on all hot-water taps and let the water flow from each of them
for several minutes. This will release any accumulated hydrogen gas. As the gas is
flammable, do not smoke or use an open flame during this time.
• WARNING! Do not install the dishwasher yourself. Get it installed by an appropriately
qualified, licensed plumber or dishwasher installer only. Any electrical work required
should be carried out by a qualified, licensed electrician.
• Power supply: During installation, the power supply cord must not be excessively or
dangerously bent or flattened. Other means for disconnection from the supply must
be incorporated in the fixed wiring with at least 3mm contact separation in all poles.
• Water supply: Only use new hose sets when connecting this dishwasher to the water
supply; do not reuse old hoses.
• Water pressure: The maximum permissible inlet water pressure is 1.0MPa. The
minimum permissible inlet water pressure is 0.04MPa.
• WARNING! Do not install the appliance on or near any flammable or hot objects.
• Ventilation: Ensure any ventilation openings in the base are not obstructed by carpet.
• Proper installation: Install the dishwasher on an even, flat and stable ground. Do not
operate your dishwasher unless all enclosure panels are properly in place.
• Safe disposal: When removing an old dishwasher from service or discarding it,
remove the door to the washing compartment.
Usage conditions and restrictions
• Domestic use only: This appliance is intended for indoor household use only. It is not
suitable for industrial, commercial or trade use. Do not use it for anything other than
its intended purpose, and only use it as described in this manual.
• Usage restriction: The appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.

After Sales Support
(AU) 1300 886 649 (NZ) 0800 836 761 | [e-mail]
5
General Safety Instructions (Cont.)
• Children should be supervised to ensure they do not play with the appliance. Close
supervision is necessary when any appliance is used by or near children.
• WARNING! Never leave the appliance unattended while in use. Do not touch the
heating element during or immediately after use.
• Dishwasher door: Do not abuse, sit on or stand on the door or dish rack of the
dishwasher, or use it for anything other than its intended purpose. Do not place
any heavy objects on the dishwasher door when it is open. The appliance could tip
forward. Open the door very carefully if the dishwasher is operating as there is a risk
of water squirting out. The door should not be left wide open as this could increase
the risk of someone tripping over the door.
• Safe loading: Do not overload this dishwasher, it has a maximum capacity of 15
place settings. To ensure safe operation, follow a few simple rules when loading the
dishwasher:
—Place sharp items so they are not likely to damage the door seal.
—WARNING: Knives and other utensils with sharp points must be loaded in the tray
with their points down or placed in a horizontal position to avoid potential hazards.
—Only wash plastic items that are marked dishwasher-safe or the equivalent. For
plastic items not marked, check the manufacturer’s recommendations. Place
plastic items so they cannot accidentally touch the heating element.
• Dishwasher detergent: Use only detergent and rinse additives designed for an
automatic dishwasher and keep them out of reach of children. Never use liquid
detergent (for manual washing up), soap or laundry detergent in your dishwasher.
DANGER! Some dishwasher detergents are strongly alkaline and can be extremely
dangerous if swallowed. Avoid contact with the skin and eyes.
DANGER! When the dishwasher door is open, make sure to keep children away from
the dishwasher. Even after a wash there could still be detergent left inside. Make sure
that the detergent compartment is empty after completion of the wash cycle.
• Cleaning: Unplug before cleaning and performing maintenance on the appliance. Use
a soft cloth moistened with mild detergent for cleaning the appliance, and then use a
dry cloth to wipe it again.
• Do not modify or attempt to alter this appliance or its controls in any way. Do not
tamper with the controls.
• Repair: Do not attempt to take the unit apart. Apart from regular maintenance as
described in this manual, this appliance is not designed to be dismantled by the user.
In case of damage or malfunction, have the unit repaired by trained personnel only, or
contact our after sales support centre for advice.
• Misuse: Inappropriate use can result in property damage, injury or death. We accept
no liability for any damages or injuries resulting from misuse of the appliance or
noncompliance with these instructions.

After Sales Support
(AU) 1300 886 649 (NZ) 0800 836 761 | [e-mail]
6
Product Overview
Scope of delivery
Dishwasher: front, open
1 Cutlery tray
2 Foldable cup rack
3 Upper basket
4 Upper spray arm
5 Inner pipe
1
2
3
4
6
5
7
8
9
6 Lower basket
7 Filtration system (on the bottom of
the cabinet)
8 Rinse aid dispenser
9 Detergent dispenser

After Sales Support
(AU) 1300 886 649 (NZ) 0800 836 761 | [e-mail]
7
Product Overview (Cont.)
10 12
11
NOTE: Due to continued product improvement, images and illustrations in this
manual may vary slightly from the product purchased. All images in this manual are
for reference purposes only. Parts are not necessarily pictured to scale.

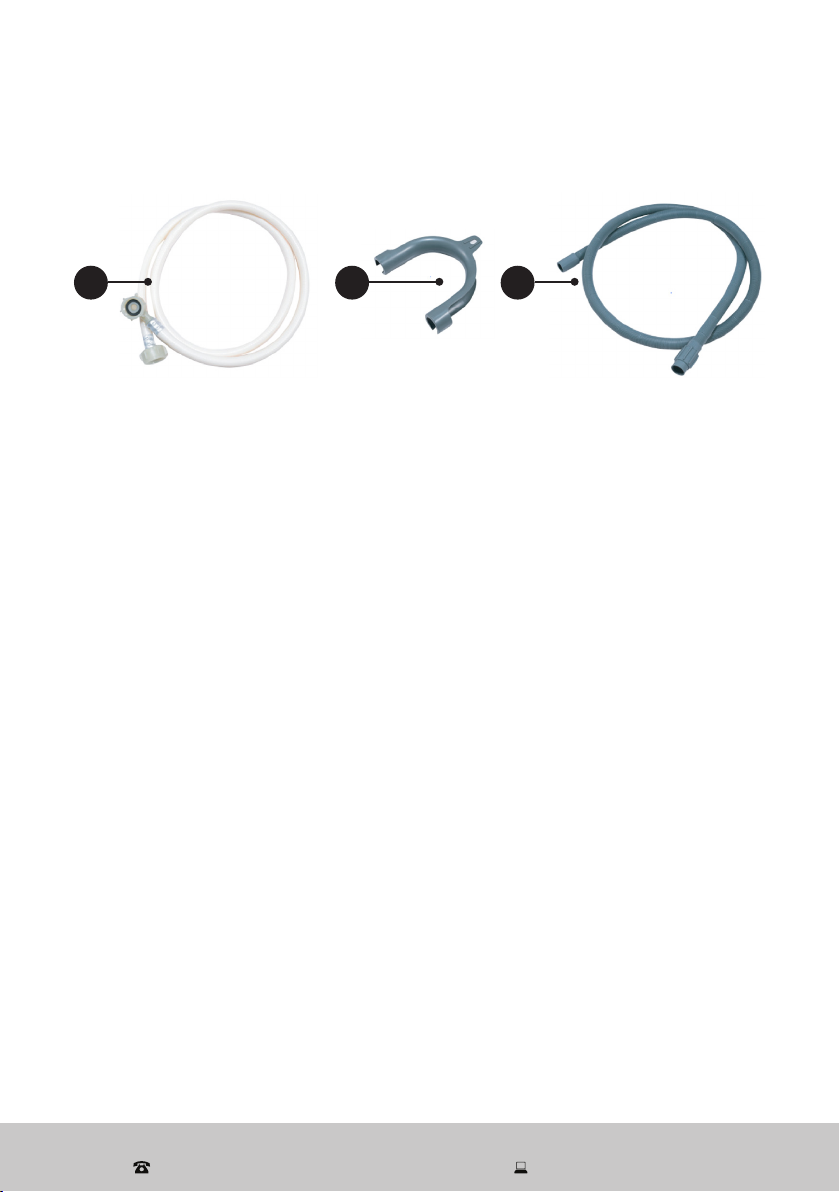

10 Water supply hose
11 Drain hose holder (elbow)
12 Drain hose -- already installed at the back
Documentation (not shown)
Instruction manual
Warranty certificate
Accessories

After Sales Support
(AU) 1300 886 649 (NZ) 0800 836 761 | [e-mail]
8
Option
Power Alt Reset(3sec)
Product Overview (Cont.)

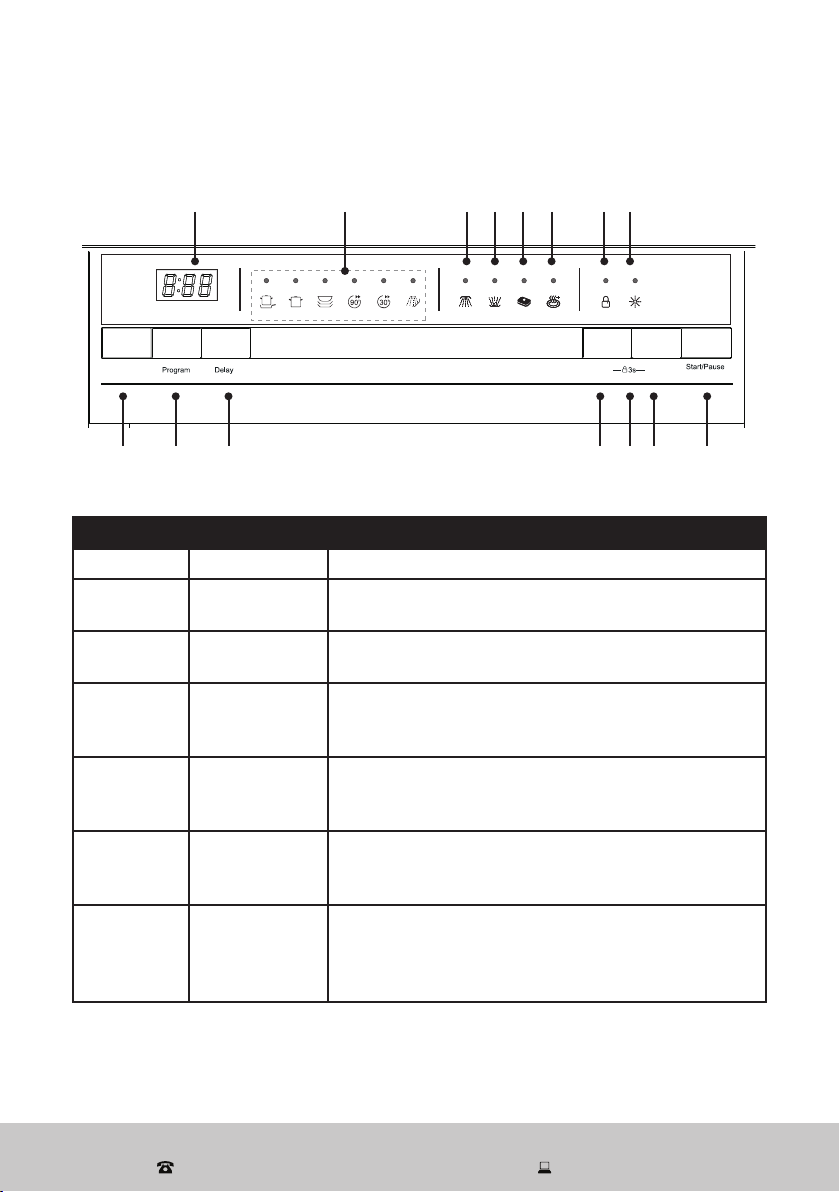

Operation buttons
1 POWER Press this button to turn on/off the power supply.
2 PROGRAM Press this button to scroll through the washing
programs. The selected program indicator will be lit.
3 DELAY Press this button to delay the start time of any
program automatically by up to 24 hours.
4
ALT
(ALTERNATIVE
FUNCTION)
Press this button to select washing of the upper or
lower zone only. The corresponding indicator will be
lit.
5 CHILD LOCK
Press the ALT and OPTION buttons at the same time
and hold for 3 seconds to activate the child lock.
All buttons and the door are now locked.
6
OPTION
(OPTIONAL
FUNCTION)
Press this button to select or cancel the DRY+
function or the All-in-1 function.
7START/PAUSE
Press this button to start or pause the selected
washing program.
Press and hold the button for 3 seconds to reset the
dishwasher.
Control panel
1 2 3 4 5 6 7
8 9 10 11 12 13 14 15

After Sales Support
(AU) 1300 886 649 (NZ) 0800 836 761 | [e-mail]
9
Product Overview (Cont.)

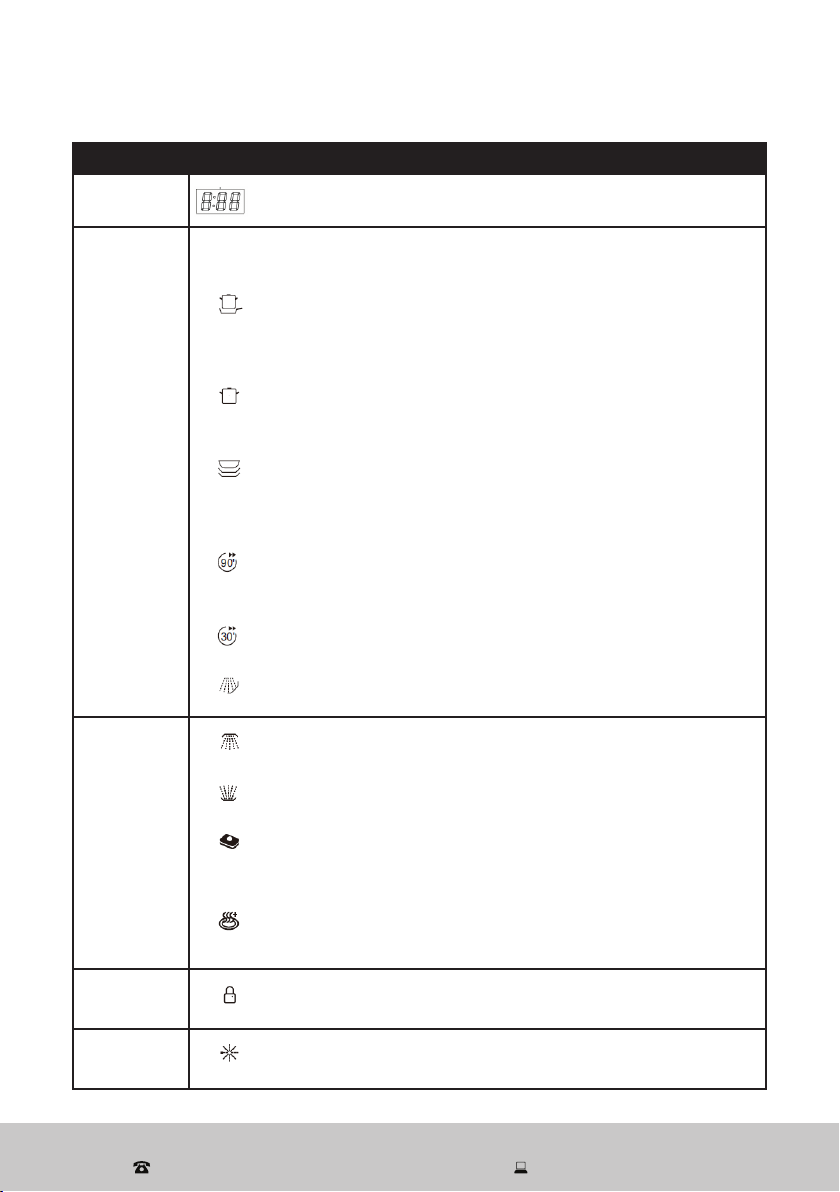

Display indicators
8The DIGITAL DISPLAY shows the running time, remaining time,
malfunction codes and delay time.
9
Program
indicators
The below program indicator lights illuminate once a program has
been selected.

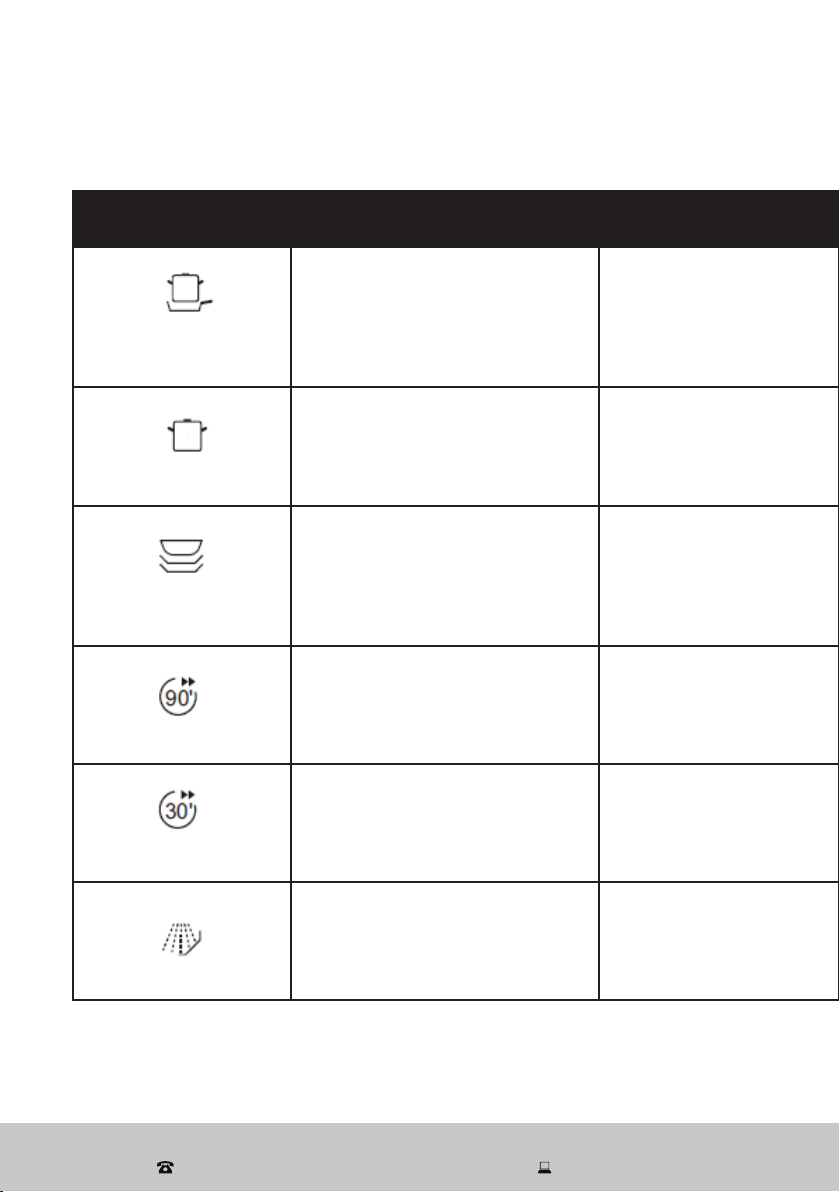

Intensive
For most heavily soiled crockery, such as pots, pans, serving
dishes and dishes that have been sitting with dried food on
them for some time.
Heavy
For heavily soiled loads, such as plates, glasses and lightly
soiled pots and pans: a standard daily wash program.
Normal
For normally soiled loads, such as plates, glasses and lightly
soiled pots and pans: a slightly longer but more energy-
efficient daily wash program with a lower water temperature.
90 min
For lightly and normally soiled loads that need a quick wash
straight after use.
Fast 30
A quick wash for lightly soiled loads that do not need drying.
Soak
A rinse/soak program for dishes you plan to wash later that day.
10–13
Function
indicators
10 The upper zone indicator comes on when the upper spray
arm is washing.
11 The lower zone indicator comes on when the lower spray
arm is washing.
12 The all-in-1 indicator comes on when this function is selected
and an all-in-1 detergent tablet is used (instead of detergent
powder).
13 The Dry+ indicator comes on when this function is selected.
The Dry+ function will increase the water temperature
during the final rinse for improved drying results.
14
Child lock
The child lock indicator comes on when the child lock has
been set.
15
Rinse aid
The rinse aid indicator comes on when the rinse aid dispenser
needs to be refilled.

After Sales Support
(AU) 1300 886 649 (NZ) 0800 836 761 | [e-mail]
10
Installation
DANGER! Make sure your electrical power is disconnected before installing the
dishwasher. Failure to do so can result in death or electric shock.
IMPORTANT! All relevant pipes and electrical equipment should be installed by
licensed plumbers, electricians or dishwasher installers. Make sure
to use new water supply and drain hoses; do not use old hoses.
IMPORTANT! Read this manual to familiarise yourself with all parts and operating
principles. Pay particular attention to the safety instructions.
Unpacking the appliance
• This product has been packaged to protect it against transportation damage.
Unpack the appliance but keep all packaging materials until you have made sure
your new dishwasher is undamaged and in good working order.
• The packaging carton is recyclable. Whenever possible, reuse the carton and
recycle it when disposing of the packaging materials.
• Plastic wrapping can be a suffocation hazard for babies and young children, so
ensure all packaging materials are out of their reach, and dispose of them safely.
• The baskets inside the dishwasher are taped to secure them during transport.
Remove any tape, ties and foam padding from inside the dishwasher.
• IMPORTANT! Using the loading instructions on pages 16-20 for guidance, make
sure all parts in the upper and lower baskets are properly installed inside the
dishwasher – you may need to relocate the cup rack for appropriate usage.
• Unwind the cord to its full length and inspect it for damage. Do not use if damaged.
In case of damage, contact our after sales support centre for advice.
Positioning the appliance
• This dishwasher is freestanding. It can also be recessed under a single benchtop.
• Position the dishwasher close to an existing water inlet and drain connection and
make sure there is a power point nearby, or in an adjoining cabinet.
• The back should rest against the wall behind it and the sides along any adjacent
cabinets or walls.
• The dishwasher’s water supply and drain hoses can be positioned either to the
right or left sides to facilitate proper installation.
• Make sure the appliance does not stand on any water hoses or the power cable.

After Sales Support
(AU) 1300 886 649 (NZ) 0800 836 761 | [e-mail]
11
Levelling the appliance
• Position the dishwasher on a level and sturdy
floor.
• If the floor is uneven, adjust the feet at the
front of the appliance until the appliance
reaches a horizontal position (Fig. 1). Just
screw them in or out.
• The maximum adjustment height of the feet is
20mm.
• The appliance should not be inclined more
than 2°.
• Correctly levelled, the appliance will be more
stable and much less likely to move or cause
vibrations and noise during operation.
Freestanding installation
Between existing cabinets
• The height of the dishwasher, 845mm, has
been designed in order to allow the machine
to be fitted between existing cabinets of the
same height in modern fitted kitchens (Fig. 2).
• The feet can be adjusted so that the correct
height is reached.
Underneath an existing worktop
• In most modern fitted kitchens there is only
one single worktop under which cabinets and
electrical appliances are fitted. If you want to
fit this dishwasher under an existing worktop,
you need to remove the worktop of the
dishwasher by unscrewing the screws under
the rear edge of the top (Fig. 3: a).
IMPORTANT! Keep the screws! After
removing the worktop you will have to screw
them back under the rear edge of the top
(Fig. 3: b).
• The height of the dishwasher will then be
reduced to 815mm (as per ISO regulations),
which means it should fit perfectly under your
kitchen worktop.
Installation (Cont.)
Fig. 2
Fig. 3
Fig. 1

After Sales Support
(AU) 1300 886 649 (NZ) 0800 836 761 | [e-mail]
12
Installation (Cont.)
Cold water connection
• Connect the cold water supply hose to a threaded 3/4” connector. During use, the
dishwasher will heat up the water to the required temperature. Make sure the hose is
not kinked or squashed and is fastened tightly in
place (Fig. 4).
• If the water pipes are new or have not been used
for an extended period of time, let the water run
to make sure it is clear and free of impurities. This
step is necessary to avoid the risk of the water inlet
being blocked and damaging the appliance.
• WARNING! Always close the water tap after using the dishwasher.
Drain hose connection
• The drain hose is connected to the drain hose connector at the back of the
dishwasher.
• Insert the end of the drain hose into a drain pipe with a minimum diameter of 40mm,
or let it run into the sink, making sure to avoid bending, crimping or squashing it. The
height of drain pipe must be less than 1100mm from the floor. The free end of the
hose must not be immersed in water to avoid the backflow of water.
• Follow the illustration below (Fig. 5) when installing the drain hose connection.
• The drain hose must be correctly fitted in order to prevent water leaks. It should be
connected at a height of no more than 1.1m (maximum) and secured with a hose clip.
• If you need to drain any excess water from hoses and the sink is higher than 1m
from the floor, you will need to drain the excess water into a bowl or container held
underneath the pipe and lower than the sink.
• If you need a drain hose extension, make sure to use a similar hose that is no longer
than 4 metres, otherwise the cleaning effect of the dishwasher could be reduced.
Fig. 4
Fig. 5
max1100mm

After Sales Support
(AU) 1300 886 649 (NZ) 0800 836 761 | [e-mail]
13
Electrical connection
Make sure that the electrical voltage and circuit frequency in your home correspond
to those indicated on the appliance rating label and that the electrical system is sized
for the maximum voltage on the rating plate. A time delay fuse or circuit breaker is
recommended, as well as provision of a separate circuit serving only this appliance. A
suitable power outlet should be located in an adjacent cabinet.
To connect the dishwasher, insert the plug into a properly earthed, easily accessible
electrical socket. If the socket is not appropriate for the plug, replace the socket rather
than use an adaptor or the like as such devices could cause overheating and fire.
Installation (Cont.)
WARNING!
• Do not use an extension cord or an adaptor with this appliance.
• Do not bend the power cord. Do not place the appliance on top of the cord.
• Do not modify the plug provided with this appliance. If it does not fit into your
power point, have a suitable outlet installed by a qualified electrician.
Earthing
This appliance must be earthed. In the event of a malfunction or breakdown, earthing
will reduce the risk of an electric shock by providing a path of least resistance for the
electric current. This appliance is equipped with a cord having an equipment-earthing
conductor and an earthing plug. The plug must be plugged into an appropriate outlet
that is installed and earthed in accordance with all local standards and requirements.
WARNING!
• Ensure the outlet is properly earthed to the ground. If unsure, consult a qualified
electrician or a service representative. Improper connection of the equipment
grounding conductor can result in the risk of an electric shock if the appliance
malfunctions.
• Do not, under any circumstances, cut or remove the third grounding prong from the
power plug.
Before first use
After your new dishwasher has been installed, and before using it for the first time,
make sure to check the following points to ensure safe and efficient operation:
• Is the dishwasher level and properly installed?
• Is the water tap open?
• Are the hose connections secured tightly and there is no leakage at either end?
• Are all electrical cords tightly connected?
• Is the power switched on at the power point?
• Are the inlet and drain hoses free of knots and kinks?
• Has all packing material been removed from the dishwasher?
• Is all product documentation stored safely for easy access?

After Sales Support
(AU) 1300 886 649 (NZ) 0800 836 761 | [e-mail]
14
Features
Wash programs and cycles
* The Normal program was used for testing to the Australian standard AS/NZS 2007.1
(with 15 place settings, rinse aid setting on 6, upper basket in the lower position, and
the door opened about 5cm at the end of the program to assist with drying).
Program Suitability Cycles Detergent
(pre / main)
Running Time
(hr:min)
Energy
(kWh)
Water
(L)
Intensive
For most heavily soiled crockery,
such as pots, pans, serving dishes
and dishes that have been sitting
with dried food on them for some
time.
Prewash (40ºC)
Wash (55ºC)
Rinse 1
Rinse 2
Hot rinse (65ºC)
Drying
5 / 29g
(or all-in-1) 2:47 1.35 16.0
Heavy
For heavily soiled loads, such as
plates, cups, glasses and lightly
soiled pots and pans: a standard
daily wash program.
Main wash (60ºC)
Rinse 1
Rinse 2
Hot rinse (65ºC)
Drying
29g
(or all-in-1) 2:22 1.25 12.5
Normal *
For normally soiled loads, such as
plates, cups, glasses and lightly
soiled pots and pans: a slightly
longer and more energy-efficient
daily wash program with a lower
water temperature.
Prewash
Main wash (44ºC)
Rinse
Hot rinse (45ºC)
Drying
5 / 29g
(or all-in-1) 2:45 0.66 12.3
90 min
For lightly and normally soiled loads
that need a quick wash straight
after use.
Prewash
Wash (50ºC)
Rinse
Hot rinse (55ºC)
Drying
5 / 20g 1:30 0.89 10.5
Fast 30
A quick wash for lightly soiled loads
that do not need drying.
Main wash (40ºC)
Hot rinse (50ºC) 15g 0:30 0.54 6.5
Soak
A rinse/soak program for dishes you
plan to wash later that day. Prewash 0:07 0.06 4.0

After Sales Support
(AU) 1300 886 649 (NZ) 0800 836 761 | [e-mail]
15
Features (Cont.)
Program Suitability Cycles Detergent
(pre / main)
Running Time
(hr:min)
Energy
(kWh)
Water
(L)
Intensive
For most heavily soiled crockery,
such as pots, pans, serving dishes
and dishes that have been sitting
with dried food on them for some
time.
Prewash (40ºC)
Wash (55ºC)
Rinse 1
Rinse 2
Hot rinse (65ºC)
Drying
5 / 29g
(or all-in-1) 2:47 1.35 16.0
Heavy
For heavily soiled loads, such as
plates, cups, glasses and lightly
soiled pots and pans: a standard
daily wash program.
Main wash (60ºC)
Rinse 1
Rinse 2
Hot rinse (65ºC)
Drying
29g
(or all-in-1) 2:22 1.25 12.5
Normal *
For normally soiled loads, such as
plates, cups, glasses and lightly
soiled pots and pans: a slightly
longer and more energy-efficient
daily wash program with a lower
water temperature.
Prewash
Main wash (44ºC)
Rinse
Hot rinse (45ºC)
Drying
5 / 29g
(or all-in-1) 2:45 0.66 12.3
90 min
For lightly and normally soiled loads
that need a quick wash straight
after use.
Prewash
Wash (50ºC)
Rinse
Hot rinse (55ºC)
Drying
5 / 20g 1:30 0.89 10.5
Fast 30
A quick wash for lightly soiled loads
that do not need drying.
Main wash (40ºC)
Hot rinse (50ºC) 15g 0:30 0.54 6.5
Soak
A rinse/soak program for dishes you
plan to wash later that day. Prewash 0:07 0.06 4.0

After Sales Support
(AU) 1300 886 649 (NZ) 0800 836 761 | [e-mail]
16

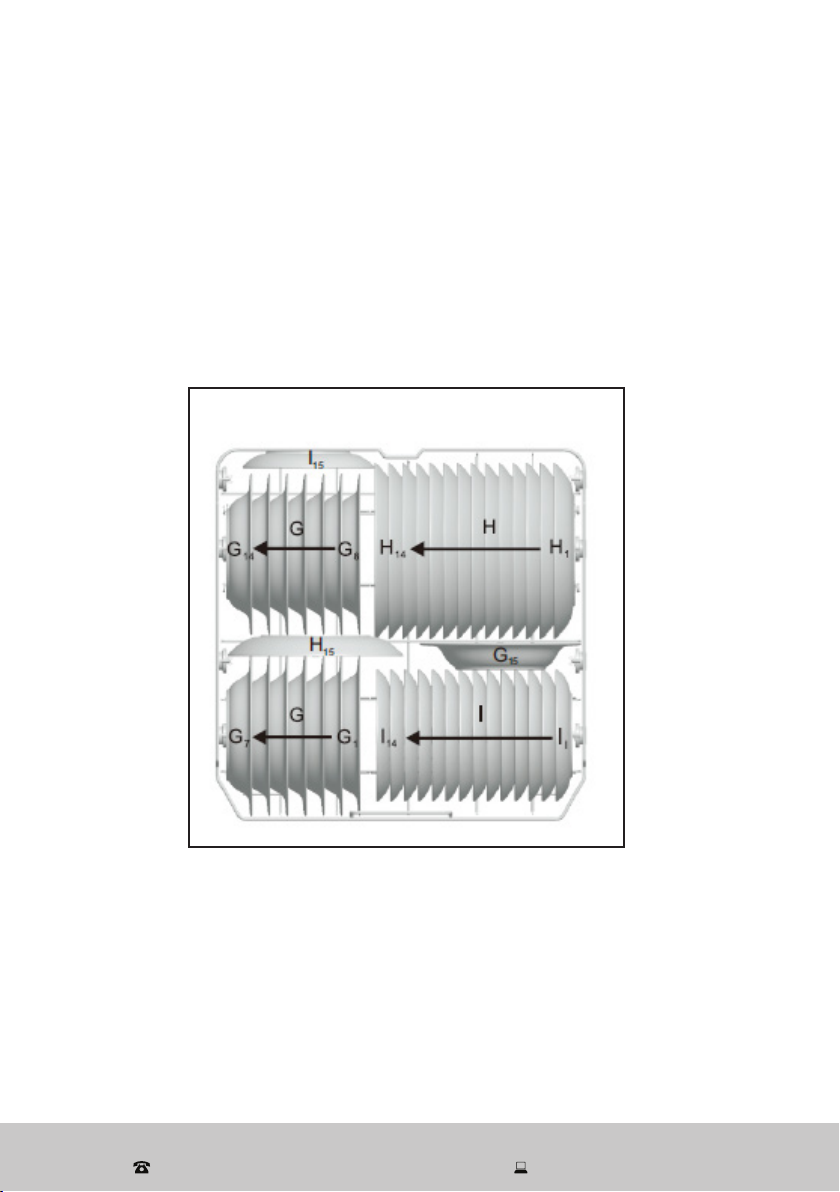

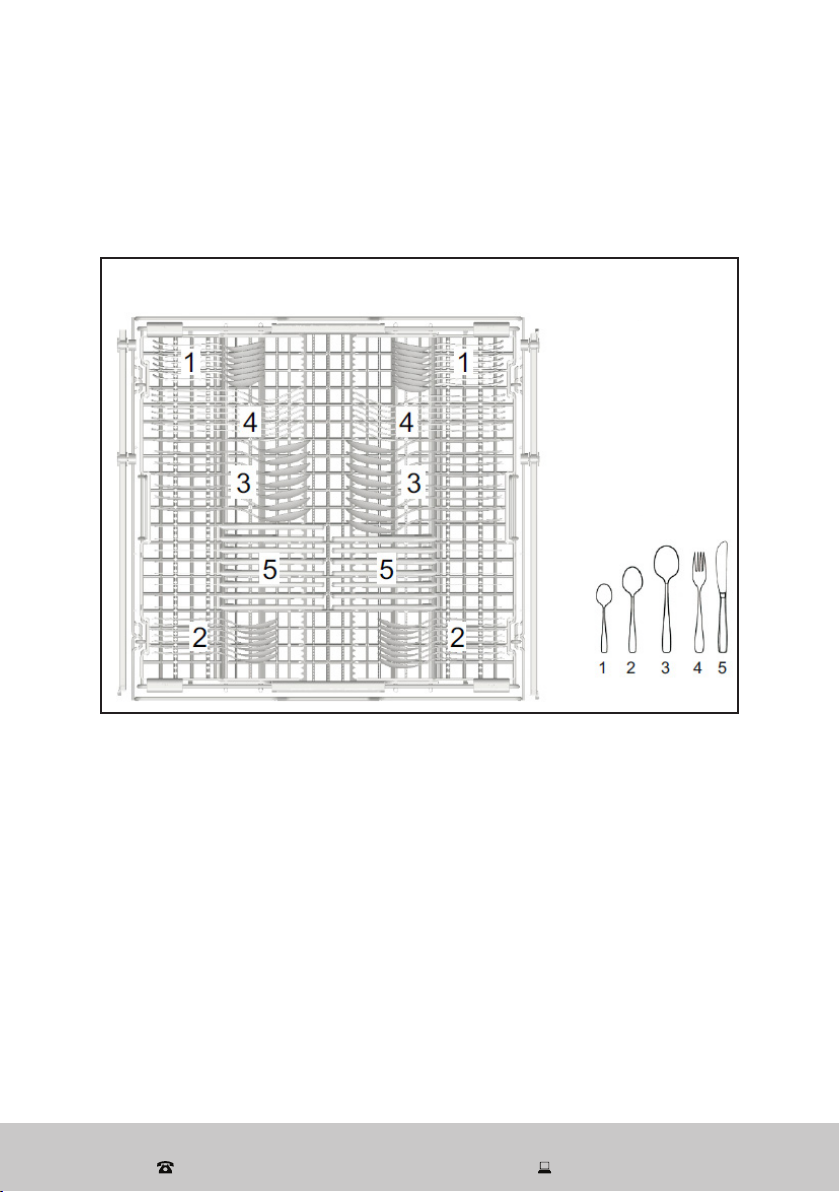

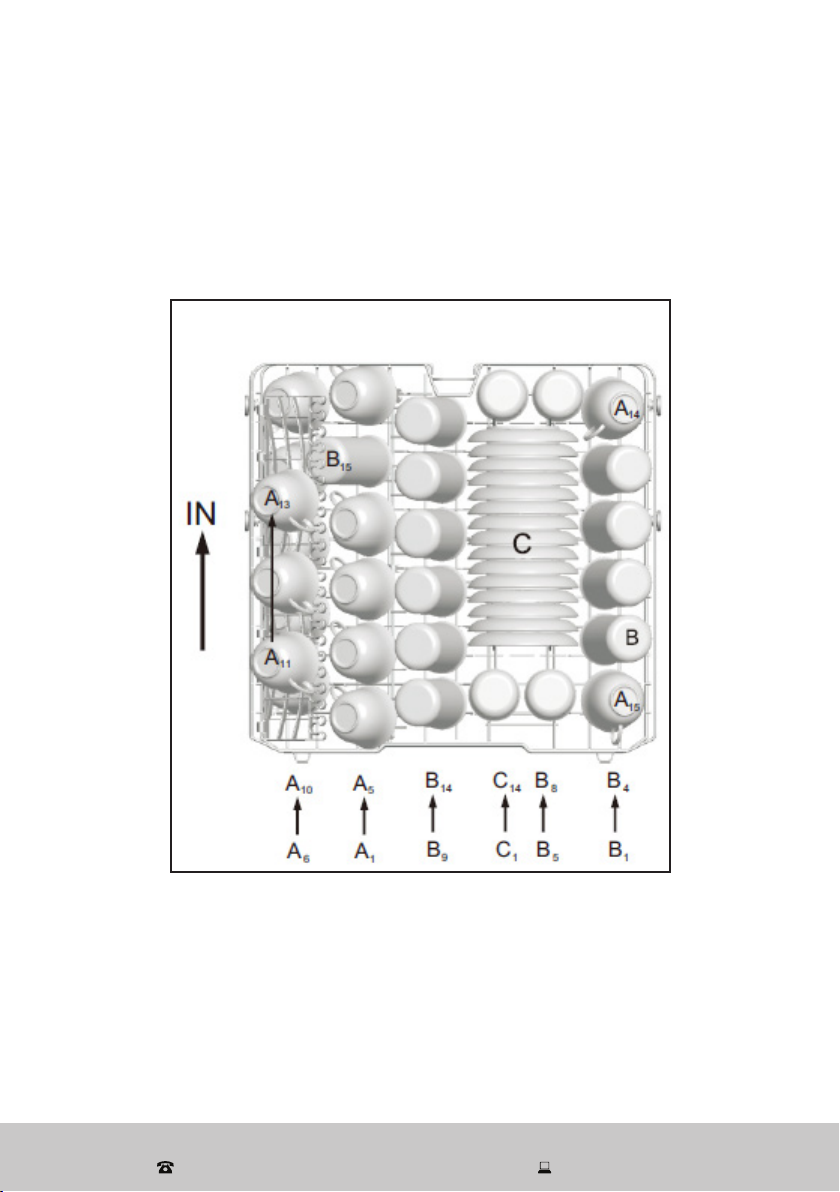

Loading the dishwasher
For best performance of your dishwasher, follow the loading guidelines in this manual.
ATTENTION: Before loading the dishwasher baskets:
It is not necessary to rinse the dishes under running water before you put them into
the dishwasher. However, we recommend you scrape off any large amounts of leftover
food and soften remnants of burnt food in pots and pans.
Place objects in the dishwasher in the following way:
• Hollow items such as cups, glasses, pots, pans, etc. should be placed upside
down so water cannot collect in the container or in a deep base.
• Curved items, or items with recesses, should be loaded at a slant so water can run off.
• All utensils should be stacked securely so they cannot tip over.
• All dishes and utensils should be placed in a way so the spray arms can rotate
freely during washing.
• Very small items should not be washed in the dishwasher as they could easily fall
out of the baskets and obstruct moving parts.
• Dishes and items of cutlery should not lie inside one another, or cover each other.
• To avoid damage to glasses, they must not touch.
• WARNING! Long bladed knives stored upright are a potential hazard! Always position
these and other sharp cutlery items horizontally in the cutlery tray.
• Do not overload your dishwasher; it will hold a maximum of 15 standard place settings.
This is important for better washing results and lowers energy consumption.
• WARNING! Do not pull out the upper and lower basket at the same time, which
can lead to the appliance tipping forward.
Protecting your glass and tableware
Much of today’s tableware is dishwasher safe. However, not everything can be
washed safely in a dishwasher. The chemical composition of your dishwasher deter-
gent or the water temperature and duration of the wash program may adversely affect
some materials. To protect your special cutlery, glass and tableware from damage,
select a wash program with as low a temperature as possible (see pages 14-15 for
program details).
We recommend you do not wash in a dishwasher the items listed below, and take
special care with items deemed of limited suitability. And when buying new dishes,
glassware, porcelain or cutlery, look for products labelled dishwasher-safe.
Not suitable for the dishwasher: cutlery with wooden, horn china or mother-of-pearl
handles; plastic items that are not heat resistant; older cutlery with glued parts that
are not temperature resistant; bonded cutlery items or dishes; pewter or copper items;
lead crystal glass; steel items subject to corrosion (rusting); wooden platters.
Of limited suitability: some types of glasses can become dull with frequent machine
washing; items made of silver and aluminium tend to discolour from machine washing;
glazed patterns may fade with frequent machine washing.
Instructions

After Sales Support
(AU) 1300 886 649 (NZ) 0800 836 761 | [e-mail]
17
Adjusting the upper basket height
The height of the upper basket can easily be adjusted in order to accommodate taller
dishes in either the upper or lower basket. The adjustment mechanism is designed so
you can adjust the height of the upper
basket upwards or downwards without
removing it from your machine when it is
full. At the factory the upper basket height
is set to the lower position.
In order to raise the basket, hold it on
both sides and pull it upwards (Fig. 6).
To lower the basket, hold it on both sides
again and leave it.
Always ensure the basket height adjust-
ment mechanisms are in the same posi-
tion (up or down) on both sides (Fig. 7).
Instructions (Cont.)
Folding down the spike rows
If you need more space for larger pots, pans or bowls in the upper or lower basket, you
can fold down or raise up some of the spike rows to create more space (Fig. 7).
Fig. 7 Upper position Lower position
Fig. 8 Upper basket Lower basket
Fig. 6

After Sales Support
(AU) 1300 886 649 (NZ) 0800 836 761 | [e-mail]
18
Instructions (Cont.)
The upper basket
The upper basket is designed to hold more delicate and lighter tableware such as
glasses, cups, small plates, bowls and shallow pans (as long as they are not too dirty).
Position these items securely so they do not get moved by the spray of water.
Fig. 9 shows the upper basket loaded to fit 15 place settings according to the standard.
A: Cups - B: Glasses - C: Saucers
Fig. 9: Upper basket, loaded to fit 15 place settings
NOTE: Do not put items in the dishwasher that are soiled with cigarette ash, candle
wax, lacquer or paint.

After Sales Support
(AU) 1300 886 649 (NZ) 0800 836 761 | [e-mail]
19
Instructions (Cont.)
The lower basket
The lower basket is designed to hold dinner plates, larger items and the cutlery basket.
Pots, pans, serving dishes and bowls are often the most difficult to clean and fit best
into the lower basket. Always place these items upside down into the basket or at a
slant so the water can flow out. Load large serving dishes and lids on the side of the
baskets so they do not block the rotation of the top spray arm.
Keep in mind that some of the spike rows can be folded down (see Fig. 8, page 17) to
create more space for larger pots and bowls.
Fig. 10 shows the lower basket loaded to fit 15 place settings according to the standard.
Fig. 10: Lower basket, loaded to fit 15 place settings
G: Soup plates - H. Dinner plates- I: Dessert plates

After Sales Support
(AU) 1300 886 649 (NZ) 0800 836 761 | [e-mail]
20
Instructions (Cont.)
The cutlery tray
Your new dishwasher is equipped with a cutlery tray which is located above the upper
basket. Arrange cutlery in the tray as shown (Fig. 11) to ensure that water can run off
freely.
For personal safety and top quality cleaning, place your dishwasher-safe standard
size cutlery in the tray, making sure that items do not nest together and that no item
extends through the bottom of the tray.
1: Teaspoons - 2: Dessert spoons - 3: Soup spoons - 4: Forks - 5: Knives
Fig. 11: Cutlery tray, loaded to fit 15 place settings
