Akai ASB201 User manual

Soundbox with iPod docking
ASB20I
GB 2
NL 19
FR 37
ES 55
DA108
DE 72
EL 90
User manual
Gebruiksaanwijzing
Manuel de l’utilisateur
Manual de instrucciones
Gebrauchsanleitung
Οδηγίες χρήσεως
Brugsanvisning

Table of contents
Copyright notice
Design and specications are subject to change without notice.
1. Safety........................................................................... 3
1.1 Intended use ....................................................................3
1.2 Labels in this manual .......................................................3
1.3 General safety instructions ..............................................3
2. Preparations for use................................................... 4
2.1 Unpacking ........................................................................4
2.2 Package contents ............................................................4
3. Installation................................................................... 5
3.1 Connecting to the mains ..................................................6
3.2 Remote control.................................................................6
3.3 Battery power ...................................................................7
4. Functions..................................................................... 8
4.1 iPod Music System ..........................................................8
5. Operation................................................................... 10
5.1 Quick start ......................................................................10
5.2 iPod functions ................................................................11
5.3 Radio functions ..............................................................13
5.4 Clock functions...............................................................13
5.5 Setting the SLEEP function ............................................14
5.6 Alarm function ................................................................15
5.7 Resetting the appliance .................................................15
6. Cleaning and maintenance ...................................... 16
7. Troubleshooting........................................................ 16
8. Technical data........................................................... 17
9. Disposal of used electrical and electronic
equipment.................................................................. 18

3
ASB20I
Safety1.
Intended use1.1
The iPod Music System functions as a docking station to play music from an
iPod. The appliance also plays music from radio. The clock function includes
an alarm and sleep program. Read the manual carefully before the rst use.
Labels in this manual1.2
! WARNING
A warning means that injury or death is possible if the instructions
are not obeyed.
! CAUTION
A caution means that damage to the equipment is possible.
i
A note gives additional information, e.g. for a procedure.
General safety instructions1.3
! WARNING
Do not put force on the appliance. The appliance can fall and can
cause serious injury.
! CAUTION
Do not spill any liquid on the appliance.
! WARNING
Do not insert any objects in the ventilation holes.
! CAUTION
Do not block the ventilation holes.

4
i This appliance is double insulated; therefore no earth wire is
required. Always check that the mains voltage corresponds to the
voltage on the rating plate. Never attempt to replace the adaptor
plug with a regular mains plug.
Preparations for use2.
Unpacking2.1
● Unpack the appliance carefully.
● Check the package contents as described below. If any item is missing,
please contact your reseller.
● Remove the labels from the front panel carefully if present.
i We recommend that you retain the original carton and packing
materials in case it ever becomes necessary to return your product
for service. This is the only way to safely protect the product
against damage in transit. If you do dispose of the carton and the
packing materials, please remember to recycle with due care to the
environment.
Package contents2.2
The following items are included in the received package:
1 iPod Music System
1 Remote control
1 Battery cell (CR2025)
5 iPod dock adaptors
1 AC/DC adaptor + cable
1 Operator manual
i
If any item is missing, please contact your reseller.

5
ASB20I
Installation3.
● Put the appliance on a horizontal at surface.
● Connect the appliance to the mains. Read the paragraph "Connecting to
the mains".
● Install the batteries in the remote control. Read the paragraph "Remote
control".
!
CAUTION
● Do not put the appliance near a heat source.
● Do not expose the appliance to direct sunlight.
i This appliance is equipped with rubber feet to prevent it from
moving. The feet are made from non-migrating material specially
formulated to avoid leaving any marks or stains on furniture.
However, certain types of furniture polishes, wood preservatives or
cleaning sprays cause the rubber to soften and leave marks or a
residue on the furniture, and potentially risk the surface to become
damaged. To prevent damage to wooden surfaces, we recommend
that you apply self-adhesive pads to the bottom of the rubber feet
before installation.

66 7
ASB20I

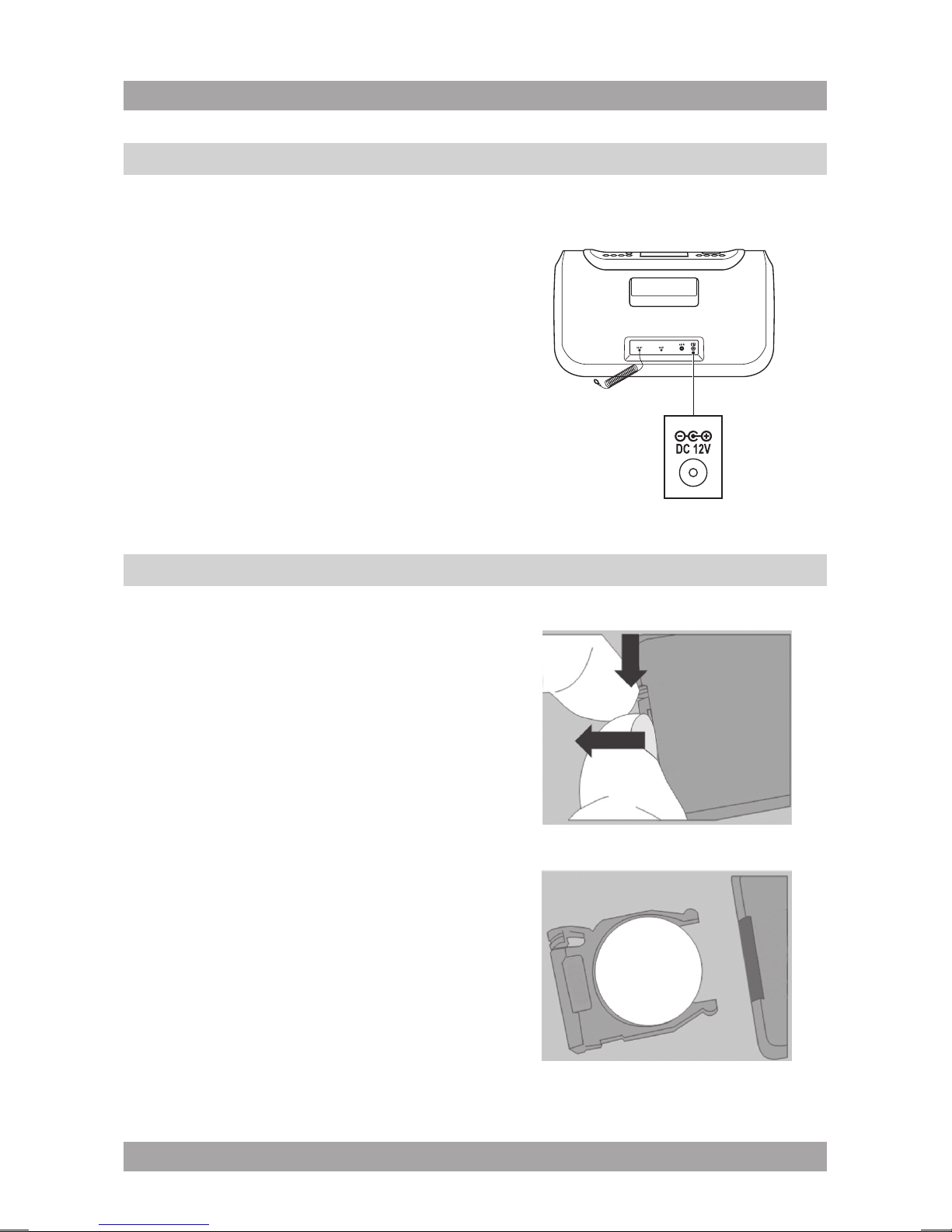

Connecting to the mains3.1
● Connect the adaptor plug on
the adaptor cable to the DC12V
connection.
● Connect the mains plug to a wall
socket.
Remote control3.2
Installing the battery
● Press the catch and at the same
time pull out the battery tray.
● Insert 1 lithium battery, type CR2025
3V battery with the stamped (+)
mark facing upward.
● Insert the battery tray into the
remote control.

6 7
ASB20I
Battery power3.3
The appliance can also be operated
on battery power. For this purpose,
the appliance uses eight batteries (C).
i
● Batteries are not included with this
appliance.
● Batteries are not necessary for
normal operation.

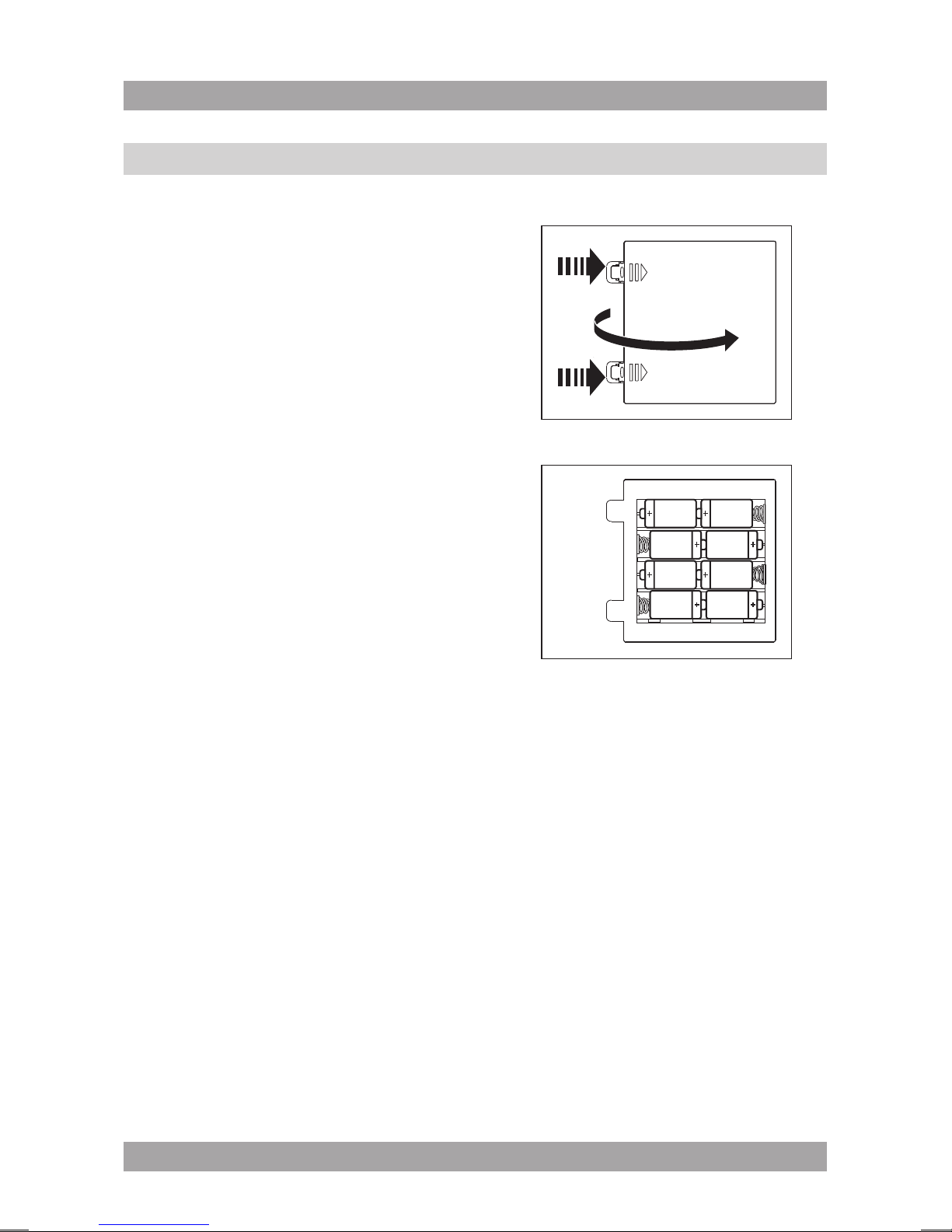

Install batteries
● Remove the battery cover.
● Insert the batteries matching the (+)
and (-) polarity markings.
● Re-install the battery cover.
! CAUTION
Incorrect installation can
cause battery leakage and
corrosion which will damage
the appliance. Corrosion, oxidation, battery leakage and any other
gradually acidic defect of this nature will invalidate the guarantee.

8
Functions4.

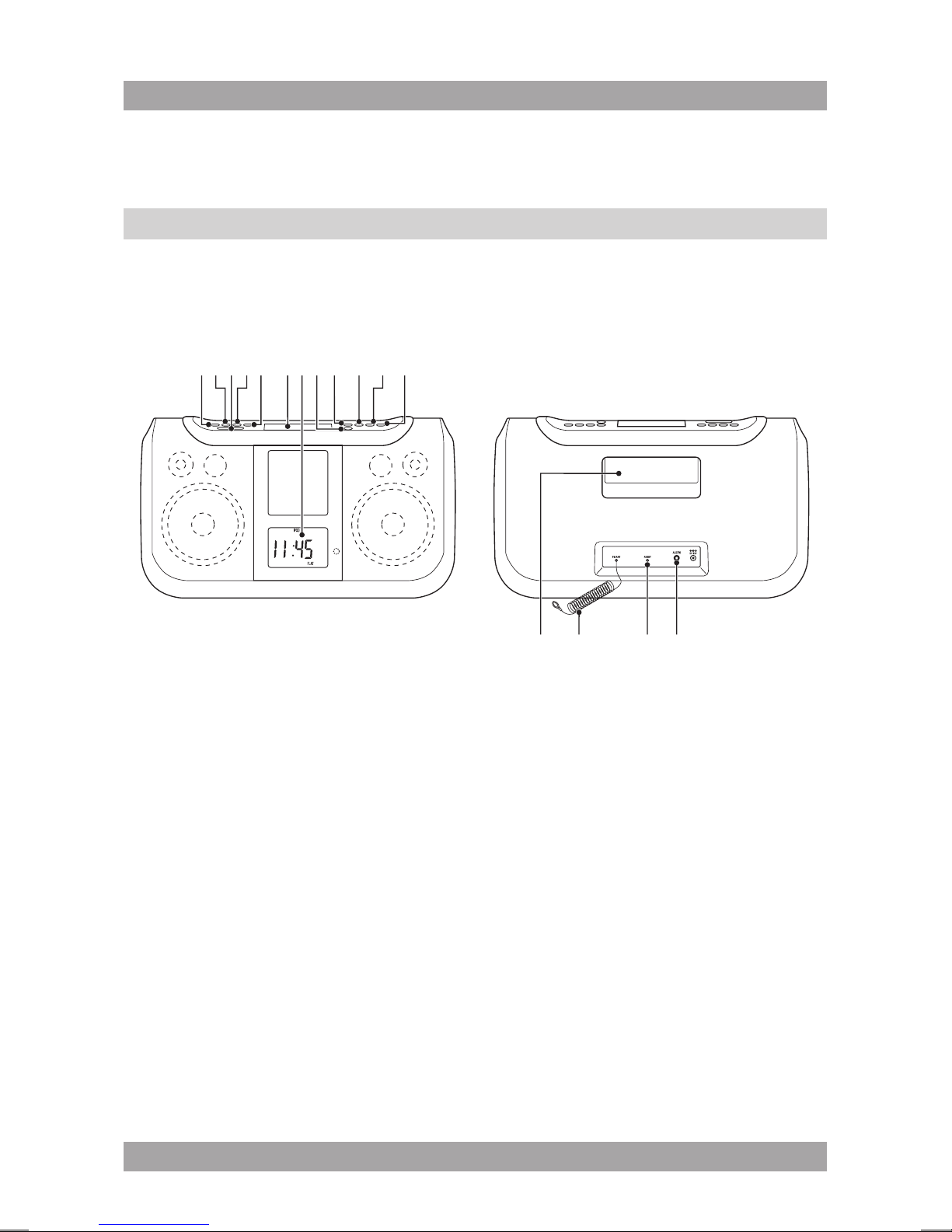

iPod Music System4.1
321 6 7
1413 15 16
54 11108 9 12
1 Power/Standby button
2 FUNCTION button
3 SNOOZE button
4 VOL - button
5 VOL + button
6 Docking station
7 Display
8 OPEN/CLOSE button
9 PLAY/PAUSE button
10 STOP button
11 PREV/REV/TUNE - button
12 NEXT/FWD/TUNE + button
13 Carrying handle
14 FM antenna
15 RESET button
16 Line in jack

9
ASB20I

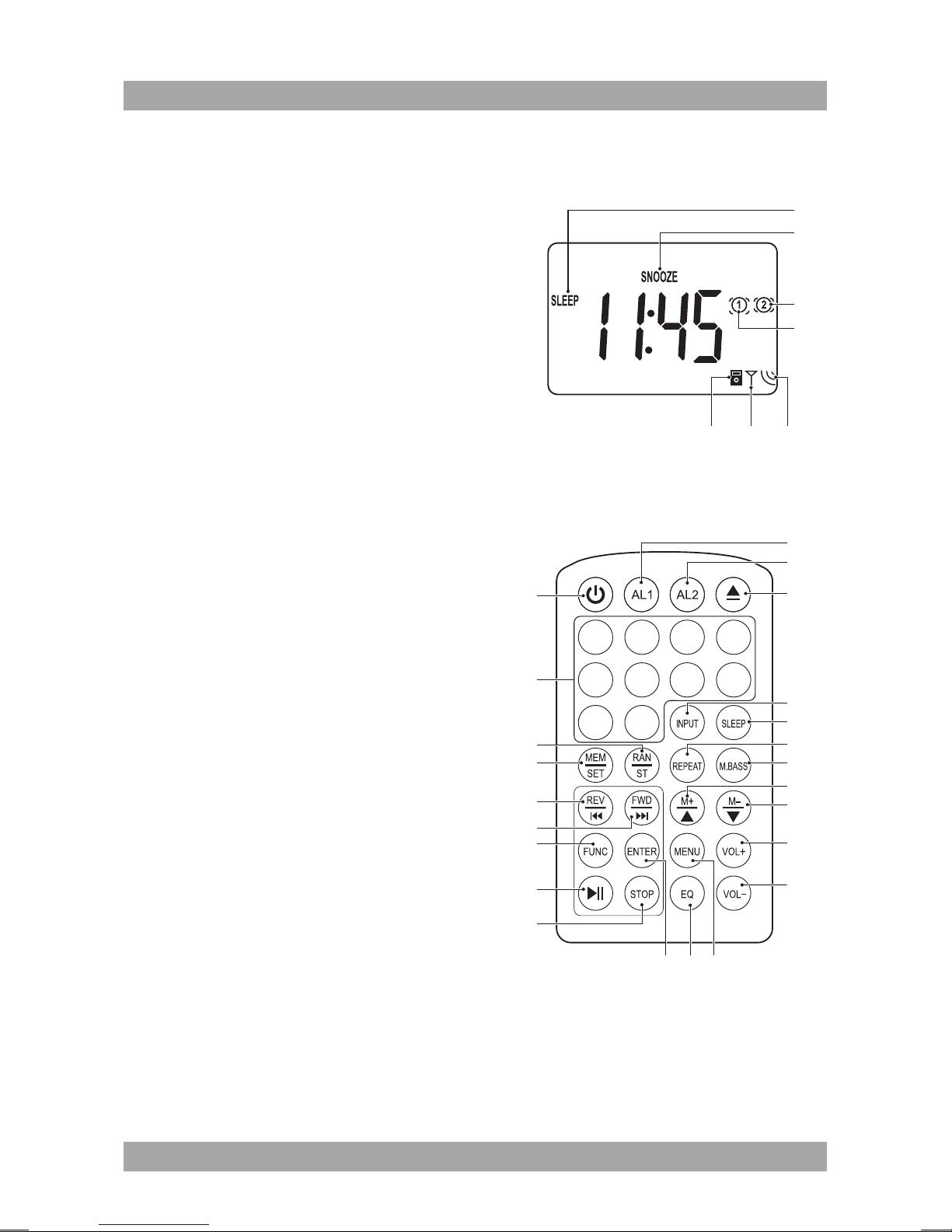

Display
17 Alarm mode indicator: iPod
18 Alarm mode indicator: Radio
19 Alarm mode indicator: Tone
20 ALARM1 indicator
21 ALARM2 indicator
22 SNOOZE indicator
23 SLEEP indicator
Remote control
24 Power on/Stand-by button
25 Digit buttons
26 RAN/ST button
27 MEM/SET button
28 PREV/REV button
29 NEXT/FWD button
30 FUNC button
31 PLAY/PAUSE button
32 STOP button
33 ENTER button
34 Electronic Preset Equalizer
button (EQ)
35 MENU button
36 VOLUME - button
37 VOLUME + button
38 M - button
39 M + button
40 M.BASS button
41 REPEAT button
42 SLEEP button
43 INPUT button
44 OPEN/CLOSE button
45 ALARM2 button
46 ALARM1 button
18 19
21
23
17
22
20
1234
5678
90
34 3533
24
25
44
46
45
42
43
40
41
38
39
27
26
28
29
30
31
32
37
36

10 11
ASB20I
10 11
ASB20I
Operation5.
All functions of the appliance are accessible using the remote control.
All instructions refer to operation with the remote control, unless indicated
otherwise.
Quick start5.1
General functions
● To switch on the appliance, press the Power/Standby button (24). To
switch off the appliance, press the Power/Standby button (24) again.
● To select the source mode (iPod/Radio/AUX), press the FUNC button (30).
● To adjust the volume, press the VOL + button (37) or the VOL - button (36).
● To enable the sound mode (FLAT/STUDIO/ARENA/MONITOR/CLUB),
press the EQ button (34). To disable the sound mode, select FLAT.
● To enable the enhanced bass, press the M.BASS button (40). Press the
button again to disable the enhanced bass.
● To connect an external audio device, insert the cable plug in the
AUX receptacle (16).
iPod functions
● Select the matching dock adaptor for your iPod. Insert the dock adaptor in
the docking station (7). Place the iPod on the dock adaptor.
● Switch on the appliance. Select the iPod mode.
● To start playback, press the PLAY/PAUSE button (31) once.
● For extended instructions, read the paragraph "iPod functions" further on
in this manual.
Radio functions
● Switch on the appliance. Select the tuner mode.
● To tune to the station of your choice, press the TUNE + button (29) or the
TUNE - button (28) repeatedly until the frequency is found.
● For extended instructions, read the paragraph "Radio functions" further on
in this manual.
Clock functions
● Read the paragraph "Clock functions" further on in this manual.
