Akaso FOCUS User manual

Quick Start Guide

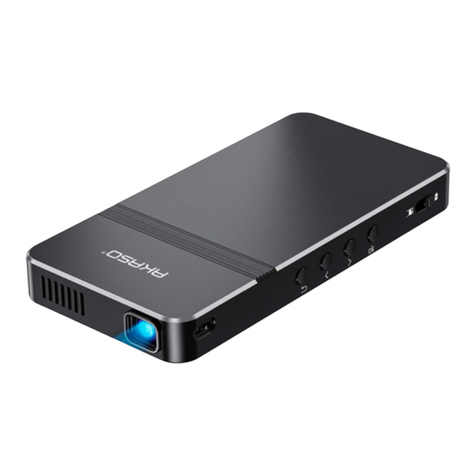

AKASO FOCUS Mini Video Projector
V1.3

CONTENTS
01 - 13English
27 - 39日本語
14 - 26Español

PROJECTOR BUTTONS & FUNCTIONS
123456 7 8
Note: When in the EZWire/EZCast/HDMI interface, the button function is changed.
Forward: Change to volume +
Backward: Change to volume -
910 11 12 13
1
2
3
4
5
10
Focusing Wheel
Return
Forward
Backward
OK
Projection Mode
Power Button
6
7
8
9
Power Bank Mode
DC
USB
HDMI
Earphone
Memory Card Port
11
12
13
1
English

INFRARED REMOTE CONTROL
POWER ON/OFF
Note: When using the IR remote control, you should aim at the projector rather
than screen.
1. Pull the power button to the left and hold it for about four seconds until the
green indicator on the projector bottom is lit up, then the projector starts to
work.
2. Turn the power button to the left again and hold it for about two seconds to
shut down the projector.
3. Turn the power button to the right to lock the button, then the projector can be
used as a power bank.
OK
Return
Menu
Vol +/-
Directions
Home
EZCast Operation No Function
HDMI Operation
On/Off Mute
2

POWER BANK MODE AND CHARGING METHOD
1. When the projector is in power bank mode/
projection mode, the projector can charge other
devices via USB port.
2. In order to improve charging efficiency, please
charge the projector with the original power
adapter in power bank mode.
3. The number of indicators represent remaining
capacity of battery.
a. When the 4 indicators are all on and without
flashing, the capacity of battery is full.
b. When there is only one indicator on, the
projector is in low power status and can be
used as power bank for emergency.
c. If there is only one indicator flashing, it means all the power is used up and
the projector needs to be charged.
EZWIRE: SCREEN-SHARING VIA WIRE CONNECTION
iOS Device:
1. Select and click EZWire icon in the main projector interface.
2. Connect the projector and iOS device with USB cable.
3. The iOS device will pop up a prompt, as shown in the figure below "Step 3".
Select “trust” and then wait a moment, the screen content on the iOS device will
be displayed on the projector screen.
EZWire
1
Step 1 Step 2
3

Android Device:
1. Select and click EZWire icon in the main projector interface.
2. Download “EZCast” app by scanning the below QR code/scanning the QR code
on the EZWire interface/searching for “EZCast” in App Store/Google Play/official
website www.ezcast.com, etc.
3. Connect the projector and Android device with USB cable.
4. Select in the “EZCast” app, then follow the prompts to turn on the USB
debugging mode and USB tethering in the settings of the Android device.
5. Select on the top left corner of the “EZCast” app, then select projector ID
“AKASO_FOCUS_ ******” to connect your Android device to the projector.
Trust This Computer?
Your settings and data will be
accossible from this computer when
connected
Trust Don’t Trust
EZWire
Step 3
EZCast
Google Play
Step 1 Step 2
4

Note:
1. Please make sure your Android device supports USB tethering.
2. Since the different Android device systems are different, the way to open USB
debugging mode and USB tethering is different. You can search for “How to
open the USB debugging mode and USB tethering of XXXXX Android device” in
Google.
AKASO_FOCUS_******
Cloud Storage
No device
Developer options
Debugging
USB debugging
Tethering & portable hotspot
USB tethering
Tethered
Allow USB debugging?
USB debugging is intended
for developement purposes
only, Use it to copy doto
oetween your computer
and your device, install
opps on your device
witnout notificotion, and
reod log date.
CANOL OK
Option 1:
Turn on USB Debugging mode to mirror
usb debugging mode need to turn on only one tinme
Option 2:
Turn on USB Tethering to mirror
Connect
Connect
AndroidAndroid
Step 3
Step 4Step 5
5

EZCAST: SCREEN-SHARING VIA WIRELESS CONNECTION
Air Play Wireless Connection:
1. Select and click EZCast icon in the main projector interface.
2. Connect iOS device with the Wifi hotspot “AKASO_FOCUS_ ******” provided by
EZCast interface, the password is “87654321”.
3. Open Air Play (Screen Mirroing) in the settings of the iOS device, select projector
ID “AKASO_FOCUS_ ******” in Air Play list, then wait a moment, the screen
content on the iPhone will be displayed on the projector screen.
(If iOS device and projector are already connected with the same Wifi, there is
no need to connect with the hotspot provided by the EZCast interface)
EZCast
Settings Wi-Fi
Wi-Fi
AKASO_FOCUS-781C01081
CHOOSE A NETWORK...
Screen Mirroing
Stop Mirroring
AKASO_FOCUS-781C01081
TV
Step 2Step 1
Step 3
6

Other devices EZCast connection:
1. Select and click EZCast icon in the main projector interface.
2. Download “EZCast” app by scanning the below QR code/scanning the QR code
on the EZWire interface/searching for “EZCast” in App Store/Google Play/official
website www.ezcast.com, etc.
3. Connect your device with the Wifi hotspot “AKASO_FOCUS_ ******” provided
by EZCast interface, the password is “87654321”.
4. Select on the top left corner of the “EZCast” app, then select projector ID
“AKASO_FOCUS_ ******” to connect your device to the projector.
5. Select on the top left corner of the “EZCast” app, select “Mirror Off” to turn
on the Mirror function. Then wait a moment, the screen content on the iPhone
will be displayed on the projector screen.
EZCast
Settings Wi-Fi
Wi-Fi
AKASO_FOCUS-781C01081
CHOOSE A NETWORK... AKASO_FOCUS_******
EZCast
App Strore | Google Play
Step 2Step 1
Step 4Step 3
7

EZChannel
Camera
Music
Video
Web
Cloud Storage
Sign in
AKASO_FOCUS-781C0181
HDMI INPUT
1. Connect the projector and your device with HDMI cable.
2. Select and click HDMI icon in the main projector interface. Then wait a moment,
the screen content on your device will be displayed on the projector screen.
Mirror Off
Settings
Settings(App)
DLNA
Help
THEME
2
PC
PC
Step 5
Step 1
Step 2
8

MEDIA LIBRARY
Support Memory Card & U-disk
1. Select and click Media icon in the main projector interface.
2. Select and click memory/USB icon in the main projector interface.
3. Then you can choose to read the contents of memory card or U-disk on the
projection like photos, videos or music.
• Video format support: H.263, H.264, VC-1, RV8/9/10, VC-1 MPEG-1, MPEG-2,
MPEG-4, MKV,RM,RMVB etc. Support up to 1920*1080.
• Music Format support: mp1/mp2/mp3/WMA/AAC/FLAC/APE/AMR-NB/WAV/
PCM/ADPCM.
• Picture Format support: jpg/png/bmp.
Media
memory Card
USB
Video
Music
9

SETTINGS DESCRIPTION
1. Select and click Settings icon in the main projector interface.
2. Select and click Management/Image/Network icon in the Settings interface to
enter the Management/Image/Network interface.
3. In the Management/Image interface, press the and button to cycle
through Function options and press the OK Button to select desired Function
option. Then press the and button to choose the Specification option.
Press button to return to the Management/Image interface.
(If you use the remote control, you can simply press the and button to
cycle through Function options; and press the and button to choose the
Specification option)
Management Interface Image Interface
Media
Management Image Network
Front
Desktop
On
0
Projection Mode
Projection Location
Auto v Keystone
V. Keystone
Brightness 6
Enter
Enter
HT20180710V1
USB
Set time
Volume
Firmware Version
Firmware Upgrade
Management
Language English
10

Language
Set time
Volume
Firmware Version
Firmware Upgrade
USB connection
Reset All
Brightness
Projection Mode
Projection Location
Auto V Keystone
V.Keystone
Auto V.angle.init
H.Keystone
Aspect Ratio
Digital Zoom
Color Temperature
Wall Color
From -40 to 40
From -32 to 32
From -25 to 25
Auto/L.Box/16:9/4:3/Full
From 1.0 to 1.8
Normal/Warm/Cold
White/Dark Green/Pink/Light Blue/Light Yellow
On/Off
Front/Rear
Desktop/Ceiling
1/2/3/4/5/6/7
HT********V1
USB/OTA
English/Deutsch/Español/Français/Italiano/
简体中文/日本語, etc.
Use the and buttons to adjust the volume
Date: YY / MM / DD; Time: HH, MM (Use the the ,
and OK buttons for Date Time Selection)
Connect the projector and your computer with a USB
cable male to male, then you can access the memory
of the memory Card/U-disk inserted in the projector.
/
Management
Settings Function Specifications
11

4. In the Network interface, press the button to choose the Wifi you want to
connect to, then press the OK button to confirm and enter the password
interface. Use the the , and OK buttons to enter the password. Then select
on the interface, press the OK button to confirm and complete the password
input. The system will automatically return to the settings interface after
successful connection.
Network Interface Password Interface
1. Please do not disassembly and change any parts of the projector privately.
Please find the professional personnel for machine maintenance.
2. Please do not use the projector on blanket, pillow and other soft materials to
keep the normal heat dissipation of the machine.
3. Please do not look directly into the lens to avoid the strong light hurt your eyes.
4. Please do not use the projector near the river, or in high temperature or highly
dust polluted environment.
5. Please do not put any heavy things on the projector.
6. Please use the original power adapter to charge the projector.
SECURITY
Attention: when projector is working, please do not look directly into
the lens, the strong light will flash your eyes and cause slight pain if
your eyes are close to the lens. Children should use the projector
under the supervision of adults.
****
****
****
****
Boutique
TS-W
U10C022DA
C&S Home
Wifi
Springfield ****
Wifi
SSID: Springfield PWD: 00000001
0
q
a
z
[
w
s
x
]
e
d
c
\
r
f
v
/
t
g
b
-
y
h
n
=
u
j
m
,
i
k
;
.
o
l
Shift
Forget
p
‘
Del
OK
1 2 3 4 5 6 7 8 9
12

13
English
For any inquiries about AKASO products, please feel free to contact us.
We will respond within 24 hours.
Tel: [phone] (US)
Email: [email protected]
Web: www.akasotech.com
CONTACT US

14
BOTONES DE PROYECTOR & FUNCIONES
12345678
Nota: En la interfaz EZWire/EZCast/HDMI, se cambia la función del botón.
Adelante: Cambiar a volumen +
Atrás: Cambiar a volumen -
910 11 12 13
1
2
3
4
5
10
Rueda de Enfoque
Regreso
Adelante
Atrás
OK
Modo de Proyección
Botón de Encendido
6
7
8
9
Modo de Cargador Portátil
DC
USB
HDMI
Auricular
Puerto de Tarjeta de Memoria
11
12
13
Español

15
CONTROL REMOTO INFRARROJO
ENCENDIDO/APAGADO
Nota: Cuando utilice el control remoto infrarrojo, debe apuntar al proyector en
lugar de la pantalla.
1. Tire el botón de encendido hacia el izquierdo y lo presione alrededor de
4 segundos hasta que el indicador verde brilla del bajo del proyector. Pues el
proyector empieza trabajar.
2. Gire el botón de encendido hacia el derecho otra vez y manténgalo presionando
2 segundos para apagar el proyector.
3. Gire el botón de encendido hacia el derecho para bloquear el botón, puede
utilizar el proyector como el cargador portátil.
OK
Regreso
Menú
Vol +/-
Direcciones
Home
EZCast Operación No Función
HDMI Operación
Encendido/Apagado Desactiva Sonido

16
MODO DE CARGADOR PORTÁTIL Y MANERA DE CARGA
1. Cuando el proyector está en el modo de cargador
portátil/modo de proyección, el proyector puede
cargar a otros dispositivos por el puerto de USB.
2. Para mejorar la eficiencia de carga, cargue el
proyector con el cargador de corriente original
en el modo de cargador portátil.
3. El número de indicadores representa la
capacidad restante de la batería.
a. Cuando los 4 indicadores están encendidos
y sin parpadear, Representa que carga
completamente.
b. Cuando solo 1 indicador está encendido,
el proyector en el estado bajo energía, puede utilizarlo como cargador portátil
emergencia.
c. Cuando solo 1 indicador está parpadeando, significa que se ha agotado toda
la energía, y es necesario cargar el proyector.
EZWIRE: PANTALLA COMPARTIDA POR CONEXIÓN DE CABLE
iOS Dispositivo:
1. Seleccione y haga clic en el icono ZEWire en la interfaz principal del proyector.
2. Conecte el proyector con el iOS dispositivo por cable USB.
3. El iOS dispositivo mostrará un mensaje emergente, como se muestra en la
figura debajo del "Paso 3". Seleccione “confiar” y luego espere un momento,
el contenido de la pantalla de iOS dispositivo se mostrará en la pantalla del
proyector.
EZWire
1
Paso 1 Paso 2

17
Android Dispositivo:
1. Seleccione y haga clic en el icono ZEWire en la interfaz principal del proyector.
2. Descargue la aplicación “EZCast” a través de escanear el siguiente código QR/
escanear el código QR en la interfaz EZWire/buscando “EZCast” en la App Store
/Google Play/sitio web oficial www.ezcast.com, etc.
3. Conecte el proyector con el Android dispositivo por cable USB.
4. Seleccione en la aplicación “EZCast” , y luego siga las instrucciones para
activar el modo de depuración USB y el anclaje a red USB en el configuración
del Android dispositivo.
5. Seleccione en la esquina superior izquierda de la aplicacion “EZCast”, y luego
seleccione el proyector ID “AKASO_FOCUS_ ******” para conectar su Android
dispositivo con el proyector.
Trust This Computer?
Your settings and data will be
accossible from this computer when
connected
Trust Don’t Trust
EZWire
Paso 3
EZCast
Google Play
Paso 1 Paso 2

18
Nota:
1. Por favor asegúrese de que su dispositivo Android sea compatible con el anclaje
a red USB.
2. Debido a haber diferente sistema de los Android dispositivo, la manera de que
activa el modo de depuración USB y el anclaje a red USB es diferente.
Puede buscar “Cómo activa el modo de depuración USB y el anclaje a red USB
de XXXXX Android dispositivo” en el Google.
AKASO_FOCUS_******
Cloud Storage
No device
Developer options
Debugging
USB debugging
Tethering & portable hotspot
USB tethering
Tethered
Allow USB debugging?
USB debugging is intended
for developement purposes
only, Use it to copy doto
oetween your computer
and your device, install
opps on your device
witnout notificotion, and
reod log date.
CANOL OK
Option 1:
Turn on USB Debugging mode to mirror
usb debugging mode need to turn on only one tinme
Option 2:
Turn on USB Tethering to mirror
Connect
Connect
AndroidAndroid
Paso 3
Paso 4Paso 5
