Akicon 01910 User manual

CABINET HARDWARE
EX: E003003T Rev: A
Questions, problems, missing parts?
call Akicon Customer Service 8 a.m.-6p.m. EST, Monday-Friday
Phone: [phone], Email: [email protected]
AKICONSHOP.COM
Model:
01910/01920/01921
1
Before you begin:
� Read the cabinet handles and knobs installation instructions completely
before starting.
� Find a safe work space to avoid scratching your cabinets and
countertops while working with tools.
� Electric drill
� 3/16" drill bit
� Pencil
� #2 Phillips screwdriver
� Ruler or tape measure
� Masking tape (optional)
� Installation template (optional)
Tools you need:

EX: E003003T Rev: A
23

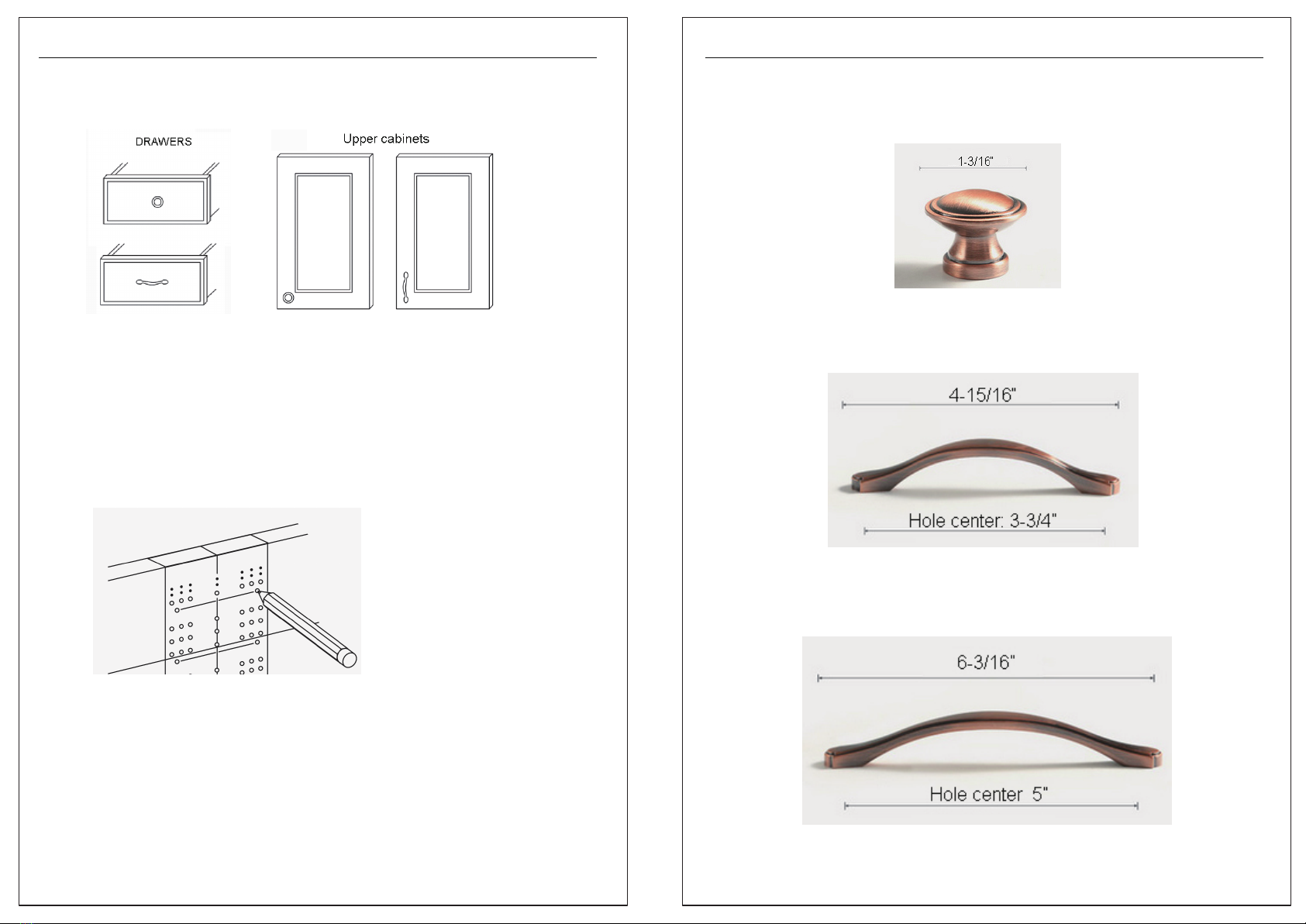

1. Determine where you're going to install your cabinet handles or knobs.
Common locations for kitchen cabinet hardware include the bottom left for upper
cabinets, or the upper left for lower cabinets.
INSTRUCTIONS:
2. Measure between the holes on the back of the cabinet door handles to find the
correct center to center spacing for the holes. 3-3/4" is the most popular spacing,
but your options will depend on the size of your cabinet doors.
3. With your ruler or tape measure, carefully measure and mark the hole
locations. (You can also use the cabinet hardware installation template to help
with spacing.) WARNING: If you use a power drill, always read and follow the
operating and safety instructions in the power drill owner's manual and the
instructions for use. Always wear safety goggles to protect your eyes and wear
other appropriate safety items for protection.
4. Place masking tape in your approximate hole locations on the front of the
cabinet. Doing so can help prevent any potential damage to the cabinet front
when drilling.
5. Carefully drill through the cabinet door fronts. Go steadily and slowly, and use
minimal pressure to reduce damaging or splintering the backside of your cabinet.
6. Use a screwdriver and fasteners to install your new cabinet handles or knobs.
(Note: Be careful not to over-tighten the screws. Cabinet handles, knobs, and
drawer pulls should only be hand tightened.)
SPECIFICATION:
Model: 01910
Model: 01920
Model: 01921
(D.xH.: 1-3/16”x29/32”)
(L.xW.xH.: 4-15/16”x19/32”x29/32”)
(L.xW.xH.: 6-3/16”x19/32”x29/32”)
