akira LCT-32PBSTP User manual

LCD TV
Service Manual

-2-
Model No.: LCT-32PBSTP.doc
Version: 1.0
MODEL:
LCT-32PBSTP

-3-
Model No.: LCT-32PBSTP.doc
Version: 1.0
CONTENTS
SAFETY PRECAUTION .............................................................................................................4
SPECIFICATION ........................................................................................................................6
APPEARANCE & CONTROL FUNCTION ...............................................................................10
ALIGNMENT INSTRUCTION ...................................................................................................14
SOFTWARE UPGRADING.......................................................................................................26
WORKING PRINCIPAL ANALYSIS ..........................................................................................27
BLOCK DIAGRAM....................................................................................................................28
IC BLOCK DIAGRAM ...............................................................................................................29
WIRING DIAGRAM...................................................................................................................33
ASSEMBLY LIST ......................................................................................................................34
TROUBLE SHOOTING GUIDE ................................................................................................36
APPENDIX ...............................................................................................................................48
CIRCUIT DIAGRAM
PARTS LIST

-4-
Model No.: LCT-32PBSTP.doc
Version: 1.0

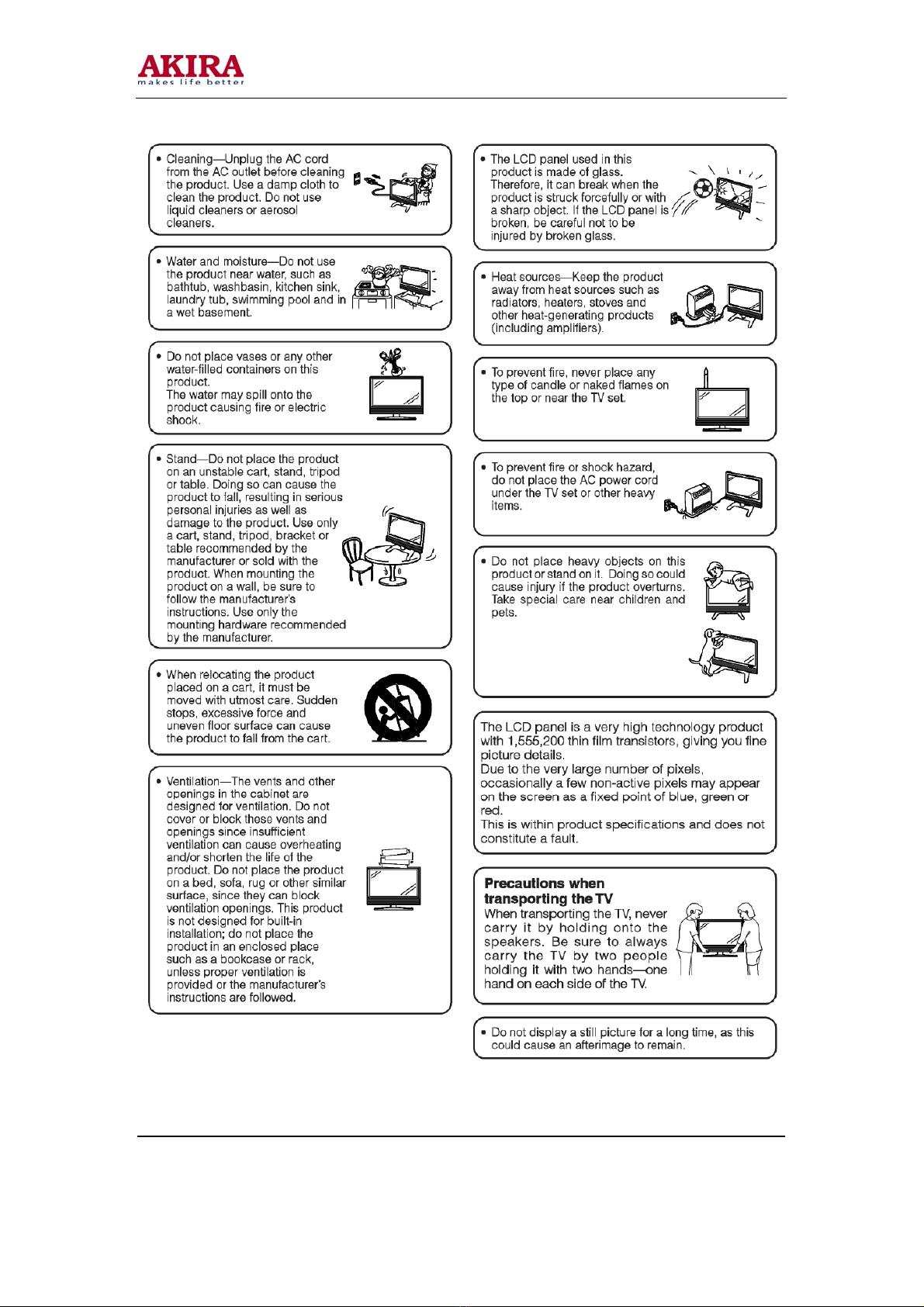

IMPORTANT SAFETY PRECAUTION

-5-
Model No.: LCT-32PBSTP.doc
Version: 1.0

-6-
Model No.: LCT-32PBSTP.doc
Version: 1.0
S
SP PE EC CI IF FI IC CA AT TI IO ON N
Screen Size & Type 597 x 336 mm
Net TV Dimension 820 x 254 x 665 mm
Gross TV Dimension 950 x 362 x 783 mm
Net TV Weight 23kg
Gross TV Weight 32kg
Power Consumption (Normal Operation) 200 Watts (MAX)
Power Consumption (Standby Operation) 3 Watts (MAX)
Front Cabinet Colour Silver + Black
Back Cabinet Colour grey 05
General
Stand Type / Colour Swivel / Black + Silver
Power Adapter Input Voltage
Power Adapter Output Voltage
Power Adapter Output Voltage
Power Adapter
Power Plug Type
No adaptor
Mains Voltage 100-240V
Mains Frequency 50/60Hz
Built-In Power
Supply
Power Plug Type 2.5-Amp round pin(VDE standard)
Operating Temperature 0 - 40 Deg C
Storage Temperature -25 - -55degC
90% RH Max(Ta<=40 Deg C & web-bulb temperature
Operating
Spec
Relative Humidity Level
should be 39degC Max(Ta>40degC
RF PAL I , B/G , D/K
RF SECAM B/G , D/K , L/L'
RF NTSC N/A
VIDEO PAL yes
VIDEO SECAM yes
Reception & Playback
System
VIDEO NTSC NTSC PLAYBACK 3.58 / 4.43
Brand & Model CMO ,V320B1-L01
Resolution 1366 x 768
Displayable Colour 16.7M
Panel
Surface Treatment
Hardness:3H,Haze:40% Anti-reflective coating<2%
Reflection

-7-
Model No.: LCT-32PBSTP.doc
Version: 1.0
Viewing Angle (H/V) 170/170
Display Response Time 12ms
Contrast Ratio 800 : 1
Brightness 550cd/m2
Aspect 16:9
Lamp Life >=50,000
Bad pixels warranty (Bright / Dark / Total) Bright<2, dark<5, total no more then 5 dot
Channel Coverage 40 - 870Mhz
Preset Channels 1 to 200
S + Hyper Band CATV yes
Aerial Input n/a
Tuner
Detachable n/a
Comb Filter yes 3D
Velocity Modulation n/a
Noise Reduction Weak / Medium / Strong
Film Theater n/a
Detail Enhancer yes
Super Contrast n/a
Colour Transient Improvement yes
Picture Mode Option 4 , Vivid / Standard / Mild / Customer
Brightness Control Range 0 to 100
Contrast Control Range 0 to 100
Colour Control Range 0 to 100
Sharpness Control Range 0 to 100
Hue Control -50 to 50
Colour Temp Selection 3, Normal / Warm / Cool
Black Stretch yes
Audio Output 8 Watts x 2
NICAM Stereo yes
German A2 Stereo yes
Surround no
Dual Sound Decoding yes
Audio Mode Option 4 , Live / Pop / Rock / Customer
Volume Control 0 to 100
Audio
Treble Control -50 to 50

-8-
Model No.: LCT-32PBSTP.doc
Version: 1.0
Bass Control -50 to 50
Balance Control -50 to 50
Auto Volume Level n/a
CVBS Input yes/1
S Video Input yes/1
Component YCbCr Input yes/1
Component YCbCr Displayable Modes 480i , 576i , 1080i
Progressive YPbPr Input yes , 1
Component YPbPr Displayable Modes 480p , 576p, 720p
VGA D-15 Input yes ,1
PC Audio L/R Input yes , No, earphone
SCART Input yes , 2
SCART Output n/a
CVBS Output n/a
Optical Input n/a
Coaxial Input n/a
DVI Input n/a
Earphones Input yes , 1
Terminals
HDMI Input yes , 1
Tele-text 1000 pages
Tele-text Language
all , (West Europe, East Europe, Turkish / Greek, Cyrillic,
Arabic)
P in P Type
PIP / POP / PBP(4 wins) on all terminal and 9 picture
browse on TV
Number of Tuner 2
Channel Scan Auto / Manual
Display Aspect Ratio Control Auto / 16:9/14:9/4:3/zoom/
OSD Language OSD with Chinese, English, Russian, Turkish
Other Menu Feature OSD background
Screensaver No
Timer On yes
Timer Off yes
Sleep Timer yes 15,30,45,60,90,120
Auto Shutdown When No Signal 5 min
Other Features
Picture Freeze yes

-9-
Model No.: LCT-32PBSTP.doc
Version: 1.0
Child Lock yes
Local Keys Prog + , Prog - , Vol + , Vol - , Menu , TV/AV , Main Switch
Instruction Manual Lang English, Russian
Auto Tuning Yes
Manual Tuning Yes
Manual Fine Tuning Yes
Manual/Auto Colour System both
Manual/Auto Sound System both
Program Naming Yes
Skip Channel Yes
Exchange Channel Yes
Installation
Copy Channel Manual sort program
Remote Control Yes
Batteries for RC Yes
Euro 2 Pin Power Plug No
3 Pin Power Plug No
Instruction Manual Yes
Warrantee Card Yes , Russian
RF Cable Yes
S-Video Cable No
CVBS Cable No
VGA Cable No
SCART Cable No
DVI Cable No
HDMI Cable No
Optical Cable no
Coaxial Cable no
Accessories
Wall Mounting Bracket yes
S
Sp pe ec ci if fi ic ca at ti io on n a ar re e s su ub bj je ec ct t t to o c ch ha an ng ge es s w wi it th ho ou ut t p pr ri io or r n no ot ti ic ce e. .

-10 -
Model No.: LCT-32PBSTP.doc
Version: 1.0
A
AP PP PE EA AR RA AN NC CE E & & C CO ON NT TR RO OL L F FU UN NC CT TI IO ON N

-11 -
Model No.: LCT-32PBSTP.doc
Version: 1.0

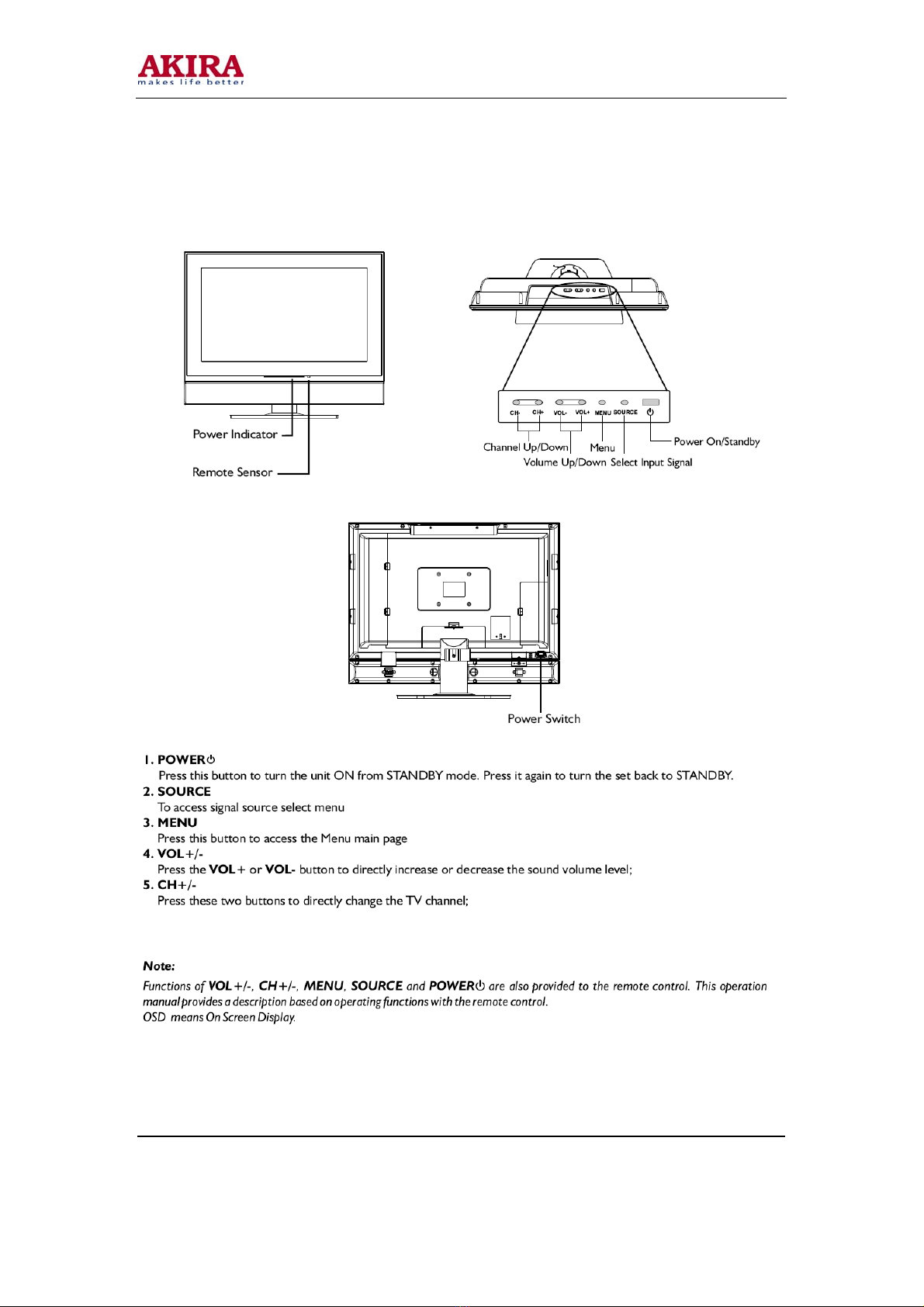

M
MA AI IN N U UN NI IT T

-12 -
Model No.: LCT-32PBSTP.doc
Version: 1.0

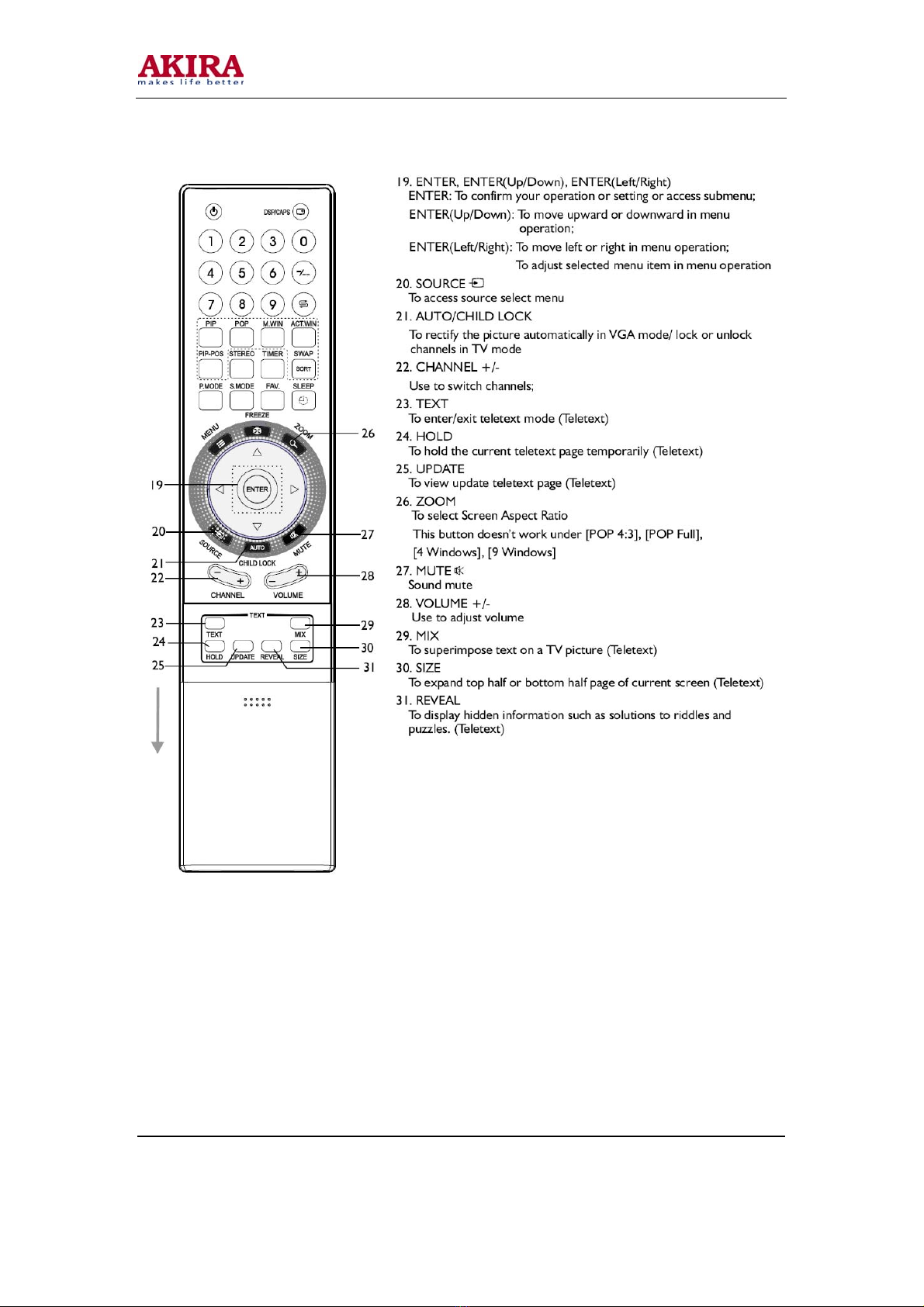

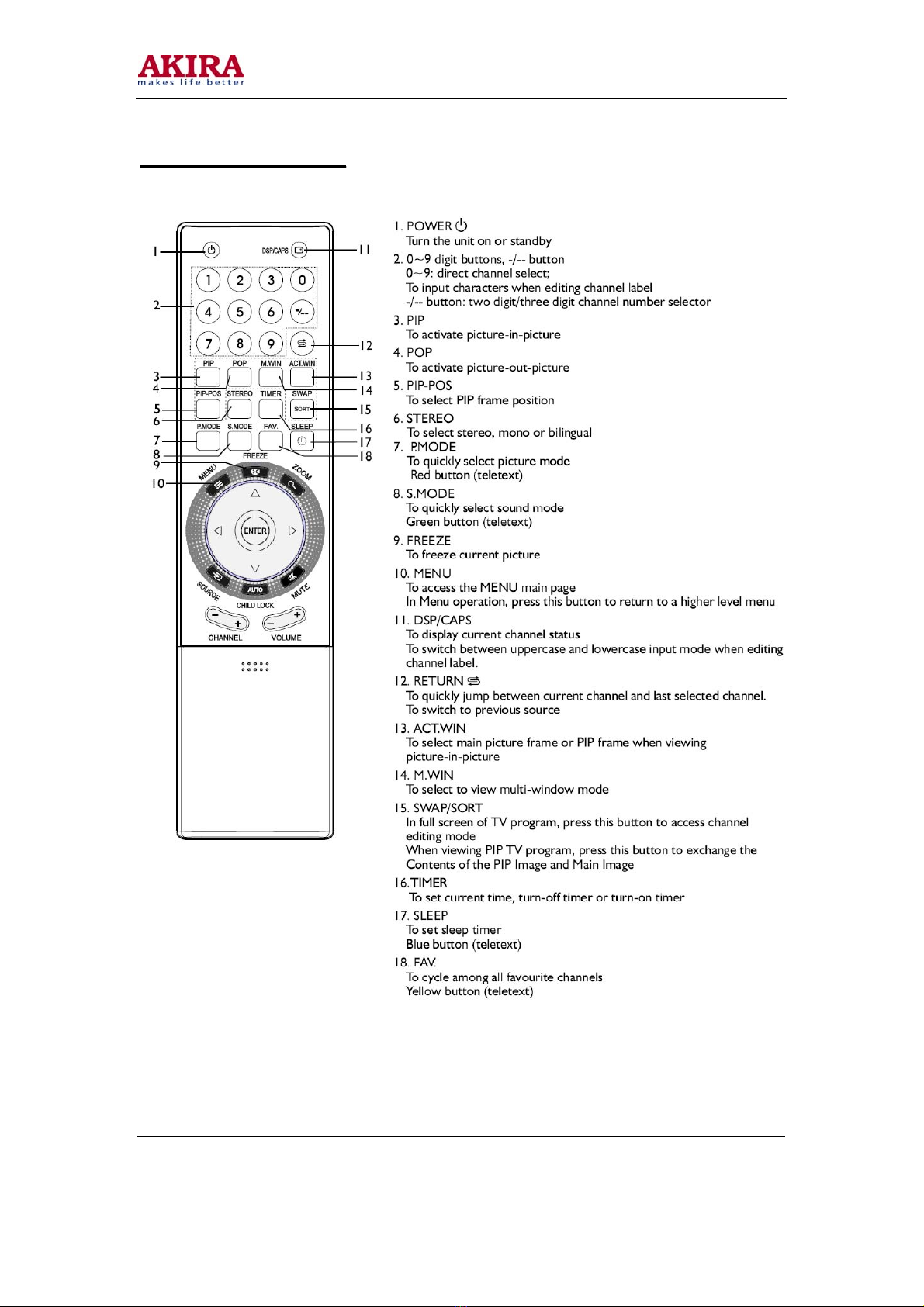

R
RE EM MO OT TE E C CO ON NT TR RO OL L

-13 -
Model No.: LCT-32PBSTP.doc
Version: 1.0

-14 -
Model No.: LCT-32PBSTP.doc
Version: 1.0
A
Al li ig gn nm me en nt t I In ns st tr ru uc ct ti io on ns s
1. Test equipment
PM5515 (Video signal generator)
PM54200(SCART signal generator)
VG-848(YUV, VGA and DVI signal generator)
K-7253 (VGA signal generator)
CA210 (White balancer)

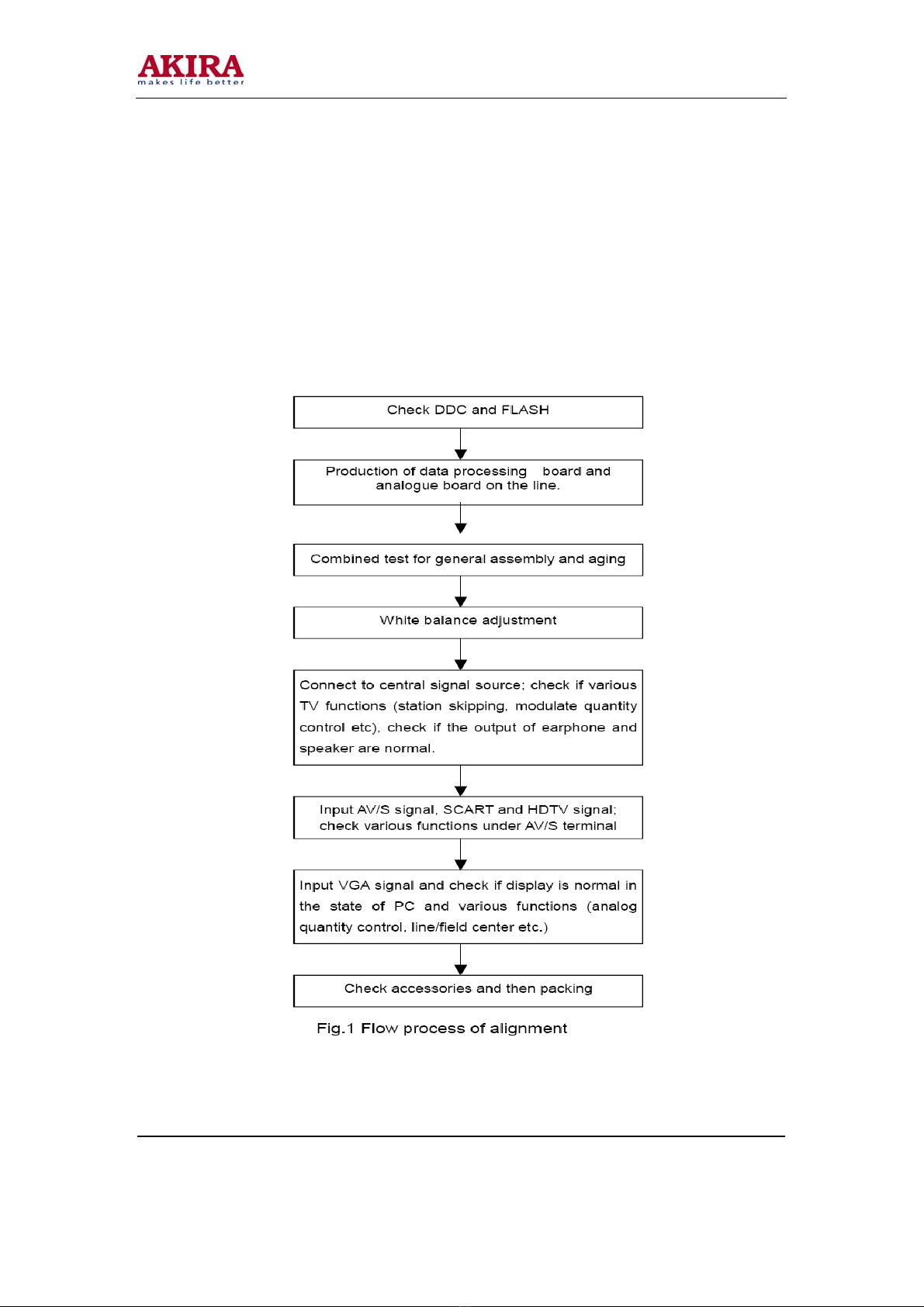

2. The alignment flow chart (see below figure)

-15 -
Model No.: LCT-32PBSTP.doc
Version: 1.0
3 Unit adjustments
Method for entering factory menu: Press MENU →-/--→9→1→8 one by one, then enter
factory menu, press the SLEEP button to select adjustment page, exit factory menu to press
the MENU button.
4 EEPROM initialization
Enter the first page of factory menu, select “EEPROM INITIALIZE” to be “on”, after turn off the
unit, repeating turn on the unit is over.
5 white balance adjustment
Input PAL signal of 16-level gray-scale (TIMING969 PATTAN921) from VG848 to AV channel,
enter user menu, set color to 0, APL to “off”, enter factory menu white balance adjustment
page, select color temperature, fixed the GGAIN to 50H, adjust BGIAN and RGAIN to 400nits,
then the color coordinate to 284, 299. Fixed the BOFFSET to 50H, adjust GOFFSET and
ROFFSET to 5nits, then the color coordinate to 284, 299. Select cool tint, adjust color
coordinate to 270, 283. Select warm tint, adjust color coordinate to 313, 329.
6. Performance Inspections
6.1 TV function
Enter the search menu →auto search, connect RF-TV terminal to the central signal source,
check if there is station skipping.
6.2 AV/S input terminal
Input AV/S signal, check the picture and sound is normal
6.3 SCART terminal (note: check the SCART terminal, set display mode to AUTO)
6.3.1 Check SCART INPUT special function
6.3.1.1 SCART1 terminal function
a. After turn on the unit, connect the SCART1 to PM54200 signal generator, then the unit
auto select to SCART1 mode.
b. SCART signal generator sends CVBS signal to the unit, check if the image and sound
is normal. It sends image format (16:9 and 4:3) to the unit, check if the unit auto identify is
normal. Change SCART signal to RGB signal, check if the image and sound is normal, It
sends image format (16:9 and 4:3) to the unit, check the unit auto identify is normal. Select the
PIP mode, connect earphone cable, and check if the sound is normal.

-16 -
Model No.: LCT-32PBSTP.doc
Version: 1.0
6.3.1.2 SCART2 terminal function
a. After turn on the unit, connect the SCART2 to PM54200 signal generator, then the unit
auto select to SCART2 AV mode.
b. SCART signal generator sends CVBS signal to the unit, check if the image and sound
is normal. It sends image format (16:9 and 4:3) to the unit, check if the unit auto identify is
normal, and display the SCART2 AV. Change SCART signal to Y/C signal, select the SCART2
Y/C channel mode, check if the image and sound is normal, It sends image format (16:9 and
4:3) to the unit, check if the unit auto identify is normal. Select the PIP mode, connect
earphone cable, and check if the sound is normal.
6.3.2 Check SCART OUTPUT special function
6.3.2.1 SCART1 terminal function
Input signal in the TV states, connect the SCART1 terminal to the TV. Change the TV program,
check if output signal of SCART1 is TV signal, and the image and sound is normal, change the
unit channel, the CART1 output TV signal, it can not other signal.
6.3.2.2 SCART2 terminal function
Input signal in the TV/AV/S states, connect the SCART2 terminal to the TV. Change the unit
channel, check if output signal of SCART2 is current signal, and the image and sound is
normal.
6.4 YPbPr/YPbPr terminal Input the YUV signal (VG-848 signal generator), separate input
YUV format signal of table 1, check if the image and sound is normal. If the image is deflection
of the H-field, select auto sync correction of the SCREEN menu. If the image is slight disturb,
adjust the FINE TUNE correction of the SCREEN menu. Open the PIP mode, connect the
earphone, and check if the image and sound is normal.
Table 1 YUV Signal Format
H-frequency(kHz) V-frenquency(Hz) Signal
1 15.734 59.94 SDTV 480i
2 31.469 59.94 HDTV 480p
4 44.955 59.94 HDTV 720p
6 33.716 59.94 HDTV 1080i
7 15.625 50 SDTV 576i
8 31.25 50 HDTV 576p
9 33.75 50 HDTV 1080i
10 37.50 50 HDTV 720p

-17 -
Model No.: LCT-32PBSTP.doc
Version: 1.0
6.5 VGA terminal Input the VGA signal (VG-848 signal generator), separate input VGA
format signal of table 1, check if the image and sound is normal. If the image is deflection of
the H-field, select auto sync correction of the SCREEN menu. If the image is slight disturb,
adjust the FINE TUNE correction of the SCREEN menu. Open the PIP mode, connect the
earphone, and check if the image and sound is normal.
6.6 HDMI terminal HDMI signal format receive the three high definition signal: 480P,
576P,720P/50/60 Hz, 1080I/50/60 Hz, except for the table 2 signal. Check if the image
(contain HDCP ON and OFF) and sound is normal. If the image is deflection of the H-field,
select auto sync correction of the SCREEN menu. Open the PIP mode, connect the earphone,
and check if the image and sound is normal.
TABLE2 VGA Signal Format
Resolution H-Frequency(kHz) V-Frenquency(Hz) Point clock pulse
Frenquency(MHz) Remark
1 720 X 400 31.469 70.086 28.322 IBM
2 640 X 480 31.469 59.94 25.175 IBM
3 640 X 480 37.861 72.809 31.5 VESA
4 640 X 480 37.5 75 31.5 VESA
5 640 X 480 43.269 85.008 36 VESA
6 800 X 600 35.156 56.25 36 VESA
7 800 X 600 37.879 60.317 40 VESA
8 800 X 600 48.077 72.188 50 VESA
9 800 X 600 46.875 75 49.5 VESA
10 800 X 600 53.674 85.061 56.25 VESA
11 1024 X 768 48.363 60.004 65 VESA
12 1024 X 768 56.476 70.069 75 VESA
13 1024 X 768 60.023 75.029 78.75 VESA
14 1280 X 1024 63.98 60.02 108.00 VESA
15 1024 X 768 68.667 84.98 94.486 VESA

-18 -
Model No.: LCT-32PBSTP.doc
Version: 1.0
6.7 Ex-Factory setting see to TABLE 3 -TABLE 9 TABLE 3 Factory Option Menus
Items Ex-Factory setting
IIC Bus-off Off
EEPROM Erase Off
Backlight Adjustable Off
Back Light 100
Menu Timeout 5
Blank switch enable On
ShowLogo On
Auto Program Sort On
TT Char Group West Europe / East Europe / Cyrillic
/ Turkish /Greek/Arabic/Hebrew
Dynamic Scart Off
Note: the latter 6 items should set according to clients’ require.

-19 -
Model No.: LCT-32PBSTP.doc
Version: 1.0
TABLE 4 Factory Audio Setting TABLE 5 Factory Video Limit Setting
Ex-Factory setting
Items LCT-27PBSTP LCT-32PBSTP LCT-37PBSTP LCT-42PBSTP
Volume 1 2CH 2CH 2CH 2CH
Volume 25 55H 57H 5AH 5AH
Volume 50 5CH 5EH 61H 61H
Volume 75 64H 65H 69H 69H
Volume 100 6BH 6DH 72H 72H
HP VOLUME SETTING
Volume 1 64H
Volume 25 96H
Volume 50 A1H
Volume 75 AEH
Volume 100 BEH
MSP Scart1
Volume 72H
Prescale Scart 4CH
Prescale FM/AM 27H
Prescale Nicam 64H
Scart TV Volume 20H
Scart AV Volume 72H
D/K select HDEV3 Off
AVC Off
Equalizer Bands
Max 60H
Spatial Mode 0
Spatial Strength 00H

-20 -
Model No.: LCT-32PBSTP.doc
Version: 1.0
Items CVBS SC-RGB YPBPR D-SUB HDMI
Bright Min D5H CFH C7H CFH D2H
Bright Middle 00H 00H 03H 05H 07H
Bright Max 38H 3DH 34H 3DH 31H
Contrast Min 09H 09H 09H 09H 08H
Contrast Middle 20 25H 20H 25H 23H
Contrast Max 2AH 31H 29H 31H 2CH
Sharpness Min 00H 00H 00H 00H 00H
Sharpness Middle 10H 10H 10H 10H 10H
Sharpness Max 1FH 1FH 1FH 1FH 1FH
Color Min 00H 00H 00H 00H 00H
Color Middle 1DH 1DH 1DH 1DH 1DH
Color Max 2DH 2DH 2DH 2DH 2DH
Hue Min 80H 80H 80H 80H 80H
Hue Middle 20H 20H 20H 20H 20H
Hue Max 7FH 7FH 7FH 7FH 7FH
