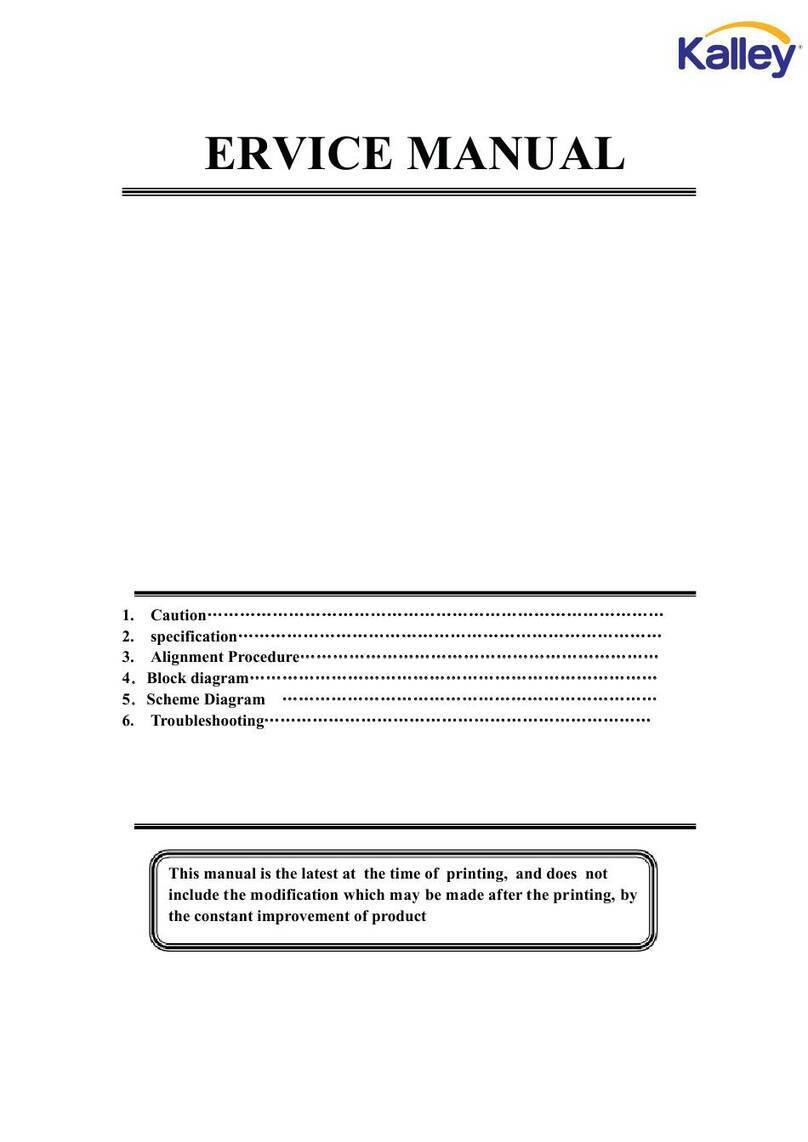

SERVICE฀MANUAL฀K-LED40FHDST2
1.Caution…………………………………………………………………………
2.specification……………………………………………………………………
3.Alignment฀Procedure…………………………………………………………
4．Block฀diagram…………………………………………………………………
5．Scheme฀Diagram฀฀……………………………………………………………
6.Troubleshooting………………………………………………………………
([SORGHGUDZLQJ
This฀manual฀is฀the฀latest฀at฀the฀time฀of฀printing,฀and฀does฀not฀include฀the฀modification฀which฀may฀be฀made฀after฀the฀printing,฀by฀the฀constant฀improvement฀of฀product฀

CA UTION: TO RE DUCE THE RIS K OF
ELECTR ICA L SHOCK, DO NOT RE MOVE
COVER (OR BACK). NO USER SERVIC EABLE
PAR TS INSIDE . RE FER SER VIC ING TO
QUALIFIED SERVICE PERSONNEL.
The lighting flash with arrowhead symbol, with an equilateral triangle is intended to
alert the user to the presence of uninsulated voltage within the products
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
the person.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION:
Use of controls, adjustments or procedures other than those specified herein may result in
hazardous radiation exposure.
CA U T ION
RISK
RISK OF
ELECTRI
ELECTRIC
SHOCK
SHOCK DO
NOT
NOT
OPEN.
OPEN.
2
dangerous
WARNING: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
SCHNEIDER ELECTRONICS GMBH-GERMANY
1. CAUTION
2

1. When the power cord or plug is damaged or frayed, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
2. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
3. Do not allow anything to rest on or roll over the power cord, and do not place the TV where power cord is subject to
traffic or abuse. This may result in a shock or fire hazard.
4. Do not attempt to service this television set yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
5. Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television set.
6. If the television set has been dropped or the cabinet has been damaged, unplug this television set from the wall outlet
and refer servicing to qualified service personnel.
7. If liquid has been spilled into the television set, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
8. Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.
9. Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
10.1. Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury
to a child or an adult, and serious damage to the appliance. Use only with a cart or stand recommended by the
manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer s instructions, and
should use a mounting kit approved by the manufacturer.
10.2. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces
may cause the appliance and cart combination to overturn.
CAUTION:
Read all of these instructions. Sa ve these instructions for later use . Follo w all W arnings and
Instructions marked on the audio equipment.
1. Read Instructions- All the safety and operating instructionsshouldbe read before the productis operated.
2. Retain Instructions- The safety and operating instructions should be retained for future reference.
3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions- All operating and use instructions should be followed.
3
SCHNEIDER ELECTRONICS GMBH-GERMANY
IMPORTANT SAFETY INSTRUCTIONS
FOR YOUR PERSONAL SAFETY
3

11. Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set from the wall
outlet and refer servicing to qualified service personnel.
12. Choose a place where light (artificial or sunlight) does not shine directly on the screen.
13. Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.
14. The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, to
protect it from overheating. These openings must not be blocked or covered.
Never cover the slots or openings with cloth or other material.
Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc.
Never place the set near or over a radiator or heat register.
Never place the set in enclosure, unless proper ventilation is provided.
15.1. If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges, Section 810 of the National Electrical Code, NFPA No.
70-1975, provides information with respect to proper grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection
to grounding electrode, and requirements for the grounding electrode.
15.2. Note to CATV system installer : (Only for the television set with CATV reception)
This reminder is provided to call the CATV system attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or power
circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17. For added protection for this television set during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning
and power-line surges.
ANTENNA
LEAD- IN WIRE
ANTENNA DISCHARGE
UNIT (NEC SECTION
810-20)
GROUNDING
CONDUCTORS
(NEC SECTION810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250. PART H)
ELECTRIC SERVICE
EQUIPMENT
GROUND CLAMP
NEC-NATIONAL ELECTRICAL CODE

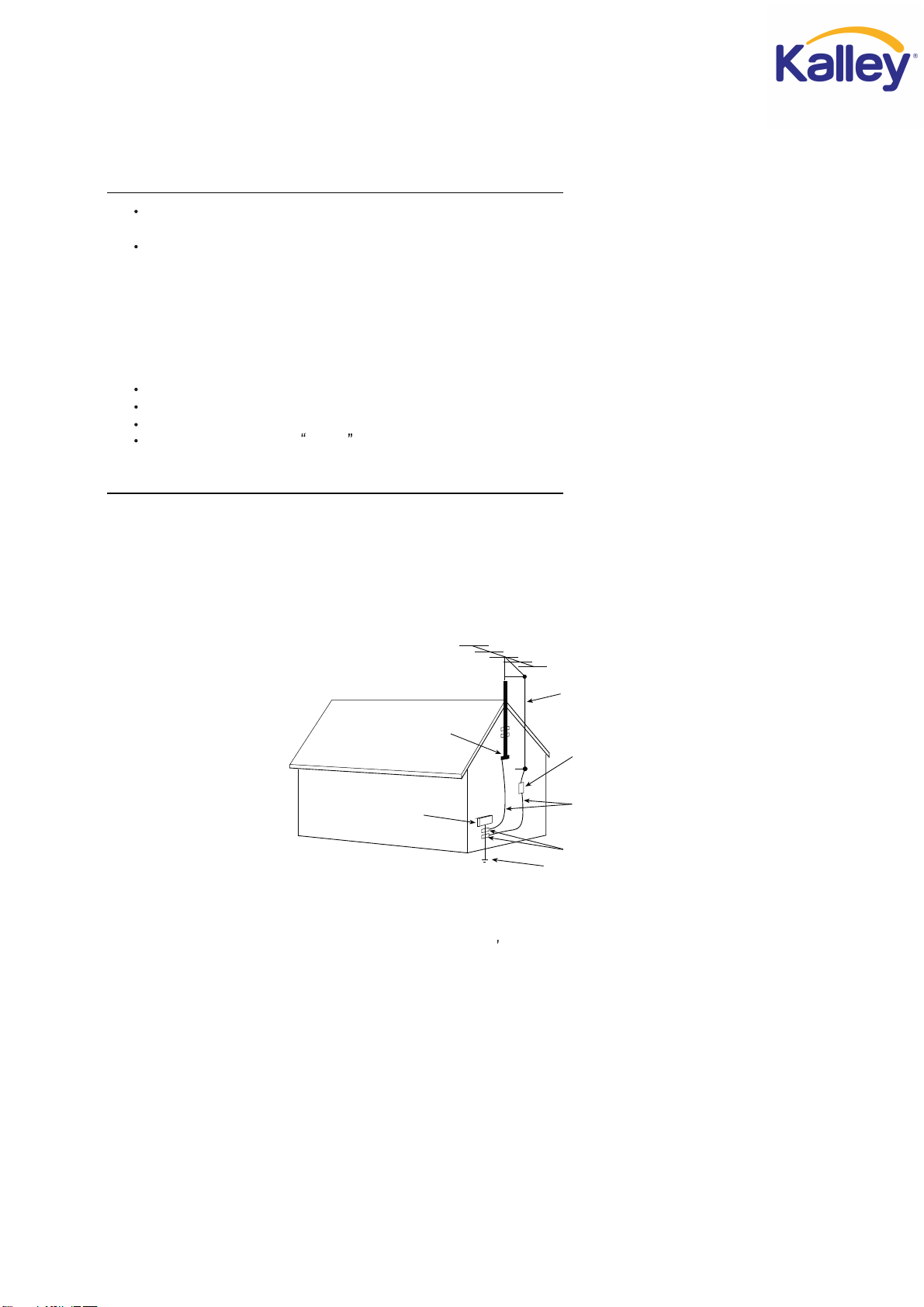

EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS
a built-in
installer s
4
SCHNEIDER ELECTRONICS GMBH-GERMANY
PROTECTION AND LOCATION OF YOUR SET
PROTECTION AND LOCATION OF YOUR SET
4

18. This television set should be operated only from the type of power source indicated on the marking label.If you are not
sure of the type of power supply at your home, consult your television dealer or local power company. For television
sets designed to operate from battery power, refer to the operating instructions.
19. If the television set does not operate normally by following the operating instructions, unplug this television set from the
wall outlet and refer servicing to qualified service personnel. Adjust only those controls that are covered in the operating
instructions as improper adjustment of other controls may result in damage and will often require extensive work by a
qualified technician to restore the television set to normal operation.
20. When going on a holiday : If your television set is to remain unused for a period of time, for instance, when you go on
a holiday, turn the television set and unplug the television set from the wall outlet.
21. If you are unable to restore normal operation by following the detailedprocedurein your operating instructions,
do not attempt any further adjustment. Unplug the set and call your dealer or service technician.
22. Whenever the television set is damaged or fails, or a distinct change in performance indicates a need for
service, unplug the set and have it checked by a professional service technician.
23. It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being
turned on or off. If the snapping or popping is continuous or frequent, unplug the set and consult your
dealer or service technician.
24. Do not use attachments not recommendedby the television set manufacturer as they may cause hazards.
25. When replacementparts are required,be sure the service technicianhas used replacement parts specified
by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock, or other hazards.
26. Upon completion of any service or repairs to the television set, ask the service technician to perform
routine safety checks to determine that the television is in safe operating condition.
off
5
SCHNEIDER ELECTRONICS GMBH-GERMANY
OPERATION OF YOUR SET
IF THE SET DOES NOT OPERATE PROPERLY
FOR SERVICE AND MODIFICATION
5

Product Type LCD Smart TV Music support MP3/AC3/HE-AAC/LPCM/WMA
Chassis MS08GP-LA Picture Support JPEG、BMP、PNG、MPO
CPU 1GHZ
Support
H
.
264
、
MPEG1
、
MPEG2
、
MPEG4
GPU --- Motion JPEG/VC1
OS Linux
Memory Bein 2Gb DDR3 +External 1Gb DDR3/ 2Gb
NandFlash File ---
OSD Language English/Portuguese/Spanish
PAL-M/N ;NTSC-M
DVB-T2
AV System PAL,NTSC DVI Video Format Up to XGA for HDMI-PC
Channels(Analog) Antenna：2～69；CATV：1～125 HDMI Video Format up to 1080P
DTV Channels DVB-T2 Antenna：14～69 PC Compatibility Up to SXGA
Power Supply AC 110V-240V 50/60Hz
Power Consumption（TV On）65W
Power Consumption（Standby）≤0.5W Backlight Unit LED
Certification CB Panel supplier CMO(V400HJ6-PE1)
Energy Efficiency Level --- Aspect Ratio 16:9
Wired Network Default Panel Size (inch) 40"
Built-in Wi-Fi Network Display Resolution 1920*1080
Brightness (cd/m2)(typ.) 280
Contrast Ratio 4000:1
Response Time (G to G) 8.5ms
EPG Yes(at DTV) Viewing Angle (H/V) 176°/176°
Subtitle Yes(at DTV) Life Time(Typ.) ＞30,000hrs
Parental Control Yes(at DTV) Color 16.7M (8 bit)
Lock Yes Refresh Rate 60Hz
V-Chip ---
CCD (Closed Caption) Yes
Sleep Timer Yes
Teletext No
Nicam No Side
MTS Yes
Screen Saver Yes
System Update Yes
Hotel Mode Optional(In factory mode)
REC Yes
Analog / Digital Signal Receiver Yes
MHL ---
Card Reader ---
TimeShift Yes
Off Timers Yes
Natura Light Technology ---
DCC（Dynamic Contrast Control）ON/OFF
Backlight Adjustable Yes (0~100)
Color Temperature Warm / Normal/ Cool
Picture Mode Normal, Mid, Vivid, User
Picture Size Auto,16:9,4:3,Just Scan
Gamma Adjustable ---
Comb Filter 3D
Dynamic Noise Reduction 3D
Adaptive Deinterlacing 3D
Motion Compensation Yes
Speakers Integrated speakers (Bottom Side)
Audio Power Output（THD=7%）2×8W
Smart Volume Yes(Built-in)
Smart Audio Normal,Music,Movie,News,User
Sound Control Volume, Balance,5 Band EQ
Basic Function
Sound
Terminals
Special Function

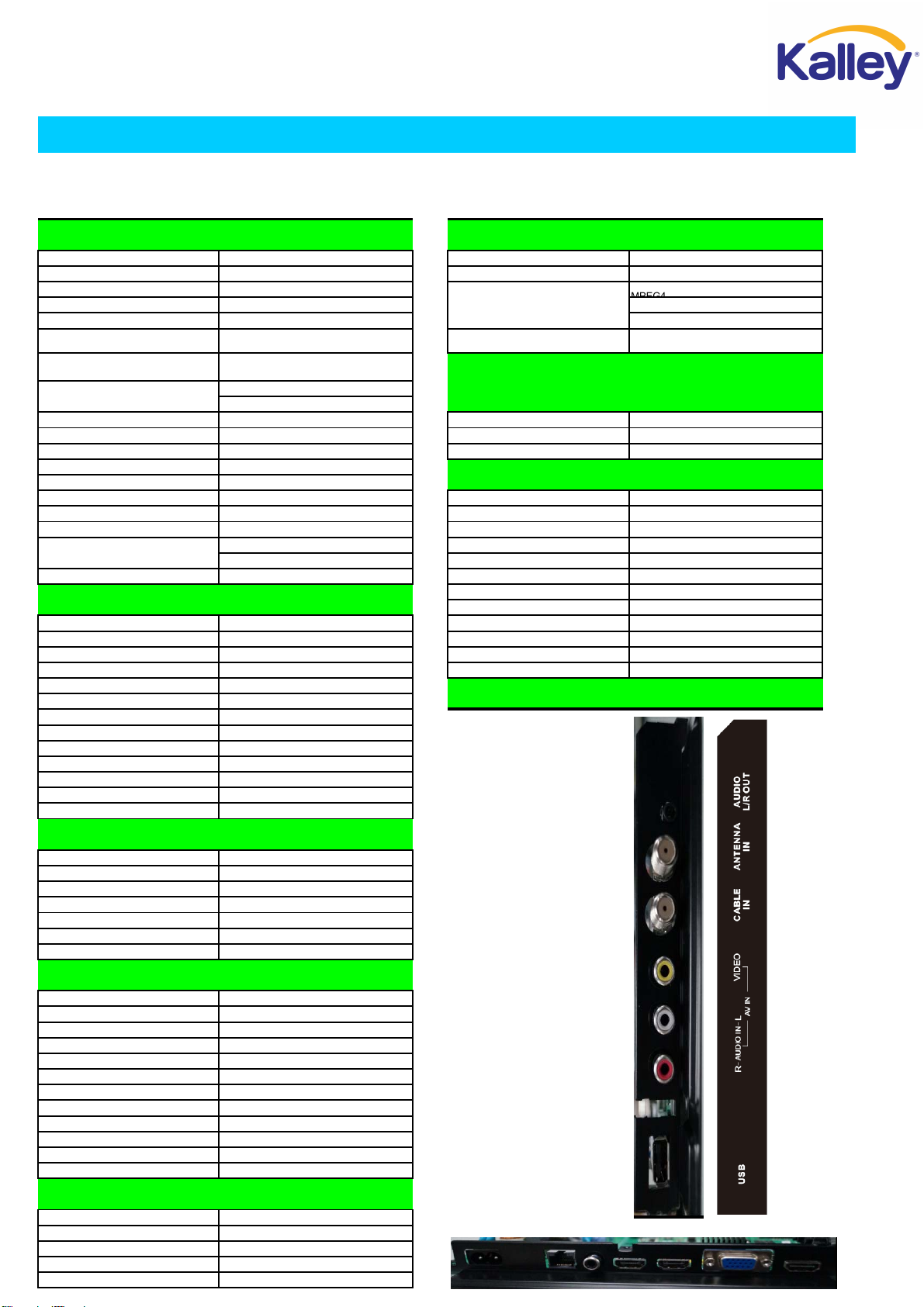

PRODUCT SPECIFICATION RELEASE
Model: K-LED40FHDST2
Version：1.0 Issued On: 2015-2-5
Internet Link
Signal Format Capability
Panel Specification
Video
Basic Information Media Format
TV System
1
2
3
4
5

Sound Scene ---
Surround Sound Yes
DD (Dolby Digital ) Yes
Dobly DD+ Yes
Down
Twitter Yes
Facebook Yes
Web Browser Yes
YouTube V4 Yes
Opera TV Store Yes
NETFLIX Yes
File Share Yes
Wireless Display Yes
picasa Yes

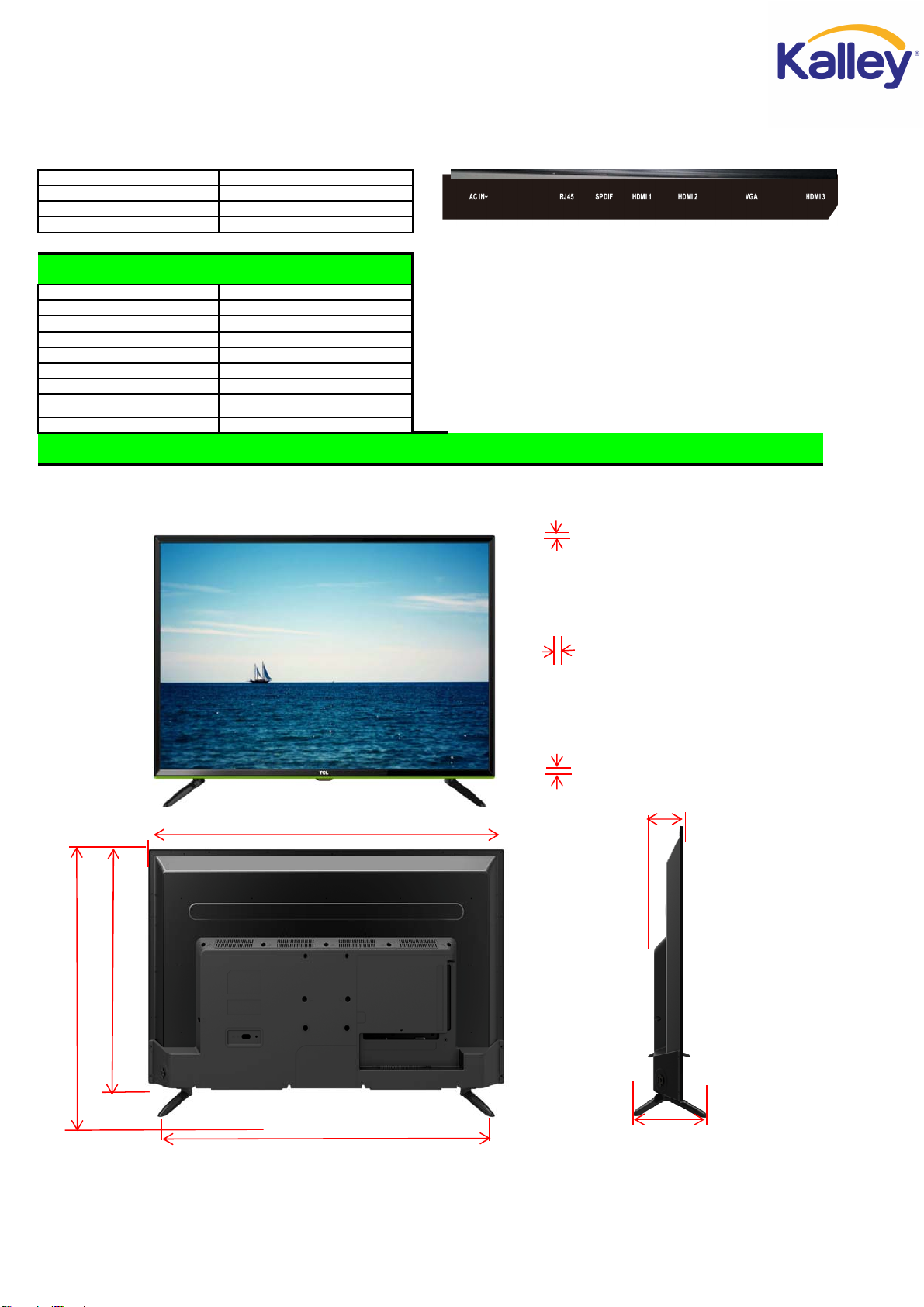

Mechanical ID Picture
Pre-Installed Application List
81.3MM
197.8MM
563MM
521.1MM
15.5MM
15.5MM
18.5MM
911M
810.9

Mechanical Key Specification
Carton Dimensions LxWxH（mm）1120*144*655
Container Loading---20 feet（pcs）280
Container Loading---40 feet（pcs）592
Container Loading--40 feet High（pcs）680
Net Weight With Stand （Kg）7.1
Net Weight Without Stand （Kg）6.9
Gross Weight With Packaging（Kg）9.3
VESA Mounting Dimensions LxH（mm）100x150

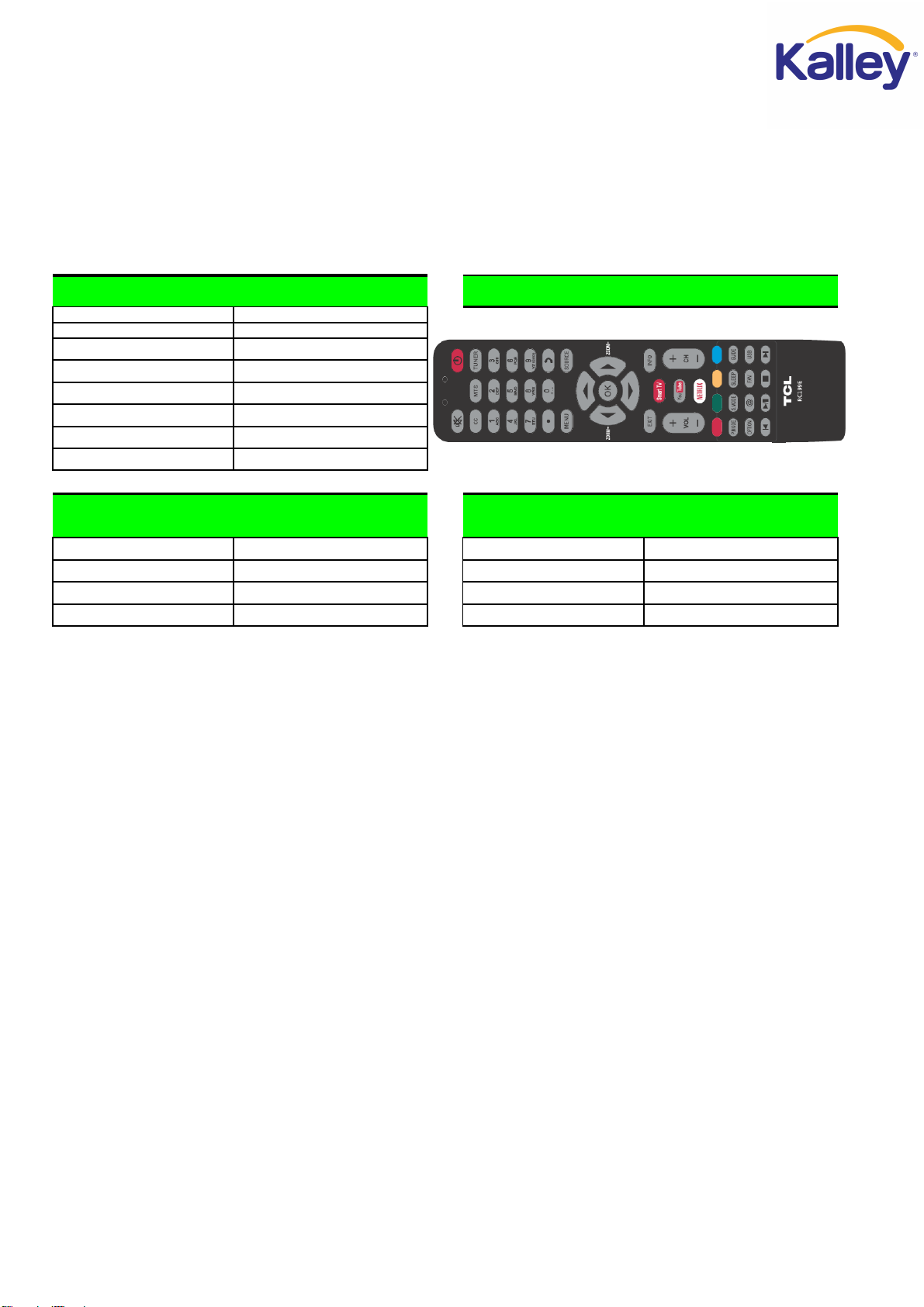

Operation Manual English(Default) Wall Mount WMB331
Remote Control and batteries RC199E(with two batteries) Wireless Keyboard ---
Base Stand Integrated Packaging Wireless Mouse ---
AC power cord 1 pc Game Controller ---
Optional Accessories
Essential Accessories（Default）
Remote ID Picture

Alignment Procedure
MS08GP Series
MODEL：L32D2700/L40D2700
VERSION：V1.0
PREPARED BY : Gongjunzan DATE : 2015-3-23
APPROVED BY : DATE:

History Description of major changes Release
Date
Changed by
V1.0 2015-3-23
1.Overview
MS08GP These chassis are designed for Eastern Europe markets Ready for IPTV. The main
chip is from Mstar and supports below features matrix:
2.Factory Menu
1、Methods of Entering
Method 1：Using the remote ,
Select “Picture” and press “OK” key to enter into Picture Mode press RIGHT” or
“LEFT” key Select User Mode
- Press the subsequence RCU keys “9”, “7”, “3” and “5”，will appear in the left top of screen
In case of “Factory hotKey” is enabled（On）, just press RCU “Return” key to pop-up
again the Factory menu.
The status of “Factory Key” can be changed in Factory Menu->Hotkey.
Press RCU “OK” key or “RIGHT” key to enter the submenu.
Press RCU “Menu” key to go back to the root menu.
Press RCU “RIGHT” or “LEFT” key to change the values.
Press RCU “OK” key run the function.
Press RCU “Exit” key exit the Factory menu.
2. General introduction
FACTORY MENU

ITEMS Default
Setting Description
St
at
us
1-Factory hotkey Off Factory hotkey Switch (OFF/ON).Should be OFF
after factory alignment OK
2-WARM-UP Off
OFF：The set would enter standby mode after
15 minutes without input signal；
ON：Aging mode. Aging time will display on
the left bottom of screen.
NOTE: Enter and exit the aging mode method: 1,
press on the remote control Left and right the cursor
keys will Factory hotkey set to ON; 2, WARM UP is set
to ON; according to the panel on the "menu" button to
exit the aging mode
OK
3-ADC ADC calibration（refer as follow），NOTE: Not
adjust
OK
4-White balance White Balance data adjustment （ refer as
follow）
The balance data is set by PE before the mass
production. Do not need adjust.
OK
5-SHOP
init(Option)
DO Reset the set after production
alignment;(This operation will remove all
unnecessary factory value; The factory
hotkey will be turn off)
OK
6-NVM reset DO System initialization. Restore all data
except the White Balance and ADC data ;Only
for R&D.
OK
7-Preset Factory
Channel
DO/HZ Preset specific factory channels for
specific factory. Press left and right
button to select the factory, and then press
OK to confirm.
OK
8-Power on mode LAST On: Always turns on TV when AC power on
STB：Always goes to standby mode when AC power
on
LAST：Restore the status before the last AC
power off
OK

9-USB
UPDATE(option)
USB update，（refer as follow）
Sub-item Value No
t
Main Upgrade Upgrade software
MEMC Upgrade Upgrade MEMC
HDCP Uprade Upgrade HDCP
Mboot upgrade Upgrade Mboot
CI KEY Upgrate Upgrade CI KEY
NVM Upgrade Upgrade NVM
NVM backup Backup NVM
CH list Upgrade Upgrade CH list
CH list backup Backup CH list
NetflixESN Upgrade Upgrade ESN
MAC Upgrade Upgrade MAC Ad
d
OK
10—Deviceld test This item only factory used，
Note: Below the factory menu, some model information are showed, including
software version, Project Name, SIACP Version, and SW release time.
3）ADC Submenu:
NOTE: ADC Date use Default Setting, do without adjust
4）WHITE BALANCE Submenu
ITEMS Default
Setting
Description Statu
s
Source Current
Source
Current Source( HDMI1 need adjustment, Other
Source not use)
OK
COLOR TEMP NORMAL Medium/Cool/Ware OK
R gain 128 R-GAIN OK
G gain 128 G-GAIN OK
B gain 128 B-GAIN OK
White
Balance
init
DO ONLY FOR TCL R&D OK
NOTE：The first step is to adjust HDMI1
3.Design Menu

1、Methods of Entering：
Method 1：Using the remote, enter the “Picture” submenu in the OSD; choosing
the “contrast” item and press the 1,9,5,and 0 in series ,Design Menu will
appear in the left top of screen.
Method 2: Press RETURN button when DESIGN HOTKEY is enabled (ON).
2、General introduction
DESIGN MENU
ITEMS Default
Setting
Description Status
DESIGN
HOTKEY
OFF ON/OFF OK
1-FACTORY
MENU
ON/OFF OK
2-SHOP
Setting
Default setting submenu after production
alignment refer to **
OK
3-Other
Setting
Other set .Only for TCL R&D OK
4-SERVICE
menu
After service menu description OK
5-PARAM
SETTING
Parameter setting submenu OK
6-HOTEL MENU Hotel submenu（not adjust） OK
SHOP INIT submenu
ITEMS Default
Setting
Description Status
Volume 30 0-100 adjustable OK
PIC MODE STANDARD Normal/Vivid/Mild/User OK
SOUND MODE STEREO Movie/news/Normal/Music/User OK
OSD
Language
English Up to 10 languages optional OK
Preset CH 1 0-199 adjustable OK
Color Temp Normal Normal/warm/cool
Sale Mode Home Mode

COLOR SYS AUTO AUTO、PAL、 SECAM OK
SOUND SYS DK DK、BG、I、M OK
Other Setting
ITEMS Default
Setting
Description Status
QMAP AUJUST Off White/Red/Green/Blue/Black/Yellow/Gray/Pink（not
adjust）
OK
NVM Reset
ALL
Do Wait（not adjust） OK
Got User ID Off On/Off（not adjust） OK
Use Test
Host
Off On/Off（not adjust） OK
Hidev Off Off..1\2\3（not adjust） OK
SSCOM Debug on On/Off（not adjust） OK
DTV Off On/Off（not adjust） OK
Reset Shop Do Wait（not adjust） OK
BGM On On/Off（not adjust） OK
WSS&ATF On On/Off（not adjust）
PARAM SETTING
Picture Curve
ITEMS Default
Setting
Description Status
Brightness
Curve
Brightness curve. Exclusively used by R&D OK
Contrast
Curve
Contrast curve. Exclusively used by R&D OK
Color Curve Color curve. Exclusively used by R&D OK
Hue Curve Hue curve. Exclusively used by R&D OK
Sharpness
Curve
Sharpness curve. Exclusively used by R&D OK
Tint Curve Tint Curve. Exclusively used by R&D

BackLight
Curve
BackLight curve. Exclusively used by R&D OK
OverScan Exclusively used by R&D
Sound Curve
Volume
Curve
Volume curve. Exclusively used by R&D OK
SSC adjust
SSC >>> SSC adjust . Exclusively used by R&D
Overscan Adjust
Over Scan Over Scan Exclusively used by R&D
DBC
DBC DBC Exclusively used by R&D
Back Light Curce
Back Curve Back curve. Exclusively used by R&D OK
Audio amp Setting
Audio
amp
Setting
Audio amp Setting
. Exclusively used by R&D
OK
DTV Para Setting
DTV Para
Setting
DTV Para Setting
. Exclusively used by R&D
OK
Hotel menu

4、Service Menu
1、Methods of Entering
Using the remote, enter the “Picture” submenu in the OSD; choosing the
“contrast” item and press the 9,7,0 and 5 in series, Service Menu will appear in
the left top of screen
SERVICE MENU：
ITEM Defau
lt
Setti
ng
Description Status
1-Factory hotkey Off Factory hotkey Switch (OFF/ON).Should be OFF
after factory alignment
OK
2-WARM-UP Off
OFF：The set would enter standby mode after 15
minutes without input signal；
ON：Aging mode. Aging time will display on the
left bottom of screen.
NOTE: Enter and exit the aging mode method: 1, press
on the remote control Left and right the cursor keys will
Factory hotkey set to ON; 2, WARM UP is set to ON;
according to the panel on the "menu" button to exit the
aging mode
OK
3-ADC ADC calibration（refer as follow），NOTE: Not
adjust
OK
4-White balance White Balance data adjustment（refer as follow）
The balance data is set by PE before the mass
production. Do not need adjust.
OK
5-SHOP
init(Option)
DO Reset the set after production alignment;(This
operation will remove all unnecessary factory
value; The factory hotkey will be turn off)
OK
6-NVM reset DO System initialization. Restore all data except
the White Balance and ADC data ;Only for R&D.
OK
7-Preset Factory
Channel
DO/HZ Preset specific factory channels for specific
factory. Press left and right button to select
the factory, and then press OK to confirm.
NG

8-Power on mode LAST On: Always turns on TV when AC power on
STB：Always goes to standby mode when AC power
on
LAST：Restore the status before the last AC
power off
OK
9-USB
UPDATE(option)
USB update，（refer as follow）
Sub-item Value Not
e
Main Upgrade Upgrade software
MEMC Upgrade Upgrade MEMC
HDCP Uprade Upgrade HDCP
Mboot upgrade Upgrade Mboot
CI KEY Upgrate Upgrade CI KEY
NVM Upgrade Upgrade NVM
NVM backup Backup NVM
CH list Upgrade Upgrade CH list
CH list backup Backup CH list
NetflixESN Upgrade Upgrade ESN
MAC Upgrade Upgrade MAC Addr
e
10—Deviceld test This item only factory used， ok
5. Debugging
5.1. General Steps of debugging
According to the requirement of the order, below steps are needed for
appropriate setting.
1) Enter the Factory Menu, enable FAC HOTKEY.
2) Check Project ID and the version of software, release date displayed
at the bottom of Factory Menu.
3) Enter Design Menu, choose SERVICE MENU->Project ID, choose
corresponding Project ID number of the product (Refer to the
“V6-PROJECT -ID0**”in the BOM list).
4) Return to Factory Menu, check the Product model.
5) Choose Factory Menu->NVM RESET and press the right button of the
remote and wait until prompt OK appears.
6) Restart the set
7) According to the requirement of the order, Set the items of SHOP
INIT and Hotel Menu etc.

8) After aging under normal temperature, calibrate ADC and adjust
white balance.
9) Choose Factory Menu ->SHOP and press the button of remote to
initialize the set.
Note: After step 9, Hotel Menu will be disabled by default. Therefore,
if the order requires hotel function, it is necessary to enable hotel
function by set Design MENU->Service Menu->HOTEL ENABLE to ON.
5.2. Equipments
·Color Analyzer CA-210.
·Video Pattern Generator Chroma2329.
·Color TV Pattern Generator PM5418/Fluke5418.
·VGA cable , AV(RCA) cable , HDMI cable etc.
5.3. ADC Function not Calibration
5.4. White Balance adjustments (Manual)
Before adjustment ,you must make sure the ADC status(only PC and YPbPr)
is “success”and Color Analyzer has been calibrated .Only
AV1,YPbPr,PC,HDMI1 need to be adjusted. HDMI1 should be the first.
5.4.1. Signal and generator
The pattern of the signal should be used are White (Chroma2329 pattern
113) and Grey (pattern 114).
The format of signal are respectively 720P for HDMI1 (Chroma2329
Timing 69),PAL (Chroma2329 Timing38) for AV1,1024X768@60Hz(Chroma2329
Timing14) for VGA 。
5.4.2. Steps of adjustment
1).Enter the factory menu-> White Balance, select source HDMI 1 and
Normal Temperature.
2).Input grey signal in 720p format.
3).Change R-OFFSET and B-OFFSET to make sure the value of color
coordination equal to (X=0.270 +/-0.015;Y=0.290 +/-0.015).
4).Input white signal in 720p format.
5). Change R-GAIN and B-GAIN to make sure the value of color
coordination equal to (X=0.270 +/-0.015;Y=0.290 +/-0.015).

6).Repeat step 2—5 until both of the value of color coordination of
white and grey equal to (X=0.270 +/-0.015;Y=0.290 +/-0.015).
For COOL and WARM color temperature, just repeat step 2—5.The color
coordination we recommend for COOL and WARM color temperature is
respectively(X=0.270 +/-0.015;Y=0.270 +/-0.015) and
(X=0.300 +/-0.015;Y=0.305 +/-0.015).
After the adjustment of HDMI1, you can switch to other source AV, PC
and YPbPr and repeat step 1—6 to do the WB adjustment.
Note: For some small size LED panel,the color coordination of
specifications is not X=0.270/Y=0.290,and we recommend you adopt the
values from panel specifications.
5.5. ADC Calibration and White Balance Adjustment (automatic)
The process of adjusting White Balance automatically is out of the
range of this file, Please refer to the relevant technical file of HuiZhou
factory of TCL.
6.Chip list of software programming before SMT
Following chips must be programmed before SMT by tools
Position Chip type Software description
U301 MT29F2G08ABAEA HDMI HDCP Key, System Software etc.
7.Software update

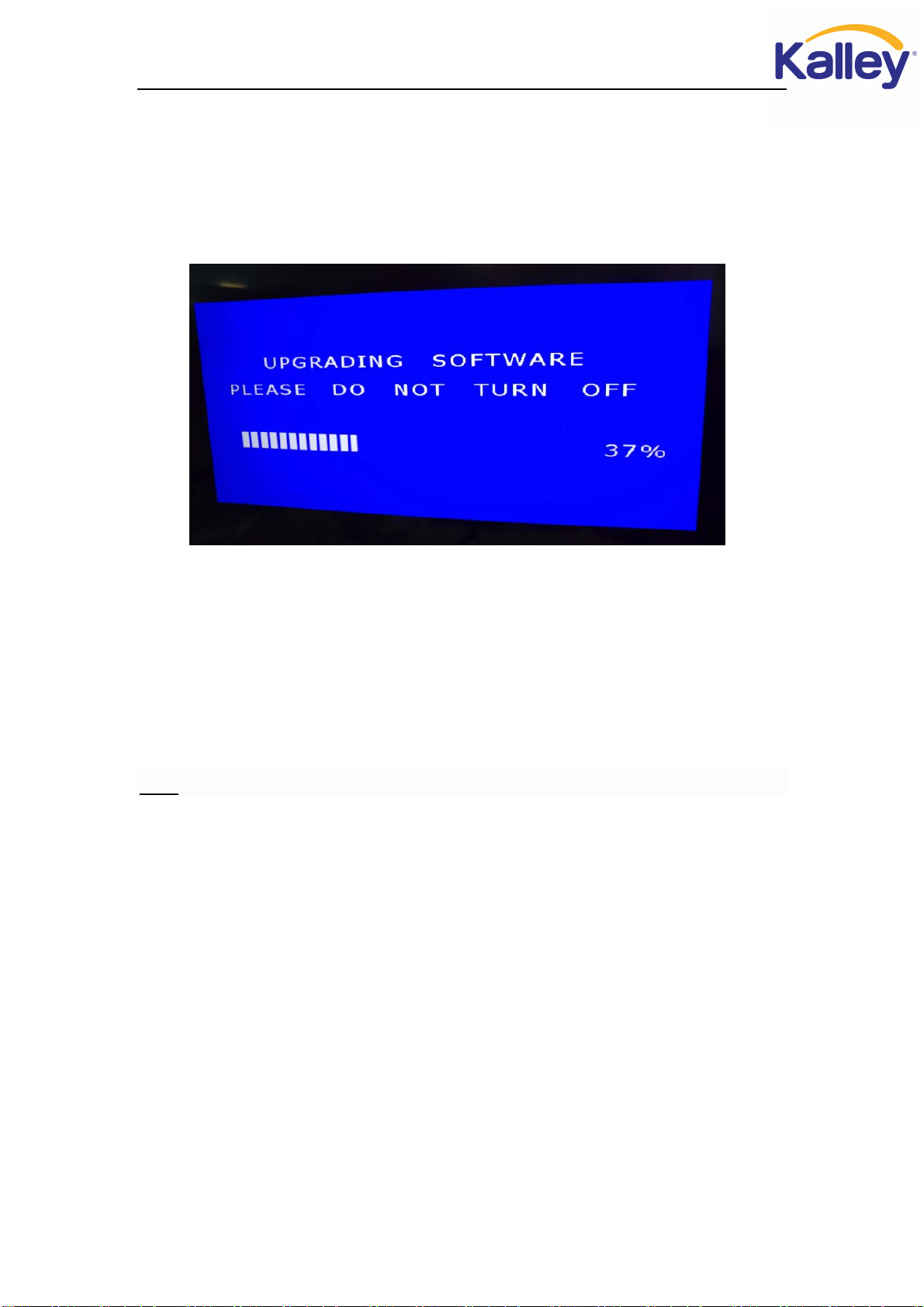

Method of SW update:
1） Download the bin file to the root directory of your USB device (Do
not change the file name); Then insert the USB device to USB interface
of TV set.
MS08GPSeries with its upgrade file corresponding relation as thetable
below show:
Chassis Name Sales
area Upgrade filename Remark
MS08GP LA MS08GP_MAIN.bin DVB-T2
2）Appendix n“How to upgrade SW FLASH using Mstar tool”
See Appendix o“How to upgrade MBOOT using USB”
Appendix p“How to upgrade FLASH SW using USB”
¾Copy the SW BIN image “MS08GP_MBOOT.bin” into USB stick root path.
Note: If there’s already other “MS08GP_MBOOT.bin” into USB root, it needs to be deleted

or renamed.
¾Plug USB stick to the TV USB slot.
¾Press RCU MENUÆOptionÆSoftware upgradeÆBy USBÆConfirm.
Or, turn off the TV press and hold the power key of key board before reconnect AC
cord to restart TV for 5-8seconds (Forced Upgrade).
¾When the "UPGRADING SOFTWARE" picture appears as below, it means TV is
uploading SW BIN image. Waiting a few minutes.
¾When updating is successful, TV should restart automatically.
There are two methods to upgrade SW using USB, the first one like below：
In the previous of upgrade SW using USB, should program mboot bin file”
MS08GP_MBOOT.bin” by ISP_Tool or by USB. .
¾Then switch off TV by removing AC cord.
¾Copy the SW BIN image “MS08GP_MAIN.bin” for MS08GP into USB stick (pen
drive) root path
Note: If there’s already other “The same name
”into USB root, it needs to be deleted or renamed
¾Plug USB stick to the TV
¾Press and hold the power key of key board before reconnect AC cord to restart
TV for 5-8seconds.
¾Once USB stick starts blinking, TV is uploading SW BIN image.
¾When update is successful, TV should restart automatically.
¾Remember to perform “Factory menuÆNVM reset“ and then press RCU “OK”
key
¾Switch off TV by removing AC cord
¾Reconnect AC cord to restart TV and wait few seconds for Eeprom update
The second method：
¾To use this method, there should be SW in mainboard to ensure TV can display
normally.
¾Copy the SW BIN image “MS08GP_MAIN.bin” and into USB stick (pen drive)
root path
¾Press RCU MENUÆOptionÆSoftware upgradeÆBy USBÆConfirm
¾TV display warning information, that means it is upgrading, almost 3minutes later,
when upgrade successful, TV should restart automatically.
