C.A 1864 – C.A 1866 English
Page 17
Thank you for purchasing a C.A 1864 or C.A 1866 infrared thermometers.
To get the best service from this instrument:
•Read this user’s manual carefully,
•Respect the safety precautions detailed
MEANING OF THE SYMBOL
Sorting of wastes required for the recycling of electrical
and electronic equipment in the European Union.
In accordance with directive WEEE 2002/96/EC: this
equipment must not be processed as household waste.
Possible danger. See explanations in this user manual
Laser radiation, do not look into the LASER beam.
LASER power < 1 mW
Wave length 630 - 670 mm
Class II LASER

English C.A 1864 – C.A 1866
Page 18
PRECAUTIONS FOR USE
If this device is damaged or a part is missing, please contact the dealer
immediately.
The protection provided by the device may be compromised if it is used in a way
not specified by the manufacturer.
Apply the safety tips listed below:
•Do not aim the LASER beam towards eyes.
•Do not place the thermometer on, or in proximity to, objects whose
temperature is > 65°C/150°F.
•If the thermometer is subjected to great variations in ambient temperature,
wait for 30 minutes after this becomes stable again before continuing with
measurement, so as to attain the specified accuracy.
•Let condensation, which can build up on the lens of the thermometer’s
measurement aperture, dissipate before continuing with measurement.
•Do not subject the thermometer to strong electric or magnetic fields (e.g.:
inductive heating, arc welding equipment…) that could induce errors in
measurement.
•Respect the climatic environmental conditions
•Keep the lens perfectly clean.

C.A 1864 – C.A 1866 English
Page 19
SUMMARY
1. PRESENTATION ...................................................................................... 20
2. FUNCTIONING - EMISSIVITY................................................................... 20
3. DESCRIPTION ......................................................................................... 21
4. USE ........................................................................................................ 22
4.1 PROCEDURE.............................................................................................22
4.2 MEASUREMENTPRECAUTIONS...............................................................22
4.3 « TARGET DISTANCE /MEASUREMENTFIELDDIAMETER »RATIO..........23
4.4 MEASUREMENTPARAMETERS................................................................24
4.5 ERRORMESSAGES ...................................................................................26
5. SPECIFICATIONS..................................................................................... 27
5.1 SPECIFICATIONS ......................................................................................27
5.2 CLIMATICSCONDITIONS..........................................................................27
5.3 CONSTRUCTIONSPECIFICATIONS............................................................27
5.4 CONFORMITYTOINTERNATIONALSSTANDARDS....................................27
6. WARRANTY............................................................................................ 28
7. MAINTENANCE....................................................................................... 28
7.1 MAINTENANCE........................................................................................28
7.1.1 Battery replacement ........................................................................28
7.2 WORKINGTEST........................................................................................28
7.3 CLEANINGTHEMEASUREMENTLENS .....................................................28
7.4 CLEANINGTHECASING............................................................................29
7.5 METROLOGICALSPECIFICATION..............................................................29
7.6 REPAIR.....................................................................................................29
8. TO ORDER .............................................................................................. 29
9. ANNEXE ................................................................................................. 69

English C.A 1864 – C.A 1866
Page 20
1. PRESENTATION
The C.A 1864 and C.A 1866 infrared thermometers are for the remote
measurement of the temperature of most materials without physical contact, with
an emissivity coefficient situated between 0.1 and 1.
They can also measure the temperature of polished metal surfaces after treatment
(marking with opaque labels or mat spray paint) to limit the "mirror" reflexion effect
of stray infrared ray interference. This treatment brings the emissivity coefficient to
above 0.1 which ensures correct measurement. An emissivity table gives the
emissivity ranges of a wide range of materials.
To measure a body’s temperature, simply point the probe at its surface. The
temperature displayed on the digital screen depends on the measurement
parameter selected and on the emissivity chosen (according to material). The
thermometer automatically switches off after 10 seconds.
2. FUNCTIONING - EMISSIVITY
All objects above absolute zero (-273.15°C) give out infrared energy. This radiated
energy is emitted in all directions at the speed of light.
The instrument’s lens picks up this energy and focuses it on an infrared detector.
This detector gives a voltage signal proportional to the quantity of energy received
and hence proportional to the temperature of the object.
Some objects not only give out infrared energy, but also reflect it as well. Unlike
matt surfaces, brilliant or highly polished surfaces tend to reflect energy. This
possible reflection is represented by a factor known as the emissivity, and can vary
between 0.1 for a highly reflective surface, and 1 for a black body.
In the case of the C.A 1864 and C.A 1866 thermometers, the emissivity can be
adjusted from 0.1 to 1, the value of which is determined depending on the material
of the body or surface to be measured.
These thermometers are suited to measurements on varnished, anodised or
oxidised surfaces, but taking into account their spectrum, shorter wavelength
instruments are better adapted to measurements of brilliant surfaces. (see §
Emissivity table).
To have a precise measurement, keep your thermometer perpendicularly to the
target.

C.A 1864 – C.A 1866 English
Page 21

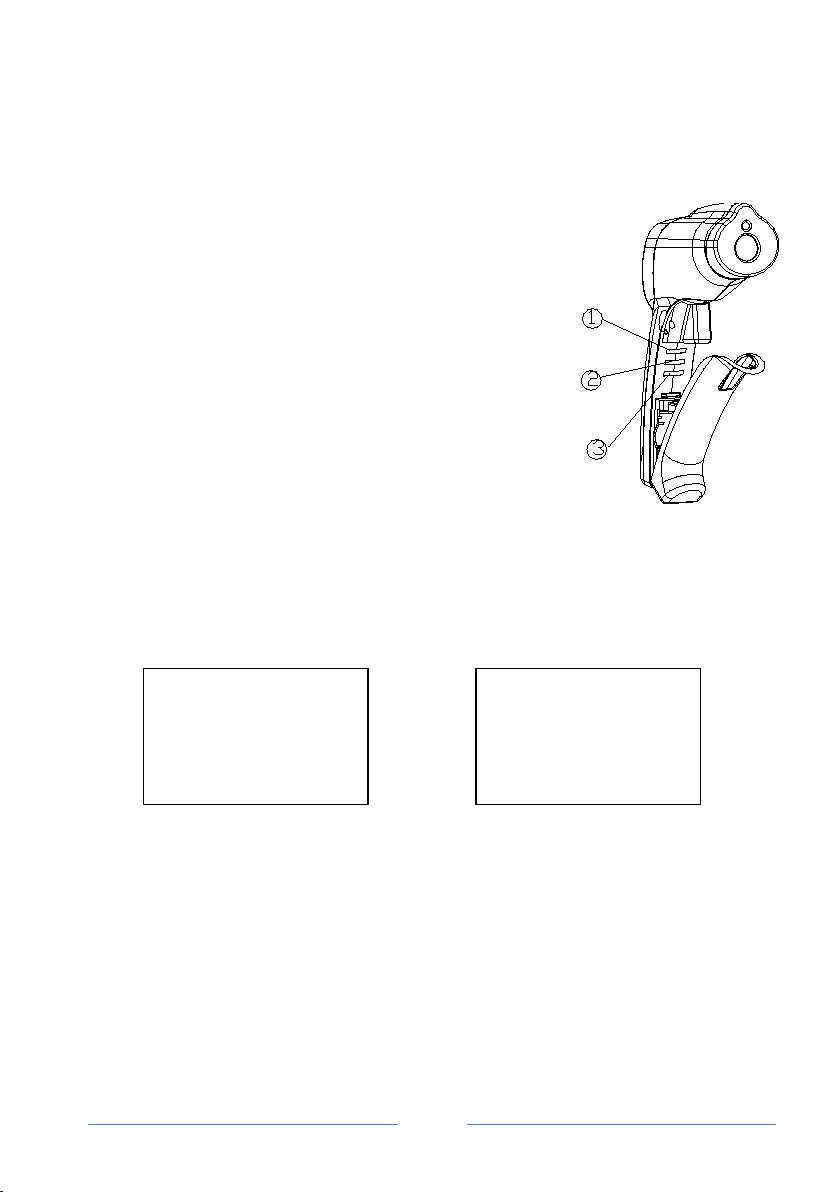

3. DESCRIPTION
1 : holds the last measured value
2 : Taking measurement
3 : Emissivity value
4 : Low battery indicator, lock function
and laser
5 : Rétro éclairage actif
6 : measurement displayed in °C/°F
7 :Hight / low alert value indicator
8 : Temperature value MAX, MIN, DIF, AVG,
HAL or LAL
9 : Actual setting : EMS, MAX, MIN, DIF,
AVG, HAL or LAL
10 : Actual measured temperature value
1 : LASER view finder aperture
2 : Measurement lens
3 : LCD display
4 : sdecrease in increments of emissivity
values, hight and low value of the alarm
5 : rincrease in increments of emissivity
values, hight and low value of the alarm
6 : MODE : choice of measurement parameters
through successive presses:
- EMI : emissivity percentage corresponding to
the measurement
- MAX : maximum values as of switching on
- MIN : minimum values as of switching on
- DIF : temperature difference in relation to the
reference value measured when switching on
- AVG : average of measured values
- HAL : hight value of the alarm
- LAL : low value of the alarm
7 : activation/deactivation of the LASER sight and
back-lighting
8 : On/start measurement trigger
9 : Handle Grip
10 :Battery housing cover
11 :Standard mounting nut
11

English C.A 1864 – C.A 1866
Page 22
4. USE
Never aim the LASER beam towards eyes.
4.1 PROCEDURE
1. Press the black trigger, all screen segments are displayed and the instrument
carries out a measurement as set-up before it was last switched off. SCAN
appeared on the screen. The HOLD symbol is displayed when you release the
trigger and the main display holds the measurement until the automatic
switch-off of the instrument after 10 seconds
2. Press the trigger once more and set up the measurement parameters using
the MODE button and possibly the buttons (see § 4.4).
3. Activate or deactivate the LASER sight and backlighting.
4. Aim the thermometer whilst pressing the trigger, using the LASER sight or
otherwise, at the target to be measured (see § 4.2 and 4.3).
Note:
The instrument memorises the last measurement set-up when switched off,
but not the last measurement.
If the trigger is held down, the instrument measures continuously.
4.2 MEASUREMENT PRECAUTIONS
•If the surface to be measured is frosted over or covered in other particles,
if possible clean the surface so that it shows through and program in the
corresponding emissivity value (see § 4.4).
•If the thermometer seems to give incorrect results, check the condition of
the measurement lens for condensation or other particles that could be
obstructing it. The lens should be cleaned carefully following the
instructions in § 6.3.

C.A 1864 – C.A 1866 English
Page 23

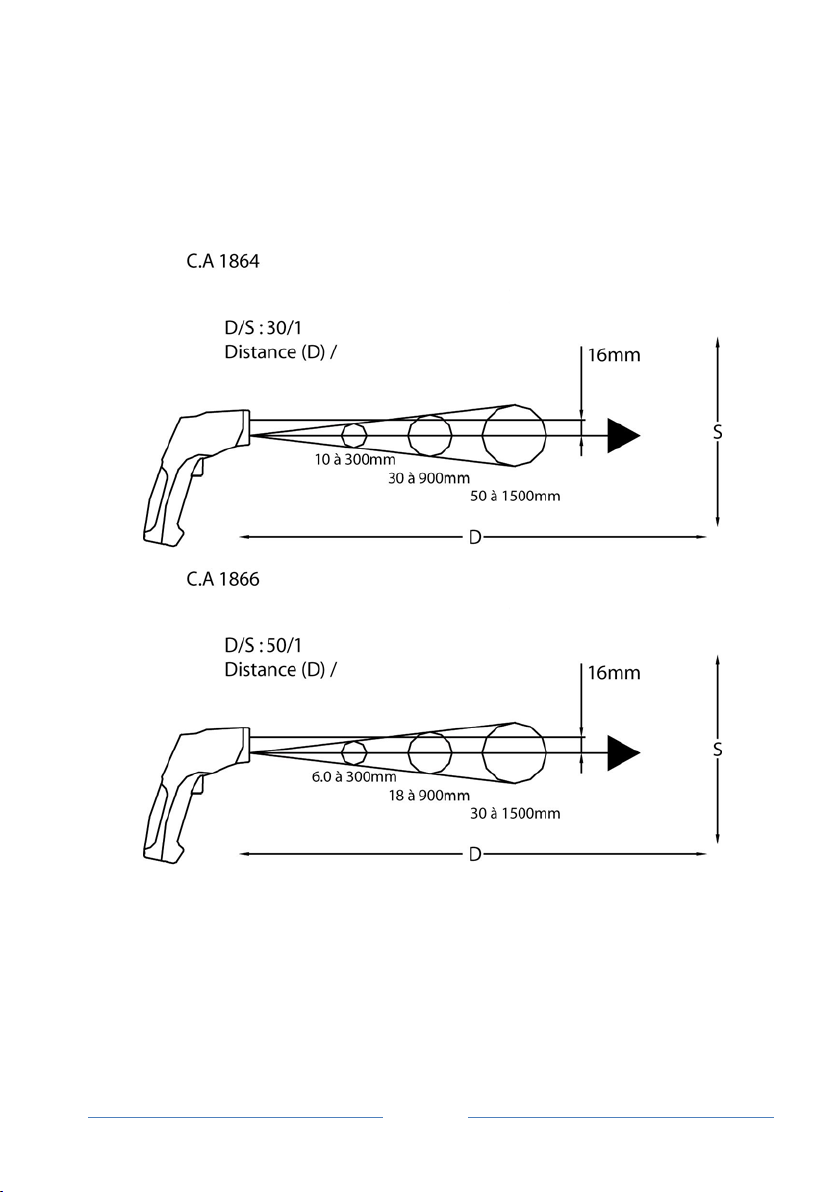

4.3 « TARGET DISTANCE / MEASUREMENT FIELD DIAMETER »
RATIO
This ratio, also known as the field of vision, indicates the diameter of the probes’
measurement field at a given distance from the target (see figure below).
In the case of a measurement point of small dimensions, it is important to bring
the probe to a short enough distance from the target, so as to avoid including other
points into the field of measurement.
Spot diameter (S)
Laser beam
Sensor beam
Spot diameter (S)
Laser beam
Sensor beam

English C.A 1864 – C.A 1866
Page 24
4.4 MEASUREMENT PARAMETERS
The choice and setting of the measurement parameters is carried out by
successively pressing the MODE button:
■ EMI (see fig to right)
The emissivity percentage is adjusted using the
buttons qpaccording to the surface being
tested. (see table § 8.2).
Pressing the buttons qp briefly or holding
them down for a longer period gives smaller or
greater degrees of adjustment respectively. The
setting is held in memory after the instrument is
switched off and used during all successive
measurements, whatever the parameter used.
■ MAX (see fig to right)
When the trigger is pressed and held, the small
right-hand display indicates the maximum
temperature value measured whilst the trigger
is pressed.
The measurement set-up is held in memory
after the instrument is switched off, but not the
last maximum value recorded since the
instrument takes into account the value
measured upon the first press of the trigger
when switching on.
HOLD ε= 0.9
°C
234.8
EMS
HOLD ε= 0.9
°C
234.8
MAX 300
YES
NO

C.A 1864 – C.A 1866 English
Page 25
■ MIN (see fig to right)
When the trigger is pressed and held, the small
right-hand display indicates the minimum
temperature value measured whilst the trigger
is pressed.
The measurement set-up is held in memory
after the instrument is switched off, but not the
last minimum value recorded since the
instrument takes into account the value
measured upon the first press of the trigger
when switching on.
■ DIF (see fig to right)
When the trigger is pressed and held, the small
right-hand display indicates the temperature
difference measured as of the start of
measurement.
The measurement set-up is held in memory
after the instrument is switched off, but not the
last temperature difference value recorded
since the instrument takes into account the
value measured upon the first press of the
trigger when switching on.
■ AVG (see fig to right)
When the trigger is pressed and held, the small
right-hand display indicates the average
temperature value measured whilst the trigger
is pressed.
The measurement set-up is held in memory
after the instrument is switched off, but not the
last average value recorded since the
instrument takes into account the value
measured upon the first press of the trigger
when switching on.
HOLD
ε= 0.9
°C
234.8
MIN 10
HOLD
ε= 0.9
°C
234.8
DIF 02.3
HOLD
ε= 0,9
°C
234.8
AVG 225.2

English C.A 1864 – C.A 1866
Page 26
(1) C/F
Select the temperature units (oC or oF) using the oC/oF
switch
(2) LOCK ON / OFF
To lock the unit on for continuous measurement, slide
the middle switch LOCK ON/OFF right. If the trigger is
pulled while the unit is lock on, the laser and backlight
will turn on if they have been activated. When the unit
is locked on, the backlight and laser will remain on
unless it is turned off using the Laser/Backlight button
on the keypad.
(3) SET ALARM
To activate the alarms, please slide the bottom switch
SET ALARM right.
To set values for the High Alarm (HAL), Low Alarm
(LAL), firstly active the display by pulling the trigger or
press MODE, then press MODE until the appropriate
code appears in the lower left corner of the display,
press the UP and down buttons to adjust the desired
values.
4.5 ERROR MESSAGES
HOLD
ε= 0,9
°C
OL
AVG 225.2
HOLD
ε= 0,9
°C
- OL
AVG 225.2
Exceeding of the maximum
value measurable
The maximum measurable
value is 1000°C / 1832 °F,
which if exceeded causes the
instrument to display the
screen shown opposite.
Exceeding of the minimum
value measurable
The minimum measurable
value is -50°C / -58 °F, which
if exceeded causes the
instrument to display the
screen shown opposite.

C.A 1864 – C.A 1866 English
Page 27
5. SPECIFICATIONS
5.1 SPECIFICATIONS
•Measurement range : -50 to +1000°C (-58 to +1832°F)
•Resolution : 0,1°C/0,1°F
•Polarity indication : automatic (minus only)
•Accuracy :
-50 to –20°C (-58 to –4°F): ±5°C (±9°F)
-20 to 200°C (-4 to 392 °F): ± 1.5% of the reading + 2 °C (±3.6 °F);
200 to 538°C (392 to 1000 °F): ± 2.0% of the reading +2 °C (±3.6 °F);
538 to 1000 °C (1000 to 1832 °F): ± 3.5% of the reading ± 5 °C (±9 °F)
•Field of view : 30/1 (C.A 1864) 50/1 (C.A 1866)
•Response time t90 : < 1s
•Spectral reponse : 8 to 14µm
•Emissivity : adjustable from 0,1 to 1
•Screen lighting : adjustable by the user
•Measurement functions : normale, MAX, MIN, average value (AVG),
difference between starting value (DIF), continuous measurement by locking
on the measurement trigger, alert
•Power supply : 9V battery type 6LR61 or 6LF22
5.2 CLIMATICS CONDITIONS
In use: 0 to +50°C (32°F to 122°F), 10 to 90%HR
In storage: -20°C to +60°C (-4 to 140°F) < 80% HR
5.3 CONSTRUCTION SPECIFICATIONS
•Outside casing dimensions : 230 x 100 x 56mm
•Weight : 290g
5.4 CONFORMITY TO INTERNATIONALS STANDARDS
•Interference emissions : EN 55022 Classe B
•Interference stability : EN 50082-1
•LASER : Classe II

English C.A 1864 – C.A 1866
6. WARRANTY
Our guarantee is applicable for twelve months after the date on which the
equipment is made available (extract from our General Conditions of Sale,
available on request).
7. MAINTENANCE
For maintenance, use only specified spare parts. The manufacturer will not
be held responsible for any accident occuring following a repair done other
than by its After Sales Service or approved repairers.
7.1 MAINTENANCE
7.1.1 Battery replacement
•As battery power is not sufficient,
LCD will display “ ” replacement
with one new battery type 9V is
required.
•Open battery cover, then take out
the battery from instrument and
replace with a new 9-Volt battery
•Place the battery cover back.
7.2 WORKING TEST
To check the good working order of thermometer, aim it towards water containing
ice cubes, a simple 0°C (32°F) reference.
7.3 CLEANING THE MEASUREMENT LENS
•Remove dust with a clean pear-shaped dust removing syringe
•Carefully remove remaining particles using a clean and soft cloth.
•Delicately clean the lens using a damp cloth and leave to dry in air.
Do not use solvent
Office: Jl. Radin Inten II No. 62 Duren Sawit, Jakarta 13440 - Indonesia
Workshop: Jl. Pahlawan Revolusi No. 22B, Jakarta 13430 - Indonesia
Phone: [phone] (Hunting) Fax: [phone]
Mobile: [phone]
Fax: [phone]
