Ametek Land UNO U1 600/1600C-L User manual
Fibroptic Thermometer
User Guide
Issue 7
30 April 2018
Publication Nº 198.013
Language: English
© Land Instruments International, 2018
Health and Safety Information
Read all of the instructions in this booklet - including all the WARNINGS and CAUTIONS
- before using this product. If there is any instruction which you do not understand, DO
NOT USE THE PRODUCT.
Safety Signs
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in death or
personal injury.
CAUTION
Indicates a potentially hazardous situation which, if not avoided, could result in minor or
moderate injury to the user or users, or result in damage to the product or to property.
NOTE
Indicates a potentially hazardous situation which, if not avoided, could result in damage or the loss of
data.
Signs and Symbols used on equipment and Documentation
Caution, risk of electric shock.
Caution, attention to possibility of risk of damage to the product, process or surroundings. Refer
to instruction manual.
Caution, hot surface.
Protective Conductor Terminal.
Observe precautions for handling electrostatic discharge sensitive devices.
Equipment Operation
Use of this instrument in a manner not specied by Land Instruments International may be hazardous.
Read and understand the user documentation supplied before installing and operating the equipment.
The safety of any system incorporating this equipment is the responsibility of the assembler.
Protective Clothing, Face and Eye Protection
It is possible that this equipment is to be installed on, or near to, machinery or equipment operating at
high temperatures and high pressures. Suitable protective clothing, along with face and eye protection
must be worn. Refer to the health and safety guidelines for the machinery/equipment before installing
this product. If in doubt, contact Land Instruments International.
Electrical Power Supply
Before working on the electrical connections, all of the electrical power lines to the equipment must
be isolated. All the electrical cables and signal cables must be connected exactly as indicated in these
operating instructions. If in doubt, contact Land Instruments International.
Storage
The instrument should be stored in its packaging, in a dry sheltered area.
Unpacking
Check all packages for external signs of damage. Check the contents against the packing note.
Lifting Instructions
Where items are too heavy to be lifted manually, use suitably rated lifting equipment. Refer to the
Technical Specication for weights. All lifting should be done as stated in local regulations.
IMPORTANT INFORMATION - PLEASE READ
Health and Safety Information
Read all of the instructions in this booklet - including all the WARNINGS and CAUTIONS
- before using this product. If there is any instruction which you do not understand, DO
NOT USE THE PRODUCT.
Safety Signs
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in death or
personal injury.
CAUTION
Indicates a potentially hazardous situation which, if not avoided, could result in minor or
moderate injury to the user or users, or result in damage to the product or to property.
NOTE
Indicates a potentially hazardous situation which, if not avoided, could result in damage or the loss of
data.
Signs and Symbols used on equipment and Documentation
Caution, risk of electric shock.
Caution, attention to possibility of risk of damage to the product, process or surroundings. Refer
to instruction manual.
Caution, hot surface.
Protective Conductor Terminal.
Observe precautions for handling electrostatic discharge sensitive devices.
Equipment Operation
Use of this instrument in a manner not specied by Land Instruments International may be hazardous.
Read and understand the user documentation supplied before installing and operating the equipment.
The safety of any system incorporating this equipment is the responsibility of the assembler.
Protective Clothing, Face and Eye Protection
It is possible that this equipment is to be installed on, or near to, machinery or equipment operating at
high temperatures and high pressures. Suitable protective clothing, along with face and eye protection
must be worn. Refer to the health and safety guidelines for the machinery/equipment before installing
this product. If in doubt, contact Land Instruments International.
Electrical Power Supply
Before working on the electrical connections, all of the electrical power lines to the equipment must
be isolated. All the electrical cables and signal cables must be connected exactly as indicated in these
operating instructions. If in doubt, contact Land Instruments International.
Storage
The instrument should be stored in its packaging, in a dry sheltered area.
Unpacking
Check all packages for external signs of damage. Check the contents against the packing note.
Lifting Instructions
Where items are too heavy to be lifted manually, use suitably rated lifting equipment. Refer to the
Technical Specication for weights. All lifting should be done as stated in local regulations.
IMPORTANT INFORMATION - PLEASE READ
Contact Us
UK - Droneld
Land Instruments International
Tel: +44 (0) 1246 417691
USA - Pittsburgh
AMETEK Land, Inc.
Tel: +1 412 826 4444
China
AMETEK Land China Service
Tel: +86 21 5868 5111 ext 122
India
AMETEK Land India Service
Tel: +91 - 80 67823240
Email: [email protected]
Web: www.ametek-land.com
For further details on all AMETEK Land oces, distributors and representatives, please visit our website.
Return of Damaged Goods
IMPORTANT If any item has been damaged in transit, this should be reported to the carrier and to the
supplier immediately. Damage caused in transit is the responsibility of the carrier not the supplier.
DO NOT RETURN a damaged instrument to the sender as the carrier will not then consider a claim. Save
the packing with the damaged article for inspection by the carrier.
Return of Goods for Repair
If you need to return goods for repair please contact our Customer Service Department. They will be able
to advise you on the correct returns procedure.
Any item returned to Land Instruments International should be adequately packaged to prevent damage
during transit.
You must include a written report of the problem together with your own name and contact information,
address, telephone number, email address etc.
Design and Manufacturing Standards
The Quality Management System of Land Instruments International is approved to BS EN ISO 9001 for
the design, manufacture and on-site servicing of combustion, environmental monitoring and non-contact
temperature measuring instrumentation.
Registered ISO 9001 Management System approvals apply in the USA
UK Calibration Laboratory: UKAS 0034
USA Calibration Laboratory: ANAB Accredited ISO/IEC 17025
National Accreditation Board for Testing and Calibration Laboratories approvals apply in India.
Operation of radio transmitters, telephones or other electrical/electronic devices in close proximity
to the equipment while the enclosure doors of the instrument or its peripherals are open, may cause
interference and possible failure where the radiated emissions exceed the EMC directive.
The protection provided by this product may be invalidated if alterations or additions are made to the
structural, electrical, mechanical or pneumatic parts of this system. Such changes may also invalidate the
standard terms of warranty.
Copyright
This manual is provided as an aid to owners of Land Instruments International’s products and contains
information proprietary to Land Instruments International. This manual may not, in whole or part, be
copied, or reproduced without the expressed written consent of Land Instruments International Ltd.
Copyright © 2018 Land Instruments International.
MARCOM0311, Issue 9, 12 April 2018
Fibroptic Thermometer User Guide
Blank
User Guide Fibroptic Thermometer
Contents
1 Introduction 1
1.1 About this guide 1
1.2 About the UNO Fibroptic thermometer 1
1.3 Unpacking the thermometer 1
1.4 Nomenclature 2
2 Specications 3
2.1 U1 Series Thermometers 3
2.2 U2 Series Thermometers 4
2.3 V1 Series Thermometers 5
3 Installing the UNO Fibroptic Thermometer 6
3.1 Positioning the Optic Head 7
3.2 Installing the lightguide 8
3.3 Positioning the Thermometer 8
4 Using the Thermometer 9
4.1 Removing the chassis from the thermometer cover 9
4.2 Location of controls 10
4.3 Setting the Emissivity/Non Greyness value 11
4.4 Setting the Time Functions 12
4.5 Note your settings 14
4.6 Replacing the chassis into the thermometer cover 14
4.7 Electrical Connections 15
5 Laser Alignment Unit 19
5.1 About the Laser Alignment Unit 19
5.2 LaserAlignmentUnitSpecication 19
5.3 Using the Laser Alignment Unit 21
5.4 Laser Alignment Unit maintenance 21
6 Target Size Tables 22
6.1 Optic Head A10, Field of View 25:1 (Red spacer) 22
6.2 Optic Head A10, Field of View 75:1 (Red spacer) 22
6.3 Optic Head A25, Field of View 25:1 (Blue spacer) 23
6.4 Optic Head A25, Field of View 75:1 (Blue spacer) 23
6.5 Optic Head A50, Field of View 25:1 (No spacer) 24
6.6 Optic Head A50, Field of View 75:1 (No spacer) 24
7 Emissivity tables 25
7.1 Refractories 25
7.2 Alloys 25
7.3 Metals 26
7.4 Miscellaneous 27
8 Maintenance 28
8.1 Optic head 28
8.2 Air supply 28
Contents
Fibroptic Thermometer User Guide

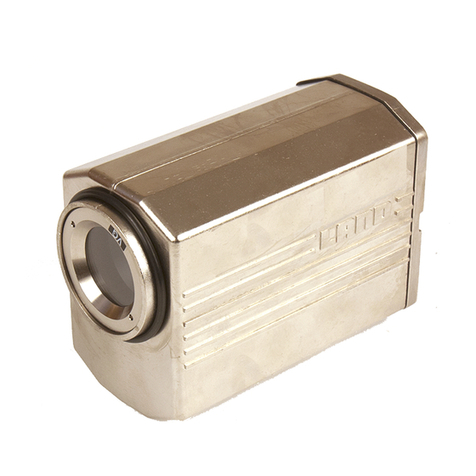

Fig. 1 Land Fibroptic UNO thermometer
Page 1
User Guide Fibroptic Thermometer
1 Introduction
1.1 About this guide
This guide gives the information necessary for you to operate a LAND UNO
Fibroptic Thermometer. Basic information regarding installation is contained
within the Installation Guide.
1.2 About the UNO Fibroptic thermometer
The LAND UNO thermometer is an accurate, non contact thermometer
designed for independent or STAND ALONE use.
The thermometer features include:
• Stand Alone operation.
• Built in Averager or Peak Picker for signal conditioning.
• Built in Emissivity or Non Greyness controls.
• Achoiceofbreopticslightguides,enablingthethermometer's
electronics to be located away from the often hostile measurement
location.
• A choice of optic head focus distance.
• Electrical connections for a 4 to 20mA output, linear over the
temperature span of the thermometer, and an emissivity input for high
accuracy temperature measurement.
The LAND UNO range of thermometers and rugged mounting accessories is
designed to provide precise, non contact temperature measurement solutions.
Internal controls for emissivity or non greyness together with selectable
timefunctionsallowthethermometertobeconguredtosuitawiderange
of industrial applications. A comprehensive range of mountings is common
to other LAND products, maximising commonality and simplifying system
upgrades.
1.3 Unpacking the thermometer
The package containing the thermometer will contain the following items:
• CD containing this UNO User Documentation.
• UNOFibropticthermometer,optichead(ttedwithprotectioncap)and
lightguide.
• 2.5mm Hex screwdriver.
• 2.5mmatbladedscrewdriver.
Page 2
Fibroptic Thermometer User Guide
Fig. 2 UNO Thermometer Nomenclature UN970313
1.4 Nomenclature
The thermometer detail label is on the rear face of the thermometer above
the eyepiece. The thermometer instrument type nomenclature is explained in
Fig. 3.
Make a note of your thermometer’s instrument type and serial number in the
space provided below.
Instrument type:
Serial Number:
The optic head variant (A10, A25 or A50) is determined by the type of spacer
tted.
A10 = Red spacer (15mm long) = 10cm focus distance
A25 = Blue spacer (3mm long) = 25cm focus distance
A50=Nospacertted = 50cmfocusdistance
Silicon cell (1µm)
Germanium cell (1.6µm)
Lead Sulphide cell (2.4µm)
1
2
4
Wavelength
Minimum temperature
Single wavelength
Ratio
U
V
Thermometer Series
U 1 6 0 0 1 6 0 0 C Y L
Maximum temperature
Degrees Celsius
Degrees Fahrenheit
C
F
Units
Variable Focus (Standard)
Short Variable Focus
Fibroptic
V
S
L
Optics
10 = 1m lightguide
20 = 2m lightguide
35 = 3.5m lightguide
A10 = 10cm focus
A20 = 20cm focus
A50 = 50cm focus
Fibroptic nomenclature
0 A 1 01
L 01
A 1 0
Laser targeting system
Laser
Page 3
User Guide Fibroptic Thermometer
2 Specifications
2.1 U1 Series Thermometers
Thermometer Model U1 600/1600C-L U1 1100/2900F-L U1 800/2600C-L U1 1500/4700F-L
Temperature Range: 600 to 1600°C 1100 to 2900°F 800 to 2600°C 1500 to 4700°F
Wavelength: 1µm
Averager Response: Adjustable 5ms to 5s (0 to 95%)
Peak Picker: Adjustable 1.5 to 30%/s decay
Emissivity: Adjustable 0.10 to 1.00
Field of View (Nominal): 25:1 75:1
Target Diameter:
A10 Optic Head: 4mm at 100mm / 0.15in at 3.9in 1.3mm at 100mm / 0.05in at 3.9in
A25 Optic Head:
A50 Optic Head:
10mm at 250mm / 0.39in at 9.8in
23mm at 500mm / 0.90in at 19.6in
3.3mm at 250mm / 0.12in at 9.8in
6.7mm at 500mm / 0.26in at 19.6in
Accuracy
Repeatability: <1°C / 2°F <2°C / 4°F
Absolute: <0.75%K <0.75%K
Stability (Temperature): 0.2°/° ambient 0.3°/° ambient
Stability (Time): 2°C / 4°F per year
Vibration: 3G any axis 10 to 300 Hz
Humidity: 0 to 99% non condensing
Sealing: To IP65
Ambient Temperature:
Optic Head: 200°C / 392°F
Lightguide: 200°C / 392°F
Detector:
Specied: 0 to 70°C / 32 to 158°F
Operating: -10 to 80°C / 14 to 176°F
CE EN 50-082-2 (immunity) EN 50-081-1 (emission) IEC 1010 (safety)
Page 4
Fibroptic Thermometer User Guide
2.2 U2 Series Thermometers
Thermometer Model U2 300/1100C-L U2 600/2000F-L
Temperature Range: 300 to 1100°C 600 to 2000°F
Wavelength: 1.6µm
Averager Response: Adjustable 5ms to 5s (0 to 95%)
Peak Picker: Adjustable 1.5 to 30%/s decay
Emissivity: Adjustable 0.10 to 1.00
Field of View (Nominal): 25:1
Target Diameter:
A10 Optic Head: 4mm at 100mm / 0.15in at 3.9in
A25 Optic Head:
A50 Optic Head:
10mm at 250mm / 0.39in at 9.8in
23mm at 500mm / 0.90in at 19.6in
Accuracy
Repeatability: <1°C / 2°F
Absolute: <1.0%K
Stability (Temperature): 0.2°/° ambient
Stability (Time): 2°C / 4°F per year
Vibration: 3G any axis 10 to 300 Hz
Humidity: 0 to 99% non condensing
Sealing: To IP65
Ambient Temperature:
Optic Head: 200°C / 392°F
Lightguide: 200°C / 392°F
Detector:
Specied: 0 to 50°C / 32 to 122°F
Operating: -10 to 60°C / 14 to 140°F
CE EN 50-082-2 (immunity) EN 50-081-1 (emission) IEC 1010 (safety)
Page 5
User Guide Fibroptic Thermometer
2.3 V1 Series Thermometers
Thermometer Model V1 600/1600C-L V1 1100/2900F-L V1 1000/2600C-L V1 1800/4700F-L
Temperature Range: 600 to 1600°C 1100 to 2900°F 1000 to 2600°C 1800 to 4700°F
Wavelength: 0.85 to 1.1µm
Averager Response: Adjustable 5ms to 5s (0 to 95%)
Peak Picker: Adjustable 1.5 to 30%/s decay
Non Greyness: Adjustable 0.80 to 1.199
Field of View (Nominal): 25:1 75:1
Target Diameter:
A10 Optic Head: 4mm at 100mm / 0.15in at 3.9in 1.3mm at 100mm / 0.05in at 3.9in
A25 Optic Head:
A50 Optic Head:
10mm at 250mm / 0.39in at 9.8in
23mm at 500mm / 0.90in at 19.6in
3.3mm at 250mm / 0.12in at 9.8in
6.7mm at 500mm / 0.26in at 19.6in
Accuracy
Repeatability: <1°C / 2°F <2°C / 4°F
Absolute: <1.0%K <1.25%K
Stability (Temperature): 0.05°/° ambient
Stability (Time): 2°C / 4°F per year
Vibration: 3G any axis 10 to 300 Hz
Humidity: 0 to 99% non condensing
Sealing: To IP65
Ambient Temperature:
Optic Head: 200°C / 392°F
Lightguide: 200°C / 392°F
Detector:
Specied: 0 to 50°C / 32 to 122°F
Operating: -10 to 60°C / 14 to 140°F
CE EN 50-082-2 (immunity) EN 50-081-1 (emission) IEC 1010 (safety)
Page 6
Fibroptic Thermometer User Guide
3 Installing the UNO Fibroptic Thermometer
Fig. 3 UNO Fibroptic thermometer installation dimensions
UN970324
M22 x 1.5P thread
'Quick Release Fitting'
M22 x 1.5P thread
To LAND
Fibroptic
thermometer
mountings
M22 x 1.5P thread
Clamp nuts either
side of plate
25/1.0 55/2.2
156/6.1
115/4.5
34.5/1.4
80/3.1
Minimum bend
radius 50/2.0
Approx. 160/6.3
required for optic head removal
Light guide length
L10 = 1000/39.4
L20 = 2000/78.7
L35 = 3500/137.8
18/0.7
M22 x 1.5
thread
Spacer
Mounting pad - 2 holes ¼" BSW
7/0.3 deep on 25/1.0 centres
Recommended orientation of
thermometer to prevent ingress
of water, and build up of dirt etc.
on electrical and lightguide
connectors
All dimensions in millimetres/inches
TYPE: U1 11 00/290 0F L 10 A10
SERIAL No. 0 000000/00/00
Fig. 4(b) Mounting the optic head into Land Fibroptic Thermometer mountings
UN970328
Fig. 4(a) Mounting the optic head into a plate
Page 7
User Guide Fibroptic Thermometer
3.1 Positioning the Optic Head
IfyourUNOFibropticthermometeristtedwithaLaserAlignmentUnit
(e.g. U1 600/1600 C Y L), the laser be used to aid the installation of the
thermometeropticheadbydeningthetargetareaonwhichtheoptichead
is aligned. This is particularly useful in applications where the target size is
small and/or where correct alignment is critical. For more information on the
Laser Alignment Unit, refer to Section 5.
In many cases, there are few options on location of the optic head, as this is
generally dictated by the particular measurement application. Observe the
following precautions:
1) Ifyourthermometerisan'U'seriesthermometer(e.g.U1600/1600C
L), it must be positioned such that, at the chosen target distance, the
targetislargeenoughtocompletelylltheoptichead'seldofview.
Refertothetargetsizetables,Section5.Thethermometer'sviewofthe
target area must not be obstructed.
2) Ensurethattheanglebetweentheoptichead'slineofsightandthe
target area is as near to 90° as possible. However, if this is not possible,
a viewing angle of up to 45° is acceptable.
3) If the optic head is located in an atmosphere containing a high
proportion of dust/smoke etc, an air purge must be used in conjunction
with the optic head. This prevents the lens from becoming dirty. Refer
to the Installation Guide supplied with the mounting/purge assembly.
3.1.1 Installing the optic head
The optic head can either be mounted directly into a threaded hole in a user-
supplied mounting plate, or connected to one of the range of Land Fibroptic
thermometermountingsbymeansofthe'QuickReleaseFitting',LandPartNº
029.591.
To mount the optic head in a plate:
1) Refer to Fig. 4(a). Unscrew the clamp nut nearest the lens on the optic
head.
2) Screw the optic head into an M22 x 1.5P threaded hole in the plate.
3) Re-attach the clamp nut onto the optic head. Tighten the nut so that the
mounting plate is held securely between the two clamp nuts on the optic
head.
To mount the optic head into Land Fibroptic thermometer mountings:
1) Refer to Fig. 4(b). Screw the two clamp nuts up as far as they will go on
the thread on the optic head.
2) Screwtheopticheadintothe‘QuickReleaseFitting’.
3) Attachthetting,plustheoptichead,totheLandFibropticthermometer
mountingbymeansofthetwistlockontheQuickReleaseFitting.
Page 8
Fibroptic Thermometer User Guide
3.2 Installing the lightguide
Wheninstallingthebreopticlightguide,observethefollowingprecautions;
1) Ensure that the lightguide is not be subjected to any tension or other
undue force. It is not necessary to clamp or lash the lightguide to
surrounding structures unless, by leaving it hanging, it will vibrate
violently, be a nuisance or a hazard.
2) Treat the lightguide as if it were a lightweight electrical cable and protect
it if necessary. The minimum bend radius is 50mm.
3.3 Positioning the Thermometer
When choosing a location for the thermometer, observe the following
precautions:
1) If the thermometer is to be installed in a location where the ambient
temperatureisoutsidetherangespeciedforthethermometer,itmust
be mounted in a special cooling/heating jacket available from Land
Instruments International.
2) If the thermometer is to be used in conjunction with a protection jacket,
refer to the installation guide provided with the jacket.
3) If the thermometer is to be installed in a location where the ambient
temperatureiswithintherangespeciedforthethermometer,itcanbe
mounted using the two tapped holes on the mounting pad. Either hole
can be used for direct tripod mounting.
4) Choose a location for the thermometer which is free from excess
vibration, dirt and moisture.
5) It is important that, in order to prevent any possibility of water ingress
into the electronics/detector module, the thermometer is mounted in the
orientation shown in Fig. 3.
6) It is recommended that, in order to minimise the build-up of dirt etc. on
the electrical and lightguide connectors, the thermometer is mounted
such that these connectors are on the underside (as shown in Fig. 3).
Page 9
User Guide Fibroptic Thermometer
4 Using the Thermometer
Beforenalinstallationofthethermometer,theinternalcontrols(i.e.
Emissivity, Averager response speed or Peak picker decay rate) must be set
to match the particular measurement location. This involves removing the
internal chassis from the thermometer cover.
4.1 Removing the chassis from the thermometer cover
Caution
Ensure that the thermometer is disconnected from the power
supply before removing the chassis from the cover.
Ensure that the thermometer is dismantled in a clean laboratory
orofceenvironment.
1) Refer to Fig. 5. Use the 2.5mm Hex screw driver to loosen the four
captive screws (A).
2) Slide the chassis out of the thermometer cover.
Fig. 5 Location of thermometer cover securing screws
UN970329
A
A
A
A
TYPE: U1 1100/2900F L 10 A10
SERIAL No. 0000000/00/00
MADE I N ENGLAND
Page 10
Fibroptic Thermometer User Guide
4.2 Location of controls
The Emissivity/Non greyness and Peak Picker/Averager control switches are
located on the left hand circuit board (When viewing the thermometer from
the rear). See Fig. 6.
Note
The4-wayswitch,SW1,isttedinVseries(i.e.ratio)thermometers
only.
Protection sleeve Control switches'O' ring Gasket
Fig. 5 Location of internal control switches UN970329
Page 11
User Guide Fibroptic Thermometer
4.3 Setting the Emissivity/Non Greyness value
4.3.1 U series thermometers
In U series (i.e. single wavelength) thermometers, the emissivity value is set
using switches SW2 and SW3. Refer to Fig. 7.
The emissivity can be set in the range 0.10 to 1.09 in steps of 0.01.
WhenswitchSW2issetfrom1to9,thisdenotestherstgureafterthe
decimalpointoftheemissivityvalue.e.g.foranemissivityvalueof'0.83',set
SW2to'8'andSW3to'3'.
WhenswitchSW2issetto0,thisdenotesa'1'before,anda'0'after,the
decimal point of the emissivity value.
e.g.foranemissivityvalueof'1.00',setSW2to'0'andSW3to'0'.
Switches Emissivity SW2 SW3
SW2SW1 SW3
SW4 SW5
0.10 1 0
0.80 8 0
0.83 8 3
0.95 9 5
1.00 0 0
1.09 0 9
Fig. 7 Emissivity setting for ‘U’ series thermometers
Note
An emissivity value of above 1.00 is not common in the majority of
measurement applications.
Page 12
Fibroptic Thermometer User Guide
4.3.2 V series thermometers
In V series (i.e. ratio) thermometers, the non greyness value is set using
switches SW1, SW2 and SW3. Refer to Fig. 8.
The non greyness can be set in the range 0.800 to1.199 in steps of 0.001.
ThesettingofswitchSW1denotestherstgureafterthedecimalpoint
of the non greyness value. However, if SW1 is set to either ‘0’ or ‘1’, this
denotes a ‘1’ before, and either a ‘0’ or ‘1’ (respectively) after the decimal
point of the non greyness value.
e.g. For a non greyness value of ‘0.995’, set SW1 to ‘9’, SW2 to ‘9’ and SW3
to’5’. For a non greyness value of ‘1.199’, set SW1 to ‘1’, SW2 to ‘9’ and SW3
to ‘9’.
Switches Non
greyness SW2 SW2 SW3
0.800 8 0 0
0.995 9 9 5
1.008 0 0 8
1.100 1 0 0
1.199 1 9 9
Fig. 8 Non greyness setting for ‘V’ series thermometers
4.4 Setting the Time Functions
TheUNOthermometeristtedwithAveragerandPeakpickertimefunctions.
These functions are set using the switches SW4 and SW5. Refer to Fig. 9.
Switches SW4 Averager Peak Picker
SW2 SW3
SW4 SW5
SW1
SW4
SW5
SW5
Setting Response time
to 95% (ms)
Decay rate
(%/s)
0 5 30
1 10 29
2 20 27
3 50 24
4 100 20
5 200 15
6 500 10
7 1000 5
8 2000 3
9 5000 1.5
Fig. 9 Averager and Peak picker time function selection
SW2 SW3
SW4 SW5
SW1
Page 13
User Guide Fibroptic Thermometer
4.4.1 Averager
The Averager time function is selected by setting switch, SW5, to position
1 (i.e. up). The Averager response time can be set, via switch SW4, to
any one of the ten values shown in Fig. 9. A graphical explanation of the
Averager time function is given in Fig. 10.
NOTE
Setting the Averager response speed to a value faster than that quoted
inthespecicationforyourthermometerwillnotproduceanincrease
inresponsespeedbeyondthespeciedvalue.e.g.Fastestpossiblere-
sponse speed for a V1 UNO is 15ms.
Raw signal Fast averager Slow averager
Fig. 10 Typical output of Averager time function UN970316
4.4.2 Peak picker
The Peak picker time function is selected by setting switch, SW5, to position
2 (i.e. down). The Peak picker decay rate can be set, via switch SW4, to any
one of the ten values shown in Fig. 9.
The CMD (Command) input, available between pins 3 and 7 of the thermometer
electrical connector, enables remote resetting of the Peak picker time function.
(Refer to Section 4.8.1). When the CMD input is open circuit, the Peak picker
operates under the control of switches SW4 and SW5. When the CMD input is
short circuit, the Peak picker function is RESET and the output signal reverts to
tracking the input, regardless of the setting switches SW4 and SW5.
A graphical explanation of the Peak picker time function is given in Fig. 11.
Fig. 11 Typical output of Peak picker time function UN970317
Raw signal Fast decaySlow decay Reset
Page 14
Fibroptic Thermometer User Guide
4.5 Note your settings
This section is provided as a quick reference guide which enables you to look
up the internal settings of your thermometer without having to remove it
from the measurement location.
Each time you adjust the settings, make a note of them in the spaces
provided in Fig. 12.
Serial Number Date Settings
SW2 SW3
SW4 SW5
SW1
SW2 SW3
SW4 SW5
SW1
SW2 SW3
SW4 SW5
SW1
SW2 SW3
SW4 SW5
SW1
SW2 SW3
SW4 SW5
SW1
Fig. 12 Note your settings
4.6 Replacing the chassis into the thermometer cover
When all internal controls have been set to suit your requirements, replace
the thermometer chassis into the cover.
1) Ensurethatthegasketisttedcorrectlyontheinnerfaceofthe
thermometer rear panel and slide the chassis into the thermometer
cover.
2) Refer to Fig. 5. Tighten the four captive screws (A) using the 2.5mm
Hex screwdriver.
This manual suits for next models
3
Table of contents
Other Ametek Land Thermometer manuals
