KI51PV-754
Copyright
All rights are reserved. No part of this publication may be reproduced, transmitted, transcribed,
stored in a retrieval system or translated into any language or computer language, in any form
or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise,
without the prior written permission of the company. Brands and product names are trademarks
or registered trademarks of their respective companies.
The vendor makes no representations or warranties with respect to the contents herein and
especially disclaim any implied warranties of merchantability or fitness for any purpose. Further
the vendor reserves the right to revise this publication and to make changes to the contents
herein without obligation to notify any party beforehand. Duplication of this publication, in part or
in whole, is not allowed without first obtaining the vendor’s approval in writing.
Trademark
All the trademarks or brands in this document are registered by their respective owner.
Disclaimer
We make no warranty of any kind with regard to the content of this user’s manual. The content
is subject to change without notice and we will not be responsible for any mistakes found in this
user’s manual. All the brand and product names are trademarks of their respective companies.
FCC Compliance Statement
This equipment has been tested and found to comply with the limits of a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense. However, there is no guarantee that
interference will not occur in a particular installation.
CE Mark
The device is in accordance with 89/336 ECC-ENC Directive.
Ver: EG101

KI51PV-754
nVIDIA®nForce4 C51PV & MCP51
Supports Socket 754
AMD®AthlonTM 64/ SempronTM
Processor
(The power consumption for the aforementioned
processors must be rated at 65W or less.)
User’s Manual
Dimensions (Micro-ATX Form-Factor):
z170mm x 170mm ( W x L )
Operating System:
zWindows® 2000/ XP

Attention- Im
p
ortant Information
Follow the procedures below…
Troubleshooting Tips
Refer to other sections in this manual…
Things You Should Know
0The images and pictures in this manual are for reference only and may vary from the
product you received depending on specific hardware models, third party components
and software versions.
0This mainboard contains very delicate IC chips. Always use a grounded wrist strap
when working with the system.
0Do not touch any IC chip, lead, connector or other components.
0Always unplug the AC power when you install or remove any device on the mainboard
or when confuguring pins and switches.
Packing List
KI51PV-754 mainboard
I/O Bracket
IDE Cable
SATA Cable
Mainboard Setup Driver & User’s Manual CD
Mainboard Quick Installation Guide
Symbols
The following list explains the convention for symbols that will be used throughout this
manual:

Table of Contents
CHAPTER 1. GETTING STARTED .................................................... 1
INTRODUCTION....................................................................................................... 1
SPECIFICATION ....................................................................................................... 2
CONFIGURATION .................................................................................................... 5
Layout of KI51PV-754 (Right Side)................................................................ 5
Layout of KI51PV-754 (Back Side) ................................................................6
HARDWARE INSTALLATION ................................................................................... 7
CPU Processor Installation.............................................................................. 7

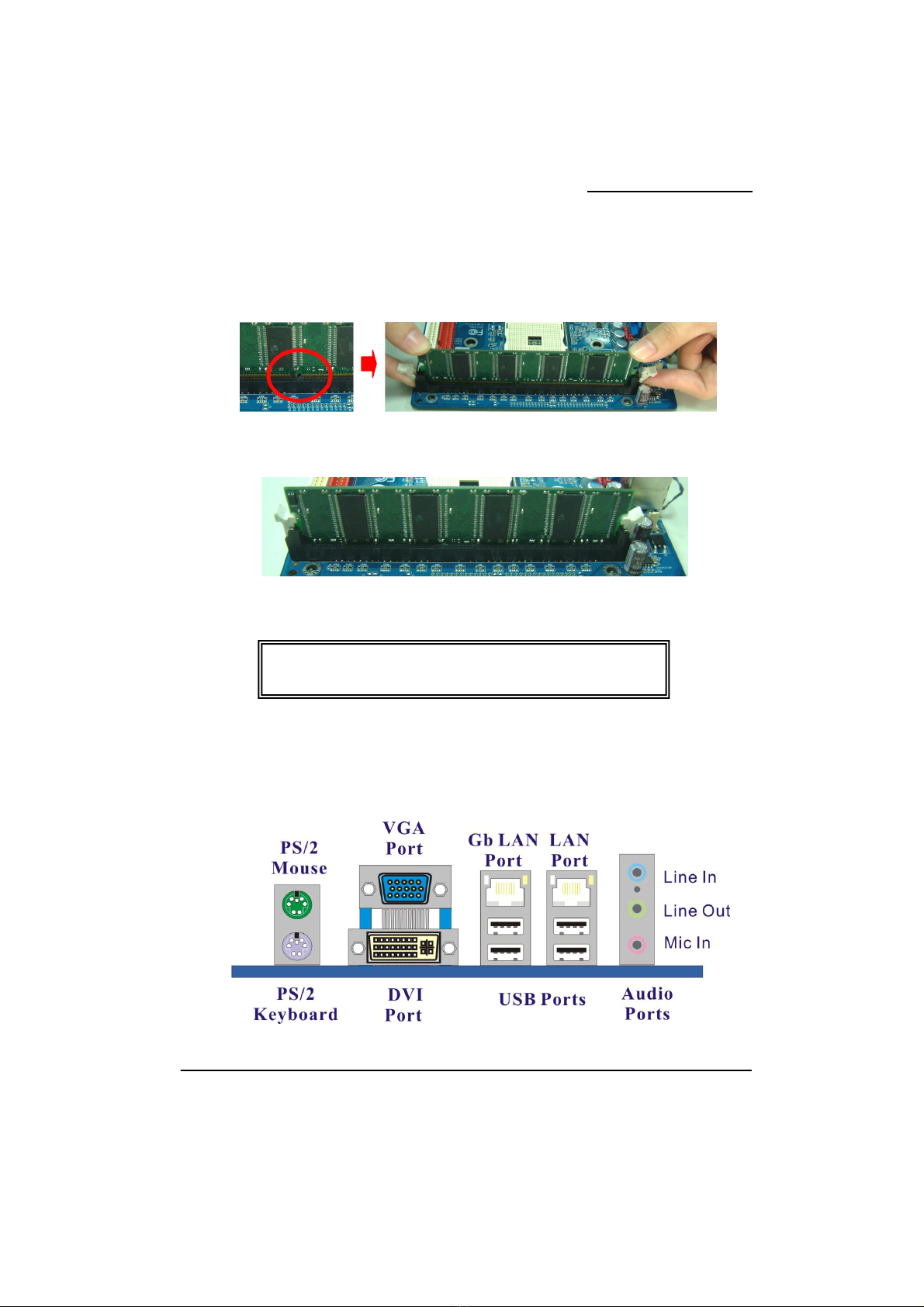

Memory Installation: DIMM1 ......................................................................... 8
Back Panel Configuration................................................................................ 9
Connectors..................................................................................................... 11

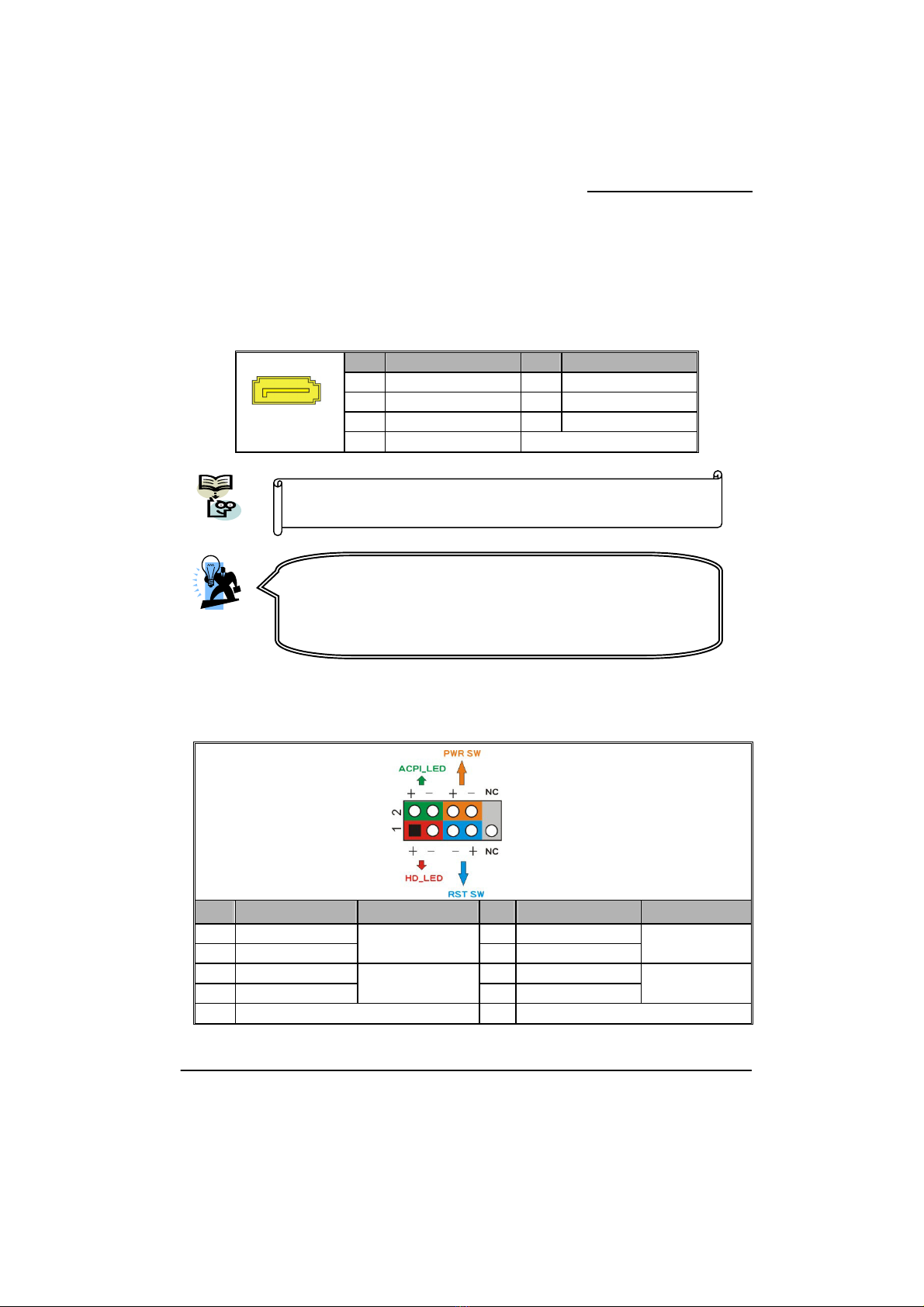

Front Panel Headers: SW/LED, SPEAKER.................................................. 12

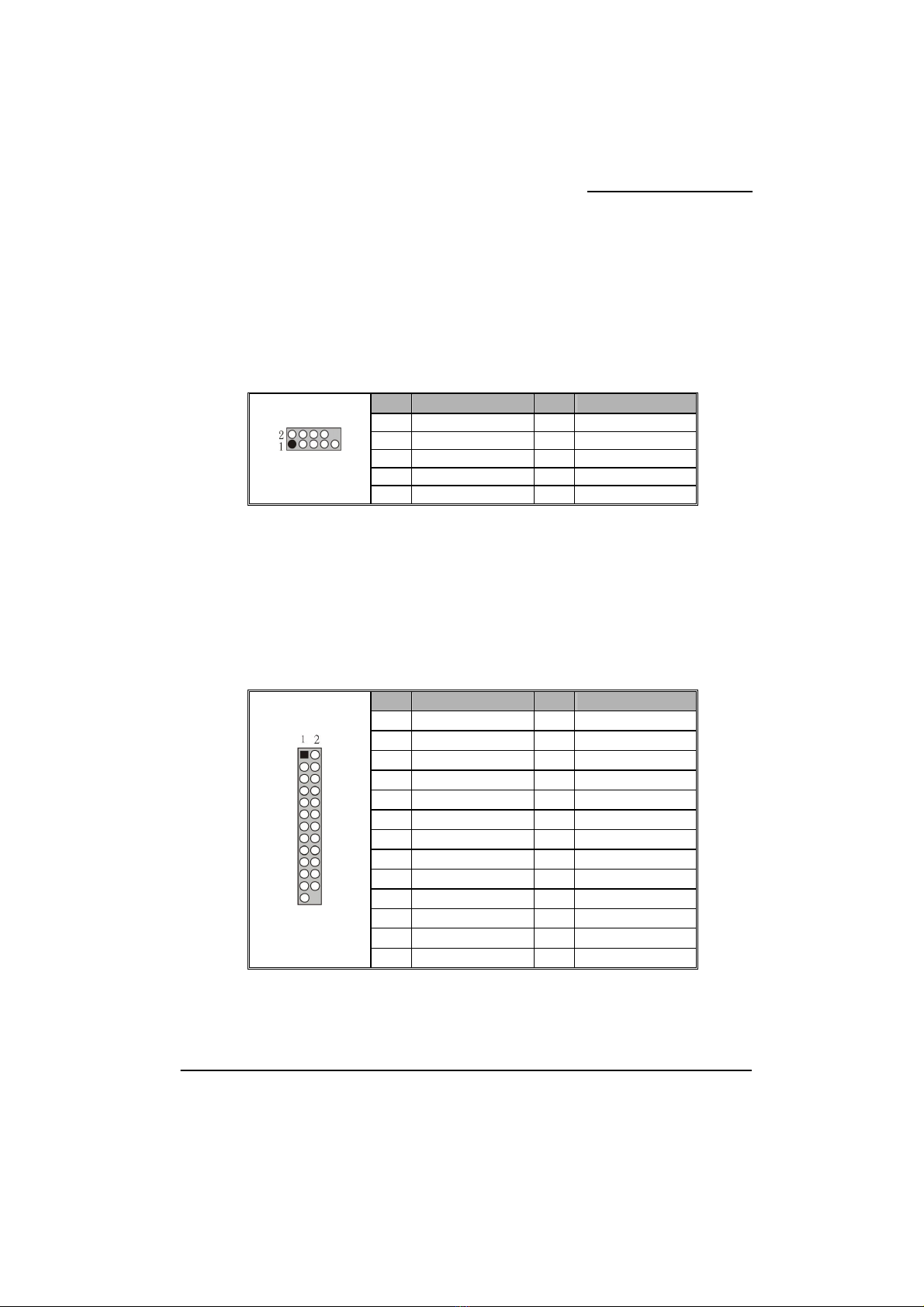

Headers & Jumpers........................................................................................ 13

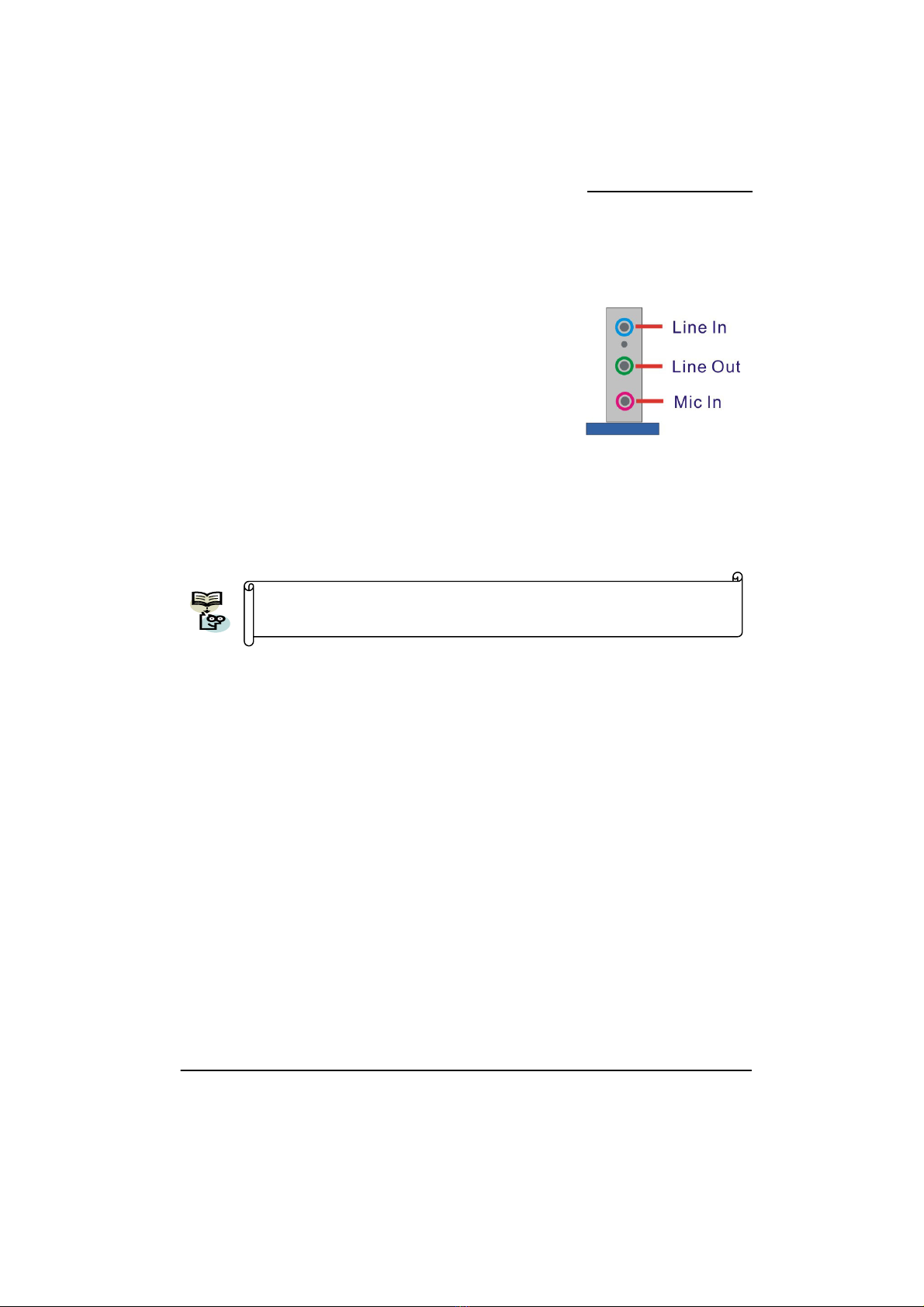

Audio Configuration...................................................................................... 17
Slots ............................................................................................................... 18
Power Supply Attachments............................................................................ 19
CHAPTER 2. BIOS SETUP ........................................................... 20
INTRODUCTION..................................................................................................... 20
KEY FUNCTION..................................................................................................... 20
MAIN MENU ......................................................................................................... 21
ADVANCED BIOS FEATURES.............................................................................. 23
INTEGRATED PERIPHERALS ................................................................................ 28
POWER MANAGEMENT ........................................................................................ 32
HARDWARE MONITOR ......................................................................................... 34
LOAD DEFAULTS.................................................................................................. 34
CHAPTER 3: SOFTWARE SETUP ................................................... 36
SOFTWARE LIST ................................................................................................... 36
SOFTWARE INSTALLATION ................................................................................... 36
CHAPTER 4: TROUBLESHOOTING................................................. 38
APPENDIX I: SUPER 5.1 CHANNEL AUDIO EFFECT SETUP.................................... 41
APPENDIX II: RAID SETUP................................................................................... 42
APPENDIX III: ABS (ALBATRON BIOS SECURITY)CARD SETUP ........................ 50

Mainboard KI51PV-754
1
Chapter 1. Getting Started
Introduction
Congratulations on choosing the KI51PV-754 Mainboard. It is based on the nVIDIA®nForce4
C51PV Northbridge chipset and the nVIDIA®nForce4 MCP51 Southbridge chipset; with
possessing integrated graphics feature. The mainboard supports the AMD AthlonTM 64/
SempronTM processor (The power consumption for the aforementioned processors must be
rated at 65W or less.) socket 754 with FSB (Front Side Bus) frequencies of 800 MHz (1600
MT/s).
The KI51PV-754 provides one DIMM (Dual In-Line Memory Modules) socket. It allows you
installing 184-pin, non-ECC and unbuffered DDR400 (PC3200)/ DDR333 (2700) SDRAM which
supports a total memory capacity of 1GB.
The mainboard provides one PCI slot for use with a graphics card or expansion cards which the
interfaces are compatible.
The KI51PV-754 provides one floppy disk drive connector that can be used with 360KB/
720KB/1.2MB/1.44MB/2.88MB drives. It also has two IDE connectors for hard drives supporting
Ultra ATA 66/100/133. In addition, the onboard Serial ATA II comes with four SATA II
connectors, which each interface can provide up to3 Gbps transfer rate and also support RAID
0/ 1/ 0+1/ JBOD/ 5 mode (See Appendix II).
Moreover, the KI51PV-754 provides onboard I/O facilities such as one VGA connector (=D-Sub
connector), one DVI connector, and a maximum of eight USB 2.0/ 1.1 ports that can be set.
Four headers are also available on this mainboard for a TV OUT connector, a printer connector,
and two COM connectors to be set externally with cables and used additionally.
The onboard AC’ 97 audio codec supports high quality 6-channel audio play (Super 5.1
Channel Audio Effect) (See Appendix I) and supports the Sony/Philips Digital Interfaces
(SPDIF) specifications (Optional).
This mainboard also comes with one onboard 10/100 Mbps and the other built-in 1 Gbps
Ethernet LAN chips. There are two LAN ports on the back panel of your computer case that you
can directly plug into an Internet cable.
In addition, this mainboard supports the ABS (Albatron BIOS Security) card (Optional), which is
a small circuit board inserted onto the mainboard providing full backup BIOS functionality in
case of BIOS failure or damage during the BIOS flash (See Appendix III).
All the information (including hardware installation and software installation) in this manual are
for reference only. The contents in this manual may be updated without notice. The company
will not assume any responsibility for any errors or mistakes within.

Mainboard KI51PV-754
2
Specification
CPU:
zSupports Socket 754
zSupports AMD AthlonTM 64/ SempronTM Processor (The power consumption for the
aforementioned processors must be rated at 65W or less.)
zSupports Hyper-TransportTM Link Technology
zSupports 800 MHz (1600 MT/s) FSB (Front Side Bus) Frequencies
Chipset:
zNorthbridge Chipset – nVIDIA®nForce4 C51PV ( nVIDIA® GeForceTM 6150)
－Integrated nVIDIA® Pure VideoTM Technology
－Supports TV Encoder
－Supports 475 MHz Graphic Clock
－Supports MPEG-2 (DVD)/ WMV9 (HD-Video) Playback
－Supports Video Scaling
zSouthbridge Chipset – nVIDIA®nForce4 MCP51 ( nVIDIA® nForce 430)
zI/O Controller – Winbond®W83627HF-AW
zAC’ 97 Aduio Codec – Realtek®ALC655
zGbit LAN Controller – Marvell®88E8056
z10/100 Mbps LAN PHY – Marvell®88E8036
Memory:
zOne DIMM socket with Dual Channel Technology supported, and also support a total
memory capacity of 1GB
zSupports to use 184-pin, non-ECC & unbuffered DDR400 (PC3200)/ DDR333
(PC2700) SDRAM
Slots:
zOne PCI slot for expansion card
FDC Connector:
zSupports one connector for two floppy disk drives
zSupports 360KB/720KB/1.2MB/1.44MB/2.88MB

Mainboard KI51PV-754
3
IDE Connector:
zTwo IDE connectors, support up to four IDE devices can be set
zSupports Ultra ATA 66/100/133
zSupports high capacity hard disk drives
Serial ATA II Connector:
zFour SATA II connectors, support up to four SATA II HDDs can be set
zSupports SATA 2.0 specification and provides 3 Gbps transfer rate
zSupports RAID 0/1/ 0+1/ JBOD/ 5 mode
Onboard I/O facilities:
zOne PS/2 mouse port and one PS/2 keyboard port
zOne DVI connector
zOne VGA connector (=D-Sub connector)
zOne TV Out header, one IrDA header, one Printer header, one SPDIF header, and
two COM headers with cables externally are available to be set
Onboard USB Ports:
zFour onboard USB 2.0/ 1.1 ports
zTwo front USB headers come with this mainboard for additional four USB ports
zSupports a maximum of eight USB ports can be set
Onboard AC’ 97 Audio CODEC:
zHigh performance CODEC with high S/N ratio (>90 db)
zCompliant with AC’ 97 2.3 specification
zSupport 6-channel playback capability (Super 5.1 Channel Audio Effect)
zSupport 3D stereo enhancement
zSupport Sony/ Philips Digital Interfaces (S/PDIF) functionality
Onboard LAN Chip:
zSupports 10/100/1000 Mbps Ethernet LAN
zSupports nVIDIA®Active Armor TM which provides advanced data packet inspection
zSupports nVIDIA® Firewall TM to protect your system from hackers and viruses

Mainboard KI51PV-754
4
BIOS:
zPhoenix-Award™ BIOS
zSupports APM 1.2
zSupports ACPI 2.0 power management
Green Function:
zSupports Phoenix-Award™ BIOS power management function
zSupports system-wake-from-power-saving-mode by keyboard or mouse touching
Shadow RAM:
zThe onboard memory controller provides the shadow RAM functionality and ROM
BIOS functionality
Flash Memory:
zSupports flash memory functionality
zSupports ESCD funtionality
Hardware Monitor Function:
zMonitors CPU/ Chassis Fan Speed
zMonitors CPU and system temperatures
zMonitors system voltages
Watch Dog Timer:
zThis function is used for detecting the system hangs during the POST stage due to
conflicts resulting from changing the system BIOS settings. Once the problem is
detected, the system will reset the configurations and reboot the system within five
seconds.
ABS (Albatron BIOS Security):
zSupports ABS Card (Optional)
zSupports BIOS backup

Mainboard KI51PV-754
5
Configuration

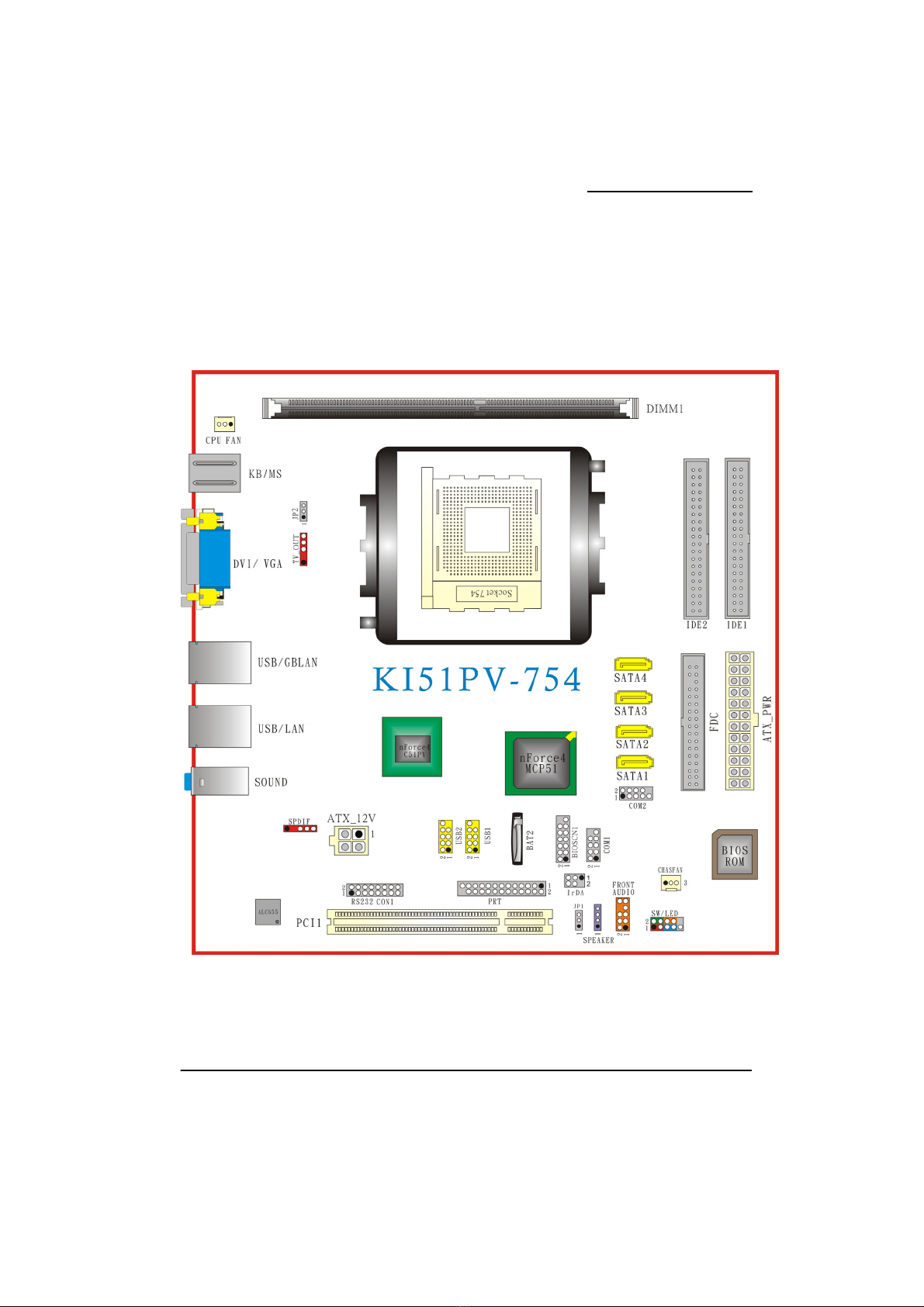

Layout of KI51PV-754 (Right Side)

Mainboard KI51PV-754
6

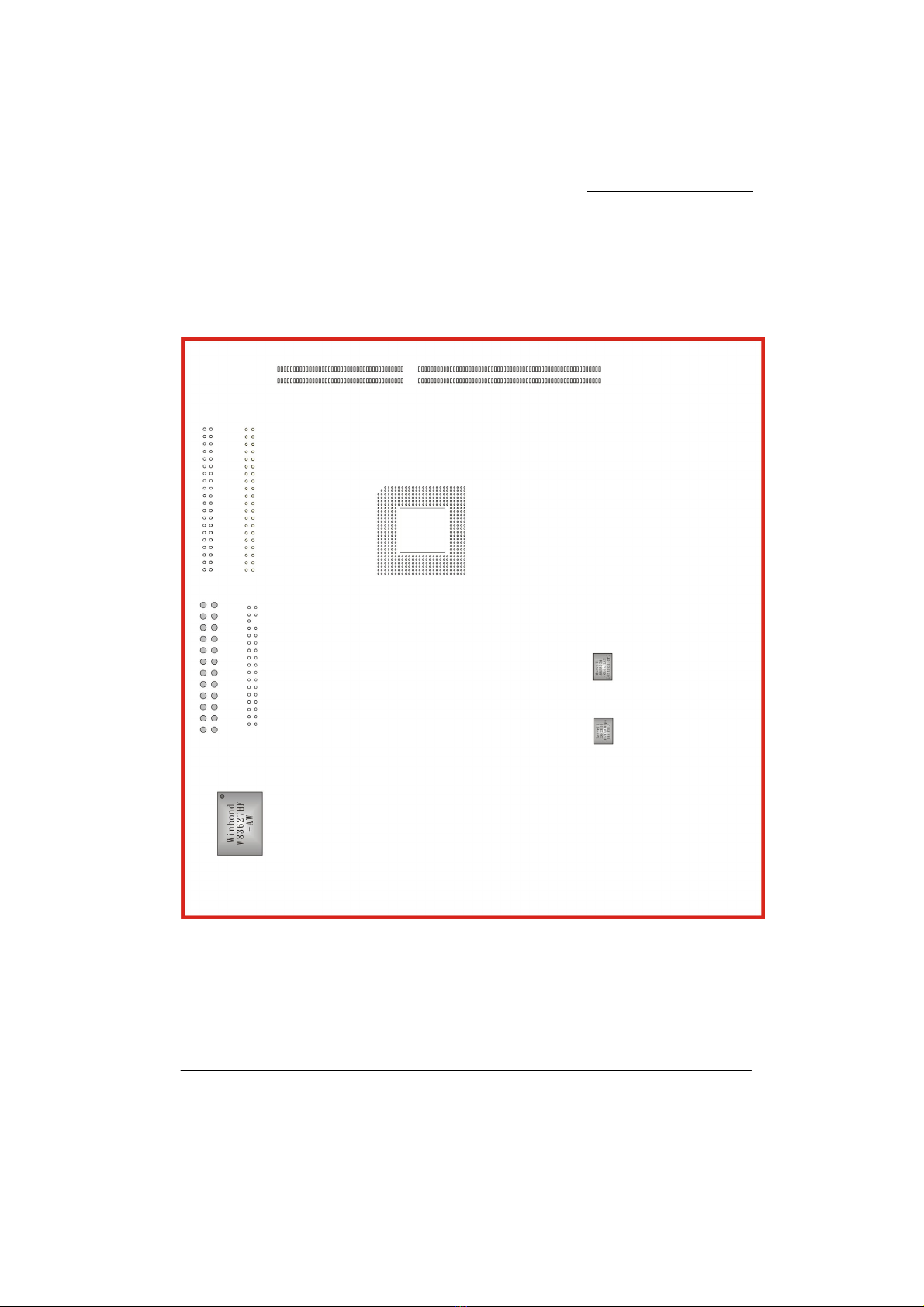

Layout of KI51PV-754 (Back Side)

Mainboard KI51PV-754
7
Diagonally
Cut-corner
Gold triangle
Hardware Installation
This section will assist you in quickly installing your system hardware. Wear a wrist ground strap
before handling components. Electrostatic discharge may damage your system components.

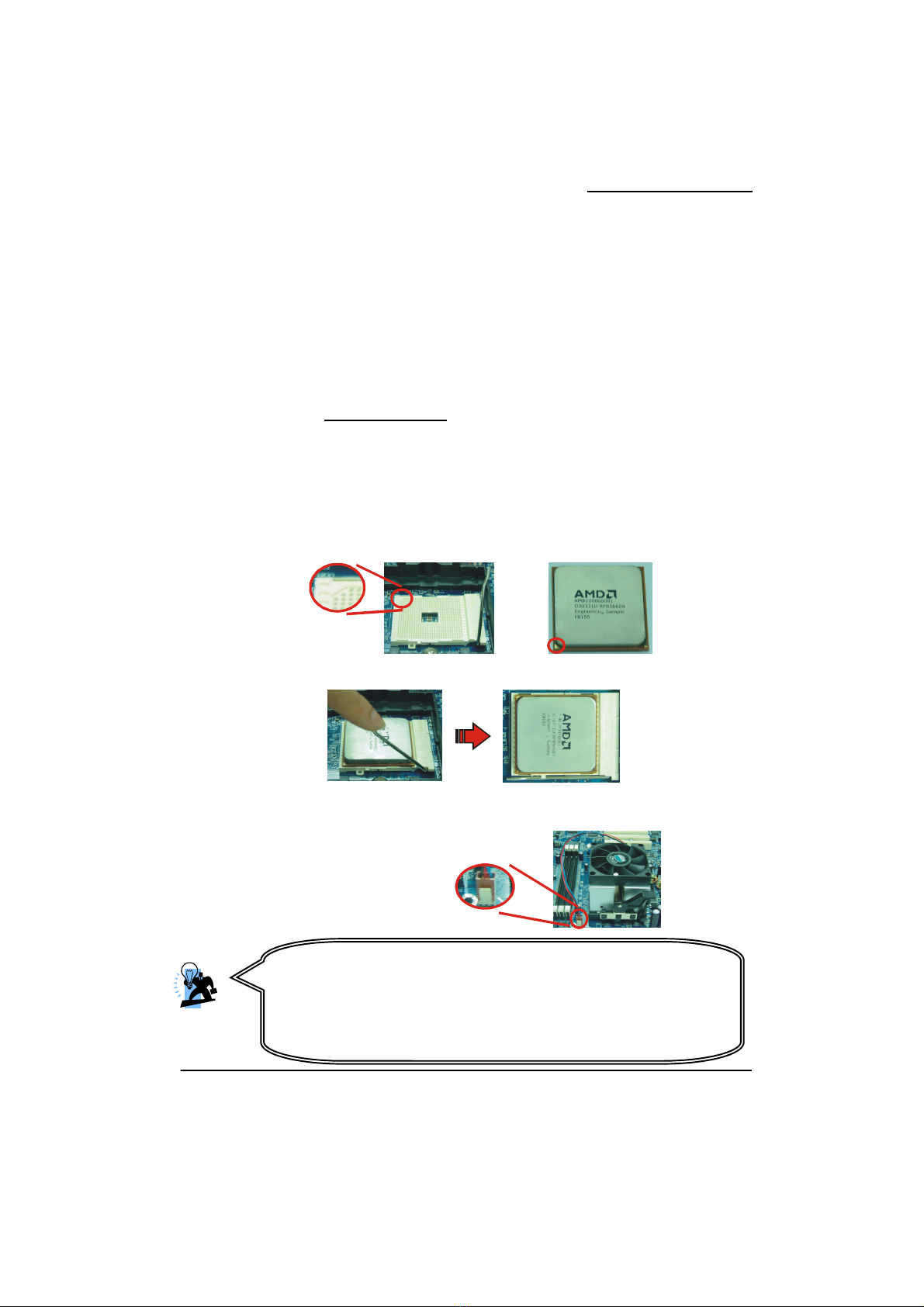

CPU Processor Installation
This mainboard supports AMD AthlonTM 64/ SempronTM processor using Socket 754. Before
building your system, we suggest you visit the AMD website and review the processor
installation procedures. http://www.amd.com
CPU Socket 754 Configuration Steps:
1. Locate the CPU socket on your mainboard and nudge the locking lever away from the
socket. Then lift the lever to a 90-degree angle.]
2. On the socket, locate the corner which has the “diagonally cut-corner” on the rectangular
shaped pattern of pinholes (see diagram below-left). Match that corner with the “gold
triangle” on the CPU (see diagram below-right) and lower the CPU onto the socket. The
bottom of the CPU should be flush with the face of the socket.
3. Lower the lever until it snaps back into position. This will lock down the CPU.
4. Smear thermal grease on top of the CPU. Lower the CPU fan onto the CPU and use the
clasps on the fan to attach it to the socket. Finally, extend the power cable from the fan and
insert it onto the “CPUFAN” adapter.
Attention
DO NOT touch the CPU pins in case they are damaged. Also, make sure
that you have completed all installation steps before powered on the
system. Finally, double-check that the cooling fan is properly installed
and the CPU fan power cord is securely attached, in case your CPU and
other sensitive components are damaged because of high temperatures.

Mainboard KI51PV-754
8
FAN Headers: CPUFAN, CHASFAN
There are two fan headers available for cooling fans. The cooling fans play an important role in
maintaining ambient temperatures in your system. The CPUFAN header is attached with a CPU
cooling fan. The CHASFAN header is attached with other cooling fans.
Pin Assignment
1 Ground
2 Power (+12V)
1
CPUFAN/ CHASFAN 3 FAN RPM rate sense
Memory Installation: DIMM1
The KI51PV-754 provides one DIMM (Dual In-Line Memory Modules) socket. It allows you to
install 184-pin, non-ECC & unbuffered DDR400 (PC3200)/ DDR333 (PC2700) SDRAM that
supports a total memory capacity of 1GB.
Memory Setup Steps:
1. Pull the white plastic tabs at both ends of the socket away.
Attention
You can avoid damaging your CPU due to high temperatures with
proper cooling equipment. It is recommended that attach a cooling fan
on top of your CPU. Use the CPUFAN header to attach the fan cord.
On most fan power cord, the black wire of the fan cable is the “ground”
and should be attached to pin-1 of the header.

Mainboard KI51PV-754
9
2. Align a memory on the socket such that the notch on the memory matches the break on the
socket.
3. Lower the memory vertically into the socket and press firmly by using both thumbs until the
memory snaps into place.
4. Repeat steps 1, 2 & 3 for the remaining memory and DIMM sockets setup.
Back Panel Configuration
* The pictures shown above are for reference only. The actual
installation may vary depending on models.

Mainboard KI51PV-754
10
PS/2 Mouse & PS/2 Keyboard Ports: KB/MS
This mainboard provides a standard PS/2 mouse port and a PS/2 keyboard port. The pin
assignments are described below.
DVI & VGA Connectors: DVI, VGA
The mainboard provides one DVI connector and one VGA connector
on the back panel of the computer case.
DVI connector delivers the digital signals, and is able to connect with
LCD display, plasma display, or other display device which with the
DVI interface compatible.
VGA connector (= D-Sub connector) delivers the analogy signals, and
is able to connect with traditional CRT display, flat display, or other
display device which with the D-Sub interface compatible.
USB & LAN Ports: USB1, USB2, USB/LAN
There are four onboard USB 2.0/ 1.1 ports on the back panel. These USB ports are used to
attach with USB devices, such as keyboard, mice and other USB supported devices. There are
also one 10/100 Mbps and one 1Gbps Ethernet LAN ports available for you to attach an internet
cable.
Pin Assignment Pin Assignment
1 Data 4 +5 V (fused)
2 N/A 5 Clock
3 Ground 6 N/A
Pin Assignment Pin Assignment
1 TX+ (TX+) 5 NC (TRD2-)
2 TX- (TX-) 6 RX- (RX-)
3 RX+ (RX+) 7 NC (TRD3+)
4 NC (TRD2+) 8 NC (TRD3-)
Pin Assignment Pin Assignment
1/5 +5 V (fused) 3/7 USBP0+/P1+
2/6 USBP0-/P1- 4/8 Ground

Mainboard KI51PV-754
11
Audio Ports: Sound
This mainboard provides three audio ports, the Mic-in, Line-in
and Line-out. These are the standard audio ports that provide
basic audio function.
Line-In (Blue)
This port is for audio input and connects to external audio
devices such as CD player, tape player, etc. When the Super 5.1
Channel Audio Effect is enabled, this port will output audio for the
rear speakers.
Line-Out (Green)
This port is an output audio port used for connecting to speakers or a headset. When the Super
5.1 Channel Audio Effect is enabled, this port will output audio for the front speakers.
Mic-In (Pink)
This port is for connecting to a microphone. When the Super 5.1 Channel Audio Effect is
enabled, this port will output audio for your subwoofer/center speakers.
Connectors
Floppy Disk Drive Connector: FDC
The mainboard provides a standard floppy disk drive connector (FDC) that supports 360KB/
720KB/1.2MB/1.44MB/2.88MB floppy disk drives using a FDD ribbon cable.
Hard disk drive Connectors: IDE1/IDE2
The mainboard provides two IDE connectors that support Ultra ATA 66/100/133 IDE devices.
You can attach a maximum of four IDE devices, such as hard disk drive (HDD), CD-ROM,
DVD-ROM, etc. using IDE ribbon cables.
Primary IDE Connector: IDE1
In general, two IDE devices can be attached onto one IDE connector. If you attach two IDE
HDDs, you must configure one drive as the master and the other one as the slave.
Secondary IDE Connector: IDE2
The IDE2 connector can also be attached with two IDE HDDs, and remember to configure one
drive as the Master and the other one as the Slave as well. In addition, it is recommended that
attach the optical devices such as CD-ROM, DVD-ROM, etc. onto this IDE2 connector.
This mainboard supports Super 5.1 Channel Audio Effect, and you can
transfer 2-channel to 6-channel audio by using a SPDIF Card (Optional) to
enable 6 speaker audio. See Appendix I for more information.

Mainboard KI51PV-754
12
SATA II Connector: SATA1/SATA2/SATA3/SATA4
The four SATA II connectors support 3 Gbps transmit rate and RAID 0/1/ 0+1/ JBOD/ 5 mode.
One SATA II connector only can attach one SATA II HDD of each time using SATA cables.
Front Panel Headers: SW/LED, SPEAKER
SW/LED
Pin Assignment Function Pin Assignment Function
1 HDD LED (+) 2 Power LED (+)
3 HDD LED (-)
Hard Drive LED
(HD_LED) 4 Power LED (-)
Power LED
(ACPI_LED)
5 Reset Control (-) 6 Power Switch (+)
7 Reset Control (+)
Reset Switch
(RST_SW) 8 Power Switch (-)
Power-on Switch
(PWR_SW)
9 N/A 10 N/A
Pin Assignment Pin Assignment
1 Ground 2 TX+
3 TX- 4 Ground
5 RX- 6 RX+
1
SATA1~4
7 Ground
This mainboard supports RAID 0/1
/
0+1/JBOD/5 modes, refer
Appendix II for more information.
Attention
The FDC/ IDE cable is designed and should be attached with a
specific direction. One edge of the cable will usually in color such
as red, to indicate that should line up with the header pin-1.

Mainboard KI51PV-754
13
Hard Drive LED Header (Red): HD_LED
If your case front panel has a hard drive LED cable, attach it to this header. The LED will flicker
when there is hard disk drive activity.
Reset Switch Header (Blue): RST_SW
This header can be attached to a momentary SPST switch (reset button) cable on your case
front panel. The switch is normally left open. When the switch closed, it will cause the
mainboard to reset and run the POST (Power-On Self Test).
Power-on Switch Header (Orange): PWR_SW
This header can be attached to a power switch cable on your case front panel. You can turn
your system on or off by pressing the button attached to this power switch cable.
Power LED Header (Green): ACPI_LED
Attach the power LED cord from the case front panel onto this header, then the power LED will
illuminate while the system is powered on.
Speaker Header (Purple): SPEAKER
A speaker cable on your case front panel can be attached to this header. When you reboot the
computer, this speaker will issue a short audible (beep). If there are problems during the Power
On Self-Test, the system will issue an irregular pattern of audible beeps through this speaker.
Headers & Jumpers
Front USB Header: USB1/2
This mainboard provides four onboard USB 2.0/1.1 ports (back panel) that attach to USB
devices. There are two additional USB headers that can be connected by cables to four more
USB ports on the front panel of your case giving you a maximum of eight USB ports.
Pin Assignment Pin Assignment
1 +5V 2 +5V
3 USB- 4 USB-
5 USB+ 6 USB+
7 Ground 8 Ground
USB1/2
9 Key 10 N/A
Pin Assignment Pin Assignment
1 PC_BEEP 2 N/A
SPEAKER 3 Ground 4 +5V

Mainboard KI51PV-754
14
S-Video Connector
TV OUT Header: TV_OUT
Attach the TV OUT cable (Optional) which the product provided onto this header. Then through
attaching the cable of TV devices onto the S-Video connector of TV out cable, the TV is able to
use as a monitor display.
TV_OUT
Pin Assignment Pin Assignment
1 Ground 2 Key
3 PB OUT 4 C OUT
5 Y OUT
IrDA Header: IrDA
The infrared sensing device attached to this header can support to provide wireless infrared.
You can transfer data connectionless to or from the portable device (i.e., laptop, PDA, etc.)
which with this header attached.
Pin Assignment Pin Assignment
1 N/A 2 Key
3 Ground 4 +5V
IrDA
5 IR_RX 6 IR_TX
Attention
If you are using a USB 2.0 device with Windows 2000/ XP, you will
need to install the USB 2.0 driver from the Microsoft®website. If you
are using Service pack 1 (or later) for Windows®XP, and using
Service pack 4 (or later) for Windows® 2000, you will not have to
install the driver.

Mainboard KI51PV-754
15
Serial Interface Header: COM1/COM2
This mainboard provides two COM headers for you to connect external serial connectors on the
back panel of your case. Attaching the serial connector cables (Optional) onto these two
headers, then you can use the serial connectors to attach with a mic, modem or other peripheral
devices.
Pin Assignment Pin Assignment
1 RIN1 2 RIN3
3 DOUT2 4 DOUT3
5 Ground 6 RIN2
7 DOUT1 8 RIN4
COM1/2
9 -XRI1 10 N/A
Printer Interface Header: PRT
This mainboard provides a PRT header for you connecting an external printer connector on the
back panel of your case. Attaching the printer connector cable (Optional) onto this header, then
you can use this printer connector to attach with a printer.
Pin Assignment Pin Assignment
1 RSTB- 2 RPDR0
3 RPDR1 4 RPDR2
5 RPDR3 6 RPDR4
7 RPDR5 8 RPDR6
9 RPDR7 10 ACK-
11 BUSY 12 PE
13 SLCT 14 RAFD-
15 ERR- 16 RINIT_P-
17 RSLIN- 18 Ground
19 Ground 20 Ground
21 Ground 22 Ground
23 Ground 24 Ground
PRT
25 Ground 26 Key

Mainboard KI51PV-754
16

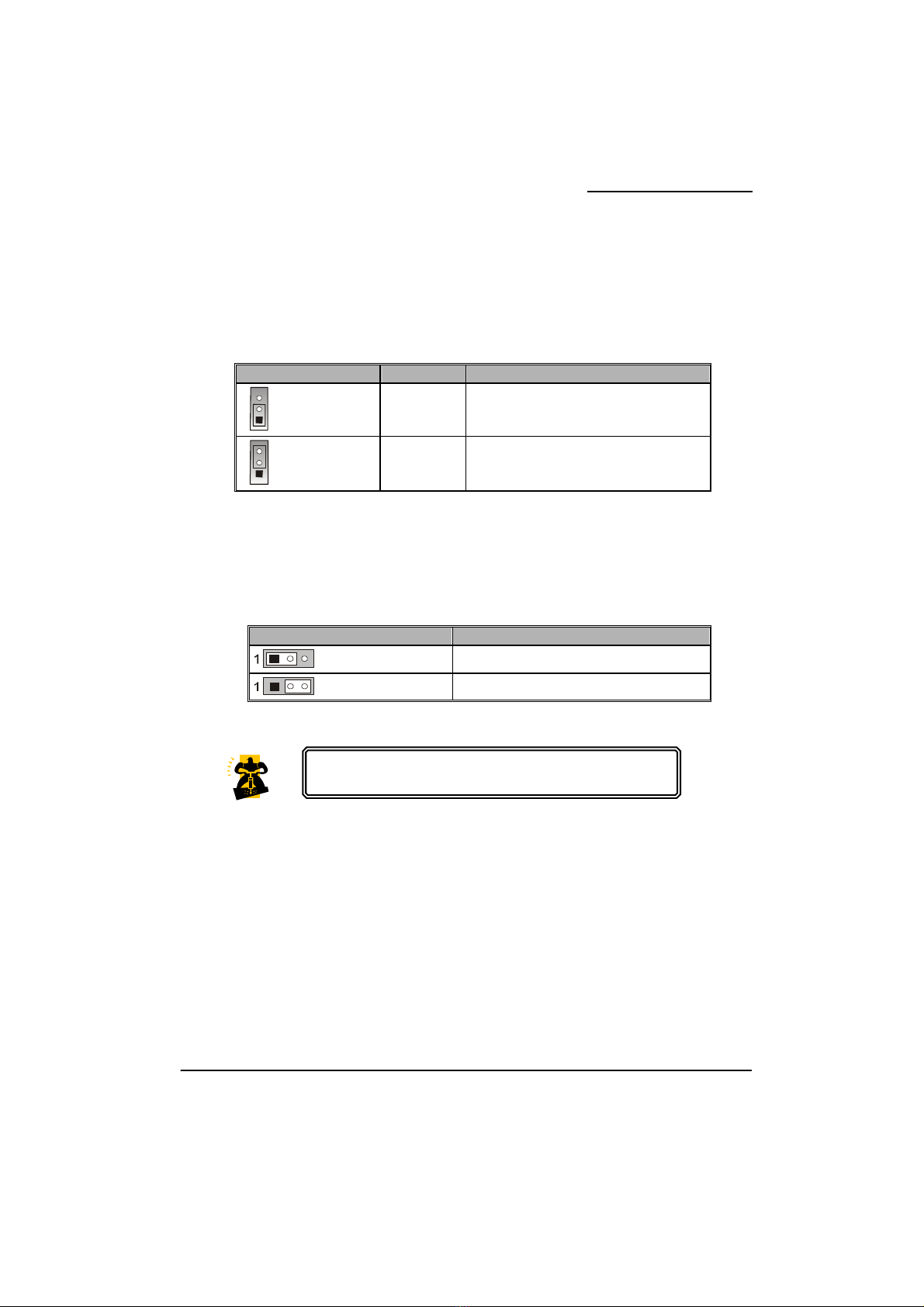

USB Power Selection Header: JP2
USB devices attached to USB ports of the back panel can awaken the system from sleep mode.
In order to enable this functionality, you must adjust the jumper caps on JP2 header for +5V or
+5VSB mode depending on which USB port that the USB device is attached to.
JP2 Assignment Assignment
1
Pin 1-2 Close
+5V
S1 sleep mode (CPU stopped, DRAM
refreshed, system running in low power
mode)
1
Pin 2-3 Close
+5VSB
S3/S4/S5 sleep modes (no power to
CPU, DRAM in slow refresh, power
supply in reduced power mode)
Note: Close stands for putting a jumper cap onto two header pins.
Clear CMOS Jumper: JP1
The “Clear CMOS” function is used when you are unable boot your system and need to reset
the BIOS settings (CMOS settings) back to the manufacturer’s original settings. This is also a
way to reset the system password if you have forgotten it.
JP1 Assignment
Pin 1-2 Close Normal (Default)
Pin 2-3 Close Clear CMOS Data
Note: Close stands for putting a jumper cap onto two header pins.
1. Turn off your system and disconnect the AC power cable.
2. Set JP1 header to OFF (2-3 Closed).
3. Wait several seconds.
4. Set JP1 header to ON (1-2 closed).
5. Connect the AC power cable and turn on your system.
6. Reset your new password.
The following steps explain how to reset your CMOS
configurations when you forgot a system password.
