Albert Lee UBV24C01BG Installation guide

1

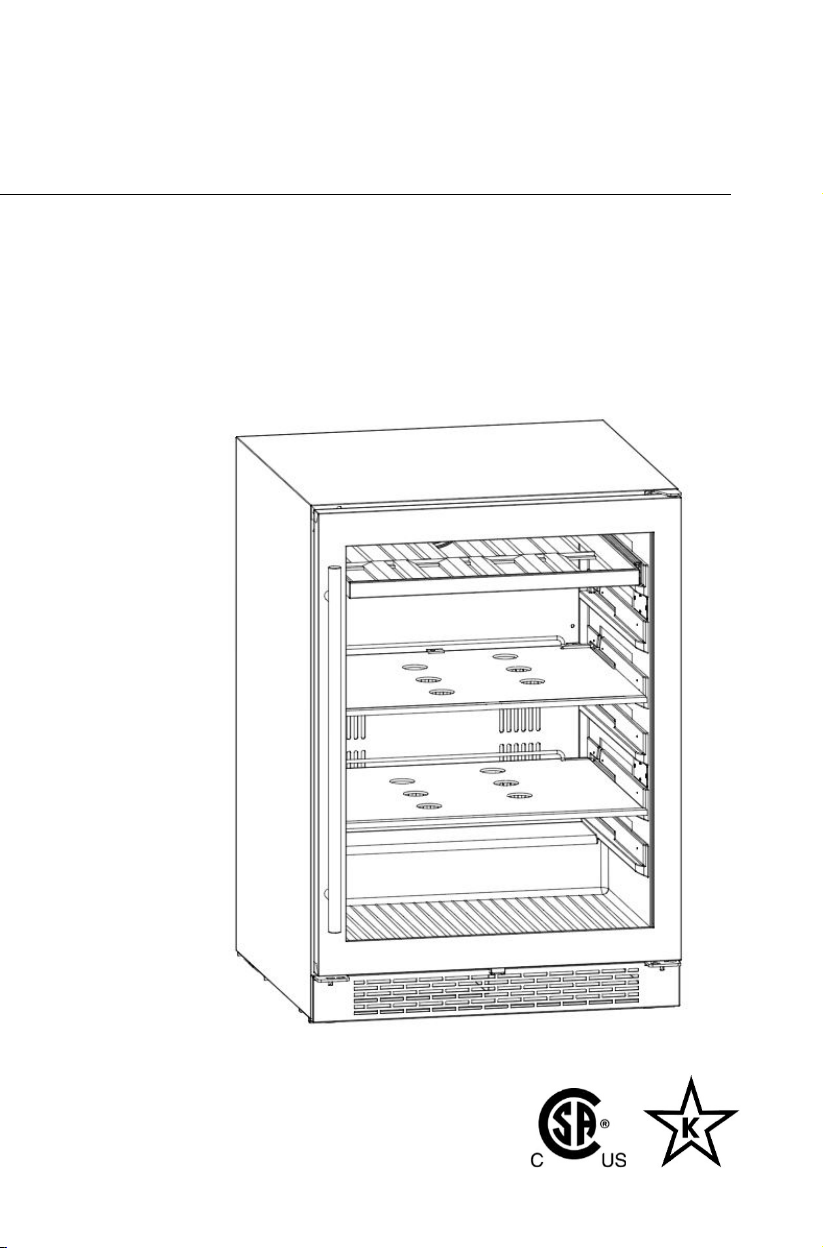

UBV24C01BG
Single Zone Beverage Cooler
FEB21.0201
Use, Care and Installation Guide

2
Table of Contents
Page
Safety Information 3-8
Introduction 9
Specifications10

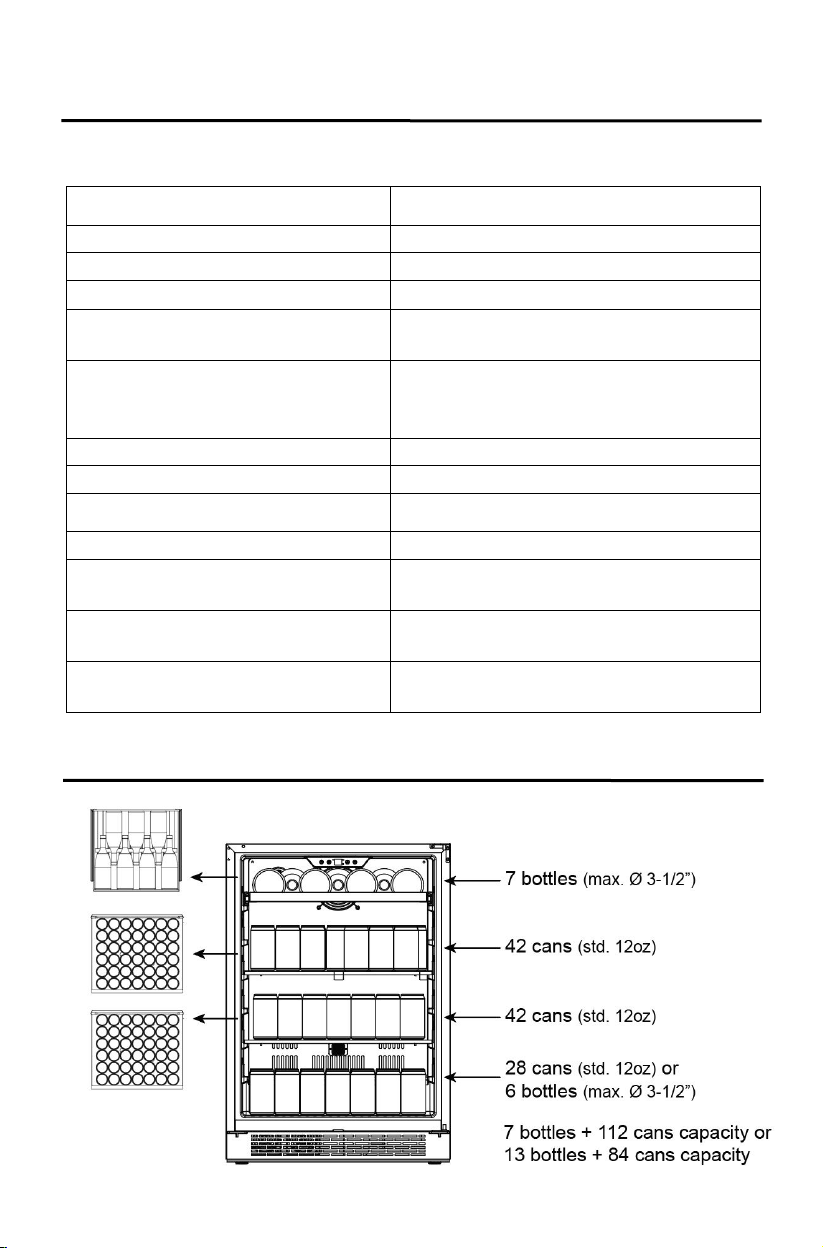

Storage 10

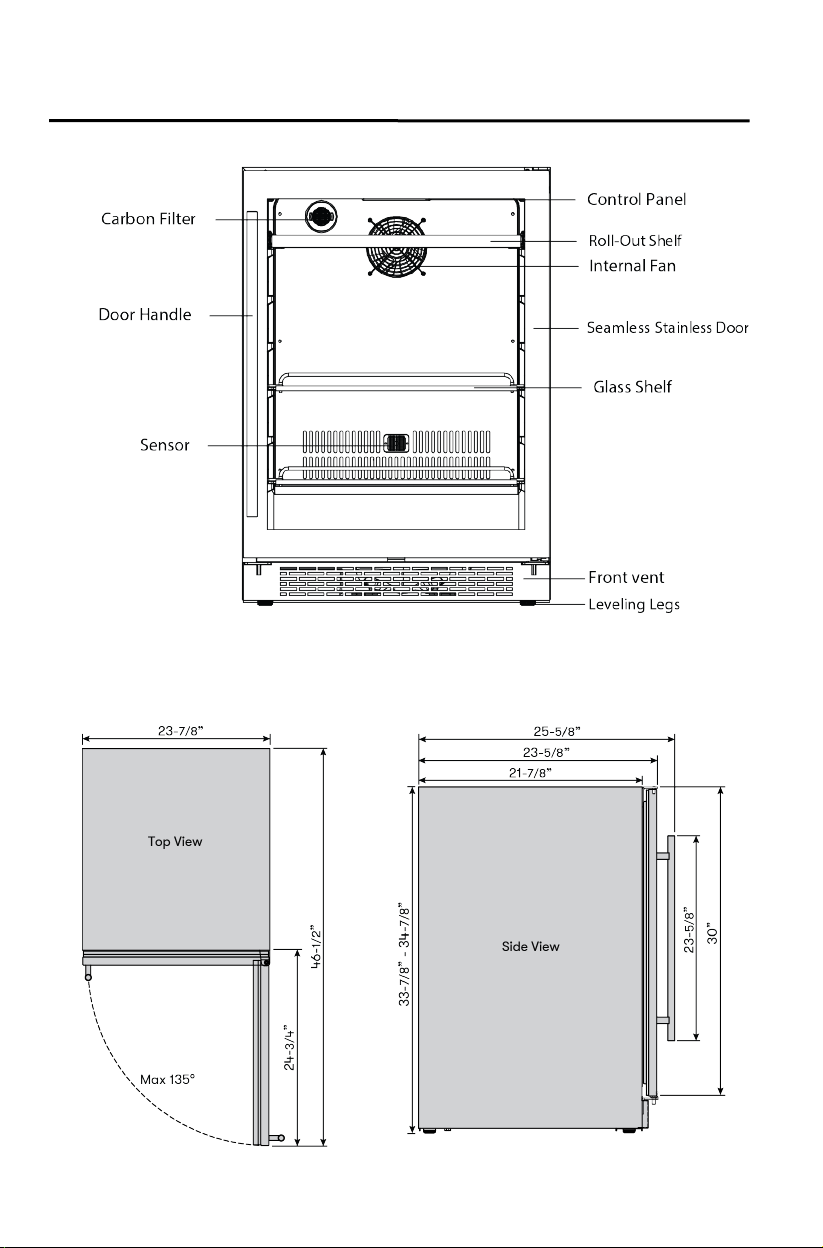

Parts Identification & Dimensions 11
Installation Instructions 12-16

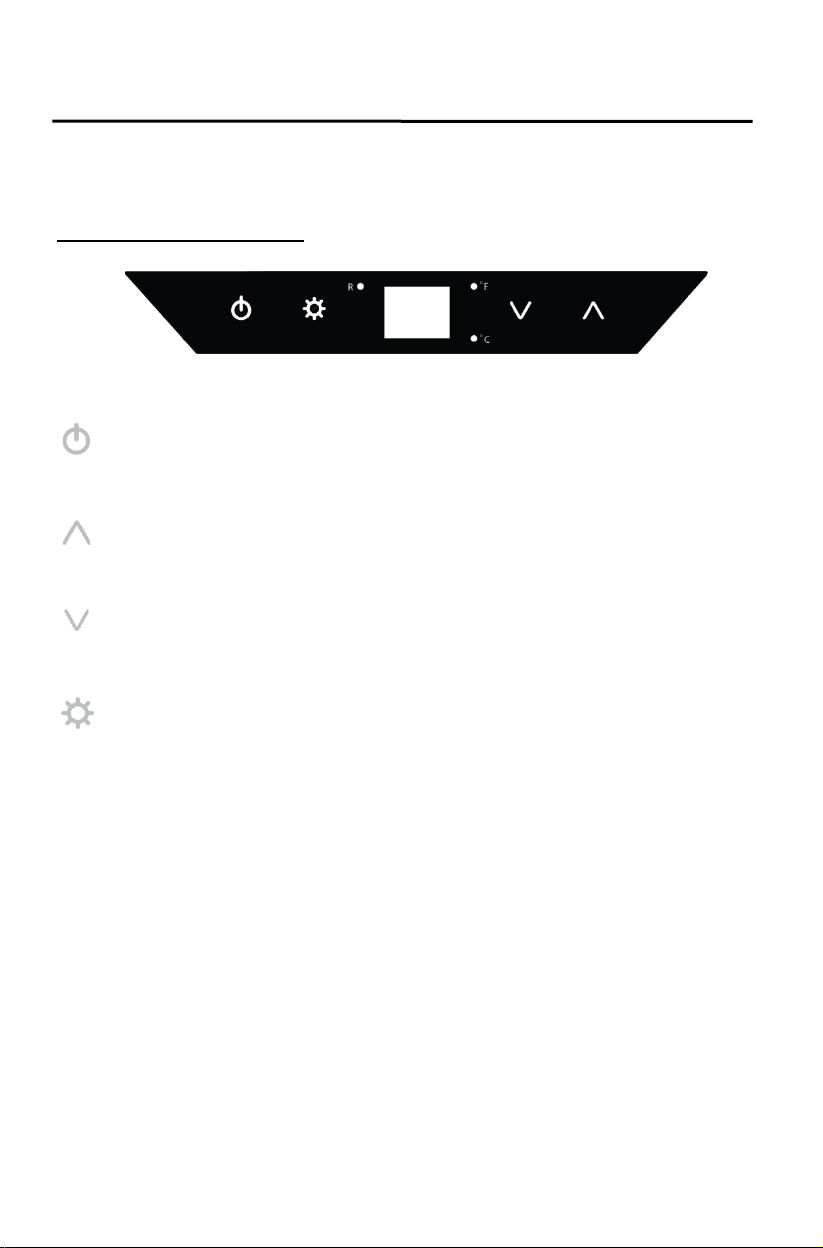

Operating Your Appliance 17-19
Care and Maintenance 20-21
List of Materials 21
Troubleshooting 22-23
Warranty 24

3
Safety Information
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual for your
appliance. Always read and obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to potential hazards that
can cause severe bodily injury or death. All safety messages will follow the
Safety Alert Symbol and either the words “DANGER” “WARNING” or
“CAUTION”
Danger means that failure to heed this safety statement may result in severe
injury or death.
Warning means that failure to heed this safety statement may result in
extensive product damage, serious personal injury, or death.
Caution means that failure to heed this safety statement may result in minor or
moderate personal injury, property or equipment damage.

4
Safety Information
For your safety, read all instructions carefully before operating the
appliance.
DANGER: When using an electrical appliance, basic precautions should
always be followed to reduce the risk of fire, electric shock, and injury to
persons.
WARNING: To reduce the risk of fire, electric shock or personal injury,
unplug or disconnect the appliance from the power supply before
servicing.
CAUTION: Flammable refrigerant used! When handling, moving and use
of the refrigerator, make sure to avoid either damaging the refrigerant
tubing, or increasing the risk of a leak.
Use this appliance only as described in this manual. Other uses not recommended
may cause fire, electric shock or personal injury.
This appliance is not intended for use by young children or infirm persons unless
they have been adequately supervised by a responsible person to ensure that
they can use the appliance safely.
Young children should be supervised to ensure that they never play with the
appliance.
To protect against the risk of electric shock, NEVER IMMERSE the unit, cord, or
plug in water or spray any other liquid.
Unplug the appliance from the plug socket when not in use, when moving from
one location to another and before cleaning.
To disconnect the appliance, grip the plug and pull it from the wall outlet. Never
pull by the cord.
Never operate the appliance in the presence of explosive and/or flammable
fumes.
Never place the appliance or any of its parts near an open flame, cooking or other
heating appliance.
Never operate the appliance with a damaged cord or plug, if the product
malfunctions, or if it is dropped or damaged in any manner.
The use of attachments not recommended by the manufacturer may be
hazardous.
Never operate if the housing is removed or damaged.
A loose fit between the AC outlet (receptacle) and plug may cause overheating and
a distortion of the plug. Contact a qualified electrician to replace loose or worn
outlet.
Locate the unit away from direct sunlight and sources of heat (stove, heater,
radiator, etc.).

5
Safety Information
WARNING: Prop. 65 Warning for California Residents: This product may
contain chemicals known to the State of California to cause cancer, birth
defects, or other reproductive harm.
This appliance is CFC and HFC free and contains small quantities of Isobutane
(R600a), an environmentally friendly coolant.
You must ensure that the cooling circuit is undamaged when installing the
appliance. However, if it becomes damaged, avoid proximity to open fires and heat
sources of all kinds. The room in which the appliance is located should be
ventilated properly and according to state and local codes.
Never use an appliance with a damaged circuit.
Ensure that the ventilation openings to and from a built-in appliance are never
blocked or covered.
No liability will be accepted for any damage caused by misuse of the appliance, or
as a result of repairs carried out by unqualified person. In this case neither the
warranty nor any other liability claims will apply.
WARNING: Never operate any other electrical appliance inside this appliance.
Never attempt to repair or replace any part of your appliance unless it is specifically
recommended in this manual. All other servicing should be referred to a qualified
technician.
Replace all access panels before operating.
Use two or more people to move and install the appliance. Failure to do so can result
in back or other injury.
Never clean appliance parts with flammable liquids. These fumes can create a fire
hazard or explosion. Never store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance. The fumes can create a fire
hazard or explosion.
Never connect or disconnect the electric plug with wet hands.
It is recommended that a separate circuit, serving only your appliance be
provided. Use receptacles that cannot be turned off by a switch or pull chain.

6
Safety Information
WARNING: To reduce the risk of fire, electric shock or personal injury, unplug
or disconnect the appliance from the power supply before servicing.
Save These Instructions
If you are experiencing problems, check the Troubleshooting Guide at the back of this
manual. It lists causes of minor operating problems that you can correct yourself.
Disposal of Old Appliance
Dispose of your appliance packaging properly.
Refrigeration equipment must be properly disposed of in a way which protects the
environment. This applies to your old appliance and to your new unit once it has
reached the end of its service life.
WARNING: Please ensure that old, worn appliances are rendered unusable before
disposal by removing the plug, cutting the power cable, and removing or destroying
any snap fastenings or bolts. You will thus prevent children from locking themselves in
the appliance during play (risk of suffocation) or endangering their lives in any other
way.
Disposal instructions:
The appliance must not be disposed with normal household waste collection.
The coolant circuit, particularly the heat exchange at the back/bottom of the unit,
must not be damaged.
The symbol on the product or its packaging indicates that this product is not to be
handled as normal household waste but is to be taken to a recycling collection point
for electrical and electronic goods. By correctly disposing of this product you are
contributing to the protection of the environment. Improper disposal endangers
health and the environment. Further information about the recycling of the product
may be obtained from your town hall or local waste collection department.

7
Safety Information
Before Using Your Appliance
Remove all exterior and interior packing.
Before connecting the appliance to the power source, let it stand upright for
approximately 2 hours. This will reduce the possibility of a malfunction in the
cooling system caused by handling during transportation.
Clean the interior surface with warm water using a soft cloth.

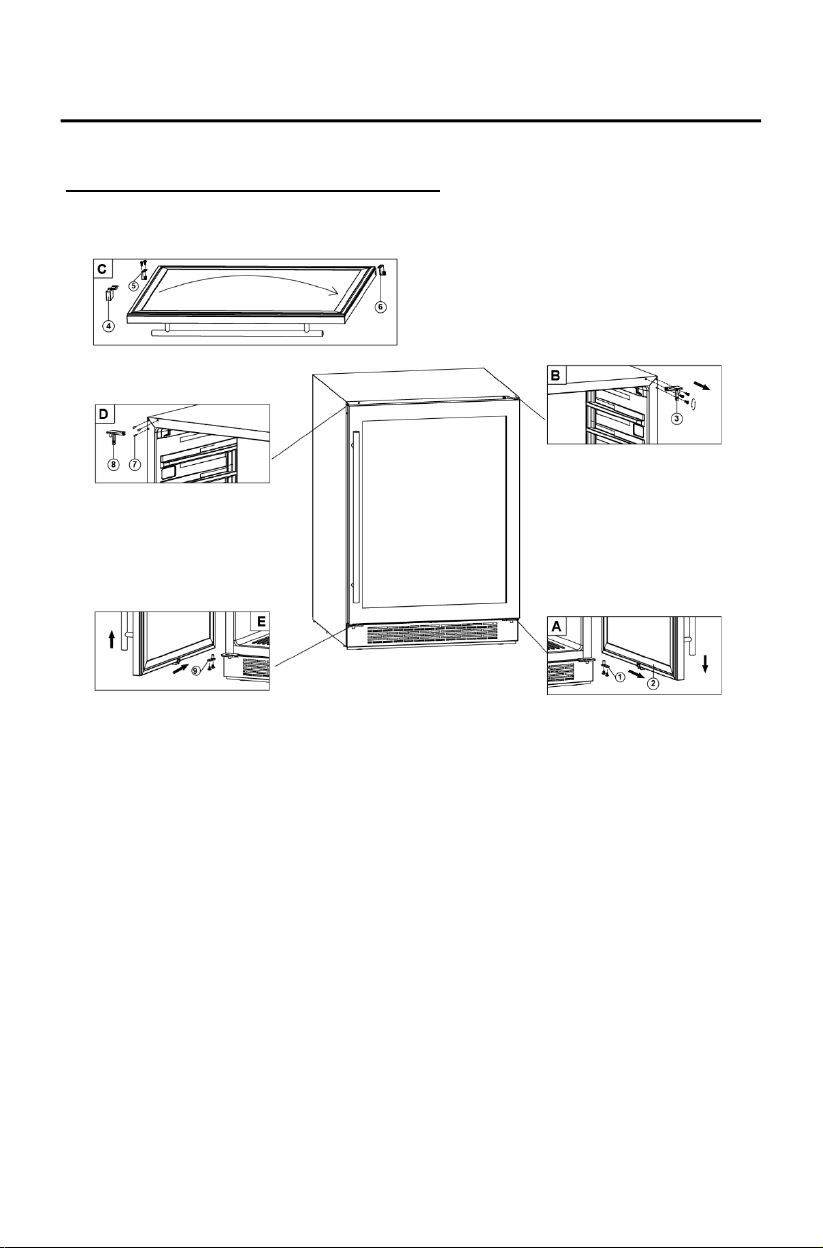

The door on this appliance can be opened from either the left or the right side.
The unit is delivered with the door opening on the left side. Should you wish to
open the door from the right, follow the instructions, “Reversing the Door Swing of
your Appliance,” listed below.

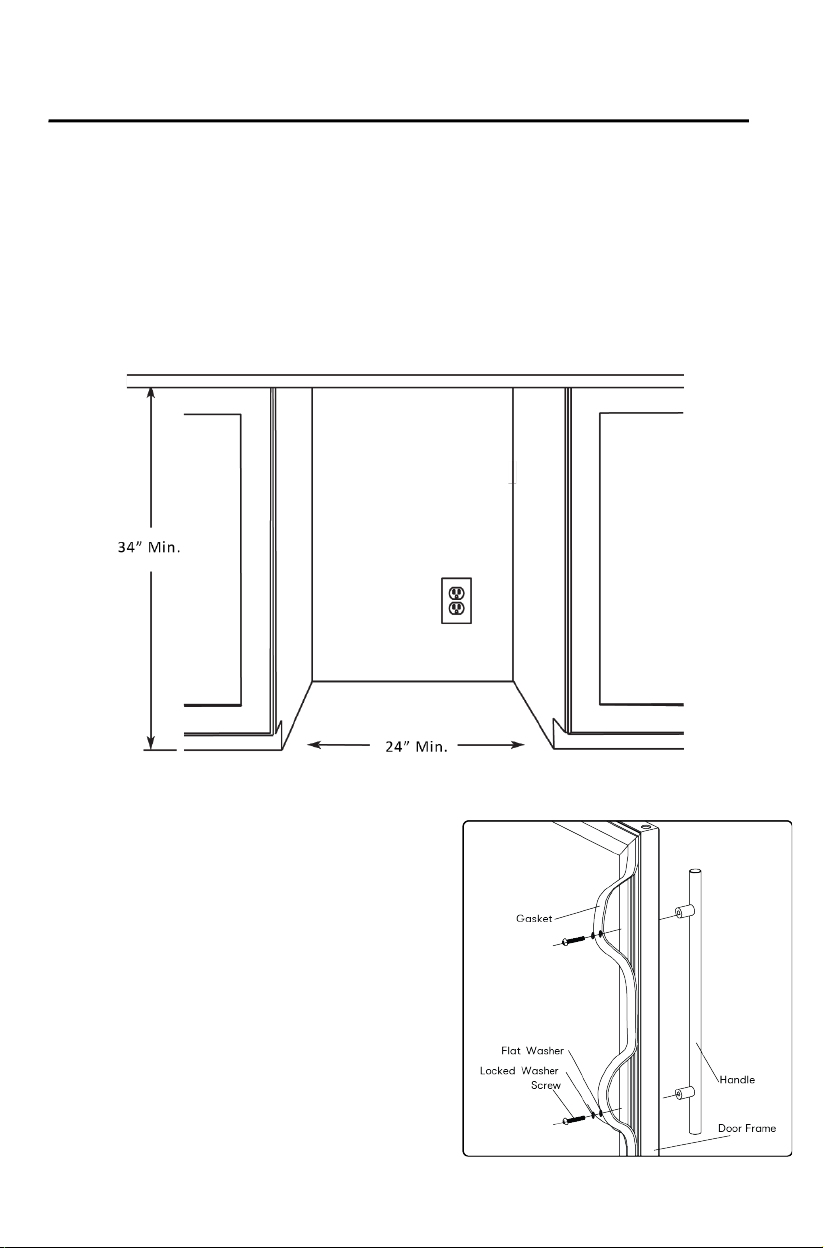

Installation of Your Appliance
The appliances are designed for either built-in, or free-standing installation.
WARNING: Do not store or install the appliance outdoors.
Place your appliance on a floor that is strong enough to support it when it is fully
loaded. To level your appliance, adjust the 4 legs until level.
Locate the appliance away from direct sunlight and sources of heat (stove, heater,
radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may
increase electrical consumption. Extreme cold ambient temperatures may also
cause the unit not to perform properly.
Never place the unit in damp areas.
Plug the appliance into an exclusive, easily accessible electrical socket.
Any questions concerning power and/or electrical connection should be directed
towards a qualified electrician or an authorized products service center.
The air vent at the front of the appliance must never be covered or blocked in any
way.
The appliance must be installed to all electrical connections in accordance with
state and local codes.
Use two or more people to move and install the beverage cooler. Failure to do so
can result in back or other injury.
The cooler may experience decreased cooling efficiency if air flow is restricted
due to a fully loaded cabinet.
Install the beverage cooler in a well-ventilated area where the ambient
temperature is above 50ºF and below 90ºF.

8
Safety Information
Attention
Never overload the cabinet.
Never open the door unless necessary.
Never cover shelves with aluminum foil or any other shelf material which may
prevent air circulation.
Should the appliance be left empty for long periods, it is suggested that the
appliance be unplugged, and, after careful cleaning, leave the door ajar to allow
air to circulate inside the cabinet in order to avoid possible condensation, mold or
odors from forming.
Electrical Connection
Check that the voltage marked on the product corresponds with your supply voltage.
WARNING: Improper use of the grounded plug can result in the risk of electrical
shock. If the power cord is damaged, have it replaced by a qualified electrician or an
authorized service center.
This appliance should be properly grounded for your safety. The power cord of this
appliance is equipped with a three-pin plug which mates with standard three-pin wall
outlets to minimize the possibility of electrical shock.
Never under any circumstances cut or remove the third ground prong from the power
cord supplied. For personal safety, this appliance must be properly grounded.
Have the wall outlet and circuit checked by a qualified electrician to make sure the
outlet is properly grounded. When a standard two-pin wall outlet is encountered, it is
your responsibility and obligation to have it replaced with a properly grounded three-
pin wall outlet.
To prevent accidental injury, the cord should be secured behind the appliance and
not left exposed or dangling.
The appliance should always be plugged into its own individual electrical outlet which
has a voltage rating that matches the rating label on the appliance. This provides the
best performance and also prevent overloading wiring circuits that could cause a fire
hazard from overheating. Never unplug the appliance by pulling the power cord.
Always grip the plug firmly and pull straight out from the receptacle. Repair or replace
immediately all power cords that have become frayed or otherwise damaged. Never
use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the appliance, be careful not to damage the power cord.
Never use your appliance with an extension cord unless this cord has been checked
and tested by a qualified technician or service person. The extension cord must be a
UL/CUL Listed, 3-wire grounding extension cord that has a grounding plug and outlet
and that the electrical rating of the cord is 115 volts and at least 10 amperes.

9
Introduction
This manual contains important information regarding the proper installation, use,
and maintenance of your beverage cooler. Following this manual will ensure that
your product will work at its peak performance and efficiency.
For Your Records:
Please write down the model number and serial number below for future reference.
Both numbers are located on the rating label on the back of your unit and are needed
to obtain warranty service. You may also want to staple your receipt to this manual
as it is the proof of your purchase and may also be needed for service under
warranty.
Model Number:
Serial Number:
Date of Purchase:
To better serve you, please do the following before contacting customer service:
If you received a damaged product, immediately contact the retailer or dealer that
sold you the product.
Read and follow this instruction manual carefully to help you install, use and
maintain your beverage cooler.
Read the troubleshooting section of this manual as it will help you diagnose and
solve common issues.
If you need warranty service, our friendly customer service representatives are
available via email at [e-mail] or by telephone at
888-750-1698.

10
Specifications
This appliance requires a standard 115/120 Volt AC~60Hz electrical ground outlet.
*Storage capacity is based on standard 12 oz. cans and 750 ml. Bordeaux-style wine bottles.
Internal Storage
DESCRIPTION OF PRODUCT
Single Zone Beverage Cooler
MODEL
UBV24C01BG
VOLTAGE/FREQUENCY
AC 115/60Hz
AMPERAGE
1.5 A
COLOR
Black Cabinet with Stainless Steel
Door
STORAGE CAPACITY
(7) 750ml Bottles + (112) 12oz cans
or
(13) 750ml Bottles + (84) 12oz cans
REFRIGERANT
R600a
TEMPERATURE RANGE
34° - 50° F
DIMENSIONS (HxWxD)
33 7/8’’ X 23 7/8’’ X 23 5/8’’
GROSS WEIGHT (lb)
125 lb
OPTIONAL PRO HANDLE
ACCESSORY
PRHAN-C001
OPTIONAL ADDITIONAL
STANDARD GLASS SHELF
50150015
REPLACEMENT CARBON
FILTER
Z0F-C004

11
Parts Identification & Dimensions

12
Installation Instructions
Carbon Filter
A built-in carbon filter protects your beverages by acting as a natural barrier against
harmful odors. The carbon filter should be replaced every 3-6 months depending on the
unit’s exposure level to odor. If the unit is placed in a kitchen, regular replacement every
three months is ideal.
Remove the carbon filter by turning counterclockwise to unlock from rear panel.
Carbon Filter Replacement Part #: Z0F-C004
Installation Clearance Requirements
When installing the beverage cooler under a counter, follow the recommended spacing
dimensions shown.
To ensure proper service access and ventilation, allow at least 1” of clearance at
the back as shown in the diagram.
The installation should allow the unit to be pulled forward for servicing, if
necessary.
The power cable is located on the back right of the unit and has a length of 72” to
accommodate multiple outlet locations.
An installation next to a wall will require a minimum 2-1/4” door clearance to
accommodate the handle.

13
Installation Instructions
Installation Clearance Requirements cont.
When installing the beverage cooler under a counter, follow the recommended spacing
dimensions shown.
The cabinet should allow at least 24” for the width and 34” for the height to
accommodate the beverage cooler.
Once you are ready to install the unit, you must adjust the feet to level the
beverage cooler.
Installing the Handle
1. Push aside the door gasket on the side
you wish to install the handle. Under the
gasket you will see two designated holes
for handle installation and pre-installed
screws.
2. Install the handle tightly as shown with
two screws, lock washers and flat washers
pre-installed.

14
Installation Instructions
Reversing the door swing of your appliance
Should you desire to reverse the opening direction of the door, please follow the instructions below:
A. Take out the 2 screws from the lower door axis (1), remove the door (2), and the
axis plate (1) from the door.
B. Take out the 3 hinge screws from the top right hinge (3) and remove it.
C. Unscrew 2 screws and remove the door magnet (4) and unscrew 2 screws and
remove the door stopper (5). Then, remove the new door stopper (6) from the
hardware package. Install the door magnet (4) and door stopper (6) on the
opposite side of the door frame. Rotate the door 180 degrees.
D. Remove the black decorative covers (7) from the top left of the cabinet. Install the
black decorative covers to the top right of the cabinet and install the new top hinge
(8) from the plastic bag that includes the installation manual at the top of the
cabinet with 3 screws.
E. Install the lower door axis (9) and install the door once correctly aligned.

15
Installation Instructions
To prevent damaging the door or door gasket, make sure the door is open at
least 90-degrees when pulling shelves out of the rail compartment.
The door opens to a maximum of 135 degrees with a door stop on the bottom
hinge preventing the door from opening further.
INSTALLING THE SHELVES:
1. Open the door completely.
2. Line up the shelf notches with the rail posts on both the right and left sides.
3. Push the shelf down and then push it all the way inwards until the shelf fully rests
inside of the unit and you are able to close the door.
4. The shelf should glide smoothly back and forth. If it does not, you may need to
remove it and start over.
TIP: To prevent damaging the door gasket, make sure to open the door fully before
pulling the shelves out of their track.

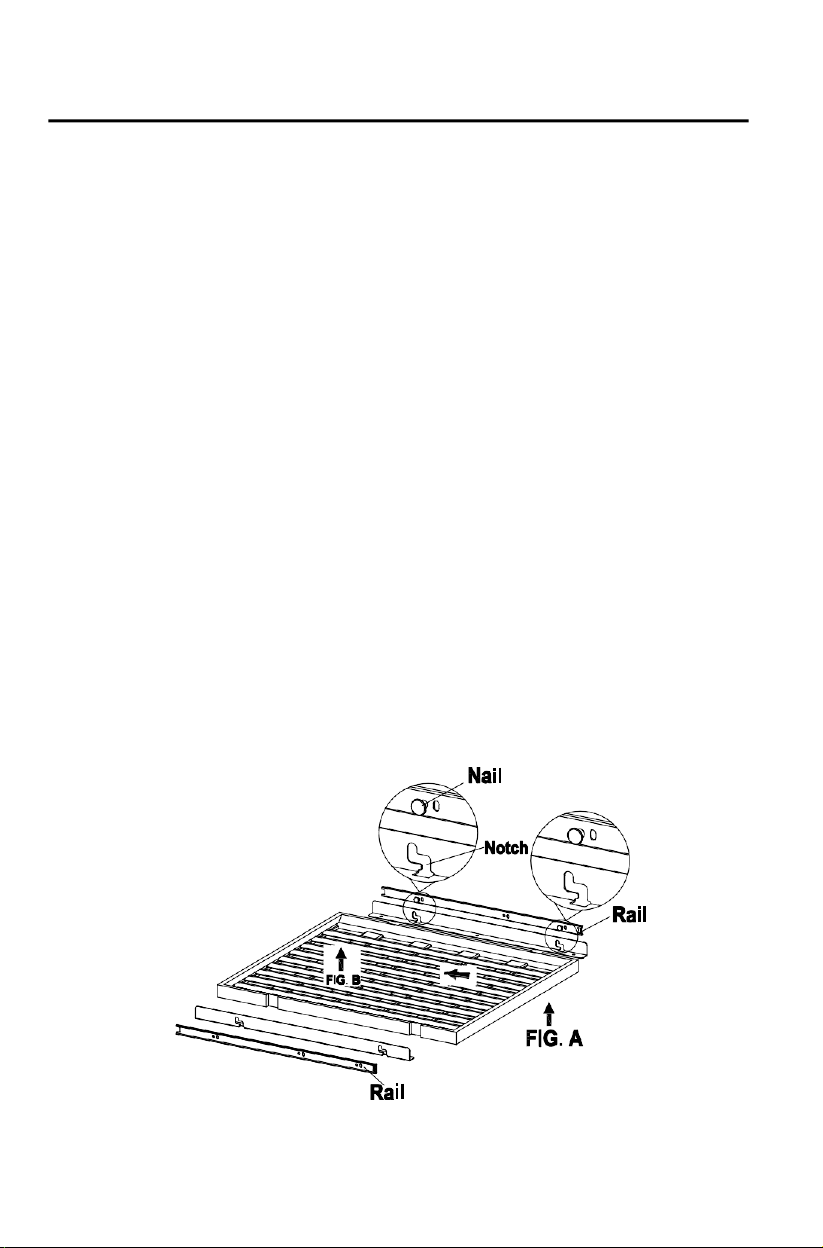

REMOVING THE SHELVES:
1. Open the door completely.
2. Remove all of the contents loaded on the shelf, if applicable.
3. Line up the shelf notches with the rail posts as indicated below. This will require you
to hold on to both rails as you move the shelf to line up the posts with the notches
on both sides of the shelf.
4. Evenly lift the shelf up and then pull the shelf out.

16
Installation Instructions
REMOVING THE GLASS SHELVES:
1. Open the door completely.
2. Make sure the shelf is pushed back completely.
3. Lift either the left or right side of the shelf to create a 45º angle from its original
position. Make sure not to lift either side of the shelf too hard as it may come in contact
with the inner wall mount.
4. Pull the shelf outward until it is removed from the inner compartment. You may
encounter some resistance from the shelf guard rail.

17
Operating Your Appliance
If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before
restarting the unit. If you attempt to restart before this time delay, the appliance may
not start and will keep the last set temperature.
This beverage cooler has a temperature range from 34ºF-50ºF.
Power Button
Press and hold this button for three seconds to power your unit on or off. While
the unit is on the R ‘Compressor Running’ light may illuminate to indicate the internal
compressor is active.
Increase Temperature
Press this button to increase the temperature by one (1) degree increments. 50ºF is
the highest available temperature on this unit.
Decrease Temperature
Press this button to increase the temperature by one (1) degree increments. 34ºF is
the lowest available temperature on this unit.
Interior Light
Press this button to cycle through the different internal light settings. There are
three light settings: Cloud White, Deep Blue and Amber.
ºF/ºC Selector
Hold the Increase and Decrease Temperature buttons at the same time to switch the
display temperature.
NOTE:
The beverage cooler is equipped with a temperature memory function. If power is
suddenly lost, the previously set temperature will be saved and the cooler will return to
this setting once power is restored.
USING YOUR CONTROL PANEL:

18
Operating Your Appliance
This refrigerator is equipped with side internal lights that can be set to Cloud White, Deep
Blue or Amber. Because the unit comes with a glass door, the inside will be seen whether
the door is open or closed.
You can choose to display each color of light in two different modes: Display mode and
Automatic Mode.
Display Mode
The internal lights will stay constantly illuminated whether the door is open or closed.
Display Mode is a custom/user-defined function, not a regular day-to-day function.
Automatic Mode
The internal lights will illuminate each time the door is opened and fade off once the door
is closed. This feature is triggered by a sensor located on the front vent, this sensor allows
the refrigerator to recognize when the door is open or closed.
*The default mode is Automatic Mode. To change between modes, press and hold the
Interior Lights button for 3 seconds.
After 3 minutes of the door being open an alarm will sound and the display will flash with
00.
Sabbath mode disables system responses to user-initiated activities and all external
functions, including lighting, display and audible alarms. The unit will still maintain
internal temperatures and set points.
To enable or disable Sabbath mode, Press the Power Button and simultaneously press
the Increase Temperature Button twice. The interior light and control display will go dark
until the user disables Sabbath mode.
Note: Although the display will not be visible, the temperature settings will remain active
and preserve the internal temperature. Sabbath mode will remain active until it is
disabled by the user.
In this mode, the compressor and fans never turn on but all other functions remain
enabled.
When in Demonstration Mode, the “R” indicator light will slowly blink indicating it is in
Demonstration Mode.
To enable or disable Demonstration mode, hold Power Button and tap Decrease
Temperature Button twice.
Internal Light
Door open alarm
Sabbath mode
Demonstration mode

19
Operating Your Appliance
The beverage cooler is designed with an automatic defrost system. However, on colder
settings, some frost may build up. Additionally, the more humid the ambient conditions,
the more frost may build up. Keep the door closed as much as possible and avoid opening
the door unnecessarily to minimize frost build-up.
If frost is preventing the door from closing properly, you may need to power the unit off
until the frost melts. Use a soft absorbent towel to dry the unit.
Warning: Never attempt to remove frost with a sharp object.
If the interior temperature is higher than 73ºF (23ºC), “HI” is shown on the temperature
control panel and the temperature alarm will sound continuously after one hour. This
indicates that the inner temperature is too high. If the inner temperature is lower than 25ºF
(-4ºC), “LO” is shown on the temperature display panel and the temperature alarm will
sound continuously after one hour. If one of these situations occurs, please reference the
troubleshooting section found in this manual for support.
Defrosting
Temperature Alarm

20
Care and Maintenance
Normal Sounds
Your new beverage cooler may make sounds that are not familiar to you. Most of the
new sounds are normal. Hard surfaces like the floor or walls can make the sounds
seem louder than they actually are. The following describes the kinds of sounds that
might be new to you and what may be making them.
Rattling noises may come from the flow of the refrigerant or the water line.
Items stored on top of the beverage cooler can also make noises.
The high efficiency compressor may make a pulsating or high-pitched sound.
Water running from the evaporator to the water bin may make a splashing sound.
As each cycle ends, you may hear a gurgling sound due to the refrigerant flowing
in your beverage cooler.
You may hear air being forced over the condenser by the condenser fan.
Cleaning and Maintenance
Periodic cleaning and proper maintenance will ensure efficiency, top performance, and
long life.
INTERIOR CLEANING:
1. Disconnect power to the unit.
2. Open the door and remove the contents and shelves.
3. With a clean cloth, wipe down the interior of the unit.
4. Reinsert the shelves and beverages.
5. Reconnect power to the unit.
EXTERIOR CLEANING:
The door and cabinet may be cleaned with a mild detergent and lukewarm water
solution such as two (2) tablespoons of baking soda to one (1) quart of water. Do not
use solvent based or abrasive cleaners. Use a soft sponge and rinse with clean water.
Wipe with a soft clean towel to prevent water spotting. If the door panel is stainless
steel, it can discolor when exposed to chlorine gas and moisture. Clean stainless steel
with a cloth dampened with a mild detergent and warm water solution. Never use an
abrasive or caustic cleaning agent.
