Albohes E30b User manual

Safety Regulations

Before using this product, please read the f ollow ing saf ety instructions and f ollow all

routine safety precautions.

Please read the instructions caref ully, please keep the instructions.

Any operation inco nsistent w ith this instruction manual may cause damage to this

product.

Note:

1. Only authorized technicians can disasse mble this product. Users are not

recommended to disassemble this product by themselves.

2. Th is product can only use the pow er adapter provid ed by the f actory. If other

adapters are used, the product maybe damaged.

3. Do not touch w ires, sockets or pow er adapters w hen your hands are w et.

4. Do not use cloth curtains or body parts to roll into the product drive w heels.

5. Do not place this product near cigarette butts, lighters and other smoldering f ires.

6. Please clean the product af ter charging.

7. Do not ben d w ires excessively or place h eavy objects and sharp objects on the

machine.

8. This product is an indoor household product. Do not use it outdoors.

9. Do not sit on the product.

10. Do not use this product (e.g. bathroom) in w et environment.

11. Before using this product, please remove all vulnera ble items (e. g. glasses, lamps,

etc.) on the ground as w ell as items (e.g. w ires, pa per sheets, curtains) that may

entangle the side brushes and air suction passages.

12. Do not put this product in a place w here it is easy to fall (e.g. on desks and chairs).

13. Please caref ully check w hether the pow er adapter is connected to th e socket

before use, otherw ise the battery may be damaged.

14. To prevent tripping, please infor m ot her members of the house w hen this product

w orks .

15. Please empty the dust box before using this product w hen the dust box is f ull.

16. The temperature used for this product is 0 to 40 degrees.

17. Do not use this product in high temperature environment.

18. Please remove the battery f rom the machine bef ore dispose the product.

19. Please make sure that this product is not pow ered on w hen removing the battery.

20. Please recycle the discarded batteries safely.

Warning:

1. Use only the original rechargeable battery and charging se at specially equipped by the

manufacturer. Non - rechargeable batteries are strictly prohibited, please ref er to"

product parameters" for battery specification information.

2. It is f orbidden to use products in environments w ith open flames or f ragile objects.

3. It is f orbidden to use products in extremely hot (above 40 °C) or extremely cold (below

0 °C).

4. It is f orbidden for human hair, clothes, fingers and other p arts to approach the opening

and operating parts of the product.

5. It is f orbidden to use products on w et or stagnant ground.

6. It is forbidden f or products to absorb any articles such as stones and w aste paper that

may clog products.

7. It is f orbidden for pr oducts t o absorb any inf lammable substa nces, such as p etrol, toner

and toner for printers or p hotocopies. Prohibit the use of products in c lean are as w ith

flammable items.

8. It is forbidden for products to a bsorb any burning articles, such as cigarettes, matches,

ashes and other articles that may cause fire.

9. It is f orbidden to place articles at the suct ion opening. Do not use the product w hen the

suction port is blocked . Clean u p dust, cotton w ool, hair, etc. at t he suction o pen ing to

ensure smooth air circulation at the suction opening.

10. Use the pow er cord carefully to avoid damage. It is forbidden to use the pow er cord to

drag or pull the product a nd the product charging seat. It is forbidden to use the pow er

cord as a handle. It is forbidden to clamp the pow er cord in the crack of the door.lt is

forbidden to pull t he pow er cord at sharp corners an d corners.lt is forbidden for the

product t o run on the pow er cord w hile t he pow er cord should be f ar aw ay from th e heat

source.

11. Do not use damaged charging seat.

12. Ev en if the product h as been severely da mage d, burn ing of the product is prohibited,

w hich may lead to explosion of the battery of the product.

Contents

Product Composition / Package Contents ·······································································································3

Product Composition / Part Name ··················································································································4

Product Usage / Preparation ························································································································6

Product Use/ Charge Robot ·························································································································7

Product Use / 5 Cleaning Modes ···················································································································8

Product Use / Pause, Wake up and Shut down ······························································································ 9

Product Usage / Time Scheduling Setting ····································································································· 9

Product Usage /Water Tank Use ··················································································································10

Component Maintenance /Dust Box ············································································································ 11

Component Maintenance /Water Tank and mopping pad ················································································ 14

Component Maintenance / Main Brush and Side Brush ·················································································· 15

Component Maintenance / Charging Dock Pins, Down View Sensor, Drive Wheel and Universal Wheel ·················· 16

Troubleshooting ······································································································································ 17

Product Parameter ··································································································································· 18

Instructions for Remote Control ·················································································································· 19

Product Composition / Package Contents

Robot

Charging Dock

Remote Control (with battery x2)

Water Tank

Dust Box

Mopping Pads x2

Cleaning Brush

Adapter

Instruction Manual

Hepa Filter x2

Side Brushes x4

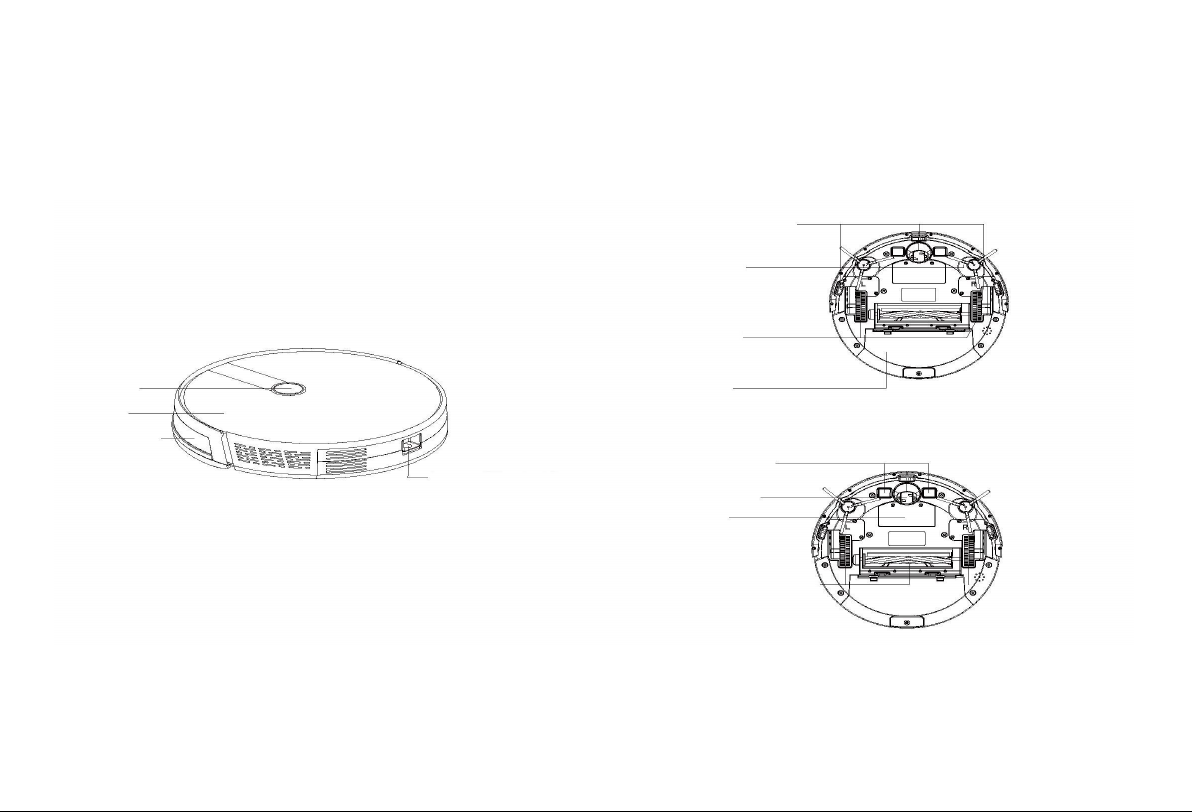

Product Composition / Part Name

Front Robot Back Robot

Start/Pause Key

Surface Cover

Omnidirectional Lens

Dust Box/Water Tank Button

Downsense Sensor

Side Brush

Drive Wheel

Dustbox

Charging Pole Piece

Universal Wheel

Battery

Main Brush Assembly

Dust box Charging Dock

Water Tank and Mopping Pad Assembly Remote Control

High Efficiency Strainer

Primary Filter Strainer

DustBox Metal Sheet

High Efficiency Net Cover

DustBox Side Cover

Dust Box/Water Tank Conductive Sheet

Signal Indicator

DC PIug

Charging Dock Pins

Water Injection Port

Water Tank

Mopping Pad

Screen Display

Mode Switching

Direction Control

Clock Settings

Recharging

Auto Cleaning Mode

Start/Pause

Time Scheduling Settings

Product Usage / Preparation

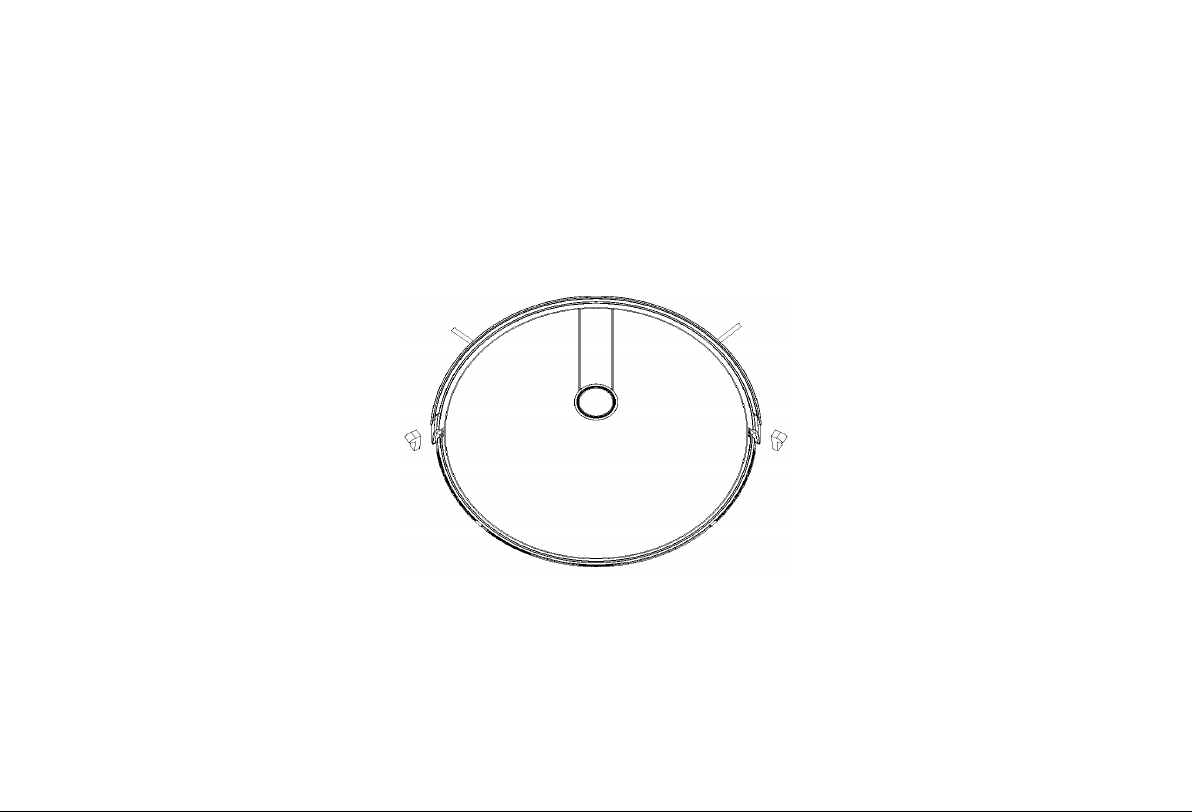

Before using the Robot, remove the protective strip on the Robot.

Remove the protective strip

Product Use/ Robot Charging

1. Placing and charging :T he c hargi ng dock is against the wall

and placed on a flat ground. Do not place articles within the

range of 0.5m left and right and 1.5m ahead.

2. Connect the power supply.

3. Installing side brush: Install the side brushes (L/R).

4. Charging: Place the Robot on the charging dock for charging

( t he indi cato r li g ht flas hes d uri ng c hargi ng . Once charging is

complete, a nd t he indicator lig ht is a lways o n. The c harging ti me

is about 5 hours.)

During the worki ng, the robot vacuum ca n se nse t hat i ts power is

insufficient and automatically start the recharging mode to

automa tica lly fi nd the c hargi ng dock to c harge. Yo u ca n a lso

command t he robot to start the recharging mode through the back

charging key of the remote.

Charging attention:

1. The charging dock cannot be p laced in e n vi ro nme nts wi th s tro ng

reflection such as direct sunlight and nearby mirrors.

If there is any object with strong reflection, please cover it 7 cm

from the bottom.

2. In order to ensure the normal working hours of the robot, please

fully charge it before use. The charging time is about 5 hours.

3. DO NOT c ha rge wit h water tank, so as to ensure the safety of

charging.

Product Use / 5 Cleaning Modes

According to different cleaning needs, this product has a variety

of cleaning mode to choose from. You can start various cleaning

mode by remote control.

Auto Cleaning

Applicable scenario: The most commonly used cleaning method

is that the robot will run zigzag path to clean the whole house.

Setting method: Press the automatic cleaning bottom on the

remote control, the robot starts auto cleaning.

*For enter the super suction mode, Press the one more

time.

Mopping:

Applicable scenario: Used to mop hard floors (DO NOT use this

mopping function in the carpets, it will get them wet.)

Setting method: Click the remote control mode switch button

for one time to select the mopping mode.

Single Room Cleaning

Applicable scenario: Used to cleaning the single room

Setting method: Click the remote control mode switch button

for two times to select the single room cleaning mode.

Warm Tip: When it is only necessary to clean a single room,

please close the door and the robot will do centralized cleaning

in t he room If this room does not have a charging dock, the

cleaning will return to the original point where it starts.

* Single room cleaning mode is always the super suction

cleaning model.

Edge Cleaning

Applicable scenario: For indoor comer cleaning, the Robot

cleans along the perimeter of fixed objects ( such as walls), and

returns to the charging seat after the edge cleaning is finished.

Setting method: Click the remote control mode switch button

to select the Edge cleaning mode to start the edge

cleaning.

Manual Control

Applicable scenario: Suitable for manual control cleaning.

Setting method: Click on the button of the remote controller to

control the machine to move forward and backward and turn.

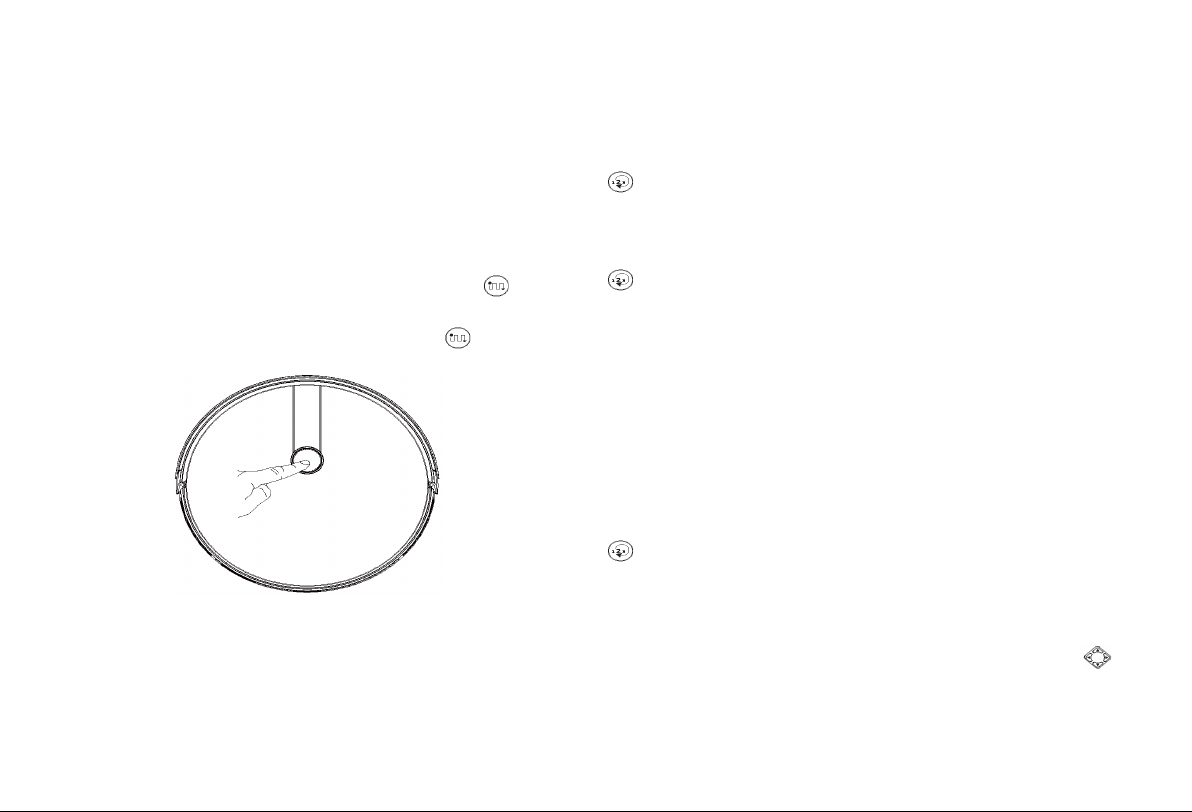

Product use / pause, wake-up and shutdown

Pause: Press the switch button on the robot or the button

of the remote

to pause the working.

Wake-up: If the robot stops working for more than ten minutes, it will automatically enter sleep mode ( all the lights will be off). You can

wake up the robot by press the switch button on the robot or any key of the remote to restart work.

Shutdown: Press the switch button on the robot for 3 secs until all the indicators light of the robot machine go out.

*After the Robotfinishes its work, it is recommended not to shut down it so as to keep it in a state of charge so as to better carry out the

next time working.

Product Usage / Time Scheduling Setting & Clock Setting

Press the button

of the remote

to set the time scheduling as you need. Press the button ,then press the key

to set the

scheduling time. After impress the button ,then the setting is completed. The robot will automatically clean up at the reservation time.

PS: Before the time scheduling setting, you need to use the button

to set the clock of the robot first. Press the button ,then press

the key to set the time of this robot. Then press

, the setting is completed.

Cancel Schedule Setting

Press the the setting button of the remote for 3 seconds to cancel the schedule setting.

Product Use/ water Tank Use

* Do NOT use the floor mopping function on carpets.

After mopping the floor, please empty the water tank in time and remove the mopping pad.

Add water Install the Water Tank Assembly

Install Mopping Pad Start Mopping the Floor

Component maintenance /dust box

A. Press the dust box button to take out the dust box C. Dumping garbage

B. Open the dust box side cover D. Open the high efficiencynet cover

E. Open the high-efficiency screen cover and take out

the high-efficiency screen and the

primary-efficiency screen, high-efficiency screen

does not recommend water washing. Tap gently to

remove dust.

G. The dust box is scrubbed clean with dishcloth.

Do not allow water to seep into the fan port when

cleaning.

F. Rinse the primary filter screen

H. Dry the dust box and filter assembly, and keep it dry to ensure its service life.

Note: It is recommended to wash the primary strainer with water 15 - 30 days after it is used. The maximum service life of the high

efficiency filter screen is 3 months.

I. Replace the primary filter screenand the high efficiencyfilter screeninto the dust box;

Note: 1. Before installing the filter screen, please ensure that the high efficiency filter screen and the primary filter screen are i n a dry

state.

2. Do not expose the high efficiency strainer and primary strainer to the sun.

J. Cover the dust box cover and install the dust box on the Robot

Note: Do not allow water to seep into the fan port when cleaning.

Component maintenance/ water tank and mopping pads

1. Take out the water tank assembly 4. Cleaning Mopping Pad

2. Remove the mopping pad 5. Airing

3. Empty the Water Tank 6. Dry or naturally dry the water tank

Component maintenance / main brush and side brushes

1. Open the main brush cover assembly

3. Utility tool for cleaning tangled hair

Cleaning main brush

2. Take out the main brush shaft

Cleaning side brush

Component maintenance / charging dock pins, down view sensor,

drive wheel and universal wheel

Warm Tip: The interior of the charging pole piece, the down-view sensor and the striking plate all contain sensitive electronic components,

please use dry dishcloth when cleaning, and do not use wet dishcloth to prevent damage caused by water inflow.

Clean up charging dock pins

Clean drive wheels and universal wheel

Clean the down-view sensor

If you do not use the product for a longtime, please fully charge

it before storing. Turn off the host and insist on supplying power

to it every 3 months to prevent the battery from over discharge.

If the battery is over discharged or is not used for a long time,

the product may not be able to be charged. Please contact our

company for after-sales maintenance, do not disassemble it

yourself.

Troubleshooting

No.

Prompt Tone

Cause of Failure

Solution

Wheels off the ground

Robot suspended

Please put the Robot back to the ground and press the

cleaning key again.

Dust box not installed

Dust box removed and not installed

Return the dust box to the Robot and press the cleaning

key again.

Battery failure

Abnormal battery charging

Contact after-sales test battery

Please check if the wheel is stuck

Wheel jammed

Che ck whether t he w heel i s e nta ng le d wit h foreign

objects and clean up the entangled objects.

Please check if the front collision is

stuck

Front impact bracket stuck

Check whether the front collision can rebound normally

Robot connection failed

Machine failed to connect to server

Check whether the wireless network connected during

distribution can connect to the internet

The battery is low, please charge

the machine

Battery power less than 20 %

The machine automatically enters the recharge mode

Please check whether the side

brush is tangled or jammed

Abnormal edge brushing

Check whether the side brush is wound by wire and

clean up the wound

Please move the machine to the

open area.

The machine failed to get out of

trouble.

Please move the Robot to an empty place and press the

cleaning key again.

Product Parameter

Classification Projects Parameter

Structural class

Diameter 330 mm

Height 76mm

Net weight 2.7 kg

Battery

Voltage 14.4 volts

Battery 2500 mAh rechargeable lithium battery pack

parameter

Dust box capacity 600 ml

Water tank capacity 350 ml

Charging type Automatic charging / manual charging

Cleaning mode Auto / single room/ edge / mop floor

Primary charging time About 5 hours

Working time About 100 minutes

Robot

Rated power (w) 28

Operating voltage ( v ) 14.4

* Due tothe continuous improvement of the product, this information product is subject tothe physical object, and our com pa ny reserves the right to update the product.
