Albrecht digi-TV 100 User manual

digi-TV 100
User Manual

Important Safety Instructions and Caution
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF POWER PLUG TO WIDE
SLOT OF AC OUTLET AND FULLY INSERT (THIS WARNING IS VALID ONLY FOR US-TYPE PLUGS) .
l1. Read Instructions All the safety and operating instructions should be read before the
product is operated.
l2. Retain Instructions The safety and operating instructions should be retained for future
reference.
l3. Heed Warnings All warnings on the product and in the operating instructions should be
adhered to.
l4. Follow Instructions All operating and use instructions should be followed.
l5. Cleaning Unplug this product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.
l6. Attachments Do not use attachments not recommended by the product manufacturer as
they may cause hazards.
- i -

l7. Water and Moisture Do not use this product near water-for example, near a bath tub, wash
bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.
l8. Accessories Do not place this product on an unstable cart, stand, tripod, bracket, or table. The
product may fall, causing serious injury to a child or adult, and serious damage to the product.
Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold
with the product. Any mounting of the product should follow the manufacturer's instructions, and
should use a mounting accessory recommended by the manufacturer.
l9. Carts and Stands The product should be used only with a cart or stand that is recommended by
the manufacturer.
l9A. A product and cart combination should be moved with care. Quick stops, excessive force, and
uneven surfaces may cause the product and cart combination to overturn.
l10. Ventilation Slots and openings in the cabinet are provided for ventilation and to ensure
reliable operation of the product and to protect it from overheating, and these openings must
not be blocked or covered. The openings should never be blocked by placing the product on a
bed, sofa, rug, or other similar surface. This product should not be placed in a built-in
installation such as a bookcase or rack unless proper ventilation is provided or the
manufacturer's instructions have been adhered to.
l11. Power Sources This product should be operated only from the type of power source indicated
on the marking label. If you are not sure of the type of power supply to your home, consult your
product dealer or local power company. For products intended to operate from battery power, or
other sources, refer to the operating instructions.
l12. Grounding or Polarization This product may be equipped with a polarized alternating-current
line plug (a plug having one blade wider than the other). This plug will fit into the power outlet
only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try
reversing the plug. If the plug should still fail to fit, contact your electrician to replace your
obsolete outlet. Do not defeat the safety purpose of the polarized plug. (ONLY FOR US-TYPE)
Alternate Warnings This product is equipped with a three-wire grounding-type plug, a plug having a
third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If
you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet.
Do not defeat the safety purpose of the grounding-type plug. (ONLY FOR USA TYPE, NOT FOR EUROPE)
l13. Power-Cord Protection Power-supply cords should be routed so that they are not likely to be
walked on or pinched by items placed upon or against them, paying particular attention to cords
at plugs, convenience receptacles, and the point where they exit from the product.
l14. Protective Attachment Plug The product is equipped with an attachment plug having
overload protection. This is a safety feature. See Instruction Manual for replacement or
resetting of protective device. If replacement of the plug is required, be sure the service
technician has used a replacement plug specified by the manufacturer that has the same
overload protection as the original plug. (ONLY FOR USA MODELS)
l15. Outdoor Antenna Grounding If an outside antenna or cable system is connected to the
product, be sure the antenna or cable system is grounded so as to provide some protection
against voltage surges and built up static charges. Article 810 of the National Electrical Code,
ANSI/NFPA 70, provides information with regard to proper grounding of the mast and
supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna-discharge unit, connection to grounding electrodes,

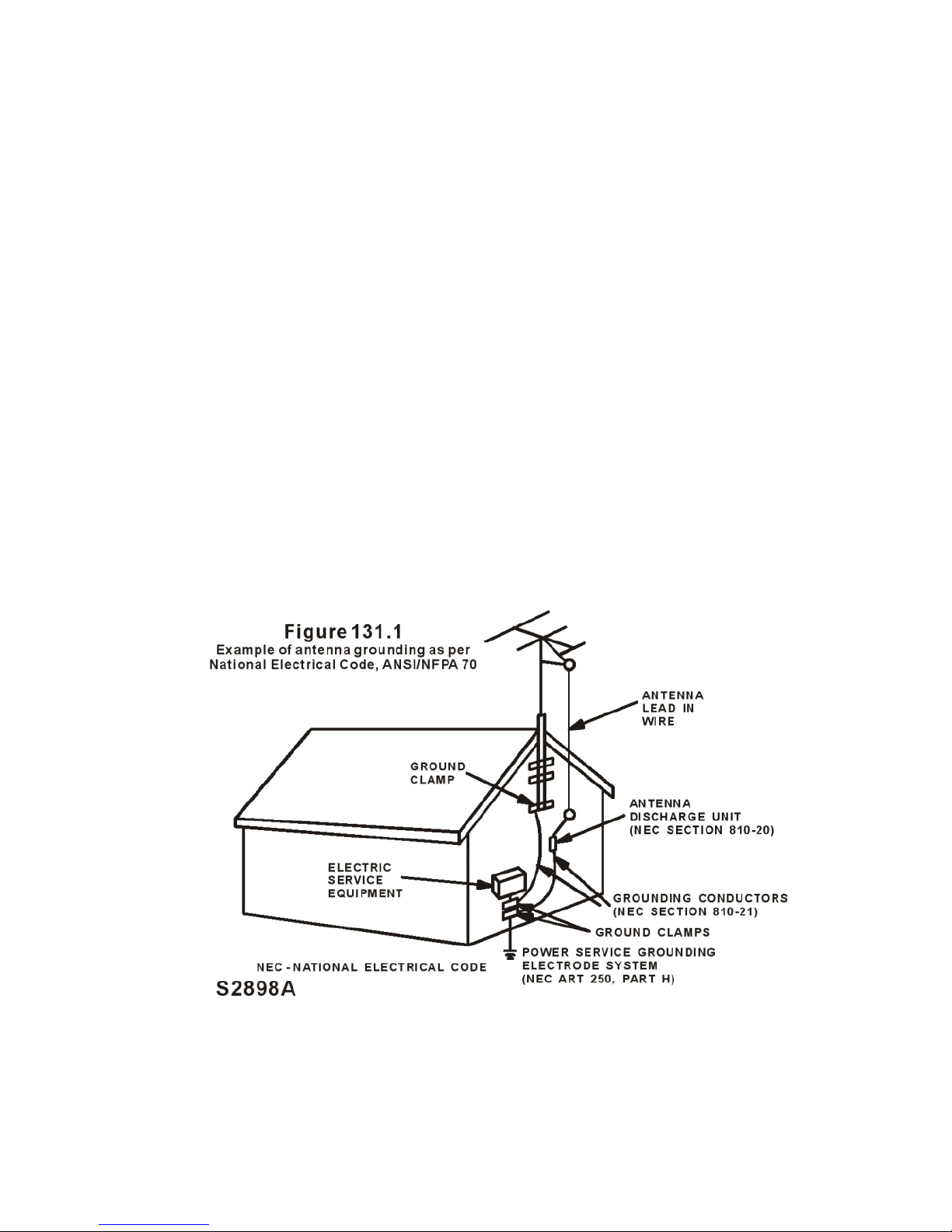

and requirements for the grounding electrode. See drawing on next page.
l16. Lightning For added protection for this product during a lightning storm, or when it is left
unattended and unused for long periods of time, unplug it from the wall outlet and disconnect
the antenna or cable system. This will prevent damage to the product due to lightning and
power-line surges.
l17. Power Lines An outside antenna system should not be located in the vicinity of overhead
power lines or other electric light or power circuits, or where it can fall into such power lines or
circuits. When installing an outside antenna system, extreme care should be taken to keep from
touching such power lines or circuits as contact with them might be fatal.
l18. Overloading Do not overload wall outlets, extension cords, or integral convenience
receptacles as this can result in a risk of fire or electric shock.
l19. Object and Liquid Entry Never push objects of any kind into this product through openings as
they may touch dangerous voltage points or short-out parts that could result in a fire or electric
shock. Never spill liquid of any kind on the product.
- ii -

l20. Servicing Do not attempt to service this product yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
l21. Damage Requiring Service Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
a) When the power-supply cord or plug is damaged,
b) If liquid has been spilled, or objects have fallen into the product,
c) If the product has been exposed to rain or water,
d) If the product does not operate normally by following the operating instructions. Adjust only
those controls that are covered by the operating instructions as an improper adjustment of
other controls may result in damage and will often require extensive work by a qualified
technician to restore the product to its normal operation,
e) If the product has been dropped or damaged in any way, and
f ) When the product exhibits a distinct change in performance this indicates a need for
service.
l22. Replacement Parts When replacement parts are required, be sure the service technician has
used replacement parts specified by the manufacturer or have the same characteristics as the
original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
l23. Safety Check Upon completion of any service or repairs to this product, ask the service
technician to perform safety checks to determine that the product is in proper operating
condition.
l24. Wall or Ceiling Mounting The product should be mounted to a wall or ceiling only as
recommended by the manufacturer.
l25. Heat The product should be situated away from heat sources such as radiators, heat registers,
stoves, or other products (including amplifiers) that produce heat.
- iii -

Precautions
On Safety
lDo not use wet hands to pull out the plug. It may cause electrical shock.
lIf the player does not work, please pull out the plug for safety. Contact us for further technical
support.
lBefore moving the player, please make sure the power adapter is disconnected from the wall
outlet.
lDo not move the player when playing. It may cause a fire or electrical shock.
lShould any solid object or liquid fall into the cabinet, unplug the player and have it checked by
qualified personnel before operating it any further.
lIf you are not going to use the player for a long while, be sure to disconnect the player from the
wall outlet. To disconnect the power adapter, grasp the plug itself; never pull the cord.
On Placement
lPlease keep a sufficient distance between the player and a radio set. A sufficient distance is also
needed between the player and any other devices with electromagnetic field.
lPlease place the player in a location with adequate ventilation to prevent heat build-up in the
player.
lDo not place the player on a soft surface such as a rug that might block the ventilation holes on
the bottom.
lDo not place the player in a location near heat sources, or in places subject to direct sunlight,
excessive dust, or mechanical shock.
lDo not place the player in a location exposed to cool air. Condensation may occur and cause the
player work incorrectly.
On Operation
lThe player may not work because of improper operation. The limited warranty does not cover
consequent losses that rise from improper usage.
lTurn off the player when you are watching regular TV program. It may cause a picture distortion.
lThe player will not work correctly when affected by exterior elements such as static electricity. In
such cases, pull out the power adapter and plug it back to the outlet again.
- iv -

Table of Contents
Parts of the Handheld TV ........................................... 1
Remote Control Operations........................................ 3
Remote Control Battery Installation ............................ 3
General Operating Instructions .................................. 4
Preparing the battery pack for use (Lithium battery) ..... 5
Charging the lithium battery ....................................... 7
Preparing the battery pack for use (Alkaline battery) .... 8
Basic operation........ ...................................................10
Menu Steps................................................................ 11
Setup & Automatic Channel Searching Steps.............. 16
Connection to TV Set ............................................... 19
Trouble Shooting Q&A ..............................................20
Specification ............................................................21

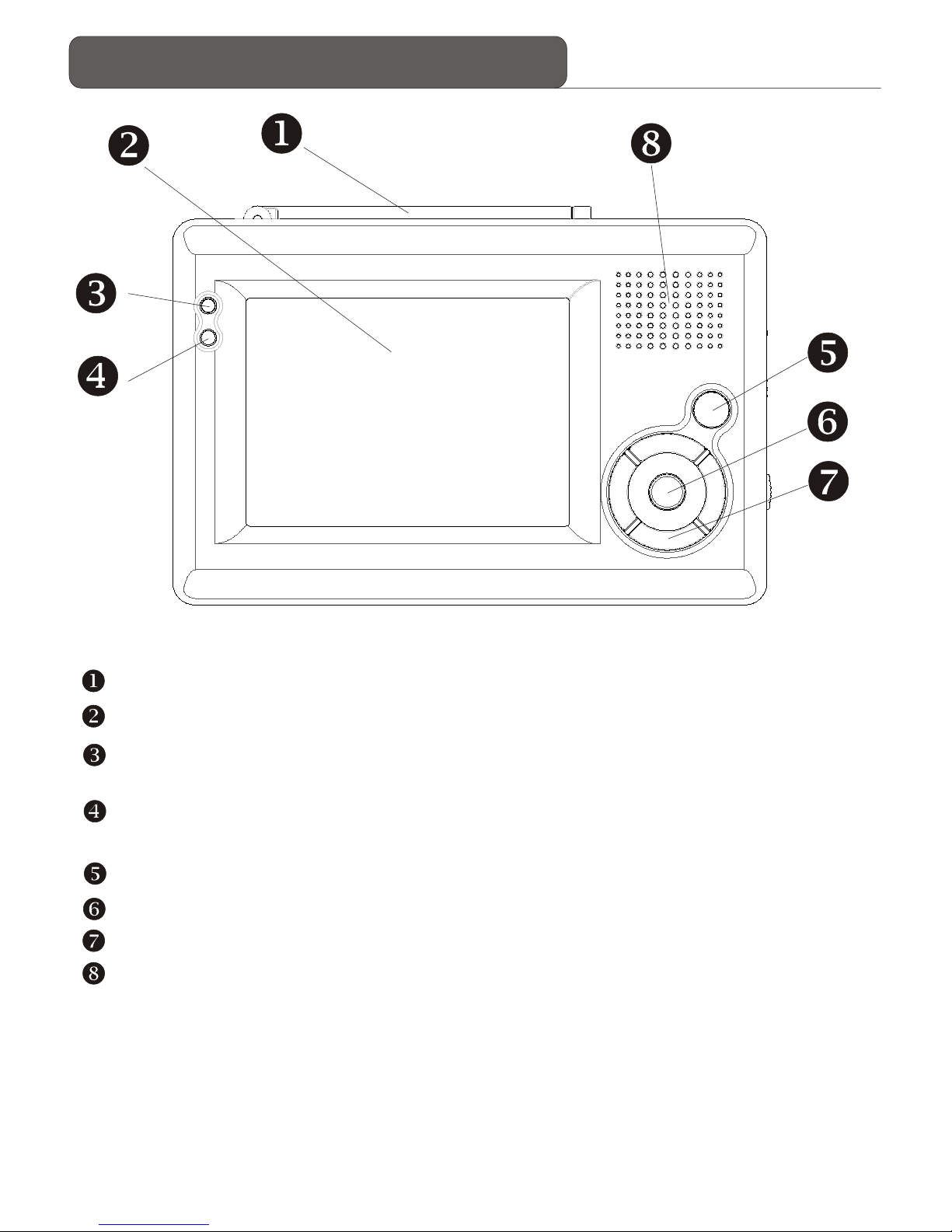

LCD panel
Antenna
Infrared remote sensor
Allow remote controller to navigate this unit.
Power LED
When the unit operates, the LED will glow green.
Menu/Exit button
OK/Mute button
Multi selector (CH+(p)/CH-(q)/VOL+(u)/VOL-(t))
Speaker
Parts of the Handheld TV
vyz{: Please refer to the page 12 for more detailed description.
- 1 -

Video out connector
Output the video signal.
Earphone/Audio out connector
Output the stereo audio signal.
Eyelet for TV strap
Power on-off switch
Battery connector
DC power connector
Connect with the AC/DC power adapter or the car cigarette lighter
power adapter.
- 2 -

Remote Control Operations

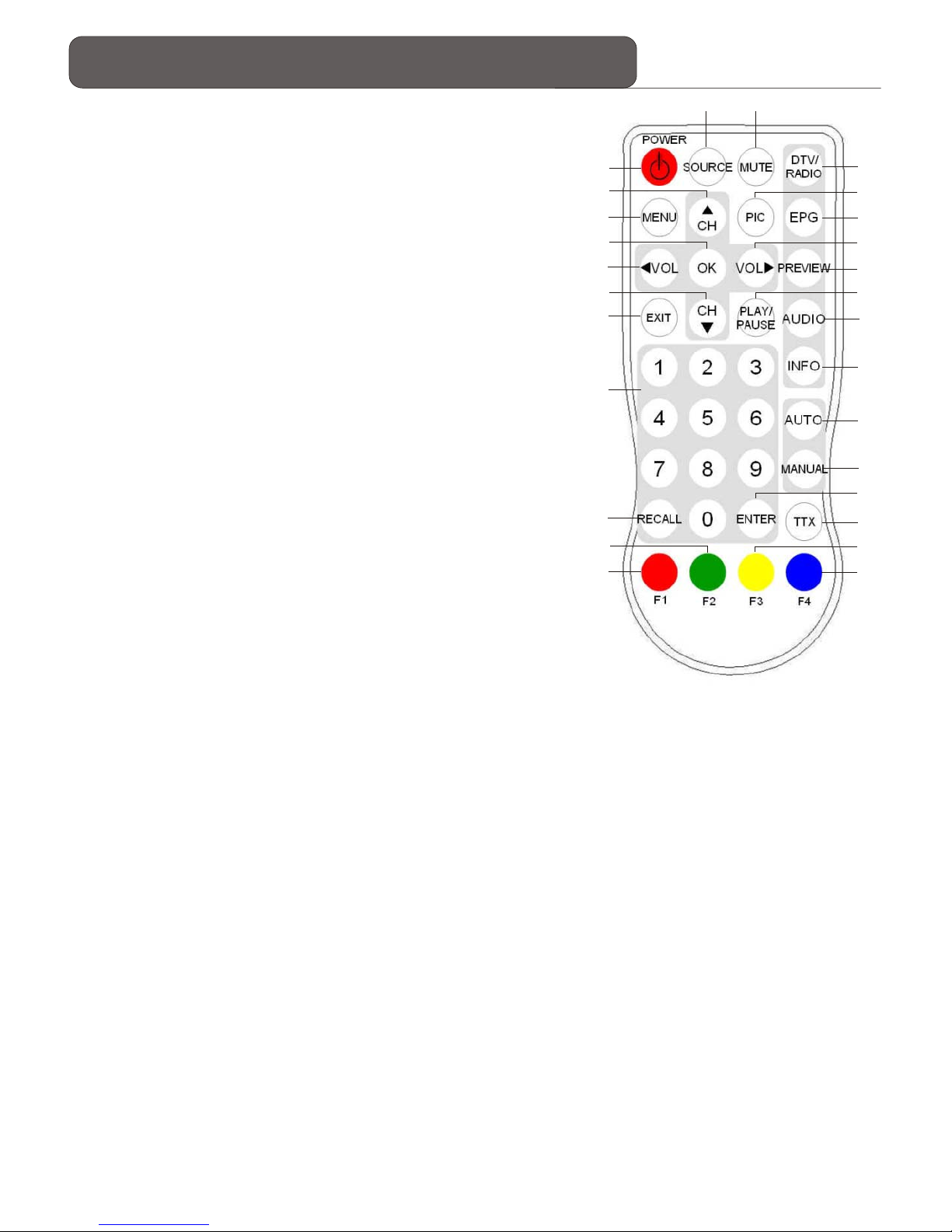

(2)
(1) (13)
(14)
(15)
(16)
(17)
(18)
(19)
(20)
(21)
(23)
(24)
(25)
(26)
(27)
(22)
(4)
(3)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(1) SOURCE: no function
(2) POWER: power-on/stand-by selection
(3) Channel selection up or move the
cursor up
(4) MENU: enter the setup menu
(5) OK: select the highlight item
(6) Volume down or move the cursor left
(7) Channel selection down or move the
cursor down
(8) EXIT: exit the current setup
(9) Digital keys
(10)RECALL: return to the last selected channel
(11)Red button : sub-title key in the normal
operation mode or a hot key to go to the
browsed Teletext pages in teletext mode
(12)Green button : a hot key to go to the
browsed Teletext pages in the teletext mode
(13)MUTE: mute control
(14)DTV/Radio selection
(15)PIC: no function
(16)EPG: electronic program guide
(17)Volume up or move the cursor right
(18)PREVIEW: preview selected programs
(19)PLAY/PAUSE selection
(20)AUDIO: second language, and stereo selection
(21)INFO: DTV system information
(22)AUTO: automatic channel scanning
(23)MANUAL: manually select channels
(24)ENTER: enter the selected channel no.
(25)TTX: Teletext key to display Teletext(has to be supported by broadcaster)
(26)Yellow button : page up in the EPG mode or a hot key to go to the
browsed Teletext pages in the teletext mode
(27)Blue button: page down in the EPG mode or a hot key to go to the
browsed Teletext pages in the teletext mode
- 3 -

General Operating Instructions
Turning the unit ON or OFF
Connecting to the earphone
Earphone
plug

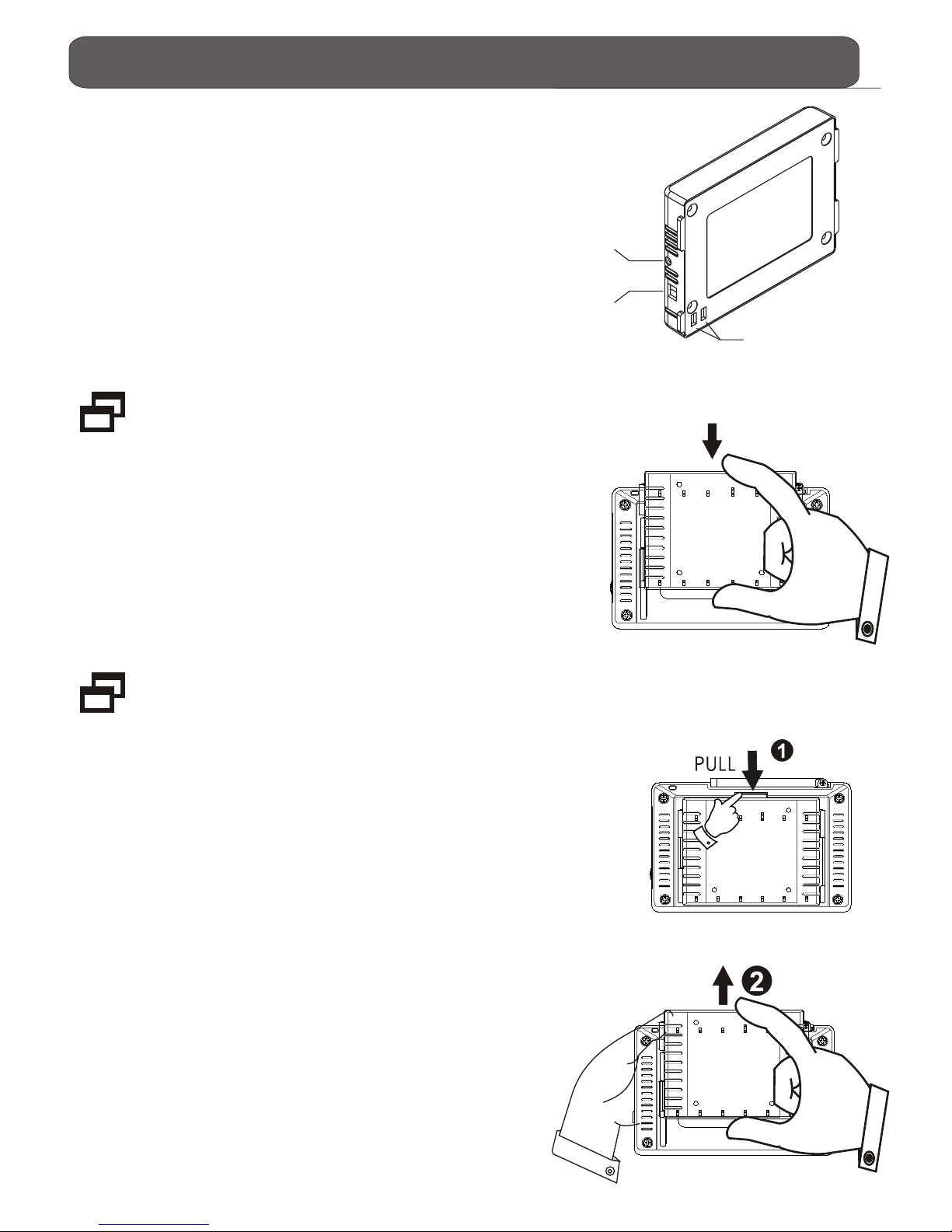

To turn on the system, slide the Power
switch of the unit to the position
labeled “ON”.
To turn off the system, slide the Power
switch of the unit to the position
labeled “OFF”.
Insert the earphone plug into the “ “
jack on the side of the unit.
- 4 -
Remote Control Battery Installation
Before attempting to operate your remote
control, install the battery as described below.
(1) Turn the remote control face down.
(2) Press down on the ridged area of the battery
cover and slide it off.
(3) Slide another battery in.

Preparing the battery pack for use (Lithium battery)
Charging
LED
DC
INPUT DC
OUTPUT
!The handheld DTV with a battery pack
to allow play back without any AC
power adapter.
!Make sure the lithium battery pack is
properly attached to the unit and fully
charged when use.
(1) Matching the battery pack into the
back of the Handheld DTV.
(2) Press the battery pack downward
until the battery pack locks onto the
Handheld DTV.
!Detach the battery pack from the unit if
you will be storing the unit for an
extended period of time.
!Ensure the unit is turned off before
detaching the battery pack.
!Detaching the battery pack from the
unit as below steps.

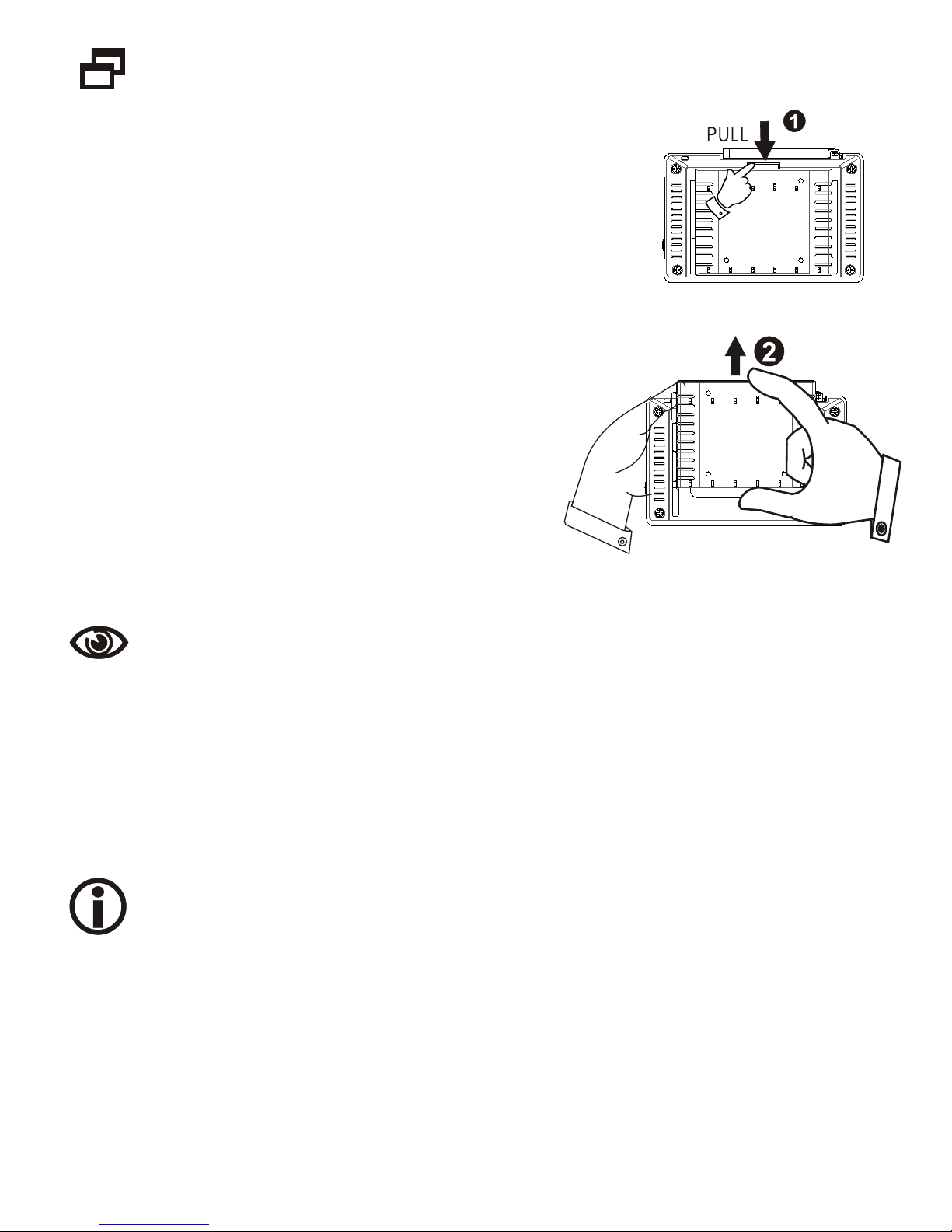

(1)Press the battery locker on the back of
the unit.
(2)Push out the battery pack upward until
the battery pack unlock onto the unit.
Attaching the battery pack
Detaching the battery pack
- 5 -

IMPORTANT
WARNING
The Handheld DTV will turn off automatically when the battery is
getting low . In this time, according the correct method to
recharge your battery pack.
!Charge your battery pack for a minimum of 4 hours to get fully
charged.
!When the battery pack is being charged, the LED will glow red.
!After successfully charging the battery pack, the LED will glow
green.
!Please un-pack the battery when the battery is not working.
!The average lifetime of the lithium rechargeable battery is
about 300 recharging cycles. After this many recharges,
please consider replacing the battery.
!Do not disassemble, crush, puncture, or short external
connectors contact.
!Use only with specified charger and players.
!Do not expose to high temperature above 50℃(122℉)
!Stove between 20℃(4℉) and 35℃(95℉)
- 6 -

Charging the lithium battery
Use Handheld TV and charge Battery simultaneously
Use Handheld TV alone or without charging
(1)Connect the large power adaptor into AC power outlet and
the small plug of the DC cable into the charging plug on the side
of the battery pack.
(2)Charging time will be about 4 hours, but may increase
if TV set is operated at the same time together with charging.
(1) Connect DC cable from power adaptor now into the DC IN 9 V
socket on the side of the TV set and not into the battery case
socket.
(2) Turn power switch of the unit to ON, to use handheld TV
(3) Even if battery pack should be attached to the TV set,
no charging will take place.
Charging
INPUT
AC Outlet
DC
INPUT
AC Outlet
- 7 -

Preparing the battery pack for use (Alkaline battery)
!The handheld TV with a battery pack
allows play back without any AC
power adapter.
!Make sure the alkaline battery pack is
properly attached to the unit and has
sufficiant capacity.

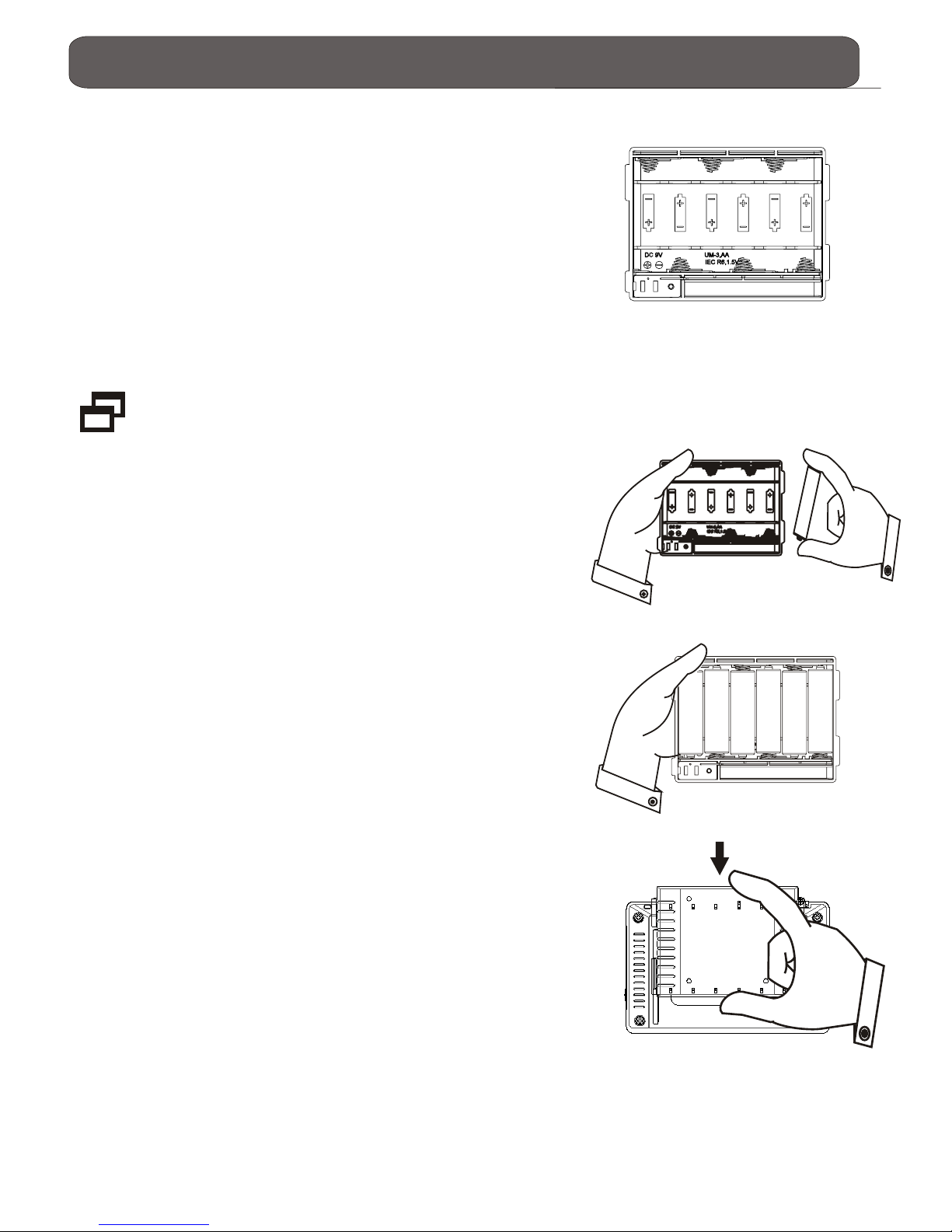

(1)According to the diagram, insert the
batteries correctly according to the plus
and minus markings.
(2)Please use only high quality alkaline
type batteries (6 pcs AA size)
in the battery pack.
(3)Matching the battery pack downward
until the battery pack locks onto the
handheld TV.
(4)Press the battery pack downward until
the battery pack locks onto the
handheld TV.
Attaching the battery pack
- 8 -

!Detach the battery pack from the unit if
you will be storing the unit for an
extended period of time.
!Ensure the unit is turned off before
detaching the battery pack.
!Detaching the battery pack from the
unit as below steps.
(1)Press the battery locker on the back of
the unit.
(2)Push out the battery pack upward until
the battery pack unlock onto the unit.
(3)Take out alkaline battery from the
battery pack.
Detaching the battery pack
IMPORTANT
WARNING
!The Handheld TV will turn off automatically when the battery
is getting low . Empty alkaline batteries should be replaced, while
discharged NiMH battery cells may be recharged externally.
!Please un-pack and check batteries if they should not work.
!Do not disassemble, crush, puncture, or short external
connectors contact.
!Do not expose to high temperature.
!Please don't use the different battery types mixed together
in one set, as well do not mix old and new batteries.
- 9 -

- 10 -

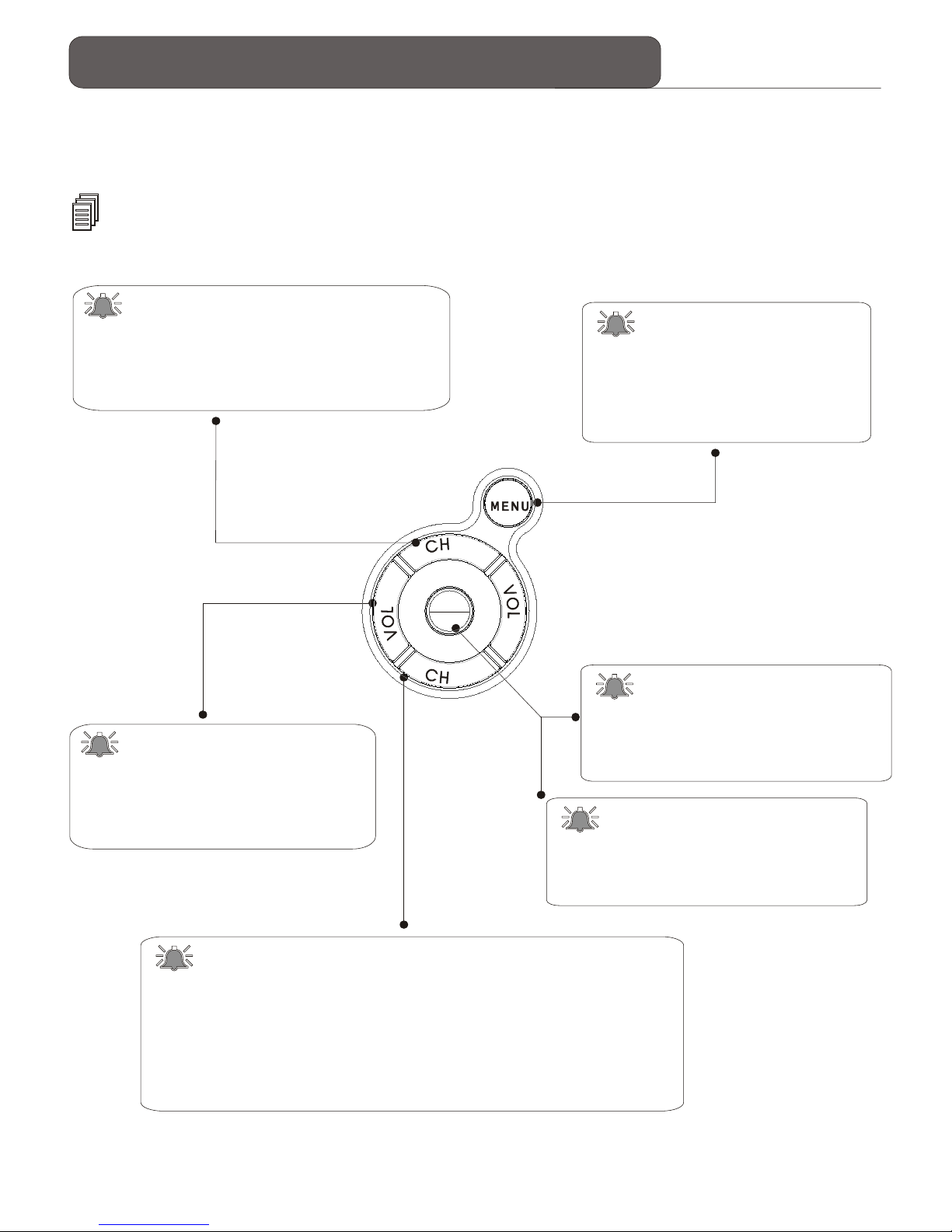

Basic Operation
Press [CH+] button or [CH-]
button to select the TV/Radio
channel in VHF and UHF Band
Channel selection
Press [VOL-] button or
[VOL+] button to adjust
the volume.
Volume adustment
In menu mode, press [CH+] button and
[CH-] button to move cursor up and down.
Press [VOL-] button and [VOL+] button
to move cursor left and right.
Navigating the Menu
In menu mode, press this
button to make selection
Make selection
Press this button to mute
or restore the volume.
Mute control
Press this button to
enter or exit the menu
mode .
Menu
This section details the basic TV operations.
KEY FUNCTION
Mute
OK
-
-
+
+

- 11 -
MENU
There are two pages of the menu, including program and system.
You can use [VOL-] button to select each page. In the program
page of the menu, you can highlight the service type, program list,
preview, audio channel, subtitle language, program info,
automatic search, or manual search to perform TV program
related operation. And in the system page of the menu, you can
highlight the brightness, TV system, regional setting, OSD
language, time zone to adjust the system setting. You can use
[CH+] button and [CH-] button to highlight the item and press
[VOL+] button and [VOL-] button to select your choice and then
press [OK] button to set the setting.

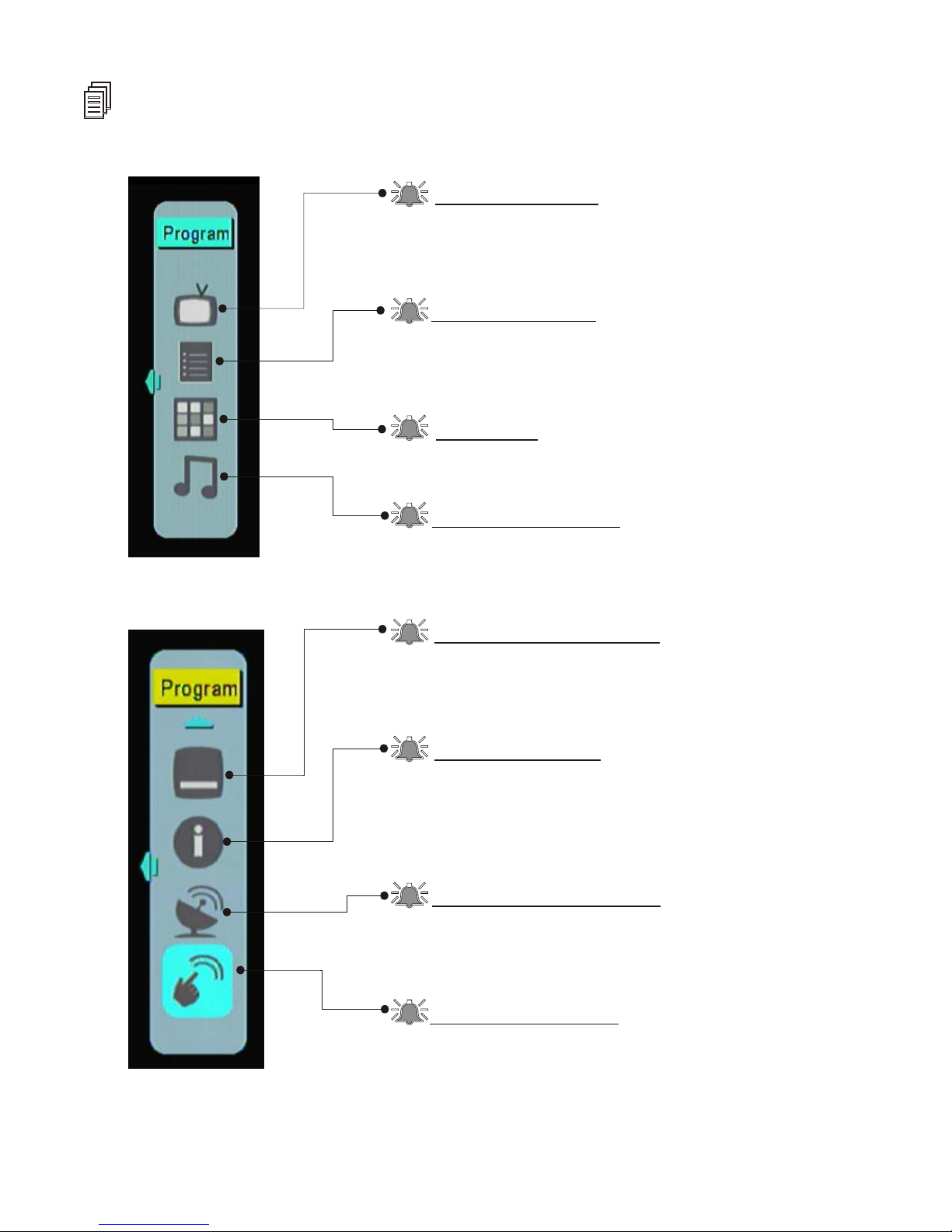

PROGRAM PAGE
Service Type
Preview
Audio Channel
Subtitle language
Automatic Search
Manual Search
Program info
Program List
Selection of either TV or Radio programs
To preview up to 9 selected channels
Selection of either master or secondary
language
To select a subtitle language available
from service providers
To search the program channels
automatically
To search the program channels
manually
To provide the TV program information
about the system parameters and
signal information
To show the information of all of the
available channels
- 12 -

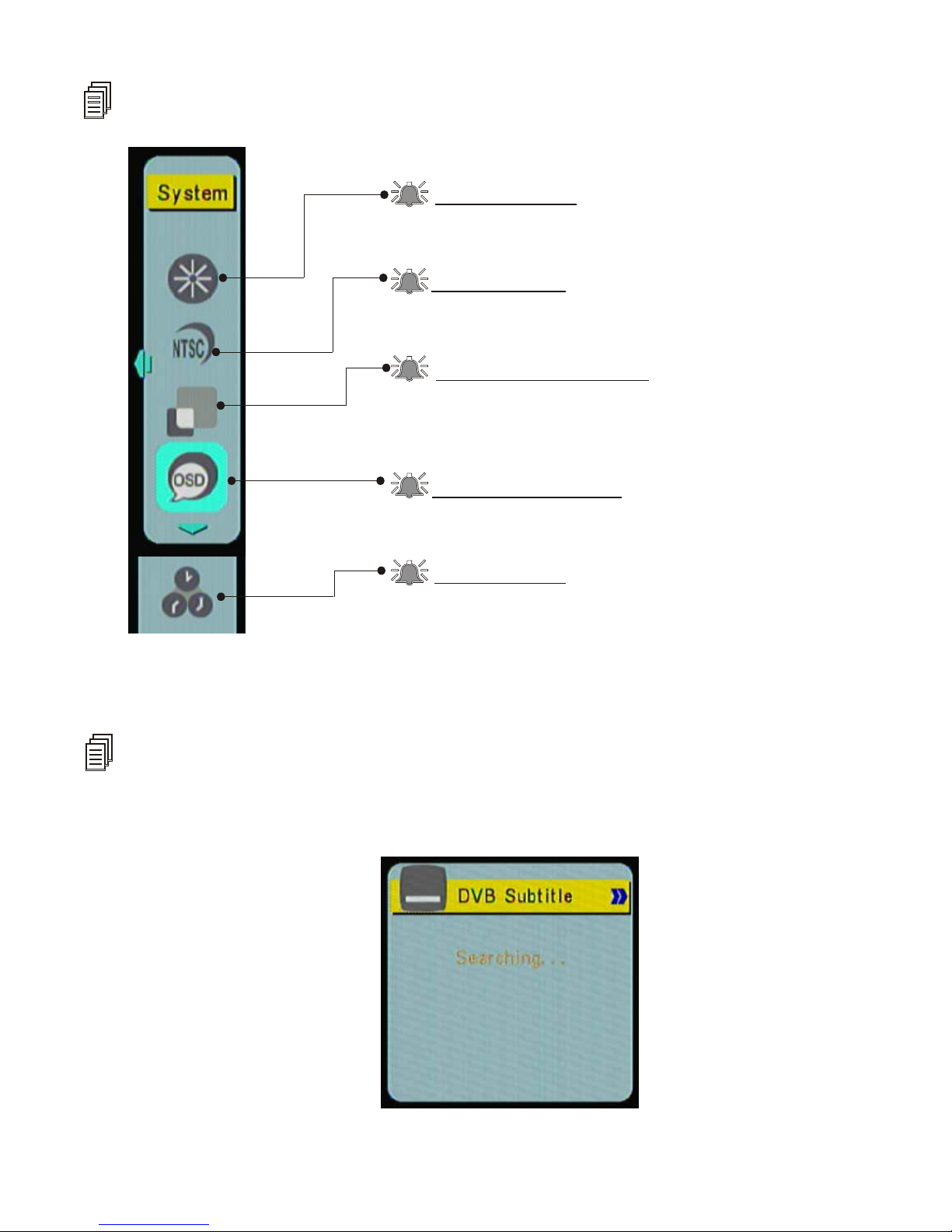

SYSTEM PAGE
SUBTITLE
If the system operator provides multi-language subtitle. You can
use [CH+] button and [CH-] button to select language and press
[OK] button.
- 13 -
Brightness
Regional Setting
OSD Language
Time Zone
TV System
To adjust the brightness of the screen
To select the region where you are
located in
Selection of the OSD language
To set the time zone
To select the TV display format

- 14 -

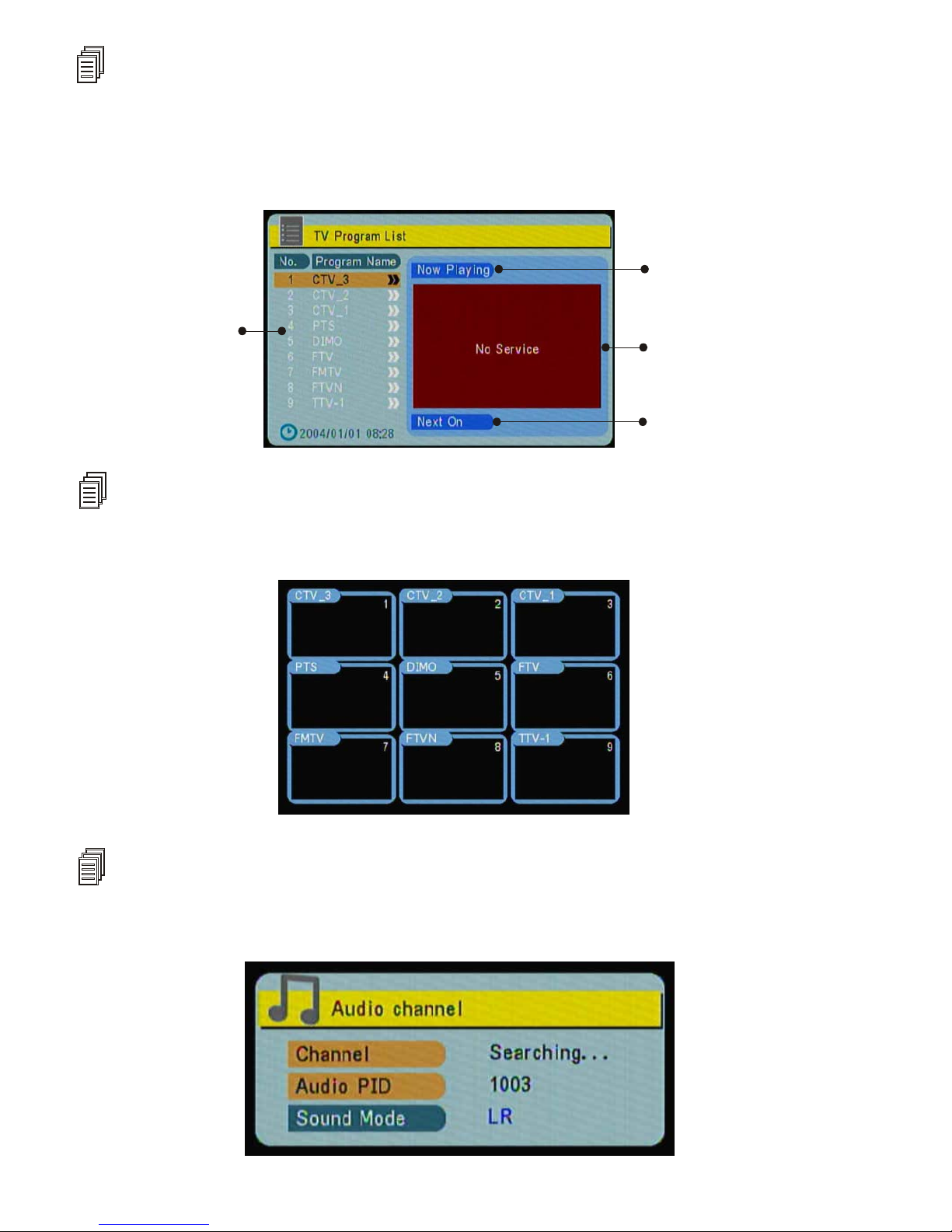

PROGRAM LIST (EPG, Electronic Program Guide)
PREVIEW
Program List
Current program
name
Next on program
name
TV scene
It shows the information of all of the available channels. You can
use [CH+] button and [CH-] button to choose any channel, while
[VOL-] button and [VOL+] button are the keys to show the details
of the channel.
Preview up to 9 selected channels.
AUDIO
Master/secondary language selection. You can use [VOL-] button
and [VOL+] button to select the language you like to listen.
