Albrecht DR 800-TV User manual

DR 800-TV
INSTRUCTION MANUAL
INSTRUCTION MANUALINSTRUCTION MANUAL
INSTRUCTION MANUAL
www.alan-electronics.de

2
1 Table of Contents
1 Table of Contents _________________________2
2 Introduction______________________________5
3 About the Product ________________________5
3.1 Product Description__________________________5
3.2 Product Features ____________________________5
3.3 Accessory List ______________________________6
4 Getting Started ___________________________7
4.1 Controls and Connectors _____________________7
4.1.1 Main Unit-Top _____________________________7
4.1.2 Location of Connectors on the Rear ____________7
4.1.3 Remote Control ____________________________8
5 Operation Instructions ____________________10
5.1 Start Menu_________________________________10
5.2 Connect to the Internet through Wi-Fi __________10
5.3 Internet TV ________________________________13
5.4 Internet Radio ______________________________14
5.5 SHOUTcast Internet Radio Program ____________15
5.6 Podcast ___________________________________16
5.7 Media Player _______________________________16
5.8 UPnP File Sharing – Play files from your PC _____19
5.9 Line-In ____________________________________22
5.10 Photo Viewer ______________________________23

3
5.11 Setting Time, Date, Calendar and Alarm ________24
5.12 FM Radio Setup ____________________________26
5.13 TV / LCD Output ____________________________27
6 Other Settings___________________________29
6.1 Language:_________________________________29
6.2 Network Setup:_____________________________29
6.2.1 Wi-Fi Setup:______________________________29
6.2.2 Network Type: ____________________________29
6.2.3 Network Status:___________________________29
6.3 Alarm: ____________________________________29
6.4 Key Tone Setting:___________________________29
6.5 Slideshow Setting: __________________________30
6.6 FM Setting: ________________________________30
6.6.1 Region Setting: ___________________________30
6.6.2 Auto Scan:_______________________________30
6.7 Screensaver Time: __________________________30
6.8 Time Zone: ________________________________30
6.9 Date & Time: _______________________________30
6.10 Firmware Update:___________________________30
6.11 Auto Power-Off: ____________________________31
6.12 Restore Default Factory Setting: ______________31
6.13 About: ____________________________________31
7 Troubleshooting Guide ___________________32
7.1 TV-Out: No Screen Display ___________________32

4
7.2 TV-Out: No Sound __________________________32
7.3 TV-Out: Black and White Screen ______________32
7.4 Remote control is not working ________________32
7.5 Cannot connect to Wi-Fi Network______________32
8 User Safety Guide________________________33
9 Specifications ___________________________34
10 Warranty and Recycling Information _______35
10.1 2-Year Warranty From Date Of Purchase________35
10.2 WEEE And Recycling________________________36
10.3 Service Address And Technical Hotline (for units
sold in Germany) _________________________________36

5
2 Introduction
Congratulations on your purchase of our product. The DR 800 will
allow you to enjoy TV channels, radio stations and podcast
throughout the world via Wi-Fi internet connection. Its TV-out
function will turn your home TV into an internet TV.
Please read this manual carefully before you start to use it. This
instruction manual contains the important information you will
need. Please keep this manual for future reference.
3 About the Product
3.1 Product Description
Bringing over thousands of worldwide Internet TV channels, radio
stations and podcasts throughout the world via Wi-Fi connection,
the DR 800 not only allow you to enjoy these on its 4.3” high
resolution LCD screen and built-in speaker/earphone, but also let
you take these to your big home TV screen. Moreover, it can play
video, music, and pictures from SD/MMC card. And, you can
stream video, music, pictures from your home or office PC to the
DR 800 by UPnP. It has multiple other features like FM Radio,
Picture Viewer and more… The powerful built-in speakers allow
you to listen to your music with depth and clarity.
3.2 Product Features
•Stream over 1000 TV channels and over 30000 radio stations
and podcasts throughout the world via Wi-Fi internet
connection.
•Support SHOUTcast, Podcast, Live Internet radio stations and
video broadcasting.
•Browse channels by regions, genres, languages, keyword

6
search, and my favorite’s lists
•Media player reads and plays videos, music and picture files
from local disk with built-in memory and SD/MMC card.
•Stream videos, music and pictures from your home or office
PC to the DR 800 by UPnP.
•TV-out function supports resolutions at 720 x 480 pixels.
•Support TV output in: CVBS and YPbPr.
•Support Wi-Fi in 3 protocols: Static IP, DHCP and PPoE.
•FM radio and dual alarm clock/calendar.
•Wake up to internet radio, FM radio, music or a buzzer.
•Auxiliary line input for any audio device with 3.5 mm jack.
•Easy operation with a remote control or Top Keys on unit.
3.3 Accessory List
•Main Unit
•Remote Control
•AC Adapter 5V/1A
•CVBS Cable
•Flexible FM antenna
•Instruction Manual

7
4 Getting Started
4.1 Controls and Connectors
4.1.1 Main Unit-Top
MENU: Press once to go back to the
previous directory or sub directory. Long
press for about 3 seconds to go to the
main menu.
POWER: Press to turn it ON/OFF.
UP/ VOL+: Scroll up or increase the volume
DOWN / VOL-: Scroll down or decrease the volume
LEFT: Short press to the previous track/menu, hold for fast
backward during media playing.
RIGHT: Short press to the next track/menu, hold for fast
forward during media playing.
ENTER: Press to confirm your selection. It can be used to
switch the screen display mode.
4.1.2 Location of Connectors on the Rear
•SD/MMC card Slot
•YPbPr output
•CVBS output
•Line-in (Audio)
•Earphones jack
•USB Mini 5P and DC Power jack
1 2 3 4 5 6

8
4.1.3 Remote Control
1. Power
2. Play In Order: Play video/music in order on playlist
3. Shuffle: Randomly select and play video/music on playlist
4. Repeat: Repeat playing the selected video/music on playlist
5. Mute
6. Fast Backward
7. Fast Forward
8. Jazz: Jazz mode
9. Pop: Pop mode
10. Previous: Go to the previous Track
11. Next: Go to the next Track
12. Bass: Bass mode
13. Normal: Back to default. No equalization

9
14. Menu: Go to the main menu
15. UP: Direction Key, Scroll up or Increase the volume (when
playing video/audio) or adjust FM Radio stations manually.
16. EXIT: Back or Return to the previous page/menu/track/
channel
17. Left Key: Direction Key and Return to the previous track/menu
18. Enter: Press to confirm your selection. It can be used to
switch the screen mode.
19. Right Key: Direction Key and Go to the next
page/menu/track/channel
20. Play/Pause
21. Down: Direction Key, Scroll down or Decrease the volume
(when playing video/audio) or adjust FM Radio stations
manually.
22. Stop
23. FULL SCREEN: Switch between the three screen display
modes.
24. FAV: Add to My Favourites list
25. DEL: Delete
26. PAGE-: Go to previous page
27. PAGE+: Go to next page
28. VOL-: Decrease the volume
29. VOL+: Increase the volume
30. I-TV: Internet TV shortcut key
31. I-RADIO: Internet Radio shortcut key
32. LCD/TV: Switch LCD/TV

10
5 Operation Instructions
5.1 Start Menu
After connecting the main unit to a power outlet, press the
POWER button on the unit or on the remote control to turn the
unit on. Then the start-up screen will show up and after that you
can see the main menu as below. For the navigation please use
the UP/DOWN/LEFT/RIGHT buttons and select the options.
Press ENTER to go to the menu you want.
5.2 Connect to the Internet through Wi-Fi
To use all the feature of the DR 800 you need a router with
internet access and a wireless network.
1: Select Settings > Network Setting > Wi-Fi Setup > Auto Search.
(The ‘>’ indicates selecting the option which leads to further
menus.) The Auto Search system will automatically search all
available wireless networks within reach. Once the available
networks are found, these will be listed as below for your
selection.

11
2: There are two types of network:
•Encrypted network: Shows a “lock” icon and a password is
required for accessing the network.
•Unencrypted network: There is no “lock” icon and a password
is not required for connecting.
Use the remote control to select a particular network and press
ENTER to connect. The radio will automatically start to connect if
an unencrypted network is selected. If a WPA/WPA2 encrypted
network is selected, you will be brought to another screen to enter
the password (assigned by the administrator of the network). If a
WEP encrypted network you will be asked if your network is using
Open System or the Shared Key Authentication before you have
to enter the password. Normally Open System is used. Press
UP/DOWN/LEFT/RIGHT, and ENTER on the remote control or
the main unit to enter the password. To confirm the password and
connect to the network please select OK.

12
If the radio is successfully connected to the selected network, a
notification will show “Wi-Fi Connected Successfully”; otherwise
“Wi-Fi password Invalid” will appear. Please re-enter the correct
password. If “Wi-Fi Connection time out” shows up, please try
again to connect.
Remark: This item supports 3 protocols: Static IP, DHCP and
PPoE. DHCP is the default protocol to be used by the system
automatically. Please check the network setting and review which
protocol is being set – you will need to manually connect the unit
to the network if Static IP or PPoE is in use.
When your product is connected to internet and there is a newer
Firmware available, the DR 800 will detect it automatically and
show up this message on screen as a reminder: A new version of
firmware is available. Would you like to update it now? Yes (Enter)
or No (Exit). If you click ENTER, the product will start to download
and upgrade automatically.

13
5.3 Internet TV
When you select the Internet TV menu, the DR 800 connects to
the Internet portal and provides a list of TV channels, organized
into different categories such as Region, Genres, and Languages.
Press UP/DOWN/LEFT/RIGHT, and ENTER on the remote
control or the main unit to choose different categories/channels.
•Countries & Regions: Sort by Countries & Regions
•Genres: Sort by Drama, Movie, Music, Sport, Animation…
•Languages: Sort by broadcasting languages
•Search: Enter keywords to search
•My Favourites: Press FAV on the remote control to store a
playing station under “My Favourites”

14
This image shows an Internet TV station being played:
You can switch the program to different screen modes: Full
screen, default and 4:3 by
1. Pressing ENTER on the main unit
2. Pressing ENTER or FULL SCREEN on the remote control
Other instructions:
UP/DOWN or VOL+/VOL-: Adjust the volume +/-
LEFT/RIGHT: Go to the next/previous channel
STOP/EXIT: Exit from the current playing channel and go back to
Internet TV Menu

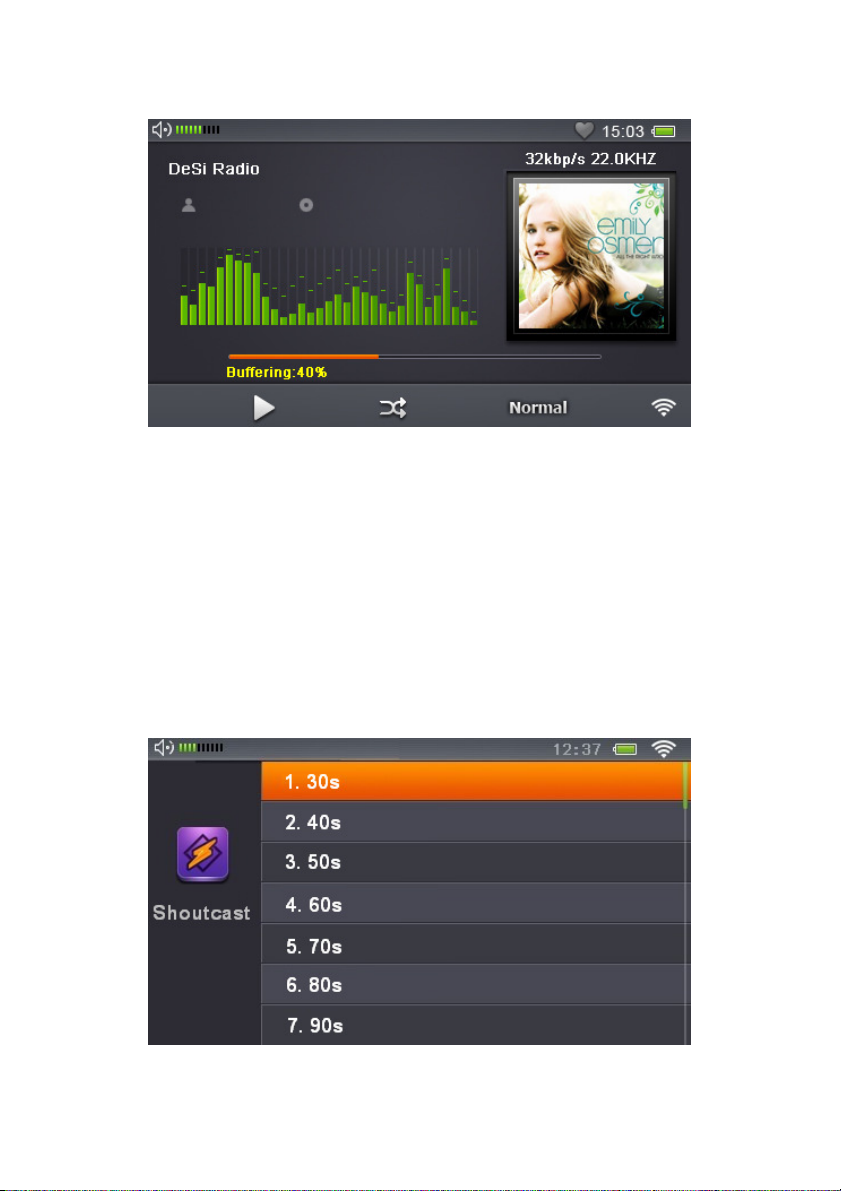

5.4 Internet Radio
When you select Internet Radio mode, the DR 800 connects to
the Internet portal and provides a list of Radio stations, organized
into different categories such as Location, Genres, and
Languages. Press UP/DOWN/LEFT/RIGHT, and ENTER on the
remote control or the main unit to choose different stations. The
operation works like in the Internet TV mode.

15
The image shows an Internet Radio station being played:
5.5 SHOUTcast Internet Radio Program
The SHOUTcast Internet Radio Program offers thousands of
Internet Radio Stations through the internet. The programs and
playing lists are continuously updated and refreshed. Press
UP/DOWN/LEFT/RIGHT, and ENTER on the remote control or
the main unit to choose different stations.

16
5.6 Podcast
Podcasts are audio programs such as series which are mostly
updated regularly with new episodes. You can listen to the
programs stored by the publishers and sort by Genres, Search
and add to my favourites. Press UP/DOWN/LEFT/RIGHT, and
ENTER on the remote control or the main unit to choose different
stations. Please refer to Internet TV mode instruction.
5.7 Media Player
1) Playing Video/Music/Picture Files from Local Disk (Built-in
Memory)
This unit comes with a built-in memory. You
can exchange the data between this unit and
other sources via USB cable. If you are using
it for the first time, please format the disk by
the following procedures:
1. Connect the main unit and PC via USB
cable.
2. Turn on the DR 800 and it will be

17
recognized by the PC. Double click on the icon and a pop up
window will ask you if you want to format the disk. (ONLY for
the first time of use)
3. Press YES to format the disk and a window as shown on the
left will pop up:
Capacity: Currently Available built-in memory
File System: FAT32 (Recommended), FAT, exFAT
Allocation Unit Size: Choose “Default allocation unit”
Volume Label: Use to label the drive (optional)
Quick Format: Recommend to use
Press Start to format. This will take a bit of time.
Once it’s completed, a pop up window will indicate “Format
complete”. Then DR 800 is ready for the data transfer between
the PC and the device. You can now copy files from your harddisk
to the DR 800. These files can be played with the Media Player.
To start this one please follow the next steps.
4. Go to Main Menu > Media Player > Disk (As the figure below)
Press ENTER to select Local Disk and then three folders are

18
shown: Video, Music and Picture.
Press UP/DOWN/LEFT/RIGHT on the remote control or the main
unit to select the category you want. Here is an example to show
the Music playing list.
Press UP/DOWN to select the songs and press ENTER to play.
Other instructions:
LEFT/RIGHT: Select the next and previous song, hold for
backward/forward.
VOL-/VOL+: Adjust the volume

19
EXIT: Exit from the current Music playing Mode. Once it’s
selected, a warning –“Turn Off
Music” pops up. Press YES to exit and stop playing music or NO
to exit and leave music on as background music.
STOP: Quit music playing mode including background music.
2) Playing Video/Music/Picture Files from a SD Card
Insert the SD card into the SD card slot at the rear of the main
unit.
Go to Main Menu > Media Player > SD Card to play stored
Video/Music/Picture files.
5.8 UPnP File Sharing – Play files from your PC
Universal Plug and Play (UPnP) allows you to stream videos,
music and pictures from your PC. This is done with an UPnP
Server in your local network. There are several possibilities to
setup an UPnP server. First of all there are several programs
which turn your PC into an UPnP server. Just search the internet
for “UPnP Media Server”. Another possibility is the usage of a
NAS (network attached storage) harddisk, some of them can act
as an UPnP server too. But naturally the operation of the
programs differs. As an example we will use the Windows Media
player. The following steps tell you how to setup your PC to work
as an UPnP server with the Windows Media Player.
1. Open the Windows Media Player and make sure it is
update-to-date (Version 11 is recommended).
2. Click “Library” on the top menu, and choose “Media Sharing”.

20
3. Select the “InternetRadio” icon and click the “Allow” button to
activate the sharing function. Press “OK” to confirm the settings.
4. Go to Library > Add to Library and then Select “My folders and
those of others that I can access”. Click “Advanced Options” to
choose the sharing folders.
