Chapter 1 About This Guide
This installation guide contains the step by step instructions that you need to follow in order to correctly install, unin-
stall and replace the AIC Analog Modem cards in the OA58XX router family.
1.1 Devices
The information contained in this installation guide only applies to the AIC Analog Modem expansion cards.
1.2 Warnings and notes
Observe the warnings and instructions given in this manual to avoid and prevent injuries or damage during installa-
tion and maintenance. Please follow the security procedures and guidelines when working near electrical equipment.
The warnings and notes are provided in each chapter as appropriate.
1.3 Who should read this manual?
This manual should be read by installers and network administrators who need to install, configure or maintain net-
works. This guide assumes that the installer is familiar with network electronics and technologies.
1.4 What is in this manual?
This installation guide contains the following information:
• A description of the general characteristics of the AIC Analog Modem expansion cards.
• A description of the steps to carry out to install the AIC Analog Modem cards in OA58XX routers.
• A description of the AIC expansion card LEDs and the pinouts for their connectors.
1.5 How is the information organized?
This document aims to provide all the information necessary for installing the AIC Analog Modem cards in the
OA58XX router family.
• AIC Analog Modem cards characteristics.
• AIC Analog Modem cards connectors.
• Requirements prior to installation.
• Installing the AIC Analog Modem cards.
1.6 Technical Support
Alcatel-Lucent Enterprise technical support is committed to resolving our customer’s technical issues in a timely
manner. Customers with inquiries should contact us at:
Contact information:
North America 800-995-2696
Latin America 877-919-9526
EMEA [phone] (Toll Free) or [phone]
Asia Pacific [phone]
Web: service.esd.alcatel-lucent.com
Alcatel-Lucent Enterprise 1 About This Guide
AIC Analog Modem Expansion card 1

Email: esd.suppor[email protected]
1.7 Related documentation
ALU-DM693-I OA58XX Installation
ALU-Dm605-I Installation of AIC expansion card for the OA58XX .
The manufacturer reserves the right to make changes and improvements to the appropriate features in both
the software and hardware of this product, modifying the specifications of this manual without prior notice.
The images presented on the front and back panels of the devices are provided as information guidelines
only. Some small modifications may exist in the actual device.
1 About This Guide Alcatel-Lucent Enterprise
2 AIC Analog Modem Expansion card

Chapter 2 AIC Analog Modem Expansion Cards
This manual focuses on the 2-port AIC Analog Modem card.
Analog modems are characterized by their ability to convert digital signals to analog telephone signals and vice
versa. In this way the transmission and reception of data over a standard telephone line is possible.

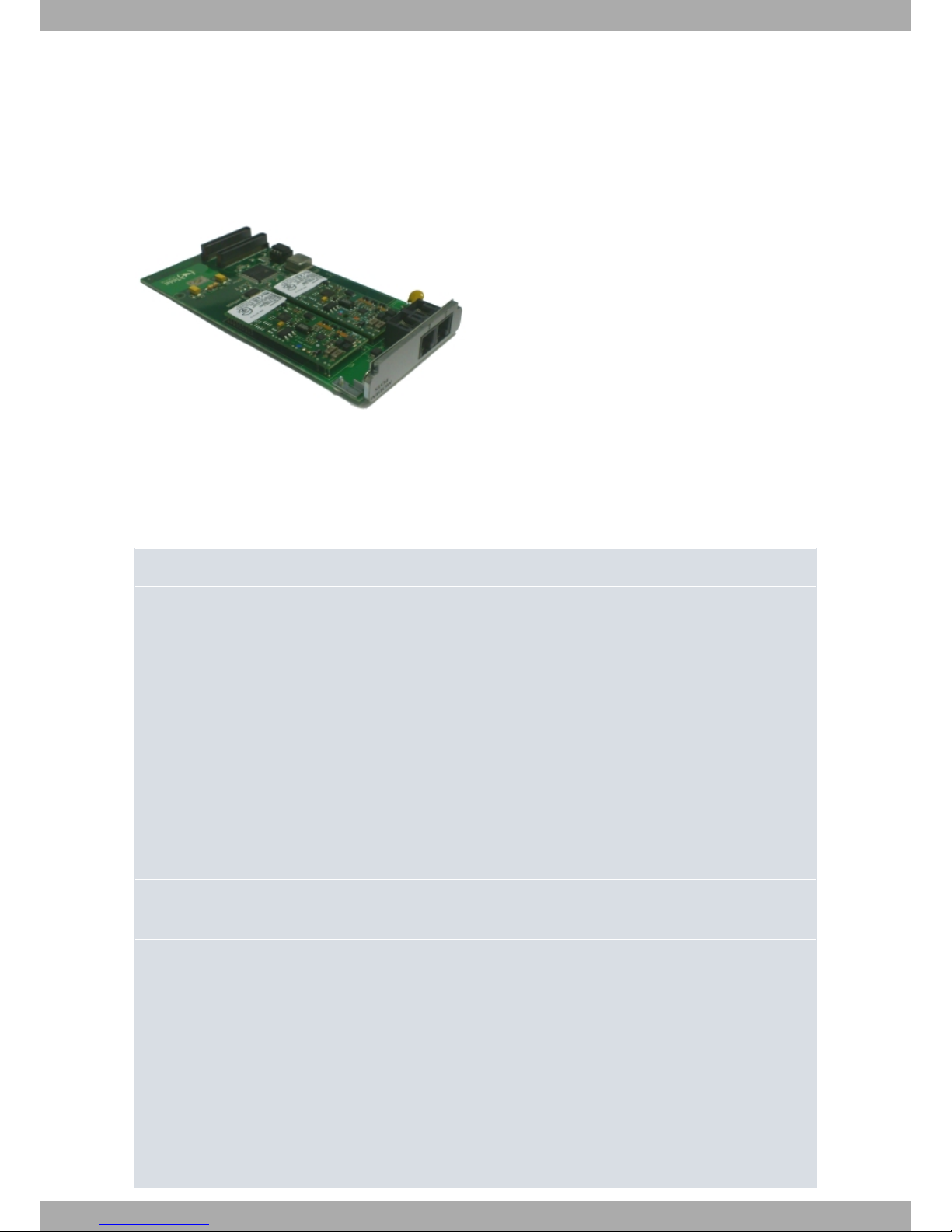

Fig. 1: AIC 2 Analog Modem Card
2.1 AIC 2 Analog Modem expansion card: Characteristics
The main characteristics of the AIC 2 Analog Modem expansion card are as follows:
AIC 2 Analog Modem Cards: Characteristics
Ports 2 RJ-11 analog modem ports
Data Standards ITU-T
• V.92
• V.90
• V.34
• V.32bis
• V.32
• V.22bis
• V.22
• V.23
• Bell 212A & Bell 103
* Depending on the model
Types of dialing • Pulses
• Tones
Error correction protocols V.42 designs error correction with the LAP-M and MNP protocols:
• LAP-M (“Link Access Procedure for Modems”)
• MNP 2-4 (“Microcom Networking Protocol”)
Data compression • V.42bis
• MNP 5
Fax Standards ITU-T
• V.17
• V.29
Alcatel-Lucent Enterprise 2 AIC Analog Modem Expansion Cards
AIC Analog Modem Expansion card 3

• V.27ter
• V.21 ch.2 (Class 1 and 1.0 Commands)
Speed 56 Kbps per port
Other Characteristics • DTMF (“Dual-Tone Multi-Frequency”) – Dialing through tones
• “Caller ID” call and detection together
• Configures the number of times this rings before hook off
• Configures the tone duration and the wait time
2.2 AIC 2 Analog Modem expansion card: Connectors
Figure 2 shows the front board of the AIC 2 Analog Modem card:
Fig. 2: Front of the AIC 2 Analog Modem Card
The front board elements are as follows:
Elements Table for the Front of the AIC 2 Analog Modem card
Item Description
A, B 1, 2. RJ-11 connector.
2 AIC Analog Modem Expansion Cards Alcatel-Lucent Enterprise
4 AIC Analog Modem Expansion card

Chapter 3 Installing the AIC 2 Analog Modem expansion
card
This chapter provides information on how to install and uninstall the AIC 2 Analog Modem expansion cards in
OA58XX routers.
This information includes:
• Requirements prior to installation.
• Installing or replacing a AIC 2 Analog Modem expansion card.
3.1 Requirements prior to installation
In order to configure the card, you must have access to the OA58XX routers through a console or a Telnet connec-
tion. For further information, please see the section on “Connecting for configuration” found in the ALU-DM693-I
OA58XX Installation.
3.2 Installing or replacing the AIC 2 Analog Modem expansion card
To install or replace a AIC 2 Analog Modem card, please see the AIC cards installation generic manual correspond-
ing to the OA58XX router model where the installation is being carried out.
Alcatel-Lucent Enterprise 3 Installing the AIC 2 Analog Modem expansion card
AIC Analog Modem Expansion card 5

Chapter 4 LEDs and connector Pinouts: Description
This chapter provides information on the AIC 2 Analog Modem expansion card LEDs and the pinouts for its connect-
or.
4.1 AIC 2 Analog Modem expansion card: LEDs
The AIC 2 Analog Modem expansion card doesn’t have any LEDs of its own.
4.2 Connector Pinouts
The AIC 2 Analog Modem card has 2 RJ-11connectors:
4.2.1 RJ-11 Connector

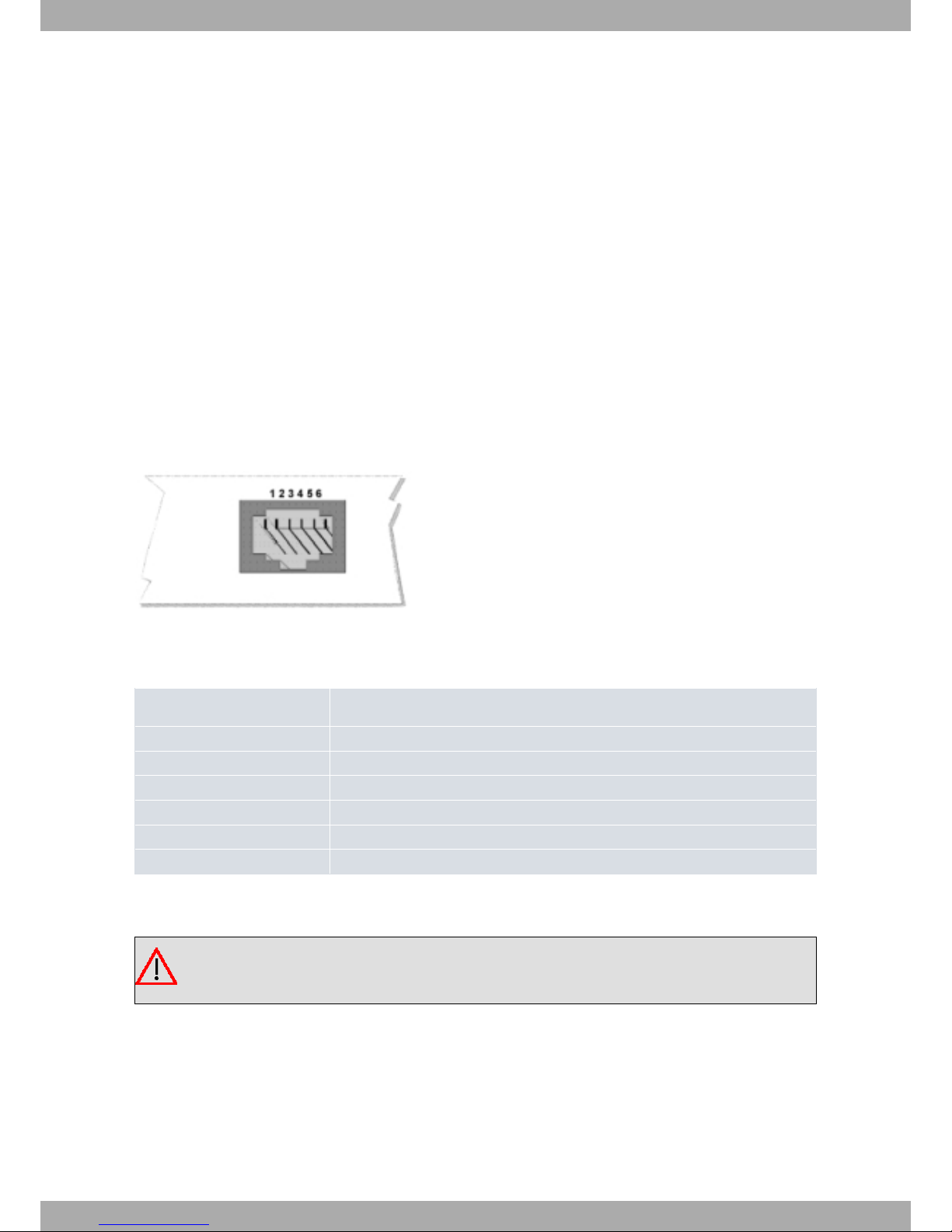

Figure 3 shows the RJ-11 connector pinouts. The two connectors are the same, consequently only one image is
shown:
Fig. 3: RJ-11 connector Pinouts
Table 3 shows the information associated to each connector pinout:
RJ-11 connector Pinouts
RJ-11 pinouts Signal
1 --
2 --
3 TIP
4 RING
5 --
6 --
We recommend that you use a 26 AWG cable, at the very least. This may be supplied with the card itself or be de-
scribed in the safety instructions.
Warning
To reduce the risk of fire, only use a 26 AWG cable or a cable with a larger diameter.
