Alcatel Home V102 User manual

1
HOME V102/V102
QUICK GUIDE
About more help information and Frequently Asked Question
please browse the website www.alcatelonetouch.com
CJA18K001AAA

2
Contents
1. YOUR DEVIDE...............................................3
What’s in the box ....................................3
Appearance illustration ...........................3
Installation...............................................4
2. QUICK START TO MIRROR错误！未定义书签。
3. UPGRADE....................... 错误！未定义书签。
4. SAFETYAND USE.......................................10
PROTECT YOUR HEARING
To prevent possible hearing damage, do not
listen at high volume levels for long periods.
Exercise caution when holding your device
near your ear while the loud speaker is in use.

3
1. YOUR DEVIDE
What’s in the box
Appearance illustration
A Indicator LED
The LED will light when V101 starts up.
B
Micro USB Port
Connect V101 to USB port of TV or
charger(5V, 1A) using an USB cable
C
HDMI Port
Connect V101 to the HDMI port of TV
using an HDMI cable
D
Key
Press the key when you need to debug
V101 after connected with PC

4
Installation
Connect HDMI Cable:
a)Connect one end of the HDMI cable to the
back/side of your TV;
b)Connect the other end of the cable to HDMI
port on the back of V101;
Connect USB Cable:
a)Connect one end standard USB port of the
USB cable to the back/side of your TV;
b)Connect the Micro USB port of the USB cable
to Micro port on the back of V101.
Install TV Link tool
a)Download TV Link tool from our web site
http://support.alcatelonetouch.com;
b)Copy TV Link tool to your mobile device then
install it;
c)Open TV Link tool on your mobile device;

5

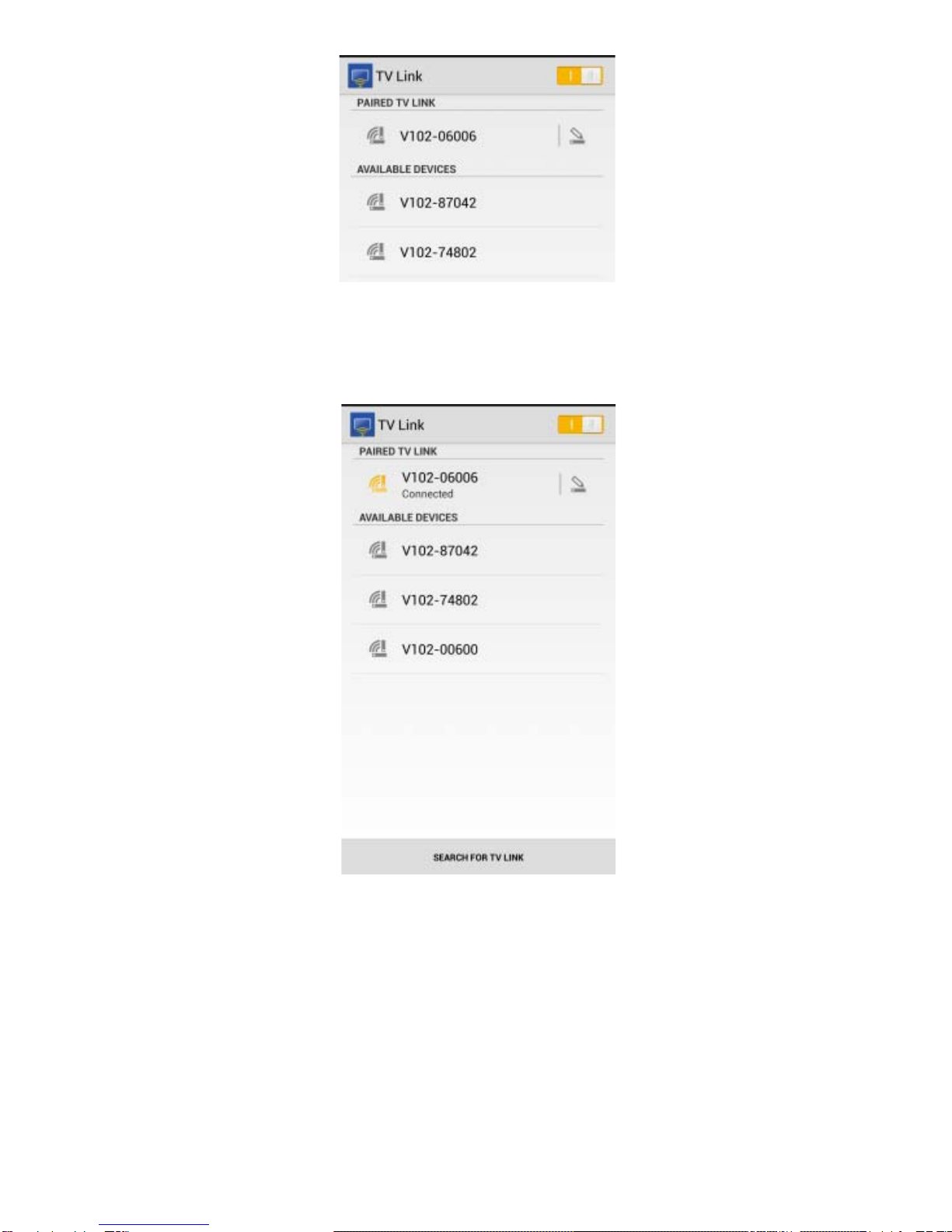

d)To play Miracast, please click “Miracast” button,
then you will see the available V102 devices on
the list. If you’ve ever connected with one device
successfully, the device will be shown on the
paired list. Select the device which also shown on
the monitor, and start connecting.

6
When the device shows “connected”, the miracast
connection is successful.

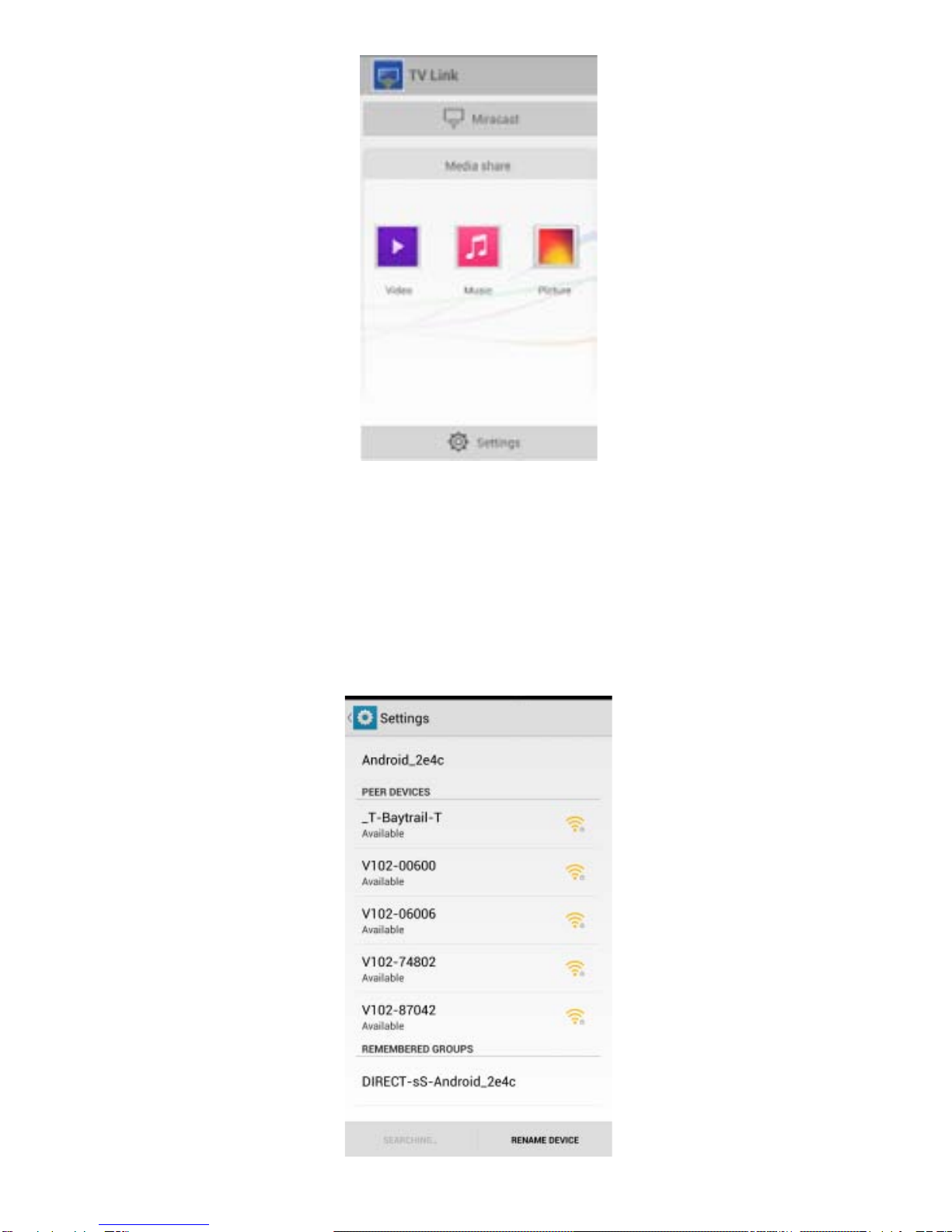

e) To play the media share, please select the
media content you would like to share. If the
device is not connected, the settings menu will
pop up and ask you to make the connection.

7
f) Please select the available device that show on
your monitor.
g) If you can’t find the device V102, you may click
the “SEARCHING”and wait for seconds.
h) If you would like to have your own name of the
device, you can click the RENAME DEVICE
button.

8
i) Back to Settings menu
①Access Point:
②Upgrade: FW upgrade
③Remote OSD: To remote control the OSD of
display
④Language: To select the language that user
would like to use.
⑤Information: Product and Software information
j) When you would like to upgrade firmware,
please download the firmware from webpage:
___________________________ , and then
save the file in your mobile device.
k) Click the Upgrade in the Settings menu and
select FW in the file manager.
①
②
③
④
⑤

9

10

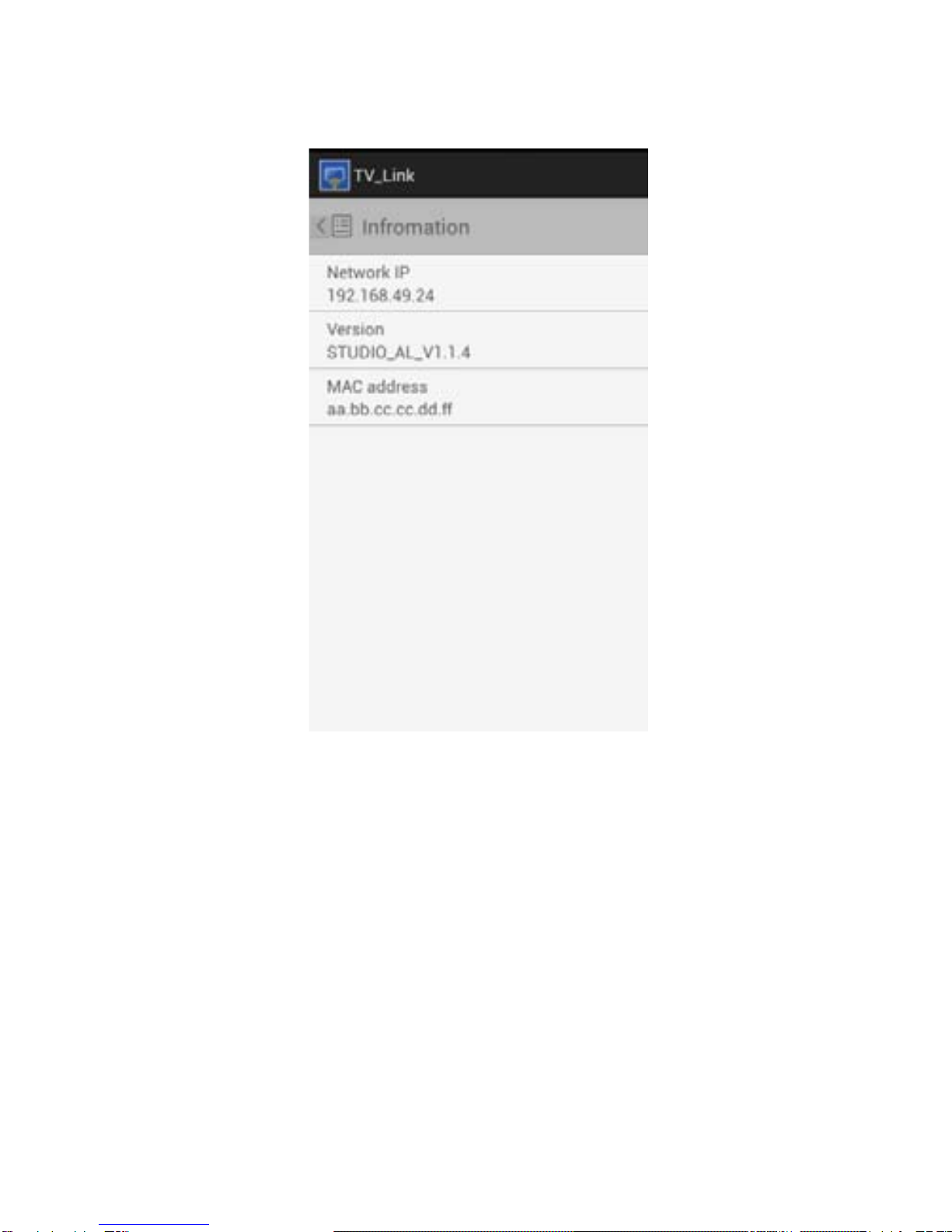

You can find the Network and software information
on the Information page.
2. SAFETYAND USE
We recommend that you read this chapter
carefully before using the Wi-Fi display Dongle.
The manufacturer disclaims any liability for
damage, which may result as a consequence of
improper use of the Wi-Fi display Dongle or of
use contrary to the instructions contained herein.
Traffic Safety
