Alcor SENTINELplus Installation guide

ENTERAL FEEDING SYSTEMS FROM
User Training Packet
1

THIS PAGE INTENTIONALLY
LEFT BLANK

Table of Contents
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 12
Page 13
Page 14
Page 15
Page 15
1. SENTINELplus® Advanced Technology..........................................
a. Features
b. Ordering Information
c. Specifications
2. SENTINELplus® Administration Sets.............................................
a. Features
b. Ordering Information
3. Front and Rear Housing Locations...............................................
4. Installing The Set.........................................................................
5. Priming The Set...........................................................................
6. Programming The Pump..............................................................
7. Alarms and Indicators..................................................................
8. Troubleshooting Guide................................................................
9. Proficiency Test...........................................................................
10.Frequently Asked Questions........................................................
11.Technical Support........................................................................
12.Quick Reference.......................................................................... Page 16
3

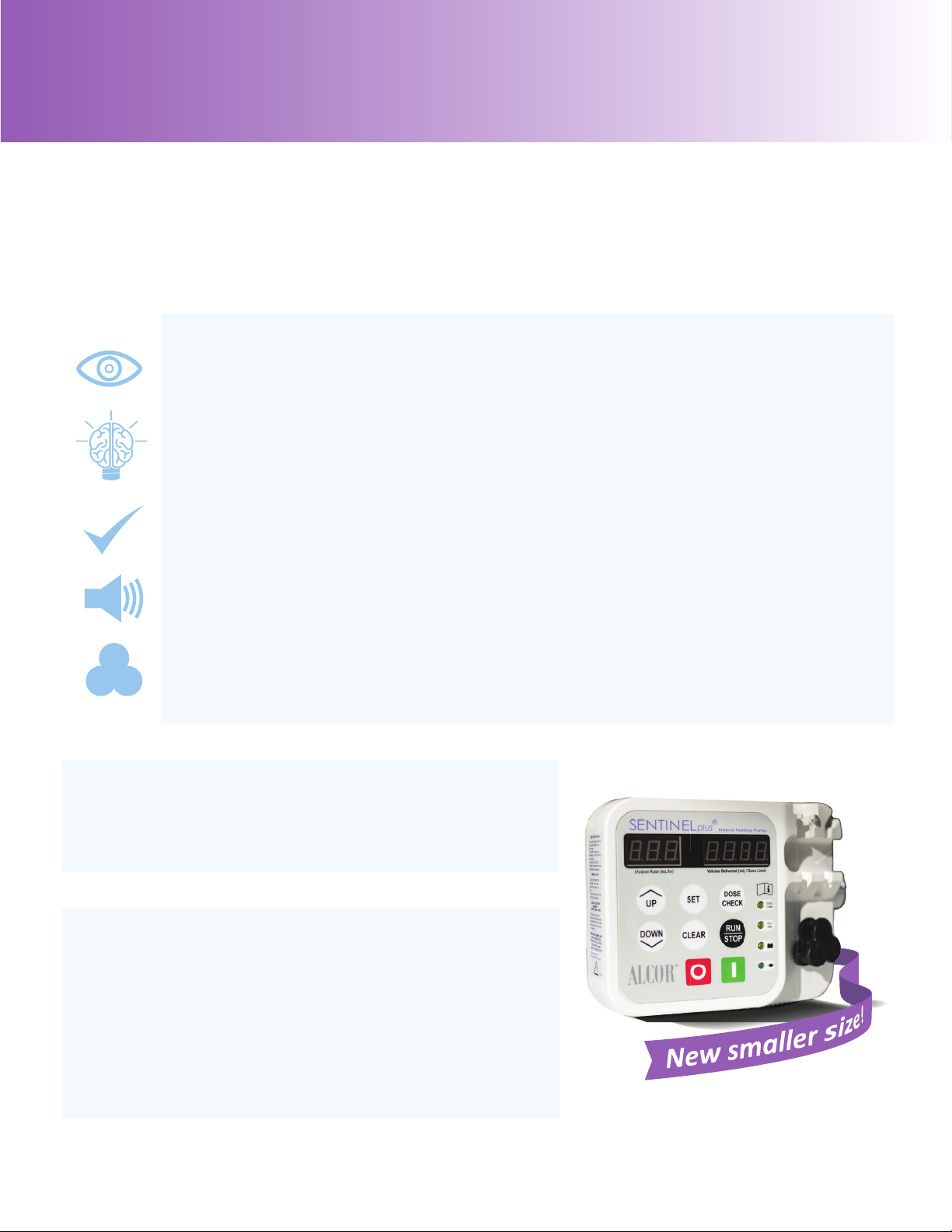

SENTINELplus® Advanced Technology
The SENTINELplus® Enteral Feeding Pump is an improved version of our popular
SENTINEL® product. The lighter, more compact design brings the same simplicity
and reliability of its predecessor.
DUAL DISPLAY
The bright LED display allows caregivers to simultaneously and
conveniently view the infusion rate and volume delivered from a distance.
ADVANCED MEMORY
The pump operating history is retained until manually erased, even in the
event of power failure or when pump is powered down.
DOSE CHECK
A record is kept of the accumulated amount of formula delivered over
multiple feedings.
SIMPLE ALARMS
Audible and visual alarms are easily differentiated.
CLOVER-SHAPED ROTOR
The unique clover-shaped rotor allows for easy visual recognition of pump
operation from a reasonable distance.
ORDER INFORMATION
SPECIFICATIONS
Mechanism
Operating Range
Dose Limit
Dose Accuracy
Occlusion Pressure
Battery
Dimensions
Weight
Power Options
Rotary Peristaltic
5-295 mL/hour in 1 mL increments
1-2000 mL in 1 mL increments
2000-9999 in 5 mL increments
± 10% of selected flow rate with ALCOR sets
Does not exceed 15 psi
Battery backup 6 hours minimum at 125 mL/hr
15cm H x 20cm W x 9cm D
1.42kg
All country-specific connectors available
Cat. Packaging
S-3000-IU 1 each
Description
SENTINELplus®, Enteral Feeding Pump
4

SENTINELplus® Administration Sets
The SENTINELplus® Enteral Administration Sets come in a variety of sizes and configurations
to meet both patient and clinical safety needs. ENFit® is available for those ready to make the
switch in an effort to reduce of the risk of tubing mis-connections and improve patient safety.

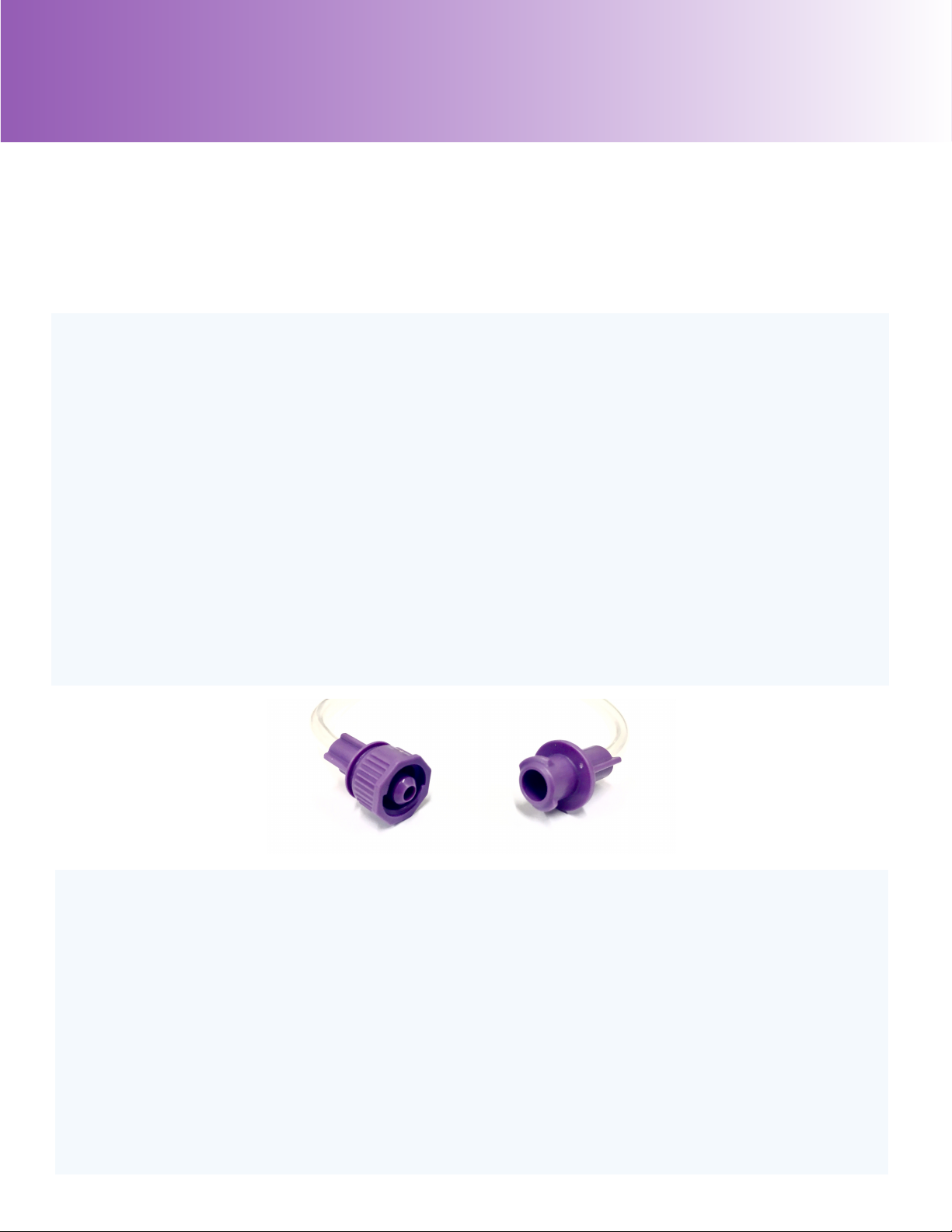

ENFit® CONNECTORS
ENFit® connections prevent the incidence of enteral device tubing mis-connections.
The locking feature permits connectivity with only enteral specific connectors.
PURPLE CAP AND DISTAL TIP
The purple pump set components allow visual recognition of enteral products.
EASY INSTALLATION
Enteral pumps sets are easily loaded onto the pump.
VARIOUS PRODUCTS
Different enteral feeding sets such as bag, gravity, and spike sets. Products range in size
and function to meet the varying needs of the patient or end-user.
24 HOUR SINGLE USE
Single use, 24 hour hang time validation for each product, provides consistent delivery
and reduces potential contamination.
ORDER INFORMATION
Cat. Packaging
E-0500SP 30 per case
E-1004SP 30 per case
E-1200SP 30 per case
30 per case
30 per case
30 per case
30 per case
E-1203SP
EN-0500SP
EN-1004SP
EN-1200SP
EN-1203SP 30 per case
*Sterile and DEHP free and avliable
Description
Enteral Feeding Pump Bag Set, 500ml, NS
Enteral Feeding Pump Spike Set, NS
Enteral Feeding Pump Bag Set, 1200ml, NS
Enteral Feeding Gravity Set, 1200ml, NS
Enteral Feeding Pump Bag Set, 500ml, ENFit®, NS
Enteral Feeding Pump Spike Set, ENFit®, NS
Enteral Feeding Pump Bag Set, 1200ml, ENFit®, NS
Enteral Feeding Gravity Set, 1200ml, ENFit®, NS
5

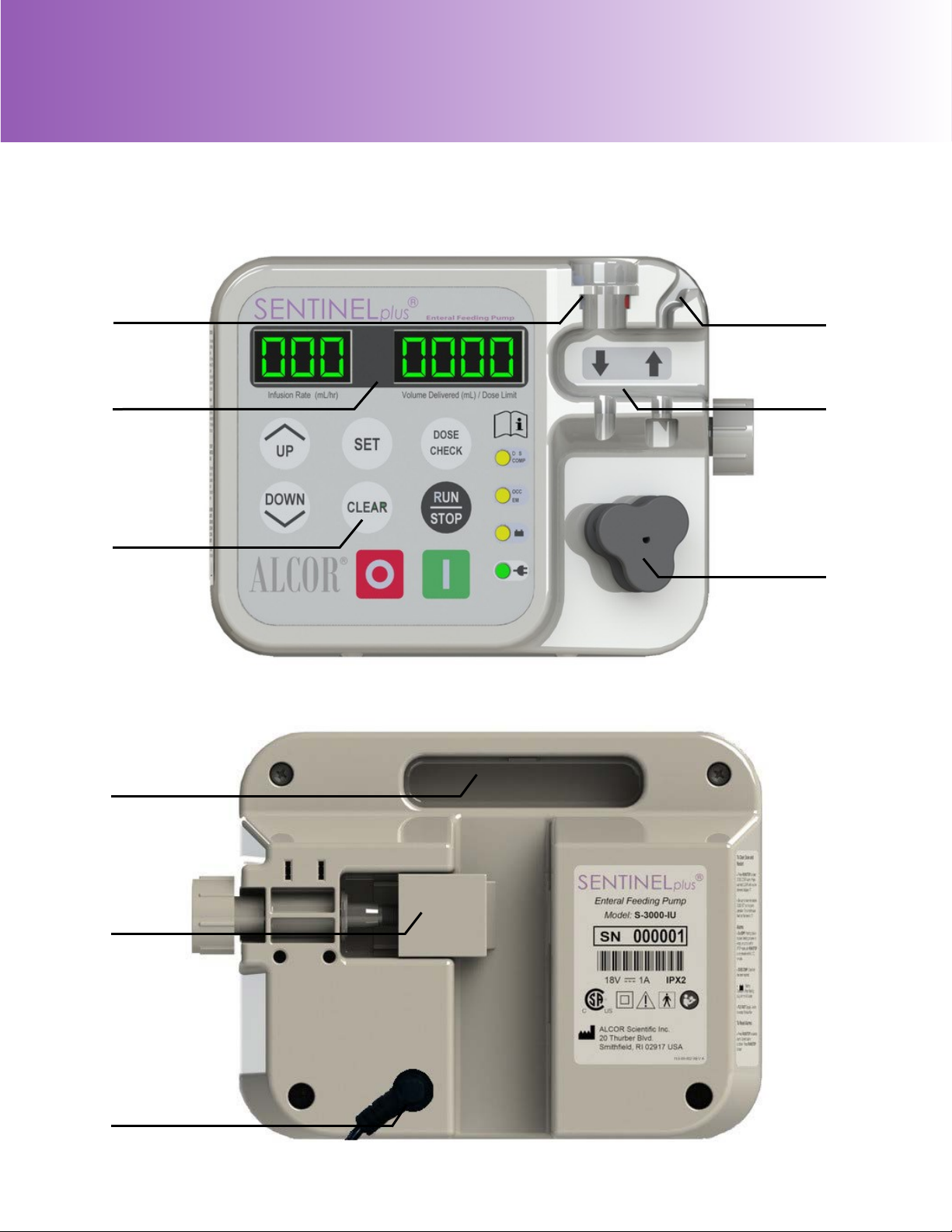

Displays
Control
Panel
Tube
Hook
Drip
Chamber
Bracket
Rotor
Carry
Handle
Pole
Clamp
DC Power
Input
Front and Rear Components
6
Molded
Secured
Drip Sensor

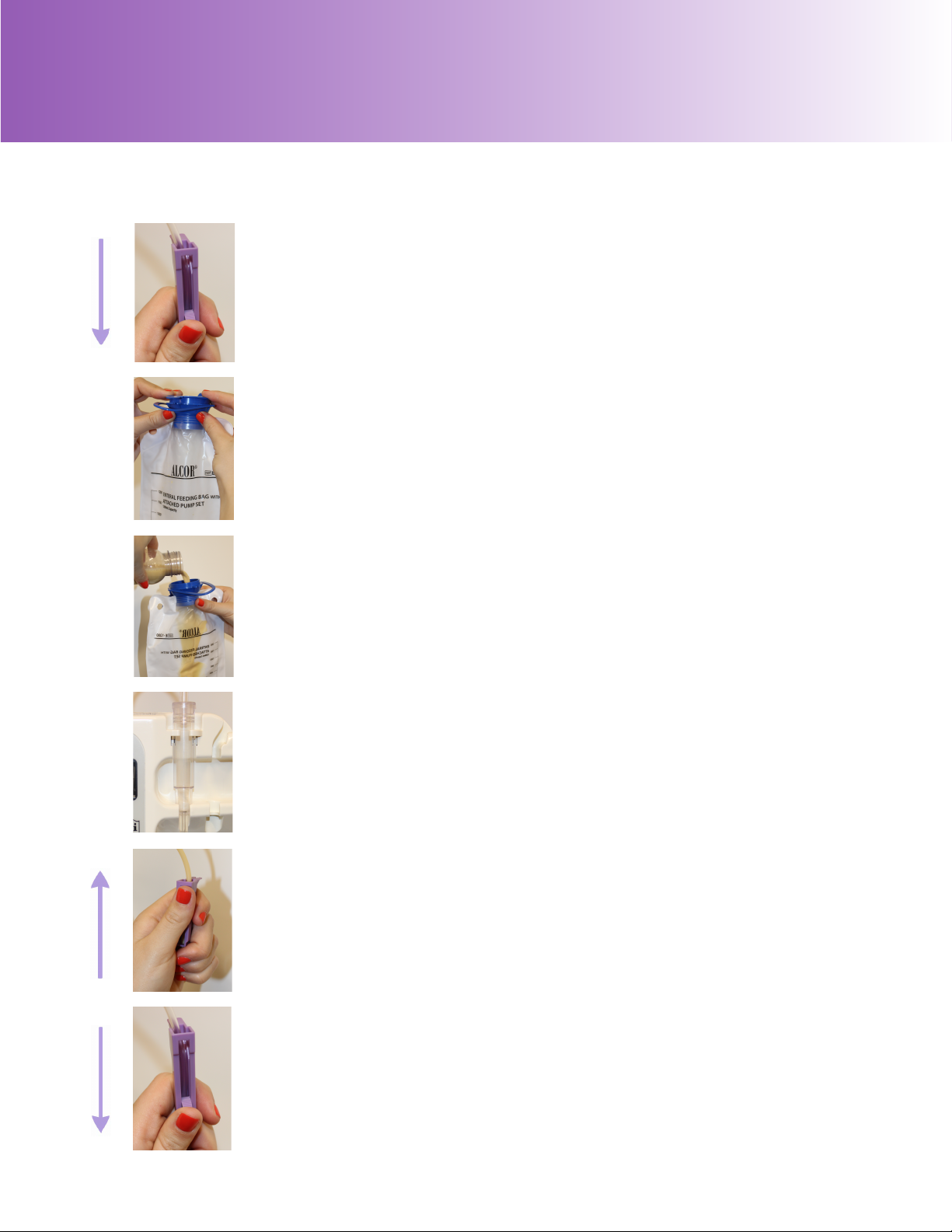

Priming The Set
•Open the package, remove administration set from pouch.
•Close roller clamp on set.
•Fill feeding container with desired formula.
•Close and secure cap around entire perimeter.
•Hang feeding container higher than patient's head.
•Insert drip chamber into enteral pump drip
chamber bracket.
•Open roller clamp and prime tubing line
with formula to end of distal tip.
•Close roller clamp to stop the flow of fluid.
7

Installing The Set
•Drip chamber should already be inserted
into drip chamber bracket.
•Route silicone tubing under pump rotor.
•Insert silicone tubing connector into seat
adapter.
•Insert tubing into molded tube hook.
•Connect the distal tip connector to enteral
feeding tube.
•Open roller clamp and program the pump.
8

•The infusion rate is retained in memory.
Note If UP or DOWN is pressed without stopping the pump, an alarm
will sound and the pump will continue running and there will be no change
in infusion rate.
SET INFUSION RATE
• Press UP or DOWN
SET DOSE LIMIT
•Press green ON button. Alarm sounds briefly and displays flash all 8's.
until desired infusion rate is displayed.
•To set dose limit, press SET , then press UP or DOWN until
desired dose is displayed.
Note If dose limit is not set (display = 0), the pump will run until container is
empty or pump is stopped.
•Open roller clamp, press RUN/STOP to begin feeding.

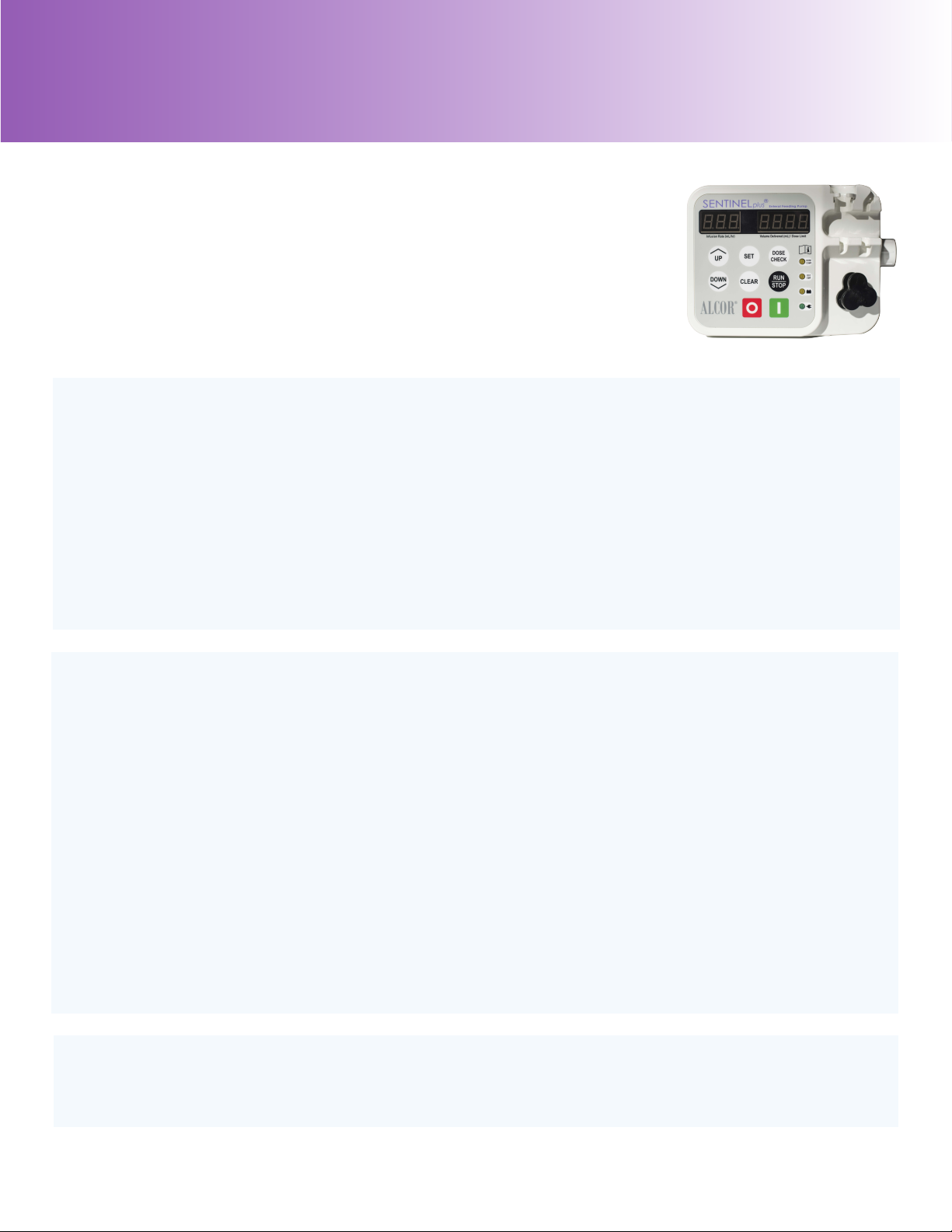

Programming The Pump
REFER TO OPERATION MANUAL FOR DETAILED INSTRUCTION
SEE ALSO DIRECTIONS FOR USE ON SIDE OF PUMP
TURNING PUMP ON
•To change infusion rate, press RUN/STOP to stop the pump.
•Press UP or DOWN to make necessary adjustment.
•Press RUN/STOP to resume.
BEGIN FEEDING
CHANGING THE INFUSION RATE
9

•To view the total accumulated volume delivered, press DOSE CHECK
Note If pressed while running, the pump will stop momentarily.
VIEWING TOTAL ACCUMULATED VOLUME
simultaneously to change bright or dim.
and DOWN •To lock/unlock keypad, while pumping, press/hold UP
simultaneously.
ADJUSTING DISPLAY BRIGHTNESS
• Press/hold UP and SET
LOCKING/UNLOCKING KEYPAD
•To turn the pump off at any time, press red OFF button.
TURNING PUMP OFF
10

•To clear pump settings, press RUN/STOP to stop the pump.
Note If CLEAR is pressed while the pump is operating, alarm will
sound and the pump will continue operation. Settings will remain unchanged.
CLEARING PUMP SETTINGS
Resetting Volume Delivered
Resetting Dose Limit
Resetting Total Accumulated Volume Delivered
Clearing Volume Delivered, Dose Limit, and Resetting Infusion rate to 5
•To reset Volume Delivered to 0 - Press and hold CLEAR until the
pump beeps once, pauses, beeps twice and the volume clears to 0.
•To reset Dose Limit to 0 - Press SET , then press and hold CLEAR
within 3 seconds. Pump will beep once, pause, beep twice, and display
clears to 0.
•To reset total accumulated volume delivered to 0 - Press DOSE CHECK ,
then press and hold CLEAR within 3 seconds. Pump will beep once,
pause, beep twice, and display clears to 0.
•To clear Volume Delivered, Dose Limit and reset Infusion Rate to 5 -Press and
hold CLEAR for 7 beeps total (approx. 10 seconds).
11

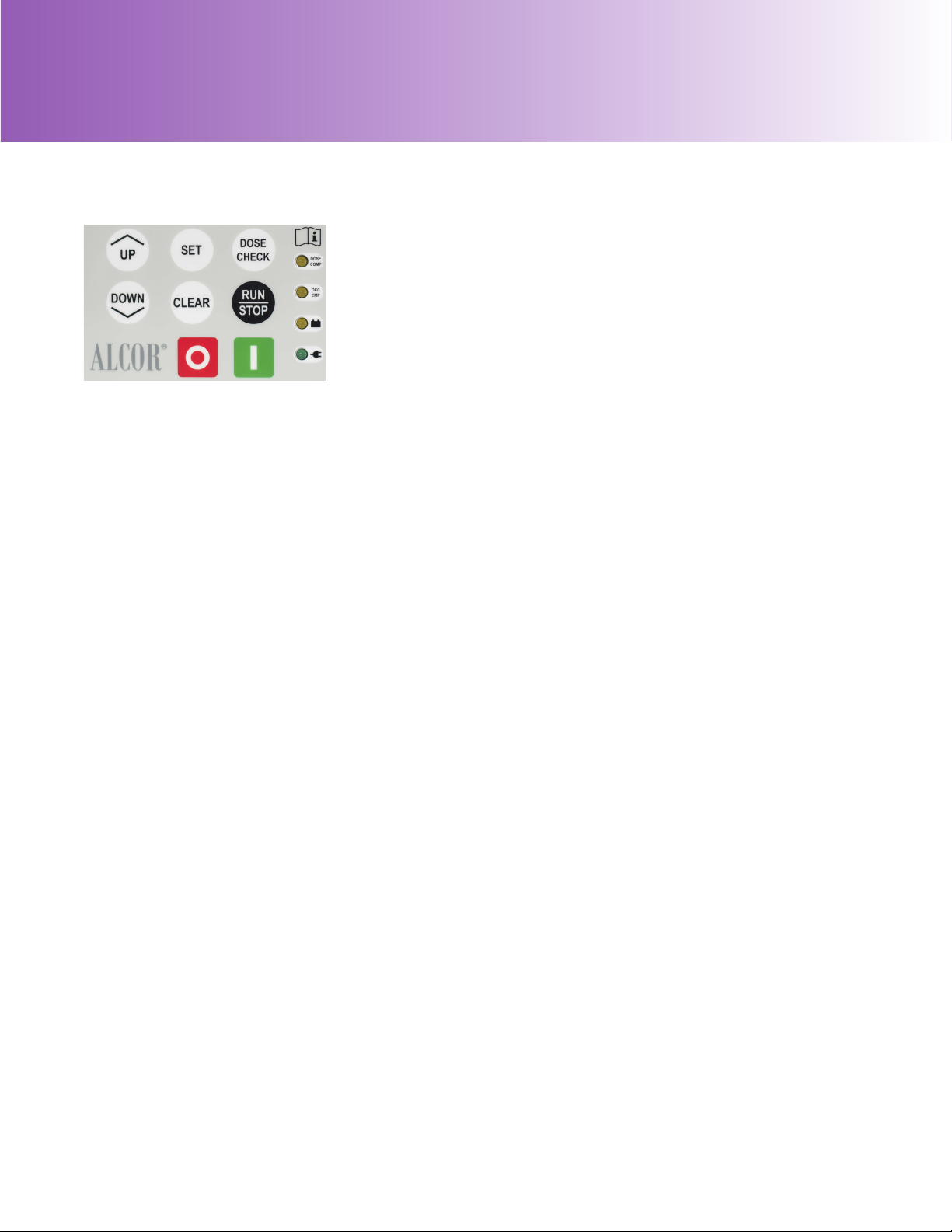

Alarms and Indicators
DOSE COMP
OCC/EMP
BATTERY INDICATOR
AC POWER INDICATOR
DOSE COMPLETE
•This indicator flashes and pump stops when
the quantity of formula delivered reaches
the dose limit setting. There will be two
beeps with a flashing indicator. This is
repeated very 2.5 minutes until action is
taken.
OCCLUSION/EMPTY ALARM
•When the pump is running, this alarm indicator
is activated and pump stops if:
oThe feeding container is empty
oAn occlusion has stopped delivery
oThe pump is left on SToP for more than
2.5 minutes
oThe drip chamber is installed improperly
BATTERY INDICATOR
•When operating on battery power, this
indicator shows solid yellow. Approximately
15 minutes before the battery is discharged,
the light will flash, an alarm will sound. The
pump will not restart if stopped at this time.
AC POWER INDICATOR
•When plugged into AC power, this indicator
always shows solid green indicating the battery
is charging. The light remains on even when
pump is turned off. The ALCOR power supply
should always be plugged into an AC outlet
during normal use.
EXCESS FLOW
•The displays flash the text FLO FAST and a
three-tone beep sounds whenever liquid
flow rate exceeds preset limits. This can
occur if the set is dislodged from the pump
during operation or the drip sensor is
blocked for more than 6 seconds. The alarm
sounds at maximum volume and the pump
stops.
12

Troubleshooting Guide
SITUATION POSSIBLE CAUSE SOLUTIONS
Battery light flashes. After 15
minutes, pump stops, displays
flash, & alarm beeps.
Battery charge is below
performance level.
Plug cord into AC outlet
for 10 hr for full recharge.
OCC/EMP alarm activates.
Pump stops, alarm sounds,
displays flash.
Container is empty. Replace or refill.
Occlusion is restricting flow. Find point of occlusion: kinked
tubing or closed roller clamp in pump
set; feeding tube; container.
Drip chamber not properly
placed in drip chamber bracket;
drops not being sensed.
Place drip chamber properly in the
drip chamber bracket.
Pump is on standby (STOP)
more than 2½ minutes.
Press RUN/STOP or OFF.
Alarm sounds when
attempting rate change.
Pump does not stop.
UP, DOWN, or CLEAR will
only work when pump has
been stopped.
Press RUN/STOP once. Change rate.
Press RUN/STOP again to restart
DOSE COMP alarm sounds.
Displays flash.
Pump has delivered set dose. Increase dose limit. Press RUN/
STOP. Pump will run until dose is
complete again.
If feeding has been completed,
press OFF. If feeding incomplete, set
the dose limit to zero.
FLO FAST alarm sounds.
Displays flash.
Pump set is dislodged.
Tubing off of rotor.
Stop excess flow. Check set
placement on rotor. Restart pump.
Drop sensor blocked due to
formula on drip chamber walls.
Clear drip chamber or replace
pump set.
Drop sensor blocked due
to overfilled drip chamber.
Invert and reinstall drip chamber.
13

14
Proficiency Test
SENTINELplus ENTERAL FEEDING PUMP PROFICIENCY TEST
DATE:
NAME:
FACILITY:
CITY, STATE:
PART A: DEMONSTRATE THESE PUMP/ADMINSTRATION SET SETUP STEPS
TASK INITIAL
1. LOAD THE SET INTO THE PUMP AND PRIME THE LINE
2. SET THE INFUSION RATE AT 50ML/HOUR AND DOSE AT 450ML
3. VIEW TOTAL ACCUMULATED VOLUME THEN RESET PUMP TO 0
4. CHANGE INFUSION RATE TO 75ML/HR AND THE DOSE LIMIT TO 750ML
5. CLEAR THE VOLUME DELIVERED AND DOSE LIMIT, RESET INFUSION RATE TO 5
______
______
______
______
______
PART B: ANSWER THE BELOW QUESTIONS
1. Can a non-ALCOR SENTINELplus administration set be used with the SENTINELplus
enteral feeding pump?
________________________________________________________
2. What are 3 reasons that the OCC/EMP indicator might alarm?
________________________________________________________
3. What is the alarm that signals the dose limit has been reached?
________________________________________________________
4. What steps can you take to resolve an excess flow (FLO FASt) alarm?
________________________________________________________
5. Why are ENFit® connectors are used?
________________________________________________________
TRAINER/FACILITY MANAGER SIGNATURE
OF SUCCESSFUL COMPLETION:
PRINT NAME:
_____________________________________
_______________________
_____________________
___________________
__________
________________________________

Frequently Asked Questions
Q. How can I clean the pump?
A. With warm, soapy, water dampen a cloth or sponge. Clean the pump housing and rotor.
Clean the drop sensor with soft cotton swabs dipped in isopropyl alcohol. For direction
regarding contact with biohazardous material and cleaning methods not recommended refer
to the SENTINELplus Operator Manual. Follow other official procedures that may differ
among institutions.
Q. What are the minimum and maximum flow rates?
A. 5-295mL/hr in 1 mL increments.
Q. What is the weight and size of the pump?
A. 1.42kg (3.13lbs), 15cm H x 20cm W x 9cm D (5.91in H x 7.87in W x 3.54in D).
Q. What kind of adminstration sets can I use with the SENTINELplus?
A. Use only SENTINELplus administration sets. Use of enteral administration sets other than
SENTINELplus sets will result in an alarm.
Q. What is the battery life of the pump?
A. Battery backup 6 hours minimum at a rate of 125mL/hr.
Q. Does the pump require routine calibration?
A. No, the SENTINELplus does not require any routine calibration or adjustment procedures
with its use. All functions of the formula delivery rate and alarms are software controlled and
not adjustable through any service or normal activity.
Q. Can anyone service and repair the pump?
A. No, there are no user serviceable parts on the pump. Do not remove the back cover.
Service may only be performed by qualified personnel only (ALCOR authorized service
providers).
Technical Support
PHONE Toll Free: [phone]
EMAIL [email protected]
15

Quick Reference
16
SET INFUSION RATE (LEFT DISPLAY) SET DOSE LIMIT (RIGHT DISPLAY)
ADJUST THE INFUSION RATE
(LEFT DISPLAY)
CHECK TOTAL ACCUMLATED VOLUME
(RIGHT DISPLAY)
Press green ON button.
1
2Press UP or DOWN
until desired infusion
rate is displayed.
or
3Open roller clamp, press RUN/
STOP to begin feeding. (Pump will
run until container is empty if no
DOSE LIMIT is set.)
Press SET button.
1
2Press UP or DOWN until
desired dose is displayed.
or
3Open roller clamp, press RUN/
STOP to begin feeding.
Press RUN/STOP to stop the pump.
1
2Press UP or DOWN to make
necessary adjustment.
or
3Press RUN/STOP to resume feeding.
To view the total volume delivered,
press DOSE CHECK (if pressed
while running, the pump will stop
momentarily).
1
LOCK/UNLOCK KEYPAD ADJUST DISPLAY BRIGHTNESS
1Press and hold UP and
SET simultaneously to
change bright or dim.
and
1To lock/unlock keypad,
while pumping, press
and hold UP and DOWN
simultaneously.
and

RESET VOLUME DELIVERED RESET DOSE LIMIT
RESET TOTAL ACCUMULATED
VOLUME DELIVERED
RESET VOLUME DELIVERED, DOSE LIMIT,
AND INFUSION RATE TO 5
To reset volume delivered to 0,
press and hold CLEAR until the
pump beeps once, pauses, beeps
twice, and the volume clears to 0.
11To reset DOSE LIMIT to 0, press SET.
Press and hold CLEAR within 3
seconds. Pump will beep once,
pause, beep twice, and display
clears to 0.
2
1To reset total accumulated volume
delivered to 0, press DOSE CHECK.
Press and hold CLEAR within 3
seconds. Pump will beep once,
pause, beep twice, and display clears
to 0.
2
1Press and hold CLEAR for 7 beeps
total (approximately 10 seconds).
TURNING PUMP OFF
1To turn the pump off at any
time, press red OFF button.
