ALDI 49291 User manual

190CC 4 STROKE SELF
PROPELLED, VARIABLE
SPEED PETROL LAWN
MOWER WITH SIDE
DISCHARGE & MULCH
FUNCTION
User Manual
Product
Info
www.powertoolsupport.com

QR codes take you where you want to go
quicky and easily
Whether you require product information, spare parts or accessories,
details on warranties or aftersales service, or if you want to watch
a product demonstration video, our QR codes will take you there in
no time at all.
What is a QR code?
A QR-code (QR=Quick Response) is a type of matrix that can be read
with a smartphone camera and that contains a link to a website or
contact details, for example.
Advantage: You are not required to manually enter a website address
or contact details.
How it works
To scan the QR code, all you need is a smartphone with QR codes reader
software and an Internet connection*. This type of software can be
downloaded for free from your smartphone’s app store.
Try it out now
Just scan the QR code with your smartphone and
find out more about the Aldi product you have
purchased*.
* Depending on your tarif you may be charged for the connection.
Product
Info
For Know How Videos, click on the
“Product Assistance” tab, then the
“How To Product Videos”link.

Contents
Pack contents /parts 2
Description of Symbols 3
General safety instructions 4
Safety rules for Petrol Lawn Mowers 6
Intended use of the 190cc Petrol Lawn Mower 11
Parts List 12
Assembly 14
Attaching the Lower Handles 14
Attaching the Upper Handles 15
Assembly of the 60L Hard Catcher 16
Attaching the 60L Hard Catcher 16
Assembly of the Side Discharge Chute 17
Adding and Checking the oil 18
Fuelling 19
Adjusting the Cutting Height 20
Starting the engine 21
Stopping the engine / Mowing advice 22
Engine tipping/ Poor Engine Performance 23
Operating Functions of the Lawn Mower 24
Self Propelled Variable Speed Control 25
Maintenance / Replacing the Blades 26
Removing Oil 27
Air cleaner Maintenance 28
Spark plug 29
Deck Wash 30
Storage and Transporting 31
Warranty / Environmental protection /
What your 3 year warranty means 32
Service Support / Accessories 33
Troubleshooting 34
Recycling / Specications 35

Understanding and using these operating instructions
190cc 4 Stroke Petrol Lawn Mower
AFTER SALES SUPPORT
e-mail: [email protected] 1800 909 909
MODEL: №. 49291 • 08/2015 • 49291 (toll free)
4
Pack contents / parts
Congratulations on the purchase of your Gardenline® 190cc 4 Stroke
Petrol Lawn Mower. When you open your packaging, first remove all
items and check there are no parts damaged or missing. If you find
anything wrong, do not operate the product until the parts have been
replaced or the fault has been rectified. Failure to do so could result in
serious personal injury.
IMPORTANT INFORMATION.
NOTE: This is a 4 stroke Lawn Mower.
The motor MUST be filled with 600ml of SAE 10W/30
BEFORE starting. Fresh unleaded fuel must be used in this unit.
Do NOT use Ethanol based fuels. Do NOT mix oil with fuel.
Contents of carton
1 x Lawn Mower
1 x 60L Hard Catcher
1 x Side Discharge Chute
1 x Spark Plug Wrench
1 x Standard Hose Fitting
1 x Mulching Block
1 x Instruction Manual
1 x Warranty Card & details
1 x Quick Start Guide
2

Understanding and using these operating instructions
190cc 4 Stroke Petrol Lawn Mower
AFTER SALES SUPPORT
e-mail: [email protected] 1800 909 909
MODEL: №. 49291 • 08/2015 • 49291 (toll free)
3
Description of symbols
The rating plate on your lawn mower may show symbols. These represent
important information about the product or instructions on its use.
Conforms to relevant standards for electrical safety
and electromagnetic compatibility.
Wear hearing protection. Wear eye protection.
Wear breathing protection.
Wear safety footwear.
Wear safety gloves.
Warning.
Read these instructions for use carefully.
Use at a distance of at least 15m from other people.
Thrown objects can cause severe injury.
Explosive material.
Extremely hot surface. Do not touch a hot muffler, gear box or
cylinder, you may get burned. These parts get extremely hot from
operation and remain hot for a short time after the unit is turned off.
Before carrying out any operation stop the engine
and disconnect the spark plug
Risk of hand and feet injuries
Noise label rating 75dbBA (taken at 7.5 metres) you must wear ear
protection at all times.
NOISE dB
A
75

General safety warnings
Safety instructions
WARNING Read and understand all instructions. Failure to follow
all instructions listed below may result in electric shock, fire and/or
serious injury. The term “power tool”in all of the warnings below refers
to your mains-operated (corded) power tool, garden power tool,
battery-operated (cordless) power tool or your petrol operated
garden tool.
Save these instructions
Work area
• Ensuretheareatobemowedisclearandfreeofdebris,rocks,gravel,
garden furniture etc.
• Keepworkareacleanandwelllit.Clutteredanddarkareasinvite
accidents.
• Donotoperatepowertoolsinexplosiveatmospheres,suchasinthe
presence of flammable liquids, gases, or dust. Power tools create sparks
which may ignite the dust or fumes.
• Ensureallanimals,childrenandbystandersareatleast20mawaywhile
operating this lawn mower. Distractions can cause you to lose control.
Personal safety
• Stayalert,watchwhatyouaredoingandusecommonsensewhen
operating a power tool. Do not use a power tool while you are tired
or under the influence of drugs, alcohol, or medication. A moment of
inattention while operating power tools may result in serious personal
injury.
• Usesafetyequipment.Alwaysweareyeprotection.Safetyequipment
such as a dust mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce personal injuries.
• Removeanyadjustingkeyorwrenchbeforeturningthetoolon.
A wrench or a key that is left attached to a rotating part of the power
tool may result in personal injury.
4

• Donotoverreach.Keepproperfootingandbalanceatalltimes.
This enables better control of the power tool in unexpected situations.
• Dressproperly.Donotwearlooseclothingorjewellery.Keepyourhair,
clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
• Ifdevicesareprovidedfortheconnectionofdustextractionand
collection facilities ensure that these are connected and properly used.
Use of these devices can reduce dust-related hazards.
Power tool use and care
• Donotforcethepowertool.Usethecorrectpowertoolforyour
application. The correct power tool will do the job better and safer at
the rate for which it was designed.
• Donotusethepowertooliftheswitchdoesnotturnitonando.Any
power tool that cannot be controlled with the switch is dangerous and
must be repaired.
• Turntoolocompletelybeforemakinganyadjustments,changing
accessories, or storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
• Storeidlepowertoolsoutofthereachofchildrenanddonotallow
persons unfamiliar with the power tool or these instructions to operate
the power tool. Power tools are dangerous in the hands of untrained
users.
• Maintainpowertools.Checkformisalignmentorbindingofmoving
parts, breakage of parts and any other condition that may affect the
power tool’s operation. If damaged, have the power tool repaired before
use. Many accidents are caused by poorly maintained power tools.
• Keepcuttingtoolssharpandclean.Properlymaintainedcuttingtools
with sharp cutting edges are less likely to bind and are easier to control.
• Usethepowertool,accessoriesandtoolbitsetc.,inaccordancewith
these instructions and in the manner intended for the particular type
of power tool, taking into account the working conditions and the work
to be performed. Use of the power tool for operations different from
intended could result in a hazardous situation.
Service
• Haveyourpowertoolservicedbyaqualiedrepairpersonnelusing
only identical replacement parts. This will ensure that the safety of the
power tool is maintained.
5

General safety warnings
Safety rules for Petrol Lawn Mowers
Training
• Readtheinstructionscarefully.Getfamiliarwiththecontrolsandproper
use of the equipment.
• Onlyusethelawnmowerforthepurposeforwhichitwasdesigned,
i.e. for cutting and collecting grass. Any other use can be hazardous,
causing damage to the machine.
• Neverallowchildrenorpeopleunfamiliarwiththeseinstructionstouse
the lawn mower. Local regulations may restrict the age of the operator.
• Neverusethelawnmower:
– When people, especially children, or pets are nearby.
– If the operator has taken medicine or substances that can affect his
ability to react and concentrate.
• Rememberthattheoperatororuserisresponsibleforaccidentsor
hazards occurring to other people or their property.
Preparation
• Whilemowing,alwayswearsturdyfootwearandlongtrousers.Donot
operate the equipment when barefoot or wearing open sandals.
• Thoroughlyinspecttheareawheretheequipmentistobeusedand
remove all objects which may be thrown by the machine or damage the
cutter assembly and the engine (stones, sticks, metal wire, bones, etc.)
WARNING: DANGER!
Engine fuel is highly flammable:
– Store fuel in containers specifically designed for this purpose.
– Refuel using a funnel and outdoors only. Do not smoke while refuelling
or whenever handling the fuel.
– Add fuel before starting the engine. Never remove the cap of the fuel
tank or add fuel while the engine is running or when the engine is hot.
6

– If fuel is spilled, do not attempt to start the engine but move the
machine away from the area of spillage and avoid creating any source
of ignition until the fuel has evaporated and the vapour dispersed.
– Replace all fuel tanks and containers caps securely.
• Substitutefaultysilencers.
• Beforeuse,alwaysinspectthemachine,especiallytheconditionofthe
blades, and check that the screws and cutting assembly are not worn
or damaged. Replace worn or damaged blades and screws in sets to
preserve balance.
• Dischargeopeningsmustbeguardedatalltimes.Donotremovethe
discharge guard or hold it up while mowing.
• Itisadvisabletowearsuitableeyeprotectionwhenoperatingthe
mower.
Operation
• Donotoperatetheengineinaconnedspacewheredangerous
carbon monoxide fumes can collect.
• Mowonlyindaylightorgoodarticiallight.
• Ifpossible,avoidoperatingtheequipmentinwetgrass.
• Alwaysbesureofyourfootingonslopes.
• Walk,neverrunanddonotallowyourselftobepulledalongbythe
lawn mower.
• Mowacrossthefaceofslopes,neverupanddown.
• Exerciseextremecautionwhenchangingdirectiononslopes.
• Donotmowonslopesofmorethan20°.
• Exerciseextremecautionwhenpullingthelawnmowertowardsyou.
• Stopthebladeifthelawnmowerhastobetiltedfortransportation
when crossing surfaces other than grass, and when transporting the
lawn mower to and from the area to be mowed.
• Neveroperatethelawnmowerwithdefectiveguards,orwithoutsafety
devices, such as the stoneguard and/or grass-catcher, in place.
Replace if damaged.
• Donotchangetheenginegovernorsettingsoroverspeedtheengine.
• Onpower-drivenmodels,disengagethedriveclutchbeforestarting
the engine.
7

Operating instructions and safety notes!
AFTER SALES SUPPORT
(toll free)
190cc 4 Stroke Petrol Lawn Mower
e-mail: [email protected]1800 909 909
MODEL: №. 49291 • 08/2015 • 49291
• Starttheenginecarefully,followingtheinstructionsandkeepingfeet
well away from the blade.
• Donottiltthelawnmowerwhenstartingtheengine.
Start the engine on a flat surface that is free of obstacles and tall grass.
• Donotputhandsorfeetnearorunderrotatingparts.Keepclearofthe
discharge opening at all times.
• Neverpickuporcarryalawnmowerwhiletheengineisrunning.
• Stoptheengineanddisconnectthesparkplugwire:
– Before carrying out any work underneath the cutting deck or before
unclogging the chute;
– Before checking, cleaning or working on lawn mower;
– After striking a foreign object. Inspect the lawn mower for damage and
make repairs before restarting and operating the lawn mower;
– If the lawn mower starts to vibrate abnormally (find and remove the
cause of the vibration immediately).
• Stoptheengine:
– Whenever you leave the lawn mower unattended.
– Before refuelling.
– Every time you remove or replace the grass-catcher.
• Whenmowing,alwayskeeptoasafedistancefromtherotatingblade.
This distance is the length of the handle.
• Nevercutgrasswhilewalkingbackwards.
• Stoptheenginebeforepushingmoweracrossgraveldrives,walksor
roads.
• Thismachineistobeusedexclusivelyforcuttingnaturalgrass.
Never use the mower for other purposes. Any other utilization can
involve danger for your safety and can involve damage to the mower.
• Theuserisresponsibleforthesafetyofotherpeople,animalsand
objects in the working area. Keep children and domestic animals at a
safe distance while the mower is in use.
8

Operating instructions and safety notes!
AFTER SALES SUPPORT
(toll free)
190cc 4 Stroke Petrol Lawn Mower
e-mail: [email protected]1800 909 909
MODEL: №. 49291 • 08/2015 • 49291
11
Maintenance and Storage
• Keepallnuts,boltsandscrewstighttobesuretheequipmentisinsafe
working condition. Regular maintenance is essential for safety and
performance.
• Neverstoretheequipmentwithfuelinthetankinsideabuildingwhere
vapour may reach a flame or a spark or a source of extreme heat.
• Allowtheenginetocoolbeforestoringinanenclosedspace.
• Toreducetherehazard,keeptheengine,exhaustsilencer,battery
compartment and fuel storage area free of grass, leaves, or excessive
grease. Do not leave containers with grass cuttings in rooms.
• Checkthestone-guardandgrass-catcherfrequentlyforwearand
deterioration and replace if damaged.
• Ifthefueltankhastobedrained,thisshouldbedoneoutdoorsand
when the engine is cool.
• Wearstrongworkgloveswhenremovingandreassemblingtheblade.
• Checktheblade’sbalanceaftersharpening.
• Forreasonsofsafety,donotusetheequipmentwithwornordamaged
parts. Parts are to be replaced and not repaired. Parts that are not of the
same quality can damage the equipment and be dangerous for your
safety.
• Wheneverthemachineistobehandled,transportedortiltedyoumust:
– wear strong working gloves;
– grasp the machine at the points that offer a safe grip, taking account of
the weight and its distribution.
• Damagedbladesandwornboltsaremajorhazards.
• Fuelgoesoinabout3-4months.Ifyoundyourmowerdoesnot
start, try changing the fuel in the tank with newly purchased fresh
unleaded fuel. Do not use ethanol based fuels.
9

Operating instructions and safety notes!
AFTER SALES SUPPORT
(toll free)
190cc 4 Stroke Petrol Lawn Mower
e-mail: [email protected]1800 909 909
MODEL: №. 49291 • 08/2015 • 49291
Operation Safety Instructions
WARNING: Stop the engine and unplug the spark plug before any
repairs or maintenance operations.
• Checkthatallnuts,boltsandscrewsarewelltightenedbeforeeveryuse.
• Beforemowingensurethatthebladeandthebladexingscreware
securely fastened. When the blade edges require re-sharpening, this
must be done evenly on both sides to prevent any imbalance. If the
blades are damaged, it must be replaced.
• Whenmowingalwayswearlongtrousersandstrong,coveredfootwear.
• Donotruntheengineinanenclosedand/orpoorlyventilatedarea.
The gas of the engine contains carbon monoxide, which is dangerous to
your health.
• Workonlywhenthereissucientlight.
• Donotusethelawnmowerwhenitisrainingorwhenthegrassiswet.
• Cautionmustbetakenwhilemowingonslopes.Mowacrossthefaceof
slopes, never down or up.
• Turnotheengineifyoumustleavethelawnmowerunattended.
• Neverlifttherearofthemowerwhilestartingtheengineandnever
place your hands and feet underneath the deck while the engine is
running.
• Ifworkingonhighgrass,adjustthemowingheighttoreducethefriction
and prevent over loading. The optimal mowing height should be 1/3 the
heightofthegrass.Itwouldaecttheworkeciencyoflawnmowerif
too much higher or lower.
• Neverchangetheratedspeedoftheengineinanyway.
• Neverliftorcarrythemowerwhiletheengineisrunning.
• Stoptheengineandremovethesparkplugcoverinthesecases:
- Before any operation under the deck.
- Before any maintenance, repairing or checking operations.
- Before carrying, lifting or removing the mower.
- If you leave the mower unattended or change the cutting height.
- After hitting a foreign object, stop the engine and check thoroughly the
mower in order to see if it is damaged. Take the mower to an authorised
service centre to carry out any repairs if necessary.
10

Operating instructions and safety notes!
AFTER SALES SUPPORT
(toll free)
190cc 4 Stroke Petrol Lawn Mower
e-mail: [email protected]1800 909 909
MODEL: №. 49291 • 08/2015 • 49291
13
11
- If the mower vibrates in an abnormal way, take the mower to an
authorised service centre.
- Check the bolts and nuts regularly. Bolts and nuts may vibrate loose
over time.
WARNING:
Fuel is highly flammable.
• Keepfuelinajerrycanspeciallymadeforthispurpose.
• Fillthefueltankwithafunnelandoutside.Donotsmokeoruseamobile
phone during this process.
• Fillwithfuelandoilbeforestartingtheengine.Neveropenthecapof
the fuel tank to add gasoline while the engine is running or still hot.
• Donotstarttheengineifthereisspiltfuelonthemowerorinthearea
surrounding. Take the mower away from the zone where fuel has been
split and avoid any contact from a hot source as long as the split gasoline
is completely evaporated.
• Tightenthefueltankcapandjerrycancaptightly.
Intended use of the 190cc Petrol Lawn Mower
NOTE: This product is for private domestic DIY use only.
It is not suitable for commercial, industrial or trade use.
This product is suitable for private home use i.e for use in home and
gardening environments, for the application of mowing and
mulching grass.
This lawn mower offers various functions to accommodate different lawn
mowing requirements.
1. Catcher mowing – standard lawn mowing with 60L hard catcher
attached.
2. Side Discharge Mow - Using the side discharge chute, grass clippings
are ejected from the mower on the right hand side of the deck. The rear
60L hard catcher should not used when the side discharge is used.
3. Mulch and Mow - Using the mower without the 60L hard catcher
attached; the lawn mower will mulch as it cuts and and the fine grass
clippings are distributed back onto the grass surface without leaving
piles of grass clippings.
4. Self Propelled - Using the variable speed self propelled function for
effortless mowing which can be used with any of the mowing functions
listed above.

Understanding and using these operating instructions
190cc 4 Stroke Petrol Lawn Mower
AFTER SALES SUPPORT
e-mail: [email protected] 1800 909 909
MODEL: №. 49291 • 08/2015 • 49291 (toll free)
12
Operating instructions and safety notes!
AFTER SALES SUPPORT
(toll free)
190cc 4 Stroke Petrol Lawn Mower
e-mail: [email protected]1800 909 909
MODEL: №. 49291 • 08/2015 • 49291
Parts List
1. Upper handle bar and handles
2. Self Propel engage/disengage bar
3. Self propel variable speed control
4. Self propel variable speed cable
5. Motor throttle control
6. Motor throttle control cable
7. Tool and refreshment holder
8. Recoil Starter handle holder
9. Lower handles
10. Upper handle locking lever (x 2)
11. Lower handle locking knob (x 2)
12. Lower handle mounting plate
(with 3 height position)
13. Cable holder clips (x 2)
14. 60L hard catcher
15. Catcher attachment tabs
16. Rear discharge guard
17. Rear wheels
18. 8 Height adjustment lever
19. Deck wash nozzle
20. Side discharge chute
21. Side ejector cover
22. Motor
23. Recoil starter
24. Oil filler cap/dipstick
25. Fuel tank
26. Fuel tank cap
27. Spark plug cover / Spark Plug
(located under cover)
28. Air filter
29. Air filter cover
30. 4 x swing Blades
31. Blade bolt
32. Outer flange
33. Front wheels
34. Spark plug spanner
35. Nudge Bar
36. Oil drain plug
37. Blade mounting plate
38. Standard hose fitting
39. Mulching block
15
31
32
36

Understanding and using these operating instructions
190cc 4 Stroke Petrol Lawn Mower
AFTER SALES SUPPORT
e-mail: [email protected] 1800 909 909
MODEL: №. 49291 • 08/2015 • 49291 (toll free)
Operating instructions and safety notes!
AFTER SALES SUPPORT
(toll free)
190cc 4 Stroke Petrol Lawn Mower
e-mail: [email protected]1800 909 909
MODEL: №. 49291 • 08/2015 • 49291
13
20
33
29
28
21
18
17
11
14
9
35
6
10
7
10
8
4
35
27
31
26
25
22
23
16
13
2
1
3430
37
19
39
1638
12
24

Understanding and using these operating instructions
190cc 4 Stroke Petrol Lawn Mower
AFTER SALES SUPPORT
e-mail: [email protected] 1800 909 909
MODEL: №. 49291 • 08/2015 • 49291 (toll free)
14
Operating instructions and safety notes!
AFTER SALES SUPPORT
(toll free)
190cc 4 Stroke Petrol Lawn Mower
e-mail: [email protected]1800 909 909
MODEL: №. 49291 • 08/2015 • 49291
Assembly
WARNING: Stop the engine and unplug the spark plug before any
repairs or maintenance operations.
WARNING: DO NOT attempt to start this mower without first adding
0.6L of SAE 10W/30 engine oil to the Engine. Refer to the oil chart on
page 16 to confirm the correct oil for various conditions.
WARNING: Do Not attempt to start this mower without the mower
first being FULLY assembled.
It is necessary to fit the lower handles (9), upper handle and bar (1),
and the 60L hard catcher (14) to the mower before use.
Attaching the Lower Handles
NOTE: When preparing for this assembly, slowly and carefully raise the
handles without pulling or putting any strain on the cables. Ensure cables
are not tangled or crossing over.
1. Remove the lower handle locking knobs (11) from the lower handle
mounting plates (12). (Fig A)
2. Position each of the lower handles (9) on the inside of the lower handle
mounting plate (12), and locate the circle hole on each end of the lower
handles (9) onto the large locating pins (one each side) on the lower
handle mounting plates (12) on each side. (Fig B)
3. This mower has a 3 height adjustment for the positioning of the handles,
with the lowest notch positioning the handle bars closer to the ground,
and the highest notch raising the handle bars up towards the user. (Fig C)
C.B.A.

Understanding and using these operating instructions
190cc 4 Stroke Petrol Lawn Mower
AFTER SALES SUPPORT
e-mail: [email protected] 1800 909 909
MODEL: №. 49291 • 08/2015 • 49291 (toll free)
Operating instructions and safety notes!
AFTER SALES SUPPORT
(toll free)
190cc 4 Stroke Petrol Lawn Mower
e-mail: [email protected]1800 909 909
MODEL: №. 49291 • 08/2015 • 49291
15
4. Once you have decided the positioning of the
handles to suit your mowing height, locate the
square hole up from the bottom of the lower
handles (9), and position so they match the
square notch on the lower handle mounting
plates (12). (Fig D)
5. Insert the screw through the lower handle
square hole, then through the mounting plate
(12), and secure into position by then screwing
on the lower handle locking knob (11) onto the
screw on the external side of the lower handle
mounting plate (12). (Fig E)
6. Secure the lower handle locking knob (11)
until finger tight.
7. Repeat on the opposite side ensuring both of
the handle locking knobs are firm and secure.
Attaching the Upper Handles
With the lower handles now in position, the upper
handles and bar (1) can now be secured
in position.
IMPORTANT: Ensure the cables do not get caught
around the handle levers or do NOT get bent
around the clamping mechanism.
1. When the upper handles (1) are in line with
the lower handles (9) secure them in position
by pulling the upper handle locking lever (10)
towards the upper handle bar (1) and locking
the handle in position (repeat other side). (Fig F)
NOTE: Tension on the upper handle locking
levers can be adjusted by rotating the lever
knob.
2. Secure the self propel variable speed cable (4) to
the lower handle (9) using one of the supplied
cable holder clips (13) (qty 2). (Fig G)
D.
E.
G.
F.

Understanding and using these operating instructions
190cc 4 Stroke Petrol Lawn Mower
AFTER SALES SUPPORT
e-mail: [email protected] 1800 909 909
MODEL: №. 49291 • 08/2015 • 49291 (toll free)
16
Operating instructions and safety notes!
AFTER SALES SUPPORT
(toll free)
190cc 4 Stroke Petrol Lawn Mower
e-mail: [email protected]1800 909 909
MODEL: №. 49291 • 08/2015 • 49291
3. Using the other cable holder clip (13) supplied,
again secure the motor throttle cable (6) to the
lower handle (9) to ensure it is secure. (Fig H)
Assembly of the 60L Hard Catcher
The 60L hard catcher (14) is supplied in 2 sections.
Locate the top half of the catcher on top of the
bottom half and interlock them together by
aligning the 3 tabs on each side of the catcher and
the 3 tabs at the rear, into the matching slots on
the base of the upper half of the 60L hard catcher
(14). When correctly aligned, they will click into
place. (Fig I)
Attaching the 60L Hard Catcher
1. Lift the rear discharge guard (16) in order to
position the assembled 60L hard catcher (14).
NOTE: Do NOT ever start the lawn mower if the
rear discharge guard does not fully return to the
close position if the catcher is not fitted.
2. With the rear discharge guard (16) raised, align
the 2 hooks (one on each side) onto the rear
discharge chute with the 2 tabs (one on each
side) on the 60L hard catcher (14).
3. When these are aligned, push the 60L hard
catcher (14) in a downwards direction to secure
the tabs onto the hooks (Fig J)
4. Release the rear discharge guard (16) to secure
the 60L hard catcher (14) into place. (Fig K)
NOTE: Always empty the catcher before it has
reached maximum capacity, otherwise it will
decrease the performance of the lawn mower.
TIP: Do not leave grass clippings in the catcher
for extended periods of time.
H.
I.
J.
K.

Understanding and using these operating instructions
190cc 4 Stroke Petrol Lawn Mower
AFTER SALES SUPPORT
e-mail: [email protected] 1800 909 909
MODEL: №. 49291 • 08/2015 • 49291 (toll free)
Operating instructions and safety notes!
AFTER SALES SUPPORT
(toll free)
190cc 4 Stroke Petrol Lawn Mower
e-mail: [email protected]1800 909 909
MODEL: №. 49291 • 08/2015 • 49291
17
Assembly of the Side Discharge Chute
WARNING: Ensure the motor is NOT operating when fitting the side
discharge chute.
Do not operate or have the motor running when the side ejector cover is
opened and the discharge chute is not fitted.
NOTE: The side discharge chute is used to distribute grass clippings from
the side of the mower while the mower is in use. To use this function, the
60L hard catcher (14) is NOT required to be assembled on the lawn mower.
1. Raise the side ejector cover (21) to be able to position the side discharge
chute (22) onto the side of the deck of the lawn mower. (Fig L)
2. Place the side discharge chute (22) into position on the side of the deck,
by aligning the 2 top tabs on the side discharge chute (22) with the bars
on each side at the top of the side ejector cover (21), and then place the
2 top tabs underneath the bars to secure (Fig M). Release the side ejector
cover (21). (Fig N)
3. To remove the side discharge chute (22), raise the side ejector cover (21),
and remove the side discharge chute (22). Lower the side ejector cover
(21).
N.M.
Slide tabs under bars
Raise ejector cover
L.

Understanding and using these operating instructions
190cc 4 Stroke Petrol Lawn Mower
AFTER SALES SUPPORT
e-mail: [email protected] 1800 909 909
MODEL: №. 49291 • 08/2015 • 49291 (toll free)
18
Operating instructions and safety notes!
AFTER SALES SUPPORT
(toll free)
190cc 4 Stroke Petrol Lawn Mower
e-mail: [email protected]1800 909 909
MODEL: №. 49291 • 08/2015 • 49291

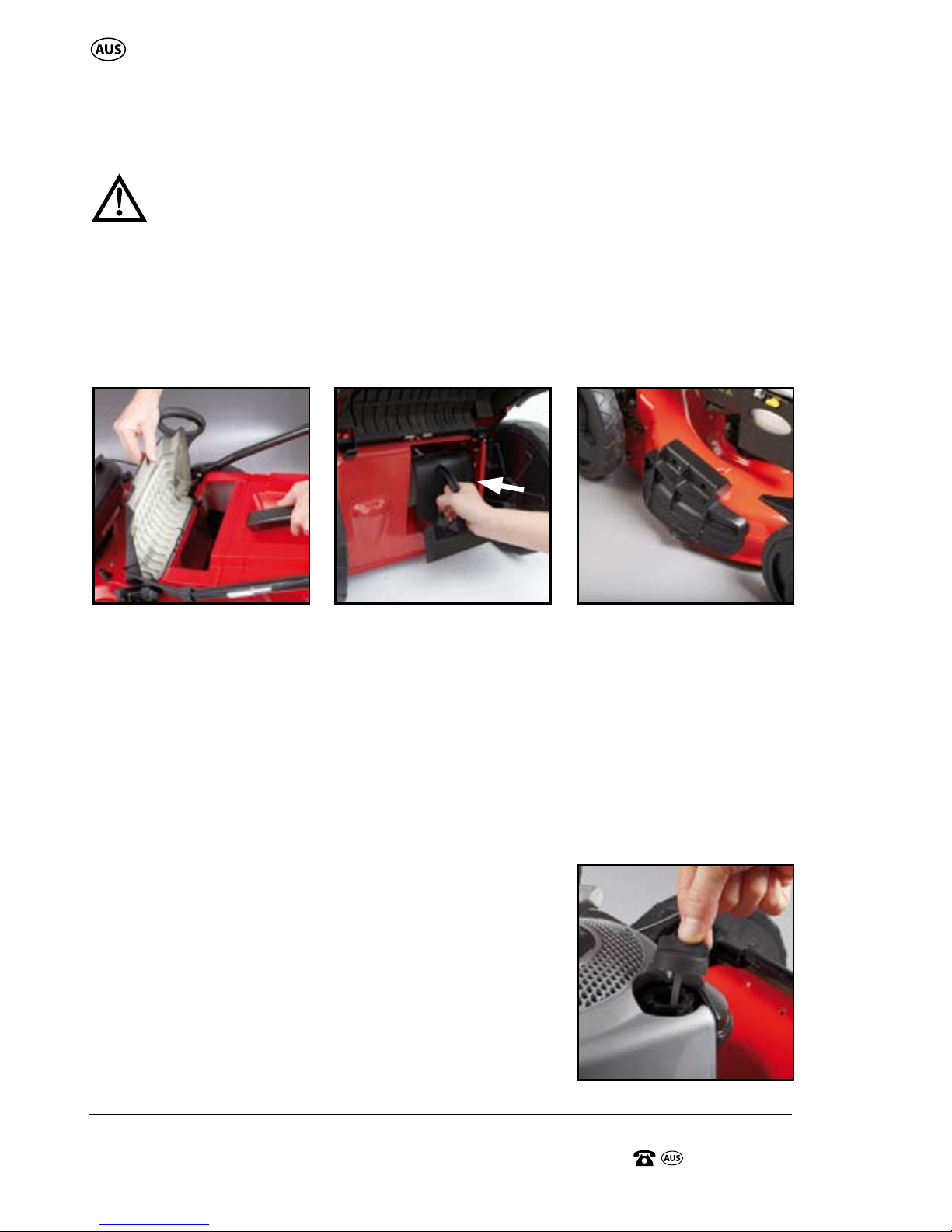

Mulch and Mowing
WARNING:
Ensure the motor is NOT operating when undertaking this task.
1. Remove the 60L hard catcher (14) by lifting the rear discharge guard and
releasing the 60L hard catcher (14) from the tabs holding it in position. (Fig O)
2. With the rear discharge guard (16) raised, insert the mulching block (39)
into position, and then release / close the rear discharge guard (16). (Fig P)
3. Ensure the side ejector cover (21) is in the closed position (Fig Q). Do NOT
use the side discharge chute (20) when mulch and mowing.
Adding and Checking the oil
IMPORTANT: The motor of this lawn mower is packed with NO OIL in the motor.
Prior to starting the motor, Oil MUST be added to the sump of the motor.
Failuretoaddsucientoilwillresultindamagetothemotorwhichis
NOT covered under the warranty of the lawn mower.
On a new lawn mower, the motor needs to be filled with 600ml of SAE 10W/30
engine oil, or oil as detailed in the chart below for various conditions.
Each time the lawn mower is used, the oil level should be checked and if low,
addsucientoiltoensuretheoillevelistothefullmarkonthedipstick.
1. Position the lawn mower on a flat and level
surface. Clean the area directly around the oil
filler cap (24).
2. Remove the oil filler cap / dipstick (24) by
turning approximately half a turn in an anti
clockwise direction and lift the cap outwards.
Clean the oil dipstick (24) with a clean cloth,
cleaning away any visual oil.
3. FOR A NEW LAWN MOWER, add 600ml of SAE
10W/30 engine or oil from the oil chart below
for specific conditions. (Fig R)
R.
Q.P.O.
