Aletra RTG60 User manual

TV RTG 60-120 EN
Techninis vadovas
VIDINIS TIESIOGINIO DEGIMO
DUJINIS ŠILDYTUVAS
RTG60, RTG90, RTG120
®
1312CQ6091

2
TABLE OF CONTENTS
© Copyright
This range of products are constantly being updated and refined. We reserve the right to change our products and
their relevant technical data contained in this publication at any time and without prior notice.
Section No. Section Pages
1GENERAL INFORMATION 5-6
1-1General recommendations 5
1-2Unit description 5
1-3Operating 6
1-4Safety 6
2TECHNICAL SPECIFICATIONS 7
3INSTALLATION 8-11
3-1General rules 8
3-2Fastening system 8

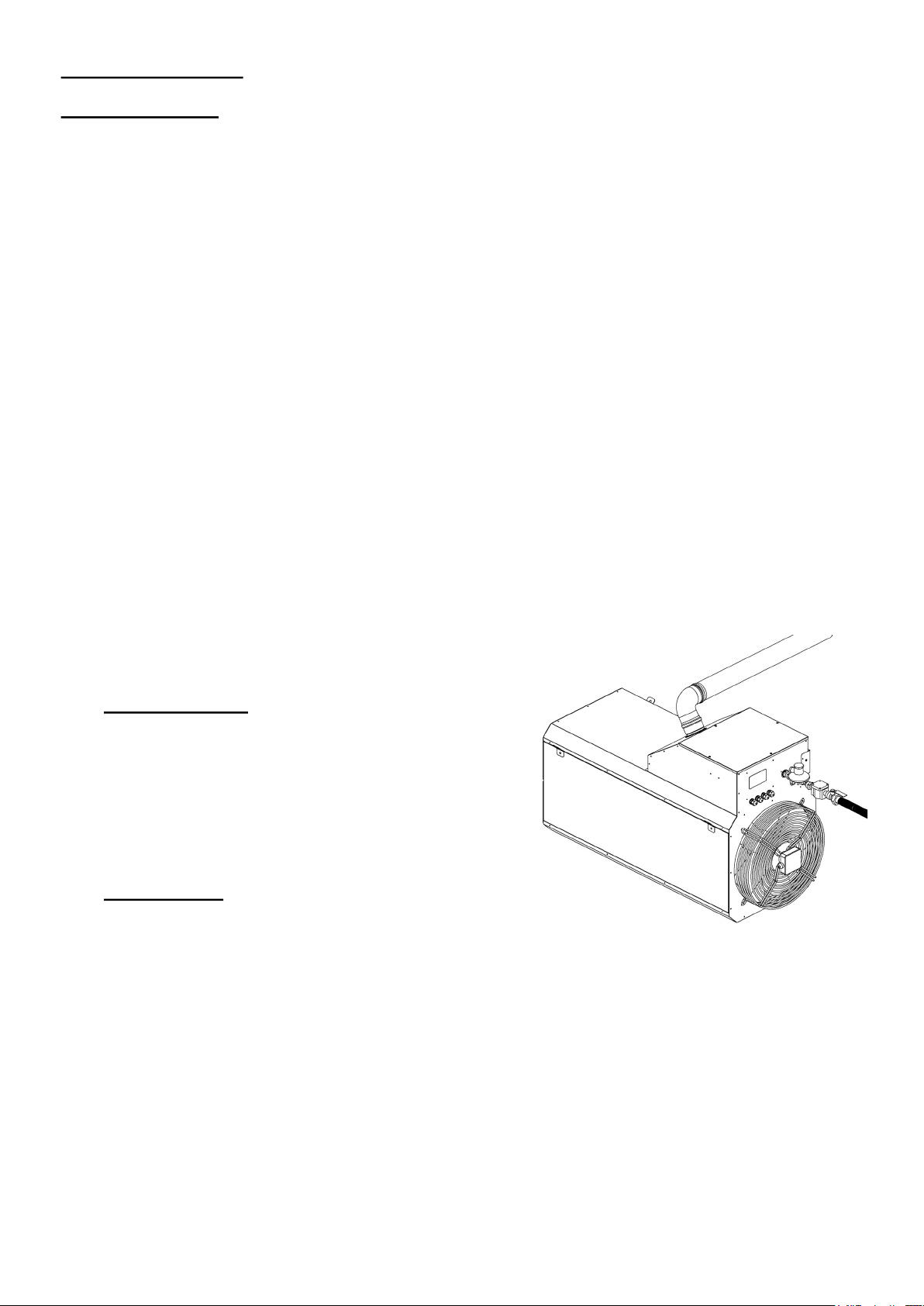

3-3Combustion air inlet connection 9

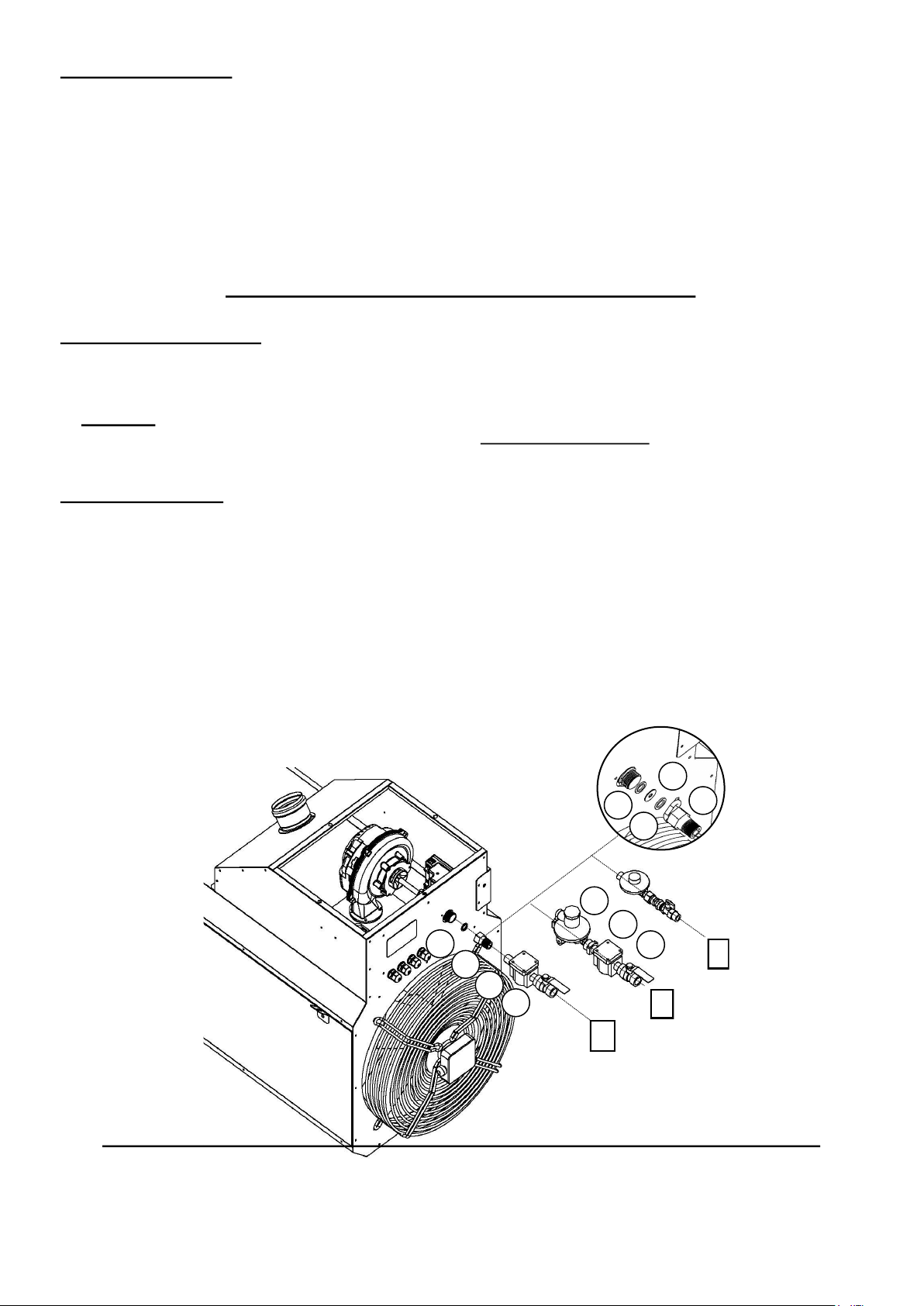

3-4Gas connection 10
3-5Change of gas 11
4ELECTRICAL WIRING 12-13

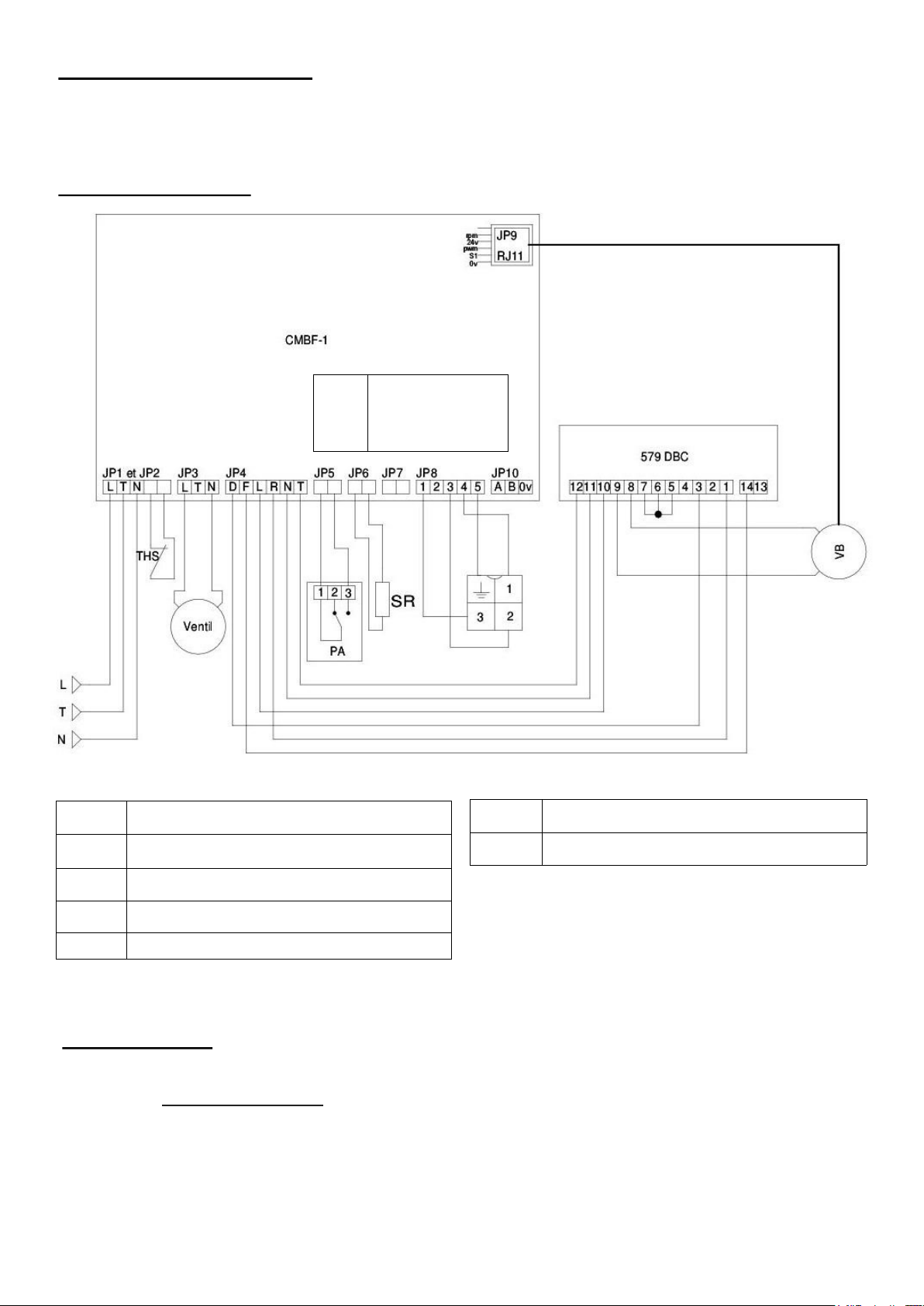

4-1Electrical diagram 12

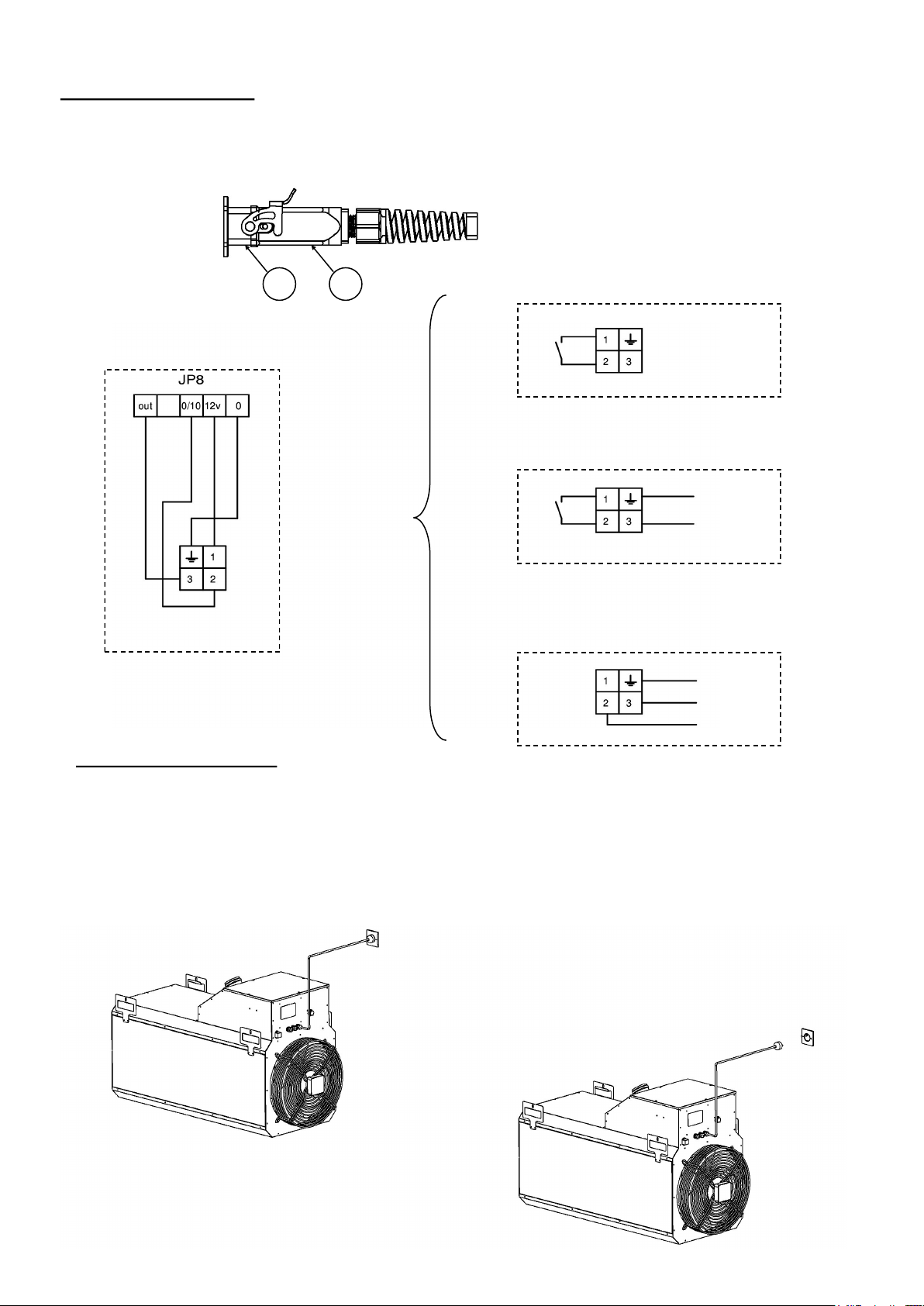

4-2Control signal 12
4-3Control connection 13
4-4Electrical connection 13
5COMMISSIONING 14-19
5-1Commissioning 14
5-2Operating principle 15-16
5-3Fault display 17
5-4Bill of material 18-19
6MAINTENANCE 20-21
6-1Maintenance 20
6-2Burner dismounting 21
7TROUBLESHOOTING 22
8RECOMMENDATION FOR USER 23

3
NOTIFICATION
CE marking
Concerning the technical demands that are required, the CE marking is the official recognition of the quality of de-
sign, manufacture and performance of this device. Its long lifetime and its performance will be at optimum level if its
use and its maintenance are properly carried out and the regulations in force.
Responsibility
This equipment must be used expressly for the purpose for which ALETRA has designed and manufactured it. Any
contractual liability of ALETRA is therefore excluded in case of damage undergone by persons, animals or goods,
following errors in installation, settings, maintenance and inappropriate use.
The devices must be equipped exclusively with genuine accessories. ALETRA will not be held responsible for any
damage whatsoever arising from the use of an accessory which is inappropriate to the device.
The devices must be installed by qualified professional workers, respecting the regulations and decrees in force, and
in accordance with the instructions shown in this instruction manual. The installer is required to establish installation
conformity certificates produced by the ministries responsible for the construction and safety of gas. References to
standards, rules and directives mentioned in this manual are given for information purposes and are only valid at the
date of printing this manual.
ALETRA is responsible for the conformity of the device to the rules, directives and standards of construction in force
at the time of marketing. Knowledge and respect for the legal provisions as well as the standards inherent in the
design, implantation, installation, commissioning.
Reception – Storage
The gas unit heater is delivered on a wooden pallet, protected by cardboard packing and a plastic film. It is essential
to check the condition of the equipment delivered (even if the packing is intact) and its conformity compared to the
order.
In case of damage or missing parts, you must report the observations on the transport company’s receipt form in the
most precise way possible, “subject to unpacking” has no legal value, and then you must confirm those reservations
by registered letter within 48h to the transport company. We remind you that it is the responsibility of the buyer to
check the delivered merchandise, no recourse will be possible if this procedure is not respected.
Store the equipment in a clean and dry room, away from shocks, vibration, divergences in temperature and in an
ambient environment with a rate of hygrometry lower than 90%.
Guarantee
Your device benefits from a contractual guarantee against any manufacturing defect, the duration of that guarantee
is shown in our catalogue.
Our liability as a manufacturer cannot be committed when incorrect use of a device has occurred, where there is a
defect or of an insufficiency in the maintenance of that device, or an incorrect installation of the device (it is your
responsibility, as regards this, to check that the latter is carried out by qualified professionals).
In particular we will not be held responsible for material damage, intangible losses or bodily injury resulting from an
installation which does not conform:
- to the legal and regulatory provisions or those imposed by local authorities,
- to the national or local or particular provisions governing the installation,
- to our instructions and recommendations for installation, in particular the regular maintenance of the devices,
- to the rules of the trade.
Our guarantee is limited to the exchange or repair of only those parts which are recognised as being defective by our
technical departments, excluding the cost of labour, travel and transport.
Our guarantee does not cover the replacement or repair of parts as a result of, in particular, normal wear, incorrect
utilisation, service visits by unqualified third parties, a defect in or insufficiency of maintenance or surveillance, non-
conforming electrical supply and the use of a fuel which is inappropriate or of bad quality.
Sub-assemblies, such as motors, pumps, electric valves, etc.…, are only guaranteed if they have never been
removed.
The rights established under the European directive 99/44/CEE, transferred by the legislative decree No. 24 of 2
February 2002 published on the Official Journal No. 57 of 8 March 2002, remain valid.

4
The specifications, illustrations and description contained in this manual are, to our knowledge,
accurate at the time of the approval to print. We reserve the right to stop offering some
characteristics or to stop the production of a model without notice it, do not constitute an firm
agreement of our share.
This technical manual must be kept in good condition inside the unit.
Safety rules
- It is forbidden to plug and/or reduce the aeration openings of the installation room or the
device,
- Never obstruct the blowing and/or the combustion air intake,
- Never make any modifications to the settings made by qualified personnel,
- Never spray water on the unit heater, or touch the device with parts of the body which are wet
and/or with naked feet,
- Never touch hot parts of the unit heater, and/or moving parts,
- Never put or hook any object on the device,
- Any operation on the device is forbidden unless it has been disconnected from the electricity
network and the gas supply has been cut off.
- Do not modify the type of gas used, the settings of the device, the safety systems and
regulation systems, since that could create dangerous situations.
- Warn the after-sales technician in the case of changing the gas, the gas pressure or modifying
the supply voltage.
- In the case of a long period of non-operation, disconnect the electrical supply from the device.
When starting the operation again, you are advised to call on qualified personnel. As a general
rule all repair and/or maintenance visits must be carried out exclusively by authorised and
qualified personnel.
The taking out of a maintenance contract is strongly recommended “see this with your
installer”.
What should you do if you detect a gas smell :
- Close the outside gas valve and the electrical supply then, inform a technician for maintenance.
- Do not try to switch on the device
- Do not switch on the power supply, do not use phone inside the building.
- Call your gas supplier from another phone. Follow the instructions given by your supplier.
- If you cannot contact them, call the fire department.
Cautionary note
Electrical components, drive mechanism and combustible gas can cause injuries. To protect
from those risks during the installation or the maintenance, the power supply must be cut and the
gas valve closed. Any person involve in the installation or maintenance of this equipment must
respect the health and safety standards.
PLEASE READ CAREFULLY BEFORE CONTINUING
THIS UNIT IS FOR PROFESSIONAL USE ONLY. ONLY SKILLED AND TRAINED PERSONNEL ARE
ALLOWED TO HANDLE IT.
IT MUST NOT BE ACCESSIBLE TO THE PUBLIC.

5
1-1 General recommendations
RTGI-RTG Direct gas heaters are designed for horticultural premises, livestock or for supplementary
heating in industrial premises.
The unit can only be installed in rooms which are sufficiently ventilated. If you intend to use the heater in
a room with a dusty or dirty atmosphere, like poultry houses, the combustion air inlet must be well-sealed
and connected to the outside.
Do not block the supply grille and ensure that the hot air circulates freely. Do not put anything within 5
meters from the supply grille of the unit.
This unit is designed for direct blowing, do not connect supply duct to the unit.
The proper functioning of the gas heater depends on correct installation and commissioning.
The installation and maintenance must be carried out by qualified personnel in conformity with the
regulatory texts and the rules in force.
The non-compliance with such rules entails the rejection of all responsibility from the manufacturer.
DO NOT INSTALL GAS HEATERS IN :
- Rooms which have a risk of explosion,
- Rooms containing chlorinated combination steam,
- Rooms with a high content of combustible dust,
- Rooms which are excessively humid (electrical danger).
- Domestic premises
After having checked that the installation, respects the recommendations of this notice, it is the
responsibility of the installer:
1) to inform the user:
- that he cannot carry out itself any modifications to the design of the devices or the method of carrying
out the installation; the least modification (exchange, withdrawal....) of safety components or parts which
influence the efficiency of the device or the hygiene of combustion will systematically cause the
withdrawal of the EC marking.
- that it is necessary to recommend cleaning and maintenance operations.
An annual preventive maintenance operation is compulsory.
2) to give these instructions to the user. They form an integral part of the device and must be retained
and must accompany the device, even in the case of sale to another owner or user.
Being always intent on improving the quality of our products, we seek to improve them on a permanent
basis. We therefore reserve the right, at any moment, to modify the specifications shown in this
document.
1-2 Unit description
The direct gas heater RTGI-RTG is a direct combustion heater, running on natural or propane gas ; it is
in conformity with the European directives 2009/142/CE and 2009/42/CEE applicable to gas devices
(EN525:2009, certificate No. 1312CQ6091 from 06/10/2015).
It is a direct gas heating system. For all the range describe in this manual, the release of combustion
products is made by a fan placed upstream of the combustion chamber. The combustion air can be
taken from the room or the outside.
The direct gas heater RTGI-RTG is running with different gas indicated on the label and in accordance
with the European directive.
1-3 Operation

6
RTGI-RTG heaters are designed to heat horticultural premises, livestock or to be used for supplementary
heating in industrial premises.
They are composed of a premix burner, set into the flow of air, and a fan to diffuse the hot air.
The combustion air, sucked by a variable combustion fan, go through a Venturi system which controls the
good quantity of gas according to the airflow. This mixing is moved to the burner. The ignition probe fires
the air/gas mixing and the ionization probe checks if there is a flame.
The flame located in the air stream raises the temperature of the air supplied into the room. The gas and
combustion residues are diluted in very low quantity in the heating air.
For versions with modulating burner or variable air fan, it is also possible to vary the power and/or the
airflow.
1.4 Specific safety measures
The flame of RTGI-RTG direct gas heaters is in the « open air », it is very important to respect a minimum
space between the heater and the persons, the animals or the cultures (see Section No. 3
INSTALLATION). Failure to comply this obligation can be very dangerous, even if the unit is off because
the ignition is automatic.
The combustion of gas produces CO2, amongst others. A CO2 content in the air can be a danger for
people, animals and cultures. Therefore, you need to ensure that the fresh air supply is adapted to the
room where units are installed. When the CO2 concentration is too high, the heater does not work
correctly because of an incomplete combustion (danger with carbon monoxide CO). The CO2
concentration shall not exceed 1%, and the minimum ventilation requirements for the room where units
are installed is 1000 m3/h for each 100 kW of installed power.
For use in greenhouses :
Additional measure to respect :
- The CO2 level shall not exceed 1% (10.000 ppm).
- If the greenhouse is totally closed, you must foreseen ventilation system to have 100m3 of fresh air by
m3 of burnt gas and a minimum ventilation of 1 000m3/h for each 100 kW of installed power.
- In the absence of mechanical ventilation, it requires at least two opposite opening, to ensure enough air
circulation.
- It is recommended to use the heater with one or several extraction fans and a CO2 detector.
- Do not use sulphurous fuels into the space where the heater is used, because they contain high quantity
of sulphur that could be dangerous.
For use in poultry houses :
During the cleaning and/or the disinfection of a poultry houses or the spreading of the litter, the following
precautions should be taken. The non compliance can cause an explosion or a fire.
- The CO2 content shall not exceed 0,3% (3000 ppm).
- In the absence of mechanical ventilation, it requires at least two opposite opening, to ensure enough air
circulation.
- Protect or remove the heater during the cleaning/disinfection of the building.
- During the spreading of the litter, the heater must be covered in order to prevent the particles from
getting inside the unit and risking a fire. Disconnect the heater and cut off the gas to avoid unintentional
start.
- Clean the unit after each batch of poultries to remove any residues and to avoid soiling.
- Do not use water when you are cleaning the heater.

7
RTGI-RTG model
Direct combustion heater RTGI-RTG are equipped
with axial fan.
They are designed for direct blowing and are
equipped in series with a protection grille.
ABCØ Air Ø GasDE
1 160 750 530 80 3/4’’530 430
1 260 750 530 80 3/4’’530 430
1 260 750 530 80 3/4’’530 430
Connexion pour 16/20/26/28/35/36
Dimensions
Performances
TYPES Modulating burner 1 stage burner
RTGI 60 RTGI 90 RTGI 120 RTG 60 RTG 90 RTG 120
Maximum power kW 60 90 120 60 90 120
Minimal power kW 24 27 36 - - -
Airflow m3/h 3 100 3 800 4 700 3 100 3 800 4 700
Delta T of air °C 57 70 75 57 70 75
Throw distance m
Fan diameter mm 420 450 450 420 450 450
Speed of the fan rpm 1350 1150 1350 1350 1150 1350
Gas flow at 15°C
Natural G20
Groningen G25
Propane G31
20 mbar
25 mbar
37 mbar
5.73 m3/h
6.30 m3/h
4.21 kg/h
8.6 m3/h
9.47 m3/h
6.32 kg/h
11.45 m3/h
12.63 m3/h
8.43 kg/h
5.73 m3/h
6.30 m3/h
4.21 kg/h
8.6 m3/h
9.47 m3/h
6.32 kg/h
11.45 m3/h
12.63 m3/h
8.43 kg/h
Air inlet diameter mm 80 80 80 80 80 80
Supply voltage Single phase 230 Volts / 50 Hz - IP42
Power consumption W350 425 575 350 425 575
Nominal intensity A1.5 2.3 2.5 1.5 2.3 2.5
Weight kg 63 65 65 63 65 65
Noise level dBa

8
The installation and maintenance must be carried out only by qualified personnel.
3-1 General rules
The direct gas heater can be installed directly into the heating room.
Nevertheless, the installer must comply with laws and rules applicable in the destination country. If there
is any doubt, request information from inspection and security bodies.
Ventilation :
In rooms where direct gas heater is installed, must have continuous ventilation of minimum 100 m3 of
fresh air per m3 of burnt gas or must be connected with airtight pipe from the outside. When the heater
is working, the ventilation of the room must be at least 1000 m3/h for each 100 kW of power installed.
Gas connection :
Before installing the heater, it is necessary to check that the local supply conditions (type of gas, pres-
sure) are compatible with the device setting.
CAUTION :
Respect the minimum installation spaces below for safety and maintenance :
3-2 Fastening system
This unit is designed to be suspended horizontally.
5 m
3 m
1.5 m
1 m
1 m
1 m
Before fixing the units, it is necessary to make sure of
the support’s strength.
- The heater has 4 fixing supports.
- The used slings must be adapted to the weight of the
suspended device.
- Caution, the mounting must be perfectly aligned, as
shown on the picture (maximum angle 5°).
- Fit the unit and make sure it is perfectly horizontal.
5°

9
CAUTION
- The junctions must be sealed and the section of air pipe must be at least equal to the inlet diameter.
- The total length of the connection cannot exceed 6 m, knowing that : elbow 90° or 45° = 1 m of pipe.
- Pipes and accessories must be approved, use only the ones referenced by ALETRA. The use
of material non approved makes the manufacturer warranty void.
3-3 Air inlet connection
During the commissioning or maintenance, make sure that :
- Blowing grilles and combustion air inlet is not obstructed.
- Pipes are well sealed and installed to ensure that no water can come inside the unit and so to
avoid electrical hazard. For this, you can use: drain Tee cap, condensate recuperator, etc.
The unit is delivered with burner air inlet (A1). Depending on the type of local, it is necessary to mount :
- Either the protection air inlet grille on the front plate of the burner compartment (A2). In that case,
ensure that there is enough ventilation into the room, the required fresh air supply for combustion
must be at least 100m3/h per m3 of burnt gas.
- Either the sealed air inlet connector on the front plate of the burner compartment (A3). This
mounting is required if the heater is used in dusty, dirty o aggressive atmosphere (poultry
houses for example).
The use of airtight pipes involves a perfect sealing of junctions. Then, to facilitate the mounting, it is
necessary to use lubricant, non-aggressive for seals (Example: Soapy water)
The connection of the combustion air inlet must be horizontally through the outside. The mounting must
be realized with a slope opposite to the unit with an angle of 2° minimum, to prevent water into the
unit.
A1 A3
A2

10
3-4 Gas connection
First of all, check if the delivered unit is conformed with the distributed gas. For this, you must refer to the
indications mentioned on the unit label. The gas supply must be appropriate to the power of the heater
and must be fitted with all monitoring and safety devices required by the norms currently in force.
A precise study must be done on pipe diameter depending on the nature and flow of gas and the length of
pipes. Make sure that pipe losses do not exceed 5 % of supply pressure.
Gas connection must be realized in accordance with indoor installation requirements, regardless the type
of gas, by a qualified person with necessary approvals.
Check the tightness of the gas circuit after each intervention.
Type of gas connection :
A– Natural gas - supply pressure lower than 50 mbar (stop valve + gas filter)
B– Natural gas - supply pressure higher than 50 mbar (stop valve + gas filter + gas pressure regulator)
C– Propane gas (stop valve + gas filter + gas pressure regulator)).
Caution : for RTGI-RTG60, it is required to put a calibration washer between the gas pressure
regulator and the gas valve ! See below and Section « 3-5 Change of gas »
Gas connection kit :
(1) Gas seal
(2) Gas connector
(3) Gas pressure regulator
(4) Gas filter
(5) Gas valve
(6) Calibration washer
*To know the detail of the kits, refer to their notice
.
Caution: before opening the gas network, check the tightness untill the gas valve
C
B
A
1
2
4
5
4
5
3
6
1
1
2

11
3
2
3
1
4
3
5
3
White Red Red
Inlet Solenoid
valve
Outlet solenoid
valve
Inlet solenoid
valve
Outlet solenoid
valve
Inlet solenoid
valve
Outlet solenoid
valve
No Ø 7 No No No No
Ø 7 Ø 5,5 No Ø 7,5 No Ø 6,7
3-5 Change of gas
Those units are designed to run with different type of gas. To change the gas, follow the procedure
below.
This operation must be carried out by a qualified person.
Belgium and Luxembourg : The change of gas is forbidden. Only the manufacturer is allowed to modify
the unit.
Before any intervention, cut off the gas and electricity supplies.
During the change of gas, the sticker « gas setting » on the rear of the heater must be modified to report the
new setup.
Check the tightness of the gas circuit after each intervention.
Procedure to move from natural gas to propane gas :
1– Unscrew the gas supply connector(1), put the calibration washer (2), see the board below, between the
2 gas seals (3) and put back the connector
2– Unscrew the gas injector (4), put the calibration washer (5), see the board below, between the 2 gas
seals (3) and put back the gas injector.
Be careful, only use new gas seals!
3– Check the tightness.
( Reverse procedure to move from propane gas to natural gas)

12
4– ELECTRICAL WIRING
Be careful, before attempting any work, be sure that the electrical supply is cut off, risk of electrical shock.
Those operation must be carrying out by a qualified person with required approvals.
4-1 Electrical diagram
CMBF-1Electronic PCB
Ventil Axial fan
THS Overheat safety thermostat
PA Fan safety pressure switch
SR Sensor for return air
579DBC Gas safety box
VB Combustion fan
4-2 Control signal
The device can receive and communicate with different information through a 0-10 Volt signal.
See section “5-2– Operating mode”
CAUTION: to connect the controller, refer to its technical notice.
JP8
1 -
2 - PWM
3 - IN 0-10V
4 - 12 V
5 - GND

13
4-3 Control connection
The unit is delivered with a connecting socket to connect the controller. Depending on the selected control
mode, refer to the diagram below :
4-4 Electrical connection
The installation must comply with local and/or national regulations.
The power supply is in single-phase 230 V with a protected electrical cable. The section of the cable
and its protection must be sized according to the number of units on the line and its length.
Be sure the ground connection has an adequate size.
Check that the voltage and frequency correspond to the ones needed.
If you connect it to electrical outlet, respect the polarity Phase/Neutral and the grounding.
Control by remote thermostat
Control by 0/10 Volts signal
with default return
Control by remote thermostat
with default return
(1) female plug
(on the heater)
(2) Male plug
Or
Or
0/10V feedbacks
GND
GND
0/10V feedbacks
0/10V Control
21

14
5 - COMMISSIONING
5-1 Commissioning
1– Before the start-up and heater powering on , check that the different connection have been realized
correctly, especially :
- air inlet connection and/or fan grille,
- gas connection,
- electrical connection, ground connection ...
Check also :
- gas or combustion air connections are perfectly sealed.
- protective film on panels is take off.
- safety spaces around the heater are respected.
2– Check the supply voltage: between 210 V and 230 V alternating. Take care to respect the polarity
Phase Neutral. In case of « impedent » neutral, foresee a non-polarized control box. Using this box
reduces the ionization signal reading and do not allow an optimal modulation (contact the manufacturer for
more information).
3– Check that the type of gas and the pressure supply fit with the heater, maximum pressure is 50 mbar,
see page 10.
4– Check the connection of 0/10 Volts signal, for automatic operation.
5– Put into service the heaters.
- Open the general gas valve and purge the pipeline.
- Open the gas valve of each unit.
- Check that switch disconnectors of the units are ON.
- Check that the blowing grille is unobstructed.
Automatic mode :
- On the unit control board, check that the heater is in
automatic mode, see next page.
- On the 0-10 Volts controller, set up the set point
temperature to 1°C more than the room temperature.
- Heaters start up and go to full power, then they
automatically adapt themselves to the needed power.
Manual mode :
- On the unit control board, check that the heater is in
manual mode, see next page.
- On the control board, set up the set point temperature (TC) to 1°C more that the room temperature.
- Heaters start up and go to full power, then they automatically adapt themselves to the needed
power.
6- Perform a gas safety test by closing the gas supply. The unit must stop and make 3 start attempts
before moving to safety mode. Reset the unit on the control board, then make the same test by remote
reset.
7– Switch the heater to the required mode, automatic or manual, and setup the required set point
temperature.

15
5-2 Operation mode
To select its operation mode, press the keys and
then press to validate.
STOP ↔ AUTO ↔ MANUAL ↔ STOP
First line displays the active mode and the information
linked to the mode.
In MANUAL mode :
TI : ambient temperature or TC : Set point
temperature.
In AUTO mode :
Voltage sent by controller
The second line displays the state of the heater :
OFF + M = xx % (minimum modulation threshold)
- 1 stage heater : M = 100 %
- Modulating heater : M = 30 or 40 %
MANUAL Mode
Display in MANUAL mode :
- OFF, Stop the unit
- START, Start the unit
- POWER, delivered power while units working
- BURNER FAIL, unit in burner safety
- OVERHEAT, unit is on Overheat safety
- FAN ONLY, unit is on ventilation safety
When the manual mode is activated, the unit modulates
the power depending on the air intake temperature
(measured by the sensor fixed on the fan grille) and the
desired temperature (TC)
TI : Air intake temperature (sensor on the fan)
TC : Set point temperature
To set up the set point temperature (TC) press on the key
* to display the set point temperature (TC : XX.X °C).
Press the keys or to increase or decrease the
set point, then press to validate.
If there is any failure, the ambient temperature remind
displayed on the upper corner of the screen, the default is
displayed on the second line.
STOP
OFF M=30%
MANUAL TI=20.0°C
OFF M=30%
AUTO 0V
OFF M=30%
MANUAL TI:20.2°C
OFF M=100%
MANUAL TC:20.0°C
POWER 30% 4000rpm
MANUAL TC:24.0°C
POWER 100% 8000rpm
MANUAL TI:18.0°C
BURNER FAIL

16
AUTO mode
Display in AUTO mode :
- OFF, Stop the unit
- FAN ONLY, ventilation without heating
- START, Start the unit
- POWER, delivered power while units working
- BURNER FAIL, unit in burner safety
- OVERHEAT, unit is on Overheat safety
- FAN FAIL, unit is on ventilation safety
When the automatic mode is activated, the inlet voltage is
displayed on the first line.
If the voltage is between 2 V and 2.9 V, the unit will
ventilate only (the state is displayed on the 2nd line).
If voltage is higher or equal to 3V, the unit will start. When
the unit is running, it will adapt its power proportionally to
the inlet voltage. Example 3.5 Volts = 35 % of power.
If there is any failure, the voltage control remind displayed
on the upper corner of the screen, the default is displayed
on the second line.
AUTO 0V
OFF M=100%
AUTO 2.4V
FAN ONLY
AUTO 3.5V
POWER 35% 4300rpm
AUTO 10V
BURNER FAIL
The device can receive and communicate with different information through a 0-10 Volt signal.
Voltage (Volts) Feedbacks ( OUT 0-10 V )
0Stop the heater (OFF)
0,5 Manual mode
1Burner failure
1.5 Overheat
2Fan failure
2.5 Fan only (ventilation without heating)
≥ 3 Unit is working, the power is displayed in %
Voltage (Volts) Order ( IN 0-10 V )
0 Stop the heater (OFF)
1 to 1,5 Reset the burner (Signal with delay time 1s)
2 to 2,9 Ventilation only
≥ 3 Modulating device : modulation is proportional to the voltage (10 V = 100%).
1 stage device : ON/OFF system

17
AUTO 10V
BURNER FAILURE
5-3 Fault display
Be careful, before resetting the default, check the unit to understand where comes from the
problem and so the default, refer to section 7– TROUBLESHOOTING.
This operation must be carried out by a qualified person with necessary approvals.
Burner default
This default is due to a gas « cut off » which switches the
control box on safety mode.
To delete the burner default, it is necessary to reset, for
this there are 2 methods :
1st, remotely : Send a voltage between 1V and 1.5V during
1 second.
2nd, on the unit : Press the key (the reset is done
when the key is released).
Overheat default
This default is due to an important raise of temperature
which triggers the safety thermostat.
To reset and restart the unit, press the red button on the
thermostat, inside the technical compartment of the unit.
Fan default
This default is due to a lack of ventilation, which involves a
pressure switch failure.
The reset is automatic when the pressure switch changes
its status.
Sensor default
(Only for manual mode)
This default is due to a dysfunction or a problem of
connection of the temperature sensor.
The reset is automatic after solving the issue.
AUTO 10V
OVERHEAT
AUTO 10V
FAN FAILURE
MANUAL TI : - - - -
TEMP.SENS.ERROR
MANUAL TI:18.0°C
FAILURE xxxxxxx
1-Operating mode
2-Ambient temperature
3-Fault type
AUTO 10V
FAILURE xxxxxxx
1-Operating mode
2-Voltagesignal sent by the controller
3-Fault type

18
5-4 Bill of materials
2
1
11
19
18
17
16 15
20
3
14
13
12
6
7
8
9
4
10
5
21b
21c
21c
21a
21e
21f
21g
21h
21i
21h
21j
21k
21d

19
Nº Description Share parts reference
RTG60 RTG90 RTG120
1RTG21120IB
2RTG17120I
3ATE083 ATE083 ATE083
4ATE803S ATE804S ATE
5RTG11120 RTG11120 RTG11120
6GAZ0018
7RTG15120I
8ATE502 + ATE504
9UTC0079 UTC0080 UTC0080
10 ATE503 + ATE505
11 RTG001
12 ATE462
13 UTC0428
14 THE147
15 UTC0420 UTC0420 UTC0424
16 UTC0403 UTC0402 UTC0402
17 UTC0621-70
18 UTC0400
19 UTC0410
20 ELE1110M (modulating) - ELE1110 (1 stage)
21a RTG0260 RTGO02120 RTG02120
21b RTG18120
21c RTG22120
21d RTG07120
21e RTG0660 RTG06120 RTG06120
21f RTG0560 RTG05120 CRTG05120
21g RTG1960 RTG19120 RTG19120
21h RTG0860 RTG08120 RTG08120
21i RTG1960SYM RTG19120SYM RTG19120SYM
21j RTG0960 RTG09120 RTG09120
21k RTG060 RTG10120 RTG10120

20
6. MAINTENANCE
We recommend a proper and regular maintenance, at least once per year. The heaters used in dirty or
dusty atmosphere (poultry houses) must be maintained more frequently. These interventions must be
carrying out by qualified professional.
6.1 Maintenance
The maintenance must be carrying out when the unit is cold and the gas and electricity are cut off.
Do not use water to clean the unit.
Perform the following operations :
- Clean the body, inside and outside the unit, the fan (blades, motor, protection grille)… Clean carefully all
components.
- Check if the cables, nuts and bolts are properly tight.
- Check the mounting and tightness of gas connections.
- Electrodes : Ignition flame and control cables must be inspected. In case of damages, replace it. Check
electrode gap., see section « Burner cleaning ».
Specific maintenance for poultry houses
In addition to operations above, clean and check the heater each time a change is made to a new batch,
before spreading the litter.
1. Take off the possible faeces or dust on the motor fan. The layer deposit acts as insulator, which can
cause a motor overheat.
2. Use a soft brush, no flexible metal, to take off all the dried deposits.
3. Blow the clean parts, in particularly inside and outside the body of the unit, the blades of the fan, the
motor of the fan, the thermostat, the switch,…
4. Clean the burner with a soft brush, no flexible metal, be careful to do not use compressed air, the
projected durst risk to stuck into the perforations of the burner grille and block them !
5. After cleaning, switch the unit on forced heating and let it warms enough to burn the possible dust
particles due to cleaning.
6. Stop heating, once the unit is completely cold, cover it to prevent possible combustible particles to
settle during the room cleaning.
7. Be sure that the heater is electrically isolated. The switch disconnector is turned off !
8. Disinfect the poultry house and spread the litter.
9. Take off the cover of the heater.
After cleaning the heater, you must perform the following controls :
- Open the gas and check the connection is gas-tight. If the heater has been moved, check that the gas is
correctly connected. Be careful, an improper sealing might cause a fire.
- Check the cabling.
- Check the sealing of the burner air inlet, fig.1
- Control and/or check all the recommended operations during commissioning, particularly :
- Gas pressure control
- Combustion control
- General functioning control
When finished the inspection, close the technical compartment carefully sealed and refit the grill to close
the combustion chamber fig. 2.
Fig.1 Fig.2
