AWIPH90 WiFi Phone
User Manual
Version 1.0

1
Table of Contents
Chapter 1 Overview of the WiFi Phone………………………………3
1.1 Front Panel and Keypad………………………………………………………. 3
1.2 Keypad function description………………………………………………….. 4
1.3 Main Screen……………………………………………………………………. 5
1.4 Entering and Editing text……………………………………………………... 5
1.5 Making a Phone Call…………………………………………………………... 6
1.5.1 Entering the phone number manually
1.5.2 Using the Phone Book
1.5.3 Using the Call History
1.5.4 Using the Quick Setting
1.5.5 Redial a Number
1.5.6 Answering a Call/ Reject a Call
1.5.7 Holding a Call / Transferring a Call
Chapter 2 Call History…………………………………………………8
Chapter 3 Message……………………………………………………...9
Chapter 4 Phone Book………………………………………………...10
Chapter 5 Call Settings………………………………………………..10
5.1 SIP Settings…………………………………………………………………….. 11
5.2 Call Waiting……………………………………………………………………..13
5.3 Call Forward…………………………………………………………………….13
5.4 NAT Settings…………………………………………………………………….14
5.5 Audio Settings…………………………………………………………………...14
5.6 DTMF Tone……………………………………………………………………...14
5.7 Skype Gateway………………………………………………………………….14
Chapter 6 Network Settings…………………………………………..15
6.1 IP Settings…………………………………...…………………………………. 15
6.2 WLAN Settings………………………………………………………………… 16
6.3 User Certificate………………………………………………………………….19
6.4 Root Certificate………………………………………………………………….21

2
Chapter 7 Phone Settings…………………………………………….. 23
7.1 Vibrator………………………………………………………………………….23
7.2 Ringer……………………………………………………………………………23
7.3 Ring Tones……………………………………………………………………... 23
7.4 Ringtone Volume………………………………………………………………..23
7.5 Language………………………………………………………………………..23
7.6 Backlight………………………………………………………………………...23
7.7 Speed Dial……………………………………………………………………….24
7.8 Web Configuration……………………………………………………………..24
Chapter 8 System Time……………………………………………… 25
8.1 Date Time Setting………………………………………………………………25
8.2 SNTP Setting……………………………………………………………………26
Chapter 9 Firmware Settings…………………………………………26
9.1 Firmware Version………………………………………………………………26
9.2 HTTP Server……………………………………………………………………27
9.3 Firmware Upgrade……………………………………………………………..27
Chapter 10 IP Camera
10.1 IP Camera Play………………………………………………………………..28
10.2 IP Camera IP…………………………………………………………………..28

3
Chapter 1 Overview of the WiFi Phone
1.1 Front Panel and Keypad
Figure 1.1.1 Front Panel and Keypad
Graphic LCD
Receiver
1
2
3
4
5
6
Power On/Off Key

4

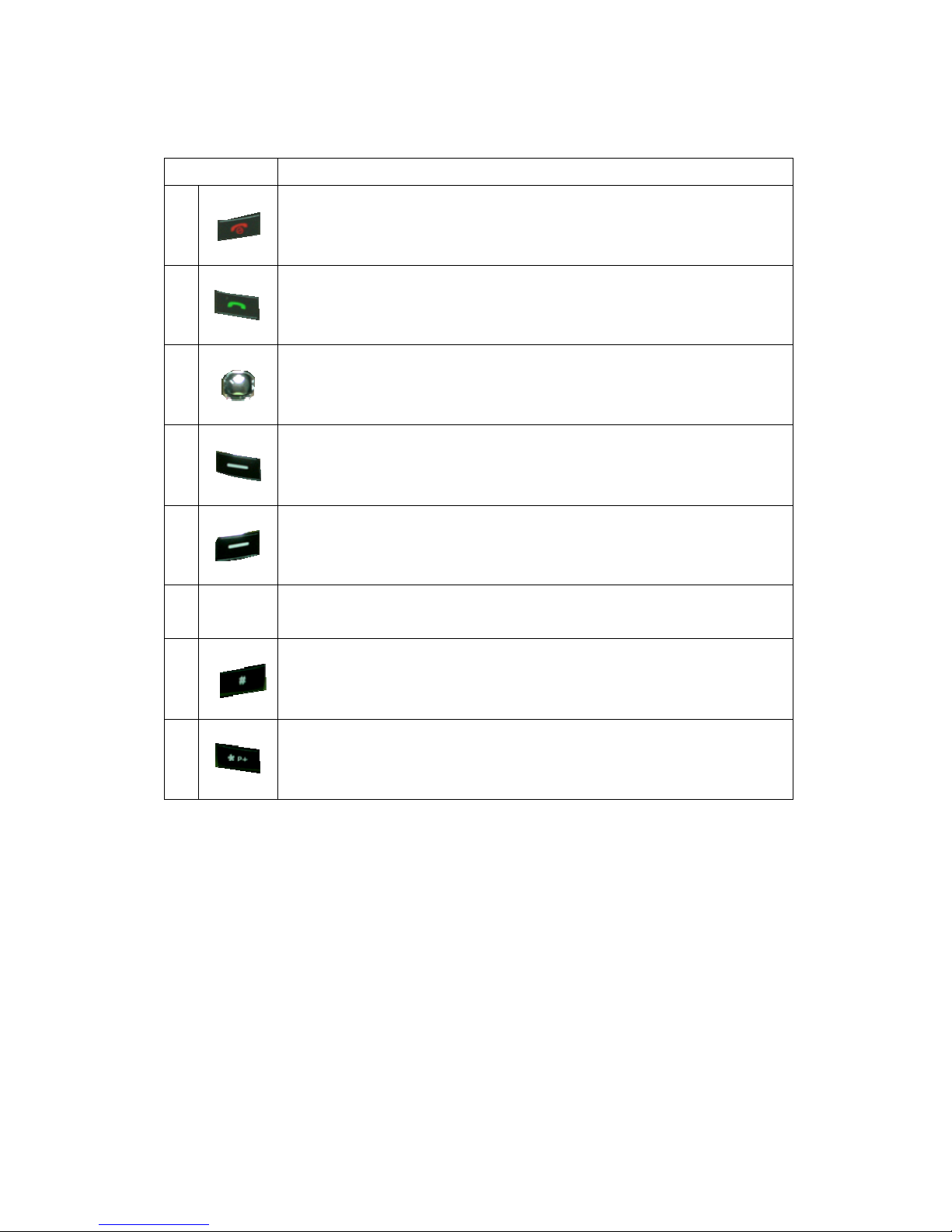

1.2 Keypad function description
Key Description
0 Power on/off and End key
Display IP address key
Used to end or reject a call, or to return to standby mode.
1 Answer/Send key
Used to answer a call or dial a number.
2 Menu and select key
Used to enter into menu and move up and down to select items
In Input Mode, you can switch [123], [abc] and [ABC].
3
Left key: Phone Book and Select key
To search or add or delete the data of phone book
Press the button to go back to main menu
4 Right key: Quick Setting and Back key
To enter Quick Setting menu
0-9 Number key
Used for entering numbers and characters.
5 Unlock Key
Used to unlock the key ; Pound key: In entry mode
Skype Buddy List : Press to retrieve Skype Buddy List.
6 Asterisk key
In entry mode, use the asterisk key to enter ‘.’, ‘@’and ‘:’,’*’
Table 1.2.1: Keypad function description

5
1.3 Main Screen
After powering on, the phone enters standby mode, with the main screen displayed as
shown in Figure 1.3.1
Figure 1.3.1
1 Battery icon
2 User name
3 Right soft key tab
4 Left soft key tab
5 AP information:
Showing which AP you are connecting
6 Signal strength icon
7 Registration status indicator: when SIP registration is enabled, the *reg indicates
WIFI PHONE has registered to the SIP Registrar successfully. If WIFI PHONE fails
to register to the SIP Registrar, a rotating line will appear at the same place.
1.4 Entering and Editing text
In many situations you need to enter numbers and characters in an entering field.
Please refer to the following guidelines:
•Press to switch between upper case character, lower case character and
numeric mode, with the icon , or shown at the middle of
the bottom of LCD screen respectively.
• In enter mode, Press to enter ‘.’‘@’ or ‘:’by pressing it once, twice or
three times respectively.
• In or mode, press numeric key ‘1’to enter a space or icons as
follows: “ . , $ % & _”
1
2
34
5
6
7
abc
ABC 123
ABC abc

6
• Press
to move the cursor.
• Press
to clear the number/character that the cursor points to.
• Press to abort the editing.
1.5 Making a Phone Call
1.5.1 Entering the phone number manually
You can enter phone number (needing SIP Proxy Server and SIP Registrar) or SIP
URL at the entering line. Then press to make a phone call. Please refer to
Figure 1.5.1
Figure 1.5.1
1.5.2 Using the Phone Book
You can search the Phonebook by name to get the phone number/SIP URL and make
a call. Please refer to Chapter 4.1 phonebook
1.5.3 Using the Call History
You can find the phone number/SIP URL from the Call History to make a phone call.
Please refer to Chapter 2.1 Call History
1.5.4 Using the Quick Setting
You can select several options of the major functions from “Quick Setting”. Such as
Site Survey, Key Lock, and change phone standby modes: General Mode/ Vibrator
Mode/ Ringer Mode/ Silent Mode.

7
1.5.5 Redial a Number
At the standby mode, press The list of placed calls is displayed. The latest
dialed number is highlighted, so you can redial this number directly by pressing the
left soft key.
1.5.6 Answer a Call/ Reject a Call
To answer a call, press to accept. You can use key to adjust the
volume. To reject a call, press Please refer to Figure 1.5.2
Figure 1.5.2
Caller ID will be shown on screen as Figure 1.5.2
Caller will hear “ Ring back tone” as soon as the phone is calling out
Receiver will hear “ Ring tone ” as soon as a call is coming
If the receiver is busy, caller will hear busy tone back from receiver
1.5.7 Hold a Call / Transfer a Call
When talking, press to hold the call.
To resume the held call, press again. Please refer to Figure 1.5.3
Figure 1.5.3 Hold and resume a call

8
To transfer the call, press and press the third party’s number, then press
to make call out. Please refer to Figure 1.5.3
Chapter 2 Call History
2.1 Call History
Figure 2.1.1 provides information about accessing the main menu and using its
features.
Figure 2.1.1
Call Settings
Message
Call History
Network Settings
Phone Settings
System Time
Firmware Settings
Menu

9
Figure 2.1.2 shows the architecture of Call History menu.
Figure 2.1.2
You can find out all the records of Dialled /Answered/Missed/ Delete Records
Chapter 3 Message
3.1 Message
You can send and delete messages here. Also, you can find out the records of Inbox /
Outbox. To send a message, press to enter Menu and scroll to Message.
Then select Send Message to input your message and press to send out or
press to clear it.
The Message menu is displayed, as shown in Figure 3.1.1
Figure 3.1.1
Call History
Delete Records
Missed Calls
Answered Calls
Dialled Calls

10
Chapter 4 Phone Book
4.1 Phone Book
You can press to enter “Phone Book”. You can Search /Add / Delete the
contact list and check the phone book capacity. (Or make a Skype call from Skype
Buddy List.)
Note: to make a Skype call from WiFi Phone, you need to install SIP-Skype Gateway software in your PC.
To get a buddy list from Skype:
1. Enter “Phone Book”
2. Select “Skype Buddy List”
3. Connect with Skype to attain the buddy list
4. Select a person from your contact list to make a call
Chapter 5 Call Settings
Figure 5.1.1 shows the architecture of the Call Settings menu.
Figure 5.1.1
Call Forward
Call Waiting
NAT Settings
Audio Settings
DTMF Tone
Skype Gateway
SIP Settings
Call Settings

11
5.1 SIP Settings
Figure 5.1.2 shows the architecture of the SIP Settings menu.
Figure 5.1.2
User Name
Display Name
Passwords
Registrar
Registrar Status
Outbound Proxy
Outbound Status
Domain
Registration time
SIP Local Port
Session Timer Type
SIP Privacy
Proxy ID
Session Timer
SIP Settings

12
SIP Settings menu architecture
In the main Menu, press to enter and press scroll to Call Settings
and then select SIP Settings. Then press to select it.
The SIP Settings menu is displayed, as shown in Figure 5.1.3
Figure 5.1.3
1 Display Name
Enterdisplaynamehere.
2 User Name
Enter SIP user name/phone number here.
3 Proxy ID
Enter Proxy ID here, for example: [email protected]
4 Passwords
Enter password here.
5Registrar
Enter Proxy server’s URL and port number here.
For example, 210.65.147.201:5060
6RegistrarStatus
You can enable or disable the WIFI PHONE to register
To call through proxy server, “enable” needs to be set
7 Outbound Proxy
Enter outbound Proxy server’s URL and port number here.

13
For example: 210.65.147.201:5060
8 Outbound Proxy Status
You can enable or disable the WIFI PHONE to use the outbound proxy server.
To call through outbound proxy server, “enable” needs to be set
9 Domain
SIP Domain, SIP server URL
For example: limss.cht.com.tw:5060
10RegistrationTime
Enter registration time here.
For example: 600
11 SIP Local Port
Set the port of SIP signaling. Default is 5060
12 Session Timer Type
Set enable/ disable/ invite or update Session Timer
13 Session Timer
Enter the SIP Session Timer;
14 SIP Privacy
Enable SIP Privacy or Disable it
5.2 Call Waiting
Enable or Disable
When “enable” is set on, during busy, the alert tone will ring when a call is coming
5.3 Call Forward
Unconditional / Busy / NoAnswer / No Answer Timeout Forward
Set the phone number here to enable call forward.
Unconditional---all incoming calls will be forwarded
Busy / No answer---the call can be forwarded to third party when the call can’t be
answered under receiver is busy or no answer

14
5.4 NAT Settings
NAT Traversal (for service provider reference)---STUN/Static/None
For inter-working with some NAT-unfriendly VoIP system
(server or gateway),which can not detect the phone behind NAT, you may need to
configure your phone to use the NAT external IP/Port.
For such environment, we provide 2 methods to get your NAT external IP/Port
1. Auto detect by STUN
(You have to contact your ISP to get a STUN URL before setup)
In the main Menu, press to scroll to SIP Settings. Then press to
select it.
Step 1: Enter Menu to select SIP Settings
Step 2: Select NAT_TRAVERSAL
Step 3: Switch the NAT_TRAVERSAL to “STUN”
Step 4: Select STUN_URL
Step 5: Input STUN_URL address (contact your ISP to get )
For example, 192.168.1.100 or stun.mysip.com
2. Assign external IPby yourself
Step 1: Enter Menu to select SIP Settings
Step 2: Select NAT_TRAVERSAL
Step 3: Switch the NAT_ TRAVERSAL to “static”
Step 4: Select NAT_EXTERNAL_IP
Step 5: Input your NAT EXTERNAL IP address
For example: 192.168.1.100
5.5 Audio Settings
Audio Codec Order: default/ G.723/G.729/G.711u/G.711a/ iLBC20
RTP Port: Set RTP Port here
VAD: enable/ disable
5.6 DTMF Tone
Off / RFC-2833 / Inband
To follow receiver’s support spec., set DTMF Tone here
5.7 Skype Gateway
Enter your e-link Skype Gateway’s SIP account here
For example: 10250003

15
Chapter 6 Network Settings
Network Settings
This chapter provides information about accessing the Network Settings menu and
using its features. Figure 6.1.1 shows the architecture of the Network Settings menu.
Figure 6.1.1 Network Settings menu
In the main Menu, press to scroll to Network Settings and press
to select it. The Network Settings menu is displayed, as shown in Figure 6.1.2
Figure 6.1.2 IP Settings menu
Network Settings
IP Settings
WLAN Settings
User Certificate
Root Certificate

16
6.1 IP Settings
IP Status
Show current status of Network settings including MAC address, DHCP status, IP
address, Subnet Mask and default gateway.
DHCP
You can get dynamic IP address, default gateway and DNS server IP address from a
DHCP server if you enable the DHCP function. If you want to configure these
settings manually, please disable this DHCP function.
6.2 WLAN Settings
Figure 6.1.3 WLAN Settings menu
WLAN Status
You can disable it or you can enable it with 64, 128 bit key or WPA.
Profile Status
The list of the available AP accesses is shown here.
Profile Settings
You can have two operation models to do profile settings. One is to set on WiFi phone,
the other one is to set on Web Configuration
Find out each available AP to Edit/Delete/Activate or see the Detail
To add a new profile, press “Unused ” and press to enter the settings:
“Profile Name” , “ESSID”, and to set if any encryption is requested form AP.
Please refer to Figure 6.1.4
WLAN Settings
WLAN Status
Profile Status
Profile Settings
Site Survey

17
Figure 6.1.4
Site Survey
Press to enter the “Quick Setting” menu and use to scroll to “Site
Survey”. Press to select and initiate site survey.
To set Profile on Web Configuration:
1. Enter Web page
2. Select Wireless Setting
3. To edit “Profile Name” & “ESSID”
4. Apply

18
A. Authentication Setting
Step 1: Please checkAccess Point uses either “Open” or “Shared Key” of the WEP
Authentication
Step 2: Please set the status: “Open” or “Shared Key” into menu 6.4.4
“Authentication”
After the setting, please set steps in following “B”.
B. WEP Setting
Step 1: If theAP is “Open” of the WEPAuthentication,
set menu 6.4.5 “Encryption Status” to “Disable”
Then,do“SiteSurvey”
Step 2: If theAP is “Shared Key” of the WEPAuthentication,
check AP uses either 64 bits or 128 bits keys
Then, select an unused entry to set menu 6.4.5
“Encryption Status”
Step 3: If one of the WEP 64 or WEP 128 is selected,
set into menu 6.4.6 “WEP Key Settings”
For example:
You may enter 64bits/Key#1 into menu 6.4.6 “WEP Key Settings”
If you selected 64/1 in menu 6.4.5 “Encryption Status”,
For “64-Bit” encryption, key length is 10 and for “128-Bit ”,
key length is 26.
The key format is constructed in Hex.
For example,
“1234567890”
“1234567890abcdef1234567890”
C. WPA-PSK Setting
If the AP has both WEP and WPA-PSK function, you can select one of them to set.
For WPA-PSK Setting, please set as:
Step 1: Set ESSID
Step 2: Set “WPA-PSK” to “Enable”
Step 3: Input the passphrase in “Passphrase”
Step 4: Apply

19
D. WPA-EAP/TLS Setting
This mode needs both [User Certificate] and [Root Certificate].
Step 1: Set ESSID
Step 2: Select [User Certificate]
Step 3: Input User ID
Step 4: Input User Password
Step 5: Select [Root Certficate]
E. WPA-EAP/TTLS Setting
This mode needs [Root Certificate] only.
Step 1: Set ESSID
Step 2: Input User ID of the User Certificate
Step 3: Input User Password of the User Certificate
Step 4: Select [Root Certficate]
6.3 User Certificate
