Instruction manual
TE67X000002150 Ethernet module
Instruction manual no.: IM-TE91K013-EN2
ESE02419EN
Date of issue: August 19, 2014
First published: March 6, 2013
- Status and weight transfer using EtherNetIP
Original manual

Instruction manual Page 1
TE67X000002150 Ethernet Module
Status and weight transfer using EtherNetIP
IM-TE91K013-EN2
1. Contents
1. Contents............................................................................................................................................1
2) Introduction........................................................................................................................................3
2.1 Introduction..................................................................................................................................3
2.2 Target group ................................................................................................................................3
2.3 Limitation of liability......................................................................................................................3
2.4 Intended use................................................................................................................................4
2.5 EtherNetIP specification...............................................................................................................4
2.6 ATEX (Ex) specification...............................................................................................................4
3) Data Exchange..................................................................................................................................5
3.1 EtherNetIP communication..........................................................................................................5
3.2 Data formats ................................................................................................................................6
3.3 Unsigned integer format (16 bit)..................................................................................................6
3.4 Signed integer format (32 bit) ......................................................................................................6
3.5 Scaling.........................................................................................................................................7
3.6 Measurement time.......................................................................................................................7
3.7 Filtering........................................................................................................................................8
4) Data Processing................................................................................................................................9
4.1 Zeroing, calibration and weight calculation..................................................................................9
4.2 Corner calibration of weighing system.........................................................................................9
4.3 Calculation of uncalibrated system weight.................................................................................10
4.4 System calibration of weighing system......................................................................................10
5) Installation of system.......................................................................................................................11
5.1 Checklist during installation .......................................................................................................11
6) Hardware description ......................................................................................................................12
6.1 TE67X000002150 overview.......................................................................................................12
6.2 Connection of power (J2)...........................................................................................................13
6.3 Connection of load cells (J7)......................................................................................................13
6.4 RS485 connector (J1)...............................................................................................................14
6.5 RS232 connector (J4)................................................................................................................14
6.6 Ethernet connector (J8).............................................................................................................14
6.7 DIP-switch settings ....................................................................................................................15
6.8 Light Emitting Diodes (LEDs).....................................................................................................15
7) Maintenance, Service / Repair & Warranty.....................................................................................18
7.1 Maintenance ..............................................................................................................................18
7.2 Service / Repair .........................................................................................................................18
7.3 Warranty conditions...................................................................................................................18

8) How to contact Alfa Laval Tank Equipment.....................................................................................19
9) Appendices......................................................................................................................................20
9.1 Appendix A – Status Codes.......................................................................................................20
9.2 Appendix B – Setup with Terminal Interface..............................................................................21
9.3 Appendix C – Allen Bradley connection.....................................................................................25
9.4 Appendix D – Omron connection...............................................................................................25
9.5 Appendix E – Download of new software..................................................................................26
10) EC Declaration of conformity.........................................................................................................31

Instruction manual Page 3
TE67X000002150 Ethernet Module
Status and weight transfer using EtherNetIP
IM-TE91K013-EN2
2) Introduction
2.1 Introduction
This document describes the use of a TE67X000002150 Ethernet module from Alfa Laval
Kolding A/S, when it is equipped with the program listed on the front page.
With the program specified on the front page, the TE67X000002150 Ethernet module is capable of
transmitting weight and status for up to 4 load cells in a single telegram. Each load cell is connected to
the Ethernet module through a load cell interface module.
It is possible to connect the TE67X000002150 Ethernet module to an EtherNetIP network, where it will
act as a slave. It will then be possible from the EtherNetIP master to read status and weight for each of
the connected load cells. Functions as zeroing, calibration and calculation of system weight(s) must be
implemented outside the TE67X000002150 in the EtherNetIP master.
Exchange of data between master and slave takes place as described in the following.
Note: The illustrations and specifications contained in this manual were effective at the date of
printing. However, as continuous improvements are our policy, we reserve the right to alter or modify
any unit specification on any product without prior notice or any obligation.
© Alfa Laval Corporate AB
This document and its contents is owned by Alfa Laval Corporate AB and protected by laws governing
intellectual property and thereto related rights. It is the responsibility of the user of this document to
comply with all applicable intellectual property laws. Without limiting any rights related to this
document, no part of this document may be copied, reproduced or transmitted in any form or by any
means (electronic, mechanical, photocopying, recording, or otherwise), or for any purpose, without the
expressed permission of Alfa Laval Corporate AB. Alfa Laval Corporate AB will enforce its rights
related to this document to the fullest extent of the law, including the seeking of criminal prosecution.
- Technical modifications reserved –
2.2 Target group
WARNING! To avoid operator hazards and damages of the device, the following instructions have to
be worked out by qualified technical personnel.
2.3 Limitation of liability
By non-observance of the instruction manual, inappropriate use, modification or damage, no liability is
assumed and warranty claims will be excluded.

Page 4 Instruction manual
TE67X000002150 Ethernet Module
Status and weight transfer using EtherNetIP
IM-TE91K013-EN2
2) Introduction (continued)
2.4 Intended use
The Alva Laval TE67X000002150 Ethernet module has, according to the type, been developed for
Tank weighing applications. It is the operator’s responsibility to check and verify the suitability of the
device for the intended application. If any doubts remain, please contact our local Alfa Laval Company
in order to ensure proper usage. Alfa Laval Kolding A/S is not liable for any incorrect selections and
their effects.
- The technical data listed in the current data sheet are engaging and must be complied with. If the
data sheet is not available, please order or download it from our homepage
(http://www.alfalaval.com)
2.5 EtherNetIP specification
The TE67X000002150 EtherNet module confirms with the following EtherNetIP specifications:
Protocol:
EtherNetIP
Media:
Ethernet
Module type:
Slave(/Target)
Communication settings:
10MB/s, Half duplex
IP-Address: Fixed (default 192.168.1.199)
Ethernet connection:
RJ45/Cat5
System setup:
RS232 terminal interface
2.6 ATEX (Ex) specification
Important
ATEX
information
Load cell modules and instrumentation must be placed outside the hazardous
zone if the load cells are used in hazardous ATEX (Ex) area. Furthermore,
only ATEX certified load cells and instrumentation can be used in ATEX
applications.

Instruction manual Page 5
TE67X000002150 Ethernet Module
Status and weight transfer using EtherNetIP
IM-TE91K013-EN2
3) Data Exchange
3.1 EtherNetIP communication
Ethernet communication with the TE67X000002150 Ethernet module uses a single Assembly
consisting of 26 bytes data as specified in the EDS file:
Assembly: Assem3 Input
Assembly instance:
103 (0x67)
Connection:
Connection1 Exclusive Owner
Transfer class: Class 1
The data bytes are structured like this:
Lc
Register Lc
Status(0) Lc
Signal(0)
Lc
Status(3) Lc
Signal(3)
0 1 2 3 4 5 6 7
20 21 22 23 24 25
The byte order for the individual parts of the telegram is LSB first. In the following bit 0 will represent
the least significant bit in a register.
LcRegister is a word (two bytes) that constitute a bit register for indication of connected load cells
detected during power on. Hence bit 0-3 will be ON, if the corresponding load cell (address) was
detected during power on. LcRegister is always transferred in 16 bit unsigned integer format.
Furthermore bit 15 will be always ON, while bit 14 will toggle ON and OFF with 1hz (=500ms ON,
500ms OFF)
LcStatus(X) is a word (two bytes) that constitute a register containing the actual status for load cell
X. LcStatus(X) is always transferred in 16 bit un-signed integer format. During normal operation this
register will be 0, but if an error occurs some bits in the register will be set resulting in an error code.
A description of the different error codes can be found in the chapter STATUS CODES, see page 20.
LcSignal(X) is a double word (four bytes) constituting a register containing the actual weight
signal from load cell X in 32 bit signed integer format. Note that the value is only valid if the
corresponding LcStatus(X) register is 0 indicating no error present. The resolution of the load cell
signal is selectable. Please see below.
Since only status and weight for the load cells are transmitted in the telegram, functions such as status
handling, calculation of system weight(s), zeroing and calibration must be implemented on the
EtherNetIP master. Please refer to the chapter Data Processing page 9 for an explanation on how
this typically can be done.

Page 6 Instruction manual
TE67X000002150 Ethernet Module
Status and weight transfer using EtherNetIP
IM-TE91K013-EN2
3) Data Exchange(continued)
3.2 Data formats
The EtherNetIP communication can transfer data in the following three data formats. Please refer to
other literature for further information on these formats as it is outside the scope of this document.
3.3 Unsigned integer format (16 bit)
The following are examples of decimal numbers represented on 16 bit un-signed integer format:
Decimal Hexadecimal Binary (MSB first)
0
0x0000
00000000
00000000
1
0x0001
00000000
00000001
2
0x0002
00000000
00000010
200
0x00C8
00000000
11001000
2000
0x07D0
00000111
11010000
20000 0x4E20 01001110
00100000
3.4 Signed integer format (32 bit)
The following are examples of decimal numbers represented on 32 bit signed integer format:
Decimal Hexadecimal Binary (MSB first)
-20000000
0xFECED300
11111110
11001110
11010011
00000000
-2000000
0xFFE17B80
11111111
11100001
01111011
10000000
-200000
0xFFFCF2C0
11111111
11111100
11110010
11000000
-20000
0xFFFFB1E0
11111111
11111111
10110001
11100000
-2000
0xFFFFF830
11111111
11111111
11111000
00110000
-200
0xFFFFFF38
11111111
11111111
11111111
00111000
-2
0xFFFFFFFE
11111111
11111111
11111111
11111110
-1
0xFFFFFFFF
11111111
11111111
11111111
11111111
0
0x00000000
00000000
00000000
00000000
00000000
1
0x00000001
00000000
00000000
00000000
00000001
2
0x00000002
00000000
00000000
00000000
00000010
200
0x000000C8
00000000
00000000
00000000
11001000
2000
0x000007D0
00000000
00000000
00000111
11010000
20000
0x00004E20
00000000
00000000
01001110
00100000
200000
0x00030D40
00000000
00000011
00001101
01000000
2000000
0x001E8480
00000000
00011110
10000100
10000000
20000000
0x01312D00
00000001
00110001
00101101
00000000

Instruction manual Page 7
TE67X000002150 Ethernet Module
Status and weight transfer using EtherNetIP
IM-TE91K013-EN2
3) Data Exchange(continued)
3.5 Scaling
By use of a DIP-switch it is possible to select the desired scaling of the weight signals. The scaling of
the weight signals on the Ethernet is determined by SW1.1-2 as follows, where the table shows how a
given weight is represented on the Ethernet depending on switch settings:
Weight
[gram]
SW1.1 = OFF
SW1.2 = OFF
(1 gram)
SW1.1 = ON
SW1.2 = OFF
(1/10 gram)
SW1.1 = OFF
SW1.2 = ON
(1/100 gram)
SW1.1 = ON
SW1.2 = ON
(10 gram)
1,0
1
10
100
0
123,4
123
1234
12340
12
12341 12341 123410 1234100 1234
3.6 Measurement time
By use of a DIP-switch it is possible to choose between two different measurement times. All load cells
are sampled/averaged over a measurement period determined by SW1.3 as follows:
SW1.3 Measurement
i
OFF
200 ms
ON
20 ms
The hereby found load cell signals (possibly filtered) are used on the Ethernet until new signals are
achieved when the next sample period expires.

Page 8 Instruction manual
TE67X000002150 Ethernet Module
Status and weight transfer using EtherNetIP
IM-TE91K013-EN2
3) Data Exchange(continued)
3.7 Filtering
By use of DIP-switches it is possible to include one of 15 different FIR filters, which will be used to filter
the load cell signals. Thus it is possible to send the unfiltered load cell signals achieved over the
selected measurement period through one of the following FIR filters, before the results are transmitted
on the Ethernet:
SW1.
SW1.5
SW1.6
SW1.6
No.
Taps
Frequency
Damping
Tavg =
20ms Tavg = 200ms
OFF
OFF
OFF
OFF
0
-
-
-
-
ON
OFF
OFF
OFF
1
7
12.0 Hz
1.2 Hz
-60dB
OFF ON OFF OFF 2 9 10.0 Hz 1.0 Hz -60dB
ON
ON
OFF
OFF
3
9
12.0 Hz
1.2 Hz
-80dB
OFF
OFF
ON
OFF
4
12
8.0 Hz
0.8 Hz
-60dB
ON
OFF
ON
OFF
5
12
10.0 Hz
1.0 Hz
-80dB
OFF
ON
ON
OFF
6
15
8.0 Hz
0.8 Hz
-80dB
ON
ON
ON
OFF
7
17
6.0 Hz
0.6 Hz
-60dB
OFF OFF OFF ON 8 21 6.0 Hz 0.6 Hz -80dB
ON
OFF
OFF
ON
9
25
4.0 Hz
0.4 Hz
-60dB
OFF ON OFF ON 10 32 4.0 Hz 0.4 Hz -80dB
ON
ON
OFF
ON
11
50
2.0 Hz
0.2 Hz
-60dB
OFF
OFF
ON
ON
12
64
2.0 Hz
0.2 Hz
-80dB
ON OFF ON ON 13 67
1.5 Hz 0.15 Hz -60dB
OFF
ON
ON
ON
14
85
1.5 Hz
0.15 Hz
-80dB
ON
ON
ON
ON
15
100
1.0 Hz
0.10 Hz
-60dB
NOTE: With all switches OFF no filtering is performed.

Instruction manual Page 9
TE67X000002150 Ethernet Module
Status and weight transfer using EtherNetIP
IM-TE91K013-EN2
4) Data Processing
4.1 Zeroing, calibration and weight calculation
Calculation of system weight(s) is done by addition of the weight registers for the load cells belonging to
the system. This is explained below. Note that the result is only valid if all status registers for the load
cells in question indicate no errors. It should also be noted that it is up to the master to ensure the
usage of consistent load cell data when calculating the system weight (the used data should come from
the same telegram).
4.1.1 Zeroing of weighing system
Zeroing of a weighing system (all load cells in the specific system) should be performed as follows,
taking into account that no load cell errors may be pre-sent during the zeroing procedure:
1) The weighing arrangement should be empty and clean.
2) The EtherNetIP master verifies that no load cell errors are present, after which it reads and
stores the actual weight signals for the load cells of the actual system in corresponding zeroing
registers:
LcZero[x]=LcSignal[x]
3) After this the uncalibrated gross weight for load cell X can be calculated as:
LcGross[X] = LcSignal[X] – LcZero[X]
4.2 Corner calibration of weighing system
In systems where the load is not always placed symmetrically the same place (for example a platform
weight where the load can be placed randomly on the platform when a weighing is to take place), a fine
calibration of a systems corners can be made, so that the weight indicates the same independent of the
position of the load. This is done as follows:
1) Check that the weighing arrangement is empty. Zero the weighing system.
2) Place a known load (CalLoad) directly above the load cell that is to be corner calibrated.
3) Calculate the corner calibration factor that should be multiplied on the uncalibrated gross
weight of the load cell in order to achieve correct showing as:
CornerCalFactor[x] = (CalLoad)/(LcGross[x])
After this the determined corner calibration factor is used to calculate the calibrated gross weight of the
load cell as follows:
LcGrossCal[x] = CornerCalFactor[x] * LcGross[x]

Page 10 Instruction manual
TE67X000002150 Ethernet Module
Status and weight transfer using EtherNetIP
IM-TE91K013-EN2
4) Data Processing (continued)

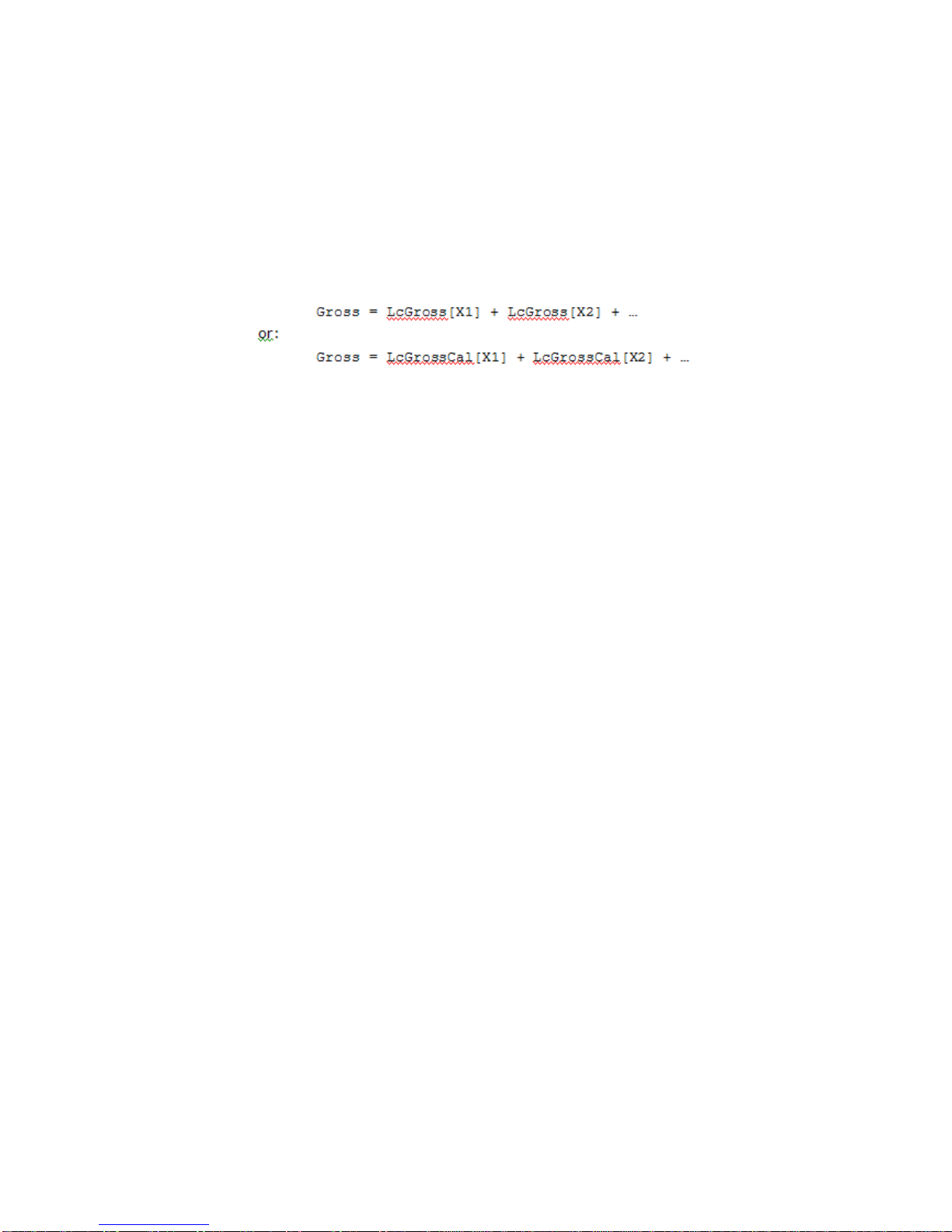

4.3 Calculation of uncalibrated system weight
Based on the load cell gross values (LcGross[x] or LcGrossCal[x]), whether they are corner calibrated
or not, an uncalibrated system weight can be calculated as either:
4.4 System calibration of weighing system
Based on the uncalibrated system weight a system calibration can be made as follows:
1) Check that the weighing arrangement is empty. Zero the weighing system.
2) Place a known load (CalLoad) on the weighing arrangement. NOTE: In order to achieve a
correct calibration of the system it is recommended, that the used calibration load is at least
50% of the system capacity.
3) Calculate the calibration factor that should be multiplied on the uncalibrated system weight in
order to achieve correct showing as:
CalFactor = (CalLoad)/(Actual Gross)
After this the determined calibration factor is used to calculate the calibrated system weight as follows:
GrossCal = CalFactor * Gross
If the determined calibration factor falls outside the interval 0.9 to 1.1 it is very likely that there is
something wrong with the mechanical part of the system. This does not, however, apply to systems
that do not have a load cell under each supporting point. For example on a three legged tank with only
one load cell, you should get a calibration factor of approximately 3 because of the two “dummy” legs.

Instruction manual Page 11
TE67X000002150 Ethernet Module
Status and weight transfer using EtherNetIP
IM-TE91K013-EN2
5) Installation of system
5.1 Checklist during installation
During installation of the system the following should be checked:
1. All hardware connections are made as described below.
2. Connect the TE67X000002150 Ethernet to a PC with a RS232 connection and setup IP Address
etc. as describe below.
3. If necessary the EtherNetIP master should be configured to communicate with the
TE67X000002150 Ethernet module using the supplied EDS file.
4. Set the scaling/resolution of the weight signal by use of SW1.1-2 as described above.
5. The load cells are mounted mechanically and connected to the TE67X000002150 Ethernet module
using their corresponding load cell interface module. The load cell addresses are set using the
DIP-switches on the load cell interface modules, so that they forth running from address 0 (0-3).
6. The TE67X000002150 Ethernet module is connected to the EtherNetIP network using the RS45
Ethernet connector in the front panel.
7. Power (24VDC) is applied through the two pole connector (J2). The EtherNetIP communication is
started.
8. Verify that the MS lamp and the NS lamp both end up green.
9. Verify that the TxBB lamp (green) on the Ethernet module is lit (after 10 seconds), and that the
TxBB lamps on all the load cell interface modules are also lit (can flash slightly).
10. Verify that none of the D1 or D2 lamps are lit.
11. Verify that the TE67X000002150 Ethernet module has found the correct load cells (LcRegister),
and that no load cell errors are indicated (LcStatus(x)).
12. Verify that every load cell gives a signal (LcSignal(x)) by placing a load directly above each load
cell one after the other (possibly with a known load).
The system is now installed and a zero and fine calibration is made as described earlier. Finally verify
that the weighing system(s) returns a value corresponding to a known actual load.
Note that in the above checklist, no consideration has been made on which functions are implemented
on the EtherNetIP master.

Page 12 Instruction manual
TE67X000002150 Ethernet Module
Status and weight transfer using EtherNetIP
IM-TE91K013-EN2
6) Hardware description
6.1 TE67X000002150 overview
The following figure is an overview of how a TE67X000002150 Ethernet system is made using four load
cell interface modules:
TE67X000002010 TE67X000002010 TE67X000002010 TE67X000002010
TE67X000002150

Instruction manual Page 13
TE67X000002150 Ethernet Module
Status and weight transfer using EtherNetIP
IM-TE91K013-EN2
6) Hardware description (continued)
6.2 Connection of power (J2)
This chapter describes the connection of power supply to the TE67X000002150 Ethernet module.
The TE67X000002150 module is powered by applying +24VDC on the green two pole connector (J2)
as specified on the front panel of the TE67X000002150 module. This powers the entire
TE67X000002150 system including the load cell interface modules and load cells connected using the
supplied ribbon cable described below.
The 2 pole connector (J2) on the TE67X000002150 Ethernet module has these
connections:
J2 CONNECTER
FUNCTION
J2.1
+24VDC (Vin)
J2.2
0 VDC (GNDin)
IMPORTANT: The used power supply must be stable and free of transients. It may therefore be
necessary to use a separate power supply dedicated to the weighing system, and not connected to any
other equipment.
6.3 Connection of load cells (J7)
This chapter describes the connection of load cells to the TE67X000002150 Ethernet module.
The 10 pole connector (J7) on the TE67X000002150 module is connected to the 10 pole connectors on
the load cell interface modules using the supplied ribbon cable with mounted connectors. Through this
RS485 bus cable connection of power supply to the individual modules is achieved and data can be
transferred from the load cell modules to the TE67X000002150 module.
The 10 pole connector (J7) on the TE67X000002150 Ethernet module has these connections:
J7 CONNECTER
FUNCTION
J7.1 – J7.2
RS485-B (DATA- )
J7.3 – J7.4 RS485-A (DATA+)
J7.5 – J7.6
0 VDC (GNDin)
J7.7 – J7.8
+24VDC (Vin)
J7.9 – J7.10
I/O line

Page 14 Instruction manual
TE67X000002150 Ethernet Module
Status and weight transfer using EtherNetIP
IM-TE91K013-EN2
6) Hardware description (continued)
6.4 RS485 connector (J1)
The green 3 pole connector (J1) at the bottom of the TE67X000002150 Ethernet module contains the
same RS485 bus that is available through the ribbon cable connector (J7), which is normally used for
interfacing load cells. This allows an alternate way of connecting load cells to the TE67X000002150
module. In other applications where no load cells are connected to the TE67X000002150 module, this
connector may be used to interface different equipment to the TE67X000002150 module using RS485
communication.
The 3 pole connector (J1) on the TE67X000002150 Ethernet module has these connections:
J1 CONNECTER
FUNCTION
J1.1
RS485-B (DATA- )
J1.2
RS485-A (DATA+)
J1.3
0 VDC (GNDin)
6.5 RS232 connector (J4)
The small 4 pole connector (J4) at the bottom of the TE67X000002150 Ethernet module contains an
RS232 communication channel. This RS232 channel is used for setup/configuration of the
TE67X000002150 Ethernet module from a PC as described below. Connection to this connector is
made using a special serial cable supplied by Alfa Laval Kolding A/S.
The 4 pole connector (J4) on the TE67X000002150 Ethernet module has these connections:
J4 CONNECTER
FUNCTION
J4.1
RS232-GND (connected to PC- GND)
J4.2 RS232-RXD (connected to PC-TXD)
J4.3
RS232-TXD (connected to PC-RXD)
J4.4
RS232-GND (connected to PC- GND)
6.6 Ethernet connector (J8)
The front panel of the TE67X000002150 Ethernet module is equipped with a standard Ethernet
RJ47 connector for Cat5 cables.

Instruction manual Page 15
TE67X000002150 Ethernet Module
Status and weight transfer using EtherNetIP
IM-TE91K013-EN2
6) Hardware description (continued)
6.7 DIP-switch settings
The TE67X000002150 Ethernet module is equipped with an 8 pole DIP switch block located in the front
of the module named SW1. This DIP switch block has the following function:
SWITCH
FUNCTION
SW1.1-2
Scaling Used to select the desired scaling as described above.
SW1.3
Measurement time Used to select the desired measurement time as described above.
SW1.4-SW1.7
Filtering Used to select the desired filter as described above.
SW1.8
Reserved for future use
The TE67X000002150 Ethernet module is also equipped with an 8 pole DIP switch block located
inside the module that is only accessible if the cover is removed. This DIP switch block is named SW2
and has the following function:
SWITCH FUNCTION
Sw2.1-Sw2.8 Reserved for future use
6.8 Light Emitting Diodes (LEDs)
The TE67X000002150 Ethernet module is equipped with a number of status lamps (LEDs) located in
the front panel. These have the following functionality:
LED
FUNCTION
TxBB
(Green) TE67X000002150 communicationwith load cells
Ethernet module is communicating with load cells.
Ethernet con nector
(RJ45)
Yellow
Link
Ethernet is connected.
Ethernet con nector
(RJ45)
Green
Activity
Ethernet data is received or transmitted.
MS
(Green/Red) Module Status LED
The TE67X000002150 Module Status LED, that can be lit/flashing in differen
t
colors depending on the status of the module. The function of the MS LED is given
in the table below
NS
(Green/Red)
Network Status LED
The TE67X000002150 Network Status LED, that can be lit/flashing in differen
t
colors depending on the status of the network. The function of the NS LED is given
i th t bl b l
D1
(Red) Reserved for future use
D2 (Red) Reserved for future use

Page 16 Instruction manual
TE67X000002150 Ethernet Module
Status and weight transfer using EtherNetIP
IM-TE91K013-EN2
6) Hardware description (continued)
6.8 Light Emitting Diodes (LEDs)
The MS and NS LED’s can in conjunction with the table below be used for error finding.
Light
emit-
ting di-
ode
Color Status Description
MS Green ON Normal Operation. Communication performed normally.
Flash-
ing Standby State. The module needs supervision.
Red ON Unrecoverable fault. A timer error, memory error or
other system error. The module may need replacing.
Flash-
ing Recoverable fault. Configuration error, DIP-switch not set
correct, IP-Address error or similar error. Correct error and
restart module.
--- OFF No power. The power is disconnected or the module is
being restarted.
NS Green ON On-Line, Connection OK. The module is On-Line and a
connection with the master has been established.
Flash-
ing On-Line, No Connection. The module is On-Line but no
connection to the master has been established.
Red ON Critical Communication Error. The module has detected
an error that makes it impossible to communicate on the
network.
Flash-
ing Communication Time-Out. One or more I/O connections are in the Time-Out state.
--- OFF No power/Off-line. The device may not be powered.

Instruction manual Page 17
TE67X000002150 Ethernet Module
Status and weight transfer using EtherNetIP
IM-TE91K013-EN2
6) Hardware description (continued)
6.8 Light Emitting Diodes (LEDs)
The TE67X000002150 Ethernet module is also equipped with a number of status lamps (LEDs)
located inside the module and are only visible if the cover is removed. These have the following
functionality:
SWITCH FUNCTION
D4
(Yellow) RS485 RX
RS485 data is received.
D9
(Green)
RS485 TX
RS485 data is transmitted.
D14
(Yellow)
RS232 RX
RS232 data is received.
D5
(Green)
RS232 TX
RS232 data is transmitted.
D10
(Red) Power
3.3 VDC internal power supply is on.
6.9 Hardware Self-test
During power-on the TE67X000002150 Ethernet module will perform a hardware self-test. The test
will cause the light emitting diodes D2, MS and NS to flash shortly one at a time.
6.10 Update times
The TE67X000002150 Ethernet module samples the load cell signals over a period of 200 mS. The
hereby found load cell signals are used in the EtherNetIP communication until new signals are
achieved when the next sample period expires. Update times across the EtherNetIP communication
depends on the specific EtherNetIP configuration (switches, number of units, master scan times etc.)
and are beyond the scope of this document.

Page 18 Instruction manual
TE67X000002150 Ethernet Module
Status and weight transfer using EtherNetIP
IM-TE91K013-EN2
7) Maintenance, Service / Repair & Warranty
7.1 Maintenance
This device is maintenance-free, but to ensure optimum accuracy of the weighing installation it is
recommended to inspect the weighing system installation at regular intervals.
Recommended inspection points are:
1: Verify that tank is freestanding. Are all pipe connections flexible and not restraining vertical
movement of the tank?
1a: Verify that no changes have been done to the tank? If any modifications have been performed
ensure that they are done correctly according to installation recommendations for weighing systems.
2: Verify that all legs of the tanks all are in physical contact with load cells.
7.2 Service / Repair
7.2.1 Return
Upon every return of the device, no matter if for recalibration, modifications or repair, it is necessary to
contact your local Alfa Laval office to guarantee a quick execution of your request.
Please inform us by sending an email to:[email protected]. Include the number of
devices sent and request a Return Number. Afterwards clean the device, pack it shatterproof and send
it to Alfa Laval Kolding A/S indicating the Return Number.
7.3 Warranty conditions
The warranty conditions are subject to the legal warranty period of 12 months from the date of delivery.
In case of improper use, modifications of or damages to the device, we do not accept warranty claims.
Damaged diaphragms will also not be accepted. Furthermore, defects due to normal wear are not
subject to warranty services.
