Alfalaval Arctigo HRCD 06-I Operation instructions

ORIGINAL INSTRUCTIONS
AHE00062EN 1904
Alfa Laval Arctigo HRCD
Instruction manual
• Product description
• Product labels
• Unpacking & lifting
• Installation
• Maintenance
• Spare parts

AHE00062EN 1904
2
Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change specification without prior notification.
Index
1. Important information
1.1 Disclaimer...................................................................................................................................3
1.2 Intended use...............................................................................................................................3
1.3 Where to nd product information ..............................................................................................3
2. Product description Arctigo HRCD
2.1 General information & application ..............................................................................................4
2.2 Standard conguration ...............................................................................................................4
2.3 Code description ........................................................................................................................4
3. Product labels...........................................................................................................................5
4. Unpacking and lifting...............................................................................................................7
5. Installation
5.1 Mounting dimensions .................................................................................................................8
5.2 Mounting bracket........................................................................................................................9
5.3 Refrigerant connections .............................................................................................................9
5.4 Drain line ....................................................................................................................................9
5.5 Electrical installation.................................................................................................................10
6. Maintenance
6.1 Fan grid replacement ............................................................................................................... 11
6.2 Fan motor replacement and fan panel opening ....................................................................... 11
6.3 Driptrays...................................................................................................................................12
6.4 Coil heater replacement for units with Cu tubing......................................................................12
6.5 Coil heater replacement for units with SS tubing .....................................................................13
7. Spare parts..............................................................................................................................14

AHE00062EN 1904
3
Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change specification without prior notification.
1 Important information
1.1 Disclaimer
This Instruction Manual applies to all Alfa Laval Arctigo HRCD air cooler products and is supplied
in combination with the Alfa Laval Air Cooler Product Manual AHE00042. Both manuals must be
carefully examined and instructions should be followed up at all times. Alfa Laval does not accept
liability for any damage resulting from non-compliance to the instructions as given in the manuals
and order-related documents.
1.2 Intended use
Air coolers are partly completed machinery according to Machine Directive 2006/42/EC and are
intended for incorporation in cooling systems. Declarations of Incorporation are available on www.
alfalaval.com. Air cooler units may not be put into operation until the conformity of the complete
machine or cooling system has been declared according to the following standards and directives:
• Pressure Equipment Directive 2014/68/EU
• Machine Directive 2006/42/EC
• Low Voltage Directive 2014/35/EU
• Electrical Equipment of Machines IEC 60204-1
• Electro Magnetic Compatibility 2014/30/EU
• Any applicable local or national legislation
1.3 Where to find product information
Detailed technical data for individual product models are available in order related documents, on
the product sticker and in product data sheets. Comprehensive technical information for all Alfa
Laval air heat exchanger products is available on-line on www.alfalaval.com. This includes:
• Product manuals
• Instruction manuals
• Product leaflets & brochures
• Product data sheets (selection software)
• Dimensional drawings
• Electrical wiring diagrams
• Certificates
Alfa Laval offers world-wide service and support in over 55 countries. In case of any questions
or uncertainty please contact your local Alfa Laval representative. Contact addresses are available
at www.alfalaval.com.
Arctigo HRCD

AHE00062EN 1904
4
Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change specification without prior notification.
2 Product description Arctigo HRCD
2.1 General information and application
Banana ripening coolers Arctigo HRCD have been designed for application in airbag & side curtain
system banana ripening rooms. The coolers have been optimised for 12.5 °C air-on and 11.5 °C
air-off temperature at an evaporating temperature of 7 °C. Arctigo HRCD air coolers provide for an
even temperature distribution throughout the whole ripening room, guaranteeing that the products
are ripened as evenly as possible.
Evaporating temp. 7 °C (optimised)
Refrigerants all H(C)FC, brine, CO2
Capacities (SC2) 8 up to 38 kW
Banana rooms 6 to 30 pallets
2.2 Standard configuration
• Finned coil :
- Cu ripple fin tubing ø 5/8” (smooth tubing for brine)
- Tube pitch 50 x 50 mm square
- Corrugated Alu-fins.
• 3-5 Fans 400/50/3, Ø 508 and 550 mm. Cables are led to the outside of the casing.
Enclosed design spray-tight fan motors, protection class IP55. Motors are equipped with a ther-
mal safety device in the windings, connected to separate terminals in the box.
• Design pressure 33 bar (H(C)FC) or 10 bar (brine).
• Heater elements
• Lighting integrated into the cooler casing.
• Corrosion resistant casing material: Aluminium/Sendzimir, white epoxy coated (RAL 9002).
• Hinged driptrays
• Fitted with schräder valve on the suction connection for testing purposes (excl. brine).
• Sufficient room for fitting the expansion valve inside.
• Suitable for dry expansion or pumped system.
• Stickers indicate fan direction and refrigerant in/out.
• Delivery in mounting position. Coolers are mounted on wooden beams. Installation can take
place with use of a forklift.
2.3 Code description
HRCD 24 III
1 2 3
1 Banana ripening cooler airbag/side curtain system
2 Maximum number of pallets in ripening room
3 Number of pallet layers

AHE00062EN 1904
5
Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change specification without prior notification.
3 Product labels
WARNING
READ INSTRUCTION MANUAL BEFORE
INSTALLATIONS OPERATIONS AND MAINTENANCE
TO AVOID INJURIES OR DAMAGE
Country of origin Italy
Manufacturer: Manuf. date:
AIR HEX ALONTE S.R.L. - Italy 04 / 2019
Model: O.A. 1106756
HRCD24III
CA 4.0 CU
Item ID: 32892164042
Serial no. AP 5002763
Unit Net Weight: 37,800 Kg ±5%
Sn
Motorfan data:
Vn: 1~230V
f: 50/60 Hz
EXAMPLE
WARNING
READ INSTRUCTION MANUAL BEFORE
INSTALLATIONS OPERATIONS AND MAINTENANCE
TO AVOID INJURIES OR DAMAGE
Manufacturer: Manuf. date:
AIR HEX ALONTE S.R.L. - Italy 04 / 2019
Model: O.A. 1106756
HRCD24III
CA 4.0 CU
Item ID: 3289216404
Serial no. AP 5002763
Sn
Coil PED data: ART. 3.3
Max DN: 9 mm
Fluid Group 2
Coil Ts: +125/-60 °C
Ps: 80 bar
Pt: 114 bar
Test Date: 04-2019
EXAMPLE
1. Product label
Model Code description
(paragraph "2.3 Code
description"3)
Item ID
Serial no.
To be communicated when
ordering spare parts as
they identify the unit.
O.A. Order number
Unit Net Weight Check before any lifting
operation to ensure that
proper lifting tools are
used.
2. Product label - coil
Model Code description
(paragraph "2.3 Code
description")
Item ID
Serial no.
To be communicated when
ordering spare parts as
they identify the unit.
Max DN Maximum diameter of the
distributor tube
Fluid Group According to PED
Coil Ts Range of operating tem-
peratures for the coil
Ps Design pressure
Pt Test pressure
Test date Date on which the coil has
been pressure tested in
the factory

AHE00062EN 1904
6
Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change specification without prior notification.
5.307
ATTENZIONE!
CIRCUITO FRIGORIFERO PRECARICATO CON AZOTO
WARNING!
PRECHARGED REFRIGERANT CIRCUIT WITH NITROGEN
ACHTUNG!
VERLADTER KÄLTEMITTELKREISLAUF MIT STICKSTOFF
ATTENTION!
CIRCUIT FRIGORIFIQUE PRE-CHARGE AVEC AZOTE
BHИМАНИЕ!
СИСТЕМА ЗАПРАВЛНА АЗОТОМ
3. Nitrogen precharge warning
Units are delivered from the manufacturer
with an overpressure. Check pressure on
the Schrader valve. With unpressurised unit:
Immediate report to manufacturer and note on
bill of delivery.
6. Fan motor
Spare part item number
7. Electrical warning
Electrically powered component. Switch off
power supply before any maintenance or instal-
lation operation
8. Fan direction
Sticker indicates fan rotation direction
9. Moving parts
Warning: moving parts.
Switch off power supply before any maintenance
or installation activities.
PARTI INTERNE IN MOVIMENTO A
COMANDO AUTOMATICO.
TOGLIERE TENSIONE PRIMA DI TOCCARE
AUTOMATIC CONTROL MEANS MOVING
INTERNAL PARTS.
SWITCH OFF POWER BEFORE TOUCHING
SCHALTUNG AUF AUTOMATIK, INTERNE
BAUTEILE IN BETRIEB. VOR ARBEITSBEGINN
SPANNUNG UNTERBRECHEN
ÉLÉMENTS INTERNES A DÉMARRAGE
AUTOMATIQUE. COUPER L’ALIMENTATION
ÉLECTRIQUE AVANT INTERVENTION
Cod. 69100175
4. 5. In/Out
Refrigerant connections inlet and outlet
IN OUT
Spare part
item no
9460088799

AHE00062EN 1904
7
Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change specification without prior notification.
Arctigo HRCD air coolers are delivered in a
wooden wooden crate. Handling and positioning
can take place with use of a forklift. Packed air
coolers may be stacked during transportation
and storage up to three units.
4 Unpacking and lifting
Always follow guidelines and instructions as given in the air cooler product manual AHE00042.
In order to avoid damage to the air cooler or fall-
ing of the unit, ensure that the lifting forks cover
both inner support beams on the lower pallet.
All models are supplied in mounting position.
Prior to lifting and mounting, the top crate beams
must be removed.
forks may be lowered and the remaining packag-
ing materials shall be removed.
Lift the unit to mounting position and secure
following instructions given in chapter "5
Installation"After having secured the cooler, the

AHE00062EN 1904
8
Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change specification without prior notification.
5.1 Mounting dimensions
5 Installation
Always follow guidelines and instructions as given in the air cooler product manual AHE00042.
6000
HRCD nr. pallet nr. of dim.
model of layers pallets A
fans mm
06-I 3 1 3 x 2 = 6 350
08-I 4 1 4 x 2 = 8 350
10-I 5 1 5 x 2 = 10 350
12-II 3 2 3 x 4 = 12 600
16-II 4 2 4 x 4 = 16 600
20-II 5 2 5 x 4 = 20 600
18-III 3 3 3 x 6 = 18 850
24-III 4 3 4 x 6 = 24 850
30-III 5 3 5 x 6 = 30 850

AHE00062EN 1904
9
Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change specification without prior notification.
5.2 Mounting bracket
Use extra wide washers (ISO 7093) when
mounting the unit to the ceiling.
20
12
Never bend the air cooler refrigerant connection
tubes
The drain line diameter must be at least the size
of the drip tray drain diameter and should be laid
with an adequate slope. For room temperatures
below 0° C drain line insulation and defrosting
are required.
A syphon must be installed on the drain line,
outside the cold room
5.4 Drain line
5.3 Refrigerant connections
Tighten drain connection by hand only.
Units are designed such that drains can be con-
nected in parallel.

AHE00062EN 1904
10
Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change specification without prior notification.

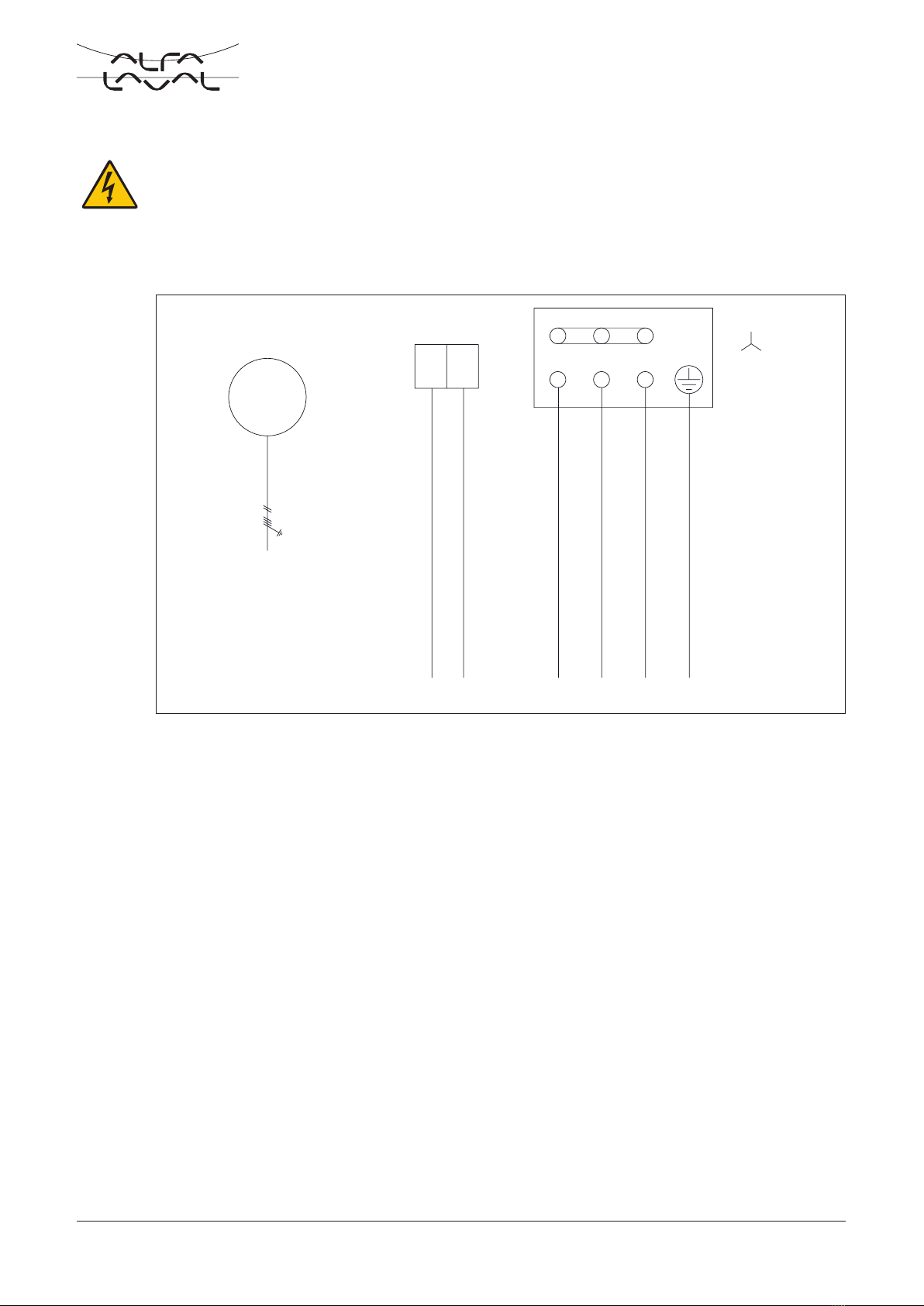

Yellow/green
Grey
Brown
Pink
White
11
TB1
W1
V2
V1
U2
U1
W2
L1 L2 L3 PE
12
TB2
Black
6x 1.5 mm2
M
3~
5.5 Electrical installation
The following data determine which connection diagram is to be selected
and respected for electrical installation:
• Cooler model indication
• Electrical options
Standard electrical connections 1-5 fan motors 3 phase AC

AHE00062EN 1904
11
Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change specification without prior notification.
6 Maintenance
Always follow guidelines and instructions as given in the air cooler product manual AHE00042.

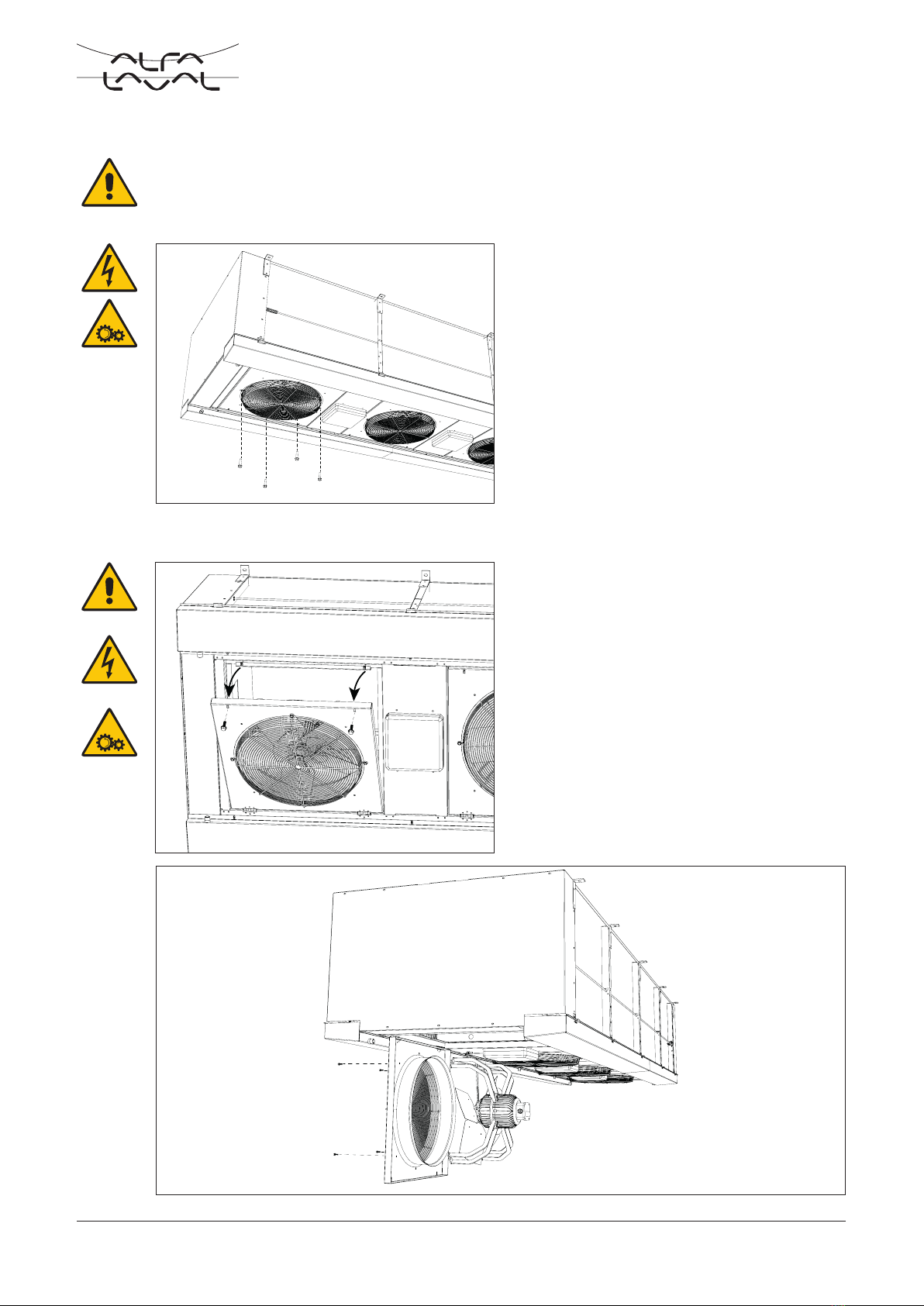

6.1 Fan grid replacement
Ensure complete electrical isolation before
performing any maintenance activities on the fan
grids.
Unscrew fixing bolts and remove old fan grid.
Mount new fan grid in identical position. Use an
anti-corrosion compound when remounting the
fixing bolts.
Restore electrical power supply when the new
fan grid has been mounted.
6.2 Fan motor replacement and fan panel opening
Disconnect electrical power supply before per-
forming any maintenance activities on fans and
fan motors.
To open the fan panel, loosen the fixing screws
on the opposite side of the hinges.
Loosen the 4 screws fixing the motor frame to
the fan panel and remove the old fan. Mount the
new fan in identical position. Use an anti-corro-
sion compound when remounting the fixing bolts.
Restore electrical connections when the new fan
has been mounted.

AHE00062EN 1904
12
Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change specification without prior notification.

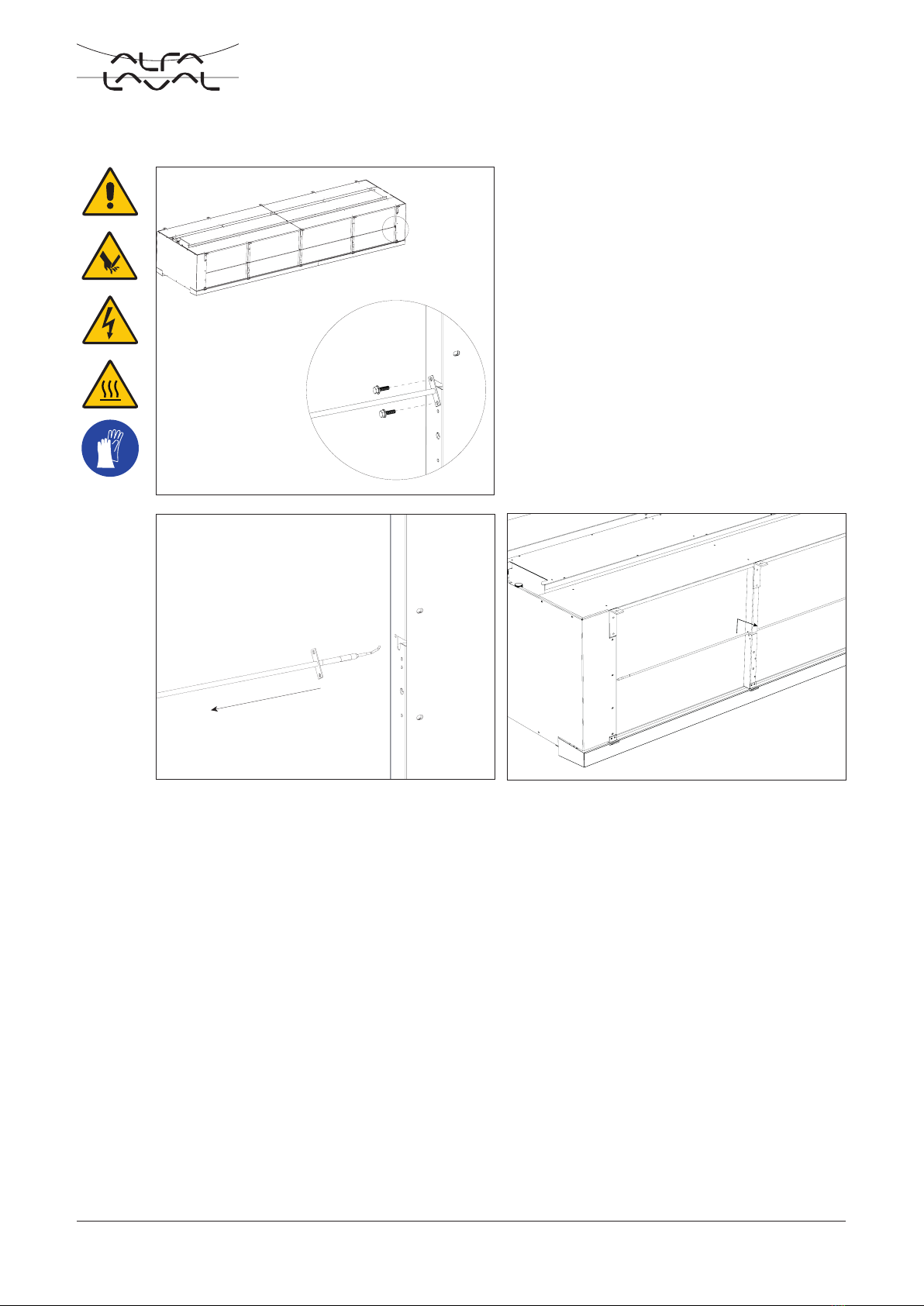

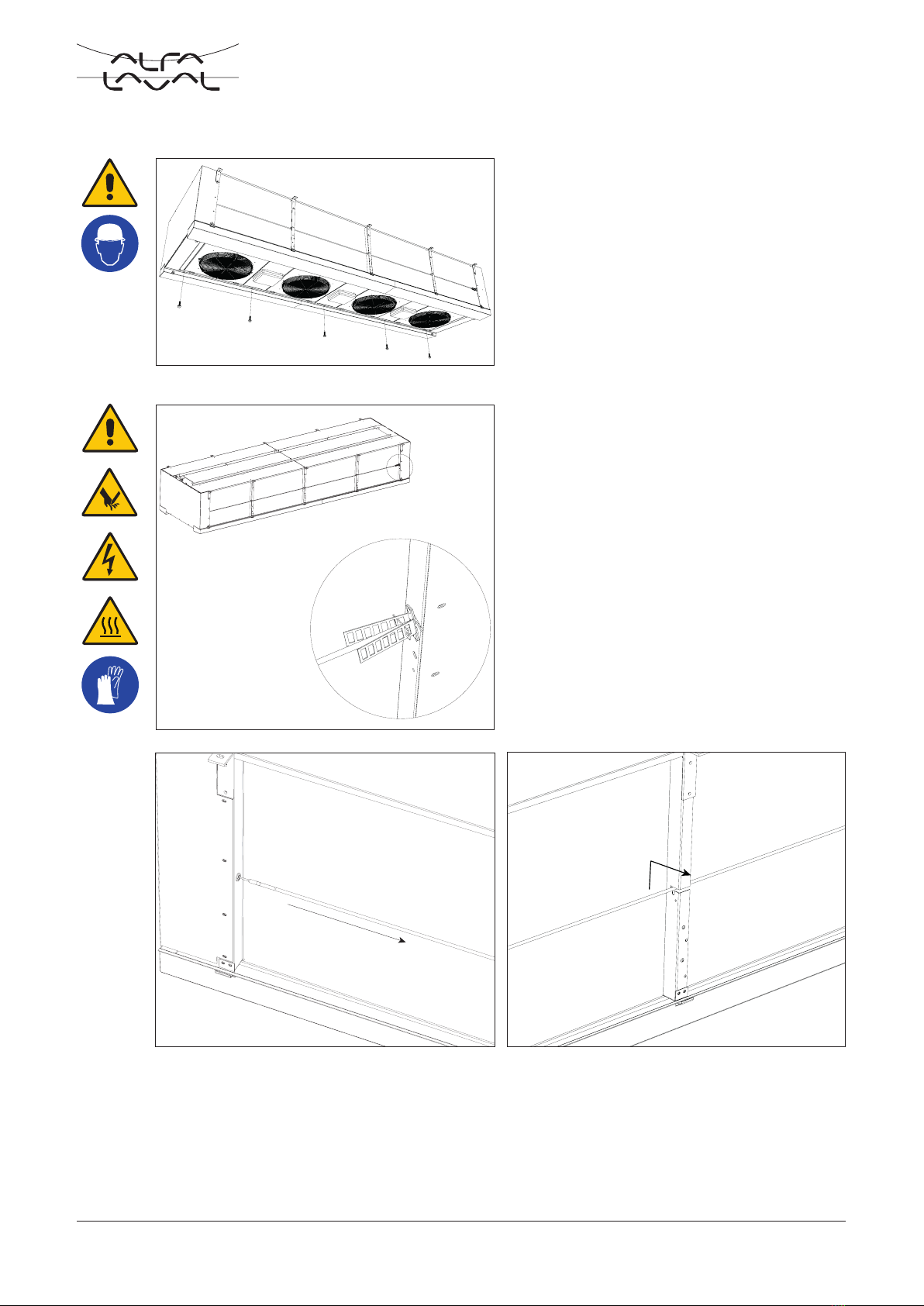

6.3 Driptrays
Driptrays can be opened for inspection, clean-
ing and maintenance purposes. To open the
driptrays, disconnect the drain line. Loosen and
remove fixing bolts and then gently lower the
driptrays. Respect the maximum opening angle
(90°) to avoid damage to the driptray hinges.
Always disconnect power supply before handling
heater elements.
Disconnect heater elements, open the fixing clip
and pull it out from the coil. Mount new element
in reverse order and restore electrical connec-
tions.
6.4 Coil heater elements replacement for units with Cu tubing

AHE00062EN 1904
13
Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change specification without prior notification.
6.5 Coil heater elements replacement for units with SS tubing
Always disconnect power supply before handling
heater elements.
Disconnect heater elements, unscrew the 2 fix-
ing bolts. Pull the heater out from the coil. Mount
new element in reverse order and restore electri-
cal connections.

AHE00062EN 1904
14
Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change specification without prior notification.
Alfa Laval Anytime
7 Spare parts
1
2
3
4
1Driptray (2 x identical)
2Complete fan
3Lights cover (bulbs available on request)
4Electrical defrost element
Spare parts can be selected and ordered in the online eBusiness tool Alfa Laval Anytime. If required
please contact your local Alfa Laval representative for assistance.

AHE00062EN 1904
15
Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change specification without prior notification.

www.alfalaval.com
