Alfalaval Solar S Series User manual

Alfa Laval Solar S/SR™ Air Cooled Liquid Coolers
Instruction manual
ORIGINAL INSTRUCTIONS
No. 9460157273-03

Contents
1 How to contact Alfa Laval...........................................................................3
2 General description......................................................................................4
3 Transport and storage................................................................................. 5
3.1 Lifting package....................................................................................................................................5
3.2 Unloading unit from standard truck.................................................................................................... 6
3.2.1 Unloading horizontal units from container............................................................................ 6
3.2.2 Unloading vertical units from container (Container on ground level)....................................6
3.2.3 Unloading vertical units from container (Container on wheels)............................................ 7
3.3 Packing............................................................................................................................................... 8
3.4 Lifting unit........................................................................................................................................... 9
3.5 Storage..............................................................................................................................................10

1 How to contact Alfa Laval
Visit www.alfalaval.com to get detailed contact information.
Newest manual use link or QR-code: http://alair.techmanuals.info/en/lc/solar/index.html.
© Alfa Laval, Rev-03 3Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change this specification without prior notification.

2 General description
Alfa Laval Solar S/SR™ series are designed for outdoor cooling with water, various oil solutions and other
working fluids, which do not corrode copper, aluminum or brazing material (EN ISO 17672 Cup 279).
Check the identification data on the product nameplate.
Product nameplate
Model See Equipment description
O.A. Order Acknowledgement number
Serial no: Ref Communicate these when ordering spare
parts as they identify the unit
Unit net weight Check weight before any lifting operation to
ensure that proper lifting tools are used
Coil data
Material Tube material
Volume Internal volume
Fluid group According to PED
max DN Maximum diameter of the distributor tube
Coil TS Range of operating temperatures for the
coil
PS Design pressure
PT Test pressure
Test date: Date on which the factory has pressure
tested the coil
© Alfa Laval, Rev-03 4Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change this specification without prior notification.

3.1 Lifting package
3 Transport and storage
3.1 Lifting package
Warning:
Lift and transport the units packed in an upright position very carefully.
Handle high units very carefully. Never place them on an inclined or uneven plane.
Danger of falling.
Before lifting the unit, check the weight on the nameplate. Verify that the lifting supports at least the unit weight
+10 %, when using a forklift. Only lift from the middle of the unit at the center of gravity supported by the
pallet. For safe lifting, the forks must be longer than 2.5 m and fully inserted under the unit. Position the forks
to the maximum width over the area supported by the pallet. Only lift an empty unit.
Figure 1: Correct lifting of Solar S/SR™ units with forklift
Before starting lifting, make sure that
The manual is attached.
You have noted all transport and lifting signs and instructions from the unit and packaging.
You have made necessary advance control.
You have checked the lifting device and it is functioning properly.
The driver has the permission for lifting.
© Alfa Laval, Rev-03 5Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change this specification without prior notification.

3.2 Unloading unit from standard truck
Before starting lifting, make sure that
The ground under the unit has enough bearing capacity.
The device is correctly erected and horizontally installed.
The support legs are in supporting position.
The lifting capacity of the device is sufficient.
The operators know how to use the lifting device according to the operation and safety
instructions.
No electric or other cables are near the lifting place.
The working area of the lifting device is sufficient and safe.
There are no obstacles or risks on the working area.
Caution: Check that the unit is tied tightly to prevent it from moving during transport. Ensure that the
binding does not damage the unit.
3.2 Unloading unit from standard truck
Note: Notice the weight of the unit to ensure safe lifting.
3.2.1 Unloading horizontal units from container
See lifting instructions in the full Solar S/SR instruction manual.
3.2.2 Unloading vertical units from container (Container on ground level)
1. Use a chain with hooks to pull out the unit. Attach the hooks on both pull out plates mounted on the
wooden pallet.
2. Use wooden balks under the unit to prevent fall impacts.
© Alfa Laval, Rev-03 6Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change this specification without prior notification.

3.2 Unloading unit from standard truck
3. When the unit is pulled out, remove the pallet. Lift the unit by crane.

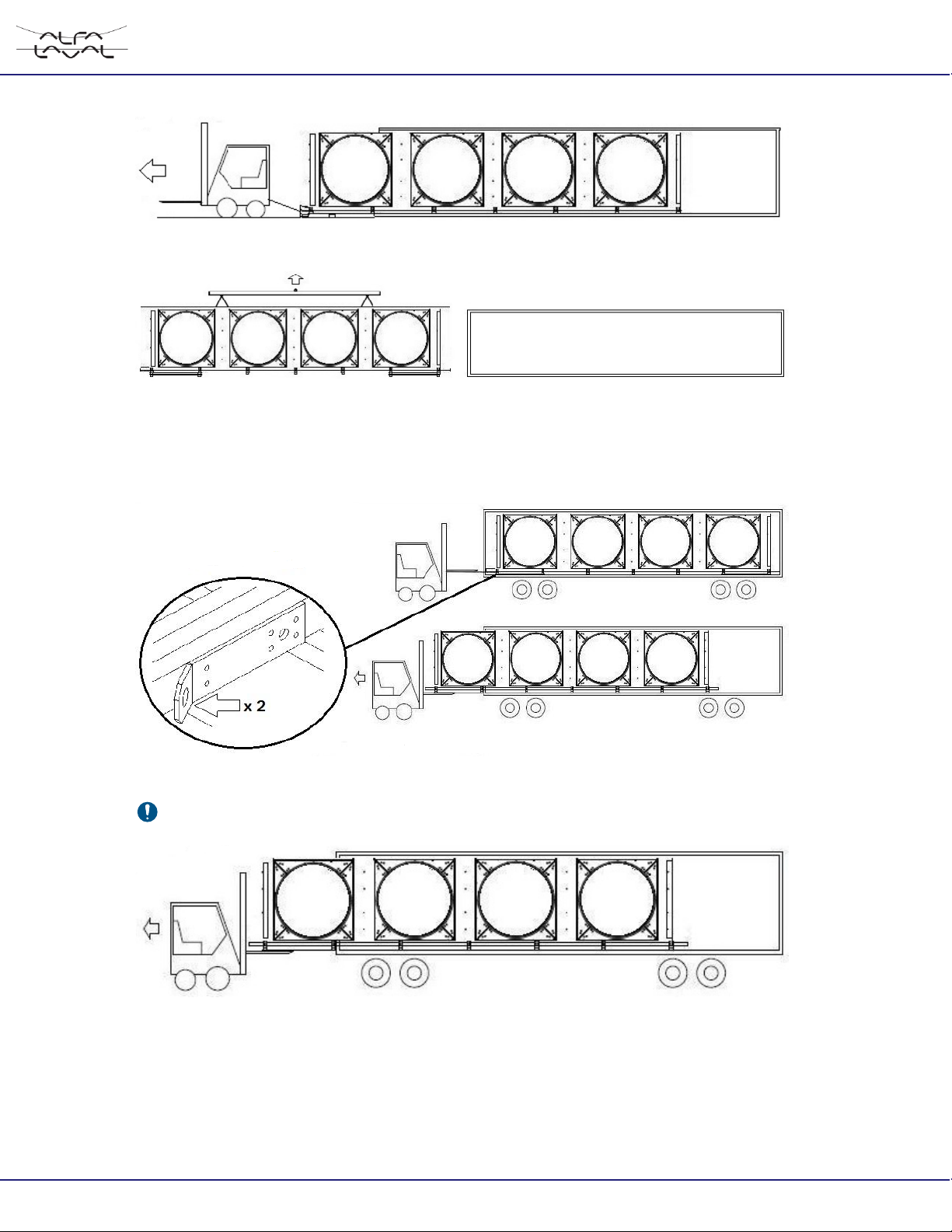

3.2.3 Unloading vertical units from container (Container on wheels)
1. Use a chain with hooks to pull out the unit. Attach the hooks on both pull out plates mounted on the
wooden pallet.
2. Hold up the end of the unit and continue pulling out.
Note: Notice the weight of the unit to ensure safe lifting.
3. When the second pair of lifting eyes is outside the container, attach the lifting crane.
© Alfa Laval, Rev-03 7Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change this specification without prior notification.

3.3 Packing
4. When the lifting crane holds up the unit, remove the fork-lift and lift the unit out of the container.
3.3 Packing
The standard truck pallet has two protection options.
Figure 2: Upper part fastening protection (left) and hardboard coil protection (right)
Note: Do not lift the unit with the pallet when high mounting legs are mounted on the pallet.
© Alfa Laval, Rev-03 8Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change this specification without prior notification.

3.4 Lifting unit
Figure 3: High mounting legs packing arrangement for truck and container transport
Figure 4: Container package only for Solar SR™
3.4 Lifting unit
Note: Contact the manufacturer for further information on turning and lifting the forced draught fans
(FD).
© Alfa Laval, Rev-03 9Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change this specification without prior notification.

3.5 Storage
Warning:
Before lifting the unit, check its weight from the transport documents or from
the product nameplate and make sure that the lifting device, crane or truck is
appropriate.
1. Only use lifting equipment that is equipped with appropriate labels.
2. Ensure that the belts or slings with hooks used for lifting keep the equipment
balanced.
3. Do not lift the unit with a crane before removing the pallet from under the unit.
Do not stand under the unit when it is hanging.
Caution: Air cooled heat exchangers are fragile products, which makes them extremely sensitive
to incorrect handling during transport and positioning. Comply with the given instructions strictly to
prevent the heat exchanger from being damaged during the lifting procedure.
Only qualified personnel using approved lifting equipment is allowed to carry out lifting operations.
When lifting the unit, use all lifting points in the direction of lifting. Do not mix the lifting points of
vertical and horizontal position.
A
B

Lifting angles:
A
60°B 60°
D
D
A
A
9
0
°
A
4pcs
DETAILC
C
DETAILD
Eyebolt,2pcs
Don't use
for lifting
C
max.60°
A
Figure 5: Unit lifting
3.5 Storage
See more detailed storage instructions in the full Solar S/SR™ instruction manual.
Do not store the units on an inclined or uneven plane.
© Alfa Laval, Rev-03 10 Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change this specification without prior notification.

3.5 Storage
Caution: During long term storage, operate the fans for 3…4 hours at least once a month.
