Alfalaval Arctigo ID Series User manual

ORIGINAL INSTRUCTIONS
AHE00054EN 1607
Alfa Laval Arctigo ID
Instruction manual
• Product description
• Product labels
• Unpacking & lifting
• Installation
• Maintenance
• Spare parts

AHE00054EN 1607
2
Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change specification without prior notification.
Index
1. Important information
1.1 Disclaimer...................................................................................................................................3
1.2 Intended use...............................................................................................................................3
1.3 Where to nd product information ..............................................................................................3
2. Product description Arctigo ID
2.1 General information & application ..............................................................................................4
2.2 Standard conguration ...............................................................................................................4
2.3 Options.......................................................................................................................................5
2.4 Code description ........................................................................................................................5
3. Product labels...........................................................................................................................6
4. Unpacking and lifting...............................................................................................................8
5. Installation
5.1 Mounting dimensions .................................................................................................................9
5.2 Mounting bracket......................................................................................................................10
5.3 Technical spaces......................................................................................................................10
5.4 Drain line ..................................................................................................................................10
5.5 Electrical connections...............................................................................................................11
6. Maintenance
6.1 Fan replacement ......................................................................................................................12
6.2 Driptray & drain ........................................................................................................................12
6.3 Side covers...............................................................................................................................12
6.4 Coil defrost heater element replacement .................................................................................13
6.5 Driptray defrost heater element replacement...........................................................................13
7. Spare parts..............................................................................................................................14

AHE00054EN 1607
3
Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change specification without prior notification.
1 Important information
1.1 Disclaimer
This Instruction Manual applies to all Alfa Laval Arctigo ID dual discharge industrial air cooler prod-
ucts and is supplied in combination with the Alfa Laval Air Cooler Product Manual AHE00042. Both
manuals must be carefully examined and instructions should be followed up at all times. Alfa Laval
does not accept liability for any damage resulting from non-compliance to the instructions as given
in the manuals and order-related documents.
1.2 Intended use
Air coolers are partly completed machinery according to Machine Directive 2006/42/EC and are
intended for incorporation in cooling systems. Declarations of Incorporation are available on www.
alfalaval.com. Air cooler units may not be put into operation until the conformity of the complete
machine or cooling system has been declared according to the following standards and directives:
• Pressure Equipment Directive 2014/68/EU
• Machine Directive 2006/42/EC
• Low Voltage Directive 2014/35/EU
• Electrical Equipment of Machines IEC 60204-1
• Electro Magnetic Compatibility 2014/30/EU
• Any applicable local or national legislation
1.3 Where to find product information
Detailed technical data for individual product models are available in order related documents, on
the product sticker and in product data sheets. Comprehensive technical information for all Alfa
Laval air heat exchanger products is available on-line on www.alfalaval.com. This includes:
• Product manuals
• Instruction manuals
• Product leaflets & brochures
• Product data sheets (selection software)
• Dimensional drawings
• Electrical wiring diagrams
• Certificates
Alfa Laval offers world-wide service and support in over 55 countries. In case of any questions
or uncertainty please contact your local Alfa Laval representative. Contact addresses are available
at www.alfalaval.com.
Arctigo ID

AHE00054EN 1607
4
Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change specification without prior notification.
2 Product description Arctigo ID
2.1 General information and application
Arctigo ID is a wide and flexible range of dual discharge industrial air coolers for both cooling and
freezing applications in medium to large cold rooms. This industrial air cooler line is designed to
keep fresh and frozen goods refrigerated from +20 to -35 °C, with either high or low humidity con-
tent.
The Alfa Laval Arctigo range offers a wide variety of cooler configurations and a long list of options,
always allowing to select the best model to suit all applications in industrial cooling installations.
Dedicated Arctigo ID models can be configured for sensitive applications such as agricultural stor-
age.
• Refrigerants: all H(C)FC, ammonia, brine, CO2
• Capacities (SC2): 3 up to 110 kW
• Air volume: 4,000 up to 50,000 m3/h.
Refrigerant application Design pressure
HFC 33 bar
Ammonia 27 bar
CO233-40-50-60 bar
Brine 10 bar
2.2 Standard configuration
• Finned coil:
- 3 coil block modules
- 3, 4, 6 or 8 tube rows deep
- Tubing ø 5/8” Cu ripple fin, smooth Cu tubing for brine or smooth stainless steel.
- Tube pitch 50 mm square.
- Corrugated Alu-fins
- Fin spacings 4, 5, 6, 7, 8, 10 and 12 mm.
• 1 to 5 AC or EC fans, ø 450, 500 & 630 mm, blowing through the coil. 2-Speed AC/EC fan
motors 400/50-60/3 or EC 230/50-60/1.
Fan motors with dynamically and statically balanced external rotors, protection grade IP54 or
IP55. Integrated thermo contacts (Clickson) provide reliable protection against thermal overload.
• Corrosion resistant materials: coil frame and casing pre-galvanized sheet steel, epoxy coated
RAL 9002.
• Hinged side panels and driptray, drain(s) 1½" BSP external
• Fitted with schräder valve on the suction connection for testing purposes.
• Suitable for dry expansion or pumped system.
• Stickers indicate fan direction and refrigerant in/out.
• Each heat exchanger is leak tested with dry air and finally supplied with a dry air pre-charge.
• Delivery in mounting position. Coolers are mounted on wooden beams. Installation can take
place with use of a forklift.

AHE00054EN 1607
5
Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change specification without prior notification.
2.3 Options
• Defrost systems (incl. connection box for all electric defrost systems)
- Electric defrost in driptray (E1)
- Electric defrost - heavy (E2)
- Electric defrost - light (E4)Hotgas defrost systems
- Hotgas defrost, not connected - light (HG1), heavy (HG2)
- Hotgas defrost, connected - light (HG1C), heavy (HG2C)
- Hot glycol defrost - light (HW1), heavy (HW2)
• Fan ring heater connected (FRH)
• Hinged fan plate (HF)
• Driptray insulation 13 mm styropore + cladding (I2)
• Adapter 90° for horizontal driptray drain connection
• Export packing crate
• Coil protection
- Pre-coated aluminium (EP)
- AlMg2.5 sea water resistant aluminium fins (SWR)
• Slip-on flanges aluminium PN16 or stainless steel PN (F)
Flanges for brine models only
• Stainless steel casing and frame (SSC)
• Reheating coil (RH)
Two additional tube rows with separated fins and connection tubes.
Only for 3, 4 and 6 tube rows models.
• Switch on/off (SW)
Switch for each fan.
• Fan motors wired to connection box (CB)
• Central internal connection box wired to a single external switch (CB1)
• On special request only:
- Draw-through fans for blast freezing applications.
- Top mounted fans
2.4 Code description
ID B 3 5 - 2 8 CU - E - 50 AL - 7.0 - 2H-5 - FA04A - D FRH
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
1 Alfa Laval Arctigo industrial air cooler - dual discharge
2 Air direction (B=blow through, draw through execution (D) available on special request)
3 Cooler module size (1, 2, 3)
4 Number of fans (1 to 5)
5 Coil pitch (2=square)
6 Tube rows in air direction (3, 4, 6 or 8 rows)
7 Tube material (CU=copper, SS=stainless steel)
8 Refrigerant system (E=DX, W=brine, X=CO2, PB=pumped bottom feed,
PT=pumped top feed)
9 Maximum working pressure
10 Fin material (AL=aluminium, EP=precoated aluminium, SWR=sea water resistant aluminium)
11 Fin spacing (4, 5, 6, 7, 8, 10 and 12 mm)
12 Circuiting code (2H, 1H, 1/2H ... 2D, 1D, 1/2D...)
13 Fan motor code
14 Fan connection
15 Option code

AHE00054EN 1607
6
Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change specification without prior notification.
3 Product labels
1. Product label
Model Refer to paragraph "2.4
Code description"
Item ID
Serial no.
Communicate these when
ordering spare parts as
they identify the unit
O. A. Order Acknowledgement
number
Unit Net Weight Check before any lifting
operation to ensure that
proper lifting tools are used
WARNING
READ INSTRUCTION MANUAL BEFORE
INSTALLATIONS OPERATIONS AND MAINTENANCE
TO AVOID INJURIES OR DAMAGE
Service enquiries www.alfalaval.com
Manufacturer: Month / Year:
Alfa Laval S.p.A. -Italy 03 / 2016
Model:
ISD12-16CU-EH33-AL10.0-1/2H-4-
GSE/E2
Item ID: 3289214612
Serial no. AA 2349091
O.A. 387589/20
Unit Net Weight: 171 Kg ±5%
Sn
EXAMPLE
WARNING
READ INSTRUCTION MANUAL BEFORE
INSTALLATIONS OPERATIONS AND MAINTENANCE
TO AVOID INJURIES OR DAMAGE
Service enquiries www.alfalaval.com
Manufacturer: Year:
Alfa Laval S.p.A. -Italy 2016
Model: O.A. 387589/20
ISD12-16CU-EH33-AL10.0-1/2H-4-
GSE/E2
Item ID: 3289214612
Serial no. AA 2349091
Sn
Coil PED data: I
Max DN: 35
Fluid Group 2
Coil Ts: +125/-60 °C
Ps: 33 bar
Pt: 47 bar
Test Date: 03-2016
EXAMPLE
2. Product label - coil
Model Refer to paragraph "2.4
Code description"
Item ID
Serial no.
Communicate these when
ordering spare parts as
they identify the unit
Max DN Maximum diameter of the
distributor tube
Fluid Group According to PED
Coil Ts Range of operating tem-
peratures for the coil
Ps Design pressure
Pt Test pressure
Test date Date on which the coil has
been pressure tested in
the factory
⑤
⑧
④
⑤
⑦
⑥①
⑩
③
②
⑨

AHE00054EN 1607
7
Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change specification without prior notification.
4. Fan warning and fan type code
1st code position: airflow direction
B= blow-through
D= draw-through
2nd code position: rotation direction
L= left
R= right
Type DL
6. Electrical warning
Switch off power supply before any maintenance
or installation operation.
Spare part
item no
9460088799
8. Fan motor
Fan motor item number
9. In/Out
Refrigerant connections inlet and outlet
IN OUT
3. Nitrogen precharge warning
Heat exchanger coils are delivered from the
manufacturer with an overpressure. Check pres-
sure on the Schrader valve. Unpressurised units
are to be reported immediately to manufacturer
and noted as such on the bill of delivery.
5.307
ATTENZIONE!
CIRCUITO FRIGORIFERO PRECARICATO CON AZOTO
WARNING!
PRECHARGED REFRIGERANT CIRCUIT WITH NITROGEN
ACHTUNG!
VERLADTER KÄLTEMITTELKREISLAUF MIT STICKSTOFF
ATTENTION!
CIRCUIT FRIGORIFIQUE PRE-CHARGE AVEC AZOTE
BHИМАНИЕ!
СИСТЕМА ЗАПРАВЛНА АЗОТОМ
5. Fan direction
Sticker indicates fan rotation direction.
10. Eurovent
Sticker is applied when the product is included in
the Eurvent Certify All program.
7. Grounding
Mandatory grounding for all electrical compo-
nents.

AHE00054EN 1607
8
Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change specification without prior notification.
Always follow guidelines and instructions as given in the air cooler product manual AHE00042.
Arctigo ID air coolers are delivered in mounting position, mounted on wooden beams and a wooden
pallet on top. Handling and positioning can take place with use of a forklift. When more than one
cooler units are delivered in a single shipment, air coolers may be stacked during transportation.
Arctigo ID air coolers are to be unloaded one by one and lifted according to the following proce-
dure:
Units must be unloaded and handled only from
the long side, one at a time.
In order to avoid damage to the driptrays or fall-
ing of the unit, ensure that the lifting forks cover
both inner support beams on the lower pallet.
4 Unpacking and lifting
Place the unit on the ground and loosen the
fixing materials from the top pallet. Remove the
top pallet. Lift the unit into mounting position and
secure following instructions given in chapter "5
Installation".
Once the unit is secured in the installation posi-
tion, loosen the fixing materials from the lower
support pallet and remove pallet.

AHE00054EN 1607
9
Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change specification without prior notification.
Detailed drawings showing all required mounting and refrigerant connec-
tion dimensions are available for download on www.alfalaval.com.
5 Installation
Always follow guidelines and instructions as given in the air cooler product manual AHE00042.
5.1 Mounting dimensions
Dimensional drawings
cooler
model
Dimensions (± 5 mm)
L H M M1 M2 M3 M4 M5
ID 11 1438 432 1628 800 - - - -
ID 12 2238 432 1628 1600 - - - -
ID 13 3038 432 1628 2400 - - - -
ID 14 3838 432 1628 1600 1600 - - -
ID 15 4638 432 1628 1600 800 1600 - -
ID 21 1638 532 1628 1000 - - - -
ID 22 2638 532 1628 2000 - - - -
ID 23 3638 532 1628 3000 - - - -
ID 24 4638 532 1628 2000 2000 - - -
ID 25 5638 532 1628 2000 1000 2000 - -
ID 31 1838 532 1875 1200 - - - -
ID 32 3038 532 1875 1200 1200 - - -
ID 33 4238 532 1875 1200 1200 1200 - -
ID 34 5438 532 1875 1200 1200 1200 1200 -
ID 35 6638 532 1875 1200 1200 1200 1200 1200
(M2, M3 etc.)M1
L
H
drains 1½“
M

AHE00054EN 1607
10
Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change specification without prior notification.

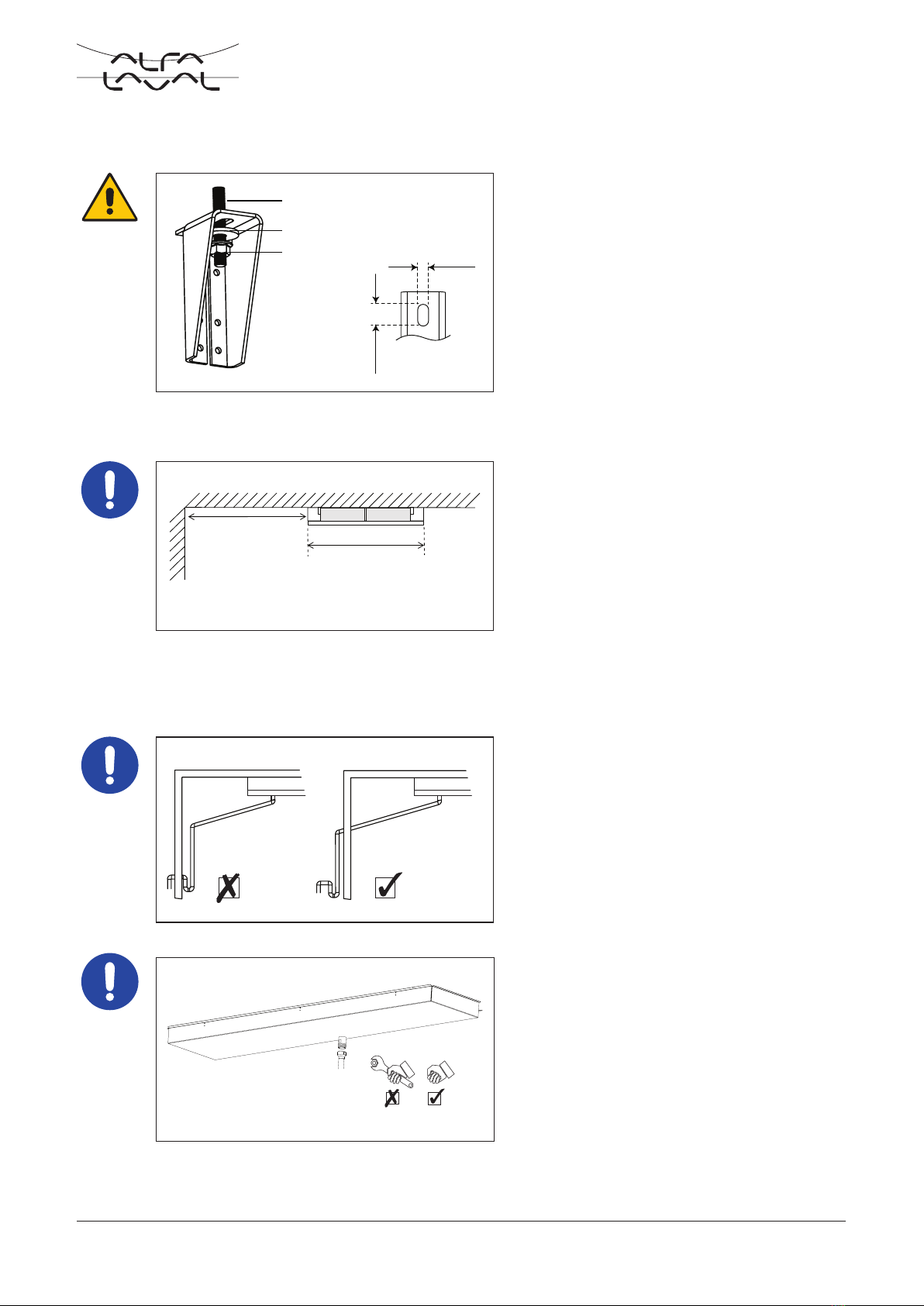

5.2 Mounting bracket
M10 stud (minimum)
Extra wide washer ISO-7093
Lock nut 18
24
Use extra wide washer (ISO 7093) when mount-
ing the unit to the ceiling. Avoid any lateral
torque on the mounting brackets.
5.3 Technical spaces
Respect the required minimum space for defrost
heater replacement
L
D
D≥L
5.4 Drip tray drain
The drain line diameter must be at least the size
of the drip tray drain diameter and should be laid
with an adequate slope. For room temperatures
below 0° C drain line insulation and an inter-
nal or external heating element are required to
prevent freezing .
A syphon must be installed on the drain line,
outside the cold room
Tighten drain connection by hand only.

AHE00054EN 1607
11
Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change specification without prior notification.
5.5 Electrical connections
The following data determine which connection diagram is to be selected
and respected for electrical installation:
• Cooler model indication
• Fan motor type
• Electrical options
Detailed Electrical connection diagrams are available for download on
www.alfalaval.com. When in doubt always contact your local supplier
or Alfa Laval representative for assistance.
Electrical connections

AHE00054EN 1607
12
Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change specification without prior notification.
6 Maintenance
Always follow guidelines and instructions as given in the air cooler product manual AHE00042.
Always disconnect power supply before any maintenance activities take place.
6.1 Fan replacement
Always disconnect power supply before perform-
ing any maintenance activities on fans and fan
motors.
Unscrew fixing bolts and remove old fan. Mount
new fan in identical position. Use an anti corro-
sion compound when remounting the fixing bolts.
Restore electric connection when the new fan
has been mounted.
6.2 Driptray
Driptrays can be opened for inspection, cleaning
and maintenance purposes. Always disconnect
drain line before opening the driptray.
Prior to opening, run a full defrost cycle to
remove any ice in the driptray. Ensure the drip-
tray is empty before opening. The weight of any
leftover water could injure the service operator if
the driptray fell open accidentally.
To open tray, first loosen and remove fixing bolts
and then lower the drip tray.
Respect the maximum opening angle to avoid
damage to the driptray hinges.
6.3 Side covers
All side covers are hinged and can be opened
for inspection, cleaning and maintenance pur-
poses.
To open side covers, loosen fixing bolts.

AHE00054EN 1607
13
Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change specification without prior notification.

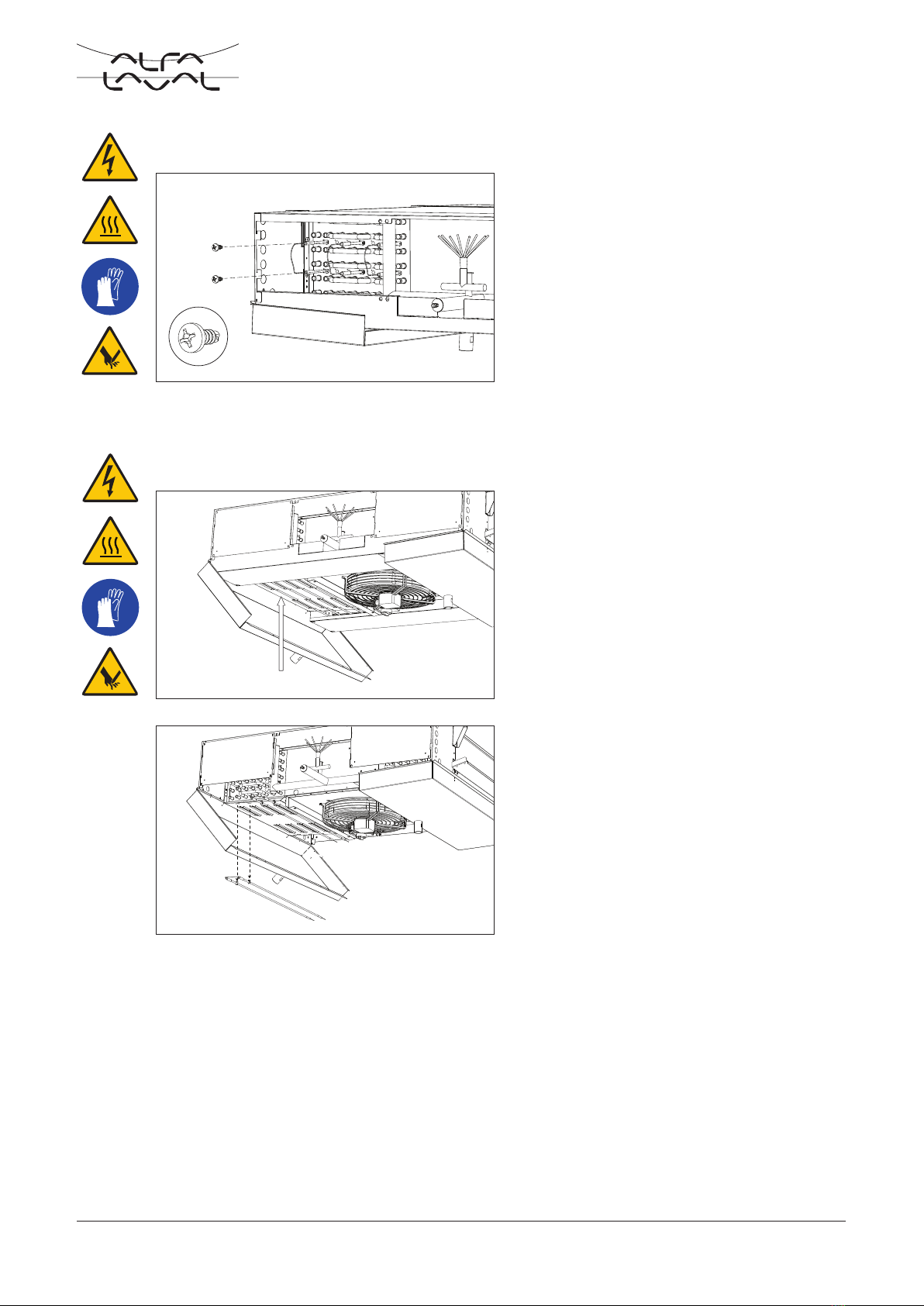

6.4 Coil defrost element replacement
Always disconnect power supply before handling
defrost heater elements. Attention: heater ele-
ments can be hot!
To remove a pair of coil heater elements, open
side covers on both sides. Disconnect heater
element, remove fixing screws and extract ele-
ments from coil. Mount new elements in reverse
order, close side covers and restore electrical
connections.
6.5 Driptray defrost element replacement
Always disconnect power supply before handling
defrost heater elements. Attention: heater ele-
ments can be hot!
To remove driptray heater elements, open drip-
tray.
Disconnect heater element. Bend slightly to take
the fixing clips out of their slots and gently slide
the heater element from under the clamps that
hold it to the bottom plate.
Mount new element in reverse order, close drip-
tray and restore electrical connections.
Driptray defrost heaters
Fixing clips

AHE00054EN 1607
14
Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change specification without prior notification.
7 Spare parts
Spare parts for Alfa Laval Arctigo ID
1Driptray (2 x identical)
2Side panels (5 x identical)
3Fan unit complete
4Fan ring heater
5Switch on/off
6Electrical defrost element (identical for coil and driptray)
7Connection box
8Stainless steel adapter 90° for horizontal driptray drain connection
Spare parts can be selected and ordered in the online eBusiness tool Alfa
Laval Anytime. If required please contact your local Alfa Laval representa-
tive for assistance.
Alfa Laval Anytime
②
③
④
⑤
⑥
⑦
⑧
①

AHE00054EN 1607
15
Alfa Laval is a trademark registered and owned by Alfa Laval Corporate AB.
Alfa Laval reserves the right to change specification without prior notification.

www.alfalaval.com
