ALIBI ALI-NS4015R User manual

1www.observint.com ALI-NS4015-8R_CQ
170424
Maintenance cover microSD card slot
Reset button
NOTE The microSD card may need to be initialized before it can be used to record data. Refer to the ALIBI™
IP Camera Firmware Version .. User Manual provided at AlibiSecurity.com/resources for
instructions to initialize the card.
Mount the camera onto a wall or ceiling
For this mounting option, the drop cables can be routed through the mounting surface, or through the
cable channel in the mounting base.
Mounting screws (3)
Mounting
surface Cable channel
Mounting base Lock nut
1. Determine the best fasteners for securing the camera mounting base to mounting surface. The
mounting hardware provided may be suitable for some surfaces.
2. Using the themplate provided or the camera mounting base as a template, mark the locations of
the holes for the mounting screws. Also mark the location of a hole for the camera drop cables
if needed.
3. Drill holes into the mounting surface as needed.
4. Route extension cables from the power source and LAN switch (or LAN with PoE) to the
mounting location.
5. Connect the network LAN and power extension cables to the camera drop cables:
a. Connect the Ethernet LAN cable to the camera LAN drop cable. Protect the connection
from moisture and other contamination, if necessary. A Weatherproof Ethernet Fitting is
provided. Installation instructions for the tting are included later in this document.
Network drop cable
from camera Network cable from
router or switch
Weatherproof Ethernet Fitting installed
WARNING
!
Failure of the power or Ethnernet connector due to moisture or another
contaiminant is considered an installation error, which voids the waranty. If
installing this camera in a location such as an overhang, shop, garage, kitchen,
etc. where high humidity or dust is present, seal these connections adequately.
b. If the camera is not powered using PoE (Power over Ethernet injector), connect the 12 Vdc
power cable to the camera drop cable. The polarity of the drop cable connector is shown
below.
CAUTION
Do not apply power to the camera at this time. Before applying power to the camera, ensure
that the polarity is correct. An incorrect connection may cause a malfunction and can damage
the camera.
6. Secure the camera to the mounting surface using appropriate screws.
7. Apply power to the camera through the 12 Vdc power cable or PoE injector, as congured.
ALI-NS4015R, ALI-NS4015RB,
ALI-NS4018R IP Bullet Cameras
Quick Installation Guide
This document guides you through the basic steps to install and congure the ALI-NS4015R,
ALI-NS4015RB and ALI-NS4018R IP bullet cameras. The ALI-NS4018R and ALI-NS4015R cameras have a
white enclosure, and the ALI-NS4015RB camera has a black enclosure.These cameras feature:
• H.265+ / H.265 / H.264OVC / H.264 / MJPEG compression
• 120 dB Wide Dynamic Range
• 120 ft Full Frame Illumination Smart IR array,
• Supports onboard storage up to 128GB Max microSD (card not included)
• IP67 ratred, −22 °F ~ 140 °F temperature range
• ONVIF Prole S & Prole G, PSIA, CGI, ISAPI
For more information, refer to these documents - available from your equipment vendor:
• ALIBI™ Tools Utility Installation software and User Manual
• ALIBI™ Witness App for Android Quick Start Guide
• ALIBI™ IP Camera Firmware Version x.x User Manual provided at:
AlibiSecurity.com/resources
Cable
channel
Mounting base
Lock nut
Access to microSD slot and Reset button*
Lens
Camera body
Articulated
mounting
bracket
* To restore the camera with its default conguration (including user name, password, IP address, etc.) press and hold the Reset
button for 10 s when the camera is power on or rebooting.
12 Vdc Power
connector
Ethernet connector -
PoE capable
Camera drop cables
What’s in the box
Your camera includes:
• This document
• Drill template
• Waterproof Ethernet tting
• Mounting screws and wall inserts
Weatherproof
Ethernet
Fitting
Mounting
hardware
Install the camera
The camera includes hardware to install it directly to a ceiling (horizontal surface) or wall (vertical
surface). To install the camera:
1. Remove the cover on the underside of the camera, and then install a microSD card. The card can
have a capacity up to 128GB. Reinstall the cover.

2www.observint.com
Step 1. Install the Alibi Discovery Tool software
Alibi Discovery Tool is a software utility used to “discover” Alibi cameras and NVRs/DVRs installed on
the physical Ethernet network (LAN) and change their network settings. Discovery Tool is provided in
the Alibi Power Tools software suite available for download from AlibiSecurity.com/resources. It
should be installed on a Window PC attached to the same LAN as your camera. To install the Alibi Power
Tools suite and use the Discovery Tool:
1. Download the Alibi Power Tools installer le and user manual from AlibiSecurity.com/
resources.
2. Copy the installer le to a Windows PC that is attached to the same Ethernet network your
camera is installed on.
3. Install Alibi Power Tools. Refer to the ALIBI™ Power Tools Installation and User Manual. When the
program opens, the following screen appears.
4. Double click on the Discovery Tool icon. The tool will automatically discover Alibi cameras and
recorders installed on the network. For example, in the example below, Discovery found the
ALI-NS4015R camera.
Enter new
password in
the New and
Conrm elds
Notice that the IP address of the camera is 192.168.1.64 (default IP address), and the camera
Security is Inactive. The camera must be “activated” before it can be used.
NOTE
If an Alibi digital video recorder exists on the same LAN as the camera, the recorder may automatically
activate the camara, assigning the same admin user password setup in the recorder to the admin user
of the camera, and congure the network settings to be compatible with the LAN and the recorder. If
this occurred automatically, skip this step and the nest step of this procedure.
To Activate the camera:
a. Click on the camera entry in the Online Devices list to select it. The Network Parameters
and other device information will appear in the right column.
b. Enter a “strong” password in the New Password and Conrm Password elds. Strong
passwords have: 8 to 16 characters and include at least one character from two of the
following groups: uppercase, lower case, numbers and special characters.
c. Click OK to set the new password. The Security status should change to Active.
5. To change the network settings of the camera to be compatible with the LAN where it is
installed, do the following:
a. Click on the new camera to highlight it.
b. In the right frame, click the box to Enable DHCP to acquire network settings from a
DHCP server on the network, or enter a new IP address, Subnet Mask, and Gateway that is
compatible with your LAN (see below).
Password eld
c. Enter the password for the camer ain the password eld, and then click Save. If the new
settings were applied, the following window will appear.
If the window above didn’t appear, use the information provided to adjust the parameters,
and then Save the settings.
d. Close the Discovery tool and Alibi Power Tools.
Step 2. Login to the camera
To access the camera from a computer on the LAN:
1. Open your Microsoft Internet Explorer (IE) browser on your computer and enter the IP address of
the camera in the URL eld. In the example below, the IP address of the camera is 192.168.3.111.
2. In the login window, enter admin for the User Name and the password you created in the
Password eld, the click Login.

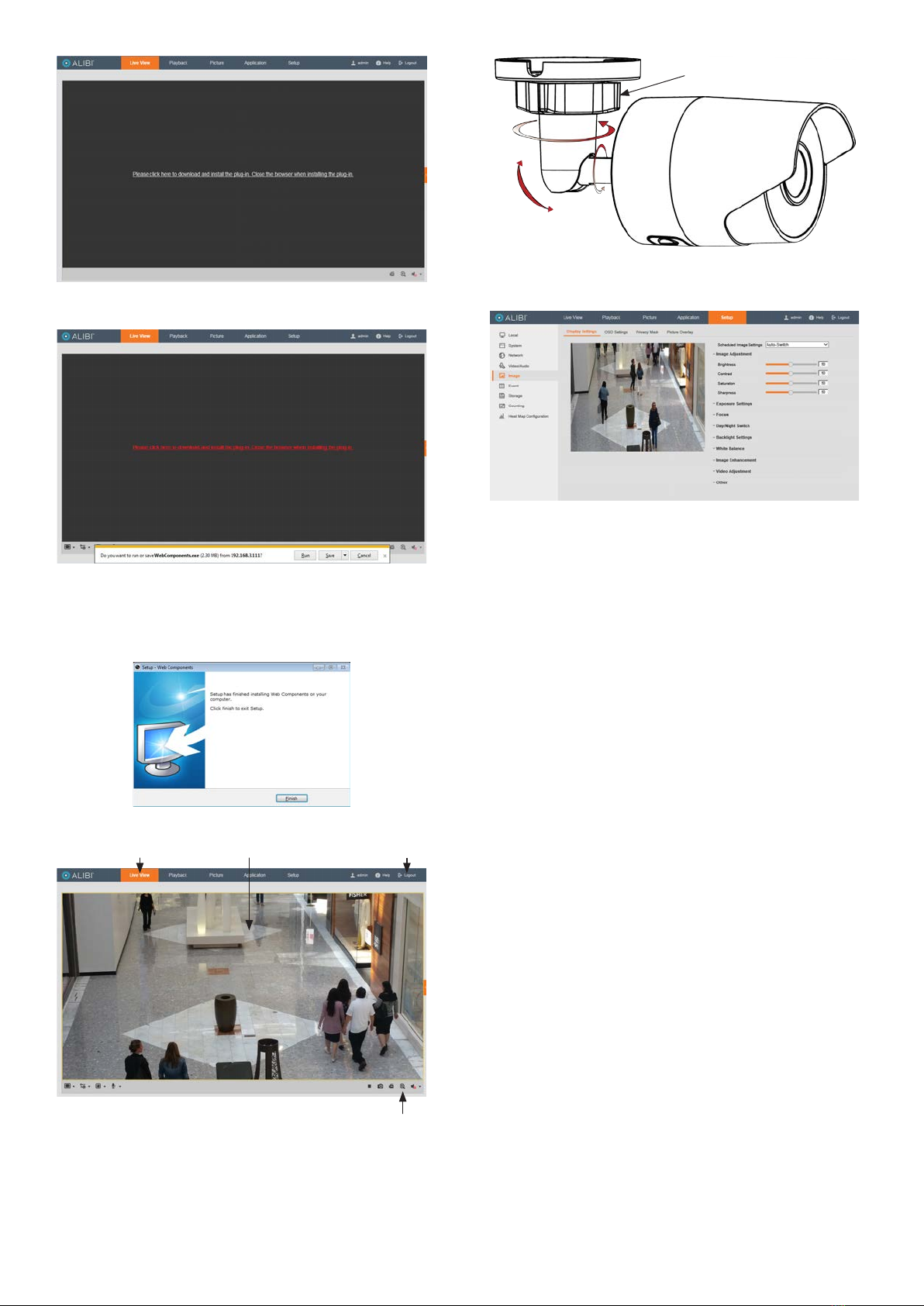

3. If this is the rst time you are logging into a camera, you may see the message in the following
screen. If this appears, follow the sub-steps below.
© 2017 Observint Technologies. All rights reserved.

3www.observint.com © 2017 Observint Technologies. All rights reserved.
a. Click on the message to install the plugin.
NOTE: If QuickTime is installed on the computer, Alibi will use it for the plugin. If it
does, skip the rest of this step and continue at the next
b. In the message bar at the bottom of the screen, click Run. WebComponents will install
automatically. When the following screen opens, click Finish to exit the installer.
The Live View screen with the camera video image should appear.
Capture, Record, Zoom icons
Screen select tabs Logout buttonLive View image
Step 3. Adjust the camera for your surveillance target
1. While observing live video from your camera in the Live View tab (see above), loosen the lock
nut, and then point at the center of your surveillance target. Tighten the lock nut to hold the
camera in place.
Lock nut
Pan:
0˚ ~ 360˚
Tilt:
0˚ ~ 90˚ Rotation:
0˚ ~ 360˚
2. After adjusting the camera for the preferred eld of view, click the Setup tab, and then click the
Image link in the left frame.
Adjust the Brightnessm Contrast, Saturation and Sharpness of the image as follows.
—Image Adjustment submenu (see above): Adjust the Saturation, Hue, Brightness,
Contrast and Sharpness of the video image. Each parameter can be set to a level of
0 ~ 100 either by moving the slider or entering the value in the box on the right. The
eect of the adjustment will appear in the Live View image in the menu.
3. Open the other submenus on this screen. Adjust the following as needed. Refer to the Camera
Firmware User Manual for your camera for additional information about parameter settings.
—Exposure Settings submenu: In this submenu, set the following for the best
performance:
Iris Mode: Select Auto or Manual. Some cameras may not oer both options.
Exposure Time: Value ranges from 1/3 to 1/100,000 s. The nominal value is 1/150.
Adjust it according to the lightening condition.
Gain: Set the gain to show the optimal brightness level.
—Switch Day and Night: Select either Auto-Switch, Scheduled-Switch, or
Triggered by Alarm Input.
If using Auto-Switch, open the Day/Night Switch submenu to select the
Sensitivity, Filtering Time, and Smart IR feature ON or OFF.
If using Scheduled Switch, set the Start Time and End Time of the switch, then
open the Day/Night Switch submenu to select the Smart IR feature ON or OFF.
Also, click the Common, Day and Night tabs to set the Saturation, Hue, Brightness,
Contrast and Sharpness for Day and for Night modes.
—Day/Night Switch submenu: You can set the Day/Night switch to Day, Night, Auto, or
Schedule. The option you select determines the submenu options.
Day or Night: These options both have one parameter: Smart IR.
Auto: If you select Auto switch, you can set the sensitivity (0 .. 7), ltering time and
Smart IR.
Schedule: Use Schedule to set that Start Time and End Time for the switch. Smart
IR is also selectable.
—Backlight Settings: Backlight settings include BLC Area (O, Up, Down Left Right
Center), the area to control, and WDR (Wide Dynamic Range) ON or OFF.
—White Balance: White Balance selection is used to correct colors in the image
depending on the lighting source. You can also set the white balance manually (MWB),
using Automatic White Balance (AWB1), and lock the white balance setting (Locked WB).
—Image Enhancement: Options in this submenu include Digital Noise Reduction (DNR)
ON or OFF. If ON, you can also adjust the level of noise reduction.
—Video Adjustment: Video Adjustment includes:

4www.observint.com © 2017 Observint Technologies. All rights reserved.
Mirror: Mirror adjustment enables you to ip the image (Up/Down), ip Left/Right
(reect or Center).
Rotate: Rotate rotates the image +90 degrees. Rotate and Mirror can be used to
adjust the image in any orientation.
Video Standard: Select 60 Hz for NTSC format.
Capture Mode: To make a complete use of the 16:9 aspect ratio, you can enable the
capture mode when you use the camera in a narrow view scene.
—Other: Options in this menu depend on the features of the camera.
Specications
Camera ALI-NS4015R / ALI-NS4015RB ALI-NS4018R
Image Sensor: 1/2.8” Progressive Scan CMOS 1/2.5” Progressive Scan CMOS
Signal System: NTSC
Min. Illumination: Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR
Shutter time: 1/3 s to 1/100,000 s
Slow shutter: Support
Lens: 2.8 mm, horizontal eld of view: 81° 2.8 mm, horizontal eld of view: 102°
Lens Mount: M12
Adjustment Range: Pan: 0° ~ 360°, tilt: 0° ~ 90°, rotate: 0° ~ 360°
Day& Night: IR cut lter with auto switch
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Compression Standard
Video Compresion
Main stream: H.265 / H.264,
Sub stream: H.265 / H.264 / MJPEG,
Third stream: H.265 / H.264
H.264 Type Main Prole/High Prole
H.264+ Supports
H.265 Type Main Prole
H.265+ Supports
Video bit rate: 32 Kbps ~ 16 Mbps
Max. Image Resolution: 2560 × 1920 3840 × 2160
Main Stream:
20 fps (2560 × 1920),
30 fps (2560 × 1440, 2048 × 1536,
1920 × 1080, 1280 ×720)
20 FPS 3840 × 2160,
30 FPS 2560 × 1920, 2560 × 1440,
1920 × 1080, 1280 × 720
Sub Stream: 30 fps (640 × 360, 352 × 240)
Third Stream: 30fps (1280 ×720, 640 × 360, 352 × 240)
Image Enhancement: BLC/3D DNR
Image Settings: Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or
web browser
Region of Interest (ROI): Support 1 xed region for mainstream and sub stream separately
Day/Night Switch: Auto/Scheduled
Network
Network Storage Support microSD / SDHC / SDXC card up to 128GB local storage, NAS (NFS, SMB / CIFS), ANR
Alarm Trigger Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conict, Illegal Login,
HDD full, HDD error
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Functions One-key reset, anti-icker, heartbeat, mirror, password protection, privacy mask, Watemark,
IP address ltering
System Compatibility: ONVIF (Prole S, Prole G), PSIA, CGI, ISAPI
Interface
Communication
Interface: 1 RJ45 10M/100M Ethernet interface
In-camera storage: Built-in microSD / SDHC / SDXC slot, up to 128GB
Smart Features
Behavior Analysis Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal
detection
Line Crossing Detection Cross a pre-dened virtual line, up to 1 pre-dened virtual line supported
Intrusion Detection Enter and loiter in a pre-dened virtual region, up to 1 pre-dened virtual regions supported
Camera ALI-NS4015R / ALI-NS4015RB ALI-NS4018R
Unattended Baggage Objects left over in the pre-dened region such as the baggage, purse, dangerous materials
Object Removal Objects removed from the pre-dened region, such as the exhibits on display.
Face Detectionn Human face appears in the image can be detected and trigger linkage method
General
Operating Conditions: -22 °F ~ 140 °F (-30 °C ~ 60 °C), Humidity 95% or less (non-condensing)
Power Consumption: 12 Vdc ± 25%, 6 W,
PoE (802.3af, 42.5 – 57V, class 3), 7 W
12 Vdc ± 25%, 7 W,
PoE (802.3af, 42.5 – 57V, class 3), 7.5 W
Weather Proof: IP67
IR Range: Up to 120 ft (approx. 35 m)
Housing White
Dimensions: Camera: Φ2.76” × 6.1” (Φ70 × 155 mm)
Package: 8.5” × 4.76” × 4.65” (216 × 121 × 118 mm)
Weight: Camera: 0.9 lb (410 g)
Using the Waterproof Ethernet Fitting
Install the Waterproof Ethernet Fitting on the Enternet cable end at the camera when moisture
or contamination exists in the area near the caemra. The tting includes several parts that must be
installed in a specic order. To install the tting:
1. Place the rubber O-ring over the camera drop cable end cap.
Push the O-ring up to the connector cap.
2. Place the Lock Nut onto the network cable from the router
or switcn as shown in the drawing to the right. The inside
threads must be toward the camera end.
3. Place the rubber basket onto the network cable above the lock
nut as shown.
4. Place the end cap onto the network cable above the rubber
gasket as shown. The ngered end must be toward the the
router or switch.
5. Install an RJ-45 connector onto the network cable.
6. Plug the RJ-45 connector with the network cable into the
camera network drop cable.
7. Fit the end cap on the network cable onto the camera drop
cable end cap. Rotate the network cable end cap to lock it in
place.
8. Push the rubber gasket fully into the end of the network cable
end cap.
9. Screw the lock nut onto the network cable end cap until it is
fully seated.
Network drop
cable from
camera
Network cable from
router or switchFitting assembled
Waterproof Ethernet Fitting assembed and connected
Drop cable
end cap
Network drop
cable from
camera
Rubber
O-ring
seal
RJ-45
connector
End cap
Rubber
gasket
Network
cable
from
router or
switch
Lock nut
