ALITA AL-30 Manual

ALITA®LINEAR AIR COMPRESSORS
OPERATION & MAINTENANCE MANUAL
MODELS: AL-30, AL-40, AL-60, AL-80
AL-100, AL-120, AL-150, AL-200
AL-250, AL-300, AL-350, AL-400
ALITA INDUSTRIES, INC.
Efficient and Reliable Air Moving Products

Remember to mail in your
Warranty Registration
Alita Industries has made every effort to ensure the correctness and completeness of the
materials in this document. Alita Industries shall not be liable for errors contained herein.
The information in this document is subject to changes without notice. Alita Industries
shall not be liable for any errors or for incidental or consequential damages in connection
with the furnishing, performance, or use of this document. Alita Industries makes no
warranty of any kind with regard to this material, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose.
Revision F, May 2010
Copyright © 2010, Alita Industries, Inc. All rights reserved.
Model Number
AL- DateCode / Serial Number Date of Purchase
Phone
Dealer
Dealer Address
- 1 -

- 2 -
LIMITED WARRANTY
ALITA warrants to the original retail consumer purchaser (“Customer”) that the ALITA product, when properly
installed and operated under normal conditions of use, will be free from defects in materials and workmanship
for a period of three (3) years from the date of purchase from ALITA or an authorized ALITA representative.
This warranty applies only to ALITA products installed in the United States of America and Canada. Customer
is responsible for registration of product warranty and maintaining a dated proof of purchase, and such
registration and proof shall be used to determine warranty eligibility.
ALITA Limited Warranty covers only those defects which arise as a result of normal use of the product and do
not apply to any: (a) defect or malfunctions resulting from failure to properly install, operate or maintain the
ALITA product in accordance with printed instructions provided; (b) failures resulting from abuse, accident or
negligence; (c) ALITA product which is not installed in accordance with applicable local codes, ordinances
and good trade practices; (d) operation outside the ALITA product’s specifications or used for purposes other
than for what it was designed and manufactured; (e) improper or inadequate maintenance or modification,
and (f) damage due to shipment, lightning, natural disaster, earthquake, fire, flood, force majeure or
circumstances beyond the controlof ALITA.
If within the duration of Limited Warranty, the ALITA product shall prove to be defective due to defective
materials or workmanship of ALITA, ALITA shall either repair or replace the defective product, at ALITA’s
option. ALITA shall have no obligation to repair or replace until the Customer returns the defective product,
together with dated proof of purchase and written notice of alleged defect to ALITA. Customer may be
required at ALITA’s request to verify that he or she is the original purchaser of the ALITA product and the
ALITA product has been installed and operated in accordance with ALITA’s instructions. Any replacement
product may be either new or like-new, provided that it has functionality at least equal to that of the product
being replaced. No requests for service under this warranty will be accepted if received more than 30 days
after the term of the warranty.
ALITA shall be liable only for the cost of the replacement part, or the repair of any defective part. Customer
shall be responsible for labor, cost of removal and installation at Customer’s premises, transportation and
insurance cost to and from ALITA, and any other incidental costs.
Correction of defects, in the manner and for the duration of the warranty described in this Limited Warranty,
shall constitute complete fulfillment of all liabilities and responsibilities of ALITA to the Customer with respect
to the product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict
liability or otherwise.
Except for the obligations specifically set forth in this Limited Warranty, in no event shall ALITA be liable for
direct, indirect, special, incidental, or consequential damages, whether based on contract, tort, or any other
legal theory and whether advised of the possibility of such damages.
ALITA disclaims all other warranties with respect to ALITA product, whether implied, and specifically disclaim
the implied warranties or conditions or merchantability, satisfactory quality, fitness of a particular purpose.
Unauthorized extensions of warranties by the customer shall remain customer’s responsibility.
ALITA reserves the right to change or improve its products or any portions thereof without being obligated to
provide such a change or improvement for units sold and/or shipped prior to such a change or improvement.
The limited warranties described herein shall be the sole and exclusive remedy available to the Customer.
This warranty is void if the ALITA product has been improperly used, mishandled, disassembled or modified.
Customer is responsible for determining the suitability of ALITA products for customer’s use or resale or for
incorporating them into objects or applications which customer designs, assembles, constructs or
manufactures.

SAFETY INSTRUCTIONS
Special care should be taken when operating an electrical device. To avoid
serious or fatal personal injury or major property damage, read and follow all
safety instructions in manual and on pump.
WARNINGS
• DO NOT operate pump in the vicinity of explosive or flammable materials,
liquids or gases.
• DO NOT operate pump if it has being inundated by water.
• DO NOT operate pump if it has a damaged cord or plug, if it is not working
properly, or if it has been damaged or dropped.
• To avoid Electric Shock resulting from water back-siphoning, pump must be
installed above the water level.
CAUTIONS
• Operate the pump only in fully assembled state.
• This product is designed to pump air only. Do not attempt to pump any
other gases or fluids. Any airborne contaminants must be filtered out.
• Do not lubricate this oil-less air pump. No parts on this pump have oil or
require lubrication. Avoid close proximity to products that may release oil or
gasoline vapors.
• Connect the pump only to an outlet with GFCI (see Electrical Safety).
• Reduce the risk of bursting by only use air handling devices rated for
pressure no less than 8 psi or 55 kPa.
• Keep power cable away from heated surfaces and pedestrian traffic.
INSTALLATION and OPERATION
Place the pump upright securely on a dry and stable surface that is easily
accessible for inspection. Avoid location or elevation that will be inundated by
water. For aeration applications, the pump must be installed above the water
surface level.
PROPER VENTILATION
Allow ample clearance around the pump for free air circulation. Good
ventilation ensures proper heat dissipation which lowers internal operating
temperature and prevents thermal stress to key components.
When pump is to be placed under a protective enclosure, avoid designs that
can cause thermal insulation. Install forced ventilation system to promote air
circulation under the enclosure and improve pump reliability. Certain indoor
installation may also require forced ventilation when the forces of air pressure
and gravity are not enough to circulate air through a room or building.
- 3 -

- 4 -
For outdoor installations, shaded area that shelters from excessive weathering
is ideal. Do not allow pump to swelter under intense sun and avoid places with
excessive dust or debris.
The ambient operating temperature for this pump is between 5°C (41°F) and
40°C (104°F). Operation of pump in temperature outside of the recommended
temperature range may result in malfunction or severely shorten the pump life.
PIPE SIZING
Utilize air tubing or pipes that are equal or larger than the pump discharge port.
Matching pipe fittings should be used to reduce frictional losses. Incorrect pipe
sizing can cause unsatisfactory performance.
When selecting or constructing an air manifold, the number of outlet fittings and
their orifice size must be considered carefully to minimize frictional losses. Do
not block or restrict pump discharge for extended periods. Install a bleed valve
to vent any excess air volume and attach an air diffuser as silencer or muffler.
ELECTRICAL SAFETY
Form a drip loop with the power cord before connecting to the electrical
terminal. Drip loops can prevent water from traveling down the cord and
entering the power connection.
In the event of an electrical short circuit, grounding reduces the risk of electric
shock by providing an escape wire for the electric current. This pump is
equipped with a cord having a grounding wire with an appropriate grounding
plug. The plug must be plugged into an electrical terminal that is properly
installed and grounded in accordance with all local codes and ordinances. Do
not modify the plug provided; if it does not fit the outlet, have the proper outlet
installed by a qualified electrician.

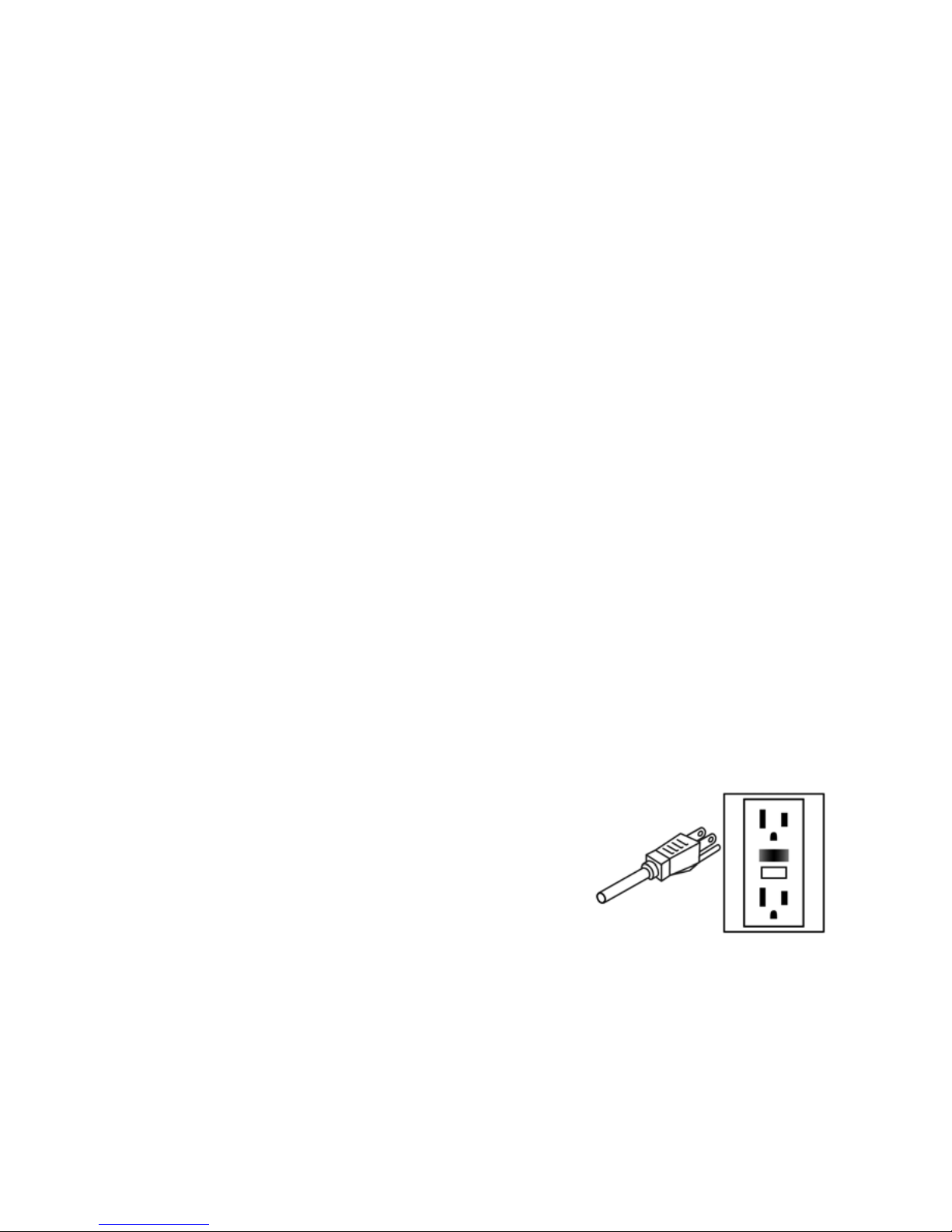

Connect the pump only to a terminal with Ground
Fault Circuit Interrupter (GFCI) installed. This
device should serve to interrupt the flow of electric
current in the event of ground faults (electrical
current that unintentionally flows to ground). Check
proper operation of GFCI every month, and replace
faulty GFCI immediately.
EXTENSION CORD
If an extension cord is required, use only a 3-wire extension cord that has a 3-
blade grounding plug, and a 3-slot receptacle that accepts the plug on the
pump. Be sure to use one heavy enough to carry the current the pump draws.
For lengths less than 50 feet, No. 16/3 AWG extension cord shall be used. An
undersized cord can result in a drop in line voltage, loss of power and
overheating. Replace any damaged extension cord immediately.
Plug with
grounding pin
Electrical Outlet with GFCI

- 5 -
MAINTENANCE INSTRUCTIONS
Periodic pump maintenance is required for reliable continuous operation. Any
maintenance of the pump other than those described herein this manual must
be performed by an authorized service facility.
CAUTION: Always turn off the power and unplug from electrical terminal before
any maintenance. Failure to observe this precaution can result in serious
accident.
AIR FILTER
Air filter pad under the filter cover should be cleaned every 3 to 6 months.
Wash the filter pad gently in mild, soapy water then rinse thoroughly. Allow
filter pad to dry completely before reinstalling.
DIAPHRAGM MODULES
Diaphragm module replacement is typically recommended for every 24 months
of operation. Replacement cycle may differ from application to application, it is
prudent to perform the replacement before any actual diaphragm failure.
Diaphragm Replacement Kit (DRK) can be ordered from Alita Industries or
authorized Alita representative.
Diaphragm Module Replacement
1. Set pump upside down (remove filter cover for stability if required), unscrew
and remove all upper housing screws. Then return pump to upright position
and lift away upper housing. Number of housing screws: AL-30~80 (4x),
AL-100~200 (6x), AL-250~400 (12x)
2. Detach the L-tube from discharge port of each diaphragm housing.
3. Select a diaphragm housing on core frame, remove its 4 corner screws,
then pull housing away. Proceed to remove the hex nut and washer from
center of the diaphragm then pull and slide the entire diaphragm block away
from magnetic rod and core frame.
4. Select a new diaphragm block from the DRK, align shape with core frame
and magnetic rod then slide over the rod screw. Secure assembly firmly with
washer and hex nut. Apply 1 to 2 drops of removable grade threadlocker
between the hex nut and protruded rod screw.
5. Install new diaphragm housing then secure with 4 corner screws.
6. Attach L-tube to the discharge port of the new diaphragm housing then
secure with silicone band or wire hose clamp.
7. Repeat step #3 through #6 on opposite side.
IMPORTANT: Do not mix old and new parts. For reliable operation, always
replace both diaphragm modules in the pump at the same time.
8. Inspect the position of magnetic rod from the top. Magnetic rod should be
centered between the electromagnets. No contact should exist between the
magnetic rod and the two electromagnets.

- 6 -
9. If the pump includes a protective switch on top
of the pump core, rotate and reset the switch to
ON position. (See illustration)
10. Install upper housing, and secure firmly with all
housing screws.
Magnetic Rod Replacement
Magnetic Rod between the two diaphragms may
get damaged if diaphragm failure has already
occurred. If the magnetic rod has suffer damages,
order a new magnetic rod along with the diaphragm
replacement kit.
In case of unusual noise or odor from the pump, turn off the power immediately,
consult the maintenance guide, or contact your nearest pump representative or
Alita service department for assistance.

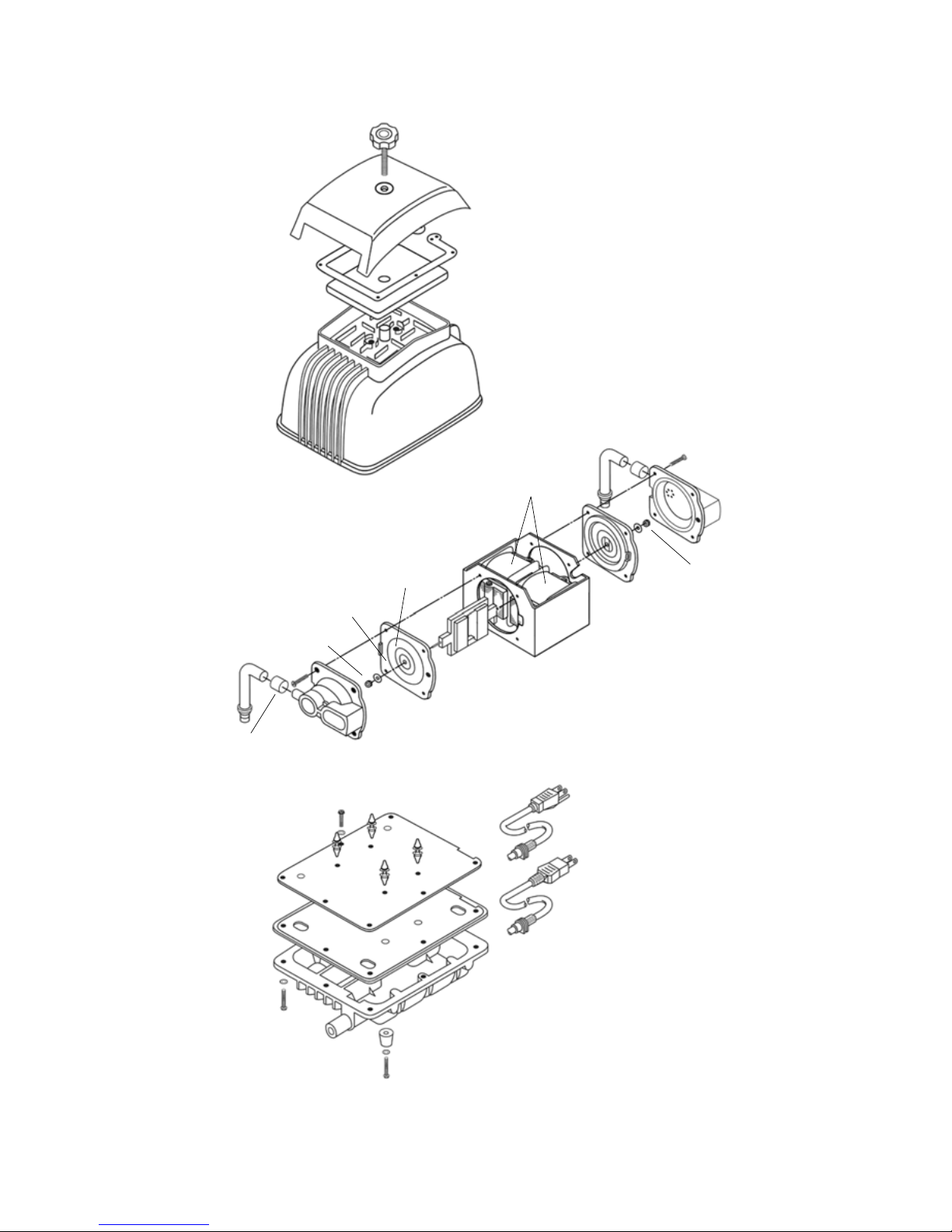

PARTS

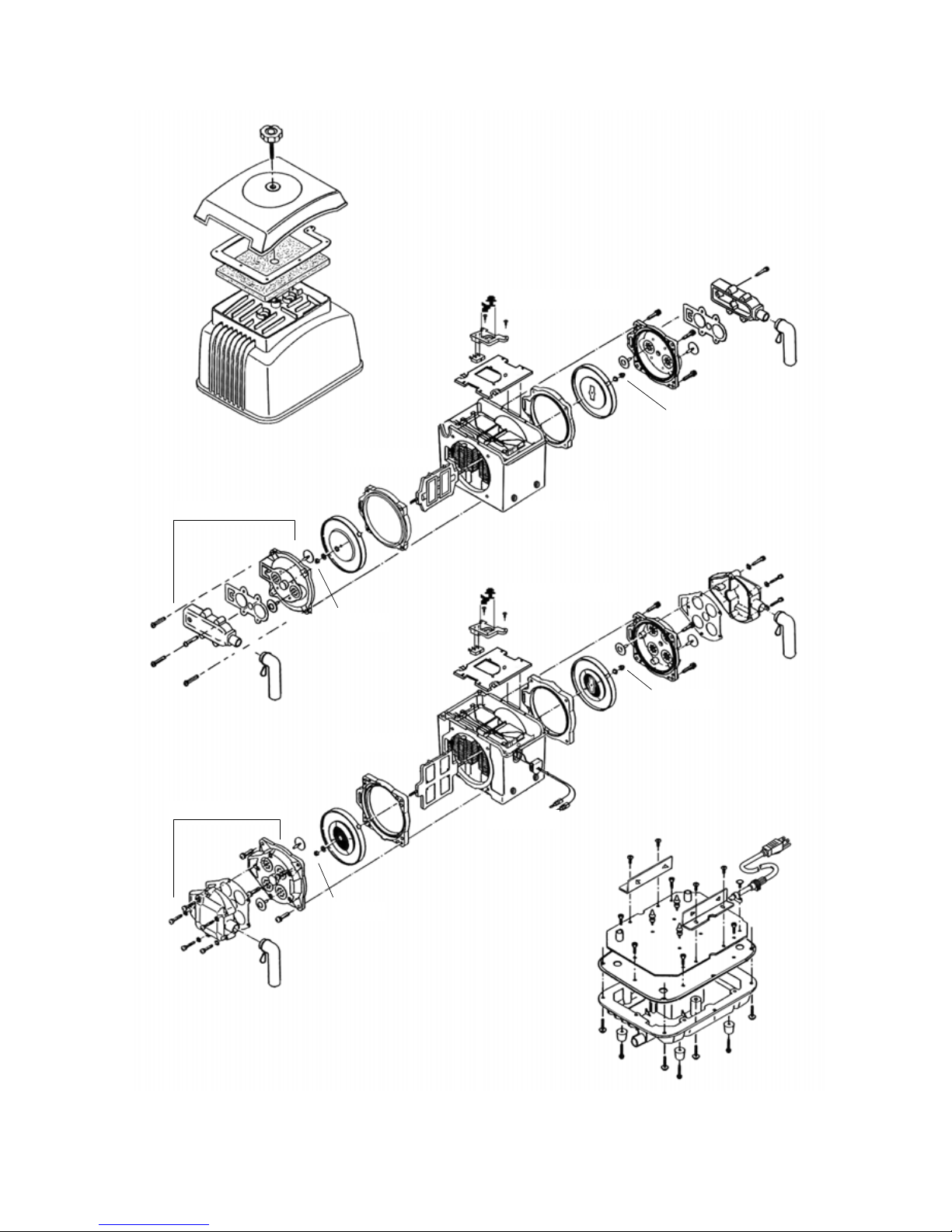

Standard Diaphragm Replacement Kit includes:
Diaphragm Block (2x) Semi Cover Packing (1x)
Diaphragm Housing (2x) Hex Nut & (2x) Washer (2x)
Air Filter Pad (1x) Instruction Sheet
For parts identification, please refer to Assembly Diagrams.
Protective Switch
MODEL PARTS DIAPHRAGM
REPLACEMENT KIT MAGNETIC
ROD
AL-30 DRK40 MR30
AL-40 DRK40 MR40
AL-60 DRK60 MR60
AL-80, AL-100 DRK120 MR100
AL-120 DRK120 MR120
AL-150, AL-200 DKR200 MR200
AL-250 DRK120x2 MR120x2
AL-300 DRK200x2 MR200x2
AL-350, AL-400 DRK200x2 MR200x2

- 7 -
Pump Housing
Corner Screws Rubber Feet
Diaphragm
Housing
Hex Nut
Core
Frame
Magnetic
Rod
Diaphragm
Block
Diaphragm
Diaphragm
Housing
L-tube
Silicone Band
Power Plug
(Plug type varies from region to region)
Base Plate
Lower Pump Housing
Assembly Diagram for Models AL-40 ~ AL-80
Cover Bolt
Filter Cover
Semi Cover Packing
Air Filter Pad
Upper Pump Housing
Electromagnets
Diaphragm
Block
Diaphragm
Frame
Base Packing
Hex Nut

- 8 -
Assembly Diagram for Models AL-100 ~ AL-400
Cover Bolt
Filter Cover
Semi Cover Packing
Air Filter Pad
Upper Pump
Housing
Base Plate, Power Plug and
Lower Pump Housing Assembly
Models AL-100~120
AL-250 Dual Core
Models AL-150~200
AL-300~400 Dual Core
Diaphragm Housing
Diaphragm Housing
L-tube
L-tube
Diaphragm
Core Frame
Core Frame
Magnetic Rod
Magnetic Rod
Protective Switch
Protective Switch
Hex Nut
Hex Nut
Diaphragm Frame
Diaphragm Frame
Diaphragm
Hex Nut
Diaphragm Frame
Diaphragm
Diaphragm
Diaphragm Frame
Hex Nut

TROUBLESHOOTING GUIDE
Pump does not start
• Poor electrical connection: Plug the power plug firmly into AC outlet.
• Power cord damage: Contact ALITA for repair service.
• GFCI tripped: Check for moisture on plug or water inside the pump.
Replace faulty GFCI and/or try another GFCI protected AC outlet.
There exist a high humming or hissing noise
• High backpressure: Reduce pressure load or bleed off excess air flow.
• Poor air distribution lines: Re-configure or resize pipe lines and fittings,
use sound dampening materials, make firm and stable connections.
Pump stops intermittently
• High operating temperature: Follow Proper Ventilation instructions on
this manual. Allow thermal protection circuit to reset after cooling.
Reduced flow rate or performance (after a period of usage)
• Faulty air distribution medium: Replace clogged or damaged air line,
clean air control valves or release bends in flexible tubing.
• Pump intake blocked: Remove blockage from pump intake.
• Fouled air diffusers: Replace or clean air diffuser thoroughly.
• Worn diaphragms: Replace aged or damaged diaphragm modules.
See Maintenance Instructions.
Pump stops and will not start (after a period of usage)
• Diaphragm failure, magnetic rod adhere to electromagnet: Open pump
for inspection. Check for any damage to magnetic rod. Contact ALITA
for assistance and procure replacement parts.
• For models AL-100~400 and certain models of AL-60/80
Protective Switch activated: Procure Diaphragm Replacement Kit for
maintenance. Follow instructions #1, #9 and #10 on Diaphragm Module
Replacement Procedure to reset Protective Switch.
Pump produces an abnormal noise (after a period of usage)
• Diaphragm failure: Stop pump operation immediately. Open pump for
inspection. Check for any damage to magnetic rod. Contact ALITA for
assistance and procure replacement parts.
If none of the prescribed solution can help you resolve your pump problem,
contact ALITA for repair service instructions. DO NOT ATTEMPT to repair the
pump on your own.
- 9 -

- 10 -
For repair or service, contact your Alita representative or Alita Industries first for
instructions and to receive an authorization number prior to sending of the
pump. Alita Industries will not be responsible for any lost or misdirected
package.
When sending a pump for service or repair, please include the following:
1. Dated proof of purchase.
2. Legible contact information and return address
i.e. Name
Address
Telephone / mobile number
Fax number
Email address
etc.
3. Description of the pump application and installation setup.
(Include drawings or photographs if possible.)
4. Summary of the operating conditions and history.
5. Detailed description of the problems.
Every effort has been made to ensure the completeness and accuracy of this document.
Please contact Alita Industries if you notice any possible error or omission.

ALITA INDUSTRIES, INC.
PO Box 660923, Arcadia, CA 91066-0923, USA
Phone: (626) 962-2116 On-Line: www.alita.com E-mail: info@alita.com

Instruction Manual
BL1.5 • BL3 • BL5
BL7 • BL10
BL15 • BL20
Dosing Pumps
www.hannainst.com

32
PRELIMINARY EXAMINATION
Remove the pump from the packing mate-
rial and examine it carefully to make sure
that no damage has occurred during ship-
ping. If there is any noticeable damage,
notify your Dealer.
Each pump is supplied complete with:
•7 m (23') LDPE suction and discharge
tubing
•Instruction manual
Note: Save all packing material until you
are sure that the pump functions cor-
rectly. Any defective item must be
returned in the original packaging to-
gether with the supplied accessories.
READ ATTENTIVELY THE INSTRUCTIONS
BEFORE INSTALLING OR
OPERATING YOUR PUMP
The BL electronic dosing pumps are easy to
use. We recommend, however, that you read
the entire manual before using the pump.
Familiarity with the features and controls of
the unit will give you a better idea of the
dosing potential and help reduce operator
errors. Please operate the pump only as
directed in the instruction manual. Follow all
general safety guidelines during operation.
Remember: electrical devices are potentially
hazardous. Check that the voltage of the
installation matches the voltage indicated
on the specification label on the back of the
pump. Always be sure the pump is grounded.
Note: It is the responsibility of the user to
install and ground the pump prop-
erly; it is highly recommended to in-
stall an external switch.
Dear Customer,
Thank you for choosing a Hanna product.
Please read this instruction manual carefully
before using the pump.
If you need additional technical information,
do not hesitate to e-mail us at
These instruments are in compliance with the
directives.
TABLE OF CONTENTS
PreliminaryExamination ............................. 3
GeneralDescription..................................... 5
FlowRateChart .......................................... 7
FunctionalDescription................................. 9
Specifications............................................ 10
Valve/ HoseAssemblyDiagram.................11
Installation................................................. 12
OperationalGuide ..................................... 21
TroubleshootingGuide............................... 23
Maintenance ............................................. 25
ChemicalCompatibility Guide ................... 27
Accessories.............................................. 29
CEDeclaration ofConformity .................... 31
All Hanna Instruments pumps are warranted for
one year against defects in workmanship and materi-
als when used for their intended purpose and main-
tained according to instructions.
This warranty is limited to repair or replacement free
of charge. Damages due to accident, misuse, tamper-
ing or lack of prescribed maintenance are not cov-
ered. If service is required, contact the dealer from
whom you purchased the instrument. If under war-
ranty, report the model number, date of purchase,
serial number and the nature of the failure. If the
repair is not covered by the warranty, you will be
notified of the charges incurred. If the instrument is to
be returned to Hanna Instruments, first obtain a Re-
turned Goods Authorization Number from the Cus-
tomer Service department and then send it with ship-
ment costs prepaid. When shipping any instrument,
make sure it is properly packaged for complete pro-
tection.
WARRANTY

54
GENERAL DESCRIPTION
BlackStone pumps are equipped with a single
control for pump output.
Flow range is continuously adjustable from 0
to 100% of the maximum capacity through a
graded dial on the front of the pumps.
Seven models are available, each with a dif-
ferent dosing capacity:
BL 20 18.3 lph (4.8 gph) @ 0.5 bar (7.4 psi)
BL 15 15.2 lph (4.0 gph)@ 1 bar (14.5 psi)
BL 10 10.8 lph (2.9 gph) @ 3 bar (43.5 psi)
BL 7 7.6 lph (2.0 gph) @ 3 bar (43.5 psi)
BL 5 5.0 lph (1.3 gph) @ 7 bar (101.5 psi)
BL 3 2.9 lph (0.8 gph) @ 8 bar (116 psi)
BL 1.5 1.5 lph (0.4 gph) @13 bar (188.5 psi)
High quality materials
To provide the maximum protection for parts
that are in contact with aggressive chemi-
cals, diaphragms, hose connectors and pump
heads are produced using materials as PVDF
and PTFE.
Always store chemicals in safe, out of reach
places. Follow the directions for use with
each chemical. Do not assume chemicals
are the same because they look alike. Hanna
Instruments cannot be held responsible for
the misuse of chemicals or the pump.
Always wear protective clothing (gloves and
safety glasses) when working near chemical
dosing pumps. When pumping chemicals,
make sure all tubes are securely attached to
the fittings. It is recommended that tubing is
shielded to prevent possible injury in case
of rupture or accidental damage.
Avoid using a pipe wrench or pliers on plas-
tic parts and connectors. These are best
tightened with an open end or crescent
wrench. Avoid overtightening these parts
as this could cause damage to the seats
and threads.
If a hose is used, it should be securely
fastened to columns, walls, braces, etc. This
will ensure that the hose connection will re-
main tight and leak free. Shield the hose
from direct sunlight. Sunlight can cause an
autocatalytic reaction with some chemicals
and weaken the hose walls.
The arrow on the pump head indicates the
direction of chemical flow and should al-
ways point upwards (vertically). Never posi-
tion the pump horizontally with suction and
discharge valves horizontal. Locate the pump
in an area out of the reach of children and
pets.
All pumps undergo stringent tests to ensure
that they comply with their stated specifica-
tions and are calibrated at the maximum
rated pressure.

76
BL5
bar (psi) lph (gph)
0.5 (7.4) 15.8 (4.18)
1 (14.7) 12.2 (3.23)
2 (29.4) 10.8 (2.86)
3 (44.1) 9.3 (2.46)
4 (58.8) 7.9 (2.09)
5 (73.5) 6.5 (1.72)
6 (88.2) 5.8 (1.53)
7 (102.9) 5.0 (1.32)
8 (117.6) 4.3 (1.14)
9 (132.3) 4.0 (1.06)
10 (147) 3.6 (0.95)
BL5
Pump output with120 strokes/minute
0,0
2,0
4,0
6,0
8,0
10,0
12,0
14,0
16,0
18,0
0,512345678910
BAR
L
P
H
FLOW RATE CHART
The following charts show the relationship
between their flow rate and pressure.
An increase of pressure in the system de-
creases the flow rate.
BL1.5
Pump output with 120 strokes/minute
0,0
1,0
2,0
3,0
4,0
5,0
6,0
7,0
8,0
9,0
0,5123456789101112
BAR
L
P
H
BL3
Pump output with 120 strokes/minute
0,0
2,0
4,0
6,0
8,0
10,0
12,0
14,0
16,0
18,0
0,5123456789101112
BAR
L
P
H
BL3
bar (psi) lph (gph)
0.5 (7.4) 15.8 (4.18)
1 (14.7) 12.2 (3.23)
2 (29.4) 9.3 (2.46)
3 (44.1) 7.9 (2.09)
4 (58.8) 6.5 (1.71)
5 (73.5) 5.0 (1.32)
6 (88.2) 4.0 (1.06)
7 (102.9) 3.3 (0.87)
8 (117.6) 2.9 (0.77)
9 (132.3) 2.5 (0.66)
10 (147) 2.2 (0.58)
11 (161.7) 1.9 (0.50)
12 (176.4) 1.5 (0.40)
BL1.5
bar (psi) lph (gph)
0.5 (7.4) 8.3 (2.20)
1 (14.7) 6.8 (1.80)
2 (29.4) 5.4 (1.43)
3 (44.1) 5.2 (1.38)
4 (58.8) 4.8 (1.27)
5 (73.5) 4.5 (1.19)
6 (88.2) 4.1 (1.08)
7 (102.9) 3.2 (0.85)
8 (117.6) 2.9 (0.77)
9 (132.3) 2.1 (0.56)
10 (147) 1.8 (0.48)
11 (161.7) 1.7 (0.45)
12 (176.4) 1.6 (0.42)
The ball valves are constructed in glass. The
body is made of fiber-reinforced polypropy-
lene for strength and durability.
Reliability through simplicity
All BlackStone pumps use the positive dis-
placement solenoid method of pumping. This
method has fewer moving parts than a stan-
dard motor-driven pump, and does not have
the mechanical failures associated with con-
ventional pumps.
BlackStone's Positive Displacement design
has several distinct advantages over other
types of mechanical designs:
•It is more accurate. Each stroke of the
piston is precisely the same as the stroke
before it ... and the stroke after it.
•Positive displacement allows for easier self-
priming.
•Pumping pressure is as high as 12 bar
(176 psi). This allows you to install your
pump in the widest variety of tank-to-tank
and tank-to-in-line applications.
•High accuracy and repeatability. A wire-
wound potentiometer and solid state elec-
tronics are combined to achieve greater
precision and control.
Easy installation
Designed with mounting holes in the base as
well as rear panel, BlackStone pumps can be
installed on a wall as well as directly on top
of tanks and drums.
There is no need for additional hardware.
All the controls and pump assemblies are
conveniently located on the front of the unit.
If the operator must access the pump head
or control panel for any reason, there is no
need to dismount the unit.

98
FUNCTIONAL DESCRIPTION
1. Pumphead
2. Stroke LED
3. Flow Rate % Knob
4. Power Cord
MECHANICAL DIMENSIONS
BL7
bar (psi) lph (gph)
0.5 (7.4) 17.2 (4.55)
1 (14.7) 13.6 (3.60)
2 (29.4) 10.8 (2.86)
3 (44.1) 7.6 (2.01)
4 (58.8) 6.0 (1.59)
5 (73.5) 5.7 (1.51)
6 (88.2) 5.4 (1.43)
7 (102.9) 4.4 (1.16)
8 (117.6) 3.6 (0.95)
BL10
bar (psi) lph (gph)
0.5 (7.4) 18.3 (4.84)
1 (14.7) 15.2 (4.02)
2 (29.4) 13.6 (3.60)
3 (44.1) 10.8 (2.86)
4 (58.8) 9.4 (2.49)
BL15
bar (psi) lph (gph)
0.5 (7.4) 18.3 (4.84)
1 (14.7) 15.2 (4.02)
2 (29.4) 13.6 (3.60)
3 (44.1) 10.8 (2.86)
BL20
bar (psi) lph (gph)
0.5 (7.4) 18.3 (4.84)
1 (14.7) 15.2 (4.02)
2 (29.4) 13.6 (3.60)
BL7
Pump output with 120 strokes/minute
0,0
2,0
4,0
6,0
8,0
10,0
12,0
14,0
16,0
18,0
20,0
0,512345678
BAR
L
P
H
BL10
Pump output with120 strokes/minute
0,0
2,0
4,0
6,0
8,0
10,0
12,0
14,0
16,0
18,0
20,0
0,5 1 2 3 4
BAR
L
P
H
BL15
Pump output with120 strokes/minute
0,0
2,0
4,0
6,0
8,0
10,0
12,0
14,0
16,0
18,0
20,0
0,5 1 2 3
BAR
L
P
H
BL20
Pump output with120 strokes/minute
0,0
2,0
4,0
6,0
8,0
10,0
12,0
14,0
16,0
18,0
20,0
0,5 1 2
BAR
L
P
H

1110

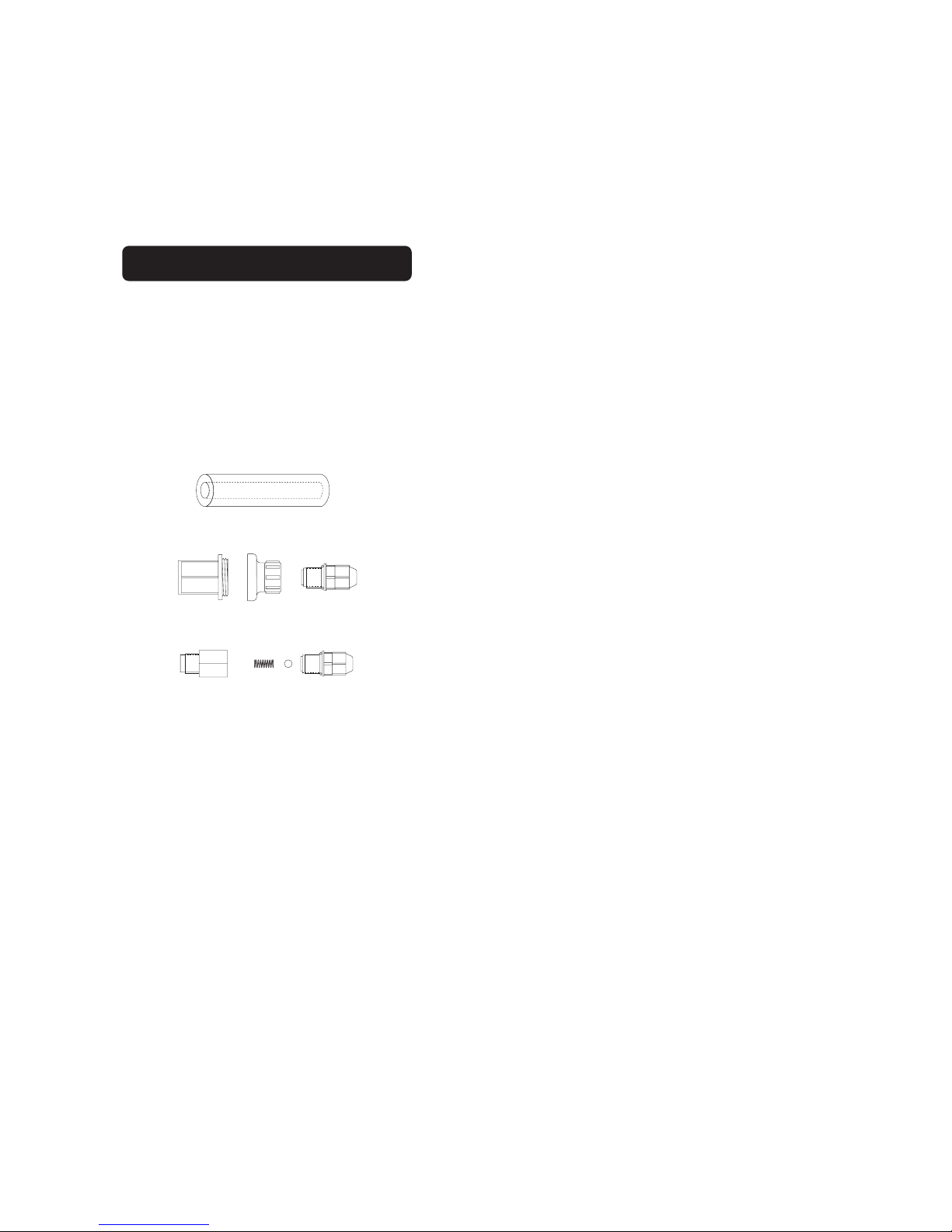

VALVE / HOSE ASSEMBLY DIAGRAM
NECK
SPECIFICATIONS
MAX FLOW RATE
BL1.5 1.5 lph (0.4 gph) @13 bar (188.5 psi)
BL3 2.9 lph (0.8 gph) @ 8 bar (116 psi)
BL 5 5.0 lph (1.3 gph) @ 7 bar (101.5 psi)
BL7 7.6 lph (2.0 gph) @ 3 bar (43.5 psi)
BL10 10.8 lph (2.9 gph) @ 3 bar (43.5 psi)
BL15 15.2 lph (4.0 gph) @ 1 bar (14.5 psi)
BL20 18.3 lph (4.8 gph) @ 0.5 bar (7.4 psi)
Adjustable from 0 to 100% of
maximum pump capacity
MATERIAL
PUMP CASING fiber-reinforced polypropylene
VALVES glass balls + O-rings in FPM/FKM
PUMPHEAD PVDF
DIAPHRAGM PTFE
TUBING polyethylene
SELF PRIMING Max. height: 1.5 m (5')
POWER SUPPLY
BL...-1 100/115 Vac; 50/60 Hz
BL...-2 220/240 Vac; 50/60 Hz
MAX POWER CONSUMPTION 200 W
PROTECTION IP65
ENVIRONMENT 0 to 50°C (32 to 122°F)
95% RH max
DIMENSIONS 194 x 165 x 121 mm (WxHxD)
(7.6 x 6.5 x 4.8")
WEIGHT 3 kg (6.6 lb.)

1312
Power Requirements
BlackStone pumps are designed to operate
to specifications within the following voltage
ranges:100 - 130 Volts for -1 models
200 - 240 Volts for -2 models
To ensure maximum performance, check the
voltage at the point of supply to verify that it
is sufficient. It is recommended that you in-
stall a 1 Amp circuit breaker between the
pump and the power supply. This will give
additional protection to the internal circuit
and provide a convenient way to disconnect
the power supply prior to servicing the pump,
if needed.
Injection Point
•Choose an injection point that allows you
to mount the injection valve assembly ver-
tically.
•The spring in the injection valve assembly
(HI 721004) adds approximately 1.5 bar of
back pressure. If pumping into a high back
pressure, the spring should be removed.
Other Considerations
•If you are mounting the system to a wall,
column, etc., be sure it is strong enough
to support the weight of the entire system.
•The ambient temperature of the pump,
when in operation, should be between 0
and 50°C (32 to 122°F) and should be
protected from direct exposure to outdoor
elements (direct sunlight, rain, extreme tem-
peratures, high humidity, etc.).
•Generally speaking, the shorter the suction
distance, the more efficient the pump oper-
ates.
INSTALLATION
Materials Needed
•LDPE hose (7 meter / 22 feet) (included)
or other type of tubing (PTFE, for example)
more suitable for a specific application (op-
tional)
Optional Accessories
•4 each, ceramic weights (HI 721008)
•1 each, foot valve assembly (HI 721005)
• 1 each, injection valve assembly (HI 721004)
Location
A suitable location should:
•be near to a power source
•be conveniently close to the injection point
•allow easy access to the flow rate control
and pipe or hose connections
•be no more than 1.5 meters (5 feet) above
the operating position of the suction valve
assembly.
Dimensions for Installation
BlackStone pumps are designed for perma-
nent installation.
The pump can be mounted directly on a wall
or tank.

1514
It is recommended that the system be con-
nected to a power line/leg equipped with a
circuit breaker of 1 Amp.
Permanent Connection using 3/8"PVC pipe
All piping for the
pump feed and dis-
charge should be
plumbed to the loca-
tion of the pump.
The threads on both
valve assemblies al-
low the use of stan-
dard 3/8" (European)
pipe fittings for per-
manent pipe connec-
tions.
The foot valve as-
sembly (HI 721005)
should always hang
vertically and not lay
horizontal on the
bottom of the tank
or drum.
A vertical assembly
will ensure that the
valve is positioned
properly and prevent
loss of prime.
For the U.S. standard installations, use PVC
adapters to connect the suction and dis-
charge valves to the PVC pipe.
Hose Connections
• Cut a long enough
section of the
hose to reach the
suction valve of the
pumphead from
UNION CONNECTION
ADAPTER
DISCHARGEVALVE
PUMP
SUCTIONVALVE
ADAPTER
FOOT VALVE
FILTER
-
Diagram for Rigid Pipe Hose
•The pump should be placed in a conven-
tional location that will allow easy access
to the control and connections. It should be
placed so that regular visual inspections of
the connections and hoses are facilitated.
Vertical Surface Mounting
Once you have selected the best installation
site, simply screw or bolt the unit into a wall
or mounting panel above the chemical feed
tank.
The 4 mounting screw holes on the pump
will accommodate up to a 5 mm (3/16")
screw or bolt (remember to use heavy screws
or bolts to secure the system).
Be sure you do not over tighten and cause
excessive stress on the mounting holes.
Electrical Connections
Note: All cables must be according to local
electrical codes.
For safety of the users, the pump has to
be grounded.
The pump should be connected to a single
phase power source.
Color coding for wires:
Blue - Live
Brown - Neutral
Yellow/Green - Ground (earth)
Other manuals for AL-30
1
This manual suits for next models
11
Table of contents
Other ALITA Air Compressor manuals
Popular Air Compressor manuals by other brands

Rolair
Rolair 6590HK18 owner's manual

Vixen Air
Vixen Air VXC480B installation guide

Sealey
Sealey Power PRODUCTS SA5055 instructions

Ingersoll-Rand
Ingersoll-Rand XHP1070WCAT Operating, Maintenance & Parts Manual

Vixen Air
Vixen Air VXO4852C installation guide

Doosan
Doosan P185WDOU-T4F Operation and maintenance manual
