Alivida Steam 3 User manual

Steam generator for
Steam bath/Hammam
Installation and User Manual v2.1
1. Warnings 3
General warnings 3

2
Safety Warnings 3
Removal regulations 3
2. Alivida Steam Kit 4
3. General description 5
Alivida Steam steam generator 5
Alivida Steam Control Panel 5
4. System Installation 6
Generator dimensions 6
Installation piping 7
Mechanical installation 8
Steam pipe and steam outlet 11
Water discharge 12
Electrical connections 13
Control panel 14
Temperature sensor 16
Drain function 17
Remote start 18
Master/Slave configuration 19
Low Level menu 20
5. User environment (UI) 21
Start 22
Set date and time 23
Steam function 24
Delayed start function 25
Lighting (RGB) 26
Aromatherapy 27
Options menu 28
Audio 29
6. Error Codes and Troubleshooting 30
7. Technical data 31
Steam generator 31
Control panel 31

3
1. Warnings
General warnings:
Carefully read all chapters of this manual before installing the steam generator. Keep
this manual for the entire life of the product. The Alivida steam generator is designed
to humidify steam baths/hammam, by distributing steam. Do not use steamers that are
not included in this kit. Always follow the instructions contained in this manual, or in the
manual of the accessories, regarding installation and maintenance.
Only use the steam generator for activities for which it is intended. When the product is
used in an irresponsible manner, no liability can be accepted for damage or injury to
people, animals or personal property. In addition, the product warranty will no longer
be valid.
Do not make any adjustments to the steam generator and do not carry out
maintenance of any kind. There are parts in this product that are live or that could
cause burns. Maintenance and service of such a product should only be performed by
specialized or qualified personnel. This product is intended for adults. Do not allow use
of the product by children under 8 years old, persons with reduced physical, mental or
sensory condition. The product should not be used by people with insufficient
knowledge or experience. It is advised to consult personal medical advice before using
the product. Check whether the mains supply is suitable for the electrical input of the
sauna controller.
Any form of warranty is void if adjustments are made to the device or if the installation
manual is deviated from.
Safety Warnings:
The installation of the system must comply with the safety requirements of the laws
and regulations of the place of use.
Removal regulations:
Disposal of electrical equipment should be collected separately, in accordance with
local regulations on waste disposal.

4
2. Alivida Steam Kit
The following products are available:
• Alivida Steam kit 3
• Alivida Steam kit 6
• Alivida Steam kit 9
• Alivida Steam kit 12
The Alivida Steam kit consists of the following parts:
• Steam generator 2.8 or 5.6 kW
• Control panel
• Steam outlet
• Temperature probe with holder
• Water supply hose
• Water drain hose
• Steam line
• Control panel extension cable (2 meters)
• Stainless steel flush-mounted box for control panel
• Installation and User Manual.
Optional:
RGB LED Light module
• RGB LED Control box
Aromatherapy
• Fragrance dosing pump
Bluetooth Audio
• Bluetooth Audio Control box
Cleaning light
• Relay output for cleaning lighting (max 100 Watt)
Bench heating
• Relay output for bench heating (max 2000 Watt)

5
3. General description
The Alivida Steam Kit can be used for both home and professional use. The steam
generator is operated by means of a touch panel which can be installed both inside
and outside the steam cabin.
The control system measures the ambient temperature and regulates the production of
steam to maintain the user's desired temperature.
Alivida steam generator
Alivida control panel

6
4. System Installation
Important:
Before installing the system, it is important to check whether the connections of the
piping comply with the regulations.
The water inlet, water outlet, and steam outlet must be properly installed.
Dimensions

7
Installation piping:
The generator must be connected to a drinking water supply. The connections to the
water mains must be made in accordance with local laws and regulations.
Use pipes with a suitable diameter:
Model
Water inlet
Water outlet
Steamoutlet
Alivida Steam 3
½”
½”
½”
Alivida steam 6
½”
½”
½”
Alivida steam 9
½”
½”
2 x ½”
Alivida steam 12
½”
½”
2 x ½”
The water supply pressure must always be between 1 and 6 bar (100-600 kPa). Install
a pressure regulator if necessary. Always use cold water, maximum 25 °C, to fill the
boiler; this is important for rinsing and cleaning the boiler. Do not perform welding work
on pipelines close to the steam generator. The heat and smoke this creates can
damage the generator.
Flush the pipework thoroughly to remove residues and impurities before connecting it
to the generator. When there is a risk of particles entering the water, even during
normal use, it is recommended to install a filter. Install a shut-off valve on the steam
generator's water supply. Always check that this valve is fully open when the generator
is on. Only close the valve if the generator will not be active for a long period of time.
The piping used for the discharge of the steam generator must be able to withstand
the flow of liquids warmer than 100 degrees Celsius. To ensure correct operation, this
pipe must be installed in a stable manner, with at least a 4º slope towards the drain.
There should be no obstacles that could hinder the management. It is recommended
to connect a siphon to the drain.
UNDER NO CONDITIONS may the steam pipe be fitted with shut-off valves, such as
valves or the like. The steam pipe must be made of a material that must permanently
withstand temperatures of at least 100 °C and must be insulated in such a way that
condensation is minimized. The steam line should slope gradually (at an angle of at
least 4º) from the generator to the steam outlet, so that the condensate that forms
when the system starts up can be properly drained. The steam outlet must be installed
on the inside of the steam bath at a height between 200 and 350 mm from the floor.
When installing and using the steam outlet, follow the instructions. The steam pipe
should never be longer than 6 metres.

8
Mechanical installation
The steam generator is designed for three types of installations, as shown below:
On the wall
On a shelf
In a niche

9
Connections
Preparation for making the mounting holes.
Drill holes in the wall to install the generator mounting bolts Make sure the holes are
properly positioned in the wall.

10
Mounting
Mount the generator on the wall.
Warning: Use screws each capable of lifting more than 50 kg. Make sure generator is
parallel to the wall.
Removing the housing
Remove the screws as shown in the illustration below. Remove the housing to expose the
printed circuit board.

11
Steam pipe and steam outlet
The steam line must not have narrowed sections or be fitted with shut-off valves. The pipe
must run at a minimum angle of 4° from the generator to the steam outlet. The length of the
steam pipe between the generator and the steam outlet must not exceed a total length of 6
meters. The pipe must be insulated and able to withstand a temperature above 100 °C.
The steam outlet must be installed at least 200 mm, but not higher than 350 mm, above the
floor. The outlet must be installed on the inside of the steam room. If the temperature of the
steam exceeds 60 °C, symbol 5597 of IEC 60417 must be displayed near the steam outlet.
A warning sign can also be installed that reads:
WARNING: HOT WATER VAPOR!
Steam outllet
Material: Stainless steel

12

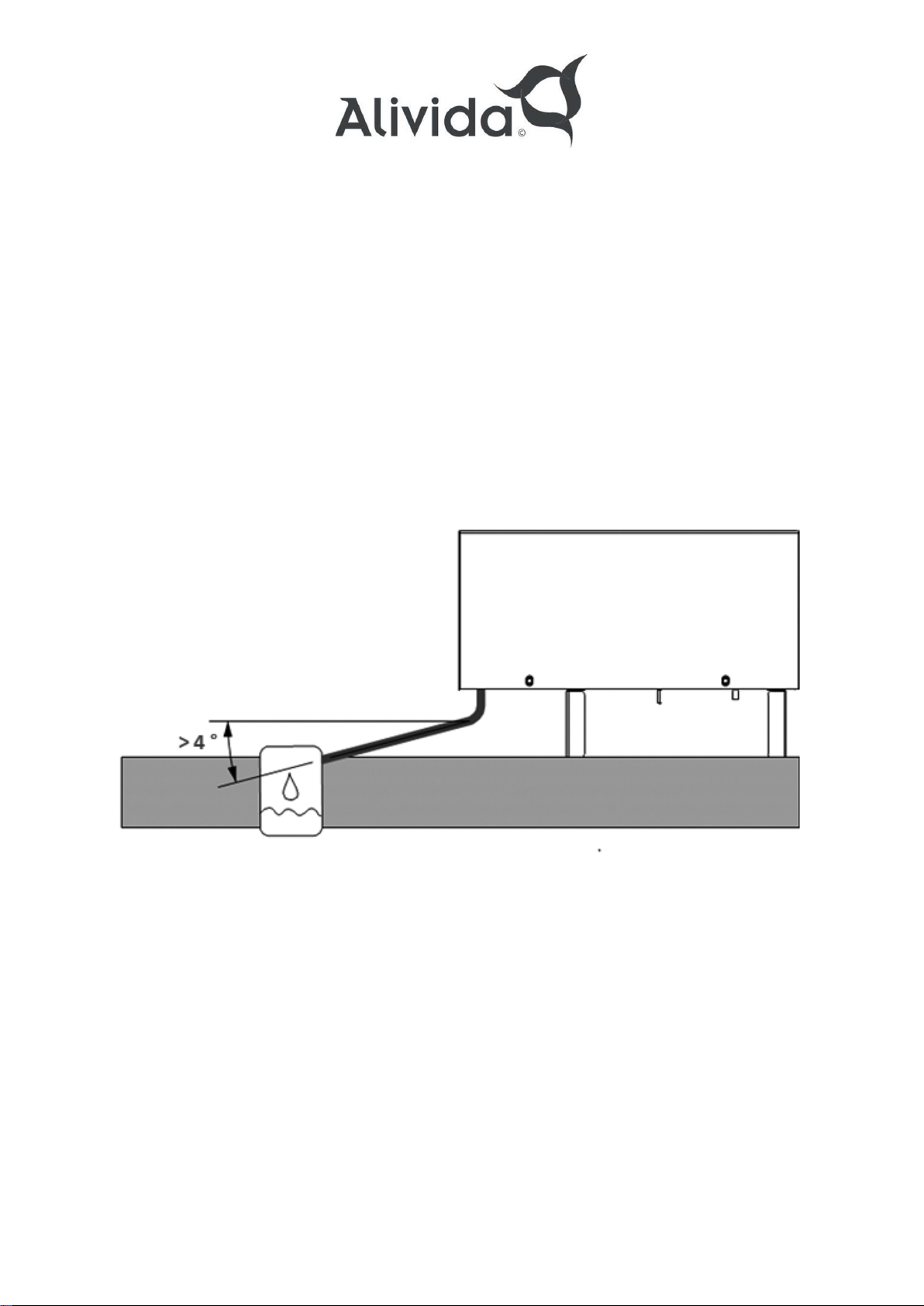

Water drainage
Without narrowed sections, barriers or valves.
Minimum slope: 4°
Heat resistant material (> 100°C) Siphon

13
Electric
ELECTRICAL INSTALLATION:
The generator may only be installed in a space intended for the generator. Do not
install the generator on the inside of the steam bath/Hammam. Connect the appliance
to the mains using an insulated multi-pole switch or multi-pole removable plug which is
included in the wiring.If a power cord is damaged, it should only be replaced by a
professional technician. Make sure that the electrical connection corresponds to the
specification on the steam generator.
Model
Power (Watts)
Voltage (volts)
A
Alivida Steam 3
2800
230
1 x 16
Alivida Steam 6
5600
1 x 230 (cooking group)
2 x 16
Alivida Steam 9
8400
1 x 230 (cooking group) + 1 x 230
2 x 16 + 1 x 16
Alivida Steam 12
11200
2 x 230 (cooking group)
2 x 16 + 2 x 16
Pay attention! all cooking groups run in 5 core cable.
The steam generators are delivered in such a condition that they are suitable for single
phase electricity supply. If technical conditions permit, the steam generator can be
connected to a three-phase electricity supply by removing the jumper cables. Connect

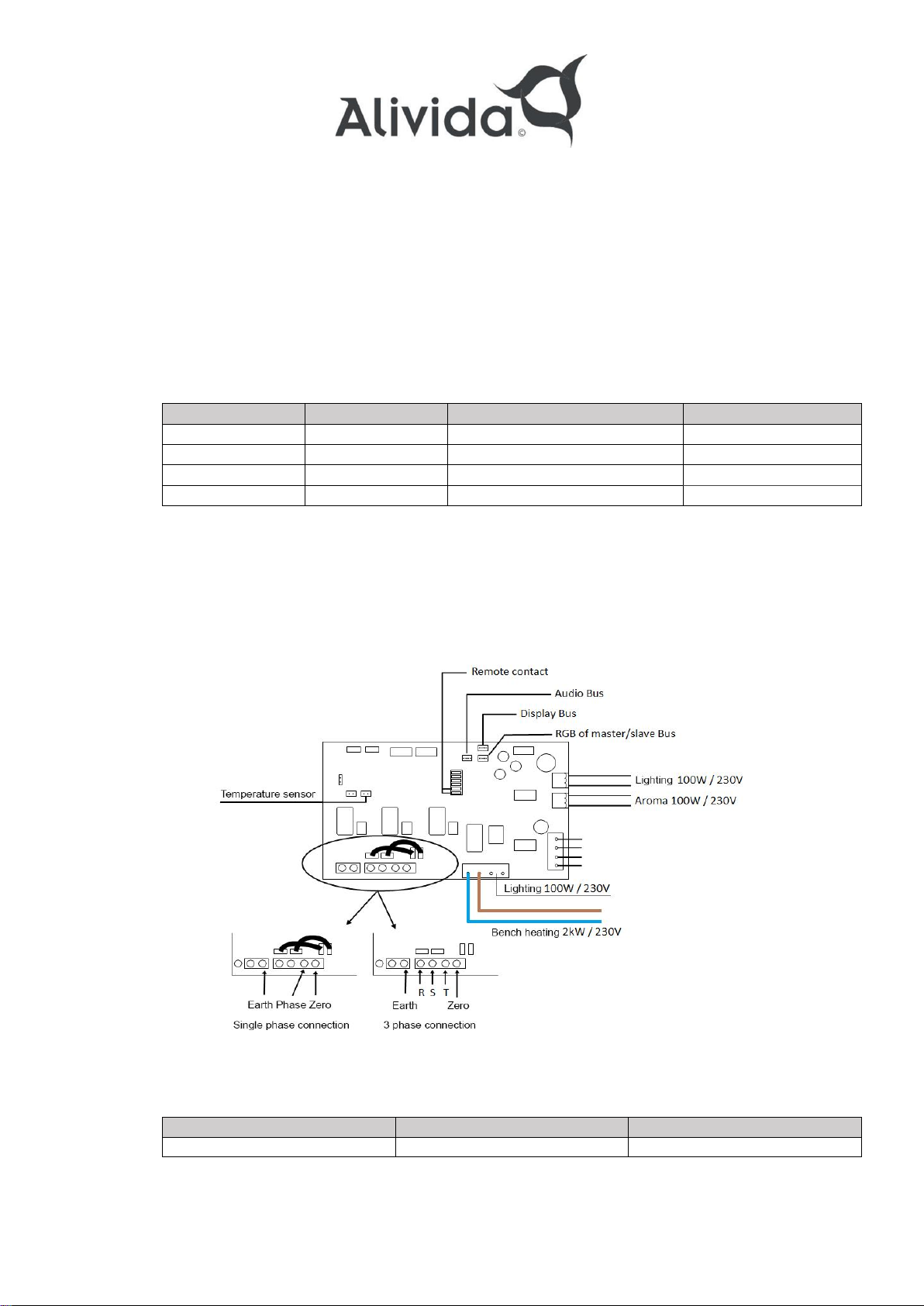

electrical connections as shown in the drawing below:
The electrical connection may only be made by means of a cable of the type:
H05VV-F, with a suitable length and diameter.
Type
Standaard
Keurmerk
H05VV-F
60227 IEC53 HD22
HAR

14
Control panel
Mechanical installation
The control panel can be installed on both the inside and outside of the steam bath. A
special stainless steel flush-mounted box is used.

15
Display dimensions
Electrical installation
Plug the male connector of the control panel into the corresponding female connector
of the steam generator.

16
Temperature sensor
Mechanical installationThe temperature sensor is held in place by a cylindrical holder,
which is installed on the inside of the steam room at a height of +/- 160 cm. Use silicone
caulk to mount the holder in place.
Stelschroef voor hetvastzetten van de temperatuursensor.
Ø 43mm Thickness 10 mm

17
Drain option at power up
A connection between pin 3 and pin 6 of the M9 connector (AUX IN) ensures that the
automatic drain function is switched off when the power is applied to the steam generator.
Drain option with steam function
DIP Switch 8 ON = No drain cycle is performed at the beginning and end of a steam
session.
DIP Switch 8 OFF = Drain cycle is performed at the beginning (only when the level
sensor detects water) and at the end of the steam session.
At the end of the steam session there is a 20 minute cool down
cycle. During the first 5 minutes of the cool down cycle, the
controls regulate the loads and drains. The steam function is not
available at this time. The steam icon flashes on the display.
A new steam session can then be started if necessary. (the
drain is not activated at the start of this new steam session).
If a user does not start a new steam session, an automatic drain
cycle will start within 15 minutes.

18
Remote start
The steam generator can be controlled externally by means of a remote contact, for example
with a home automation system. A connection between pin 1 and pin 2 of the M9 connector
(AUX IN) ensures that the steam generator is switched on in its last setting (for example 30
min. 45 degrees).
Pay attention! this is a make contact (not a pulse contact).
1 and 2 closed = unit starts up.
1 and 2 open = unit stops.
