Allegro Turbocat Zoom User manual

Turbocat™ Zoom
USE & CARE OF YOUR TURBINE POWERHEAD
[A] Attaching the Turbocat™Zoom Powerhead
To attach your metal wand, simply insert wand into powerhead neck until it fits
snugly. The built-in, locking mechanism will prevent the wand from coming loose. To
detach the wand, depress wand release tab on back
of neck with foot or hand and twist the wand free.
(See illustration Figure. 1 & Figure. 2)
The wand can be locked in an upright position by pushing it forward until the lock is
engaged. This lock position is convenient for storage and liing the power-
head. To release wand from the vertical locked position, gently place foot on
powerhead, grasp wand and pull back. (See Figure. 3)
This Turbocat™ Zoom powerhead has been engineered for higher perfor-
mance, quieter operation and superior cleaning ability. It has been
carefully designed and manufactured for long life, reliable performance
and convenient cleaning. It requires no electricity because it runs off the
airflow of your central vacuum system. The Turbocat™ Zoom powerhead
moves easily and does not require downward pressure for thorough
cleaning.
SAFETY PRECAUTIONS
Please read and save this Instruction Manual
As with any tool with moving parts, caution must be exercised
while using the turbine powerhead.
1. Keep hair, hands and feet away from rotating brush while turbine
powerhead is running.
2. Remember that turbine powerheads operate whenever they
are connected to a running vacuum. If children are present,
make sure to turn vacuum system off when leaving the power
head unit unattended.
3. Do not attempt to service or unclog turbine powerhead while
the unit is running.
[B] Operating Procedures
Your Turbocat™ Zoom powerhead runs off the airflow of your vacuum
system. It has no on/off switch. Whenever it is attached to an operating
vacuum system, it will be running. No adjustments to the powerhead are
necessary for different types of carpeting.
To Ensure maximum efficiency of the Turbocat™ Zoom powerhead, make
sure filters, bags and cleaning hoses in your vacuum system are clean and
free of blockage.
Avoid picking up water or spilled liquid with your Turbocat™ Zoom
powerhead. The vacuum system is designed for dry pick up only.
[C] Cleaning Roller Brush
Turn off vacuum system and disconnect Powerhead. Threads, string,
carpet fiber, fuzz and similar items may become wound around the beater
brush. These should be removed by unwinding them by hand or carefully
cutting with scissors. Keeping the beater brush clean will maintain
efficiency. (See Figure. 4)
Turbocat ™ Zoom
ZAS032
PUSH
To release
wand
Figure 1 Figure 2
Figure 3
Figure 4
Allegro Central Vacuum Systems© 2013 All Rights Reserved. ACVS-120413

Turbocat™ Zoom
[D] Removing Clogs
Follow these steps if the turbine becomes obstructed:
1. Turn off vacuum system and disconnect the Powerhead.
2. Remove the clear belt cover by turning the Powerhead over and rotating
the two latches until they align with the openings in the belt cover.
Remove the belt cover.
3. Remove debris from the intake or turbine. Rotate brush to ensure the
system is clear. Ensure the orange seal on the belt cover and mating
surfaces are clean before reinstalling the belt cover.
4. To reinstall the belt cover, simply insert the front of the belt cover under
the baseplate edge and lower into it’s original position.
5. Secure the belt covering in place by turning the two latches to the locked
position.
[E] Replacing the Drive Belt
It is recommended that the drive belt be replaced by a Qualified Technician
1. Turn off vacuum system and disconnect powerhead.
2. Remove belt cover as described above.
3. Remove the three (3) screws securing the baseplate.
4. Remove the baseplate.
5. IMPORTANT: Please note the correct brush and belt orientation. They
must be reinstalled correctly for proper function.
6. Li the brush, belt and support assembly out of the housing.
7. Remove the old belt.
8. Place the new belt over one end, onto the brush roller, between the two
centre flanges.
9. Loop belt around sha. Twist belt as shown. (See Figure. 5)
10. Slide the brush / belt assembly back into the housing recesses
so the supports seat properly into the housing. The assembly
is designed to fit only one way into housing.
NOTE: The brush will rotate in the wrong direction if the belt is twisted
incorrectly.
11. Replace the belt cover
TROUBLESHOOTING
CAUTION: Moving Parts - Disconnect from vacuum
system before servicing
Use the chart below to troubleshoot common problems you may experi-
ence with your turbine powerhead. If you cannot solve the problem using
the solutions below, please contact your distributor.
Allegro Central Vacuum Systems© 2013 All Rights Reserved. ACVS-120413

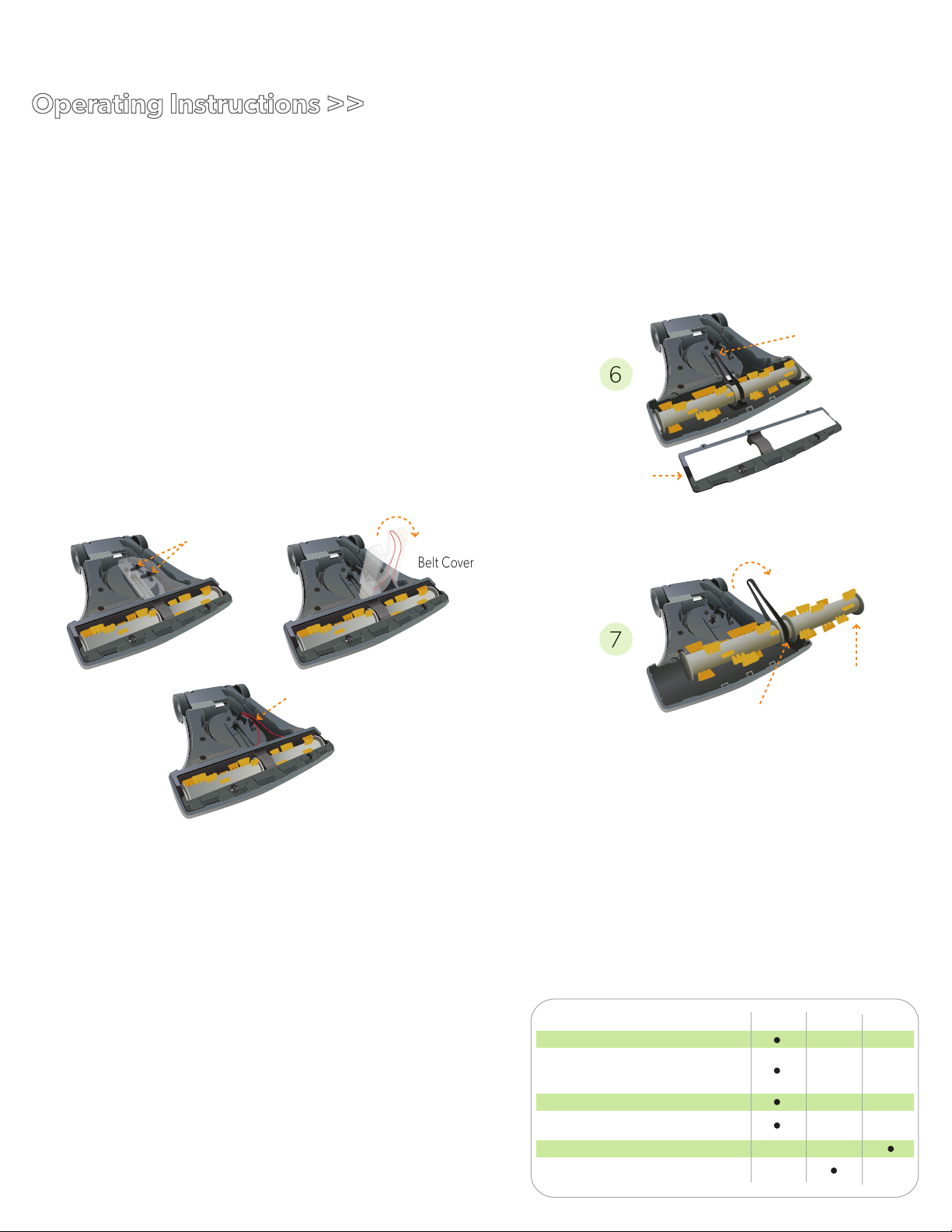

Turn latches
to remove
Belt Cover Remove
Belt Cover
Remove
clog here
Figure 6
Baseplate
Sha
Figure 7
Li Roller Brush
& Belt straight up
to remove
Proper Belt
Orientation
Position Belt
between these
two Flanges
Check for clog at air intake
Clean central vac power unit
guard screen/filter
Check for clog in hose
Check for clog in tube line
Ensure belt orientation is correct
Change direction you are vacuuming
Turbine
Runs
Slow
Brush
Bounces
in use
Brush
Hard to
Push

9. Loop belt around sha. Twist belt as shown. (See Figure. 5)
10. Slide the brush / belt assembly back into the housing recesses
so the supports seat properly into the housing. The assembly
is designed to fit only one way into housing.
NOTE: The brush will rotate in the wrong direction if the belt is twisted
incorrectly.
11. Replace the belt cover
TROUBLESHOOTING
CAUTION: Moving Parts - Disconnect from vacuum
system before servicing
Use the chart below to troubleshoot common problems you may experi-
ence with your turbine powerhead. If you cannot solve the problem using
the solutions below, please contact your distributor.
Allegro Central Vacuum Systems© 2013 All Rights Reserved. ACVS-120413
Turbocat™ Zoom
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
Part No.
8412*
8425*
8558
8413
8414*
8557
5974
5971
8423
7218
8411*
7223
8457
7226
8439
7228
7230
8556
7231
8428
8561
7238
7239
8416
8417
8427
8458
7224
Description
Lower Housing
Wheel Assembly (2)
Turbine Assembly
Belt Cover
Base Plate
Compression Spring
Washer, Spring
Washer, Neck
Neck Assembly
Spring, Neck Lock
Top Housing
Seal, Small
Roller Brush Assembly
T-Latch (2)
Belt
Screw, Housing (12)
Screw, T-Latch (2)
Bearing, Idler Assembly
Bushing, Wheel (2)
Sha Support Assembly, Le
Sha Support, Right, w/washer
Ballast (2)
Foam Pad (4)
Sha, Roller Wheel (2)
Roller Wheel (2)
Bearing Isolator (2)
Retaining Ring (2)
Seal, Belt Guard, Large
Turbocat™ Zoom Powerhead Parts
* Please specify color when ordering.
9
86
27 11
20
13
5
25
24
7
2
15
19
21
23
22
10
16
28
4
12
3
1
14
18
17
26
