ASSEMBLY INSTRUCTION MANUAL

7235 & 8435 Hydraulic Drive Snowblower

112013 P4739

Truck Loader Spout Kit Instructions

3

7235 & 8435 Hydraulic Drive Snowblower -Truck Loader Spout Kit

Note

The truck loader spout kit is to be used in place of the standard spout equipped on the hydraulic

drive snowblowers.The standard spout and connected deﬂector cylinder hoses need to be

removed prior to installation.

Assembly

On earlier snowblower models (pre-2014), mounting holes need to be drilled at the locations

provided on the mounting hole diagram page. On later models, hole are already provided in the

snowblower body.

Using the exploded assembly view (see on next page) as a guide:

1. Install truck loader base (816790) to the snow blower body using 3/8" x 1-1/2" (10 x 38 mm)

hardware.

2. Assemble deﬂector link arm components to spout and tighten so as to remove all slack, but to

still allow motion of deﬂector.

3. Attach hydraulic components to the truck spout similar to standard spout.Tighten ﬁttings and

clamping hardware.

4. Mount the truck loader spout to the snow blower using existing spout spacers, clamps, and

chain (815506, 815507, & 815498). Spout can cause damage or injury to equipment or personal

if care is not taken. Support spout from tipping until all mounting hardware is fully tightened.

5. Connect hoses to manifold similar as standard spout hoses. Clamp hoses in location provided

on side of base.

6. Assemble ring spacers and clamps (816780, 816867) using 5/16" (8 mm) Hardware.

Operation

1. Metal surfaces between spout and spout base should be kept lubricated

2. Periodically check all hardware to ensure they are properly tightened

3. Spout and base should be checked occasionally for wear or cracking

WARNING

Do not operate or transport assemble truck loader spout above

5 mph (8 kph). When transporting, always face the spout in the

forward position.

WARNING Watch for overhead hazards when machine is in operation or

while transporting.

4

Truck Loader Spout Exploded Diagram

7235 & 8435 Hydraulic Drive Snowblower -Truck Loader Spout Kit

9

16 2 7

1

4

22 23

81818

5

1818

18

3

11

12

13

318

18

5

318

185

3 18 18 5

17 19 19 21

1661015

6

20

14

5

Item # Part Number Description Quantity

1 24930M Cyl 1.75" Diameter x 5.0 1

2 29256 Cover plate 3

3 811792 Bolt Hex 0.375 x 1.50 7

4 812086 Adaptor Str 9/16 Morb x 9/16 Mjic 2

5 81344 Lock Nut (Nylon) 0.375 Nc 9

6 81546 Washer 0.313 Flat Std Hs (Pl) 12

7 815608 Block Polypropelene 3/8 Pair 3

8 81578 Hex Bolt 0.375 x 1.75 2

9 816767 Spout Weldment 1

10 816780 Truck Spout Spacer 3

11 816784 Truck Spout Link Arm 2

12 816790 Truck Spout Base 1

13 816796 Back Brace 1

14 816797 Hose 3/8 x 166.0 9/16 Swfjic x 9/16 Swfjic 90 2

15 816867 Truck Spout Clamp 3

16 81925 Hex Bolt 5/16" x 1-3/4" (Pl) 3

17 81966 Nut Lock (Nylon) 0.500 Nc (Pl) 1

18 84039 Washer Flat SAE 0.375 Bs (Pl) 20

19 84048 Washer 0.500 Flat SAE Bs (Pl) 2

20 84541 Lock Nut (Nylon) 0.313 Nc 8

21 87553 Bolt Hex 0.500 Nc x 1.75 Gr5 (Pl) 1

22 961876 1/2" x 1-1/2" Clev Pin (Pl) 2

23 9812430 Cotter pin 0.125 x 1.00 (Pl) 2

7235 & 8435 Hydraulic Drive Snowblower -Truck Loader Spout Kit

6

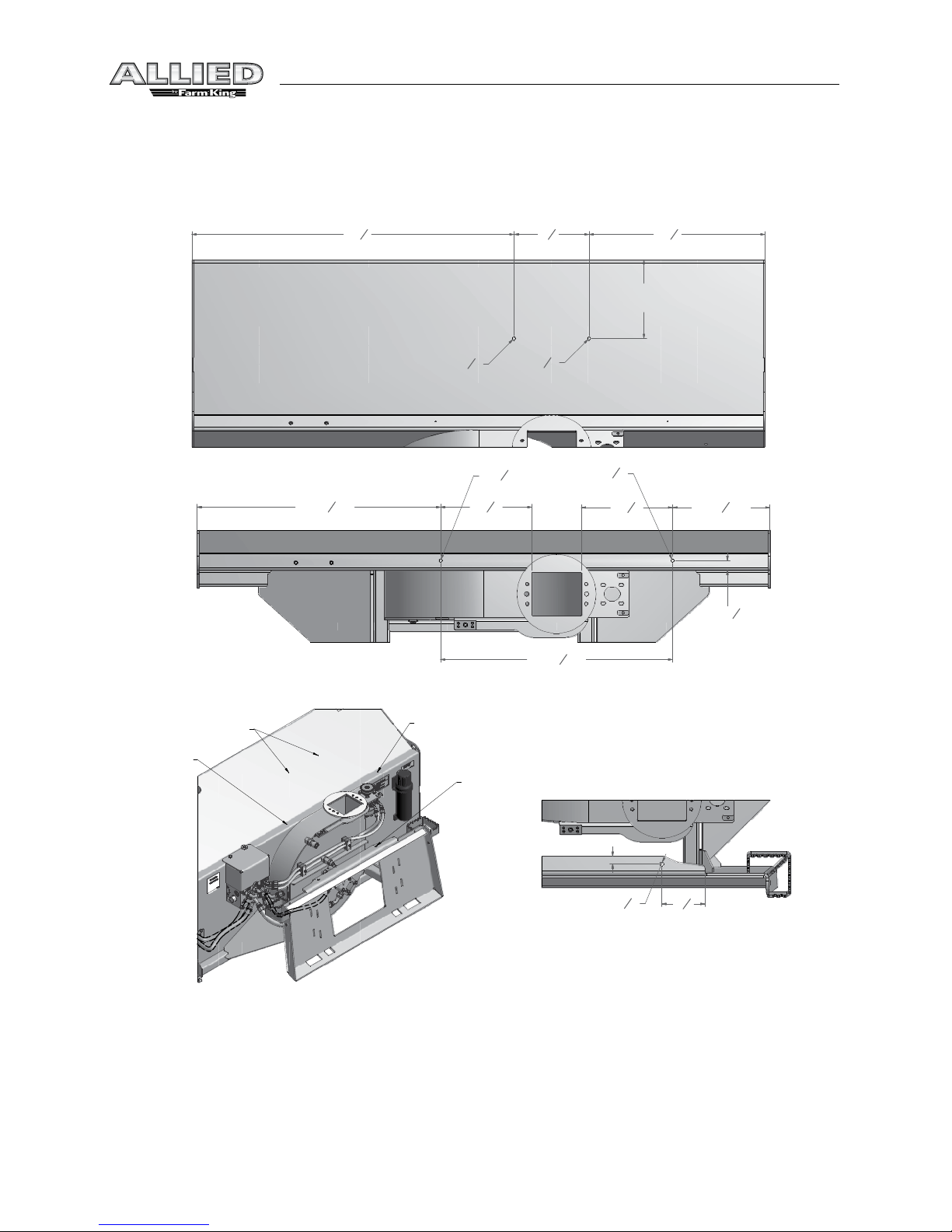

7235 -Truck Loader Spout Mounting Holes (5 Holes on 3 Surfaces)

(Views are perpendicular to surfaces being drilled)

7235 & 8435 Hydraulic Drive Snowblower -Truck Loader Spout Kit

10

(2 Locations)

22

14

9

12

40

34

1

5

12

Ø

17 32

12

516

Reference

30

13 16

Reference

1

14

(2 Locations)

Ø

13 32

Ø

13 32

Ø

13 32

Ø

13 32

Hole

Ø 13/32

Hole

Ø 13/32

Hole

Ø 13/32

Hole

Ø 17/32

11

916

11

916

29

38

Reference

7

7235 & 8435 Hydraulic Drive Snowblower -Truck Loader Spout Kit

8435 -Truck Loader Spout Mounting Holes (5 Holes on 3 Surfaces)

(Views are perpendicular to surfaces being drilled)







18

516

Reference

36

13 16

Reference

1

14

(2 Locations)

Ø

13 32

28

14

9

12

46

34

10

(2 Locations)



13 32

1

Ø

17 32

5

12

Ø

13 32



13 32

Hole

Ø 13/32

Hole

Ø 13/32

Hole

Ø 13/32

Hole

Ø 17/32

11

916

11

916

29

38

Reference

8

Notes

_____________________________________________________________________________________________

7235 & 8435 Hydraulic Drive Snowblower -Truck Loader Spout Kit

www.farm-king.com

1330 43rd Street NW

Fargo, North Dakota USA 58102

Ph.: 701.282.7014 | Fax: 701.282.5865

E-mail: info@buhler.com

www.farm-king.com

Equipment shown is subject to change without notice.

a division of Buhler Industries Inc.
