Allied 9620 Product manual

OperatOr and parts Manual
9620 Snowblower
5/2010 FK330

3
Table of Contents - 9620 Snowblower
Warranty Policy 4
Introduction 5
Safety 6
• Safety 6
• General Safety 7
• Start up Safety 7
• Operation Safety 7
• Transport Safety 8
• Service and Maintenance Safety 8
• Storage Safety 8
• Safety Signs 8
• Safety Sign Installation 9
Assembly 10
• Assembly Instructions 10
Operation 13
• Operating Instructions 13

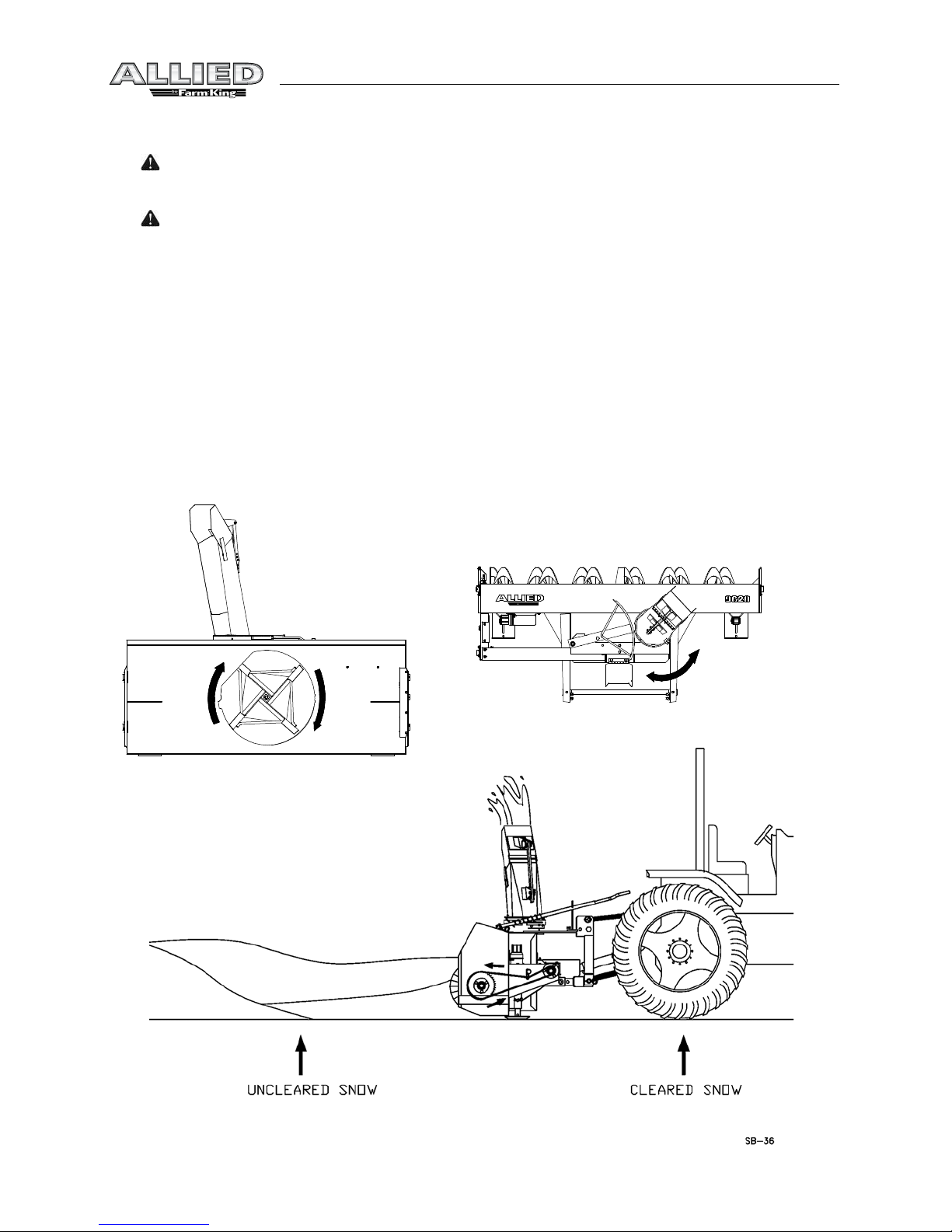

• Theory of Operation 14
Maintenance 15
• Bolt Torque 15
• Hydraulic Fittings 16
• Prevailing Torque Lock Nuts 17
Parts Drawings 18
• 96" Snowblower Drawings 20
• 96" Snowblower Parts Lists 21
• 96" Snowblower PTO Drawing & PTO Parts List 22
• 96" Snowblower Gearbox Drawing & Parts List 23
Optional Bundles 24
Shipping Kit and Bundle Numbers 27
Table of Contents

4
Warranty Policy - 9620 Snowblower
Buhler Trading Inc. products are warranted for a period of twelve (12) months (90 days for
commercial application) from original date of purchase, by original purchaser, to be free
from defects in material and workmanship under correct, normal agricultural use and proper
applications.
Buhler Trading Inc.’s obligations under this warranty shall be limited to the repair or exchange,
at Buhler Trading Inc.’s option, of any Buhler Trading Inc. product or part which proves to be
defective as provided. Buhler Trading Inc. reserves the right to either inspect the product at the
buyer’s location or have it returned to the factory for inspection.
The above warranty does not extend to goods damaged or subject to accident, abuse or misuse
after shipment from Buhler Trading Inc.’s factory, nor to goods altered or repaired by anyone
other than an authorized Buhler Trading Inc. representative.
Buhler Trading Inc. makes no Express Warranties other than those, which are specifically
described. Any description of goods, including any references and specifications in catalogues,
circulars and other written material published, is for the sole purpose of identifying goods and
shall conform to such descriptions. Any sample or model is for illustrative purposes only and
does not create an Express Warranty that the goods conform to sample or model shown.
The purchaser is solely responsible for determining suitability of goods sold. This warranty is
expressly in lieu of all other warranties expressed or implied. Buhler Trading Inc. will in no event
be liable for any incidental or consequential damages whatsoever. Nor for any sum in excess of
the price received for the goods for which liability is claimed.
Warranty Claims
Warranty requests must be prepared on Buhler Trading Inc. Warranty Claim Forms with all
requested information properly completed. Warranty Claims must be submitted within a thirty
(30) day period from date of failure repair.
Warranty Labor
Any labor subject to warranty must be authorized by Buhler Trading Inc. The labor rate for
replacing defective parts, where applicable, will be credited at 100% of the dealer’s posted shop
rate. Defective parts will receive an extra 10% discount to assist with freight or other incidental
costs.
Government Legislation
Warranty terms and conditions are subject to Provincial or State legislation.
Important Facts
Snowblower Fan Shafts Carry No Warranty
IMPORTANT NOTE: This warranty does not apply to rentals
Warranty Policy

5
Allied by Farm King has years of snowblower manufacturing expertise. Thousands of acreages,
farms, and cities depend on Allied by Farm King snowblowers. PTO-driven Allied by Farm King
Snowblowers attach to 3-point hitch. This snowblower is supplied with category 2 pins with
conversion bushings to category 3 available. Adjustable cup type skid shoes are standard on all
models.
Four blade fans are standard on all models. Shear bolt protection is provided at the sprocket
to the main auger, and is easily accessed by removing wing nuts and cover at the back of
the housing. A hitch system, which is quick-hitch compatible, is standard on all models. Also
available is an optional hydraulic spout deflector.

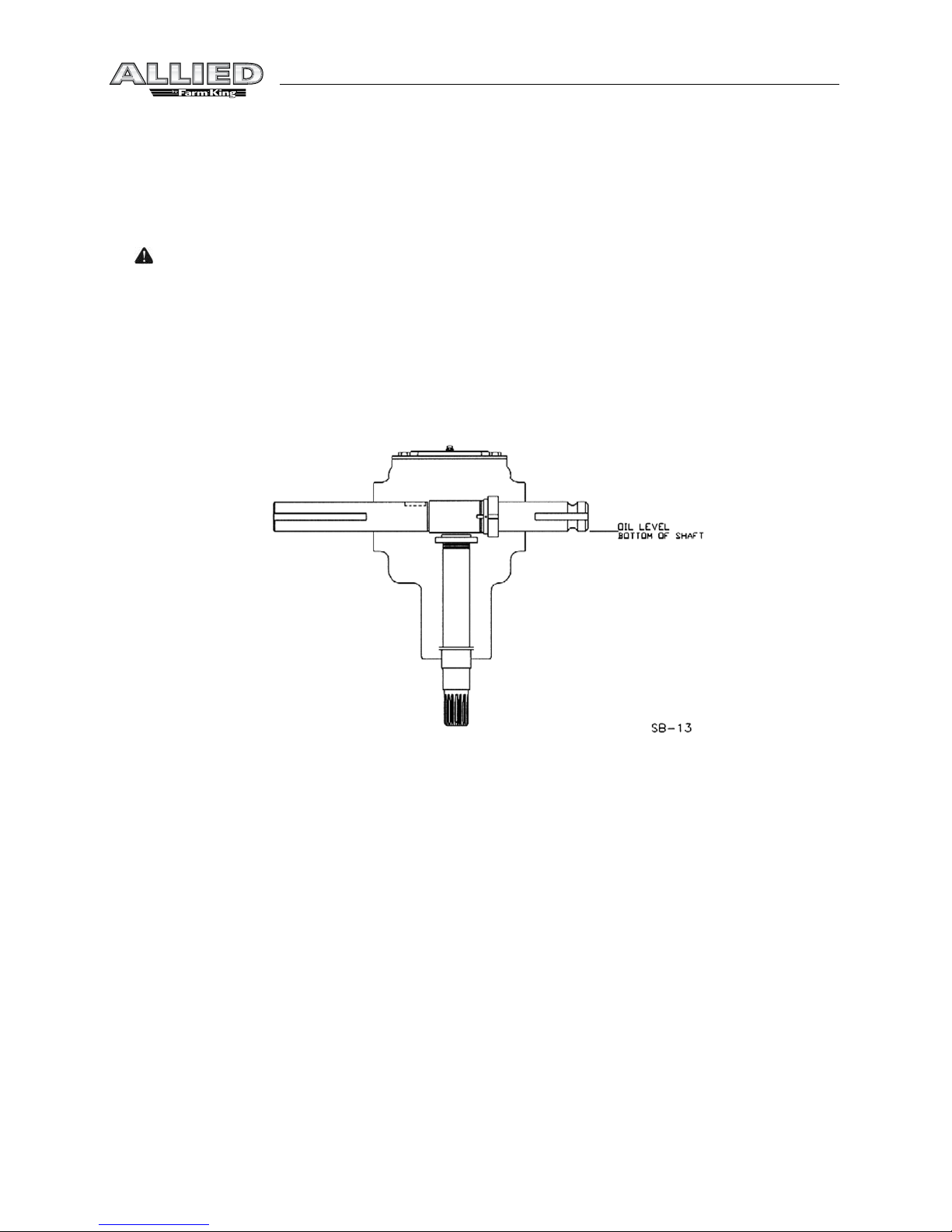

The 96" is for tractors from 90 hp to 125 hp. It has a 540-rpm oil bath gearbox with #60 chain.
The chute rotation is hydraulic (cylinder and necessary hardware not included). An optional
hand crank kit is available for chute rotation. Hydraulic spout deflector kits are available. There
is a shear bolt on the auger and on the PTO shaft to protect the machine from damage if a large
object is picked up. Any smaller objects in the snow will be thrown with it and could cause
serious injury. Do not allow anyone to stand behind the tractor or in the area of the discharged
snow.
Keep this manual handy for frequent reference. All new operators or owners must review the
manual before using the equipment and at least annually thereafter. Contact your Allied by Farm
King Dealer if you need assistance, information, or additional copies of the manual. Visit our
website at www.farm-king.com for a complete list of dealers in your area.
The directions left, right, front, and rear as mentioned throughout.
Introduction
Introduction - 9620 Snowblower

6
Safety - 9620 Snowblower
Remember, YOU are the key to safety. Good safety practices not only protect you, but also the
people around you. Make these practices a working part of your safety program. Be certain that
everyone operating this equipment is familiar with the recommended operating and maintenance
procedures and follows all the safety precautions. Most accidents can be prevented. Do not risk
injury or death by ignoring good safety practices.
The alert symbol is used throughout this manual. It indicates attention is required and
identifies hazards. Follow the recommended precautions.
The safety alert symbol means…
ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!
CAUTION
The caution symbol indicates a potentially hazardous situation that, if not avoided, may
result in minor or moderate injury. It may also be used to alert against unsafe practices.
WARNING
The Warning Symbol indicates a potentially hazardous situation that, if not avoided, could
result in death or serious injury, and includes hazards that are exposed when guards are
removed. It may also be used to alert against unsafe practices.
DANGER
The Danger Symbol indicates an imminently hazardous situation that, if not avoided will
result in death or serious injury. This signal word is to be limited to the most extreme
situations, typically for machine components that, for functional purposes, cannot be
guarded.
Safety

7
General Safety Instructions
• Have a first-aid kit available for use and know how to use it.
• Have a fire extinguisher available, stored in a highly visible location, and know how to use it.
• Wear appropriate protective gear. This list may include but is not limited to:
- Hard hat
- Protective shoes with slip resistant soles
- Protective glasses or goggles
- Heavy gloves
- Wet weather gear
- Hearing protection
- Respirator or filter mask
• Read and understand the Operator’s Manual and all safety signs before operating, servicing,
adjusting, repairing, or unplugging the equipment.
• Do not attempt any unauthorized modifications to your Allied by Farm King product as this
could affect function or safety, and could affect the life of the equipment.
• Never start or operate the snowblower except from the operator’s station on the power unit.
• Inspect and clean the working area before operating.
• Keep hands, feet, clothing, and hair away from moving parts.
• Ensure bystanders are clear of the area before operating.
Start-up Safety
• Do not let inexperienced operators or children run this equipment.
• Place all tractor and machine controls in neutral before starting.
• Operate only with ROPS and seatbelt equipped tractors.
• Do not operate inside a building unless there is adequate ventilation.
• Ensure all shields are in place and in good condition before operating.
• Stay clear of PTO shaft and machine when engaging PTO.
Operation Safety
• Do not permit riders.
• Do not wear loose fitting clothing during operation.
• Stay clear of Snowblower augers.
• Stay clear of Snowblower discharge chute. Rocks or debris can be picked up and thrown.
• Never operate over 540 rpm PTO speed.
• Never operate the equipment in the raised position.
Safety - 9620 Snowblower

8
Safety - 9620 Snowblower
Transport Safety
Review Transport Safety instructions in tractor manual before moving.
Check with local authorities regarding transport on public roads. Obey all applicable
laws and regulations.
Make sure the SMV (Slow Moving Vehicle) emblem and all the lights and reflectors that
are required by the local highway and transport authorities are in place, are clean, and
can be seen clearly by all overtaking and oncoming traffic.
Never have the equipment in operation during transport.
Always travel at a safe speed.
Service and Maintenance Safety
• Stop engine, set brake, remove ignition key, and wait for all moving parts to stop before
servicing, adjusting, repairing, or unplugging.
• Support the equipment with blocks or safety stands before working beneath it.
• Follow good shop practices including:
- Keep service area clean and dry
- Be sure electrical outlets and tools are properly grounded
- Use adequate light for the job
• Use only tools, jacks, and hoists of sufficient capacity for the job.
• Replace and secure all shields removed during servicing before operating.
• Use heavy leather gloves to handle sharp objects.
• Check hydraulics regularly for leaks. Use cardboard to look for leaks, and use hand and eye
protection.
• Relieve pressure on hydraulic system before repairing or adjusting.
Storage Safety
• Store the unit in an area away from human activity.
• Do not permit children to play on or around the stored machine.
• Support the frame on stands and blocks to provide a secure base.
Safety Signs
The following illustration shows the approximate location and detail of safety signs. Keep all
safety signs clean and legible and replace any that are damaged or missing. When original parts
are replaced, any safety signs affixed to those parts should be replaced as well. Replacement
safety signs are available from your local dealer.

9
(3) DANGER DECAL
SERIAL NUMBER
(1) CAUTION DECAL
(2) WARNING DECAL
Installation of Safety Signs
To install safety signs, ensure the installation area is clean and dry. Decide on the exact position
before you remove the backing paper. Remove the smallest portion of the split backing paper and
align over the specified area. Carefully press in place. Slowly peel back the remaining paper and
smooth the remaining portion in place. Small air pockets can be pierced with a pin and smoothed
out.
Safety - 9620 Snowblower
Replace safety signs immediately
should they become damaged, torn
or illegible. Obtain replacements from
your authorized dealer using the part
numbers shown.

10
Assembly Instructions - 9620 Snowblower
1. Fasten the two quick hitch arms (#57) to the main body. Use eight 5/8" x 1 1/4" hex bolts, lock
washers and hex nuts. Note: Lift arms for quick coupling hitch are 30 3/4" long versus 35" for
the standard three point hitch.
2. Bolt the quick hitch (#56) to the snowblower body using two 1/2" x 1 1/4" hex bolts, lock
washers and hex nuts. Fasten to the lift arms using three 5/8" x 1 1/2" hex bolts on each lift
arm. Insert a 1" top link pin at the top and two 1 1/8" lift pins at the bottom of the hitch.
3. Bolt the hitch cross brace (#2) underneath the two quick hitch arms using two 5/8" x 1 1/2" hex
bolts, lock washers, flat washers and hex nuts.
4. Mount the discharge spout (#3) using the spout clamp (#51) bolted to the spout ring on the
snowblower. Lubricate the spout ring and clamp.
5. Hydraulic Spout Swivel:
a. Mount the swivel arm (#36) onto the swivel pin welded to the back corner of the fan housing
using a 1" ID flat washer (#37) and a 3/16" x 1 1/2" cotter pin (#52).
b. Wrap cable (#35) around spout and clamp to the ends of the swivel using 1/4" cable clamps
(#16).
c. With the spout turned forward and the swivel arm centered with the spout, clamp the cable
to the spout cable anchor using another cable clamp. Ensure that the spout is not jammed
and that there is no slack in the cable.
d. Use a standard 8" stroke cylinder (20 1/4" min., 28 1/4" max. pin centers).
e. NOTE: A hydraulic cylinder and hose kit to control the spout deflector is available as an
option.
6. Hand Crank (Option):
a. Fasten hand crank assembly (#50) using two 1/2" x 1 1/4" hex bolts, lock washer and hex
nuts.
b. Thread cable (#53) through hole in hand crank to even lengths and wrap around the tube to
each side of the hole four turns in opposite directions.
c. Turn spout to center forward position and clamp cable to cable anchor on far side of spout
using clamp (#16).
Assembly Instructions

11
Assembly Instructions - continued
7. Mounting blower on tractor:
a. The pins supplied with the snowblower are for a category 2 quick hitch. The quick
coupling hitch has two holes both at the top of the hitch and at each lift arm. When using a
quick coupler, the pins must be in the inside set of holes. Use the outside set of holes with a
standard three-point hitch.
b. Using tape or a bright colored marking pen, mark on the outer shields the position where
the shaft is completely pushed together and the position where you have a 4"overlap. Watch
these marks when moving the blower through all possible operating angles to see that the PTO
shaft stays within this range.
c. With the engine on the tractor shut off, attach the PTO shaft. The tractor end has a standard
6-spline end with a spring loaded locking collar. The snowblower end has a clamp-style yoke
with a 3/8" key way. Slide the yoke onto the gearbox shaft with the 3/8" key supplied. Lock the
yoke in place with the 1/2" x 3" hex bolt and lock nut fitted through the groove in the gearbox
shaft. After tightening the bolt, insert and tighten the 3/8" socket set screw supplied.
CAUTION: Always check to see that both ends of the PTO shaft are securely attached every
time the Snowblower is used. This should always be done with the tractor engine off.
d. Check that the PTO shaft does not bottom or separate with the blower in the extreme high
and low positions. A longer optional PTO shaft is available if the standard shaft is too short.
Check for free movement of all parts in various raised positions; particularly the PTO shaft.
e. NOTE: Excessive U-joint wear and shear pin failure may result if the tractor PTO angle
exceeds 20. The drawing below gives an approximate way to check this angle. With the PTO
half extended, the tractor output should not be over 32 inches high. Use 34 inches if the PTO is
nearly fully extended and 30 inches if it is nearly compressed.
Assembly Instructions - 9620 Snowblower

12
Assembly Instructions - 9620 Snowblower
Assembly Instructions - continued
8. PTO Shield
All snowblowers are supplied with a PTO shield (#61). To install, remove the two rear bolts at
the top of the gearbox (#38). Bolt the PTO shield to the gearbox by the hinges using these same
bolts. A utility spring (#62) keeps the shield in place. Hook one end of the spring in the hole in
the shield and the other end to the hole in the brace under the gearbox.
CAUTION: Do not run the snowblower without this shield in place.
Refilling Gearbox with Oil:
If the gearbox requires refilling with oil because of repairs to the gearbox,
add oil to the level shown in drawing. Check the level regularly using the
plug in the lid. The correct level is even with the bottom of the plug.

13
Operation Instructions
1. Do not operate the blower in the fully raised position. The three-point hitch on some tractors
rises high enough to cause the PTO shaft to bind. This can cause damage to the PTO shaft and/
or to the hitch and pins.
2. Depth of cut can be partially controlled by tilting the blower forward or backward. Adjust the
tractor quick hitch so the snowblower is just slightly tilted back when resting on the ground.
CAUTION: Excessive backward tilt may cause the "U" joints to flutter resulting in PTO shear
bolt failure.
3. Run the blower at low rpm to check operation before blowing snow.
4. The snowblower has two shear bolts to protect the tractor and blower in case a large object
enters the blower. PTO shear bolt - two 5/16" x 1" (Grade 8); Auger shear bolt – 5/16" x 1 1/4"
(Grade 5). Shear bolts should be fastened with a lock nut or two jam nuts. These bolts must be
kept tight to prevent wear of the bolt and bolt holes.
5. Never run PTO shaft at over 600 rpm.
6. Chain Tension: Slack on the lower side of the chain should be 3/8" to 1/2".
7. Lubrication:
a. The spout clamps and rings should be periodically lubricated with gun grease.
b. PTO shaft universal joints and square shaft slide should be greased daily.
c. Regularly oiling the chain will significantly increase the life of the chain.
d. The grease fitting on the hydraulic spout swivel arm should be kept lubricated.
e. Gearbox - Use any 80-90 gear oil or multigrade with 80 minimum.
8. Periodically check all bolts for tightness. The bolt holding on the fan and the bearing bolts are
of particular importance.
- See Maintenance (page 15) - Bolt Torque
Operation Instructions - 9620 Snowblower

14
Operation Instructions - 9620 Snowblower
Operation Instructions - continued
9. DANGER: Always stop blowing for servicing or unplugging. The PTO should be
disengaged before dismounting from the tractor.
10. CAUTION: Always check to see that both ends of the PTO shaft are securely attached as
per instructions every time you are preparing to use the Snowblower.
11. Shear Sprocket: The shear sprocket (#24) should be checked at the beginning of every season
to make sure it will spin freely. With time this sprocket could corrode and seize which will not
allow the shear bolt to break if something jams in the snowblower auger. If necessary, clean
shear sprocket to ensure ability to spin freely.
12. When replacing bearings or tightening a loose bearing collar, always tighten collar in the
direction of shaft rotation using a center punch or a similar tool.
Theory of Operations
FAN BLADE
ROTATION
ROTATE SPOUT
LEFT OR RIGHT

15
Maintenance - 9620 Snowblower
Bolt Torque
Bolt Diameter Grade 2 Bolts Grade 5 Bolts Grade 8 Bolts
(inches) SAE 2 SAE 5 SAE 8
“A” (ft-lbs) (NM) (ft-lbs) (NM) (ft-lbs) (NM)
0.25 (1/4) 6 7 8 11 12 16
0.313 (5/16) 11 15 17 23 25 33
0.375 (3/8) 20 27 31 42 44 60
0.438 (7/16) 32 43 49 66 70 95
0.5 (1/2) 49 66 76 103 106 144
0.563 (9/16) 70 95 109 148 153 207
0.625 (5/8) 97 131 150 203 212 287
.75 (3/4) 144 195 266 360 376 509
0.875 (7/8) 166 225 430 583 606 821
1 250 339 644 873 909 1232
1.125 (1 1/8) 354 480 795 1077 1288 1745
1.25 (1 1/4) 500 678 1120 1518 1817 2462
1.375 (1 3/8) 655 887 1470 1992 2382 3228
1.5 (1 1/2) 870 1179 1950 2642 3161 4283
1. For fine threads add 10% to the seating torque.
2. All readings are for un-plated or cadmium plated steel locknuts on un-plated or cadmium plated surfaces.
3. Use 80% of the specified torque value for plated and lubricated fasteners.
4. Seating torque figures are based on tightening the nut until the bolt has reached 75% of the specified proof
load.
Maintenance

16
Maintenance - 9620 Snowblower
Hydraulic Fittings
Dash Size Thread Size
Jam Nut or Straight
ORB Fitting Torque
SAE 37° (JIC)
Swivel Nut Torque
(ft-lbs) (NM) (ft-lbs) (NM)
-4 (1/4) 7/16-20 14 - 16 20 - 22 10 - 11 13 - 15
-5 (5/16) 1/2-20 18 - 20 24 - 27 13 - 15 18 - 20
-6 (3/8) 9/16-18 24 - 26 33 - 35 17 - 19 23 - 26
-8 (1/2) 3/4-16 50 - 60 68 - 78 34 - 38 47 - 52
-10 (5/8) 7/8-14 72 - 80 98 - 110 50 - 56 69 - 76
-12 (3/4) 1-1/16-12 125 - 135 170 - 183 70 - 78 96 - 106
-14 (7/8) 1-3/16-12 160 - 180 215 - 245 80 - 90 110 - 122
-16 (1) 1-5/16-12 200 - 220 270 - 300 94 - 104 127 - 141
-20 (1 1/4) 1-5/8-12 210 - 280 285 - 380 124 - 138 169 - 188
-24 (1 1/2) 1-7/8-12 270 - 360 370 - 490 156 - 173 212 - 235
Maintenance

17
Maintenance - 9620 Snowblower
Prevailing Torque Lock Nuts
Nut Size and
Threads per Inch
Grade B Nuts Grade C Nuts
Nut Tightening Torque Nut Tightening Torque
(ft-lbs) (NM) (ft-lbs) (NM)
Coarse Thread
1/4 - 20 5 - 7 7 - 9 7 - 10 9 - 14
3/16 - 18 9 - 12.5 12 - 17 11 - 16 15 - 22
3/8 - 16 14.5 - 20 20 - 27 20 - 28 27 - 38
7/16 - 14 23 - 32 31 - 43 31 - 43 42 - 58
1/2 - 13 37 - 50 50 - 68 45 - 62.5 61 - 85
9/16 - 12 50 - 70 68 - 95 70 - 95 95 - 129
5/8 - 11 70 - 95 95 - 129 90 - 122.5 122 - 166
3/4 - 10 125- 165 169 - 224 155 - 210 210 - 285
7/8 - 9 185 - 250 251 - 339 225 - 312.5 305 - 423
1 - 8 275 - 375 373 - 508 360 - 462.5 488 - 627
Fine Thread
1/4 - 28 5.5 / 7.5 7 - 10 7 - 10 9 - 14
3/16 - 24 10 - 13 14 - 18 12 - 17 16 - 23
3/8 - 24 16 - 22 22 - 30 21 - 29 28 - 39
7/16 - 20 24 - 34 33 - 46 31 - 43 42 - 58
1/2 - 20 37.5 - 52.5 51 - 71 50 - 70 68 - 95
9/16 - 18 57.5 - 77.5 78 - 105 70 - 95 95 - 129
5/8 - 18 72.5 - 97.5 98 - 132 90 - 125 122 - 169
3/4 - 16 120 - 165 163 - 224 155 - 210 210 - 285
7/8 - 14 200 - 270 271 - 266 225 - 312.5 305 - 423
1 - 14 300 - 400 407 - 542 362.5 - 500 491 - 678
1) For Grade A locknut torque specifications refer to Grade B specifications.
Maintenance

18
Parts - 9620 Snowblower
96" Snowblower w/Quick Hitch
22
73
27
28
4
5
10
8
38
19
18
17
44
6
23
32
46
31
65
30
27
28
55
29
19 18
29
19
25
33
28
27
7
1
63
21
20
48
7
27
28
71
70
45
18 29
17
18
29
2
57
61
34
62
72

19
96" Snowblower w/Quick Hitch
Parts - 9620 Snowblower
TO CONVERT TO HYDRUALIC SPOUT DEFLECTOR:
REMOVE 68 AND REPLACE WITH HYDRAULIC CYLINDER
HAND CRANK MOUNTING HOLE
HAND CRANK MOUNTING HOLE
70
26
26
70
68
16
51
21
59
20
76
21
20
48 56
11
8
10
12
CONVERTING TO HAND CRANK OPTION:
REMOVE 36 AND ATTACH HAND CRANK
ASSEMBLY TO MOUNTING HOLES
THAT ARE IDENTIFIED
35
36
47
37
52
60
13 17 18
29

20
Parts - 9620 Snowblower
When Ordering Parts
Always give your dealer the Model, Color and Serial Number of your machine to assist them in
ordering and obtaining the correct parts. Use the exploded view and tabular listing of the area of
interest to exactly identify the required part.
9620 Snowblowers
F0625A Body Assembly *
Item Part Number Description
1 Main Body
2 965959 Hitch Cross Brace, 1–1/2" x 39–1/2"
4 965904 Auger
5 965448 Fan Assembly 4 Blade
6 5/16" Lock Nut Grade B (pl)
7 3/8" x 3/4" Hex Bolt Grade 5 (pl)
8 1/2" x 1" Hex Bolt Grade 5 (pl)
9 1/2" x 1–1/4" Hex Bolt Grade 5 (pl)
10 1/2" Lock Washer (pl)
11 1/2" Hex Nut Grade 2 (pl)
12 965910 Top Link Pin (Cat. 2)
13 965911 Linch Pin
17 5/8" x 1–1/2" Hex Bolt Grade 5 (pl)
18 5/8" Lock Washer (pl)
19 5/8" B.S. Flat Washer (pl)
20 5/16" Lock Washer (pl)
21 5/16" Hex Nut Grade 2 (pl)
22 965912 40 Tooth Sprocket, #60, 1 3/8" Bore
23 965962 Idler Sprocket, #60 x 13 Tooth
24 965914 13 Tooth Sprocket, #60, 1–1/4" Bore
25 965972 Roller Chain (#60 x 117 Link w/ Conn & Offset)
27 3/8" Lock Washer (pl)
28 3/8" Hex Nut Grade 2 (pl)
29 5/8" Hex Nut Grade 2 (pl)
30 3/8" x 1" Hex Bolt Grade 5 (pl)
31 965917 1 3/8" Bearing w/ Collar
32 961675 Flange Bearing (72MS)
33 965963 Chain Guard
34 965919 Drive Shaft Guard
38 Gearbox Complete w/o Oil
40 965925 Drive Shaft
41 968807 3/8" x 3/8" x 2" Key
42 1/2" x 3" Hex Bolt Grade 5 (pl)
43 902377 3/8" x 3/8" x 4–3/4" Key
44 5/16" x 1–1/4" Hex Bolt Grade 5 (pl)
45 5/8" x 1–1/4" Hex Bolt Grade 5 (pl)
