AllSee TL S1 Series User manual
1
Warning! Important Safety Instructions
Please take a moment to carefully read and understand the following safety instructions before using your video wall screen:
Ventilation:
The slots and openings on the back or bottom of the screen is designed to provide necessary ventilation. To ensure the
reliable operation of the device and prevent overheating, it is crucial that these slots and openings are never blocked or
covered.
Avoid placing the screen in confined spaces like bookcases or built-in cabinets, unless proper ventilation is available.
Keep the screen away from radiators and heat registers
Water and Moisture:
Do not place vessels (such as vases) containing water on the screen, as this can result in fire or electric shock.
Avoid exposing the screen to rain or placing it near water sources like bathtubs, washbowls, kitchen sinks, laundry tubs,
wet basements, or swimming pools. In case of accidental exposure to water, immediately unplug the device and contact
an authorized dealer.
Electrical Safety:
Avoid overloading wall outlets, extension cords, or adapters beyond their capacity, as this can lead to fire or electric shock.
Ensure that power-supply cords are positioned in a way that prevents them from being walked on or pinched. Pay attention
to cords at the plug end, wall outlets, and where they exit the device.
During lightning storms or when leaving the screen unused for extended periods, unplug it from the wall outlet and
disconnect the antenna or cable system to prevent damage from lightning or power line surges.
Never touch the inside of the screen, as it may result in electric shock. Only qualified technicians should open the device.
Always firmly plug in the power cord and pull the plug, not the cord itself, when disconnecting from the wall outlet. Avoid
touching the power cord with wet hands.
If the screen does not operate normally, emits unusual sounds or smells, immediately unplug it and contact an authorized
dealer or service center.
Do not operate within 2 minutes after power off since instantons discharge is present.
2
Installation Considerations:
For information on installing the screen in environments with heavydust, extreme temperatures, high humidity, or chemical
substances, please contact customer service. Failure to do so may cause serious damage to the screen.
Use only properly grounded plugs and wall outlets to ensure safety and prevent electric shock or equipment damage (Class
I Equipment only).
When turning off the screen completely, disconnect it from the wall outlet. Ensure easy access to the wall outlet and power
plug for quick unplugging if needed.
Do not knock, crush, and scratch the LCD screen.
Handle with care and hold the handle whilst moving the LCD screen to avoid falling or impact.
Avoid dropping or striking the product. In case of damage, disconnect the power cord and contact customer service.
Cleaning and Maintenance:
Before cleaning, unplug the power cord from the wall outlet. Use a soft, dry cloth to wipe the product. Do not use chemicals
like wax, benzene, alcohol, thinners, insecticides, air fresheners, lubricants, or detergents, as they can damage the panel's
appearance or erase printing on the product.
Prevent exposure of the screen to dripping or splashing liquids.
Keep the display away from heat sources and place it in a stable, well-ventilated location.
Handle the product with care, as it contains glass.
The holes or openings on the display are designed for ventilation. Do not cover or block them with any objects.
Remove any protective covering from the screen before using the display.
Power supply must be shut off before cleaning. Use a soft, lint-free cloth for screen wiping. If needed, you may use a glass
cleaner, but avoid spraying it directly onto the display surface. Refer to Section 7.10 for more details.
Do not attempt to repair the product yourself, as improper disassembly may void the warranty and pose potential dangers.
If you encounter a problem that cannot be resolved using the provided troubleshooting guidelines, please contact your
supplier.
Attention:
For displays intended for installation in windows, it is crucial to mount the panel surface a minimum of 100mm away from
the inside of the window. However, we strongly recommend maintaining a distance of 200mm to ensure adequate air
circulation between the display and the window. Failure to comply with these guidelines may result in failure, which will
be considered user damage.
3
Table of Contents
1. Introduction.................................................................................... 4
1.1 Safety Precautions:......................................................................................................4
1.2 Box Contents:................................................................................................................8
2. Installation Guide ............................................................................. 9
3. Remote Control...............................................................................10
3.1 Handset........................................................................................................................10
3.2 Menu Operation..........................................................................................................11
3.3 Inputs............................................................................................................................15
4. Matrix Logic...................................................................................16
4.1 Matrix Logic illustration ................................................................................................16
5. Configuring the built Matrix Video wall:.................................................17
6. F.A.Qs and Troubleshooting Guide........................................................18
6.1 How should I maintain and clean my screen? .......................................................19
7. Other Information ...........................................................................20
Decreasing power consumption...............................................................................................20
Disposal ........................................................................................................................................20
Warnings.......................................................................................................................................20
4
1. Introduction
We congratulate you on your recent purchase of our product. To ensure a satisfactory user experience, we kindly request that
you carefully read and follow all instructions provided in the manual before using the product for the first time.
It is important to note that the product should not be exposed to liquids in the form of dripping or splashing. Additionally,
please refrain from placing any objects filled with liquids, such as vases, on the product.
For your convenience, various operations can be performed using the remote control.
Attention:
Avoid changing any default settings unless it is necessary to do so.
During both installation and use, please keep the product at a safe distance from water sources.
By adhering to these guidelines, you can ensure the optimal performance and longevity of your product. If you have any
further questions, please refer to the manual or contact our customer support team for assistance.

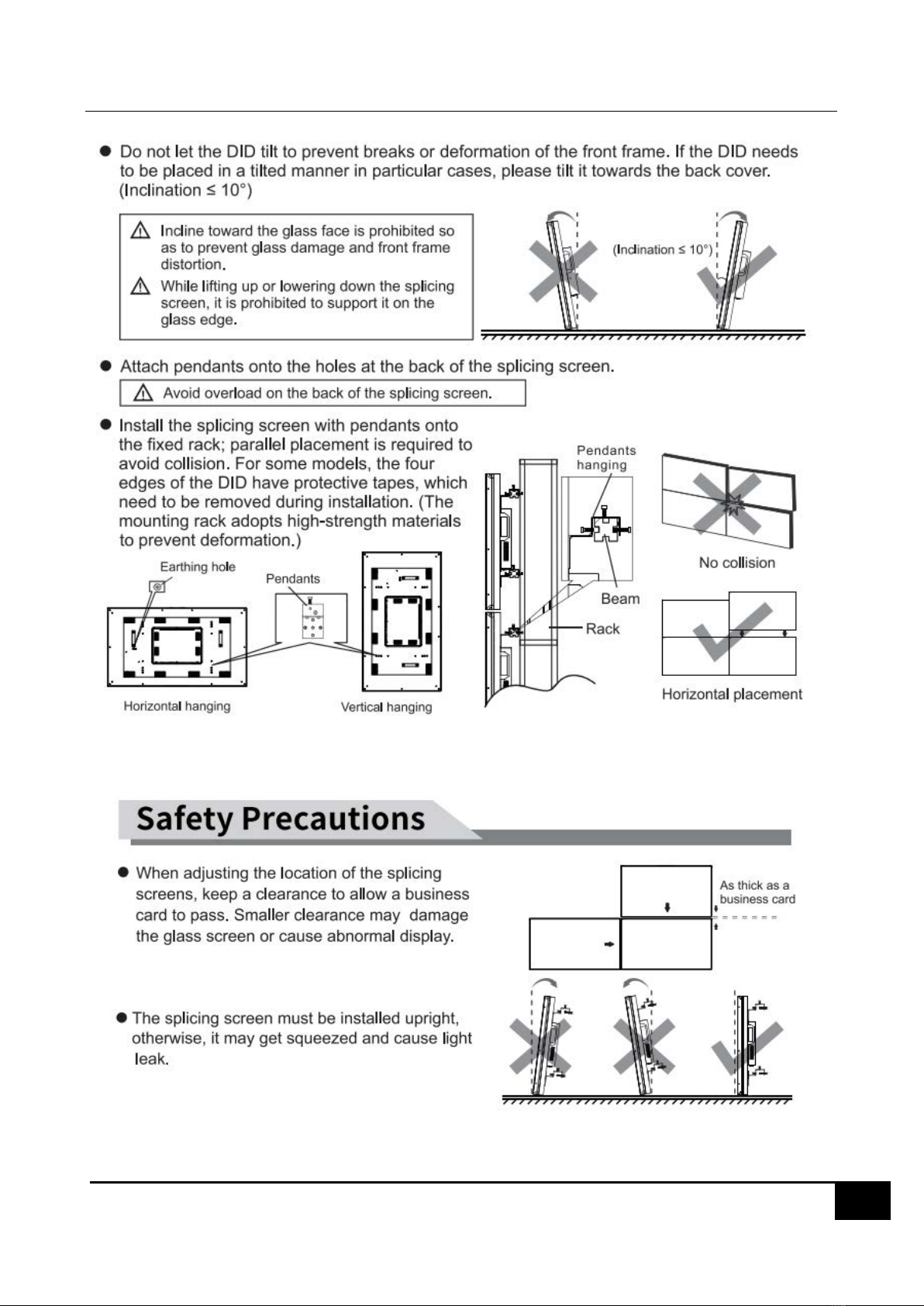

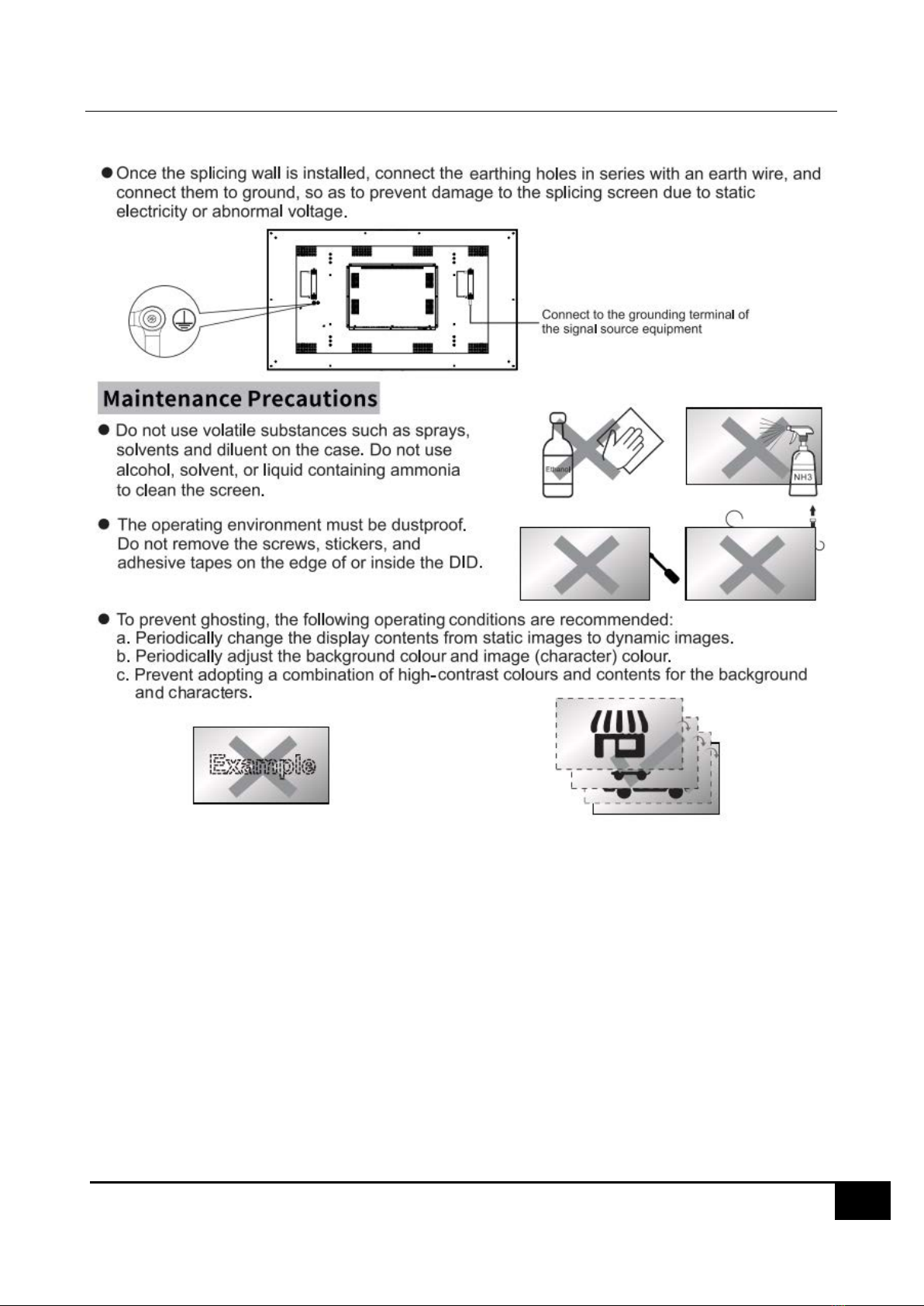

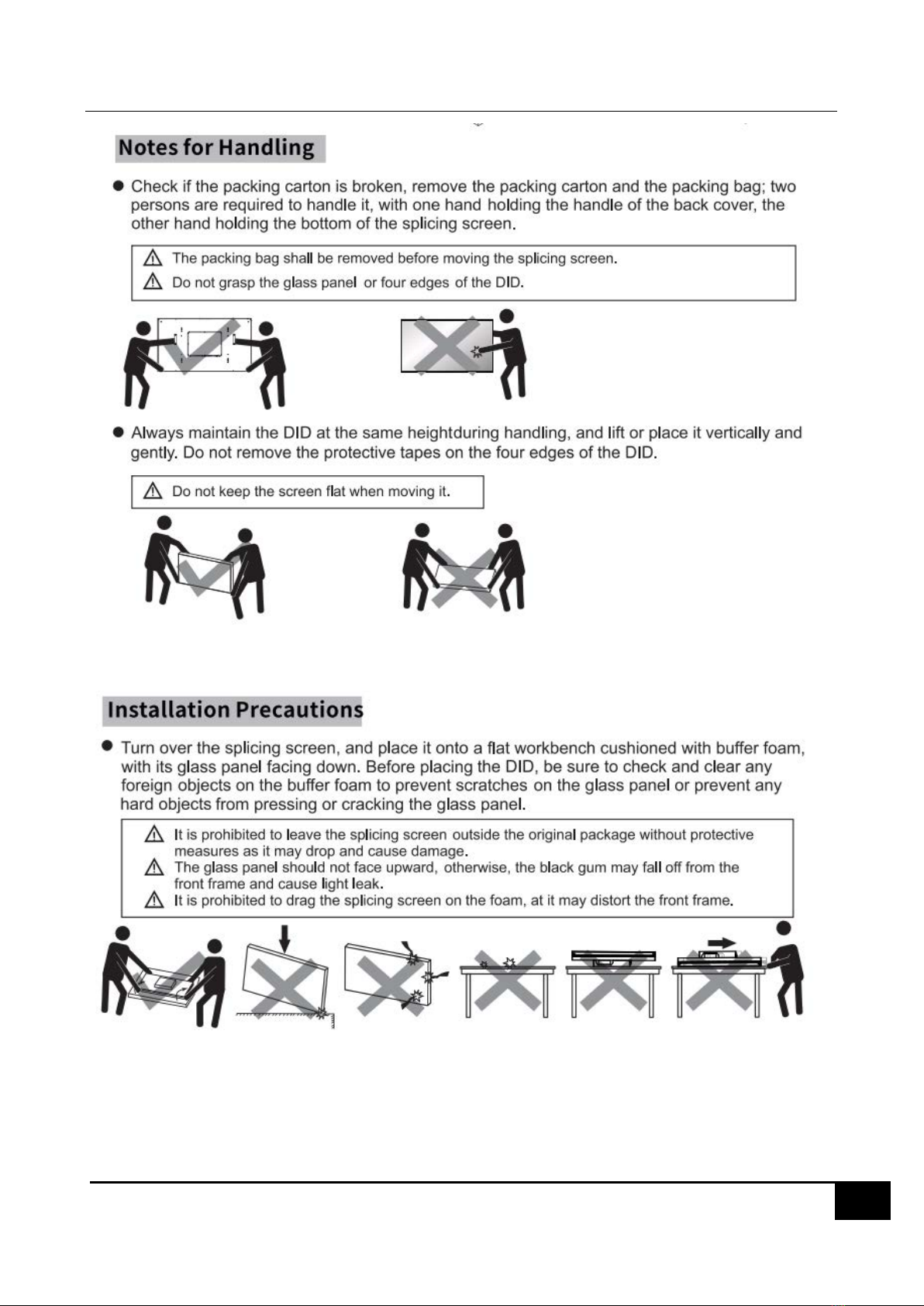

1.1 Safety Precautions:
5
6
7
8

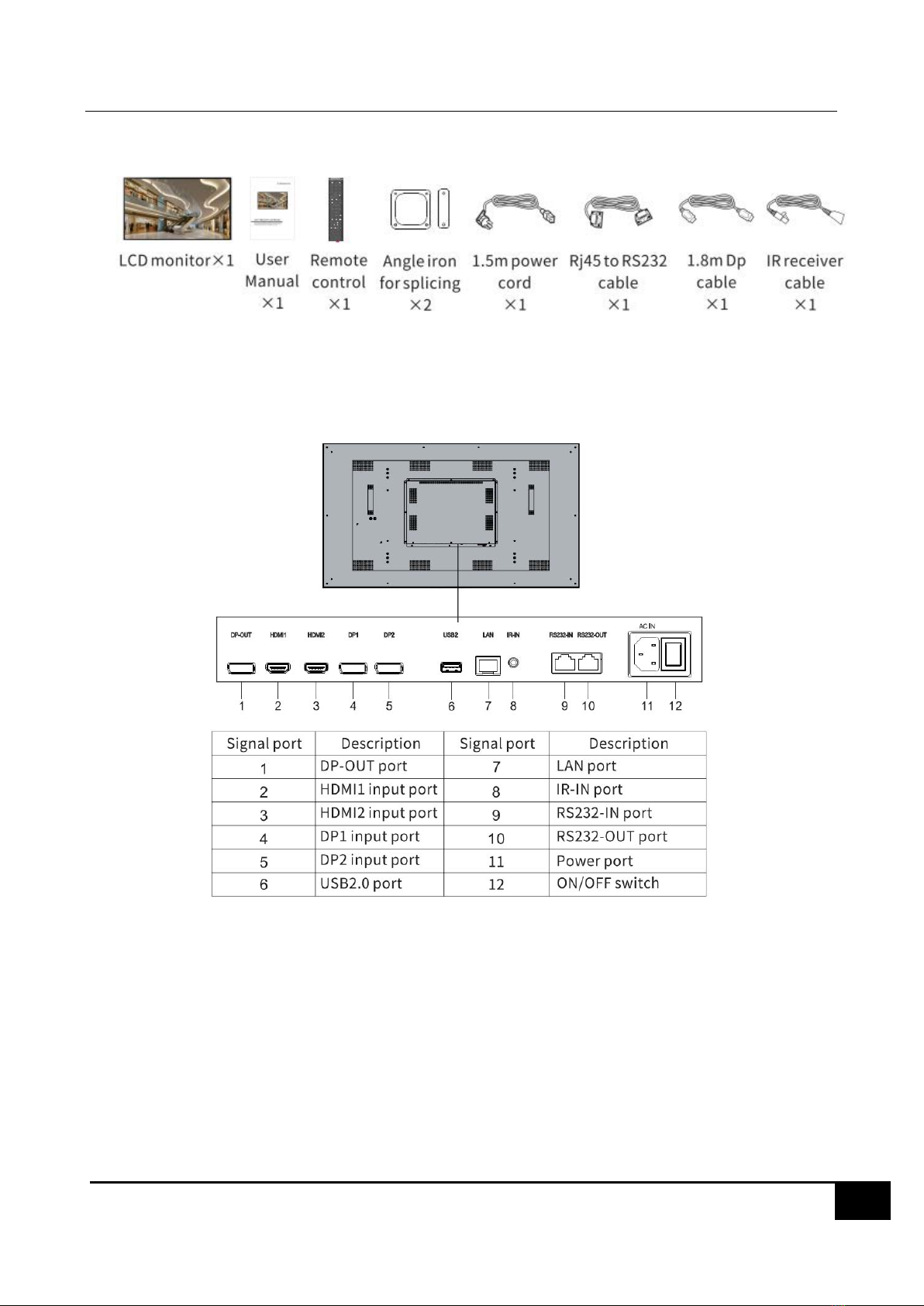

1.2 Box Contents:
IMPORTANT: Please retain your screen’s packaging for the duration of your warranty.
9
2.Installation Guide
10
3.Remote Control
3.1 Handset
11
3.2 Menu Operation
The Menu consists of the following options: Picture, Color, OSD Setting, Setup and Video wall. To access the menus, press the
"MENU" button. Use the left and right arrow buttons (←→) to navigate and select the desired menu. To choose a specific item,
use the up and down arrow buttons (↑↓). Once your selection is made, press the "PLAY" button to confirm. At any point, you
can press the "MENU" button to go back or exit the menu.

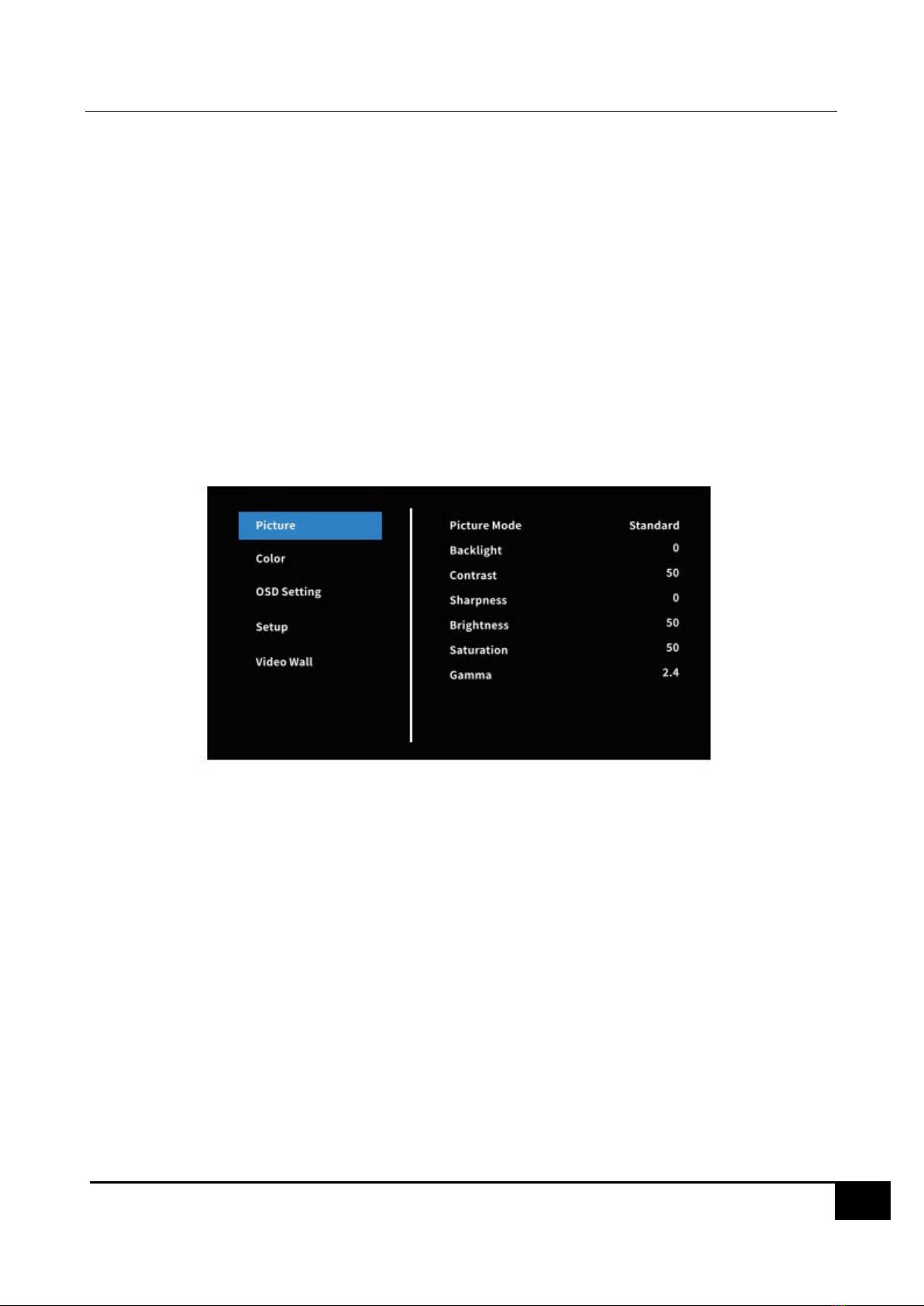

Picture:
Within this menu, you have the option to select the desired picture mode for display. You can access this menu directly by
pressing the "menu" button and scrolling down to change your preferred picture mode. To confirm your selection, press the
"OK" button.
12
Color
Within this menu, you have the ability to adjust various settings related to the color. You can modify parameters such ascolor
temperature, red, green and blue.
OSD Settings:
Within this menu, you have the option to adjust all the OSD settings for your monitor. This includes settings such as Horizontal,
Vertical, Transparency, OSD Time out, OSD Rotation, HDMI CEC, Heat Status and to reset back to default settings; Reset.
13
Setup:
In this menu, you can access and adjust various settings related to your monitor. This includes options such as language selection
and auto standby settings.
14
Video Wall:
In this menu, you can access and adjust various settings relating to the video wall setup. This includes options such enabling
the video wall, H and V positioning and ratio.
15
3.3 Inputs
16
4. Matrix Logic
4.1 Matrix Logic illustration
The monitor features a convenient built-in matrix that can provide a full video wall setup. This functionality enables you to
setup your video wall to the desired positions.

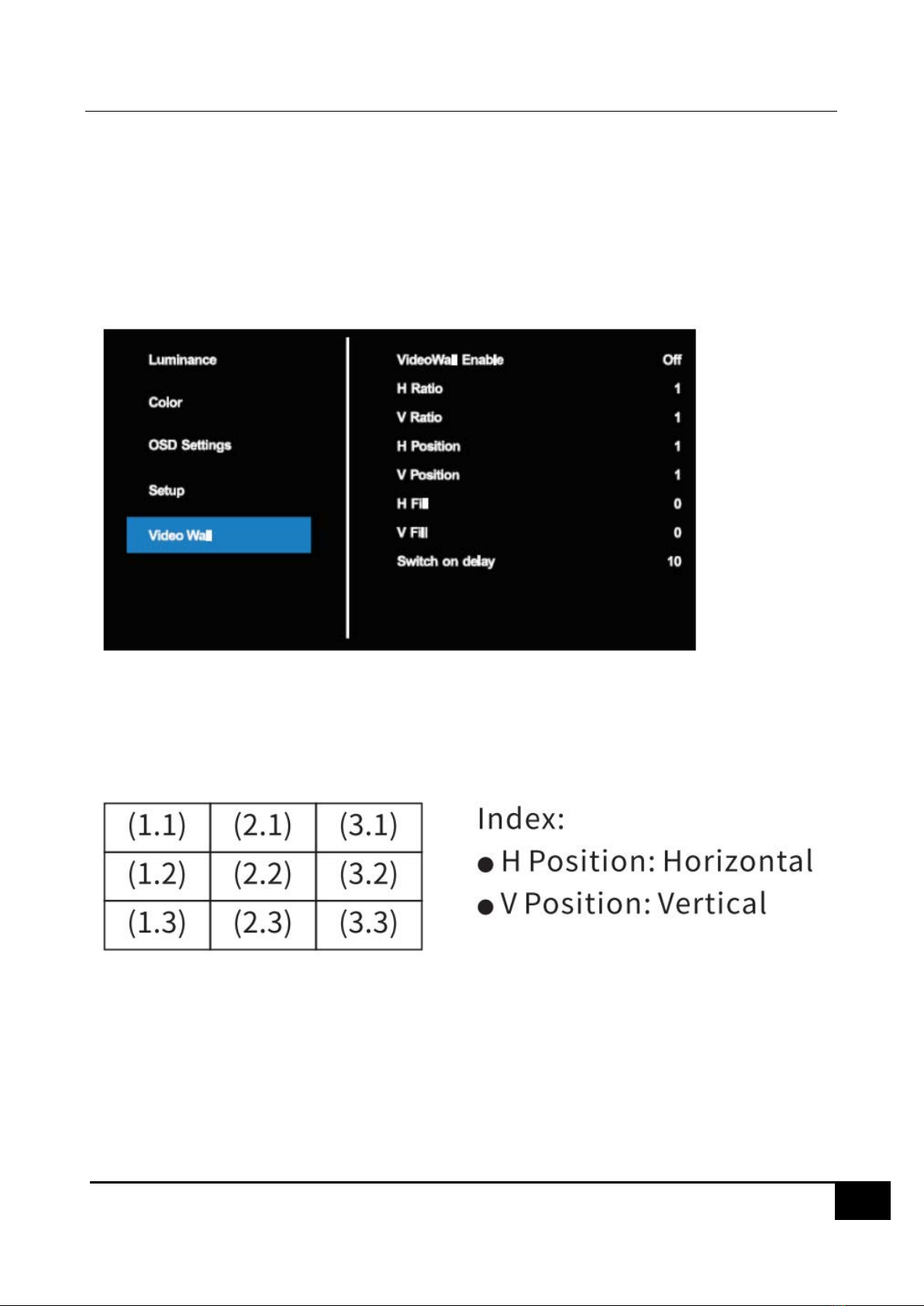

Video wall Settings:
Matrix illustration:
Please see an example of a matrix when configuring the V and H positions and ratio:
17
5. Configuring the built Matrix Video wall:
In order to optimise the experience of setting up the Video Wall Matrix, please use the function ID SET which
can be assessed through the remote control. This will allow the Video Walls to be calibrated individually even
if they are already set up on the wall. This was not previously possible due to the IR daisy chain function
changing the settings on all the screens at the same time.

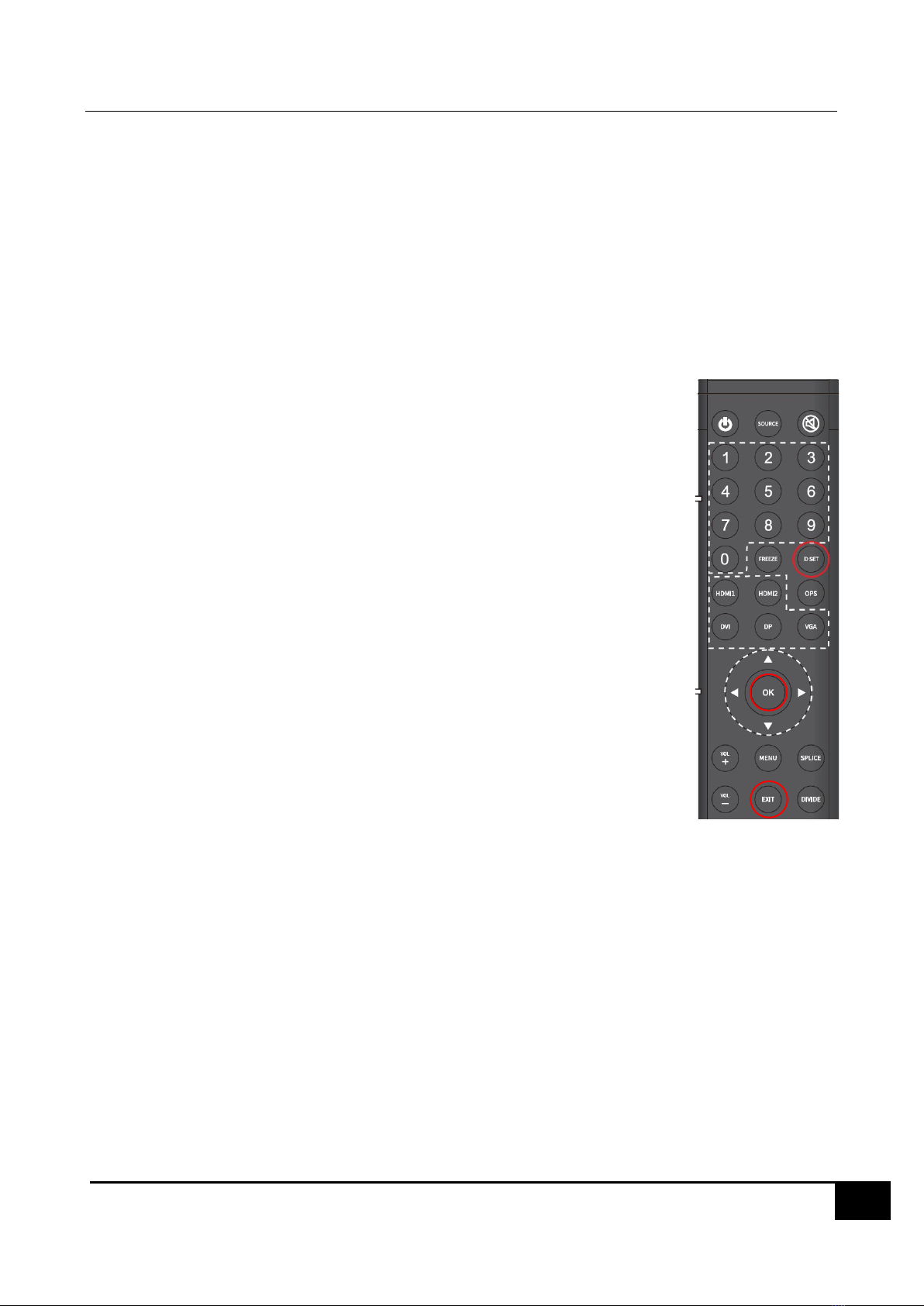

Step 1
Start by pressing the “ID SET” button on the remote control. This will display a 4-digit
code on every screen on the video wall set up.
Step 2
Input the 4-digit code from the screen you wish to control then press the “OK”button
on the remote control.
Step 3
Set the desired settings on this screen. (See included User Manual for help with the
different settings).
Step 4
Once finished, press the “EXIT” button on the remote control to exit the ID SET mode.
Step 5
Proceed to do Step 1 to Step 4 on all the screens.
18
6.F.A.Qs and Troubleshooting Guide
19
6.1 How should I maintain and clean my screen?
When you begin to observe the presence of dust, fingerprints, or smears on your screen, it is advisable to perform a cleaning.
1. Unplug or turn off your screen before you begin. Turning your screen off is safer, and you can see more dirt and
smudges when the screen is unplugged. Plus, this gives your screen a chance to cool down, which will help you
clean it better.
2. Clean the body or panel of your screen with a microfibre cloth dampened with a small amount of screen cleaning
product. Please do so in a circular motion to clean off any dust or debris.
3. Once the screen is clean, remove any moisture using a dry cloth.
Please note: Do not spray water or any other liquid directly onto the screen. Any liquid entering the screen
may cause a failure, fire, or electric shock; Never use paper towels, tissues, or rags to clean your screen
screen. These contain fibres that can leave scratches on your screen. Also, remember to avoid pressing down
too hard. Pushing on the screen too hard and cause pixels to burn out.
