Alphasonik TREIS 300 Series User manual

TSW310/TSW312
TREIS 300 SERIES

ALPHASONIK WAS FOUNDED IN 1976 WITH ONE MISSION,
TO BRING STATE OF THE ART PERFORMANCE TO THE
CAR AUDIO ENTHUSIAST.
In these early years we pioneered such ground-breaking technologies
as amplifier fan cooling and high voltage signal transfer which remain a
benchmark in high-end audio.
Today, the new Alphasonik is committed to pushing the envelope with
regards to technology, quality and value. Our electronics feature
audiophile parts and circuit topology designed to let the full musical
experience come through, loud and clear. Our loudspeakers employ
the latest high technology materials and processes such as carbon
reinforced woven glass and titanium vapor deposition to deliver your
music with tremendous impact, dynamics and resolution.
We stand behind our quality with one of the best warranties in
consumer electronics. Compare Alphasonik car audio products against
anything the competition has to offer. We’re confident you will come to
one conclusion...
ALPHASONIK HAS NO EQUAL.
SETTING THE PACE SINCE 1976
WARNING: This product can expose you
to chemicals including DEHP which is known
to the State of California to cause Cancer, Birth
Defects or other reproduction harm. For more
information go to www.P65warnings.ca.gov.

TABLE OF CONTENTS and introduction
INTRODUCTION.................................2
FEATURES AND SPECIFICATIONS...........3
BUILDING AN ENCLOSURE...............4 - 8
SUBWOOFER PARAMETERS...................9
WIRING DIAGRAM.............................10
TROUBLESHOOTING..........................11
WARNING/DISCLAIMER......................12
WARRANTY...............................13 - 14
Thank you for purchasing this Alphasonik product. Alphasonik
products are specically engineered and designed for the mobile audio
environment. This manual contains important information about installation,
set-up procedures and integrating your new Alphasonik product into your
vehicle. With proper care and installation, your new product will provide you
with many years of high performance listening enjoyment. We recommend
having an Authorized Alphasonik Dealer install your new product for optimal
performance and to take advantage of our warranty program. Before
installing your new product, please read through the manual to fully
understand the application.
Before making any electrical connections, make sure that you
disconnect the battery’s ground cable to prevent the possibility of short
circuits or damage to your electronic equipment. If your vehicle’s stereo
(head unit) comes with an Anti-theft code, DO NOT disconnect the battery.
If you have the access code for the stereo (head unit), please refer to the
vehicle’s owner’s manual.

FEATURES AND SPECIFICATIONS
3
TSW310
10” TREIS 200 SERIES SUBWOOFER
Proprietary Low Prole Heavy Gauge Stamped Steel “Alpha” Basket
EPDM surround for Enhanced Control at Extreme Temperatures
Spun Aluminum Cone
Rated at 400 watts RMS / 1200 watts MAX
84 dB @ 1w/1m
48 oz Magnet
Frequency Response: 28 - 500 Hz
Single 4Ω 2” voice coils
8-gauge nickel plated input terminals
Mounting Dimensions - Depth: 89mm / 3.5”
[Through Hole: 244mm / 9.6”] Diameter: 264mm / 10.39”
TSW312
12” TREIS 200 SERIES SUBWOOFER
Proprietary Low Prole Heavy Gauge Stamped Steel “Alpha” Basket
EPDM surround for Enhanced Control at Extreme Temperaturest
Spun Aluminum Cone
Rated at 500 watts RMS / 1500 watts MAX
86 dB @ 1w/1m
62 oz Magnet
Frequency Response: 24 - 500 Hz
Single 4Ω 2” voice coils
8-gauge nickel plated input terminals
Mounting Dimensions - Depth: 89mm / 3.5”
[Through Hole: 292mm / 11.5”] Diameter: 321mm / 12.6”

BUILDING AN ENCLOSURE
4
Now that you know about subwoofer specications it’s time to learn about
building subwoofer boxes. If you’ve done any woodworking you shouldn’t have
much trouble when building a subwoofer enclosure. One of the main
differences will probably be the material used in building subwoofer boxes as
compared to other woodworking projects. When building a custom subwoofer
box you will want to use minimal MDF (medium density berboard).
TOOLS REQUIRED TO BUILD AN ENCLOSURE
Safety goggles
Table saw or circular saw
Powered screw gun
Router or jig saw
Variety of sizes of drill bits
Wood glue
Silicone
Wood screws
To ensure your safety while building an enclosure, please read all manuals for
the power tools you will be using, as they will include valuable information on
handling the tools and safety tips.

BUILDING AN ENCLOSURE
5
If you’re planning to build your own enclosure and are confused
in what type of enclosure best suits your needs this page will help you
choose what enclosure best ts your needs. There are many different types
of enclosures. The two most common used enclosures are sealed and
vented enclosure. This page will show the advantages and disadvantages
of the two enclosures.
Advantages of a sealed enclosures
*High power handing capability
*Great transient response
*Tolerant of minor enclosure size variation
*Easy to construct
*Smooth rolloff (12dB/octave)
Disadvantages of a sealed enclosures
*Requires a woofer with a long excursion for better low bass
frequency response.
*Can have lower sensitivity than ported enclosures.
*When using high power and small enclosures, the woofer is not in
an ideal cooling environment.
*Lower bass as compared to a properly tuned vented enclosure
above the ported tuning frequency.
Advantages of a vented enclosure
*Increased output around vented tuning
*Higher power handling above the port tuning frequency
*Extended frequency response
*Magnet is in a good cooling environment
*Handles higher bass frequencies with less distortion
Disadvantages of a vented enclosure
*Vented enclosure transient response is not as good as sealed
boxes because of the resonant effect of the vent tuning
*Midrange sound coming from inside the enclosure through the vent
can produce unpleasant sound coloration.
*Loss of cone movement control below vent tuning, which can re
sult in high distortion and mechanical failure of the driver.
*Lower power handling below the port tuning frequency.

BUILDING AN ENCLOSURE
6
Calculating a sealed speaker enclosure volume is a six step process.
Step One: Measure Height
Step Two: Measure Width
Step Three: Measure Depth
Step Four: Subtract Thickness of Wood
Step Five: Multiply Height * Width * Depth =
Step Six: Divide the results from step four by 1728a
EXAMPLE: 12” * 12” * 12” / 1728 = 1.0 cu. ft.
Complete formula should look like this
Height * Width * Depth / 1728 =_____________

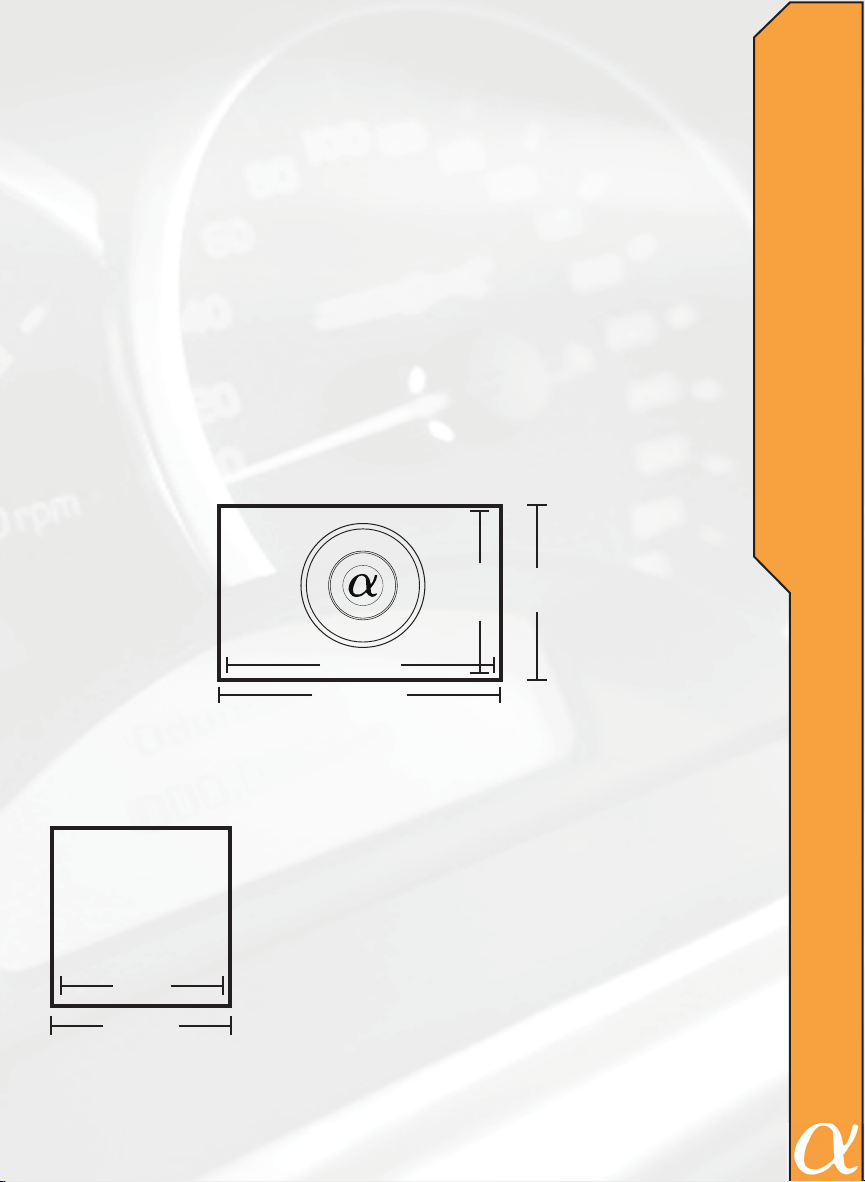

Below are illustrated versions of steps to calculate the enclosure volume.
(ILLUSTRATED EXAMPLE ONLY)
If measured internal dimensions you will skip step four.
13.5"
19.5"
13.5"
12"
12"
18"
Step One:
(Height) 13.5”
Step Two:
(Width) 18”
Step Three:
(Depth) 13.5”
Side View
The wood that we are using is 0.75” thick
The 1.5” that you see in the formula is the thickness
of the wood.
Step Four:
Calcuating thickness of wood:
Measure how thick the wood is then
multiply by 2.
The reason that you are multiplying
by 2 is each side of the enclosure.
Width 19.5” - Left + Right(1.5”) = 18”
Height 13.5 - Top + Bottom(1.5”) = 12”
Depth 13.5” - Front + Back(1.5”) = 12”
Step Five: 18 * 12 * 12 = 2592
Step Six: 2592 / 1728 = 1.50 cu. ft.

BUILDING AN ENCLOSURE
15"
23"
13.5"
13.5"
7"
12"
21.5"
4"
4.5"

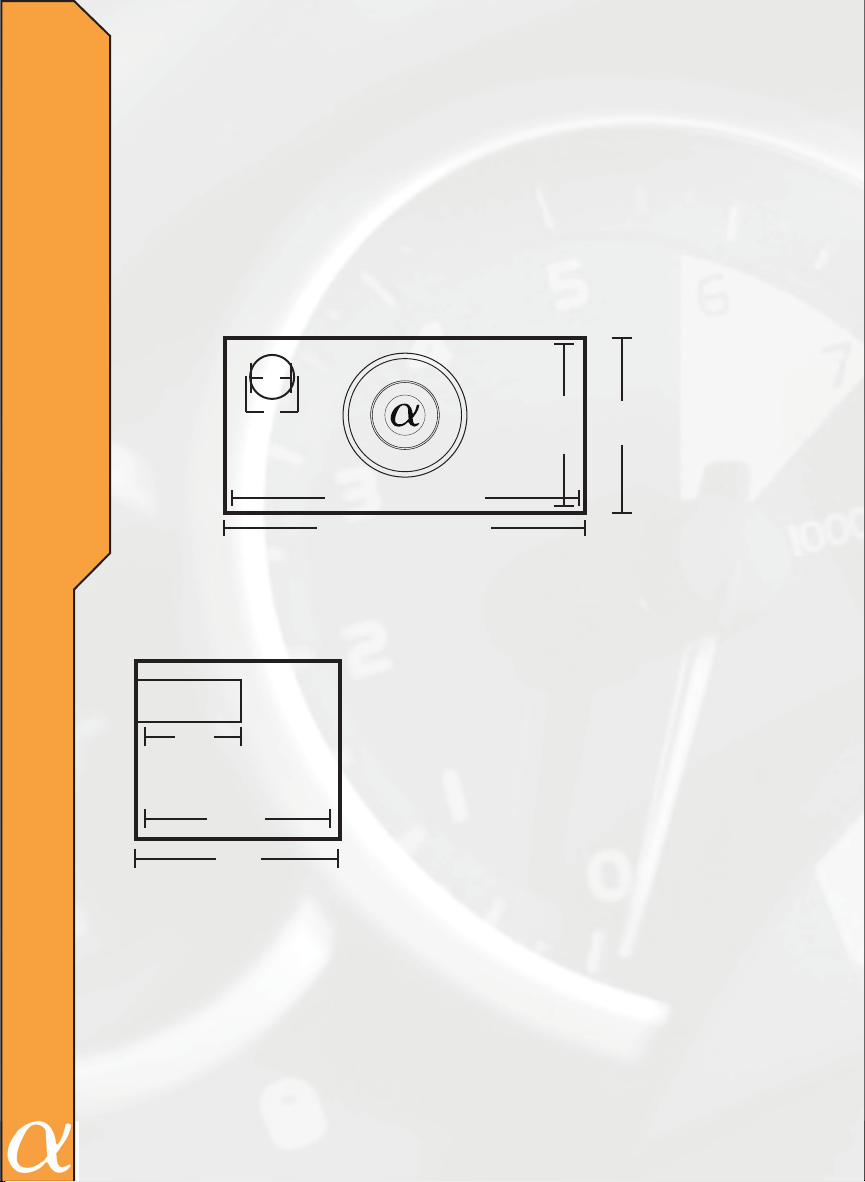

Calculating a speaker enclosure volume with a port is a seven step process.
The First six steps are the same as the sealed enclosure. The only
difference is calculating the port displacement.
Step One - Six: Follow the rst six steps on the sealed enclosure.
(ILLUSTRATED EXAMPLE ONLY)
If measured internal dimensions you will skip step four.
15” - 1.5” = 13.5”
Step Five: 21.5 * 12 * 13.5 = 3483
Step Six: 3483 / 1728 = 2.01 cu. ft.
Step Seven: Formula to calculate vent displacement
A = π r² A = area | r = radius | d = depth
π * r * r * d = _________ / 1728 = _________
Example:
π(3.14) * r(2.25”) * r(2.25”) * d(7”) = 111.27 sq. in.
111.27 / 1728 = 0.06 cu. ft
2.01 - 0.06 = 1.95 cu. ft. enclosure
Step One: 23”
Step Two: 12”
Step Three: 13.5”
Step Four:
(W)23 - 1.5 = 21.5”
(H)13.5 - 1.5 = 12”
(D)15 - 1.5 = 13.5”
7

BUILDING AN ENCLOSURE
Converting a round port to a slot port.
Calculate the are of the round port(s) being used, then use the square root
function of your calculator to get the interior dimensions of the equivalent
square port. The length (or depth) of the slot port will be the same as that
of the round port
To calculate area: (Area is a two dimensional measurement)
Area = π r²
Area Port
Slot Port
r (2.25”)
A
(4.5”)
A (4.5) Port
π(3.14) * r(2.25) * r(2.25) = 15.9
10.6 x 1.5=15.9
r (2.25”)
10.6”
1.5”
8

SUBWOOFER PARAMETERS
9
Treis Series
Model #TSW310 TSW312
Fs 37 31
Qts 0.787 0.66
Qes 0.911 0.751
Qms 5.771 5.4
Vas (liters) 19.61 53.63
Vas (Cu. Ft.) 0.69 1.89
Re 3.29 3.22
Rms 6.192 6.708
Xmax +/- (mm)
Le 1.796 2.015
Sd 339.79 518.75
SPL 83 86.33
EBP 40 41
Mmd 146.15 171.51
Freq. Resp. 35Hz-500Hz 30Hz-500Hz
Mounting Dimensions
Depth (mm) 89mm 133mm
Depth (Inches) 3.5" 3.5"
Through Hole (mm) 244mm 292mm
Through Hole (Inches) 9.6" 11.5"
Diameter (mm) 264mm 321mm
Diameter (Inches) 10.39" 12.6"
Displacement .10 Cu.Ft. .14 Cu.Ft.
Sealed Enclosures
Minimum Sealed 0.5 0.75
Maximum Sealed 1.25 1.75
Vented Enclosures
Minimum Vented 0.75 2
Internal Volume 0.65 1.82
Port Dia/Inches 2" 4"
Port Length/Inches 6.5" 12"
(-3dB) 33 33
Tuning Freq. 40 35
Port Displacement 0.01 0.082
Maximum Vented 2.5 3.5
Internal Volume 2.3 3.2
Port Dia/Inches 4" 4"
Port Length/Inches 6.75" 5.5"
(-3dB) 28 29
Tuning Freq. 35 35
Port Displacement 0.049 0.034
REV 18.10

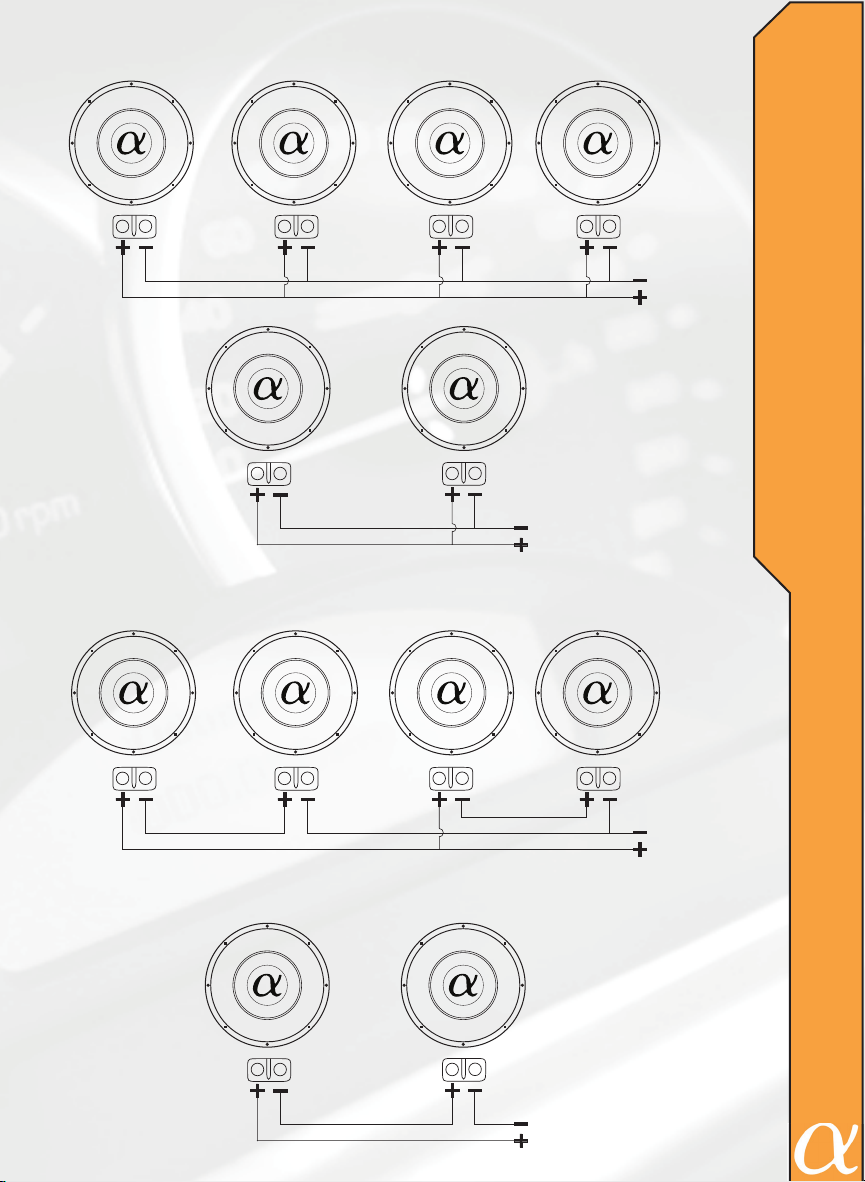

WIRING DIAGRAMS
10
Parallel
1 ohm
2 ohms
4 ohm
8 ohms
Series - Parallel
Series

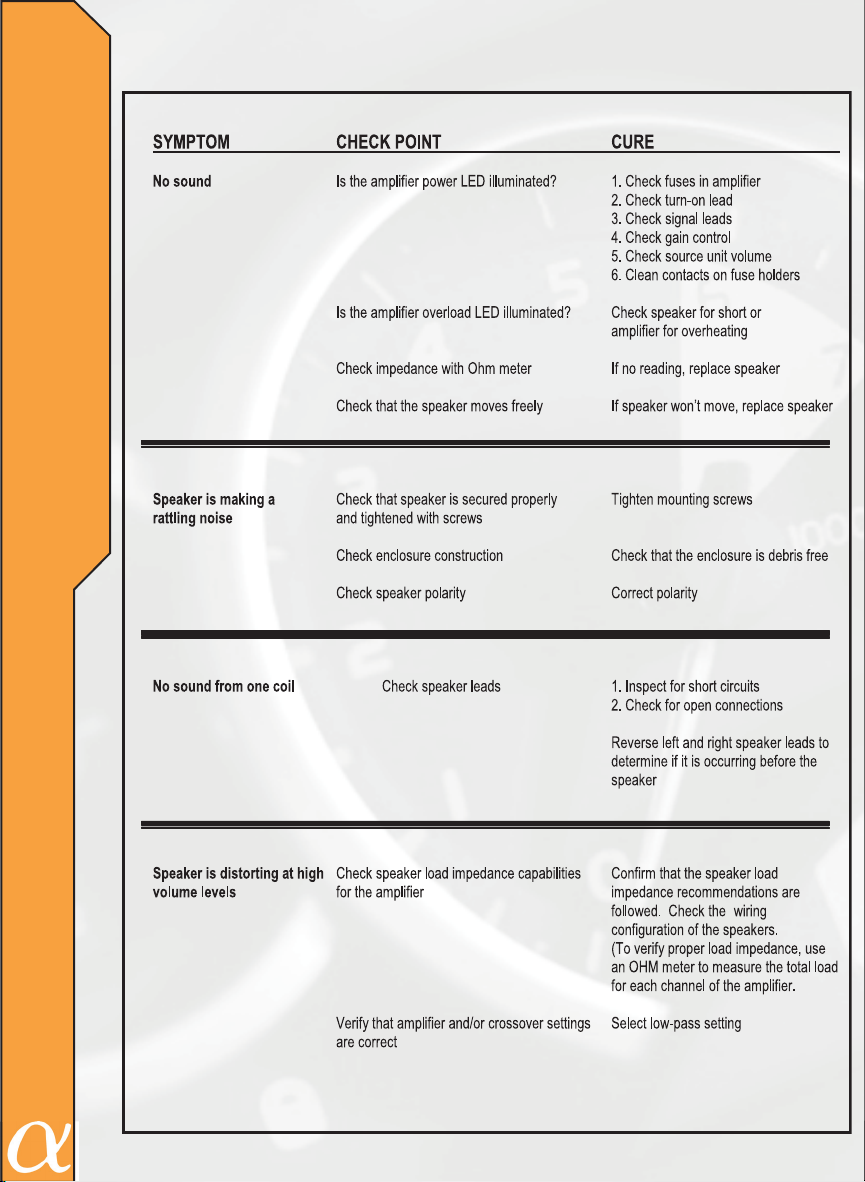

TROUBLESHOOTING
11

WARNING & DISCLAIMER
Investigate the layout of your vehicle thoroughly before drilling
or cutting. Take care when you work near the gas tank, gas lines,
hydraulic lines, electrical components and electrical wiring. Do not
use the equipment unmounted. Attach this system securely to prevent
damage, particularly in the event of an accident or aggressive driving.
Do not mount the system so that wire connections are unprotected or
are subjected to pinching or damage from nearby objects. Before
connecting or disconnecting power connections at the system power
terminals, disconnect the +12V DC wire at the battery end. Confirm
that your source unit and other equipment are turned off while
connecting the input terminals. If you need to replace the power fuse,
replace it only with a fuse identical to the provided fuse. Using a fuse
of different type or rating may result in damage to the system, which is
not covered by the manufacturer’s warranty. Do not install any
product where it may be subjected to excessive heat, moisture and
dust or where it may be repeatedly kicked, brushed or bumped. Make
absolutely sure that the terminals for the products are connected to the
proper inputs and outputs from the music source. Never run the
wiring on the outside of the vehicle or under it where it can be damaged
by road hazards or any moving parts of the vehicle. Use existing wire
channels, sills, panels and molding strips inside the vehicle to hide the
wiring for safety and a neat appearance.
DISCLAIMER
IMPORTANT: Never cut any metal that is an integral part of
the vehicle’s safety or structural support system. If you are unsure, it
is best to have the product professionally installed by an Authorized
Alphasonik Dealer. Never sacrifice your safety for sound.
12

WARRANTY
Alphasonik, warrants this product against all defects in material and
workmanship for a period of one (1) year from the date of original
purchase provided it was purchased from an Authorized Alphasonik
Dealer.
The conditions of this warranty and the extent of the responsibility of
Alphasonik, under this warranty are as follows:
1. DATED PROOF OF PURCHASE IS REQUIRED FOR
WARRANTY SERVICE OF THIS PRODUCT. Information about
Alphasonik authorized warranty service may also be obtained at
www.alphasonik.com or by emailing Alphasonik at
[email protected].
2. This warranty will become void if service is performed by any one
other than an approved Alphasonik Warranty Service Center.
3. This warranty does not apply to any product which has been
subjected to misuse, neglect or accident, or which has had the
warranty seal broken, serial number altered, defaced or removed,
or which has been connected, installed adjusted or repaired other
than in accordance with the instructions furnished by Alphasonik.
4. This warranty does not cover car static, electrical interference,
adjustments or labor costs for the removal or reinstallation of the
unit for repair.
5. The sole responsibility of Alphasonik under this warranty shall be
limited to the repair or replacement thereof, at the sole discretion
of Alphasonik.
6. If it becomes necessary to send the product or any defective
part to Alphasonik or an authorized service station, the product
must be shipped in its original or equivalent carton, fully insured,
with shipping charges prepaid. Alphasonik will not assume any
responsibility for any loss or damage incurred in shipping.
13

WARRANTY continued
7. This warranty is not transferable and protects the original
purchaser provided they reside and made their purchase in the
United States. International consumers may contact their local
retailer or distributor for warranty information.
8. ALL IMPLIED WARRANTIES, EXCEPT TO THE EXTENT
PROHIBITED BY APPLICABLE LAW, SHALL HAVE NO
GREATER DURATION THAN THE WARRANTY PERIOD SET
FORTH ABOVE. UNDER NO CIRCUMSTANCES SHALL
ALPHASONIK BE LIABLE FOR ANY LOSS OR DAMAGE,
DIRECT OR CONSEQUENTIAL, ARISING OUT OF THE USE
OR INABILITY TO USE THE PRODUCT. BECAUSE SOME
STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS OR EXCLUSIONS OR
LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, THE ABOVE LIMITATIONS OR EXCLUSIONS MAY
NOT APPLY TO YOU.
9. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND
YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM
STATE TO STATE.
10. Should you have any difficulties with the performance of this
product during warranty or with any Alphasonik authorized
service center, you may contact Alphasonik by emailing us at
[email protected].
14
