Network Camera
User Manual

Network Camera User Manual
1
Table of Contents
Chapter1. Note ................................................................................................................................................... 2
Chapter2. Safety Instruction............................................................................................................................... 3
Chapter3. Web Access ........................................................................................................................................ 5
3.1. Network Connection.......................................................................................................................... 5
3.2. Quick Access ...................................................................................................................................... 5
Chapter4. Basic function operation.................................................................................................................... 8
4.1. Preview interface information：....................................................................................................... 8
4.2. Setup................................................................................................................................................ 10
4.2.1. Camera................................................................................................................................ 10
4.2.2. Perimeter set ...................................................................................................................... 18
4.2.3. Face Capture ....................................................................................................................... 28
4.2.4. Network .............................................................................................................................. 29
4.2.5. Event management............................................................................................................. 35
4.2.6. Storage ................................................................................................................................ 47
4.2.7. System................................................................................................................................. 51
4.3. Alarm................................................................................................................................................ 55
Chapter5. Function ........................................................................................................................................... 56
5.1. DDNS Function................................................................................................................................. 56
5.1.1. VSSIP ................................................................................................................................... 56
5.1.2. CN99.................................................................................................................................... 56
5.1.3. NO-IP（www.no-ip.com）................................................................................................. 57
5.1.4. Dyndns DDNS（www.dyndns.com）................................................................................. 57
5.1.5. Test and Verify DDNS .......................................................................................................... 58
5.2. Port Mapping ................................................................................................................................... 59
5.2.1. UPnP Function .................................................................................................................... 59
5.2.2. Manual Port Mapping......................................................................................................... 60
5.3. NTP Function.................................................................................................................................... 61
5.3.1. Internet Configuration ........................................................................................................ 61
5.3.2. Intranet Configuration ........................................................................................................ 61
5.4. Voice Intercom................................................................................................................................. 62
5.4.1. Summary............................................................................................................................. 62
5.4.2. Configuration ...................................................................................................................... 62
Chapter6. APPENDIX......................................................................................................................................... 63
6.1. TERMS.............................................................................................................................................. 63

Network Camera User Manual
2
Chapter1. Note
This Manual is applicable to Network Camera.
The Manual includes instructions for using and managing the product. Pictures, charts, images and all
other information hereinafter are for description and explanation only. The information contained in the
Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the
latest version in the company website.
Please use this user manual under the guidance of professionals.

Network Camera User Manual
3
Chapter2. Safety Instruction
These instructions are intended to ensure that the user can use the product correctly to avoid danger or
property loss.
The precaution measure is divided into ‘Warnings’ and ‘Cautions’:
Warnings: Serious injury or death may be caused if any of these warnings are neglected.
Cautions: Injury or equipment damage may be caused if any of these cautions are neglected.
Warnings Follow these safeguards to
prevent serious injury or death.
Cautions Follow these precautions to
prevent potential injury or material
damage.
Warnings:
Please adopt the power adapter which can meet the safety extra low voltage (SELV) standard. And
source with 12 VDC or 24 VAC (depending on models) according to the IEC60950-1 and Limited Power
Source standard.
To reduce the risk of fire or electrical shock, do not expose this product to rain or moisture.
This installation should be made by a qualified service person and should conform to all the local codes.
Please install blackouts equipment into the power supply circuit for convenient supply interruption.
Please make sure that the ceiling can support more than 50(N) Newton gravities if the camera is fixed
to the ceiling.
If the product does not work properly, please contact your dealer or the nearest service center. Never
attempt to disassemble the camera yourself. (We shall not assume any responsibility for problems
caused by unauthorized repair or maintenance.)
Cautions:
Make sure the power supply voltage is correct before using the camera.

Network Camera User Manual
4
Do not drop the camera or subject it to physical shock.
Do not touch sensor modules with fingers. If cleaning is necessary, use a clean cloth with a bit of
ethanol and wipe it gently. If the camera will not be used for an extended period of time, put on the
lens cap to protect the sensor from dirt.
Do not aim the camera lens at the strong light such as sun or incandescent lamp. The strong light can
cause fatal damage to the camera.
The sensor may be burned out by a laser beam, so when any laser equipment is being used, make sure
that the surface of the sensor not be exposed to the laser beam.
Do not place the camera in extremely hot, cold temperatures (the operating temperature should be
between -30°C to +60°C, or -40°C to +60°C if the camera model has an “H” in its suffix), dusty or damp
environment, and do not expose it to high electromagnetic radiation.
To avoid heat accumulation, ensure there is good ventilation to the device.
Keep the camera away from water and any liquids.
While shipping, pack the camera in its original, or equivalent, packing materials. Or packing the same
texture.
Improper use or replacement of the battery may result in hazard of explosion. Please use the
manufacturer recommended battery type.
Notes:
For the camera supports IR, you are required to pay attention to the following precautions to prevent
IR reflection:
Dust or grease on the dome cover will cause IR reflection. Please do not remove the dome cover film
until the installation is finished. If there is dust or grease on the dome cover, clean the dome cover
with clean soft cloth and isopropyl alcohol.
Make certain the installation location does not have reflective surfaces of objects too close to the
camera. The IR light from the camera may reflect back into the lens causing reflection.
The foam ring around the lens must be seated flush against the inner surface of the bubble to isolate the
lens from the IR LEDS. Fasten the dome cover to camera body so that the foam ring and the dome cover
are attached seamlessly.

Network Camera User Manual
5
Chapter3. Web Access
3.1. Network Connection
First to make sure the proper connection of the camera. Meanwhile, please check the PC’s local
network state. If the state shows “ ”, the network connection is error.
The initial default IP address of the Camera is 192.168.1.88, please set IP address, Subnet mask and
gateway for your computer.
Please make sure the proper setting of IP address. You can check network connection by tool “Ping”
attached with the system after the setting.
3.2. Quick Access
The proper network connection can support multiple browsers, e.g. Internet Explorer, Firefox,
Chrome etc.. To preview the camera by IE Browser , please see the operating steps as follows:
Open your Internet Explorer and choose Tools/ Internet Options/ Security /Custom Level, then
check “Enabled” or “Pop Up” under “ActiveX Control and Plug -in” and set the security level
lower.
Figure 3-1 Set ActiveX Control and Plug-in

Network Camera User Manual
6
Please enter the camera’s IP address in the address bar and click “Enter”, the log-in interface
will be shown up. Then input your camera’s “User Name” (Default: admin), “Password”
(Default: 123456) and click “Log in”.
Figure 3-2 Log in
following interface will pop up a link “Please download the plug-in by clicking here” when you
log in. Please click it and install the plug-in then restart your browser to log in
Figure 3-3 Download Plug -in
After installing the plug-in,please reopen the web browser and log in again:

Network Camera User Manual
7
Figure 3-4 Browser interface
Live: to preview.
Setup: to set the parameters and functions.
Alarm: to check the alarm log.

Network Camera User Manual
8
Chapter4. Basic function operation
4.1. Preview interface information：
Click “Live” go to preview interface:
Stream: Mail Stream, Sub Stream 1, Sub Stream 2
High Definition Stream
Standard Definition Stream
Protocol: TCP/ UDP/ Multicast
Play Local Video:
Click to choose the recording file, then playback the video in the preview interface.
Display Alarm Subscription
Click , then right side will show the smart alarm monitor cascade interface
Zoom&Focus
Click ,then pop up Zoom&Focus interface.

Network Camera User Manual
9
Image Config
Click , then pop up image configuration interface.
Full Screen
Click , the image is displayed in full screen.
Original/ Adaptive
Click , switching the screen aspect ratio
Display Rules
Click , display/ hide the rules
Relay-out
Click ,ON/OFF Relay. When the relay is opened,the button will change to ; after the relay
off, the button will change to .

Network Camera User Manual
10
Record
Click to record files at this computer. The button will change to after record is
enabled. Click this button, then will stop recording.
Digital Zoom
Click , enable the digital zoom function, the icon changed to . Drag the mouse from the
upper left to the lower right corner, you can enlarge the preview image in the region. Click
to recovery preview image.
Snapshot
Click to snapshot one picture.
Triple Snapshot
Click to snapshot three pictures.
Audio
Click , ON/OFF audio. When the audio is opened, the button will change to , after the audio
off, the button will change to .
Talk
Click , ON/OFF Talk. When the talk is off, the button will be turn on, or it will always be dark.
Note:Talk and Audio can’t at the same time open.
4.2. Setup
Click【Setup】，enter the parameter configuration interface.
4.2.1. Camera
4.2.1.1. Video Configuration
Video configuration shown in Figure 4-1：

Network Camera User Manual
11
Figure4-1 Video Parameters
Video configuration → Main Stream
Video stream configuration parameters are described below：
Parameters
Description
Code-Stream
Type
Choice of general code, motion detection code or alarm
code
Encode Mode
Set video encoding mode according to the actual
demand
Resolution
Different types of camera supports multiple resolutions,
according to the actual demand selecting the appropriate
resolution
FPS
According to the actual demand selecting the FPS
Bit Rate Type
Choice of CBR or VBR
Bit Rate
Set the appropriate rate according to the resolution
I Frame Interval
Not recommended modification
Watermark
Watermark Settings
After modifying parameters，please click【Save】to save the settings.
Snapshot shown in Figure 4-2

Network Camera User Manual
12
Figure 4-2 Snapshot
Video configuration → Snapshot
By configuring the capture parameters, the device can automatically capture.
Snapshot Type: can choice General or Event.
Image Size: the image size is based on the snapshot stream. Using the same resolution with
snapshot stream’s
Snapshot Stream: can choice “Main Stream” or “Sub Stream”.
Picture Quality: can choice from 1-6（best）.
Interval: can choice according to the needing.
After modifying parameters，please click【Save】to save the settings.
Video configuration → Overlay
Channel Title / Time Title
Channel title can be set according to user needs. The display name, display date and display week can
be chosen whether to enable according to the actual demand. User can drag the yellow box to change
the time, date and the place of video channel names, and then click the save button
Video overlay shown in Figure 4-3：

Network Camera User Manual
13

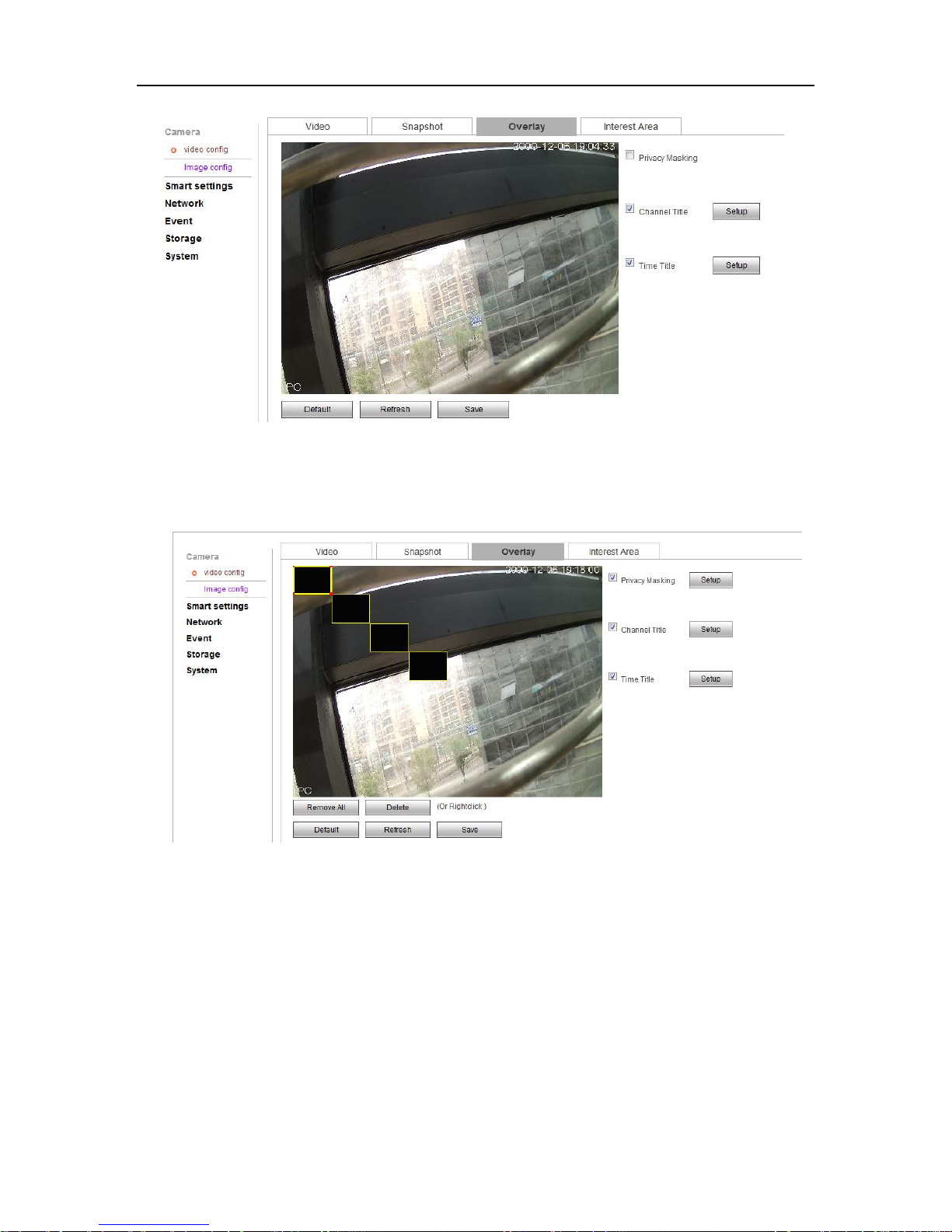

Figure 4-3 Overlay
Privacy Masking
Checking the “overlay” means opening the video overlay function of IP Camera.
Figure 4-4 Overlay
Zone setting：
Click the left mouse button and drag in the picture, and then release. A regional map is finished.
Support up to 4 zones. When regional map is finished, click ok, end the regional map
Select draw area and click delete or click the right mouse button to clear the draw area.
After modifying related parameters, click ok button to save the Settings
Interest Area:

Network Camera User Manual
14
Figure 4-5 Interest area
Drag the mouse from the upper left to the lower right corner, you can draw an interest region in the
image. The image will much more clearly in this interest region.
If want more regions, can draw more, but up to 4.
The RONI FPS (the uninteresting areas): the FPS is lower, the interest area image is much
clearer.Image Configuration
Image configuration as show in figure 4-6:
Figure 4-6 Image Configuration
Image configuration → Image configuration
Camera image configuration file is convenient for customer to quickly adjust, choose “day”, “night”

Network Camera User Manual
15
and “general” configuration according to actual situation.
Image Config
User can adjust the image parameters of the camera, like “Brightness”, “Contrast”, “Saturation”,
“Hue”, “Image Mode”, “Color Mode”, according to picture effect.
Figure 4-7 Image Config
Image Mode:
Transparent: Enhanced sharpness. The dark in the image will darker, the bright in the
image will brighter
Real: Reduce sharpness. The image colors more realistic colors
Exposure Adjust:
Figure 4-8 Exposure Adjust
Exposure Mode: The camera electronic shutter model can set different shutter speed according
to the different camera scenes, or choose the automatic mode that camera can adjust the shutter
speed automatically according to the scene brightness.

Network Camera User Manual
16
Gain Regulate: Used to adjust the gain upper limit, the user can choose different gain level in
view of the actual situation.
Day and Night:
Figure 4-9 Day and Night
Day & Night: There are three choices: “Auto”, “Color”, “Black & White”.
“Color” mode stays color images.
“Black & White” mode stays black and white image.
“Auto” mode: equipment choose “day/night mode automatically” according to the external
environment brightness.
Buffer Times: The image will change the day/night mode after the buffer time.
Image Enhance:
Figure 4-10 Image Enhance
WDR: It is suitable for the models with wide dynamic function, some models support wide
dynamic level adjustment, user can adjust the dynamic value to change the strengthness of WDR
according to the actual need.
3Ddenoise: It is used to reduce the image noise, user can choose to enable or not according to
the situation.
Through the Fog: Users can choose “disable”, “weak”, “Medium”, “Strong”. It can improve the

Network Camera User Manual
17
object recognizable degree in the mist weather.
Image Transform:
Figure 4-11 Image Transform
Mirror: It’s Convenient for the customer to change the orientation of the picture at any time.
Notice:
The front-end parameters configuration options in the display setting include the possible
options for all product models in the document. The actual models only have a part of options. Please
refer to our specific equipment types. Part of parameters change need to restart the camera. Some
options cannot be used at the same time.
4.2.1.3. Audio Configuration
Audio configuration shown in Figure 4-12：
Figure 4-12 Audio Configuration

Network Camera User Manual
18
4.2.2. Perimeter set
This is for perimeter function.
4.2.2.1. Global Config
Figure 4-13 Global Configuration
Yellow Box is Target Filter; Green Box is Vehicle Area; Blue Box is Person Area.
Advance: can design parameter, example BKThrd, Var Thrd, Initial Var, Learning Rate, Pix Thrd, Area Thrd,
Waiting Thrd, Distance Thrd.
Tip: Vehicle area can not be less than 2.2 times the area of people.
If the Object is small than the filter, then won’t trigger when the object across the rule.In the vehicle area
and person area,if the object is big than the filter , than won’t trigger when the object across the rule.
4.2.2.2. Tripwire

Network Camera User Manual
19
Figure 4-14 Tripwire
This is tripwire function. You should enable and set rules first.
1) Enable the tripwire(if can’t enable, please check whether you enable the motion detection,
disable it, then enable the perimeter).
2) Then draw rules. You draw 4 rules.
3) Back to the live view page. You will see the rule you drew. Click the alarm snapshots,and
tick the tripwire, If event occurs, you will see the snapshots in the “Display alarm subscription”
Figure 4-15 Display alarm subscription
4.2.2.3. Regional invasion
