Alto Professional MIXPACK express User manual

QUICKSTART GUIDE
ENGLISH ( 2 – 4 )

2
1
NEW
BOX CONTENTS
yMIXPACK Express
yPower cable
yQuickstart Guide
ySafety Instructions & Warranty Information booklet
CONNECTION DIAGRAM
Power
Speaker
Footswitch*
Drum Machine*
Microphones* Headphones*
Notes:
yMicrophones, headphones, drum machine, footswitch, etc. are not included.
yTo reduce electrical hum at high gain settings, keep the mixer's power supply away from your cables and the mixer's
channel inputs.
* not included
Speaker

3

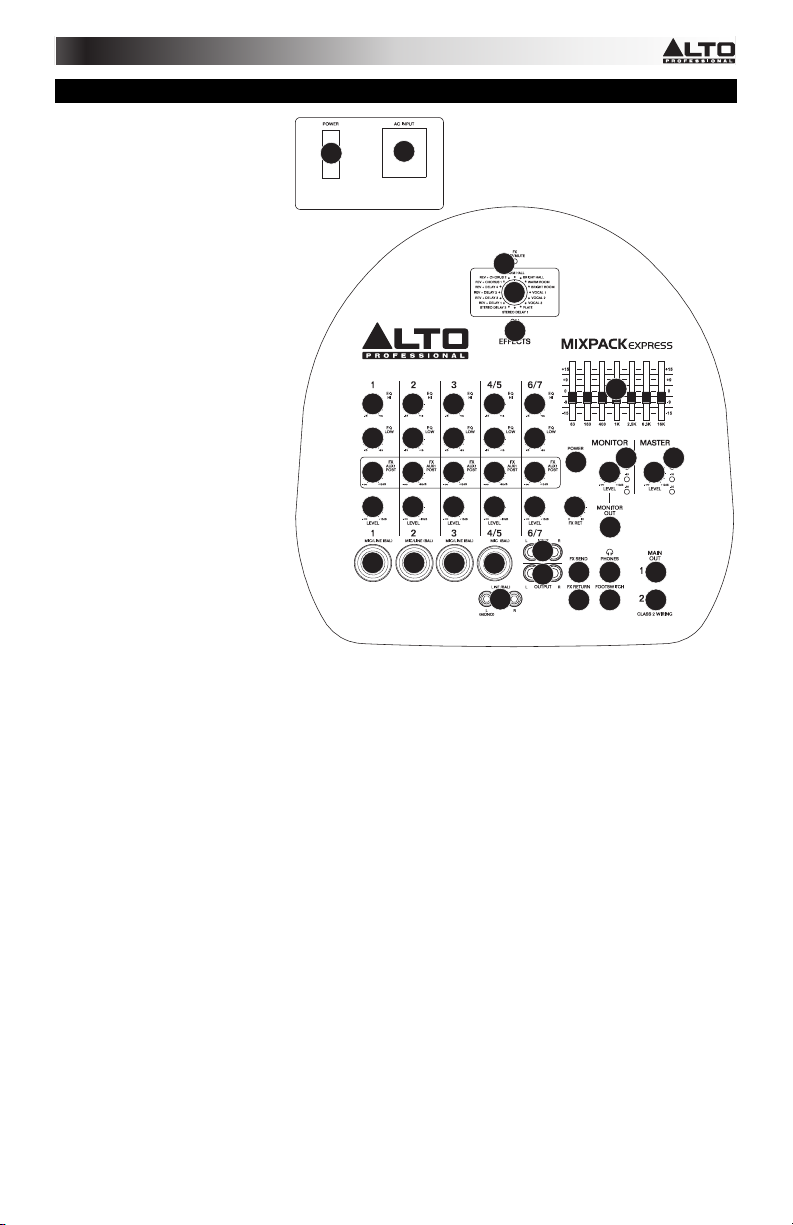

FEATURES
1. POWER IN – Use the included
power cable to connect the mixer
to a power outlet. While the
power is switched off, plug the
power cable into the mixer first,
then plug the power cable into a
power outlet.
2. POWER SWITCH – Turns the
mixer on and off. Turn on the
mixer after all input devices have
been connected. Make sure the
MASTER LEVEL knob is set to
"zero" before turning it on.
3. MIC INPUT (XLR / 1/4") –
Connect a microphone to these
inputs with an XLR or 1/4" cable.
4. MIC INPUT (XLR) – Connect a
microphone to these inputs with
an XLR cable.
5. LINE INPUT (1/4") – Connect
line-level devices to these inputs
with 1/4" cables.
6. LINE INPUT (RCA) – Connect
line-level devices to these inputs
with a standard stereo RCA cable.
7. HI EQ (TREBLE) – Adjusts the
high (treble) frequencies of the
channel.
8. LOW EQ (BASS) – Adjusts the
low (bass) frequencies of the
channel.
9. FX AUX1 POST – Adjusts the
channel audio (post-EQ) level that
is sent to the mixer's internal
effects processor and FX SEND.
Turn this up for the channels that
you want internal effects applied to. You can use this to apply effects to individual channels.
10. CHANNEL LEVEL – Adjusts the audio level on the channel.
11. TAPE OUT – You can use a standard stereo RCA cable to connect this output to an external recording device. The
signal sent out these RCA outputs is the same as the MAIN OUT signal.
12. FX SEND OUTPUT – You can use a 1/4" TRS cable to connect this output to the input of an external amplifier or active
monitor to create a custom monitor mix for onstage musicians. You can adjust this level with the FX AUX1 POST knob.
To use an external effects rack unit, compressor, etc. with the mixer, you can use Y-cables to connect this output to the
input of your external device, then connect the outputs of the device to the FX RETURN input.
13. FX RETURN INPUT – You can connect the output of an external device to this input with a 1/4" mono cable. This is
usually used for outboard effects devices but can also be used like an extra input channel for synthesizers, drum
machines, etc. Adjust this input's volume with the FX RET knob.
14. FX RET – Adjusts the volume of the signal being sent into the FX RETURN INPUT and routed to the MAIN OUT.
15. MONITOR OUT – Use a standard 1/4" cable to connect this output to your monitor or amplifier system. The level of this
output is controlled by the MONITOR LEVEL knob.
16. MAIN OUT – Use standard 1/4" cables to connect these outputs to the speakers. The level of these outputs is controlled
by the MASTER LEVEL knob.
17. PHONES – Connect your 1/4" stereo headphones to this output. The MONITOR LEVEL knob controls the volume.
18. FX CLIP/MUTE LED – The LED will flash if the mixer's internal effects processor signal is clipping. If this happens,
decrease the setting of the FX AUX1 POST knob or CHANNEL LEVEL knob.
19. EFFECTS SELECTOR – Selects the effect that the mixer's internal effects processor will apply to the various channels.
Each channel can send different levels of audio to the processor by adjusting their FX AUX1 POST knobs. See the
EFFECTS section for an explanation of the available effects.
20. EFFECTS ON / OFF – Press this button to mute/unmute the effects.
21. FOOTSWITCH – When a latching-style footswitch is connected to this jack with a 1/4" TRS cable, it can be pressed to
allow all channels to bypass the mixer's internal effects processor.
22. GRAPHIC EQUALIZER – You can use these controls to adjust the equalization of the main mix.
23. MONITOR LEVEL – Adjusts the volume of the MONITOR OUT and your headphones.
24. MASTER LEVEL – Adjusts the volume of the MAIN OUT.
25. LED METERS – Shows the audio level of the main mix and monitor mix. Turn the volume down if the +10 LED lights up
excessively.
26. POWER LED – Illuminates when the mixer is on.
1
NEW
1
3334
5
6
7
8
99999
7
8
7
8
7
8
7
8
1010101010
11 12
13
14
18
19
20
22
23
25
26 25
24
21
15
16
17
16
2

4
EFFECTS
TO HEAR THE EFFECTS ON A CHANNEL: Use the EFFECTS SELECTOR to choose one of the effects below, then turn up
the FX AUX1 POST for that channel.
# PRESET DESCRIPTION PARAMETER
1 VOCAL 1 Reverb, simulating a room without delay time. Decay time: 450 ms
Pre-delay: 0 ms
2 VOCAL 2 Reverb, simulating a room with a small delay time. Decay time: 240 ms
Pre-delay: 25 ms
3 VOCAL 3
Reverb, simulating a small space with a slight decay
time.
Decay time: 100 ms
Pre-delay: 114 ms
4 BRIGHT HALL Reverb, simulating a large acoustic space. Decay time: 290 ms
Pre-delay: 23 ms
5 WARM HALL Reverb, simulating the acoustics of a stage space. Decay time: 360 ms
Pre-delay: 45 ms
6 BRIGHT ROOM Reverb, simulating a studio with many early reflections. Decay time: 210 ms
Pre-delay: 23 ms
7 WARM ROOM Reverb, simulating a bright studio room. Decay time: 210 ms
Pre-delay: 45 ms
8 PLATE Simulates bright plate reverb. Decay time: 290 ms
Pre-delay: 10 ms
9 STEREO DELAY
Reproduces the signal after a small period of time with a
slight difference between the two stereo channels. Delay period: 352 ms
10 STEREO DELAY 2
Reproduces the signal after a small period of time with a
slight difference between the two stereo channels. Delay period: 238 ms
11 REVERB+DELAY 1 Delay effect with room reverb. Delay period: 326 ms
Reverse decay time: 290 ms
12 REVERB+DELAY 2 Delay effect with room reverb. Delay period: 211 ms
Reverse decay time: 240 ms
13 REVERB+DELAY 3 Delay effect with room reverb. Delay period: 375 ms
Reverse decay time: 210 ms
14 REVERB+DELAY 4 Delay effect with room reverb. Delay period: 277 ms
Reverse decay time: 150 ms
15 REVERB+CHORUS Stereo chorus effect with room reverb. Chorus rate: 3.67 Hz
Reverse decay time: 290 ms
16 REVERB+CHORUS 2 Stereo chorus effect with room reverb. Chorus rate: 3.02 Hz
Reverse decay time: 150 ms

TECHNICAL SPECIFICATIONS
MIXER SECTION:
FREQUENCY RESPONSE: 10 Hz – 55 KHz (+ 3 dB)
IMPEDANCE: 3.9 KΩ(mic input)
>10 KΩ(all other inputs)
2.2 KΩ(tape out)
120 Ω(all other outputs)
SNR: > 94 dB
THD+N: 0.04% at 0 dBu, 1 KHz (mono input channels)
0.015% at 0 dBu, 1 KHz (stereo input channels)
EQUALIZATION: High shelving: + 15 dB @ 12 KHz
Low shelving: + 15 dB @ 80 Hz
7-band graphic equalizer: + 15 dB @ 63 Hz, 160 Hz, 400 Hz,
1 KHz, 2.5 KHz, 6.3 KHz, 16 KHz
DSP SECTION: 24-bit A/D and D/A converters
24-bit DSP resolution
Effects (16 presets): Reverbs (Hall, Room, Vocal, Plate), Stereo Delay,
Reverb + Delay, Reverb + Chorus
Controls: 16-position selector, clip LED, mute switch with LED indicator
SPEAKER SECTION:
SYSTEM TYPE: 2-way Coax vented box
FREQUENCY RESPONSE: 65 Hz – 20 KHz at -10 dB
SPHERICAL HORN COVERAGE: 70° H x 70° V
POWER: 150 W AES Standard
300 W Peak
PROTECTION: Electronic circuit on driver
SPEAKER SPECIFICATION: 10" (254mm) low-frequency driver; 2" (51mm) voice coil;
1" (25mm) Neodymium high-frequency driver; 1" (25mm) voice coil
INPUT CONNECTIONS: 1/4" (6.3mm) mono (TS) jack on each cabinet
AMPLIFIER SECTION:
OUTPUT POWER: 350 W (EIAJ)
IMPEDANCE: 4 Ωload
PROTECTIONS: Overload, short circuit, soft clipi limiter, thermal protection fan cooling
DIMENSIONS (W x D x H): 38.7" x 17.3" x 18.1" (983mm x 439mm x 460mm) (compact)
WEIGHT: 59.5 lbs (27 kg)
Inrush current at initial switch-on: 2.04A
Inrush current after power supply interruption: 3.08A
* Specifications are subject to change without notice.
