Harman Kardon HK-595 User manual

Contents: Harman/Kardon HK-595 User's Guide
Harman/Kardon HK-595 User's Guide
Safety Instructions
Introduction
Setup
Using the speaker system
Troubleshooting
Specifications
Regulatory
Information in this document is subject to change without notice.
© 1999 Harman Multimedia. All rights reserved.
Trademarks used in this text: HK-595 is registered trademarks of Harman Multimedia; Dell and the DELL logo are trademarks of
Dell Computer Corporation.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or
their products. Harman Multimedia disclaims any proprietary interest in trademarks and trade names other than its own.
Initial release: 4 Jun 1999
file:///D|/hk595/index.htm11/16/2004 3:46:46 AM

Safety
Back to Contents Page
Safety Instructions: Harman/Kardon HK-595
WARNING: Use of controls, adjustments, or procedures other than those specified
in this documentation may result in exposure to shock, electrical hazards, and/or
mechanical hazards.
●Read Instructions --- All the safety and operating instructions should be read thoroughly before
attempting to operate this audio system.
●Retain Instructions for future reference.
●Heed warnings --- All warnings on this audio system and in the operating instructions should be
adhered to.
●Follow Instructions --- All operating and use instructions should be followed.
●TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR
BACK). There are no user serviceable parts inside this unit, please refer servicing to qualified
Dell Computer Corporation service personnel.
●To prevent the risk of fire or shock hazard, do not expose speakers or electrical power supply to
rain or moisture.
●Do not expose the speakers to liquid or solvent.
●Never remove grille covers in order to service the product. The product does not contain any
user serviceable parts. Refer all servicing to the Dell Computer Technical Support Group.
●Do not expose the product to temperature or humidity extremes, direct sunlight, excessive dust,
or vibrations.
●Place the product on a stable, level surface. Do not drop, apply excessive force to the controls,
or put heavy objects on top of the speaker.
●If cleaning is required, use a soft dry cloth. If necessary, use a damp cloth without any solvents.
●In order to protect the product, avoid microphone feedback, continuous output from electronic
musical instruments, or distorted output from any signal source.
●Do not place the speakers close to fluorescent light sources, or neon light fixtures.
●Although the speakers are magnetically shielded, keep magnetic storage media (disks and
tapes) at least four inches from the product in order to avoid data loss.
●WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or
moisture.
Back to Contents Page
file:///D|/hk595/safety.htm11/16/2004 3:47:00 AM

Introduction
Back to Contents Page
Introduction: Harman/Kardon HK-595 Speaker System
The Harman/Kardon HK-595 is the latest computer audio innovation from Harman/Kardon, a long time
leader in the manufacture of high-end component and computer audio systems. Harman/Kardon’s
years of experience in designing award-winning audio systems enables us to design a PC audio
solution that provides playback of four channel audio, including a digital audio connection to enhance
audio performance. We also provide a simple approach to controlling operating modes and a form
factor that provides wide bandwidth and spectrally true audio without consuming excessive desk
space.
VMAx, a Harman International audio image-processing algorithm is used to re-create a four speaker
sound field from two speakers. The effect is a type of audio hologram. This approach simplifies the
installation of the speaker system by eliminating the need for physical rear speakers while delivering
playback of four independent audio channels. The Surround mode in the Harman/Kardon HK-595
utilizes this technology.
As described in the Using the speaker system section of this user's guide, the control speaker
contains a push button mode switch and a rotary control for adjusting the selected mode. Pushing the
mode button changes the mode that will be adjusted by the rotary control. An LED will indicate which
mode is selected.
The system includes two desktop speakers and a sub-woofer to be placed on the floor. Both speakers
and the sub-woofer are magnetically shielded to provide the greatest protection against image
distortion on a computer monitor.
Back to Contents Page
file:///D|/hk595/intro.htm11/16/2004 3:47:15 AM

Usage
Back to Contents Page
Using the speaker system: Harman/Kardon HK-595 Speaker System
Mode Button • Restoring Default Settings • FX Control • Diagnostics
Mode Button
The Harman/Kardon HK-595 speaker system allows for adjustment of five modes. An LED will
illuminate to indicate which of the tone or effects control features has been selected. Pushing the mode
button provides access to these five modes by toggling the system between the modes in this order:
●Center
●Bass
●Volume
●Treble
●Surround
Once a mode has been selected, the control can be adjusted as described in the F/X control section.
After a few seconds, the active mode will default back to the volume control mode. This control will be
adjusted most, thus for convenience you will not be required to toggle through the modes in order to
select, then adjust the volume.
The Harman/Kardon HK-595 will remember the settings when waking up from a power down. The
system will store settings so that when the speaker is turned back on, the system will restore the last
set of control settings.
Restoring Default Settings
The default mode settings are permanently stored in your speaker system. Pushing and holding the
mode button continuously for three seconds will automatically restore the default system mode settings.
F/X Control
The Tone and effects level control sets the level for the selected tone or effects feature. A ring of seven
LED’s around the control indicate the setting of the selected active tone or effects control feature.
A rotary encoder is used for this control. This rotary encoder is free spinning; that is, it can be turned
infinitely in one or the other direction. However, full range on this control only requires 360 degrees or
file:///D|/hk595/Usage.htm (1 of 3)11/16/2004 3:47:17 AM

Usage
less for all controls. No changes will be made to the mode setting if you turn beyond 360 degrees.
Vol-To increase or decrease the speaker volume, press the Mode button until the LED below Vol is lit.
Then turn the F/X control knob clockwise to increase the volume or counterclockwise to decrease the
volume.
Treb-To increase or decrease the treble level, press the Mode button until the LED below Treb is lit.
Then turn the F/X control knob clockwise to increase the treble level or counterclockwise to decrease
the treble level.
Bass-To increase or decrease the bass level, press the Mode button until the LED below Bass is lit.
Then turn the F/X control knob clockwise to increase the bass level or counterclockwise to decrease
the bass level.
Surr-To increase or decrease the surround level, press the Mode button until the LED below Surr is lit.
Then turn the F/X control knob clockwise to increase the surround level or counterclockwise to
decrease the surround level. Adjusting the rotary encoder counterclockwise until all of the F/X level
LEDs are off will defeat the surround mode.
Cntr-The center level allows the control of audio material recorded in mono, such as vocals. To
increase or decrease the center level, press the Mode button until the LED below Cntr is lit. Then turn
the F/X control knob clockwise to increase the center level or counterclockwise to decrease the center
level. This control is not available when the surround mode is turned off.
Turning off the system using the F/X
The HK-595 speaker system can be turned off by turning the rotary encoder counterclockwise until all
of the F/X level LEDs turn off. The LED below Vol is turned off also. When the speakers are turned off
in this manner, the mode button will be inactive. In order to turn the speakers back on, turn the rotary
encoder clockwise.
Headphone
A headphone jack is provided for private listening. When headphones are inserted in the headphone
file:///D|/hk595/Usage.htm (2 of 3)11/16/2004 3:47:17 AM

Usage
jack, the speaker system is muted and the center and surround levels will be disallowed. Thus, when
toggling through speaker modes, the system will skip the center and surround modes. Treble, bass
and volume modes will remain active.
Diagnostics
In order to facilitate optimal system setup, diagnostics have been built in to the Harman/Kardon HK-
595 speakers. If you are having trouble getting sound out of your system, or are not confident that your
setup is optimal, use the following diagnostics to configure your Harman/Kardon HK-595 speakers.
To activate the diagnostic, press the mode button continuously for 6 seconds. This will generate a test
tone. You should hear this tone coming from the subwoofer and the left and right satellites. This tone
will toggle between left satellite, right satellite and subwoofer every three seconds.
While the speaker system is in the diagnostic mode, all F/X controls are locked out until the power
switch located on the subwoofer is turned off, then on.
Turning the speaker system off using the power switch on the subwoofer will terminate the test tone.
When the speaker system is turned back on, the test tone will be gone and the speaker system will be
configured for optimal operation. If the tone is heard from all speakers, your HK-595 speaker system is
working correctly. If not, see the troubleshooting section for detailed troubleshooting techniques.
Back to Contents Page
file:///D|/hk595/Usage.htm (3 of 3)11/16/2004 3:47:17 AM

Setup
Back to Contents Page
Setup: Harman/Kardon HK-595 Speaker System
Unpacking the speakers • Connecting the speakers to your multichannel sound card •
Connecting the speakers to your stereo sound card • Placement of speakers
Unpacking the speakers
Carefully open the box containing the HK-595 speaker system and identify all components:
●Control/Right Satellite speaker
●Auxiliary/Left Satellite speaker
●Sub-woofer
●Input cables
●Power cable
Connect the speaker system as shown in the diagrams below. Once the speaker system is properly
connected, turn on the power switch located on the subwoofer.
Please refer to the system setup placemat for help in determining whether your sound card is stereo or
multi-channel.
file:///D|/hk595/setup.htm (1 of 5)11/16/2004 3:47:30 AM

Setup
multichannel connection
file:///D|/hk595/setup.htm (2 of 5)11/16/2004 3:47:30 AM

Setup

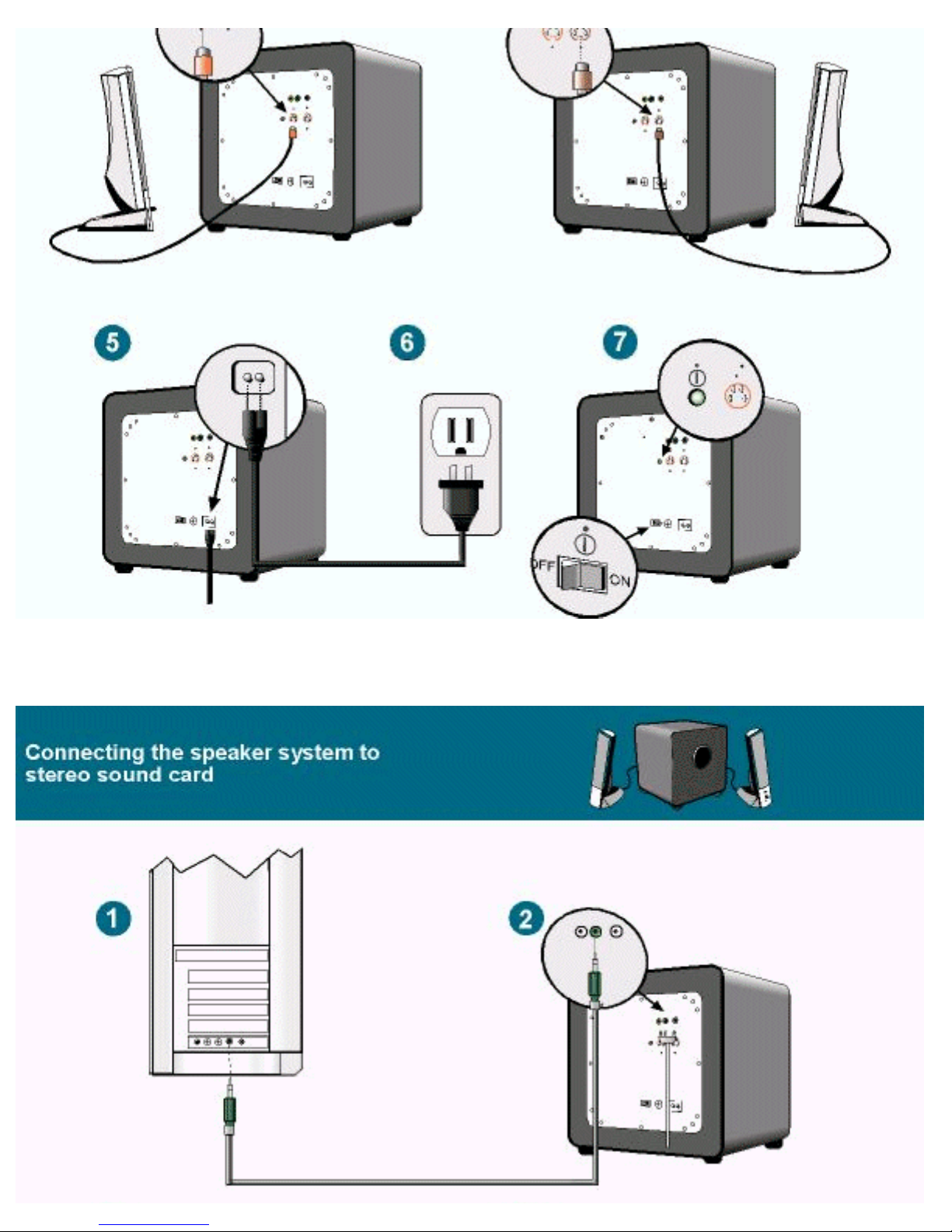

stereo connection
file:///D|/hk595/setup.htm (3 of 5)11/16/2004 3:47:30 AM

Setup

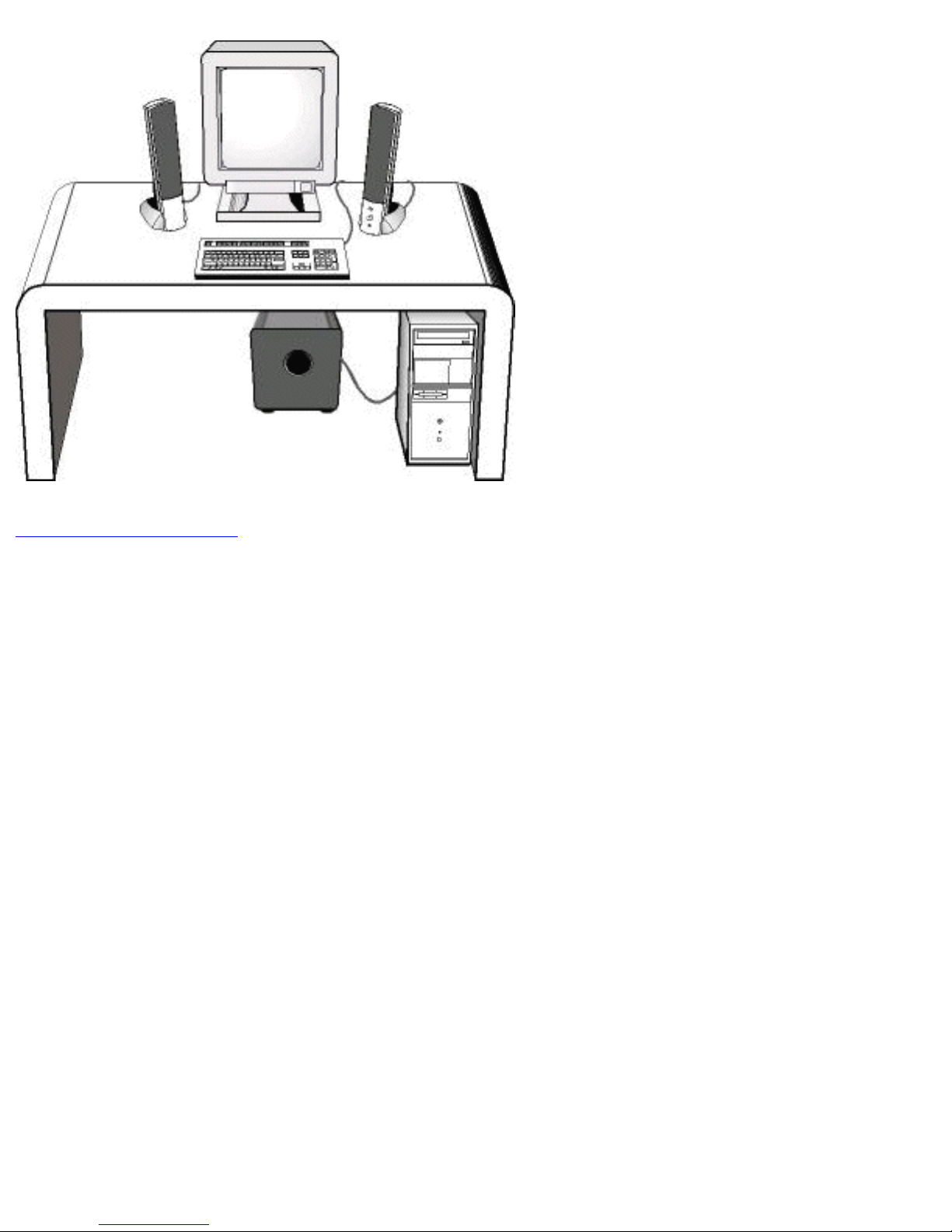

Placement of speakers
All stereo information is heard from the satellite and control speakers. The satellites are magnetically
shielded and can be placed close to a computer monitor without distorting the image. For optimal
stereo imaging, the satellites should be separated by a distance equal to your distance away from the
satellites.
The subwoofer’s sound is non-directional, therefore, does not have to be placed in any particular
relationship to the satellites. Placing the subwoofer on the floor close to a wall or corner provides
maximum bass. If the subwoofer is placed too close to a computer monitor it can cause vibration on
the monitor screen.
file:///D|/hk595/setup.htm (4 of 5)11/16/2004 3:47:30 AM

Setup
Back to Contents Page
file:///D|/hk595/setup.htm (5 of 5)11/16/2004 3:47:30 AM

Troubleshooting
Back to Contents Page
Troubleshooting: Harman/Kardon HK-595 Speaker System
Troubleshooting • Getting Help
Troubleshooting
SYMPTOM POSSIBLE
PROBLEM
SOLUTION NOTE
No sound from
Speakers No power to unit. Make sure wall power outlet or power strip
has power. Make
sure all switches for
outlet/power strip are
on and that all
switches for speaker
system are on.
Cycle the power
switch.
Try substituting a
different power cord;
use the power cord
that came with your
computer system as
a temporary
substitute.
Replace the fuse.
The fuse holder is on
the back of the
subwoofer between
the power cord
connector and the
power switch. Use a
Check green power
LED on sub-woofer.
Is the LED on? If not,
power is not getting
to your speaker
system. Try the
solutions shown.
file:///D|/hk595/trouble.htm (1 of 4)11/16/2004 3:47:40 AM

Troubleshooting
screwdriver to rotate
the fuseholder a
quarter turn in the
direction of the arrow.
See the
Specifications section
for a description of
the fuse.
Is the control/right
satellite of your HK-
595 speaker system
plugged in correctly?
Ensure that the
control speaker DIN
connector is pushed
in properly.
Remove the control
speaker DIN
connector from the
subwoofer, then re-
connect this cable
ensuring that the DIN
connector is pushed
in properly.
There are 12 green
LED’s on the control
speaker. At least one
or more of these
LED’s should be lit.
Try adjusting the F/X
rotary control; this
should change the
number of LED’s lit
on the front of the
control speaker. If
LED’s are lit and
change when you
turn the F/X button,
your control speaker
is plugged in correctly.
Volume level may be
set low or muted. Check volume level and mute setting in
Windows Volume
Control.
Assuming power has
been verified, engage
the self-test by
holding the F/X
button for six seconds.
Speaker is being
overdriven by an
amplified audio
source.
Ensure that speaker
is connected to the
appropriate
receptacle. Check
color-coding on
connectors when
making connections.
Make sure that all
signal cables are
inserted snugly into
receptacles.
file:///D|/hk595/trouble.htm (2 of 4)11/16/2004 3:47:40 AM

Troubleshooting
Distortion (static,
crackling or hissing
sounds)
Noise may be caused
by interference from
the monitor.
Turn monitor off to
see if noise is
eliminated. Move
speaker cables
farther away from
monitor.
Speaker is being
overdrive by an
amplified audio
source.
Ensure that the
speaker is connected
to the appropriate
receptacle. Check
color-coding on
connectors when
making connections.
Make sure that all
signal cables are
inserted snugly into
receptacles.
Volume level on
sound card may be
too high.
Check volume of
sound card via
Windows Volume
Control.
Sound card or audio
source material may
be cause of problem.
Check speakers with
another audio source,
such as a portable
CD player.
Disconnect speaker
input cable (green
connector) from
sound card and plug
into portable CD
player.
Are the speaker
system mode settings
optimized?
Holding down the
mode button
continuously for three
seconds will
automatically restore
default mode settings.
Optimal system mode
settings are
permanently stored in
your HK-595 speaker
system.
file:///D|/hk595/trouble.htm (3 of 4)11/16/2004 3:47:40 AM

Troubleshooting
Too much bass or
treble. Treb and/or Bass level is set too high. Adjust Treb and/or Bass settings or
restore defaults by
holding down the
Mode button for three
seconds.
Subwoofer emits a
loud hum or buzzing
noise.
Input cables not
properly plugged in. Check input cable connection.
Speaker system
experiences radio
frequency
interference or picks
up a radio station
Input cable may be
picking up
interference.
Wrap up excess input
cable in order to
make it as short as
possible.
Purchase a ferrite
clamp and attach it
over the input cable.
A ferrite clamp can be
purchased at your
local electronics store.
Getting Help
If the troubleshooting procedures in this document do not resolve the problem, please contact
Dell Computer Corporation for technical assistance (refer to the “Getting Help” section in your
system documentation). For information about your Dell™ warranty, see your Dell system
documentation.
Back to Contents Page
file:///D|/hk595/trouble.htm (4 of 4)11/16/2004 3:47:40 AM

Specifications
Back to Contents Page
Specifications: Harman/Kardon HK-595 Speaker System
Dimensions • Power
Manufacturer Harman International
Model number HK-595
Drivers (satellite) Two mid-range and one tweeter
Drivers (subwoofer One 6 inch woofer
Power (satellite) 10 watts per satellite at 10% THD
Power (subwoofer) 40 watts at 10% THD
Crossover Frequency (subwoofer) 150 Hz
Dimensions
Width:
Satellite 3.5 inches
Subwoofer 11.75 inches
Depth:
Satellite 5.75 inches
Subwoofer 11.75 inches
Height:
Satellite 11.5 inches
file:///D|/hk595/Specs.htm (1 of 2)11/16/2004 3:47:43 AM

Specifications
Subwoofer 13 inches
Input Impedance >5K
Signal-to-Noise ratio 80 dB
Frequency Response 30Hz-20KHz
Input Sensitivity 400mV RMS for rated power output
Fuse type See back of subwoofer
NOTE: Before replacing fuse, remove AC power plug
from the wall outlet. To replace fuse, twist fuse cap
counterclockwise with a standard flathead screwdriver. The
fuse cap is spring loaded and will pop out.
USA/Canada Power 120 volts, 60Hz AC
Maximum Power Consumption 120 watts
UL/CUL/CE Approved
Back to Contents Page
file:///D|/hk595/Specs.htm (2 of 2)11/16/2004 3:47:43 AM

Regulatory
Back to Contents Page
Regulatory
FCC Statement and Warning
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by on or more of the following measures:
●Re-orient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
●Consult the dealer or an experienced radio/TV technician for help.
●MODIFICATIONS NOT EXPRESSLY APPROVED BY THE MANUFACTURER COULD VOID
THE USER AUTHORITY TO OPERATE THE EQUIPMENT UNDER FCC RULES.
Back to Contents Page
file:///D|/hk595/regulato.htm11/16/2004 3:47:45 AM
