Alto ELVIS 12S User manual

www.altoproaudio.com
Version 1.0
MODEL: ELVIS 12S/12M/15S

CONTENT
1. Introduction…………………………......…………………………………….…….1
2. Specification……………………......………………………………………….…...2
3. Block Diagram……………………………......…………………………….……....3
4. Schematic Diagram…………………………………......…………………….…...5

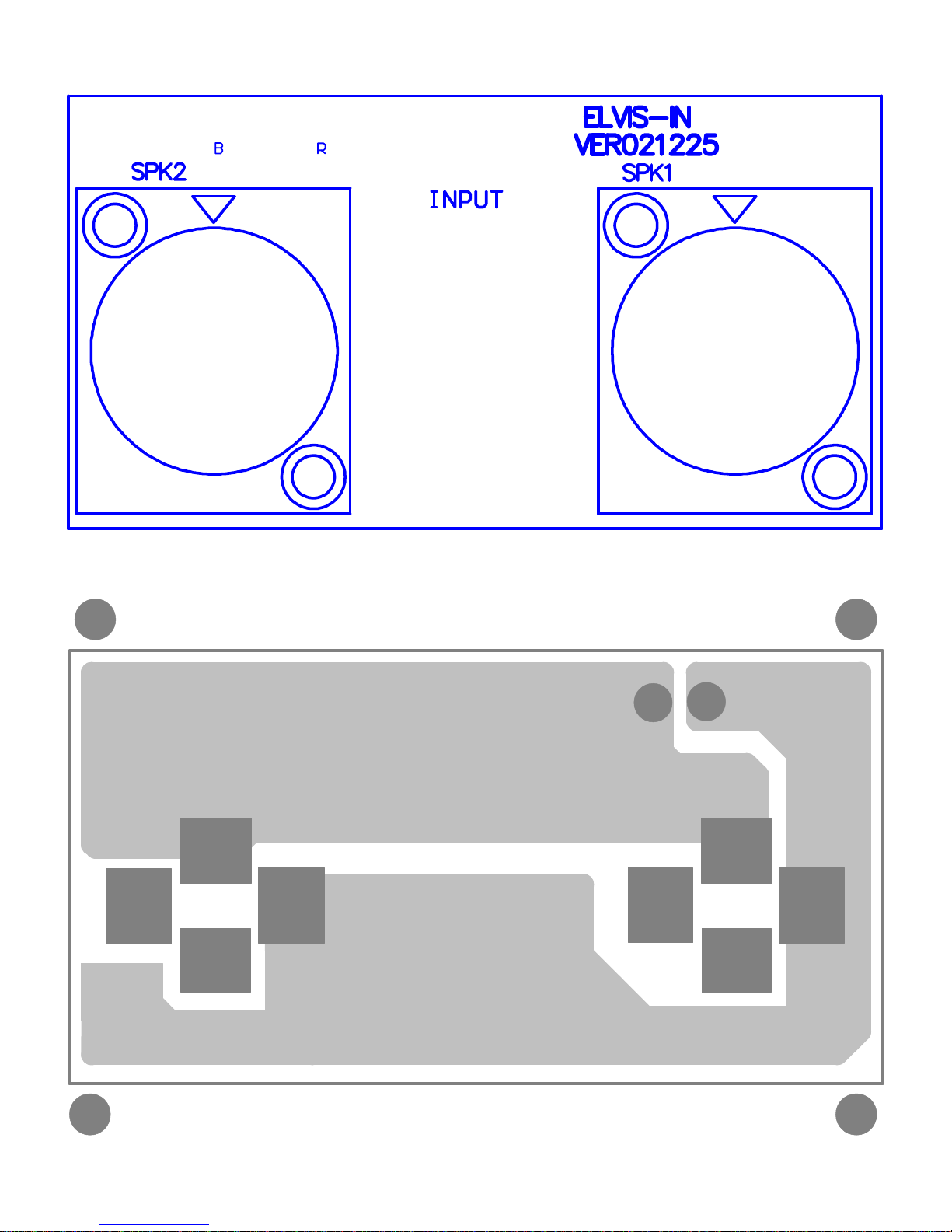

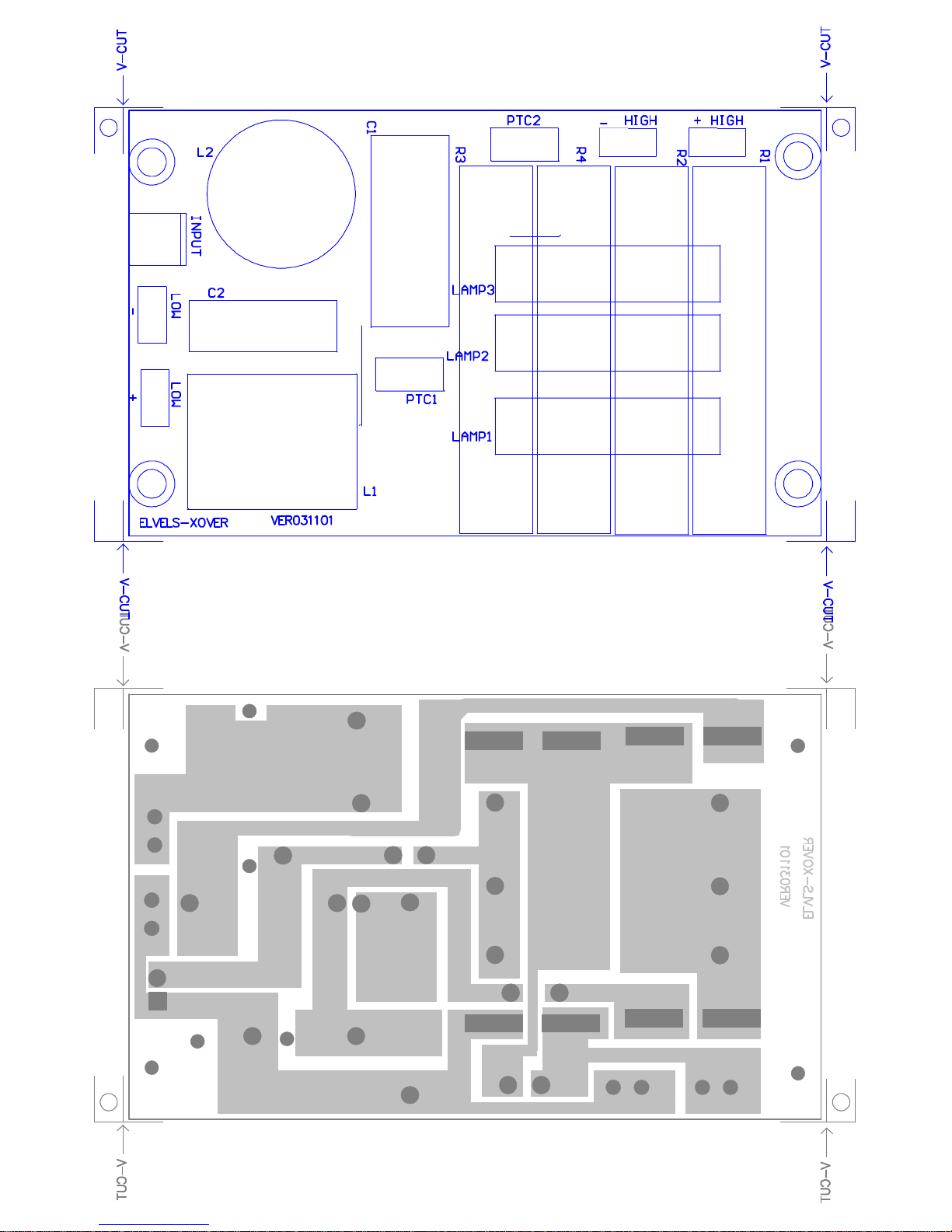

5. PCB Layout..........................................................................................................7

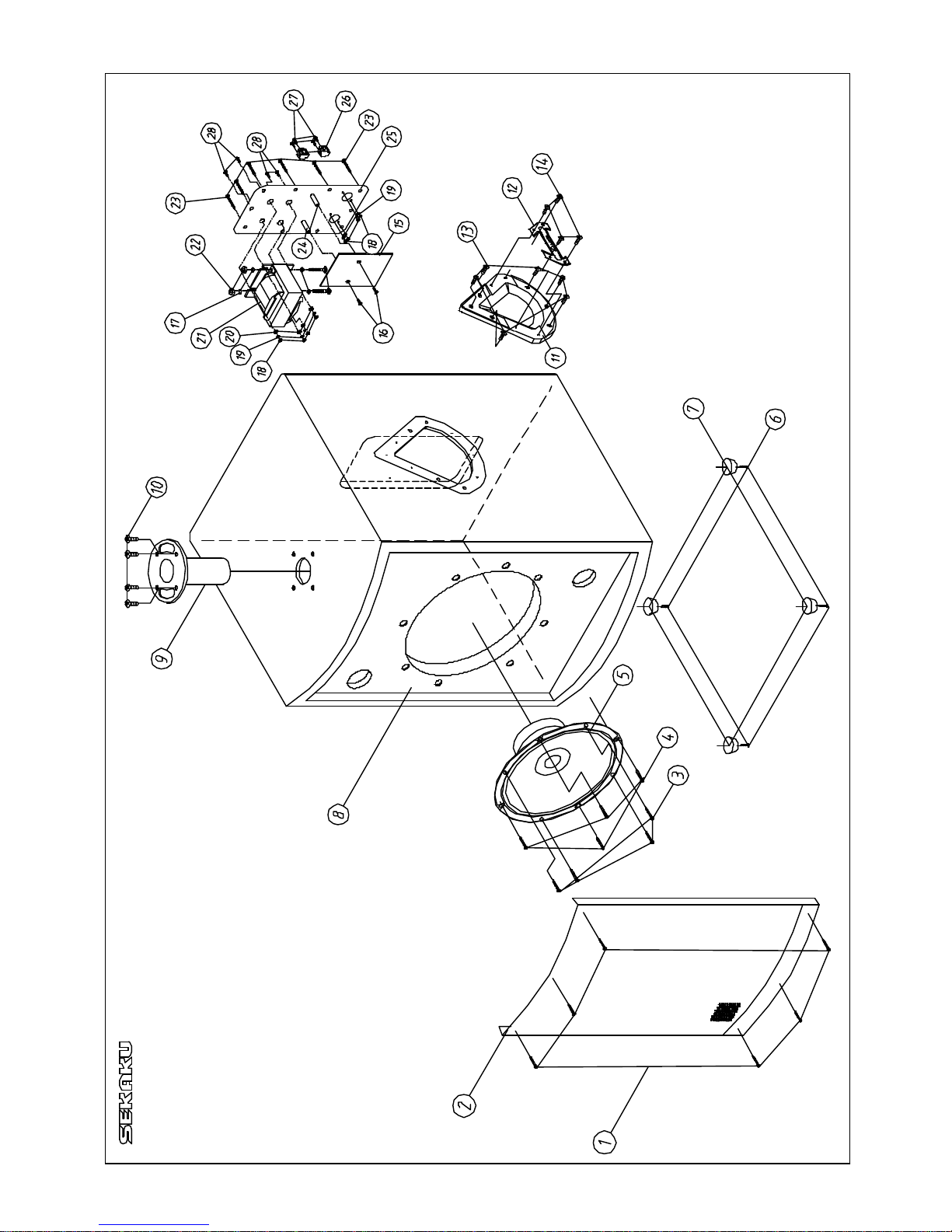

6. Exploded View & Mechanical Parts List………….......……………….…..10
7. BOM…..................................................................………………............……….16

1. Introduction
These cabinetsis designed for professional stage performance .Using density
Particle Board and high quality carpet for the body of the cabinet made it more
durable .The special handle shows unique Italy style. With the accurate
crossover point made the timbre very clean.
ES12M adopt special horn in polypropylene reinforced. With wide directional
angle 80°±10°(1KHZ-16KHZ)and 180W AES/360W Peak power. Matching the
ELVIS 12S/15S(SUB WOOFER) with ELVIS 12/15 made the acoustics of the
cabinet clean and the bass strong.All thesecharacters made it very suitable
for any place.

Technical specification ELVIS 12S
Power Handling 200W AES (rated power) /400W Peak (peak power)
Sensitivity (SPL 1W,1m) 97dB / 119dB
Frequency Response 50Hz ~ 20kHz ± 6dB
Impedance 4ΩNominal
Crossover Frequency 125Hz
High-Frequency Crossover Type
Low-Frequency Crossover Type 6dB/octave
LOW-Frequency High-Frequency 12"/318mm Woofer
Horn Coverage H -V
Input Connectors input/output Pin1+ ;Pin1-
Dimensions H: 495 mm (19.5") W: 400mm(15.7") D: 455 mm (17.9")
Net Weight 51.15 lbs / 23.2kg
Shipping Weight 57.98 lbs / 26.3kg
Volume 6.15CFT
Technical specification ELVIS 12 M ( 2-way)
Power Handling 180W AES(rated power) / 360W Peak(peak power)
Sensitivity (SPL 1W,1m) 97dB / 119 Max
Frequency Response 60Hz ~ 20kHz ± 6dB
Impedance 8 ΩNominal
Crossover Frequency 2500Hz
High-Frequency Crossover Type 12dB/octave
Low-Frequency Crossover Type 12dB/octave
LOW-Frequency High-Frequency 12"/318mm Woofer 1" Compression Driver
Horn Coverage H -V 80° ± 10° ( 1kHz - 16kHz)
Input Connectors input/link Pin1+ ;Pin1-
Dimensions H:615 mm (24.2") W: 400 mm(15.7") D: 345 mm (13.5")
Net Weight 38.93 lbs /17.66 kg
Shipping Weight 46.29lbs /21 kg
Volume 6.10CFT
Technical specification ELVIS 15S
Power Handling 300W AES(rated power) /600W Peak((peak power)
Sensitivity (SPL 1W,1m) 98dB / 122Max
Frequency Response 45Hz ~ 20kHz +/- 6dB
Impedance 4 ΩNominal
Crossover Frequency 125Hz
High-Frequency Crossover Type
Low-Frequency Crossover Type 6dB/octave
LOW-Frequency High-Frequency 15" /385mm Woofer
Horn Coverage H -V
Dimensions H: 565 mm(22.2") W: 455mm(17.9") D: 525 mm(20.6")
Net Weight 65.48 lbs / 29.7 kg
Shipping Weight 74.52 lbs / 33.8 kg
Volume 8.67CFT

1 2 34
A B C D
4
321
D
C B A
2-
1+
1-
2+
B SPK2
2-
1+
1-
2+
B SPK1
INPUT

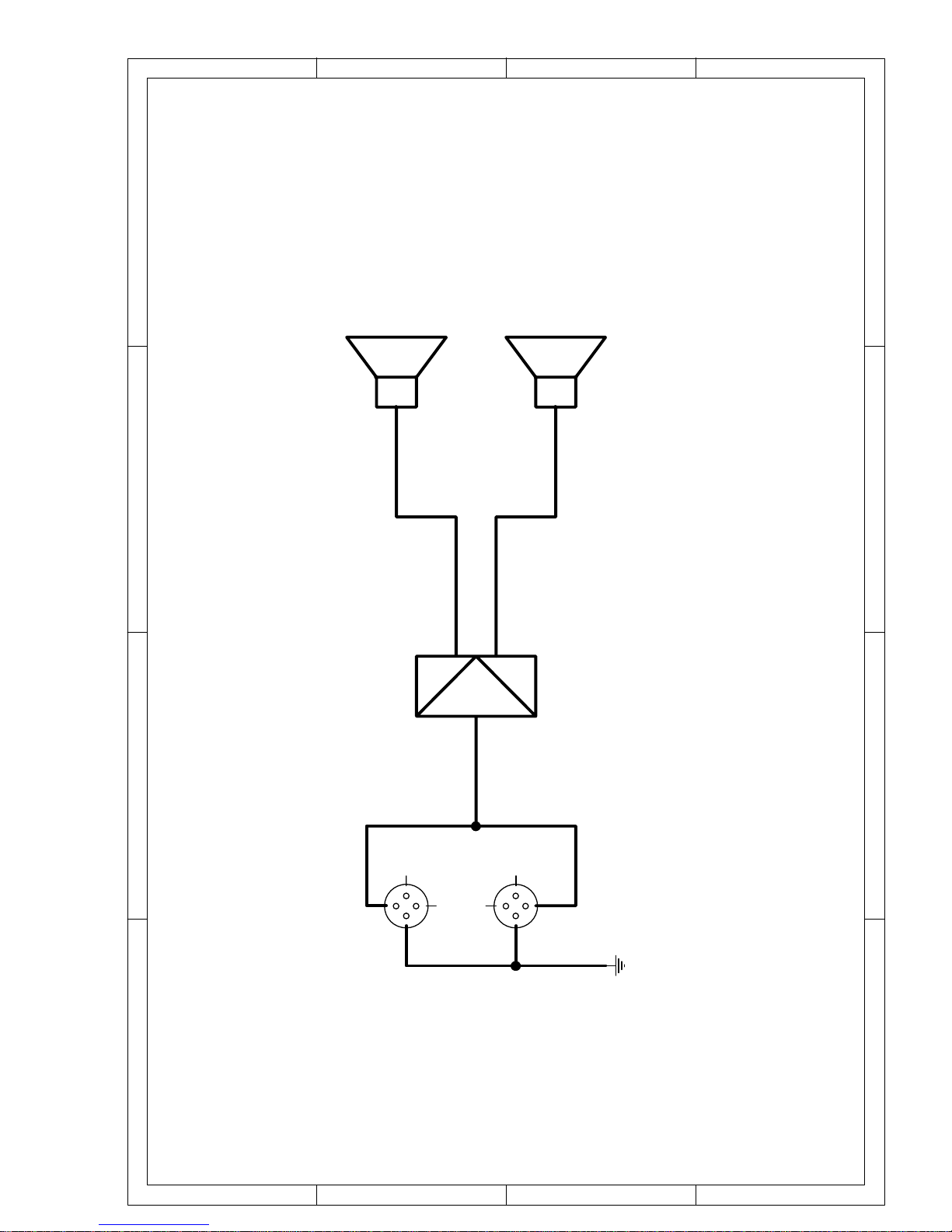

BLOCK DIAGRAM
CROSSOVER CIRCUIT
DRIVER SPEAKER
WOOFER SPEAKER

1 2 34
A B C D
4
321
D
C B A
2-
1+
1-
2+
S2B SPK2
2-
1+
1-
2+
S1B SPK1
INPUT OUTPUT

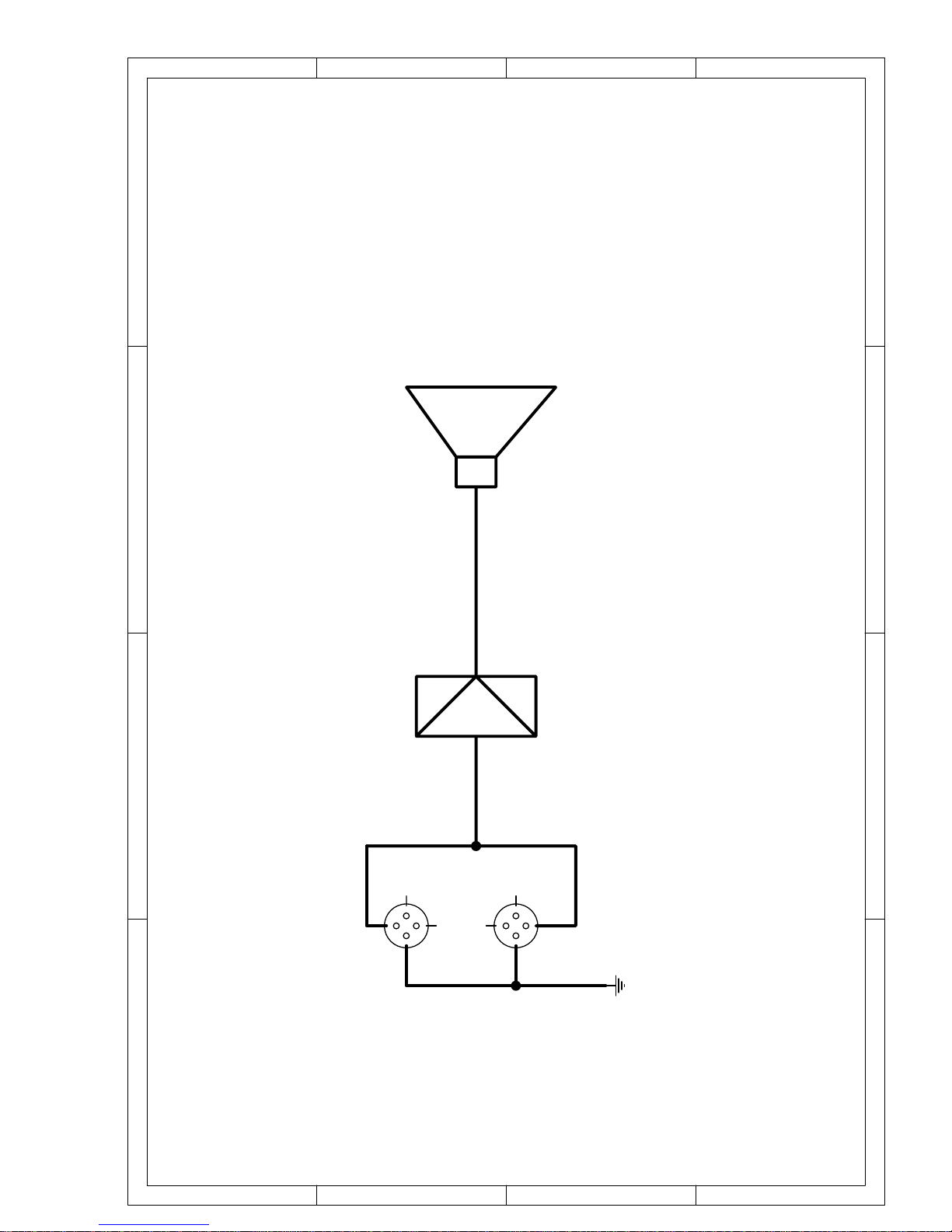

BLOCK DIAGRAM
CROSSOVER CIRCUIT SUB WOOFER SPEAKER

1234
A B C D
4321
D C B A
2-
1+
-
2+
SPK1
2-
1+
-
2+
SPK2
INPUT R2
39 Ohm/20W
R5
1.5 Ohm 20W
R1
1.5 Ohm/20W
R3 680 Ohm 1/4W
R4
100 Ohm 1/4W
C3 6.8nF/400V
C1
10uF/250V
L2 0.36mH
L1 1.5mH
TR2 TIP122
D1 FE6D D2
FR6D
TR1
TIP127
P3 P4
P1 P2
LOW WOOFER HIGH DRIVER
C2
3.3uF/250V
CE
B

1234
A B C D
4321
D C B A
2-
1+
-
2+
S2B SPK2
2-
1+
-
2+
S1B SPK1

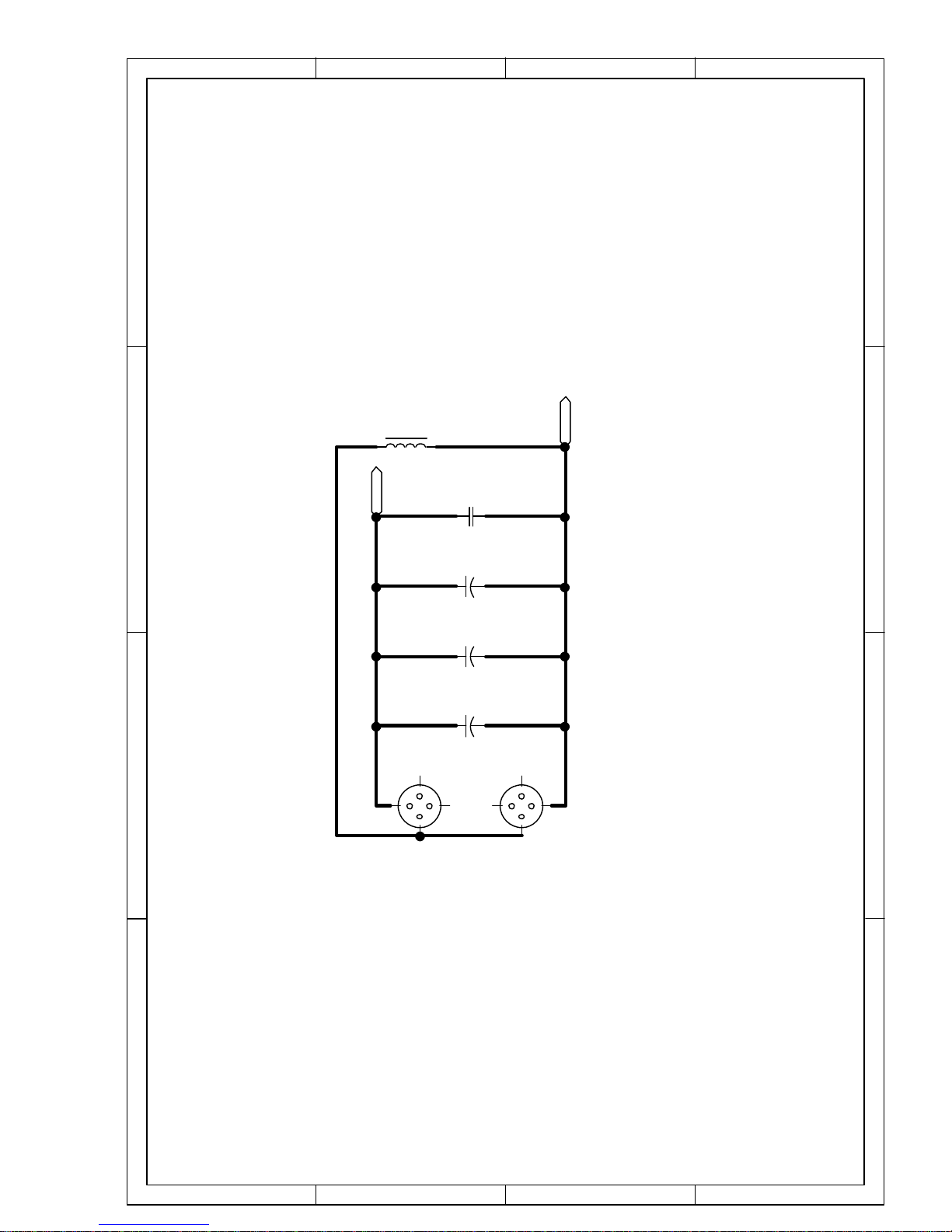

C1 3.3UF/250V
C3 47UF/100V
C4 47UF/100V C2
47UF/100V
L1 4.2mH
INPUT
LOW+
LOW-
OUTPUT

No. Item No. Item Description Specification PCS
1 MG00349 black-plated screw-T head φ6 M3*16 6
2 MD00425 grille ELVIS12M 1
3 MG00450 black-plated screw-T head φ10 M5*30 8
4 NI02242 horn ELVIS10,12,15 9023 1
5 ND00231 foam 10x50x50mm 1
6 NI02374 fixed board-ABS 70*135*10 9023 1
7 MG00352 black-plated screw-pill-iron plate M4x25 4
8 HG00081 driver PA-D597P-AUDIO 8 Ω1
9 MG00351 black-plated screw-pill-iron plate M4x16 14
10 HK03075 K-woofer(12") Z00773_LP318.50/1100 WT 6 Ohm 1
11 MG00338 black-plated screw-T head φ8 M4x30mm 4
12 NI02376 handle-ABS 85.6*207*7 9023 1
13 MG00361 black-plated screw-pill-iron plate M4*20mm 6
14 NI02375 handle cover-ABS ELVIS10,12,15 9023 1
15 NI02426 foot curshion φ37x15 4
16 MG00360 black-plated screw M4*25mm 4
17 NC00144 cabinet ELVIS12M 12 inch 1
18 MG00060 black-plated screw-self tapping M3x6 4
19 HK02379 K-PC board ELVIS-XOVER VER021225 1
20 MJ01210 fixed board ELVIS12M ALTO 1
21 ME00015 color nut 3MM 4
22 HC00218 speakon SKCB201-4P connector female 2
23 MG00042 black-plated screw M3x10 4
24 ME00105 iron pillar M3*7.2*0.5PH 4

No. Item No. Item Description Specification PCS
1 MG00349 black-plated screw-T head φ6 M3*16 6
2 MD00421 grille ELVIS12-SUB 1
3 MG00350 black-plated screw-T head φ10 M5*30 4
4 HK03074 woofer Z00780_LP 1
5 MG00360 black-plated screw M4*25 4
6 NI02426 rubber foot φ37*15 4
7 NC00143 cabinet ELVIS12-SUB 1
8 MH00801 bracket SK0004 1
9 MG00353 black-plated screw M6*30 4
10 NI02375 handle cover ELVIS12S/15S/12M/10 2
11 NI02376 handle ELVIS12S/15S/12M/10 2
12 MG00361 black-plated screw-pill-iron plate M4*20 12
13 MG00338 black-plated screw-T head φ8 M4*30 8
14 HB00968 PCB XOVER-PCB 12S/15S 1
15 MG00020 black-plated screw-self tapping M3*8 2
16 ME00015 color nut 3MM 8
17 MF00037 spring washer φ3*φ5*1T 8
18 MF00023 color washer φ3*φ10*1T 4
19 CN00061 crossever inductor 4.2mH(φ1.2mm E type) 1
20 MG00351 black-plated screw-pill-iron plate M4*16 10
21 ME00093 iron pillar hexagon 6.35*M3*28 2
22 MJ01206 fixed board ELVIS12S ALTO 1
23 HC00218 speakon SKCB201-4P connector female 2
24 MG00042 black-plated screw M3*10 4
25 MG00364 black-plated screw M3*12 4

No. Item No. Item Description Specification PCS
1 MG00349 black-plated screw-T head φ6 M3*16 6
2 MD00429 grille ELVIS15-SUB 1
3 MG00350 black-plated screw-T head φ10 M5*30 4
4 HK03076 woofer Z00822_LP 1
5 MG00360 black-plated screw M4*25 4
6 NI02426 rubber foot φ37*15 4
7 NC00145 cabinet ELVIS15-SUB 1
8 MH00801 bracket SK0004 1
9 MG00353 black-plated screw M6*30 4
10 NI02375 handle cover ELVIS12S/15S/12M/10 2
11 NI02376 handle ELVIS12S/15S/12M/10 2
12 MG00361 black-plated screw-pill-iron plate M4*20 12
13 MG00338 black-plated screw-T head φ8 M4*30 8
14 HB00968 PCB XOVER-PCB 12S/15S 1
15 MG00020 black-plated screw-self tapping M3*8 2
16 ME00015 color nut 3MM 8
17 MF00037 spring washer φ3*φ5*1T 8
18 MF00023 color washer φ3*φ10*1T 4
19 CN00061 crossever inductor 4.2mH(φ1.2mm E type) 1
20 MG00351 black-plated screw-pill-iron plate M4*16 10
21 ME00093 iron pillar hexagon 6.35*M3*28 2
22 MJ01207 fixed board ELVIS15S ALTO 1
23 HC00218 speakon SKCB201-4P connector female 2
24 MG00042 black-plated screw M3*10 4
25 MG00364 black-plated screw M3*12 4

No. Part No. Description Specification Remark
1
NC00144 cabinet ELVIS 12M 12inch
2NI02375 handle cover ELVIS 10;12;15 432C
3NI02376 handle 85.6*207*7 432C
4MJ01146 pillor 2t*201*79.6mm ELVIS
5MJ01166 iron board 2t*201*79.6mm ELVIS10
6MJ01154 single light board 2.0t*1850*950mm 27.6kg
7NC00307 rear board ELVIS 12M 394.5*360.3*18t down_V1.0
8NC00236 Shaving board 2440*1220*18t_V1.0
9NC00308 rear board ELVIS 12M 394.5*360.3*18t up_V1.0
10 NC00236 Shaving board 2440*1220*18t_V1.0
11 NC00309 side cover board ELVIS 12M 290.5*585*18t right_V1.0
12
NC00236 Shaving board 2440*1220*18t_V1.0
13 NC00310 side cover board ELVIS 12M 290.5*585*18t left_V1.0
14 NC00236 Shaving board 2440*1220*18t_V1.0
15 NC00311 rear board ELVIS 12M 336*394.5*18t_V1.0
16 NC00236 Shaving board 2440*1220*18t_V1.0
17 NC00312 front board ELVIS 12M 368.5*585*18t_V1.0
18 NC00236 Shaving board 2440*1220*18t_V1.0
19 NC00313 front faceplate ELVIS 12M 155.9*394.5*18t_V1.0
20
NC00236 Shaving board 2440*1220*18t_V1.0
21
ND00417 Carpet cloth 2.5t*2M*0.89M YB-153_V1.0
22
ND00415 Carpet cloth
2m*50m*2.5t*310g/㎡YB-153_V1.0
23
ME00085 nut M4
24 ME00082 nut M5
25 ND00239 fillter sponge 4t*100*100mm
26 NI02426 foot cushion φ37*15.5mm
27 MG00360 screw-RS M4*25mm
28 MG00338 screw-RS-T M4*30mm
29 MG00536 screw-RS M4*20_V1.0
30 ND00254 absorb sound sponge 30*500*350mm
31 ND00453 Carpet cloth 30m*1m*30t_V1.0
32 ND00255 absorb sound sponge 30*700*350mm
33 ND00453 Carpet cloth 30m*1m*30t_V1.0
34 ND00256 absorb sound sponge 30*350*350mm
35 ND00453 Carpet cloth 30m*1m*30t_V1.0
36 MD00425 grille ELVIS 12M ALTO_V1.0
37 MD00456 grille ELVIS 12M_V1.1
38 MD00457 grille ELVIS 12M ALTO_V1.5
39 MD00428 grille ELVIS 12M 1.2t*570*382_V1.0
40 MG00349 screw-RS-T M3*16
41
HK03075 woofer 2" 110W 6ΩELVIS 12;M(Z00773_LP318.50)
42
NH00242 cone B0710B_CN 318.50T3 Z5 45HZ
43
NH00243 gasket C0810A_GR 318/6+2
44 ND00215 spider

No. Part No. Description Specification Remark
45
NH00241 dust mesh cap E0533A_CP 98/C
46
HK03050 magnet circuit-RS F0741B_CM 50/1100.8 F18 V
47
MH01568 washer I0710A_PS 50/1100.8V_V1.2
48 MH01566 magnet G0425A D134*57*19
49 MH01567 T type middle pillar H0722A_PN 50/1100.8 D18
50 MI01517 bracket L0710B_CR 318/VN
51 HC00426 terminal M0021B_PT2.1
52 HC00496 connect terminal 0.8*13*16.3mm
53 HC00495 connect terminal 0.8*13*16.3mm
54 NI02583 terminal block 3.5*24.5*3t
55 MH01110 rivet M0500A_OU-30
56 HA02493 strand TA4X4YKA42W*110mm
57 HA02079 strand TA4X4YKA42W*1M
58 ND00227 sponge S0721B_NYLON NET D35
59 NE16130 lable HK03075_V1.0
60 NI00014 membrane 0.035*1M
61 NH00012 bond paper 0.04*1M
62 HG00202 voice coil BSV50.5*36*5.25Ω
63 MG00350 screw-RS-T M5*30
64 HG00081 speaker PA-D597 P-AUDIO 8Ω
65 MG00351 screw-RS M4*16
66 NI02242 horn ELVIS 10;12;15 432C
67 NI02374 fixed board 70*135*10 432C
68 MG00352 screw-RS M4*25
69 ND00231 sponge 15*50*50mm
70 HA02319 signle terminal wiring 600mm UL1015 18AWG brown/black
71 HA02320 signle terminal wiring 800mm UL1015 18AWG
72 NA00192 bag 0.05t*1200*800mm
73 NF01105 instructions ELVIS ALTO_V1.4
74 NH00149 paper 889*640mm
75 NF00061 assurance card ALTO
76 NE11462 label ELVIS 12M
77 NH00012 bond paper 0.04*1M
78 NI00014 membrane 0.035*1M
79 NB02451 box ELVIS 12M ALTO_V1.2
80 NE11345 label ALTO PG
81 NH00334 cone paper 0.040*1m
82 HK04011 fixed board ELVIS 12M ALTO
83 MJ01210 fixed board ELVIS 12M ALTO
84 MJ01163 fixed board ELVIS 10
85 MJ01162 fixed board ELVIS 10
86 MJ00088 single light board 1.5*2135*1220 30.67kg
87 ME00105 iron pillar M3*7.2*0.5PH_V1.1
88 MG00060 screw M3*6

No. Part No. Description Specification Remark
89 HC00218 speakon SKCB201-4P connector female
90
MG00042 black-plated screw M3*10
91
ME00015 color nut 3m/m
92 HA03757 wire 100mm UL1015 18AWG red/black
93 HB00858 PCB ELVIS-IN_VER050930
94
HK05003 PC board P-ELVIS-NEW XOVER (ELVIS 12)
95 HB01386 PCB PS 2-XOVER(1*2)_VER041203
96
CN00056 crossover inductance 1.55mH(1.0mmφ1.50~1.60Mh) L1
97 CN00049 crossover inductance 0.35mH(0.8mmφ0.34-0.36mH) L2
98
CF00089 metal-film capacitor MEF 10uF/250V 5% C1
99 CF00090 metal-film capacitor MEF 3.3uF/250V 5% C2
100
HA02087 jumper 23mm C4
101 HA02249 wire φ0.6_Sn-plate
102 RA00993 chassis bracket 20W 3.3ΩSQY type R1
103 RA00827 chassis bracket 20W 1.5ΩSQZ R2
104 RA00988 cement resistor 20W 10ΩSQY type R3
105 RA00839 chassis bracket 20W 39ΩSQZ R4
106 HH00036 lamp SK3/CWT 12.8V 2.1A DS1,DS2
107 HA01919 jumper 5mm PTC1
108 HA02249 wire φ0.6_Sn-plate
109 RG00012 over current protector 0.5A 60V MF-R050 PTC2
110 HC00324 connect terminal 6.5m/m (PC250)
111 NI02590 cable tie YJ-203V0 UL94V-0
112 AC00179 tin without lead-RS M705E Sn 3Ag-0.5Cu
113 AC00179 tin without lead-RS M705E Sn 3Ag-0.5Cu
114 NB02506 cushion ELVIS 12M below
115 NB02507 cushion ELVIS 12M upper
116 AD00012 twin adhesive 90*120mm_V1.0
117
NA00279 clip-chain bag 0.04t*100*150mm_V1.0
118 NE12830 label ELVIS 12M ALTO_V1.1
119 NE11169 label HK 12 ALTO
120 NH00012 bond paper 0.04*1M
121 NI00014 membrane 0.035*1M
122 NA00122 PE bag 0.04t*350*230mm
