ALTUS BCD-428WLMGG User manual

BCD 428WLMGG-

Dear customer:
This manual can ensure the rapid and safe use of the product.
We hope to offer you the best performance of our product, which is
produced with modernized equipment under the strict quality control.
For this purpose, you are required to read through this manual before
use, and keep it safe for future reference. If you transfer this product
to any other user, please provide it with this manual.
Please read this manual before installation and operation of the
product.
Always observe the applicable safety instructions.
Keep this manual at any easily accessible place for future use.
Please read any other documents supplied with the product.
?
?
?
?

-1/ -EN

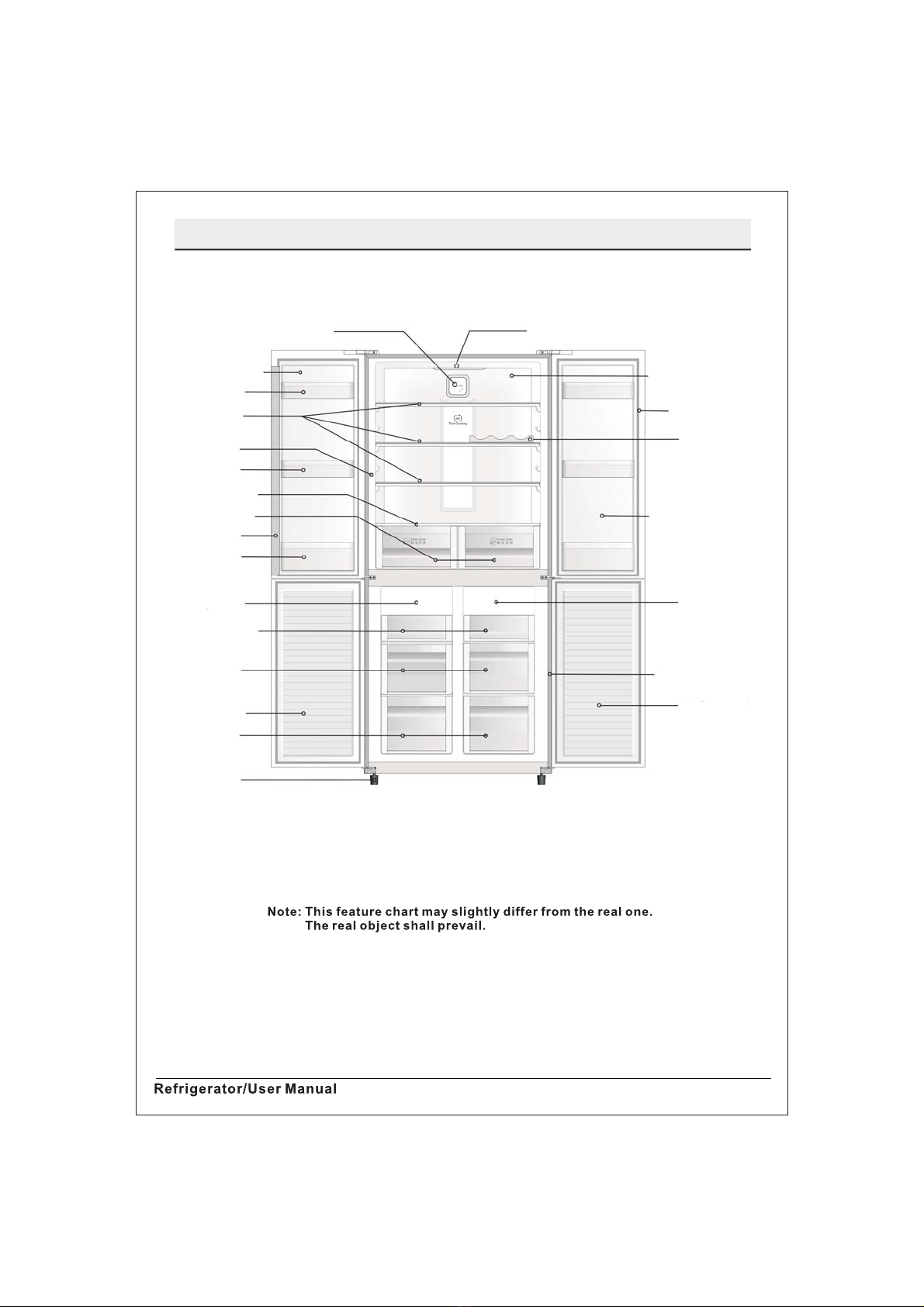

Product Feature Chart
Refrigerator structure sketch
Refrigerator Feature Chart
Refrigerator
compartment duct cover
Refrigerator door seal
Bottle holder
Refrigerator
compartment right door
LED light
Fresh retaining
Variable temperature compartment
Chilled
compartment door seal
Chilled
compartment door
Adjustable stands
Short drawer
Freezer
compartment door
Long drawer
Lower rack
Panel assembly
Crisper
Crisper cover
Upper rack
Refrigerator
compartment
Shelf
Upper rack
Refrigerator
compartment left door
Freezer
compartment
Slide drawer

-2/ -EN
Safety Notes
Caution/Warning Symbols Used
Indicates that a danger of death
or serious injury exists
Indicates that a risk of personal
injury or material damage exists
Other Symbols Used
Represents something you must NOT do.
Represents something you must NOT
disassemble.
Represents something you must NOT
touch.
Represents something you must
follow.
Indicates that you must disconnect
the power plug.
Represents earthing is needed to
prevent electric shock.
It is recommended that it is
handled by service man.
Warning
Caution
Warning
These warning signs are provided here to prevent
any injury to you and others. Please follow them
explicitly. After reading this manual, keep it in a
safe place for future reference.
Warning

Safety Notes

-3/ -EN
220V〜
50Hz

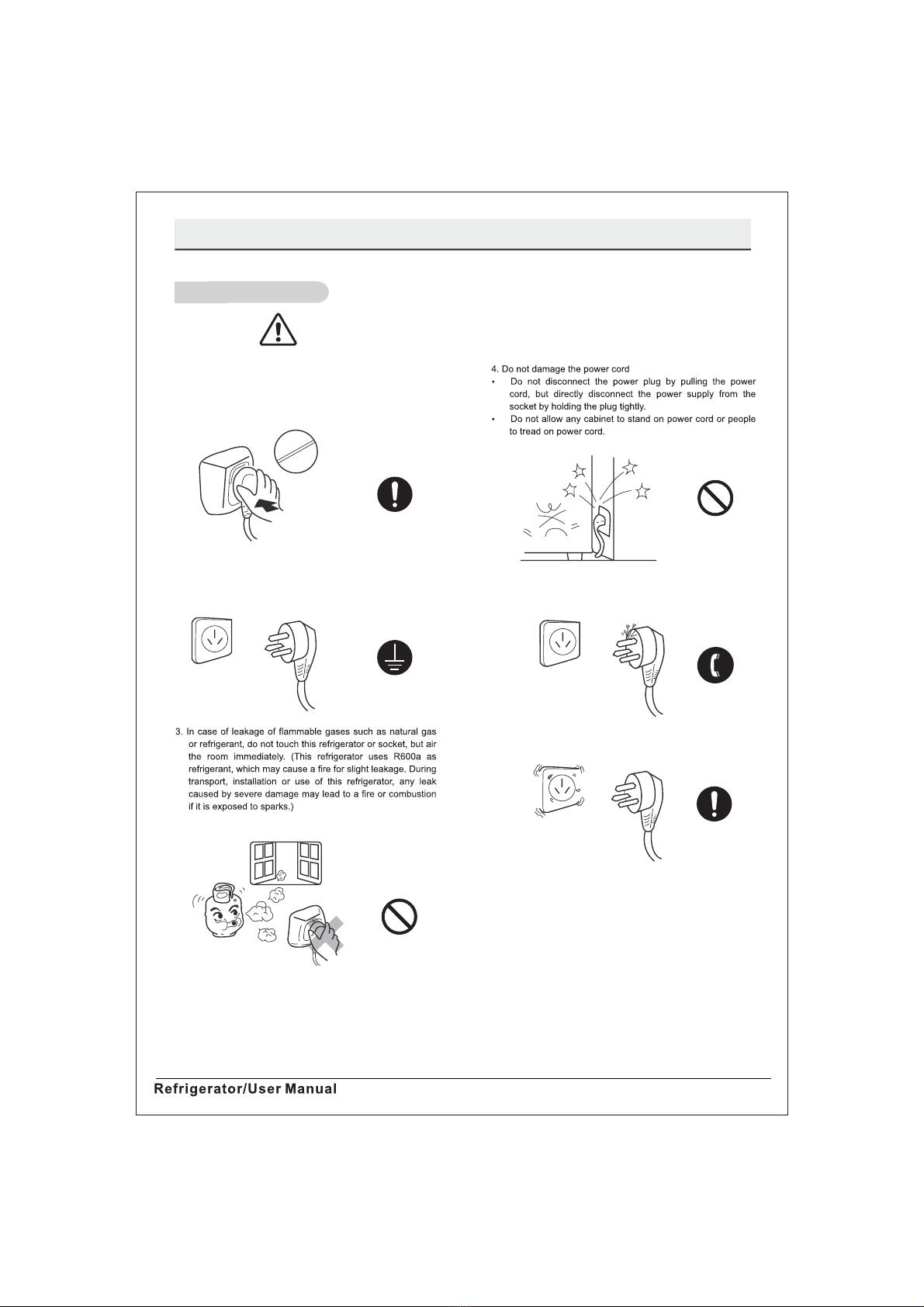

1. The operating voltage of this refrigerator is 187-240V. A
stabilized power supply with the power higher than 500W is
recommended if the voltage exceeds the specified range, or
else this refrigerator may fail to function or any electrical
elements thereof may be damaged.
2. Any power supply for this refrigerator must be used with
separate and reliable earthing, and not share the socket
with other electric appliances, and its voltage shall be as
specified in the nameplate. To ensure the safe use, socket
and its connecting line must be able to withstand the current
of above 10A.
Safety Notes Warnings
5. Have the power cord repaired or replaced immediately by the
manufacturer or its service agent or similar professional if
power cord has become frayed or damaged.
6. Do not insert the power plug into any wall-mounted socket
that is loose, or it may cause a fire or electric shock.
Warning
Safety Notes

-4/ -EN

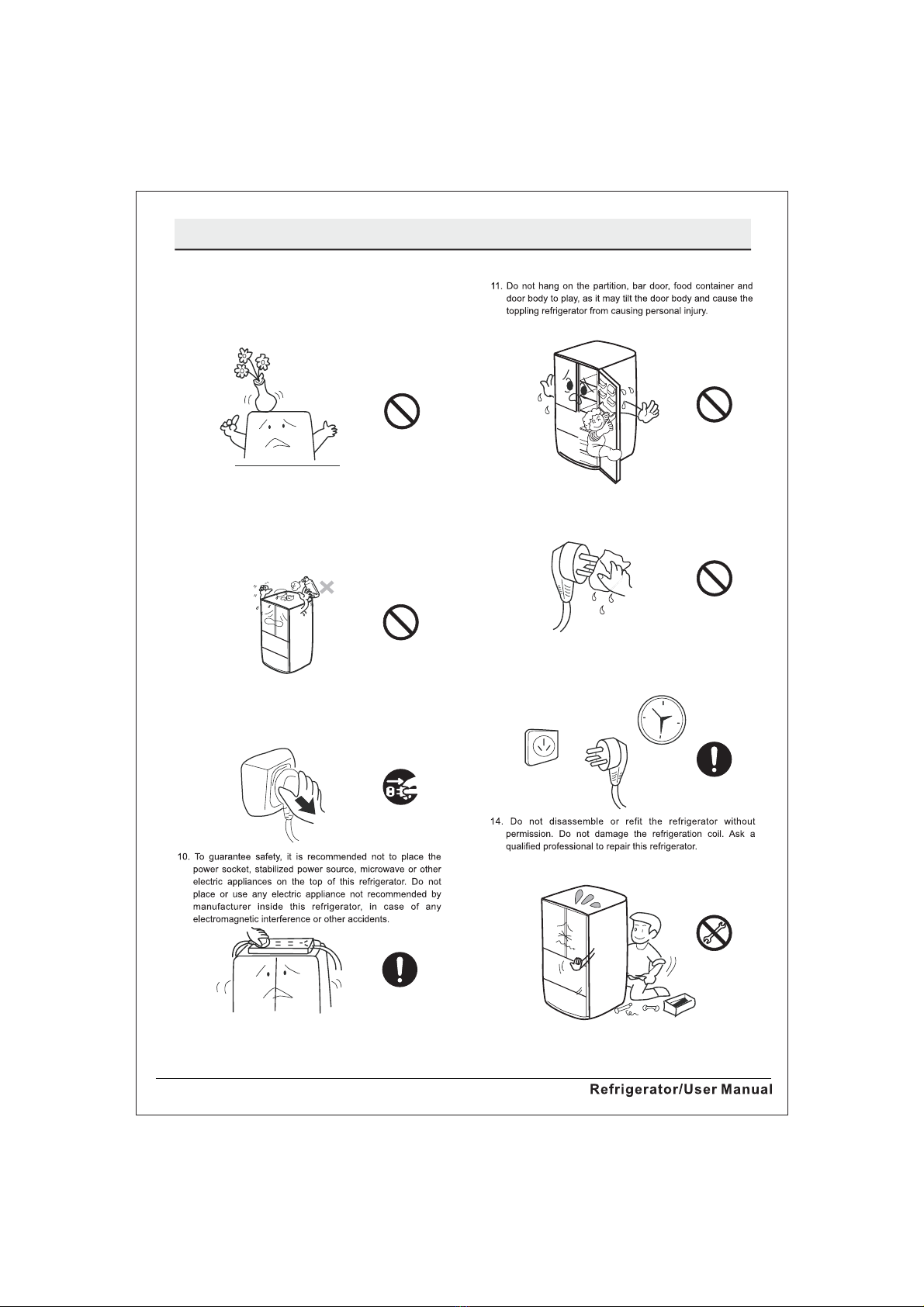

7. Do not put an item or a container filled with water on the
refrigerator. The item on the refrigerator may fall down to
cause personal injury at the time of opening or closing the
door of refrigerator. If spilled, there is a risk of fire or electric
shock.
9. Disconnect the power plug of this refrigerator before cleaning
this refrigerator, or else it may cause a risk of electric shock.
8. Do not store or spray inflammable gas near the refrigerator,
as it may cause explosion or fire.
Do not spray water or other fluids onto the refrigerator, as it
may cause electric shock.
Do not use benzene thinner or car cleanser to wash the
refrigerator, as it may cause a fire.
12. Do not connect the power plug with wet hands, and do not
clean the plug with wet fabric, or it may cause a fire or
electric shock.
13. Remove the power plug after disconnect the power supply of
this refrigerator, and reconnect the power supply after an
interval of at least ten minutes, since it may cause the
continuous start to damage the compressor.
Safety Notes

-5/ -EN
Safety Notes
16. Other relevant warnings: 2. This product is a refrigerator intended for use at home. As
specified in the national standards, the refrigerator for home
is only suitable for storing foods, not for any other purpose,
e.g. storing blood, drugs, biological products or other items
sensitive to temperature changes. This refrigerator shall not
be used on a vehicle or vessel, or else it is impossible to put
it in normal use or it may cause unexpected dangers
including electric shock.
Vaccine seed
cultures
of bacteria
chemical agent
1. Do not keep volatile or inflammable objects or substances
(benzene, thinner, propane gas, alcohol, ether, LP gas and
other such products etc.) in the refrigerator, which may
cause explosion.
Benzene
thinner alcohol ether
Lpgas
4. After the refrigerator is started, do not use wet hands to
touch the inner walls of freezer compartment and stored
items, or the skin may be attached to inner walls or items.
Cautions

-6/ -EN
?
?
?
?
For decommissioning of the refrigerator, please remove the
doors and seals to prevent children and animals from being
trapped.
Put the partition back to the original place to keep children
from entering the refrigerator easily.
Check the compressor label and nameplate at the rear of
the appliance to confirm the refrigerant used in the
refrigerator. If the product contains flammable gas (R600a),
please contact the related local agent to learn how to
decommission the product safely.
When cyclopentane is used as insulation gas, special
disposal procedure is required. Please contact relevant local
agent to learn how to dispose of the product in a safe and
environment-friendly manner, so as to ensure no damage to
the piping at the rear of the refrigerator before destruction.
The piping shall be destroyed in open space.
Warnings for decommissioning
5. Other relevant cautions:
Bottled items shall be stored against each other to prevent
them from rolling down.
Do not refreeze any food that does not thaw completely.
The refrigerator must be emptied and powered off if
leaving for a long trip.
Do not overload the refrigerator. It may fall when the door
is opened, and cause personal injury or damage.
The storage temperature recommended by manufacturer
shall be followed.
Do not put hands under the bottom of the refrigerator
during cleaning, or any sharp edges may cause personal
injury.

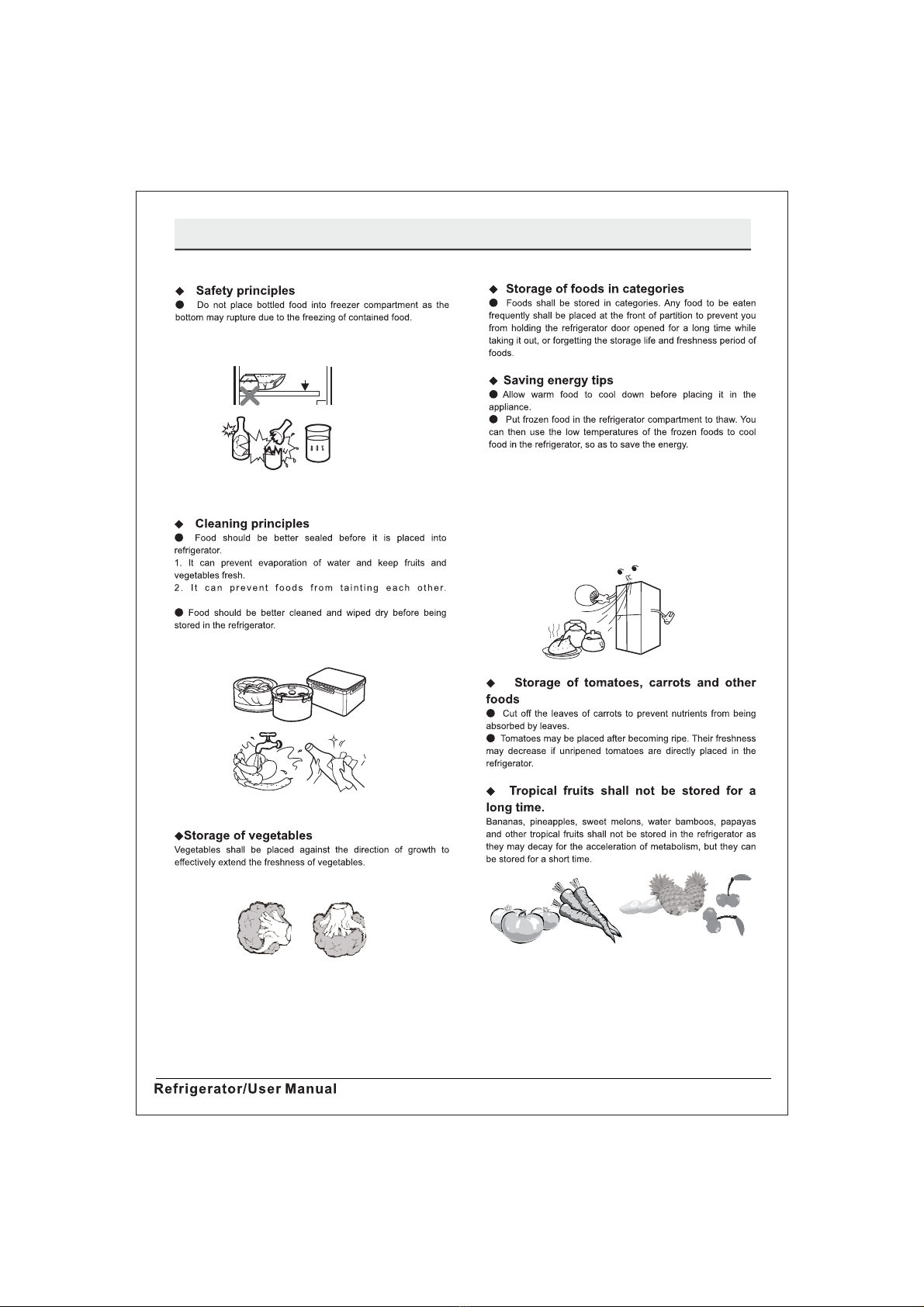

Additional instructions for correct use
?
?
?
Achieve the optimal performance only if:
The food is well packed or placed into a container before it
is placed into the freezer compartment of the refrigerator.
Any fresh food is not placed next to any frozen food.
Be aware of the longest storage period and expiration date
of frozen food.
If leaving home for no more than 3 weeks, it is not
necessary to disconnect the power supply. If leaving home
for more than 3 weeks or a longer period, please take out all
foods, disconnect the power supply of the refrigerator, clean
and dry the refrigerator.
?
------
------
------
------
?
?
?
?
?
?
If any problem happens to power supply, please consult
with local electricity bureau about the duration of outage.
In most cases, the power failure may be fixed within one to
two hours, which has no influence on the temperature inside
refrigerator, but the refrigerator door shall not be opened
frequently during power failure. If power failure lasts for
more than 24h, all frozen foods shall be taken out. Before
the temperature of freezer compartment rises to 0℃, ice
cubes should be taken out of ice cube tray and disposed of,
or they may melt into water or damage the appliance.
When the ambient temperature is lower than the designed
temperature of refrigerator, the refrigerator will operate for a
shorter period.
Do not store bananas, melons and other foods that may
easily decay at lower temperature.
For the optimal freezing effect, place the ice cube tray at the
designed position.
Before use, remove the bottom pad of refrigerator.
Safety Notes

-7/ -EN
Preparation and Requirements for Use
1. Installation environment 2. Preparation before use

-8/ -EN
Instructions for Use
Refrigerator compartment
Rack
Hold both edges and lift them up to take it out.
Crisper
Pull the crisper outwards and place the foods inside.
Shelf
LED light of refrigerator compartment
Fresh retaining
The use of door latch
Please use the door latch correctly according to Figure 1.
Use of door latch
Figure 1: Correct
Use of door latch
(in open position)
Figure 2: Wrong
shelf

-9/ -EN
Instructions for Use
How to use the freezer compartment
The temperature of the freezer compartment can be adjusted
between -16°C~-24°C. This compartment is used for storing fish,
meat and other food for a long time. Do not put too much fresh
food in the freezer at the same time, generally not more than the
freezing capacity standard of the freezer.

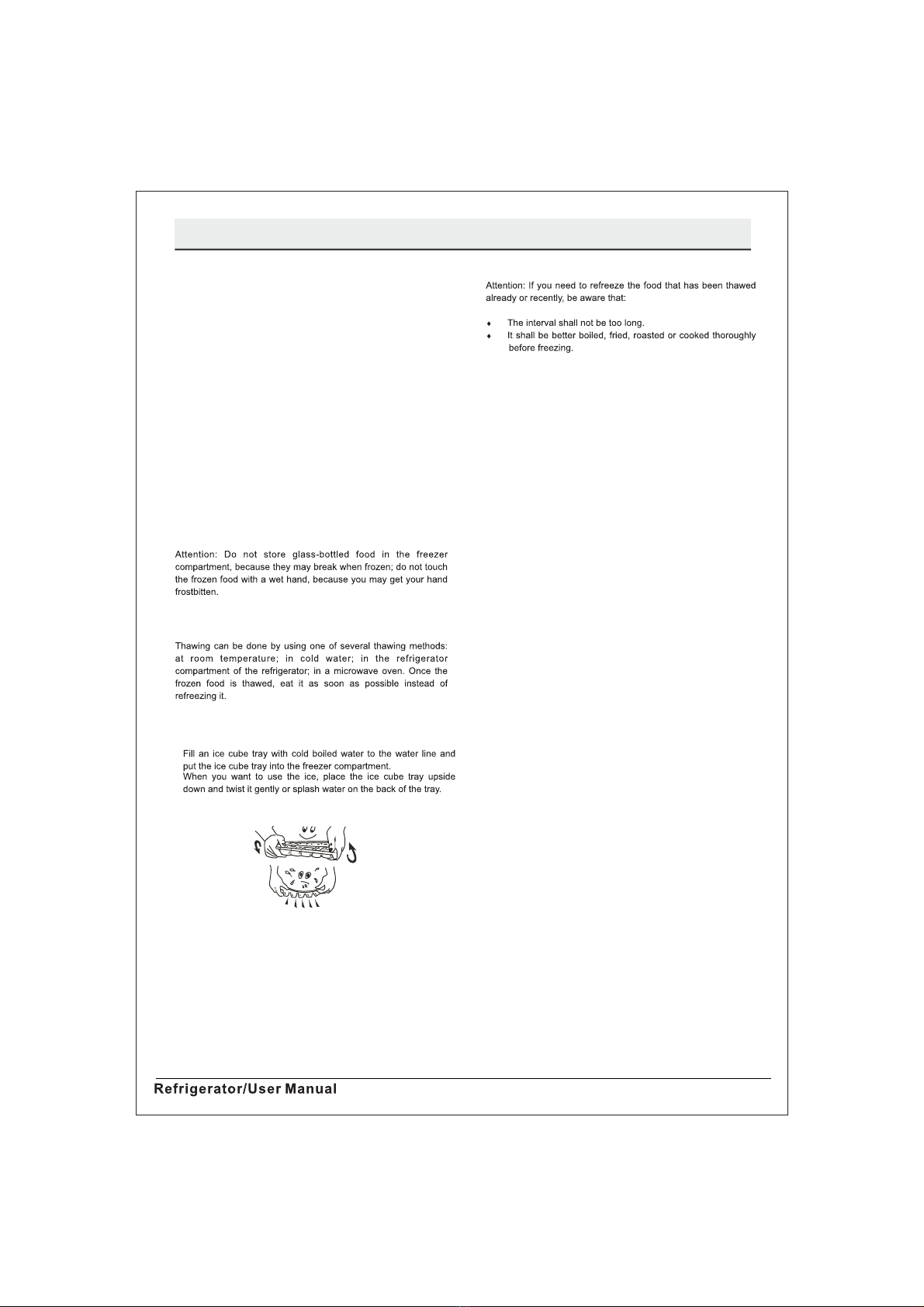

Thawing of frozen food
Use of ice cube trays
compartment range: adjustable about -3°C~ -18°C.
It is suitable for the short-term storage of fresh meat, fish,
shrimps and other seafood.
Cooked food can also be stored if separated from the fresh
food. It is clean and reassuring.
It is not suitable for the storage of ice-lolly, popsicle and ice
cream and other foods which need cryopreservation.
Wait until hot food cools down to room temperature before
putting it in the chilled compartment.
It is not suitable to store fruits, vegetables and eggs in it.
It is not suitable to store glass-packed beverages, etc.
How to use the variable temperature
compartment

Only for reference. The real object shall prevail.
Refrigerator
compartment
temperature
Variable
temperature
compartment
temperature
Freezer
compartment
temperature
Signs from left to right
Quick cooling,
quick freezing, holiday
Signs from left to right
Smart, fresh, locking
-10/ -EN
Hold down the unlock key “ ”(function
selection/hold for lock) for 3s. The lock sign “ ” lights
on. Except the lock/unlock key, all the keys are disabled.
To cancel this function, old down the unlock key
“ ”(function selection/hold for lock) again for 3s.
In the unlocking state, press the key “Refrigerator
Compartment Temperature Regulation” once to start the
following cycle from the current setting:
The set value flashes, and stops flashing if no key is pressed
within 5s or any key is pressed to start the setting of other
compartment. Then, the setting is effective. In this cycle “--” is the
function of refrigerator compartment off. When “--” is selected, the
refrigerator compartment is off.

Instructions for Use

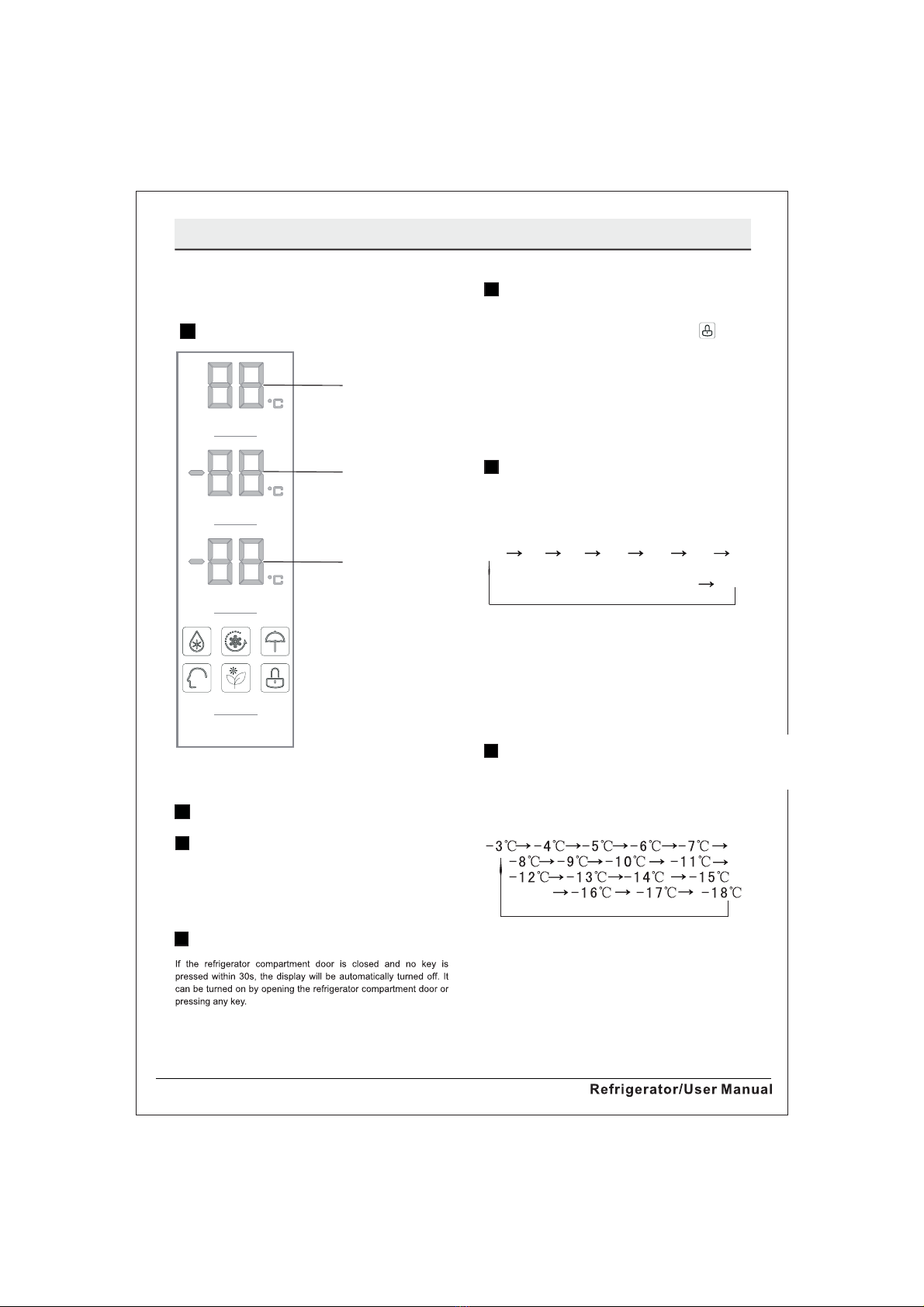

Introduction to Operation Panel
Operation Panel and Main Functions
Refrigerator adjustment
Freezer adjustment
Function selection
hold to unlock
Variable
temperature adjustment
After it is powered on for the first time, the display will be lit and
the refrigerator will automatically start the smart temperature
control mode. The temperature controls of the refrigerator and
freezer compartments do not need to be set by the user.
First power-on
Introduction to functional use
Display control
Locking and unlocking
Refrigerator compartment
temperature regulation
Function selection
hold to unlock
Function selection
hold to unlock
2℃℃℃ ℃ ℃℃℃
--
34 5 678
Variable temperature compartment
temperature adjustment
In the unlock state, press the key “ ” (variable
temperature adjustment) once to make the set value change in the
following cycle:
The set value flashes, and stops flashing if no key is pressed
within 5s or any key is pressed to start the setting of other
compartment. Then, the setting is effective.
Variable
temperature adjustment

-11/ -EN
In the unlocking state, press the key “Freezer Compartment
Temperature Regulation” once to start the following cycle from the
current setting:
The set temperature flashes. If no key is pressed within 5s, or the
select key for other compartment is pressed to enter the setting of
other compartment, the set temperature stops flashing, so the
setting becomes effective.
-16℃ -17℃ -18℃ -19℃ -20℃
-21℃ -22℃ -23℃ -24℃
Freezer compartment temperature
regulation
Function selection:
In the unlock state, press the unlock key “ ”(function
selection/hold for lock) to make refrigerator switch from the current
function (initial electrification is an intelligent function) in a cycle of
five functions, i.e. intelligent—rapid cooling—rapid
freezing—holiday- fresh-care. The sign and temperature value of
the selected function flash, and stop flashing if no key is pressed
within 5s. Then, the setting is effective.The current function indicator
lamp lights on. On the contrary, when the sign of function lights on,
select the sign of the function, so the sign and temperature value of
the function flash, and stop flashing and go out if no key is pressed
within 5s. Then, the corresponding setting of the function is
canceled.
Attention: This product has five work modes, i.e. intelligent,
rapid cooling, rapid freezing, holiday and compartment
temperature adjustment, but it can operate under one mode
only at one time. For instance, when refrigerator operates
under the intelligent state, if any work mode, i.e. rapid cooling,
rapid freezing, holiday or compartment temperature
adjustment, is set, the refrigerator will automatically exit the
intelligent mode and operate under the set work mode.
Description of functions:
Rapid cooling
When it is desired to cool down the food placed inside the
refrigerator room rapidly, this function can be enabled. Then, the
sign of rapid cooling “ ” lights on.
Rapid freezing
When it is desired to freeze the food placed inside the refrigerator
room rapidly, this function can be enabled. Then, the sign of rapid
freezing “ ” lights on.
Intelligent (recommended)
When the ambient temperature fluctuates dramatically, the
intelligent function can ensure normal operation of refrigerator.
Refrigerator can automatically adjust to the change of environment.
When this function is enabled, the sign “ ” lights on.
Holiday function
When you and your family plan a holiday, and refrigerator will not be
used during the period, this function can be enabled. In the holiday
mode, the refrigerator is in the state of energy conservation, so food
should not be stored in refrigerator compartment or variable
temperature compartment for a long time. When this function is
enabled, the sign “ ” lights on.
Attention:
1. Quick cooling and quick freezing can realize the rapid
cooling in the refrigerator compartment and the rapid
freezing in the freezer compartment, but power
consumption increases simultaneously.
2. After rapid cooling or rapid freezing satisfies the
requirements for performance, the function automatically
ends, and the corresponding sign goes out. The
refrigerator will operate at the original setting.
！
！
！
！
Instructions for Use
Function selection
hold to unlock

-12/ -EN
Freshness preservation
When the refrigerator is initially powered on, the freshness
preservation is automatically started. When it is in the unlocked
state, press the Function Selection/Hold to Unlock key till the
freshness icon “ ” flashes. If no operation lasts for 5s, the icon
“ ” goes out, and the freshness preservation is canceled. The
freshness preservation of refrigerator may operate simultaneously
with other functions.
Warning function for opened
refrigerator door
When the refrigerator door is open for over 2 minutes and is still not
closed or not closed tightly, there will be alternate display of “dA” and
temperature in the digital display zone, accompanied by a buzzing
sound until the door is closed; the display will stop the warning and
the buzzer will stop buzzing when the door is properly closed.
Memory function
When power is resumed after power outage, the refrigerator can
memorize the settings prior to power outage.
Refrigerator failure alarm
When any failure happens to refrigerator, the display panel of
refrigerator will automatically display the corresponding failure
alarm. When any failure occurs, please contact the after-sale
service department immediately.
No.
1
2
3
4
5
6
7
Fault Code Fault Name
Refrigerating sensor fails
Refrigerating defroster sensor fails
Interchangeable temperature sensor
Freezing sensor fails
Communication fault
Refrigeration fan fault
Freezing fan fault
8
Freezing defroster sensor fails
F1
F2
F3
F4
F5
CE
1E
2E
Instructions for Use

-13/ -EN
Refrigerator drawer partition
◆Do not place too many or heavy foods into
refrigerator
Foods should be stored separately to keep the passage for the
flow of cool air, so as to achieve better effect of refrigeration. Do
not store too many or heavy foods as they may break the
partition.
◆Foods preserved not in refrigerator
Pumpkins, potatoes, sweet potatoes, garlic, gingers, onions,
water chestnuts and other edible roots, etc.
Recommendations for Food Storage

-14/ -EN

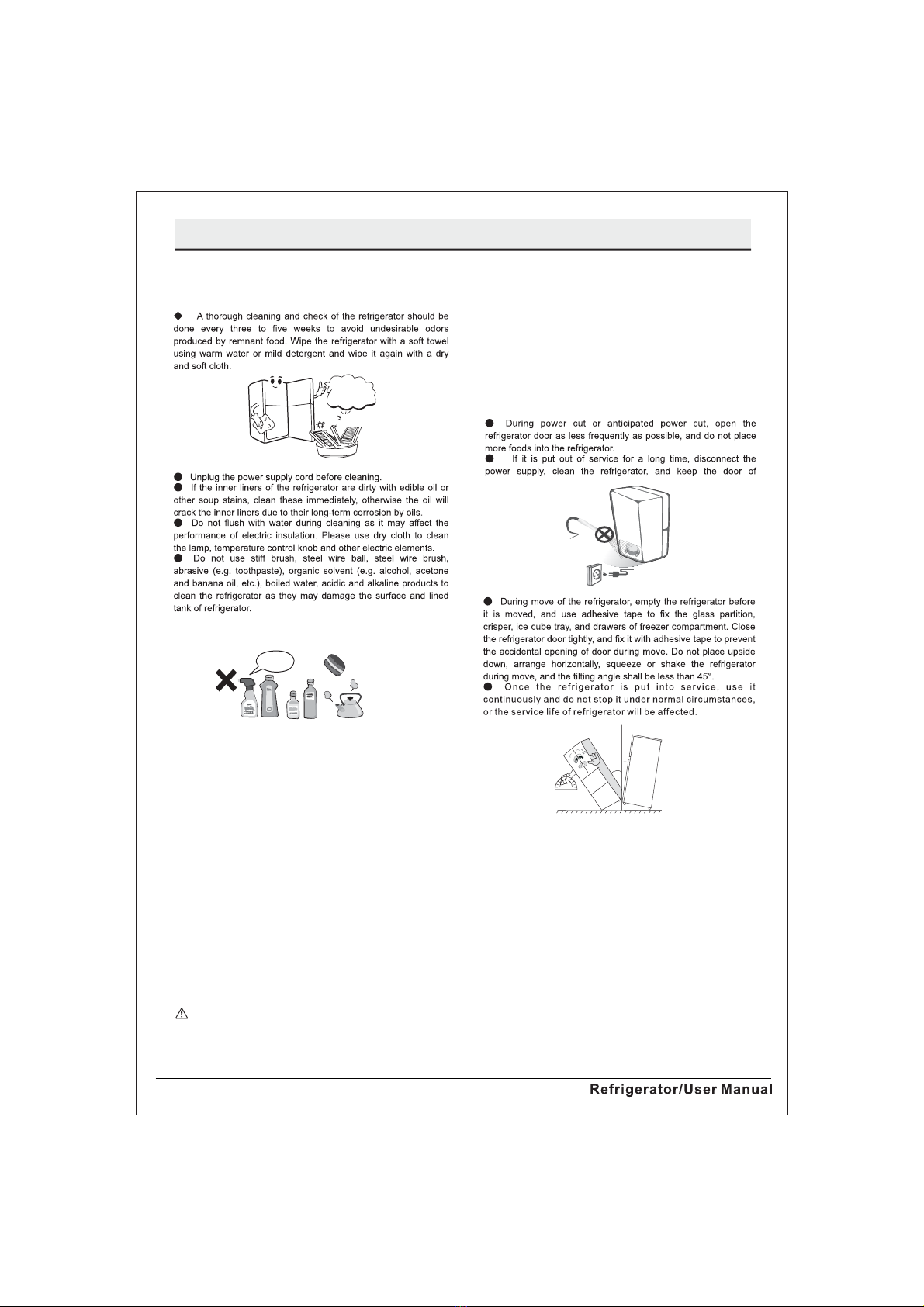

Cleaning and Maintenance
Cleaning
Out of service
Safety inspection after maintenance
◆Is power cord damaged?
◆Is power plug heating abnormally?
◆Is power plug is loose?
Unplug
45
20
The above products may damage the surface
and lined tank of refrigerator
Kitchen cleanser Gasoline, thinner,
alcohol, acid, petroleum
Boiled water
Brush
Alkaline
or weak
alkaline
Regular
cleaning
Defrosting
◆
℃
◆
When the frost layer in freezer compartment is about 5mm
thick, it must be defrosted manually. Disconnect the power supply,
take out all foods in the freezer compartment, and cover them with
clean cloth to prevent meltdown of foods. If the frost layer is loose
and soft, the freezer compartment door is left open for natural
defrosting. If the frost layer is thick, a bowl of warm water (about
50 ) is placed into the freezer compartment to speed up
defrosting, and the freezer compartment door is left open for frost
melting. After defrosting, wipe clean the walls of freezer
compartment and place the foods back.
The refrigerator compartment is featured by automatic
defrosting, and the melt-water of frost flows into the catch tray
above the compressor and automatically evaporates (but the
discharge hole must be kept unblocked).
Except otherwise recommended by manufacturer, do not use
any mechanical device or take any other means to speed up the
process of defrosting.
Warning

-15/ -EN
Problems during operation
Fault analysis and debugging
Fault Possible Reasons
Problems & Solutions
1. There is any problem of external power
supply to the refrigerator.
2. The power plug/socket is loose.
Fault Possible Reasons
Check the power line
Repair
The lamp inside refrigerator
lights up, but the compressor
is not started, but the sound
of “buzzing” is heard
Immediately stop till the voltage is recovered
Reduce the frequency of opening door
Place reasonably
Send to repair agent for repair
Repair the door seal

-16/ -EN
SNNST、、
Grade I
220V~ 50Hz 0 85A//.
4W
0.89kWh/24h
42dB(A)
10kg/24h
R600a/60g
97/103
Cyclopentane
BCD-428WLMGG
70L
Grade I
428L
288L
70L
784 701 1818**
230W
Model
Climate type
Type of protection against electric
shock
Effective
Volume
Rated voltage/rated frequency/
rated current
Total effective Volume
Lighting power of refrigerator
compartment
Power consumption
Power consumption grade
Output power
Noise level
Refrigeration capacity
Refrigerant and charge
Foaming agent
Net/gross weight (kg)
Outside dimension (W*D*H) (mm)
Accessories may be adjusted without notice due to product
improvement.
Circuit Diagram
Power plug
Display
Main control board
Overload
protector
Compressor
Starter
Condenser
Frost heater
Longeron heater
Magnetic valve
Chilled compartment air door
Chilled door
switch
Freezer door
switch
Refrigerator door
switch
Refrigerator
LED light
Fresh light
Refrigerator fan
Refrigerator sensor
Freezer sensor
Freezer defrosting sensor
Chilled sensor
Freezer fan
Refrigerator defrosting sensor
Technical parameters Packing List
Technical Parameters, Circuit Diagram and Packing List
Standards for product:
GB4706 1 GB4706 13 GB4343 1
GB17625.1 GB/T8059.4 GB12021.2
GB19606
.. .
Freezer Compartment
Volume(lt)
Fresh Food Compart-
ment Volume(lt)
Varoable Compartment
Volume(lt)
Glass shelf
Crisper
Crisper cover
Ice cube tray
Egg holder
Upper rack
Open-type
drawer
Long drawer
Short drawer
User manual
Certificate
3
2
1
1
1
4
1
2
2
2
1
1
Bottle holder
2
BCD-428WLMGG
Lower rack
Name
Model
Warranty card 1

○○ ○ ○ ○
○○ ○ ○ ○
○○ ○ ○ ○
○○ ○ ○ ○
○○ ○ ○ ○
○○ ○ ○ ○
○○ ○ ○ ○
○○ ○ ○ ○
○
○
○
○
○
○
○○ ○ ○ ○○
○○ ○ ○ ○○
Damper
○○ ○ ○ ○○
○○ ○ ○ ○○
-17/ -EN
Content of Hazardous Substance
Toxic and Hazardous Substance or Element
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
chromium
(Cr(VI))
Polybromin-
ated
Biphenyls
(PBB)
Poly Brominated
Diphenyl Ethers
(PBDE)
Part name
Body and its components
Door and its components
Thermal insulation material
Refrigeration tube
Compressor
Refrigerant
Controller and electrical
elements
Computer board
Fan motor
Power cord and connecting
wire
Package printing assembly
