Aluratek ADMPF214B User manual

mnl M10423 Copyright © 2017 Aluratek, Inc. All Rights Reserved.
aluratek.com
model ADMPF214B
Instructional Manual
14” Digital Photo Frame

04
06
07
08
08
09
10
11
13
14
15
16
Table of Contents
Frame Features .............................................................................................................
Frame Control Close-up ...............................................................................................
Remote Control Close-up ..............................................................................................
Package Contents .........................................................................................................
Getting Started ...............................................................................................................
Operating Instructions
Viewing Photos .........................................................................................................
Transferring Files from your PC / Mac to the Frame’s Internal Memory....................
Photo Function
Photo Set-up .............................................................................................................
Video Function
Video Set-up .............................................................................................................
Music Function
Music Set-up .............................................................................................................
System Function
System Set-up ..........................................................................................................
Calendar Function
Calendar Set-up ........................................................................................................

17
18
19
Table of Contents
Technical Support ..........................................................................................................
Radio and TV Interference Statement ...........................................................................
Warranty ........................................................................................................................

1
2
14” LCD Screen
Black Matte Frame
Remote Sensor
White Matte
SD/SDHC Card Slot
Headphone Jack
3
4
5
7
8
9
10
13
14
AConnect a USB hard drive, USB flash drive or SD/SDHC card to easily access
and share your favorite pictures / video / music.
Transfer and store files quickly and easily from your personal computer to the
frame's 4GB built-in memory with hi-speed USB 2.0.
USB 2.0 Port
Mini USB Port
Power Adapter Port
Menu Button
Directional Keypad
Power Button
Wall Mount Holes
Speakers
Frame Stand
Security Lock
1
2
A
3
4
B
B
6
5
12
7
13
14
89
11
15
16
10
6
11
12
15
16
Frame Features
4

1
2
14” LCD Screen
Black Matte Frame
Remote Sensor
White Matte
SD/SDHC Card Slot
Headphone Jack
3
4
5
7
8
9
10
13
14
AConnect a USB hard drive, USB flash drive or SD/SDHC card to easily access
and share your favorite pictures / video / music.
Transfer and store files quickly and easily from your personal computer to the
frame's 4GB built-in memory with hi-speed USB 2.0.
USB 2.0 Port
Mini USB Port
Power Adapter Port
Menu Button
Directional Keypad
Power Button
Wall Mount Holes
Speakers
Frame Stand
Security Lock
1
2
A
3
4
B
B
6
5
12
7
13
14
89
11
15
16
10
6
11
12
15
16
5

6
Frame Control Close-Up
1 - Power On / O󰀨
2- Menu
(a) Press to return to previous screen
(b) Press & hold to return to Main Menu
3 - ►║ Play / Pause
(a) Press to select option on Main Menu
(b) Press to pause slideshow, music or video
4 - |◄◄ Up Arrow
(a) Press to navigate UP when selecting options
(b) Press to select Previous le (Photo & Music mode)
(c) Press & hold to Fast Forward
5 - ►►| Down Arrow
(a) Press to navigate DOWN when selecting options
(b) Press to select Next le (Photo & Music mode)
(c) Press & hold to Scan Backward
6 - Left Arrow
(a) Press to navigate LEFT when selecting options
(b) Press & hold to lower volume
7 - Right Arrow
(a) Press to navigate RIGHT when selection options
(b) Press & hold to increase volume
MENU
1
2
4
3
7
5
6

7
1
POWER
SETUP
VOL -
MENU
ZOOM
ROTATE
MUTE
RETURN
VOL +
BGM
OK
Remote Control Close-Up
2
311
512
4
6
13

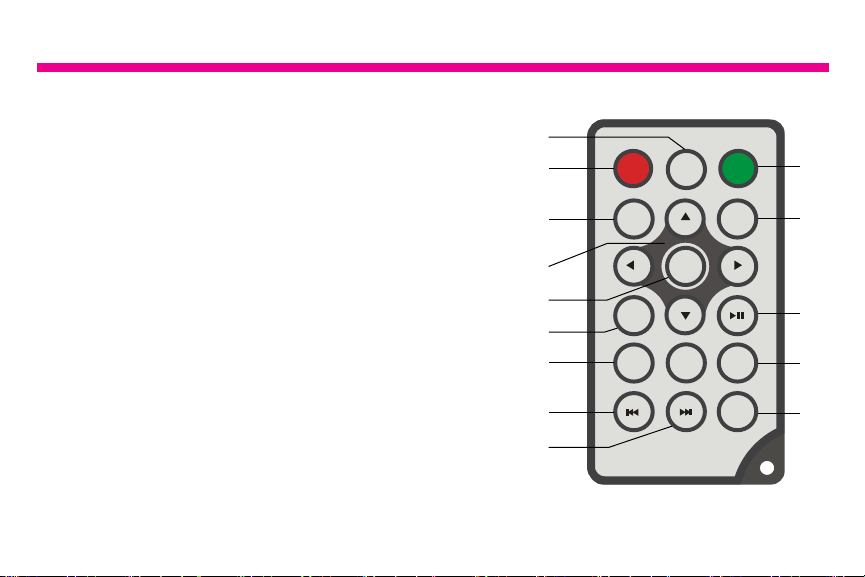

1. BGM - Start slideshow with background music
(If there are music les on the same memory media)
2. Power
3. Menu - Takes you to the main menu
4. Up, Down, Left, Right Arrows - Use arrow keys
to navigate your way through various menus
5. OK
6. Setup - Takes you to the setup menu
7. Volume + / Volume -
8. Advance to Previous
9. Advance to Next
10. Mute
11. Return
12. Play / Pause
13. Zoom
14. Rotate
10
7
14
8
9

Getting Started
Plug in the power adapter and press the to power on the photo frame.
8
Package Contents
Your order has been carefully packaged and inspected. The following accessories should
be included in your package. Please inspect the contents of the package to ensure that
you have received all items and that nothing has been damaged. If you discover a problem,
please contact us immediately for assistance.
• Power Adapter
• Remote Control
• USB 2.0 Cable
• Stand de Cadre
• Registration Card

9
Operating Instructions
Viewing Photos
• Please insert your memory card (SDHC,SD) at this time.
• The frame will start slideshow automatically when the card is inserted.
• The slideshow can be stopped by pressing the “►||” button on the frame. You can
then press the “◄” or “►” button to see the next or previous picture.

10
Operating Instructions
Transferring Files from your PC / Mac to the Frame’s Internal Memory
• A USB cable is included with your digital frame to connect it to your PC/ MAC. Connect
the small connector to your digital frame and the larger connector to your PC / MAC.
• Once connected, the frame will display a USB connector on the screen. On a PC, the
frame’s internal memory will appear as a removable drive when viewed in My Computer.
On a Mac, the frame will appear as a drive icon on the desktop.
• Copy your photo, video and music les from your PC / MAC into the icon representing
the frame’s internal memory. When nished disconnect the USB cable from the PC or
MAC. (Note: For a Mac, eject the drive icon before disconnecting the USB cable.)
• The frame will return to normal operation once it is disconnected from your PC / MAC.

11
Photo Function
Photo Setup
From the main menu, press the “◄” or “►” buttons to select the and press
“►|| / OK” button to conrm. Press the “►|| / OK” button again to access the “Photo
Setup” menu.
You will see the following options: Display Mode, Music, Display Ratio, Slide Interval,
Slideshow Repeat, Slide E󰀨ect Transition, Slide Mode and Playback Mode.
Use the “▲” or “▼” button to cursor through the menu. To make any changes to the
setup option highlighted, press the “◄” or “►” button to select the desired option.
Once your selection has been made, press the “▲” or “▼” button to move on to the
next menu option.
Press the “Return” button to return to the Setup menu. Press the “Return” button
again to return to the Main menu.

12
Photo Function
To select pictures from either the SD card or the USB drive, press the “Return” button
from the Main menu. Use “◄” or “►” button to select desired media and press “►|| / OK”
button to conrm.
Main Menu:
Photo Music Video
Calendar Folder Settings

13
Video Function
Video Setup
From the main menu, press the “◄” or “►” buttons to select the and press “►|| / OK”
button to conrm. Use the “▲” or “▼” button to cursor to “Video Setup” menu. Press the
“►|| / OK” button again to access the “Video Setup” menu.
You will see the following options: Playback Mode, and Display Ratio.
Use the “▲” or “▼” button to cursor through the menu. To make any changes to the setup
option highlighted, press the “◄” or “►” button to select the desired option.
Once your selection has been made, press the “▲” or “▼” button to move on to the next
menu option.
Press the “Return” button to return to the Setup menu. Press the “Return” button again to
return to the Main menu.

14
Music Function
Music setup
From the main menu, press the “◄” or “►” buttons to select the and press “►|| / OK”
button to conrm. Use the “▲” or “▼” button to cursor to “Music Setup” menu. Press the
“►|| / OK” button again to access the “Music Setup” menu.
You will see the following options: Play Mode.
To change the Play Mode option, press the “►|| / OK” button to highlight the option, press
the “◄” or “►” button to select the desired option.
Once your selection has been made, press the “Return” button to return to the Setup
menu. Press the “Return” button again to return to the Main menu.

15
System Function
System Setup
From the main menu, press the “◄” or “►” buttons to select the and press “►|| / OK”
button to conrm. Use the “▲” or “▼” button to cursor to “System Setup” menu.
Press the “►|| / OK” button again to access the “System Setup” menu.
You will see the following options: Language, GrayScale, Brightness, Contrast, Power O󰀨,
Power On, Power Frequency, Start Up Mode, Firmware Version, and Reset Default Settings.
Use the “▲” or “▼” button to cursor through the menu. To make any changes to the setup
option highlighted, press the “◄” or “►” button to select the desired option.
Once your selection has been made, press the “▲” or “▼” button to move on to the next
menu option.
To make changes to the Power O󰀨/Power On option, once it is highlighted, press “►||” button
to bring up the submenu to change the time or press the “▲” and “▼” to switch it ON / OFF.
Use the “◄” or “►” to highlight either hour or minutes and use “▲” and “▼” to set the desired
time. Once the desired time is shown, press “►|| / OK” button to conrm or “Return” to cancel.
Press the “Return” button to return to the Setup menu. Press the “Return” button again to
return to the Main menu.

16
Calendar Function
Calendar Setup
From the main menu, press the “◄” or “►” buttons to select the and press “►|| / OK”
button to conrm. Use the “▲” or “▼” button to cursor to “Calendar Setup” menu.
Press the “►|| / OK” button again to access the “Calendar Setup” menu.
You will see the following options: Adjust Date, Adjust Time, Time Format, Alarm Status,
Alarm Time and Alarm Frequency.
Use the “▲” or “▼” button to cursor through the menu. To make changes to Adjust Date
and Adjust Time option, once it is highlighted, press “►|| / OK” button to bring up the
submenu to change the date or time. Use the “◄” or “►” to highlight and use “▲” and
“▼” to set the desired number. Once the desired date or time is shown, press “►|| / OK”
button to conrm or “Return” to cancel
Press the “Return” button to return to the Setup menu. Press the “Return” button again to
return to the Main menu.

17
Technical Support
We are committed to providing the best customer service support. If you need assistance
with your Aluratek product, please contact the Aluratek Technical Support department prior
to returning this device. Reach out to us in any of the following ways:
E-mail: [email protected]
Web: aluratek.com/helpdesk
Local (Irvine, CA): 714-586-8730
Toll free: 1-866-580-1978

18
Radio and TV Interference Statement
WARNING!!! This equipment has been tested and found to comply with the limits of a Class
B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation
This equipment generates, uses and can radiate radio frequency energy and, if not in-
stalled and used in accordance with the instruction, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or televi-
sion reception, which can be determined by turning the equipment o󰀨 and on, the user is
encouraged to try to correct the interference by whatever measures may be required to
correct the interference.

19
Warranty
Aluratek warrants this product against defect in material or workmanship for 1 Year from the date of
purchase.
This warranty becomes invalid if the factory-supplied serial number or “warranty void” sticker has
been removed or altered on the product.
This warranty does not cover:
A) Cosmetic damage or damage due to acts of God
B) Accident, misuse, abuse, negligence or modication of any part of the product.
C) Damage due to improper operation or maintenance, connection to improper equipment,
or attempted repair by anyone other than Aluratek.
D) Products sold AS IS or WITH FAULTS.
IN NO EVENT SHALL ALURATEK’S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT
FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING
FROM THE USE OF THE PRODUCT, IT’S ACCOMPANYING SOFTWARE, OR IT’S DOCUMENTATION.
Aluratek makes no warranty or representation, expressed, implied, or statutory, with respect to it’s
products, contents or use of this documentation and all accompanying software, and specically
disclaims it’s quality, performance, merchantability, or tness for any particular purpose. Aluratek
reserves the right to revise or update it’s product, software or documentation without obligation to
notify any individual or entity.

Aluratek, Inc. 15241 Barranca Pkwy. Irvine, CA 92618 [email protected] 714.586.8730 • o󰀩ce 714.586.8792 • fax
aluratek.com
