Alvey 45KGCZ User manual

Key
Part
Description
Key
Part
Description
1
R6E2
Spindle Screw Set
11
R7J9
Pawl
2
R7E3
Handle Plate Assy
12
R5G4
Drag Pawl Spring
3
R7F1
Handle Plate Lock Nut
13
R7K9
Drag Knob Assy
4
R7D3
Star Drag Nut
14
R6A22
Spindle
5
R4A
Spool Only
15
R6J7
Spindle Washer
6
R7B/C3
Drag Washer Set
16
R1A
Reel without Spool
7
R7L3
Silent Drag Cam
17
R6F1
Spindle Hex Nut
8
R5B6
Fish Alert Wheel
18
R5E9
Fish Alert Button
9
R7H4
Friction Tube Washer
19
LGIK
Line Guide
10
R7A2
Drag Friction Tube
Special Note: The 45KGCZ cannot be converted from right hand wind to left hand wind.
A left-hand wind version is available.
45KGCZ
CONGRATULATIONS and thank you for purchasing one of our Australian
made easy cast kayak reels as your choice of fishing reel. These
reels are constructed from the highest quality materials to ensure your
reel will last for many years.
Plus, all these other
advantages -
Long, accurate casts:
Now, with only the minimum
of practise you will be able to
cast further and more
accurately than ever before.
Control large fish with
ease: Powerful one-to-one
wind means you only need
about a quarter of the effort
required to lift a similar
weight on a spinning reel.
You can fish harder and
longer: Simple, rugged
construction means you can
forget that fiddly
maintenance, because your
Alvey reel will resist the
effects of saltwater and
sand.
More comfortable fishing:
Low winch-mount rods let
you fish with your arms in a
relaxed position.
No line twist: Use a small
free-running swivel as the
last piece in any rig and
you’ll minimise any line twist.
(See illustrations inside)
Alvey 10 Year Guarantee:
Any faulty Alvey part or reel
will be replaced at no charge
providing the manufacturer
finds the part or reel has had
normal usage and attention.
Reel Icon Pty Ltd Trading as
Alvey Reels Australia ABN 57 625 261 707
2-6 Antimony Street Carole Park Qld 4300
t: [phone] f: [phone]
For more hints and tips on maintenance,
please visit the spare parts page at
www.alvey.com.au
e: [email protected]
#alveyreels
1
2
3
4
5
6
7
8
16
Tygaflor
Metal
Outer
Metal
Inner Tygaflor
Tygaflor
Metal
Outer
Bellville
Metal
Inner
Special Features
→Star Drag
→Easy Cast
Operation
→Belleville Power
Washer & Multi-
plate Clutch
→On / Off Drag
→Line Guide Clip
Correct assembly for silent drag pawl & cam
Ensure that Drag pawl pin is inside of silent
drag cam slot or reel will click when winding.
Spring should be in front of pin for correct
operation of the drag.
When assembling spool to reel have drag in
OFF position.

Recommended Line Size
Your 45KGCZ reel will hold approximately
500 metres of 5 kg line. If fishing near rocks
or other hazards use heavier line to help
avoid line breakage.
Filling the Spool with Line
Always take the line from the front of the
dispenser, never the side.
Wind firmly and evenly onto the spool,
spreading the line with your fingers to give a
smooth casting base.
Never stretch a nylon monofilament onto a
spool; when it goes back to its original length
it will exert strong enough crushing action to
damage your spool.
Never allow loose coils to develop on your
spool through careless uneven winding.
Adopt the habit of applying light finger tension
when retrieving line and spread evenly over
its bed.
Selecting a Rod
Your rod and reel outfit should be
balanced so you can hold it comfortably
over long periods. A matched set, which
has a point of balance where it’s held in
the left hand, will give you the most
comfortable posture. The ideal rod for this
reel should be 2.0 to 2.5m in length.
The use of a short butt brings the reel into
a natural position for rewinding with your
elbows at your side and without strain.

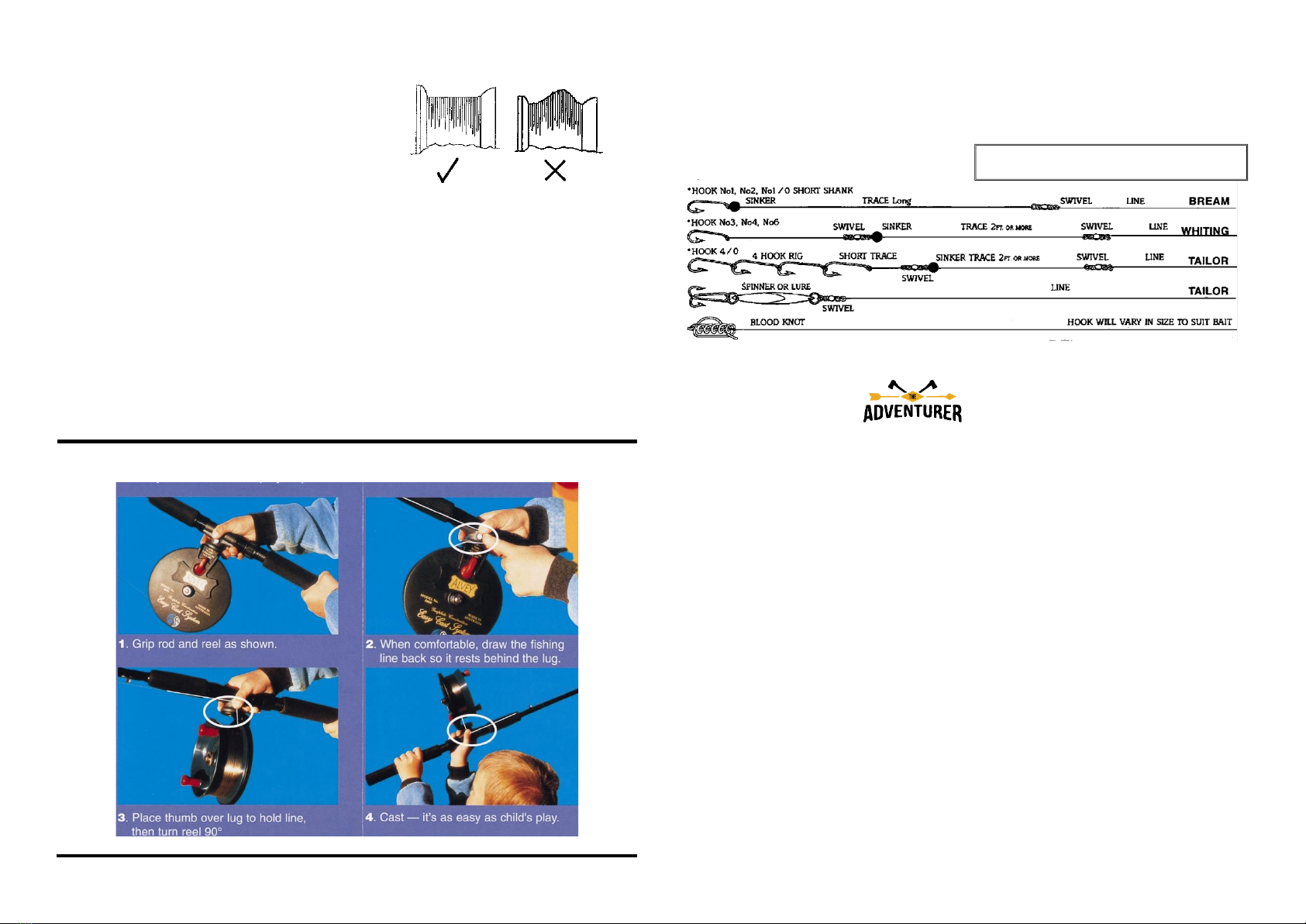

Four easy steps to casting like a champion
Rigs & Swivels
When used properly a brass swivel is a very
inexpensive and efficient way to keep a
fishing line in good condition. Curls and twists
in a line can be caused by many things, but
can be kept to a minimum by the correct use
of a swivel
Swivel Sizes
Line breaking strain
Swivel size
1 –5 kg
No 14
5 –8 kg
No 12
8 –15 kg
No 10
15 –20 kg
No 9
45KGCZ
Setting the Drag
Make sure the drag activating lever on the
back of the reel is in the ‘On’ position.
Using a small spring balance pull the line
off the reel. Set the tension of the drag to
be approximately one third of the breaking
strain of your line by rotating the star on
the front of the reel. (Clockwise to
increase tension.)
It is better to have the drag set light as a
short sharp run from a large fish could
snap the line on an over set drag.
The tension is easily adjusted while
fighting the fish and the unique style of the
Alvey reel allows extra drag pressure to
be applied directly to the spool by using
the palm of your hand against the bottom
of the reel.
Maintenance
After each day of fishing wash off the salt
and sand. Use a light machine oil on
working spindles, handle, index
mechanism and drag pawl. Lubricate as
above before storage.
Non-Reversing Drag Models
The non-reverse series of reels allows line to
be released under a pre-set pressure while
the reel handle remains in a stationary
position. The BC models incorporate the new
Belleville Power Washer that improves the
range of tension settings available through
the star drag system. The position of the star
on the front of the reel allows easy
adjustment while playing a fish.
The small lever on the back of the reel
operates the on/off mechanism that allows
you to disengage the non-reverse action
when required.
Playing the fish
Once the fish has been hooked always keep
a bend in the rod by holding it at an angle to
the fish. With the power of an Alvey reel you
are in control. Do not rush the fish. Allow
the fish to tire by keeping a steady pressure
on the spool. Many times the fish is lost in
the shore break. Keep a steady tension on
your line, a bend in the rod and ease the fish
ashore.
Swivel must be above sinker
