Alzatex R2020 User manual

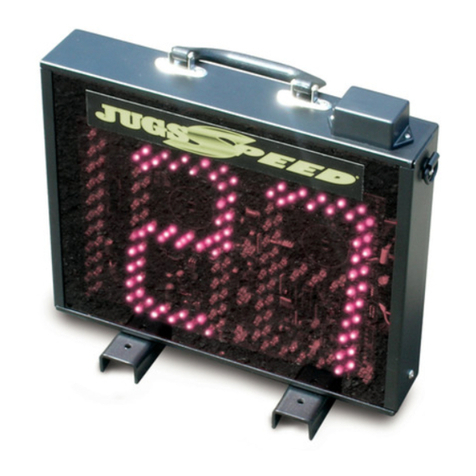

User manual R2020 Wired Display
User manual for R2020 Wired
display with 7” high digits.
The display includes an internal battery pack with integrated
battery charger, and a DB-9 data port for connecting to a Jugs
radar gun.
Whats Included
The following items are included with each R 0 0 radar gun
display.
Display with 7 inch high digits can display speeds
from 0 to 199.
Internal attery pack with integrated attery charger,
for porta le operation up to 7 hours.
Wall transformer to charge the attery inside the
display
Operation
When setting up the display and radar gun, follow these steps.
Set the display in the field for easy viewing, with the
radar gun aimed at the o ject who’s speed will e
measured, as close to head on as possi le.
Push and hold the ON utton on the rear of the
display for at least 2 seconds. The unit should show
a test pattern when turning on.
Inspect the connectors on the radar gun and display
to insure that no pins are ent or roken.
Attach the Jugs radar gun ca le to the DB-9 (9 pin)
connector on the display. Be very careful to not end
the pins when making the connection.
Tighten the 2 thum screws. This will keep the
connector securely attached to the display
Attach the other end of the ca le to the data port on
the radar gun.
Press the radar gun Power utton, the gun should
come on and show “C” in its display. The R2020
should show “00” indicating it got data from the gun.
To test the gun, thump the tuning fork supplied with
the radar gun and place it in front of the radar gun.
The display should show the speed value
represented y the tuning fork on oth the radar gun
display and on the R2020 display.
You are now ready to use the radar gun system.
When finished for the day, re-connect the display to the
wall transformer and connect the wall transformer to AC
power, to recharge and maintain the battery when not in
use.
Storage
When the display is not used for extended periods of time, the
internal batteries will slowly discharge over time.
Manufactured for the Jugs Company y Alzatex. Inc. 1 www.alzatex.com 05/20/08

User manual R2020 Wired Display
Storage (Continued)
It is very important to not permit the Gell Cell
atteries used inside these displays to completely
discharge. The attery life will e shortened
significantly if they are allowed to discharge too
much.
When the displays are NOT eing used, Push and
Hold the OFF utton to turn the display off, then
connect the display to the wall transformer and plug
the transformer into AC power. The attery charger
is an intelligent one that maintains a trickle charge to
keep the atteries at full charge, ut shuts off when
necessary to prevent any possi ility of over
charging.
Your display will always e ready for use and should
e a le to run all day on a single charge.
Display Specifications
Controls: Two uttons. One utton is used to turn
the power on and also to generate a test pattern on
the display. The other utton is used to turn the
display off.
Indicators: LED indicators to indicate Power On and
charging status.
DB-9 RS-232 Connector: RS-232 serial data input
connector so the display can e used as a wired
display.
TX-422 Connector: RS-422 serial data connector to
transmit serial data to other displays or to a
computer.
RX-422 Connector: RS-422 serial data connector to
receive serial data from another display or radar gun
with RS-422 port.
Data rate: 1,200 aud, 8 its, No parity,1 stop it, on
the serial port.
Battery: Dual 6 volt, 7AH gel cell atteries.
Power requirements: 12-15VAC or 15-18VDC input.
Current consumption: Up to 1.7A with all segments
on and charging depleted atteries. Minimum
current 80mA with power on, all segments off and
fully charged atteries. Has a quiescent current of
125uA with power off.
Dimensions: 10.5”H x 13.5”L x 2.5”D. Overall
including feet and handle 12.0”H x 13.5”L x 2.5”D.
Weight of display: 10.25L s.
Accessories (sold separately)
•Jugs R 050 Radar Gun.
•Jugs R 015 Radar Gun data cable.
•Jugs R 040 Wall Transformer.
Manufactured for the Jugs Company y Alzatex. Inc. 2 www.alzatex.com 05/20/08

User manual R2020 Wired Display
The R 0 0 includes a DB9 connector for connecting to a Jugs
radar gun.
Whats Included
The following items are included with each radar gun display.
Display with 7 inch high digits can display speeds
from 0 to 199.
Includes an integrated attery charger and
connections for the radar gun. xxx
Wall transformer to operate the display.
Optional Battery pack with integrated attery charger
for porta le use. xxx
Operation
The R 0 0 is easy to use. .
Set the R2020 display in the field where it is
convenient for easy viewing. It is est to have the
radar gun in a line of sight etween the display and
the radar gun.
Attach the radar gun ca le to the DB9 (9 pin
connector) on the rear of the unit. Be very careful to
not end the pins when making the connection.
Tighten the 2 thum screws on the DB9 connector.
This will keep the connector securely attached to the
ack of the display.
Connect the other end of the ca le to the Radar
Gun.
Plug the XXXXX into either a attery pack or use a
wall adapter to connect to AC power. xxx
Press and hold the ON utton for 2-3 seconds until
the display lights up.
The display should show a test pattern when turning
on.
The Tap the ON utton on the radar gun. The
display on the radar gun should light up.
Test the connection. Thump the tuning fork supplied
with the radar gun and place it in front of the radar
gun. The display should show the speed value
represented y the tuning fork on oth the radar gun
and on the R2020 display.
You are now ready for the game or other activity.
When finished for the day, re-connect the battery pack to
AC power when not in use.
Storage
When the display is not used for extended periods of time, the
internal batteries will slowly discharge over time.
It is very important to not permit the AGM or Gell
Cell atteries used in the external attery pack to
dischage elow 11 volts. Over discharging can ruin
the atteries.
When the displays are NOT eing used, it is est to
keep oth the display and the attery pack plugged
into the charger. The atteries cannot e over
charged. The attery charger is an intelligent attery
charger that maintains a trickle charge to keep the
atteries at full charge, ut shuts off when necessary
to prevent any possi ility of over charging.
Your display will always be ready for use and should be
able to run all day on a single charge.
Display Specifications
Controls: Two uttons. One utton is used to turn
the power on and also to generate a test pattern on
the display. The other utton is used to turn the
display off.
Indicators: LED indicators to indicate charging and
charge status.
RS-232 Connector: RS-232 serial data connector so
the display can e used as a wired display.
TX-422 Connector: RS-422 serial data connector to
transmit serial data to other displays or to a
computer.
RX-422 Connector: RS-422 serial data connector
receive serial data from another display or radar gun
with RS-422 port.
Data rate: 1,200 aud on the serial port when used
as a wired display.
Manufactured for the Jugs Company y Alzatex. Inc. 3 www.alzatex.com 05/20/08

User manual R2020 Wired Display
Battery: Dual 6 volt, 7AH gell cell atteries.
Power requirements: 12-15VAC input or 15-18VDC
input.
Current consumption: Up to 2.75A with all segments
on. Minimum current 80mA with power on and all
segments off. Consumes a quiescent current of
125uA with power off.
Dimensions: 30” x 36” x 3”. Overall dimensions
including feet 32” x 36” x 3”.
Weight of display: 1LB.
Battery Pack Specifications
Indicators: LED indicators to indicate charging and
charge status.
RS-232 Connector: RS-232 serial data connector so
the display can e used as a wired display.
TX-422 Connector: RS-422 serial data connector to
transmit serial data to other displays or to a
computer.
RX-422 Connector: RS-422 serial data connector
receive serial data from another display or radar gun
with RS-422 port. (Not on all models)
Data rate: 1,200 aud on the serial port etween the
radar gun and the attery pack / wireless transmitter.
Battery: 12 volt, 4AH gell cell attery.
Power requirements: 12-15VAC input or 15-18VDC
input.
Current consumption: Up to 0.85A when the radar
gun is taking a speed measurement. Consumes a
quiescent current of 50mA with power on.
Consumes a quiescent current of 1uA with power
off.
Dimensions: 6” x 6” x 6”.
Weight of display: 1LB.
Trou leshooting
Inspect the connector on the radar gun to insure that
no pins are ent or roken.

Manufactured for the Jugs Company y Alzatex. Inc. 4 www.alzatex.com 05/20/08
