AM BICKFORD VAPOMATIC User manual

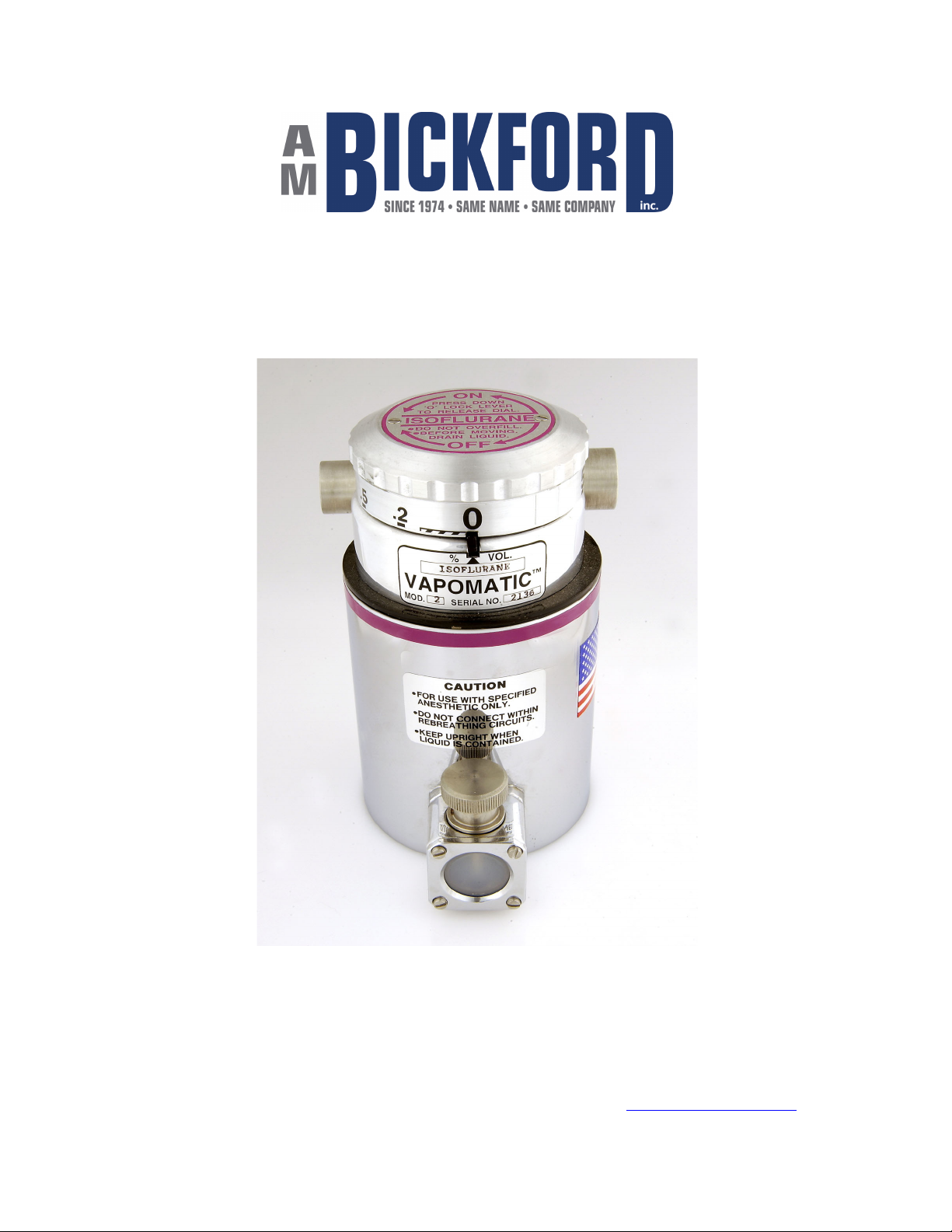

VAPOMATIC ANESTHETIC VAPORIZER
INSTRUCTION MANUAL
SOLD FOR VETERINARY USE ONLY BY:
A.M. BICKFORD, INC.
12318 BIG TREE ROAD
WALES CENTER, NY 14169
2
VAPOMATIC ANESTHETIC VAPORIZER
INSTALLATION:
The Vapomatic is normally mounted on the back bar of an anesthetic machine or
in any case it should be solidly mounted to a rigid structure in an upright position. Two
tapped holes in the rear mounting face (1/4”-20) are provided for mounting. Since these
are “blind” holes of 5/16” depth, screws of a proper length must be used so that they may

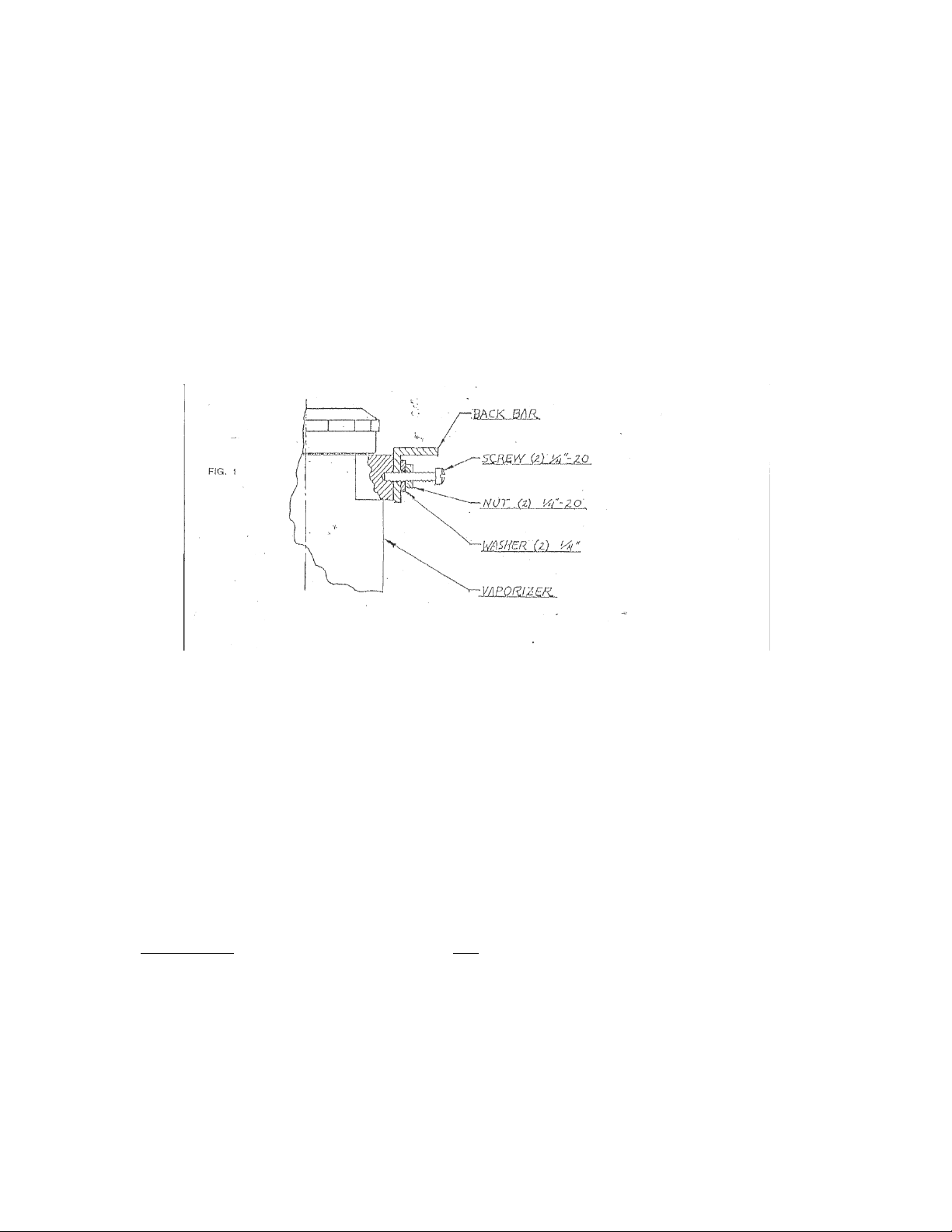

be tightened before bottoming. A suggested mounting arrangement which allows
flexibility in coping with various structure thicknesses is shown in Fig. 1
In some cases it may be desirable to mount the Vapomatic on a table or horizontal
surface. A ¼” -20 tapped mounting hole is provided for this purpose in the center bolt at
the bottom of the vaporizer.
CONNECTIONS:
Standard connections are (facing the front of the Vapomatic) left side, inlet, cage
mount/23mm Male standard taper, and right side, outlet, cage mount/23mm Female
standard taper. Normally, in veterinary use, mating connectors having tubing adapters are
used, so that rubber tubing can be connected to the gas supply, either the flow meter
common outlet, or the outlet terminal of the gas machine.
CAUTION:The vaporizer inlet should not be connected downstream of the flush
valve, otherwise excessive back pressure may be reflected back into the flow meters and
other parts of the circuit when the flush valve is activated, possibly causing bursting of
tubing or other components.
The vaporizer outlet must be connected to the patient via the outlet of the gas
machine or directly to the breathing circuit which would be, to the CO2 absorber, or to
the non-rebreathing patient circuit.
3
CAUTION: Always check that the connection to the vaporizer and to the gas supply
and patient are secure when using the equipment. Remember, the only way your patient
can get life giving oxygen is through these connections.
After installation, turn on the oxygen supply and check for leaks at the vaporizer
connections by partly blocking the outlet of the machine and painting the joints with soap
solution.
INSTRUCTIONS FOR USE:
CONTROLS;
The dial knob on the top of the vaporizer is marked in % of volume of the
anesthetic for which the vaporizer is calibrated. In the off or “0” position, the dial locks to
prevent accidental turn on. To turn on the vaporizer, press down the locking key while
rotating the dial counter clockwise. A resistance to turning will be noted during the first
few degrees of rotation as a cam operated by-pass valve is activated. This portion of the
dial scale is marked and should not be used. When in the “0” position, gas entering the
vaporizer is by-passed to the outlet and the vaporizing chamber is sealed off – no
anesthetic is entering the gas stream. As the dial is rotated counter clockwise, the output
concentration gradually increased in accordance with the calibration marked.
FILLING AND DRAINING;
To fill the vaporizer, turn the dial to “0” if the vaporizer is in an active situation (it
is not then necessary to turn off the gas supply), unscrew the filler cap and fill the
vaporizer with the appropriate anesthetic. The liquid level indicator is uncalibrated, but it
is only necessary that the liquid level be seen to be acceptable for operation. A dry
vaporizer will accept approximately 200 ml of liquid and approximately 150 ml when the
wicks are wet. The top of the filler is lower than the working parts of the vaporizer so that
it is not possible to overfill the vaporizer when in a level position. Replace the filler cap
snugly so that it is leak tight but still can be removed by hand.
To drain the vaporizer, remove the filler cap exposing the head of the drain screw.
Position a collecting bottle under the drain spout and then loosen the drain screw a turn or
two. After draining, secure the drain screw and replace the cap. It is advisable to drain the
vaporizer when it is to be moved, transported, or shipped, to prevent draining, should be
done to reduce the concentration of Thymol, a preservative, from collecting in the liquid.
4
TYPICAL VAPORIZER APPLICATIONS
(ON A BASIC ANESTHESIA MACHINE)
5
CAUTION: Do not connect the vaporizer within breathing circuit. The vaporizer is of
the high resistance to flow type, and will present excessive back pressure to the inlet
circuit and to the vaporizer sump. Note that calibration is given for the normal flow rate
of 0-10 liters/min. Direct connection to a ventilator is not recommended since the
vaporizer will offer excessive resistance and develop abnormal back pressure which may
cause connections to blow off or damage the vaporizer. These same precautions are
relevant to all vaporizers of this type.
MAINTENANCE AND SERVICE:
Vaporizers used with halothane are particularly liable to suffer from the effect of
accumulation of non-volatile additives in the vaporizing chamber. Similar effects may
also occur with other anesthetics although more slowly. Anytime the performance of a
vaporizer is suspect, or as a periodic routine, it maybe shipped to the manufacturer, A.M.
Bickford, Inc., for service and calibration. If the vaporizer is damaged by dropping or
other abuse, it should be returned for service and repair before being used again. A yearly
service and calibration is recommended.
CALIBRATON;
Vapomatic vaporizers are calibrated for the specific agent marked on the labeling.
Only the specified anesthetic should be used.
Each vaporizer is individually calibrated by means of a Riken interference
refractometer at a flow rate of 3 liters/min. and a room temperature of 72 degrees F using
oxygen as a carrier gas. Calibration tolerances are met over flow rates of 100 ml/min.
through 10 liters/min. with a substantially linear output, in ambient temperature range of
60-90 degrees F.
6
RETURNING VAPORIZERS:
For routine repair or service: Very carefully tightly pack the vaporizer to
prevent damage in shipping. Preferred: Ship by United Parcel Service.
Address:
A.M. Bickford, Inc.
Service Department
12318 Big Tree Rd.
Wales Center, NY 14169
We will perform the necessary work to restore the vaporizer to specifications, bill
you our flat service charge plus replacement parts, if any, and return it to you promptly
by UPS.
LIMITED WARRANTY:
Vapomatic Anesthetic Vaporizers are warranted against defective parts and
materials for 1 year beyond the shipping date to the original customer. Such claims
should be communicated to A.M. Bickford, Inc., and return authorization obtained prior
to return of vaporizer. Choice of action by A.M. Bickford, Inc., will be limited to repair
or replacement and return of the vaporizer at no cost if A.M. Bickford, Inc. concurs that
inspection of the unit indicates such defects.
FOR WARRANTY CLAIMS: Call or write describing the condition, give the serial
number and other pertinent details. If the situation appears to be warranty related, we will
authorize you to return the vaporizer for our further evaluation.
