Amana AM30LP-P User manual

IMPORTANT:
Save for local inspector's use.
Installer: Leave installation instructions with the homeowner.
Homeowner: Keep installation instructions for future reference.
Model AM30LP-P
RACEZ00044A
FOUR BURNER GAS GRILL
Assembly/Installation Instructions and Use & Care Guide
For questions about features, operation/performance or parts, call: 1-800-229-5647 or visit www.sureheat.com
Table of Contents............................................................................................................2

2
TABLE OF CONTENTS
OUTDOOR GRILL SAFETY............................................................3
UNPACKING INSTRUCTIONS ......................................................5
ASSEMBLY REQUIREMENTS.......................................................5
Parts Supplied..............................................................................5
ASSEMBLY INSTRUCTIONS.........................................................6
INSTALLATION REQUIREMENTS..............................................11
Location Requirements..............................................................11
Gas Supply Requirements.........................................................12
Gas Connection Requirements..................................................12
INSTALLATION INSTRUCTIONS................................................12
Make Gas Connection ...............................................................12
Check the Burners .....................................................................13
OUTDOOR GRILL USE ................................................................14
Using Your Outdoor Grill............................................................14
Using Your Side Burner .............................................................15
TIPS FOR OUTDOOR GRILLING ................................................16
Cooking Methods.......................................................................16
OUTDOOR GRILL CARE .............................................................17
Replacing the Igniter Battery .....................................................17
General Cleaning........................................................................17
TROUBLESHOOTING ..................................................................18
ASSISTANCE ................................................................................18
REPLACEMENT PARTS ..............................................................19
WARRANTY ..................................................................................20

3
OUTDOOR GRILL SAFETY
You can be killed or seriously injured if you don't immediately
You can be killed or seriously injured if you don't follow
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
follow instructions.
instructions.
DANGER
WARNING
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your
gas supplier or your fire department.
DANGER WARNING
1. Do not store or use gasoline or other
flammable liquids or vapors in the
vicinity of this or any other appliance.
2. An LP cylinder not connected for use
shall not be stored in the vicinity of
this or any other appliance.
State of California Proposition 65 Warnings:
WARNING: This product contains a chemical known to the State of California to cause cancer.
WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm.
In the State of Massachusetts, the following installation instructions apply:
■ Installations and repairs must be performed by a qualified or licensed contractor, plumber, or gasfitter qualified or licensed by
the State of Massachusetts.
■ If using a ball valve, it shall be a T-handle type.
■ A flexible gas connector, when used, must not exceed 3 feet.

4
IMPORTANT: This grill is manufactured for outdoor use only. For grills that are to be used at elevations above 2000 ft (609.6 m) orifice
conversion is required. See “Gas Supply Requirements” section. It is the responsibility of the installer to comply with the minimum
installation clearances specified on the model/serial rating plate. The model/serial rating plate for built-in models can be found on the
right-hand side of the grill. The model/serial rating plate for freestanding models can be found on the right-hand inside cabinet wall.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electrical shock,
injury to persons, or damage when using the outdoor cooking
gas appliance, follow basic precautions, including the
following:
■ Do not install portable or built-in outdoor cooking gas
appliances in or on a recreational vehicle, portable trailer,
boat or in any other moving installation.
■ Always maintain minimum clearances from combustible
construction, see “Location Requirements” section.
■ The outdoor cooking gas appliance shall not be located
under overhead unprotected combustible construction.
■ This outdoor cooking gas appliance shall be used only
outdoors and shall not be used in a building, garage, or any
other enclosed area.
■ Keep any electrical supply cord and fuel supply hose away
from any heated surfaces.
■ Keep outdoor cooking gas appliance area clear and free
from combustible materials, gasoline and other flammable
vapors and liquids.
■ Do not obstruct the flow of combustion and ventilation air.
Keep the ventilation openings of the cylinder enclosure free
and clear from debris.
■ Inspect the gas cylinder supply hose before each use of the
outdoor cooking gas appliance. If the hose shows
excessive abrasion or wear, or is cut, it MUST be replaced
before using the outdoor cooking gas appliance. Contact
your dealer and use only replacement hoses specified for
use with the outdoor cooking gas appliance.
■ Visually check the burner flames. They should be blue.
Slight yellow tipping is normal for LP gas.
■ Check and clean burner/venturi tube for insects and insect
nest. A clogged tube can lead to fire under the outdoor
cooking gas appliance.
■ The LP gas supply cylinder to be used must be:
- constructed and marked in accordance with the
Specification for LP Gas Cylinders of the U.S. Department
of Transportation (DOT) or the National Standard of
Canada, CAN/CSA-B339, Cylinders, Spheres, and Tubes
for Transportation of Dangerous Goods; and Commission.
- provided with a listed overfilling prevention device.
- provided with a cylinder connection device compatible
with the connection for outdoor cooking gas appliances.
■ Always check connections for leaks each time you connect
and disconnect the LP gas supply cylinder. See
“Installation Instructions” section.
■ When the outdoor cooking gas appliance is not in use, the
gas must be turned off at the supply cylinder.
■ Storage of an outdoor cooking gas appliance indoors is
permissible only if the cylinder is disconnected and
removed from the outdoor cooking gas appliance.
■ Cylinders must be stored outdoors and out of the reach of
children and must not be stored in a building, garage, or
any other enclosed area.
■ The pressure regulator and hose assembly supplied with
the outdoor cooking gas appliance must be used. A
replacement pressure regulator and hose assembly
specific to your model is available from your outdoor
cooking gas appliance dealer.
■ Gas cylinder must include a collar to protect the cylinder
valve.
■ For appliances designed to use a CGA791 Connection:
Place a dust cap on cylinder valve outlet whenever the
cylinder is not in use. Only install the type of dust cap on
the cylinder valve outlet that is provided with the cylinder
valve. Other types of caps or plugs may result in leakage
of propane.
If the following information is not followed exactly, a fire
causing death or serious injury may occur.
■ Do not store a spare LP gas cylinder under or near this
outdoor cooking gas appliance.
■ Never fill the cylinder beyond 80 percent full.

5
UNPACKING INSTRUCTIONS
1. Using a utility knife, cut the tape to open top flaps of carton.
2. Remove Assembly/Installation Instructions and Use and Care
Guide.
3. Remove the large cardboard panels on the top and sides of
the inside of the carton.
4. Remove the corner supports on the top of the inside of the
carton.
5. Remove all the parts along the front and sides of the carton.
6. Using a utility knife, cut along the vertical dotted cut lines
located on 2 sides of the carton. Lay the box sides flat.
7. Remove screws (with hang tags attached) located on either
side of the grill head.
8. Remove grill component parts and set aside.
9. Open the hood and remove parts carton and interior
packaging.
10. Remove warming shelf and set aside.
11. Using 2 or more people, remove grill head assembly and set
aside.
12. Dispose of/recycle all packaging materials.
ASSEMBLY REQUIREMENTS
Parts Supplied
View of Unassembled Grill Parts
Excessive Weight Hazard
Use two or more people to move and install grill.
WARNING
Failure to do so can result in back or other injury.
A. Lower drawer front
B. Upper drawer front
C. Lower drawer tray
D. Upper drawer tray
E. Caster assembly (left)
F. Caster assembly with lock (right)
G. Warming shelf
H. Drawer slide rail brackets
I. Drip pan
J. Side burner right shelf assembly
K. Side shelf left assembly
L. Cart door
M. Main cooking grate
N. Grill head assembly
O. Flavor grids
P. Righ t side c a rt p an el
Q. Left side cart panel
R. Cart middle divider
S. Rear cart panel
T. Cart base
U. Cart middle brace
Not shown:
Package of small components
A
B
C
D
E
F
GH
IJ
K
L
M
P
O
N
QR
S
T
U

6
Assembly Hardware Supplied (actual size)
■38 - Self-tapping screws
■2 - Sunken head self-tapping screws
■1 - M6 x 10 Phillips pan head screws
■1 - Side burner knob with bezel
■1 - “AA” battery
■1 - Battery cap

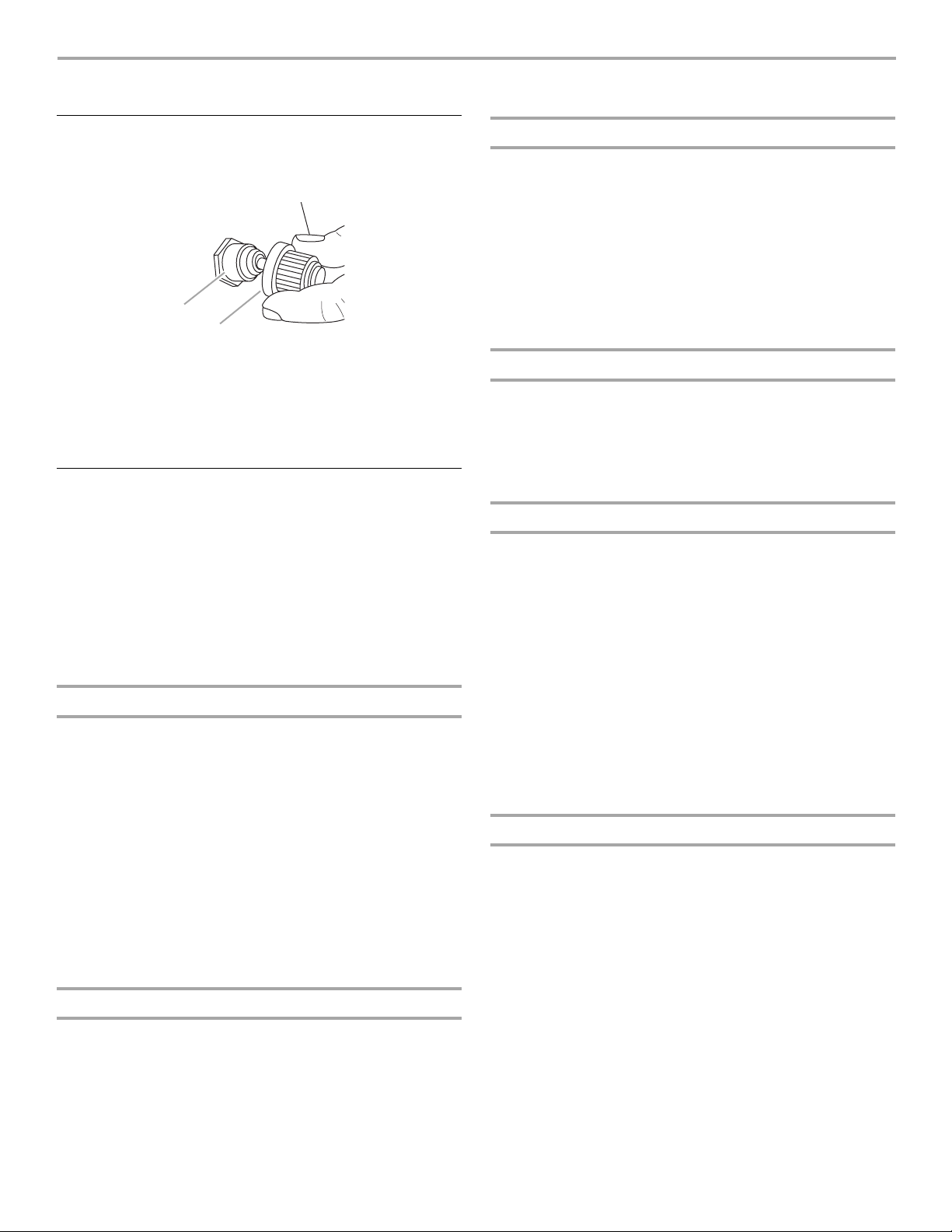

NOTE: Other hardware required is attached to the grill where
needed.
Tools Needed
Parts Supplied
■Gas pressure regulator/hose assembly set for 11" WCP LP
gas (attached to manifold).
Parts Needed
■20 lb LP gas fuel tank

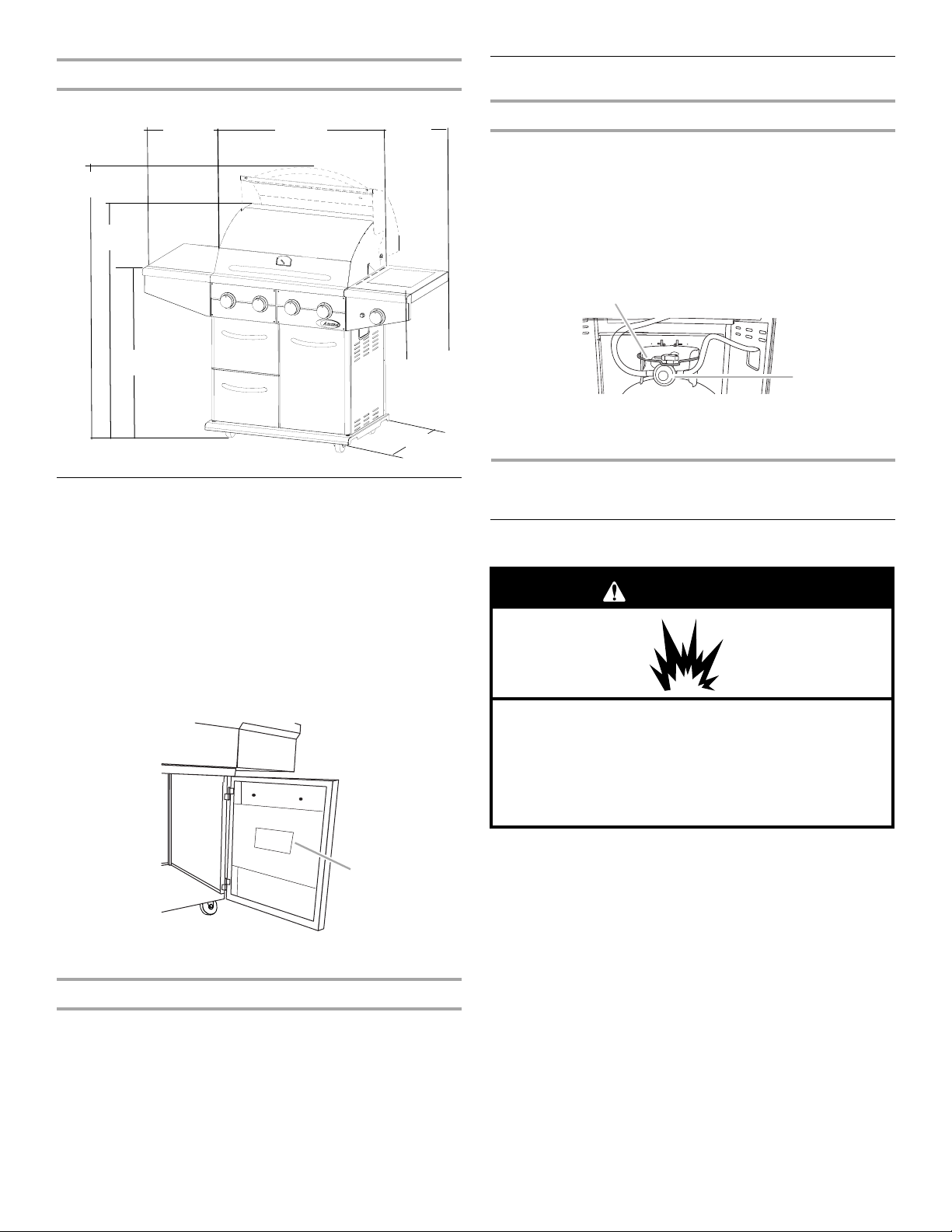

Assembled Grill view

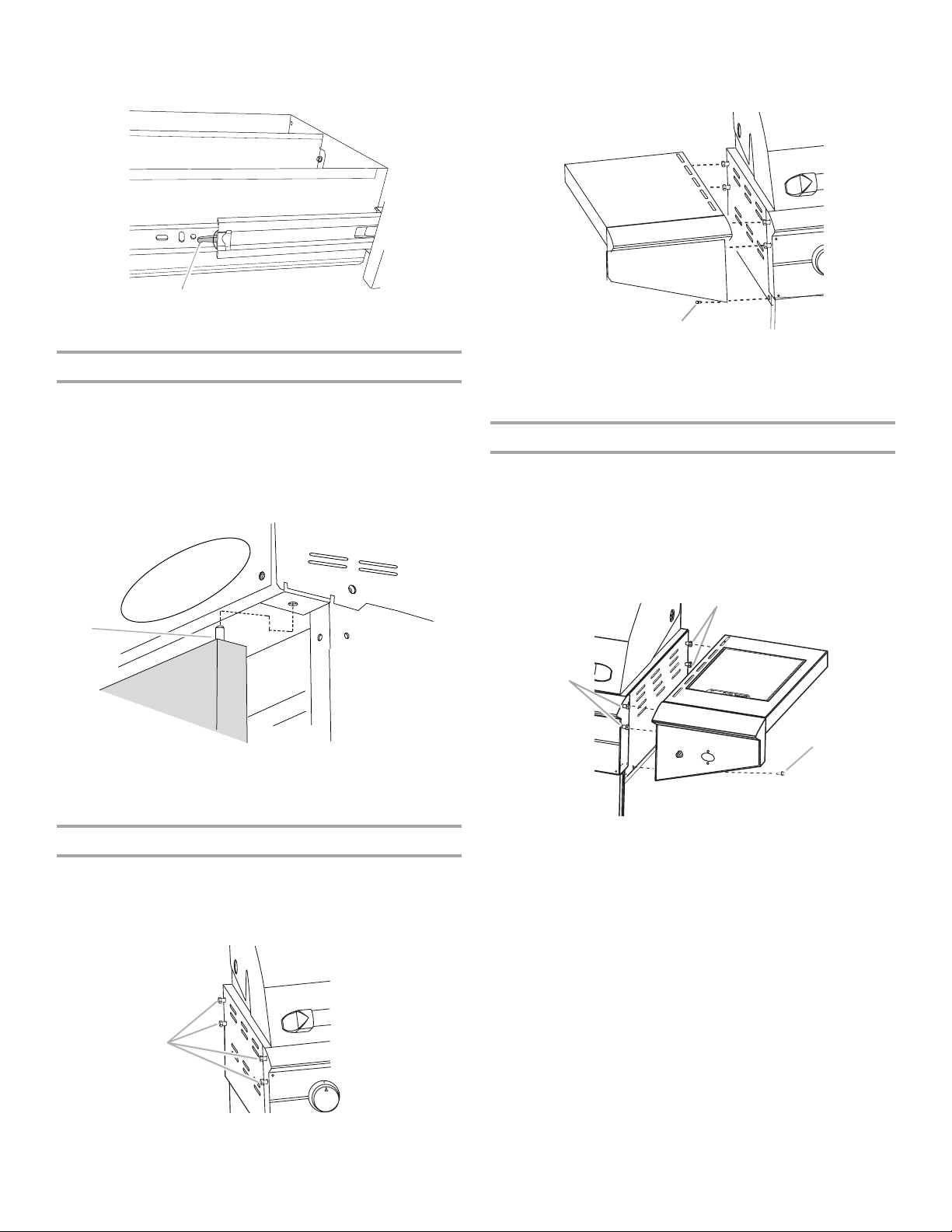

ASSEMBLY INSTRUCTIONS
Assemble caster assemblies to cart base
1. Remove packaging from caster assemblies and cart base.
2. Remove and set aside 4 caster assembly nuts and 2 bolts
from the caster assemblies.
3. Set the cart base in place by inserting the bolts attached to
the caster assemblies through the holes in the cart base. See
the following illustration.
NOTE: Caster assembly nuts will be attached in next step to
secure side panels.

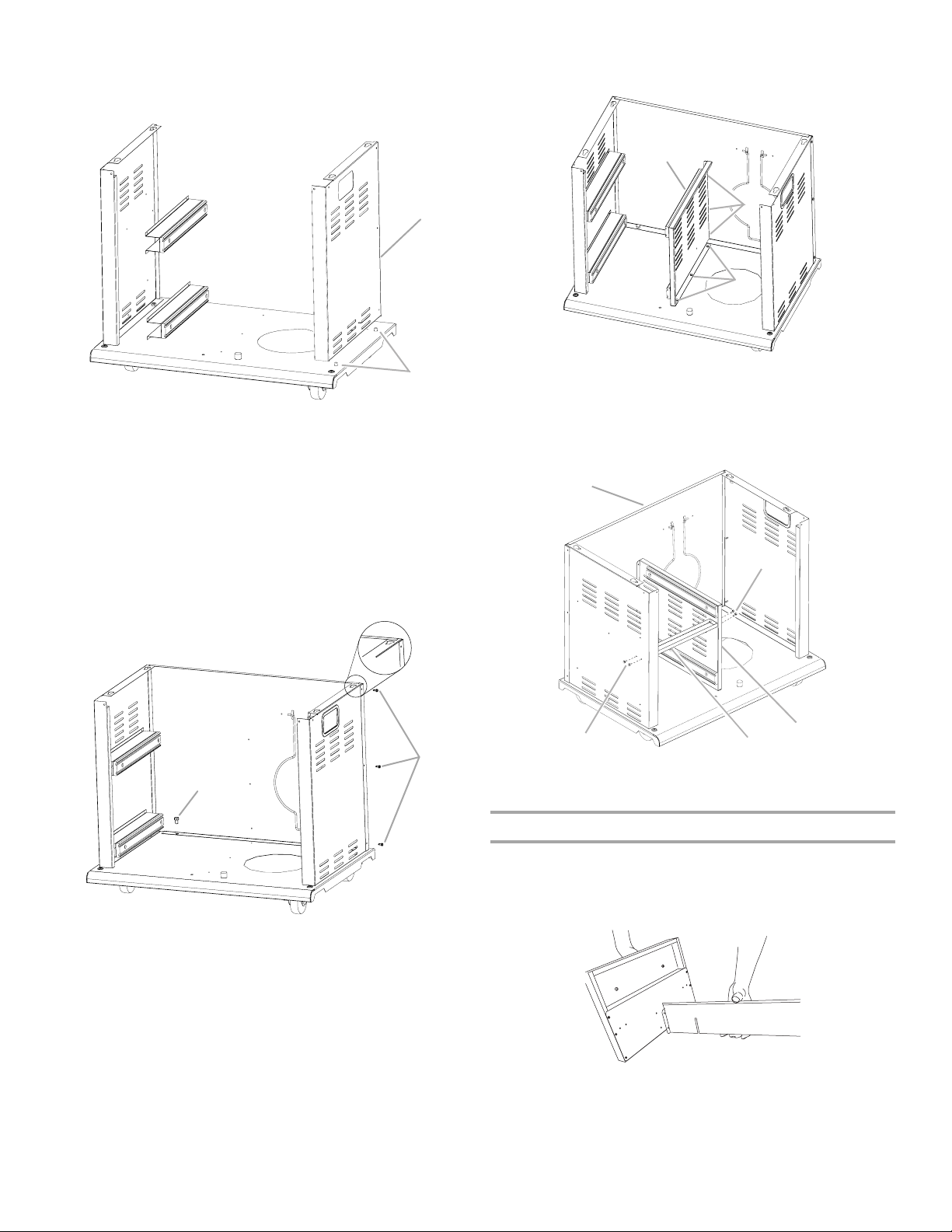

Assemble cart base
1. Unpack parts carton.
2. Attach rubber cabinet door stop (A) to cart base using 1 M6 x
10 Phillips pan head screw.
3. Place left cart side panel (C) onto the 2 outer caster assembly
bolts (B) on the left-hand side of the cart base. Check that the
large flange is toward the front of the cart base. Fasten with
caster assembly nuts and securely tighten.
4. Use a ¼" nut driver to install 6 self-tapping screws to secure
the drawer slide rails (D) to the left side panel.
NOTE: Install the self-tapping screws from outside the cart so
that the point of the screw is in the inside of the cart.
■#2 Phillips screwdriver
■Adjustable wrench
■½" wrench or socket
■¼" nut driver or socket
■Tape measure
■Level
■Noncorrosive leak-
detection solution
A. Side shelf
B. Grilling/cooking surface
C. Warming shelf
D. Hood handle
E. Roll top grill hood
F. Side burner
G. Side burner control knob
H. Electronic igniter: main
burners and side burner
I. Cart door
J. Cart drawers
K. Control knobs: main burners
K
J
B
A
CE
D
F
H
I
G
A. Cart base
B. Fixed (left) caster assembly
C. Swivel (right) caster assembly
A. Rubber cabinet door stop
B. Outer caster assembly bolts
C. Left cart side panel
D. Drawer slide rails
A
B
C
C
D
A
B

7
5. Place right cart side panel (A) onto the 2 outer caster
assembly bolts (B) on the right-hand side of the cart base.
Make sure the large flange is toward the front of the cart
base. Fasten with caster assembly nuts and securely tighten.
6. Place the rear cart panel onto the grill cart base.
7. Place the 2 caster assembly bolts (A) removed earlier down
through the 2 rear holes. Check that the cart back flanges
wrap and cover the cart sides. Fasten with caster assembly
nuts and securely tighten.
8. Attach rear panel to side panels using 6 self-tapping
screws (B).
NOTE: Install the self-tapping screws from outside the cart so
that the point of the screws are on the inside of the cart.
9. Attach cart middle divider to cart base and back using 6 self-
tapping screws.
10. Attach middle brace using 4 self-tapping screws.
NOTE: Install the self-tapping screws from outside the cart so
that the point of the screws are on the inside of the cart.
Assemble drawers
1. Remove the 2 Phillips pan head screws from the drawer
handles, then attach drawer handles to drawer fronts using
these screws.
2. Attach drawer divider to the drawer front.
A. Right cart side panel
B. Outer caster assembly bolts
A. Caster assembly bolts
B. Self-tapping screws
A
B
A
B
A. Cart middle divider
B. Self-tapping screws
A. Rear cart panel
B. Self-tapping screws
B. Middle brace
C. Middle divider
B
A
B
BC
A
D
B

8
3. Insert drawer tray tab into slot at the bottom of the drawer
front. Use 4 self-tapping screws to attach the drawer tray to
the drawer front. Set drawer aside.
4. Repeat steps 1 through 3 for second drawer.
Assemble grill head to cart assembly
1. Tilt the grill head onto its back and loosen the 4 grill mounting
bolts so that there is approximately ¼" between the bolt and
the grill bottom.
2. Remove tape holding gas pressure regulator/hose assembly
from underside of the grill and remove packaging material.
Pull gas pressure regulator/hose assembly out through the
opening in the right-hand side of the grill head.
3. Using 2 or more people lift grill head onto cart assembly.
4. Insert grill head bolts into keyhole slots and slide forward in
the keyhole slots until the back of the grill head aligns with
the cart back.
5. Install 4 self-tapping screws into the top front and side cart
flanges.
6. NOTE: Install the self-tapping screws from outside the cart so
that the point of the screw is in the inside of the cart.
7. Tighten the 4 grill head mounting bolts underneath the grill to
secure the grill to the cart.
8. Align the drawer slides (attached to the drawer) with the front
ends of the slide rail assemblies.
NOTE: Check that the inner slides on the slide rail assemblies
are at the front position when installing drawers.
9. Slide cart drawers into place.
A. Phillips pan head screws
B. Self-tapping screws
C. Drawer tray tab
A. Gas pressure regulator/hose assembly
A
B
B
C
Excessive Weight Hazard
Use two or more people to move and install grill.
WARNING
Failure to do so can result in back or other injury.
AA. Grill head posts
B. Self-tapping screws
A. Slide rail assemblies
B. Drawer slide
A
B
A
B

9
To remove drawers: Pull drawer out to stop position, press
right side black tab up and left side black tab down at the
same time to release the drawer.
Assemble door to cart
1. Remove the 2 Phillips pan head screws on the cart door
handle and use them to attach the door handle to the cart
door.
2. Place right-hand door at an angle over the right side door
lower pivot pin.
3. Tilt the top of the door toward the grill, while depressing the
top door pivot pin.
4. Move the door slightly until the pin snaps into place in the
hole at the bottom of the front face.
Attach side shelf
1. Loosen the four ⁵⁄₁₆-24 hex head screws located on the left
grill side.
2. Attach the left side shelf by inserting the 4 screws on the side
of the grill head into the 4 keyhole slots on the left side shelf.
3. Tighten all 4 screws to secure the left side shelf.
4. Install 1 self-tapping screw into the bottom front slotted hole
of the side shelf.
Assemble side burner shelf
1. Open side burner cover.
2. Remove the side burner grate and set aside.
3. Loosen the four ⁵⁄₁₆-24 hex head screws located on the right
grill side.
4. Attach the side burner shelf by inserting the 4 screws on the
side of the grill head into the 4 keyhole slots on the side
burner shelf.
5. Tighten all 4 screws to secure the side burner shelf.
6. Install 1 self-tapping screw into the bottom front slotted hole
of the side burner shelf.
A. Black drawer tab
A. Pivot pin
A. Four
⁵⁄₁₆ -24 hex head screws
A
A
A
A. Self-tapping screw
A. Four
⁵⁄₁₆ -24 hex head screws
B. One self-tapping screw
A
A
A
B

10
Install Control Knob Assembly
1. Using a Phillips screwdriver, remove the 2 screws (B) from the
side burner valve assembly (D).
2. Push the valve stem out through the opening in the front of
the side burner shelf, lining up the threaded holes in the side
burner valve assembly with the openings on the side burner
shelf.
3. Position the side burner bezel (C) into place, with the Off
position pointing up, making sure to line up the holes. Attach
side burner bezel to assembly face with screws removed in
Step 1.
4. Press control knob (A) onto valve assembly stem with Off
position pointing up.
Install Side Burner Casting
1. Remove the 2 Phillips pan head screws from the side burner
casting.
2. Angle the side burner casting and insert it into the center hole
of the side burner tray.
3. Slide the side burner casting back to clear the side burner
valve orifice.
4. Slide the side burner casting forward over the side burner
valve orifice.
5. Use the 2 pan head screws (E) removed in Step 1 to secure
the head of the side burner casting to the rear bracket (B).
6. Use 2 self-tapping screws (D) to attach the small bracket (C)
to the front bracket (A) under the side burner tray.
7. Connect the loose igniter wires from the grill to the open
terminals of the igniter.
NOTE: The igniter is designed so that it does not matter
which terminal tab is used when connecting the igniter wires.
Complete grill assembly
1. Unscrew the igniter button cap.
2. Install the battery, negative (-) end first into the battery
compartment.
3. Screw the igniter button cap back on.
A. Control knob
B. Phillips pan head screws
C. Bezel
D. Side burner valve assembly
A. Side burner casting
B. Locator post
A. Side burner valve orifice
B. Side burner casting
AB
CD
A
B
A
B
A. Front bracket
B. Rear bracket
C. Small bracket
D. 2 self-tapping screw
E. 2 pan head screws
A. Main burner igniter wires
B. Side burner igniter wire
A. Igniter button cap
B. “AA” battery
AB
CDE
B
A
A
B

11

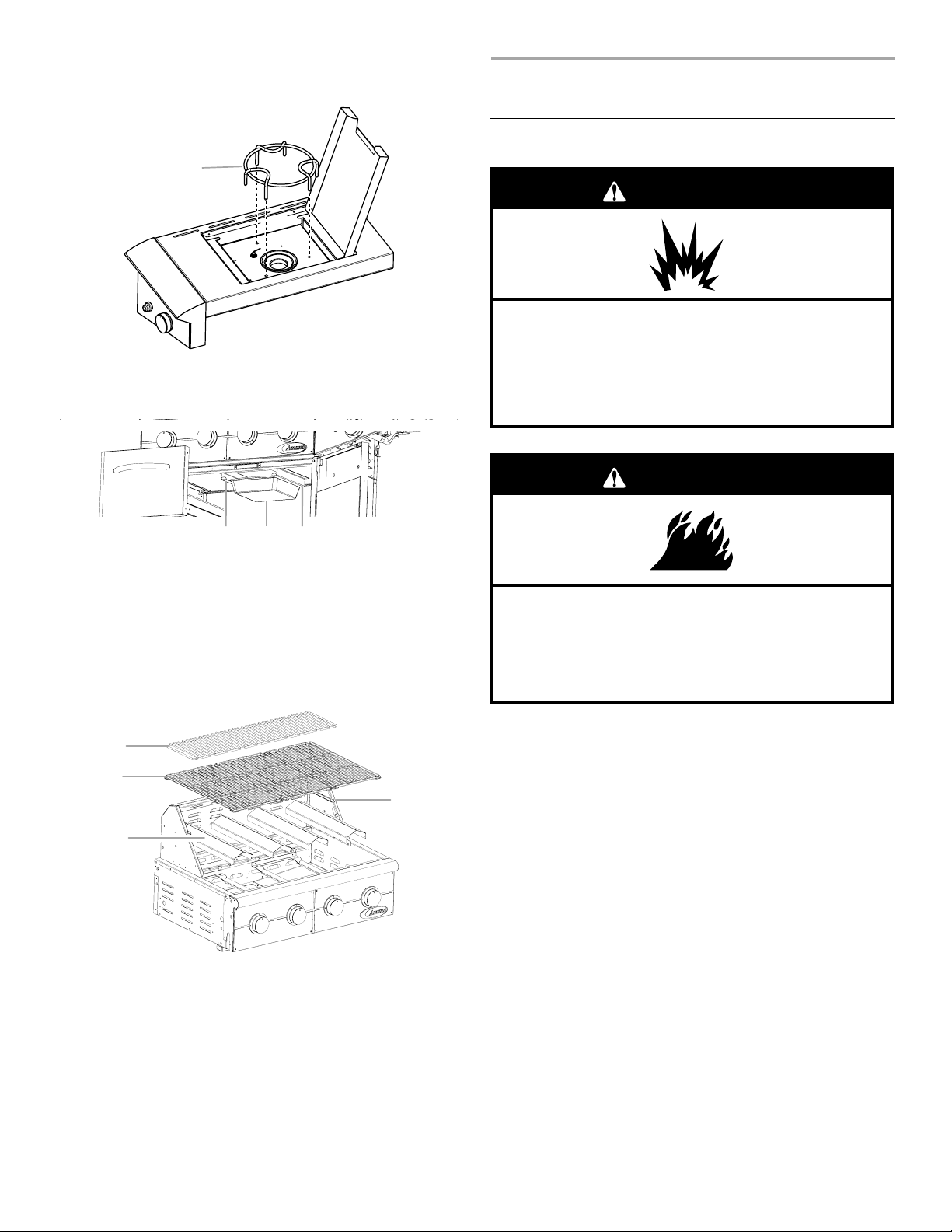

4. Place the side burner grate onto the side burner tray. Position
the 3 longer legs of the grate into the holes around the side
burner.
5. Pull out the top drawer and slide the drip pan into the drip
pan guides attached to the underside of the grill head.
6. Insert the flavor grids into the cutouts with triangle ridges
facing up.
7. Install main cooking grates on the ledges provided on the grill
to create the cooking surface.
8. Slide the warming shelf through the cutouts on the hood
support and onto the 2 brackets.
INSTALLATION REQUIREMENTS
Location Requirements
Select a location that provides minimum exposure to wind and
traffic paths. The location should be away from strong draft
areas.
Do not obstruct flow of combustion and ventilation air.
Clearance to combustible construction:
A minimum of 24" (61.0 cm) from grill hood sides and back must
be maintained from any combustible construction.
A. Side burner grate
A. Drip pan guides
B. Drip pan
A. Flavor grids
B. Main cooking grates
C. Warming shelf
D. Warming rack cutout/bracket
A
AA
B
A
B
C
D

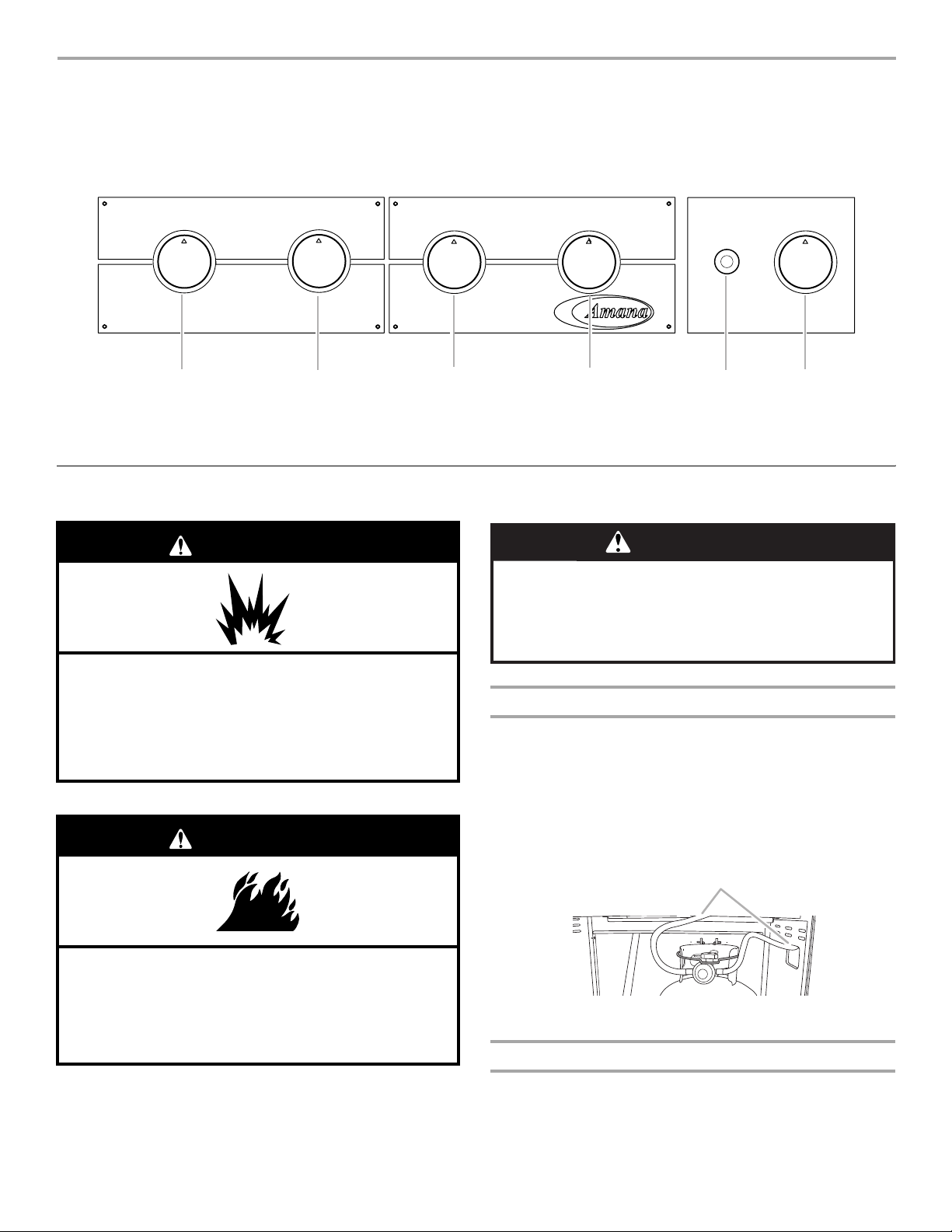

WARNING
Explosion Hazard
Do not store fuel tank in a garage or indoors.
Do not store grill with fuel tank in a garage or indoors.
Failure to follow these instructions can result in death,
explosion, or fire.
WARNING
Fire Hazard
Do not use grill near combustible materials.
Do not store combustible materials near grill.
Doing so can result in death or fire.

12
Product Dimensions
Gas Supply Requirements
Observe all governing codes and ordinances.
IMPORTANT: This installation must conform with all local codes
and ordinances. In the absence of local codes, installation must
conform with American National Standards Institute, National
Fuel Gas Code ANSI Z223.1 - latest edition.
IMPORTANT: Grill must be connected to a regulated gas supply.
Refer to the model/serial rating plate for information on the type
of gas that can be used. If this information does not agree with
the type of gas available, check with your local gas supplier.
The model/serial number rating plate is located inside the right
door of the grill cabinet. See the following illustration.
Gas Pressure Regulator
The gas pressure regulator supplied with this grill must be used.
The inlet (supply) pressure to the regulator should be as follows
for proper operation:
LP Gas:
Operating pressure: 11" (27.9 cm) WCP
Inlet (supply) pressure: 11" to 14" (27.9 cm to 35.5 cm) WCP
Contact local gas supplier if you are not sure about the inlet
(supply) pressure.
Gas Connection Requirements
20 lb LP Gas Fuel Tank
This grill is equipped for use with a 20 lb LP gas fuel tank (fuel
tank not supplied). A gas pressure regulator/hose assembly is
supplied.
The 20 lb LP gas fuel tank must be mounted and secured.
1. Open cabinet doors.
2. Set 20 lb LP gas fuel tank in hole in the cart base. The 20 lb
LP gas fuel tank secure ring rests over the top of the tank
collar.
INSTALLATION INSTRUCTIONS
Make Gas Connection
LP Gas:
IMPORTANT: A 20 lb LP gas fuel tank must be purchased
separately.
IMPORTANT: The gas pressure regulator/hose assembly
supplied with the grill must be used. Replacement gas pressure
regulator/hose assembly specific to your model, is available from
your outdoor grill dealer.
To Install the 20 lb LP Gas Fuel Tank:
1. Open cabinet doors.
2. Set tank in hole in the cart base.
3. Screw the gas pressure regulator/hose assembly on to the
20 lb LP gas fuel tank as shown.
A. Model/serial number plate
54"
(137.0 cm)
33½"
(85.2 cm)
44⁵⁄₈"
(113.5 cm)
20¼"
(51.5 cm)
13¹⁄₈"
(33.3 cm) 29"
(73.8 cm) 13 ¹⁄₈"
(33.3 cm)
20⁵⁄₈"
(52.5 cm)
A
A. 20 lb LP gas fuel tank secure ring
B. Gas pressure regulator/hose assembly
A
B
WARNING
Explosion Hazard
Do not store fuel tank in a garage or indoors.
Do not store grill with fuel tank in a garage or indoors.
Failure to follow these instructions can result in death,
explosion, or fire.

13
4. Place the 20 lb LP gas fuel tank secure ring over the collar of
the tank as shown.
NOTE: The 20 lb LP gas fuel tank orientation shown in the
illustration above must be followed to provide proper vapor
withdrawal.
5. Turn on the gas supply. Wait a few minutes for gas to move
through the gas line.
6. Test all connections by brushing on an approved
noncorrosive leak-detection solution. Bubbles will show a
leak. Correct any leak found.
Check the Burners
The burners are tested and factory-set for most efficient
operation. However, variations in gas supply and other conditions
may make minor adjustments to air shutter or low flame setting
necessary.
It is recommended that a qualified person make burner
adjustments.
Checking the grill burner flames requires removing the grate and
flavor grids.
Burner Flame Characteristics
The flames of the grill burners and side burners (on some models)
should be blue and stable with no excessive noise or lifting (LP
gas flames will have a slightly yellow tip). A yellow flame indicates
not enough air. If flame is noisy or lifts away from the burner, there
is too much air. Some yellow tips on flames when the burner is
set to HI setting are acceptable as long as no carbon or soot
deposits appear.
Check that burners are not blocked by dirt, debris, insect nests,
etc., and clean as necessary.
A. 20 lb LP gas fuel tank secure ring
B. Gas pressure regulator/hose assembly
A
B

14
OUTDOOR GRILL USE
This manual covers several different models. The grill you have purchased may have some or all of the features listed. The locations and
appearances of the features shown here may not match those of your model.
Control Panel
Using Your Outdoor Grill
Inspect the LP Gas Fuel Tank Supply Hose
Inspect the gas pressure regulator/hose assembly before each
use.
1. Inspect the gas pressure regulator/hose assembly for cuts,
abrasions, or excessive wear.
2. If necessary, replace the gas pressure regulator/hose
assembly before using the grill.
Contact the dealer and use only replacement hoses specified
for use with the grill.
Prepare the Gas Supply
1. Open the hood completely. Do not light burners with the hood
closed.
2. Make sure control knobs are turned to OFF.
A. Left burner control knob
B. Left middle burner control knob
C. Right middle burner control knob
D. Right burner control knob
E. Igniter button
F. Side burner control knob
ABDF
E
C
WARNING
Explosion Hazard
Do not store fuel tank in a garage or indoors.
Do not store grill with fuel tank in a garage or indoors.
Failure to follow these instructions can result in death,
explosion, or fire.
WARNING
Fire Hazard
Do not use grill near combustible materials.
Do not store combustible materials near grill.
Doing so can result in death or fire.
A. Gas pressure regulator/hose assembly
WARNING
Food Poisoning Hazard
Do not let food sit for more than one hour before or
after cooking.
Doing so can result in food poisoning or sickness.
A

15
Turn On the Gas Supply
1. For outdoor grills using a 20 lb LP gas fuel tank: Slowly open
the tank valve.
NOTE: If flow limiting device activates, your grill may not
light. If your grill does light, the flames will be low and will not
heat properly. Turn tank valve and all control knobs off and
wait 30 seconds. After shutting off the tank, very slowly open
tank valve and wait 5 seconds before lighting.

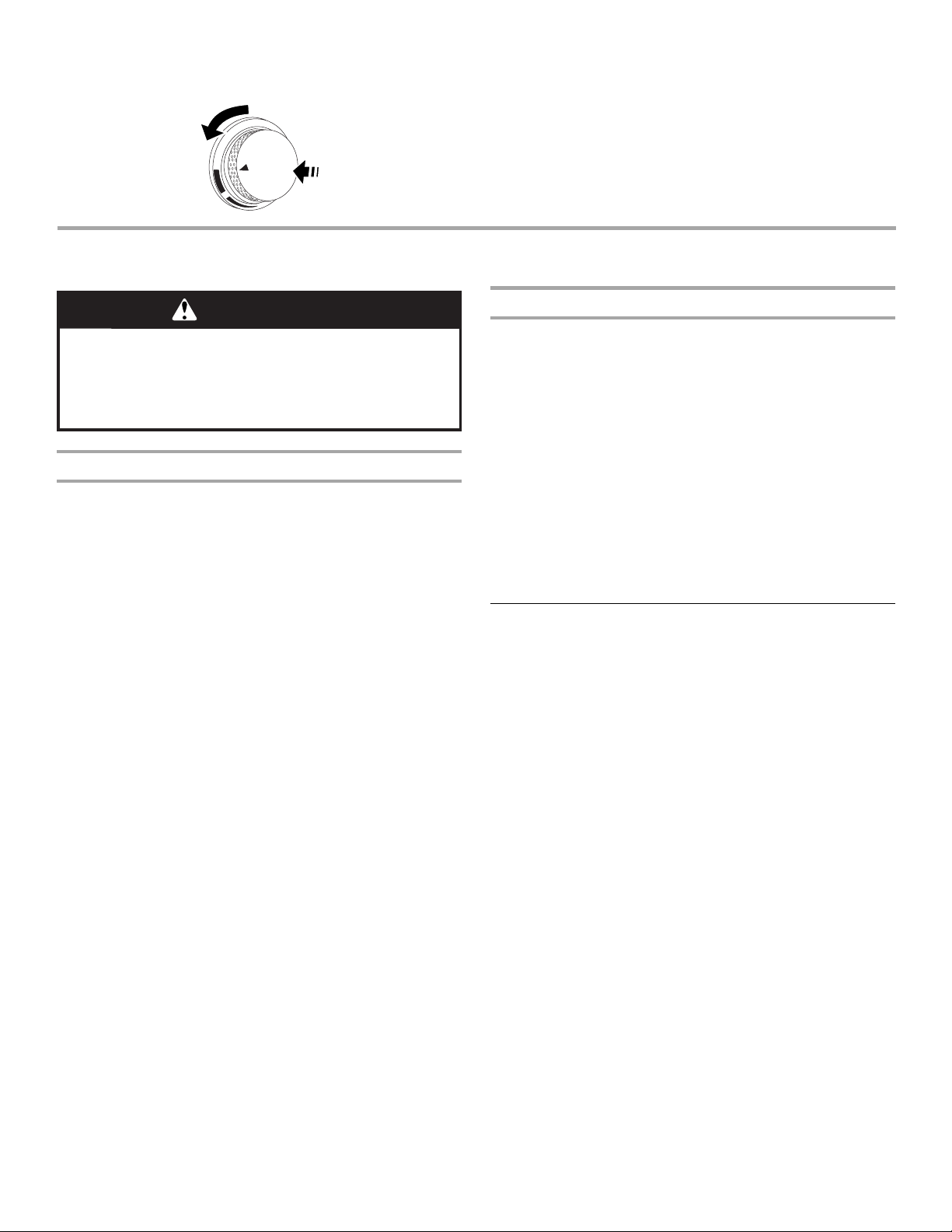

Lighting the Grill
1. Do not lean over the grill.
2. Push in and turn any grill burner control knob to HIGH, and
immediately press the electronic igniter button.
3. You will hear the “snapping” sound of the spark igniter. When
burner is lit, release the knob. Turn knob to desired setting.
4. Repeat steps 2 and 3 to light the other burners.
IMPORTANT: If burner does not light immediately, turn the
burner knob to OFF and wait 5 minutes before relighting.
Manually Lighting Grill
1. Do not lean over the grill.
2. Remove the manual lighting extension and attach a match to
the split ring.
3. Strike the match to light it.
4. Guide the lit match between the grill grate and one of the
slots in the flavor grid near the burner to be lit.
5. Push in and turn the burner knob to HIGH. The burner will
light immediately. When burner is lit, turn knob to desired
setting.
6. Repeat steps 3 through 5 to light the other burners.
7. Remove match and replace manual lighting extension.
IMPORTANT:
If burner does not light immediately, turn the burner knob to OFF
and wait 5 minutes before relighting.
If any burners do not light after attempting to light them manually,
contact customer service. See the “Assistance” section.
Using Your Side Burner
Lighting the Side Burner
1. Open the side burner cover. Do not light burners with the
cover on.
2. Do not lean over the grill.
3. Push in and turn the control knob to HIGH and immediately
press the electronic igniter button.
4. You will hear the “snapping” sound of the spark igniter. When
burner is lit, release the knob. Turn knob to desired setting.
IMPORTANT: If burner does not light immediately, turn the
burner knob to OFF and wait 5 minutes before relighting.
Manually Lighting the Side Burner
1. Do not lean over the grill.
2. Remove the manual lighting extension and attach a match to
the split ring.
3. Strike the match to light it.
4. Guide the match to the burner.
OFF
H
M
L
P
U
S
H
&
T
U
R
N
WARNING
Burn Hazard
Do not let the burner flame extend beyond the edge of
the pan.
Doing so can result in burns.

16
5. Push in and turn the burner knob to HIGH. The burner will
light immediately. When burner is lit, turn knob to desired
setting.
6. Remove match and replace manual lighting extension.
IMPORTANT:
If burner does not light immediately, turn the burner knob to OFF
and wait 5 minutes before relighting.
If any burners do not light after attempting to light them manually,
contact customer service. See the “Assistance” section.
TIPS FOR OUTDOOR GRILLING
Before Grilling
■Thaw food items before grilling.
■Preheat grill on high (use all grill burners) 10 minutes. The
hood must be closed during preheating. Preheating provides
the high heat needed to brown and seal the juices.
■Shorten the preheat time when grilling high-fat cuts of meat
or poultry, such as chicken thighs. This will help reduce
flare-ups.
■Lightly oil the grill grates or the food when cooking low-fat
cuts of meat, fish or poultry, such as lean hamburger patties,
shrimp or skinless chicken breasts.
■Using too much oil can cause gray ash to deposit on food.
■Trim excess fat from meats prior to cooking to reduce
flare-ups.
■Make vertical cuts at 2" (5 cm) intervals around the fat edge
of meat to avoid curling.
■Add seasoning or salt only after the cooking is finished.
During Grilling
■Turn foods only once. Juices are lost when meat is turned
several times.
■Turn meat just when juices begin to appear on the surface.
■Avoid puncturing or cutting the meats to test doneness. This
allows juices to escape.
■It may be necessary to lower the heat setting for foods that
cook a long time or are marinated or basted in a sugary
sauce.
■If using a high flame, add barbecue sauce only during the last
10 minutes of cooking to avoid burning the sauce.
■The degree of doneness is influenced by the type of meat, cut
of meat (size, shape and thickness), heat setting selected,
and length of time on the grill.
■Cooking time will be longer with an open grill cover.
Cooking Methods
Direct Heat
Cooking by direct heat means the food is placed on grill grates
directly above lighted burners. Hood position can be up or down.
If hood is in the up position, total cooking times may be longer.
Direct heat sears the food. Searing is a process that seals natural
juices in food by cooking with intense heat for a short period of
time. While juices stay inside, the outside is browned with a
flavorful grilled coating.
Indirect Heat
For best results, do not select the indirect heat cooking method
when it is windy.
Cooking by indirect heat means the food is placed on the grill
grate above an unheated burner, allowing heat from lighted
burner(s) on either side to cook the food.
If possible, turn on 2 burners. Cook with the hood down. This will
shorten the cooking time.
OFF
H
M
L
P
U
S
H
&
T
U
R
N
WARNING
Food Poisoning Hazard
Do not let food sit for more than one hour before or
after cooking.
Doing so can result in food poisoning or sickness.

17
OUTDOOR GRILL CARE
Replacing the Igniter Battery
If igniters stop sparking, the battery should be replaced.
1. Unscrew igniter button cap counterclockwise to remove.
2. Remove battery from the battery compartment.
3. Replace with a new alkaline “AA” size battery. Install battery
with negative end in first.
4. Screw igniter button cap clockwise into place.
General Cleaning
IMPORTANT: Before cleaning, make sure all controls are off and
the grill is cool. Always follow label instructions on cleaning
products.
For routine cleaning, wash with soap and water using a soft cloth
or sponge. Rinse with clean water and dry at once with a soft,
lint-free cloth to avoid spots and streaks.
To avoid scratching the surface, do not use steel wool to clean
the grill.
To avoid damage from the weather, use a vinyl grill cover,
available from your local dealer.
STAINLESS STEEL
IMPORTANT: To avoid damage to the stainless steel surface, do
not use soap-filled scouring pads, abrasive cleaners, cooktop
polishing creme, steel wool, gritty wash cloths, paper towels or
cleaners that contain chlorine.
Food spills should be cleaned as soon as entire grill is cool. Spills
may cause permanent discoloration.
Cleaning Method:
■Rub in direction of grain to avoid scratching or damaging the
surface.
■Stainless Steel Cleaner.
■Liquid detergent or all-purpose cleaner:
■Rinse with clean water and dry with soft, lint-free cloth.
■Glass cleaner to remove fingerprints.
PORCELAIN-COATED PARTS
To avoid chipping, do not bang porcelain covered parts with solid
objects or drop them.
Cleaning Method:
■Nonabrasive plastic scrubbing pad and mildly abrasive
cleanser:
GRILL GRATES
IMPORTANT: Do not use a steel or fiber scraper on grill grates.
Immediately after you are finished cooking, loosen food soil with
a brass bristle brush. Turn all burners to HI for 10-15 minutes with
the hood closed to burn off food soil. Turn off all burners, raise
the hood and let grates cool. Use the brass bristle brush to
remove ash from the grill grates.
When completely cool, grill racks can be removed for thorough
cleaning. Clean them with a mild detergent and warm water.
For baked-on soil, prepare a solution of 1 cup (250 mL) ammonia
to 1 gal. (3.75 L) water. Soak grates for 20 minutes, then rinse
with water and dry completely.
WARMING SHELF
Cleaning Method:
■Liquid detergent or an all-purpose cleaner.
■Rinse with clean water and dry with soft, lint-free cloth.
■For tough spots or baked-on grease, use a commercial
degreaser designed for stainless steel.
EXTERIOR
IMPORTANT: Make sure gas supply is off and all control knobs
are in the OFF position. Make sure the side burner is cool.
The quality of this material resists most stains and pitting,
providing that the surface is kept clean, covered, and polished.
■Apply stainless steel polish to all brushed stainless steel non-
cooking before first use. Reapply after each cleaning to avoid
permanent damage to surface.
■For tough spots or baked-on grease, use a commercial
degreaser designed for stainless steel.
■Cleaning should always be followed by rinsing with clean
warm water.
■Wipe the surface completely dry with a soft cloth.
■Liquid detergent or all purpose cleaner for all powder coated
surfaces.
INTERIOR
Discoloration of stainless steel on these parts is to be expected,
due to intense heat from the burners. Always rub in the direction
of the grain. Cleaning should always be followed by rinsing with
clean, warm water.
Cleaning Method:
■Liquid detergent or all-purpose cleaner or for small, difficult-
to-clean areas, use a commercial degreaser designed for
stainless steel.
■A heavy-duty scrub sponge can be used with mild cleaning
products.
■Rinse with clean water and dry completely with a soft, lint-
free cloth.
A. Igniter push button
B. “AA” size battery
A
B

18
SIDE BURNER CAPS AND GRATE
Cleaning Method:
■Clean with a brass bristle brush.
■Wash grate using mild detergent, warm water and degreaser.
■Rinse with clean water and dry with soft, lint-free cloth.
■Stainless steel cleaner.
BURNERS
Cleaning Method:
■Clean the exterior of the burner with a wire brush.
■Clear any clogged burner ports with a straightened paper
clip. Do not use a toothpick as it may break off and clog the
port.
■Check and clean burner/venturi tubes.
DRIP PAN
IMPORTANT: The drip pan should be removed only when grill is
completely cool.
The drip pan collects grease that runs out through the grill. Clean
often to avoid grease buildup.
Cleaning Method:
■Remove drip pan. Wipe excess grease with paper towels.
■Clean with mild detergent and warm water. Rinse and dry
thoroughly.
KNOBS AND FLANGE AREA AROUND KNOBS
IMPORTANT: To avoid damage to the knobs and flange area, do
not use steel wool, abrasive cleaners, or oven cleaner.
To avoid damage, do not soak knobs.
Cleaning Method:
■Mild detergent, a soft cloth and warm water.
■Rinse and dry.
CONTROL PANEL GRAPHICS
IMPORTANT: To avoid damage to the control panel graphics, do
not use steel wool, abrasive cleaners or oven cleaner.
To avoid damage, do not spray cleaner directly onto panel.
Cleaning Method:
■Clean around the burner labels gently; scrubbing may remove
printing.
■Clean with mild detergent, soft cloth and warm water.
■Rinse and dry.
TROUBLESHOOTING
Grill will not light
■Is the 20 lb LP gas fuel tank valve turned off?
Turn the 20 lb LP gas fuel tank on.
■Is the grill properly connected to the gas supply?
Contact a trained repair specialist or see Installation
Instructions.
■Is there gas in the 20 lb LP gas fuel tank?
Check the gas level.
■Is the igniter working?
Check that the igniter battery is properly installed or check to
see if the battery needs to be replaced. See the “Replacing
the Igniter Battery” section.
Check for loose wire connections to the igniter or electrodes.
Check to see if debris is blocking the electrodes.
Flame is low or erratic
■Is the gas supply fully turned on?
Check that the 20 lb LP gas fuel tank valve is fully open.
■Is the gas supply in the 20 lb LP fuel gas tank low?
Check the gas level.
■Does only one burner appear low?
Check and clean the burner ports if clogged or dirty. See
“General Cleaning” section.
■Is the burner flame mostly yellow or orange?
Grill may be in an area that is too windy. Check the burner air
inlets for obstructions.
ASSISTANCE
Before calling for assistance, please check “Troubleshooting.” If
you still need help, follow the instructions below.
When calling, please know the purchase date and the complete
model and serial number of your appliance. This information will
help us to better respond to your request.
If you need replacement parts
If you have questions or need replacement parts, contact
Customer Service Hotline at 1-800-229-5647 or visit
www.sureheat.com.
Sure Heat Manufacturing
1861 West Oak Parkway
Marietta GA 30062

19

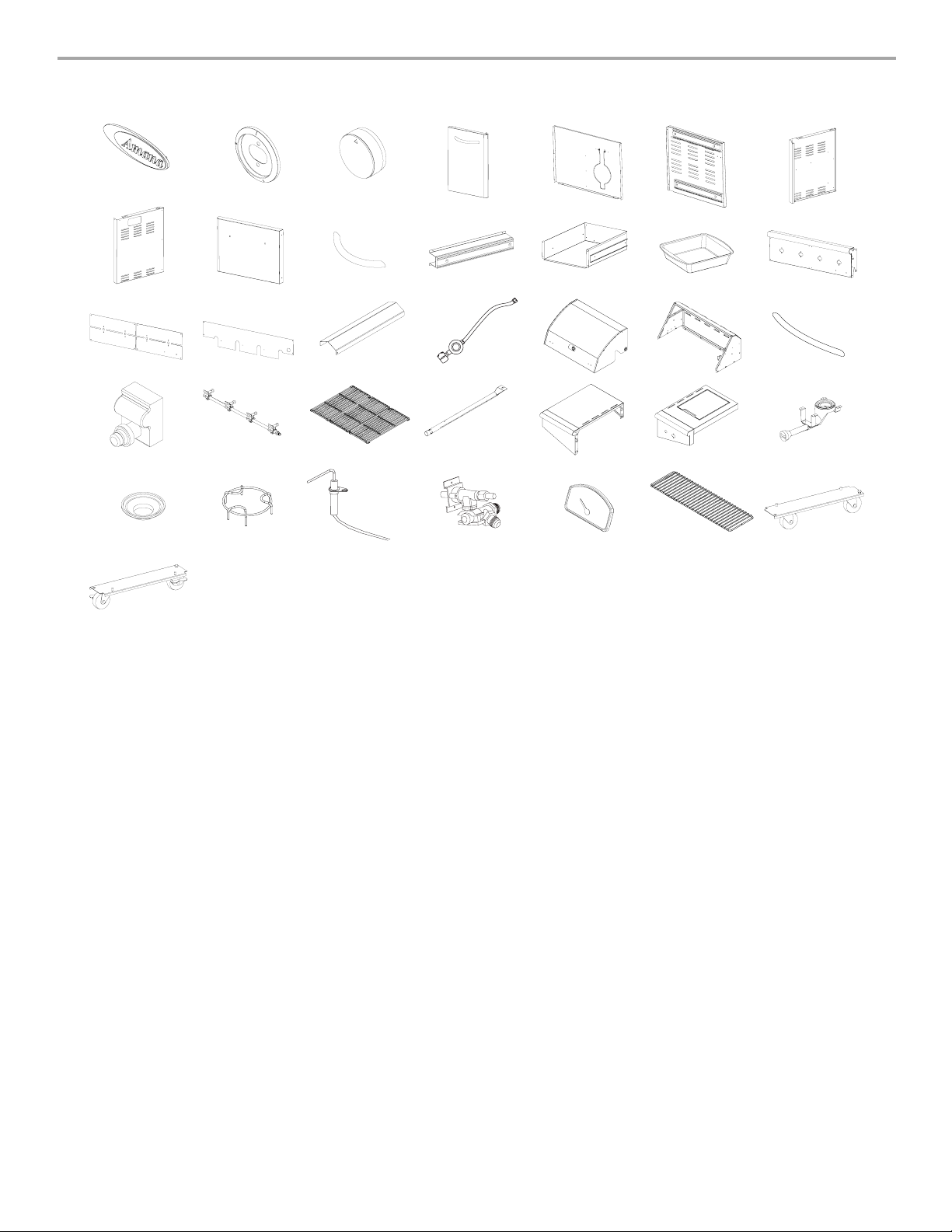

REPLACEMENT PARTS
1. Amana logo
2. Burner bezel (5)
3. Control knob (5)
4. Cart door right assembly
5. Cart back with tank secure ring
6. Cart middle divider
7. Cart side left
8. Cart side right
9. Drawer front
10 Drawer handle
11. Drawer slide rail
12. Drawer tray assembly
13. Drip pan
14. Front face assembly
15. Front face overlay
16. Front face heat shield
17. Flavor grid
18. Gas pressure regulator/hose assembly
FCTG2608008
FCCS0007033
FCCS0007032
FCTG2908011
FCTG2908010
FCTG2908020
FCTG2908015
FCTG29080016
FCTG2908012
FCTG2908014
FCTG2908019
FCTG2908013
FCCS0007037
FCTG2908005
FCTG2908006
FCTG2908007
FCTG2908026
FCTG2608005
19. Hood assembly
20. Hood support assembly
21. Hood handle
22. Igniter module (5 poles)
23. Main manifold assembly
24. Main cooking grates (3 pieces)
25. Main burner tube (4)
26. Side shelf
27. Side burner shelf assembly
28. Side burner casting
29. Side burner cap (brass)
30. Side burner grate
31. Side burner igniter with wire
32. Side burner valve
33. Temperature gauge
34. Warming shelf
35. Fixed (left) caster assembly (2)
36. Swivel (right) caster assembly (2)
Additional parts not shown:
Cart door magnet
Flex line
Main igniter with wire 740
Main igniter with wire 540
Main igniter with wire 330
Main igniter with wire 820
Small hardware package
FCTG2908001
FCTG2908003
FCTG2908002
FCTG2908027
FCTG2908008
FCTG2908009
FCTG2608013
FCTG2908021
FCTG2908022
FCTG2608029
FCTG3007023
FCTG2707026
FCTG2608030
FCTG2608032
FCCS0007030
FCTG2908004
FCTG2908017
FCTG2908018
FCTG2908024
FCTG2608037
FCBJ3308028
FCBJ3308029
FCTG2608033
FCTG2908023
FCTG2908025
12345
11109
8
6
12 13
18
17
16
15
7
14
2120
28
35
34
27
19
26
33
25
32
2423
22
31
30
29
36

Sure Heat Mfg warrants that for 2 years from the date of purchase, the stainless steel panels will not
break due to defects in material or workmanship. All other components of this Amana grill are war-
ranted free from defects in material and workmanship for one year from the date of purchase. Sure
Heat Mfg. at its option, will repair or replace this product or any component of the product found to
be defective during the warranty period. Replacement will be made with a new manufactured product
or component. if the product is no longer available, replacement may be made with a similar product
of equal value. This warranty does not include transportation or shipping costs of any kind. This is
your exclusive warranty.
This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not
transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty parts.
This warranty does not cover normal wear of parts such as scratches and dents of the stainless steel
components or damage resulting from any of the following:
negligent use or misuse of the product, including exposing the product to chemicals or
cleaning products not approved by Sure Heat Mfg.
corrosion, rust or discolouring of any kind.
use or installation contrary to specified instructions and applicable building codes, including
heating the product to temperatures above its rated specifications which can cause
considerable warping
disassembly, including removal of the product from a built-in installation
damage resulting from accident, alteration, misuse, abuse, hostile environments, or
improper installation
repair or alteration
acts of God, such as fire, flood hurricanes, and tornadoes
gas cylinders, propane tanks or other fuel delivery systems, including connections to a
household fuel supply
usage other than single-family household use such as commercial or industrial use
minor warping or discolouration of parts, which is normal and not a defect under this warranty
If the Amana Grill does not operate properly,first thoroughly carry out the instructions provided
with the unit to ensure that the appliance is installed correctly and check the trouble shooting section
in the use and care manual.
We recommend you return the warranty registration card so that you can be contacted with any
questions of safety arise that could affect you. The return of the warranty registration card is not a
condition for warranty coverage.
Because of continuing product improvement these specifications are subject to change without
notice.
If you have other questions or need replacement parts contact our
Customer Service Hotline at [phone] or
visit our website at www.sureheat.com
RACEZ00044A
© 2009.
All rights reserved. AMANA® is a registered trademark of Maytag Corporation or its related companies and is used under license to Sure Heat Manufacturing, Marietta, GA. 3/09 Printed in China
