Amantii 40-TRV-XL-XT Owner's manual

INSTALLATION AND OPERATION INSTRUCTIONS FOR
40-TRV-XL-XT
50-TRV-XL-XT
60-TRV-XL-XT
72-TRV-XL-XT
88-TRV-XL-XT
SAFETY INFORMATION
WARNING
If theinformationintheseinstructionsare
not followed exactly,afireorexplosion
mayresult causingpropertydamage,
personalinjuryorlossoflife.
Do not storeoruse gasolineorotherflammablevapors
and liquidsinthevicinity ofthisorany otherappliance.
INSTALLER:LEAVETHIS MANUALWITH THE APPLIANCE.
CONSUMER:RETAINTHISMANUALFOR FUTURE REFERENCE.

TABLE OF CONTENTS
Please read and carefully follow all instructions found in this manual. Please pay special attention to
the safety instructions provided in this manual. The instructions included here will assure that you
have many years of dependable and enjoyable service from your Amantii product.
IMPORTANT INSTRUCTIONS ......................................................................................................................................... 3
UNPACKING AND TESTING APPLIANCE ................................................................................................................... 5
PLUG INSTALLATION ...................................................................................................................................................... 4
LOCATING THE FIREPLACE ........................................................................................................................................... 5
40-TRV-XL-XT ..................................................................................................................................................................... 6
50-TRV-XL-XT ..................................................................................................................................................................... 7
60-TRV-XL-XT ..................................................................................................................................................................... 8
72-TRV-XL-XT .....................................................................................................................................................................
88-TRV-XL-XT ...................................................................................................................................................................10
SAFETY DRILL SCREW AREA ..................................................................................................... ................................11
INSTALLATION ................................................................................................................................................................ 12
MEDIA OPTIONS .............................................................................................................................................................. 18
OPERATION ....................................................................................................................................................................... 1
CARE AND MAINTENANCE ........................................................................................................................... 23
REPLACEMENT PARTS .................................................................................................................................................. 24
EXPLODED VIEW ............................................................................................................................................................ 26
WIRING DIAGRAM .......................................................................................................................................................... 27
TROUBLE SHOOTING ..................................................................................................................................................... 28
SERVICE HISTORY .......................................................................................................................................................... 2
WARRANTY ...................................................................................................................................................................... 30
2

IMPORTANT INSTRUCTIONS
PLEASE RETAIN THIS USER GUIDE FOR FUTURE REFERENCE
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock,
and injury to persons, including the following:
1) Read all instructions before using this fireplace
2) The fireplace is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep
combustible material such as furniture, cushions, bedding, paper, clothes, curtains at least 3 feet from
the front of the unit
3) Extreme caution is necessary when any heater is used near children and whenever the unit is left
operating and unattended
4) Do not operate a fireplace with a damaged cord or plug, or if the heater has malfunctioned, the
fireplace has dropped or damaged in any manner
5) Not all fireplaces are suitable for use in bathrooms or laundry facilities. Please consult with individual
product literature to confirm suitability
6) Do not run the cord under carpeting. Do not cover cord with throw rugs, runners or the like. Arrange
the cord away from traffic area and where it will not be tripped over
7) Do not modify this fireplace. Use it as described in the manual. Any other use not recommended by
the manufacture may cause fire, shock or injury to persons
8) Do not use this heater with a programmer, timer, separate remote-control system or any other device
that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned
incorrectly
9) Disconnect all power supply before cleaning, maintenance or relocation of the fireplace
10) Keep the heater clean. Do not allow any objects to enter any ventilation or exhaust opening as this
may cause electric shock, fire or damage to the heater
11) Do not immerse the cord, plug or any part of the appliance in water or any other li uid
12) In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must
not be supplied through an external switching device
CAUTION: Procedures and techni ues, which, if not carefully followed, will result in damage to the e uipment.
WARNING: Procedures and techni ues, which, if not carefully followed, will expose the user to the risk of fire, serious
injury, illness or death.
3

4
Your power cord will come separate from the unit, please locate it when unpacking your
fireplace. The plug contained inside the box is predetermined at the factory and according to
orders placed by authorized dealers.
Please following the instructions to correctly install the plug into your fireplace.

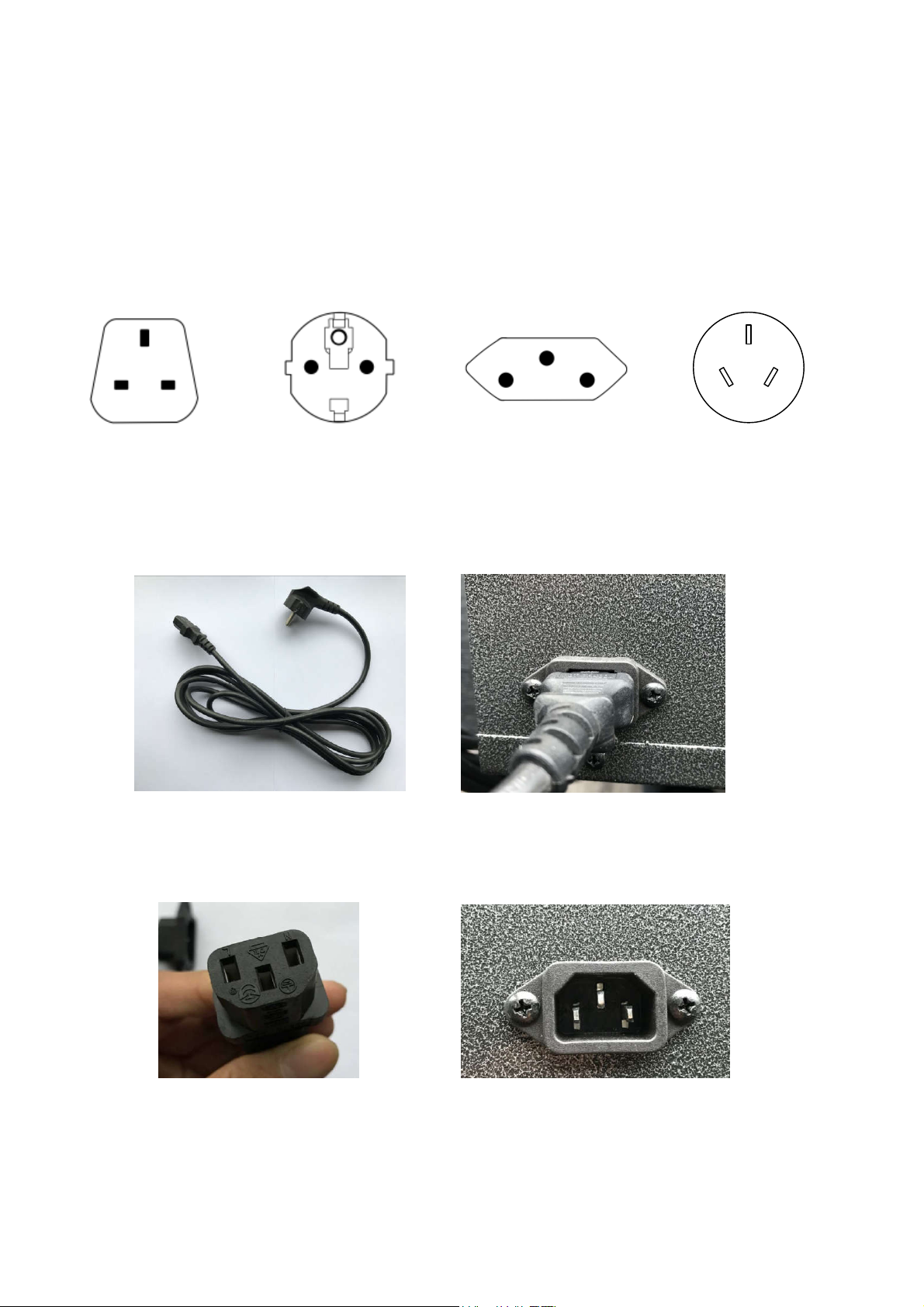

1. Included in the box will be a power cord similar to the one pictured below. See Picture 1.
2. Hold the male plug and insert it into the female receptacle. The receptacle is locate on
the left side if the fireplace.
3. Please make sure the plugs are firmly connected. See Picture 2 above.
PLUG INSTALLATION
Picture 1 Picture 2
UK plug European plug Swiss plug Australian plug
10103060E 10103030E 10103109E 10103087F
Available are UK, European, Swiss & Australian plugs. Should you require any of these
options please contact your dealer for purchase. You will be required to give the the
correct part nu ber as listed below.

5
UNPACKINGANDTESTINGAPPLIANCE
Carefullyremovetheappliancefromthebox. Priortoinstallingtheappliance,testtomakesurethe
applianceoperatesproperlybypluggingthepowersupplycordintoaconvenientlylocated240Volt
groundedoutlet.
LOCATINGTHEFIREPLACE
Planwhere tolocateandframethefireplace.This will savetimeandmoneylaterwhenyouinstall
thefireplace.Beforeinstallationconsiderthefollowing:
1. Where thefireplaceis locatedmust allowforwallandceilingclearances(see INSTALLATION)
2. Consideralocationwhere thefireplacescreenwill notbeexposedtodirectsunlight from
windowsordoors.
3. A15 ampere,240 Volt,50 Hz branchcircuit with properground mustbeavailableatthelocation.
Preferablyadedicatedbranchcircuitshouldbeprovidedtoavoidcircuitbreakerstotripoffuses
toblow.

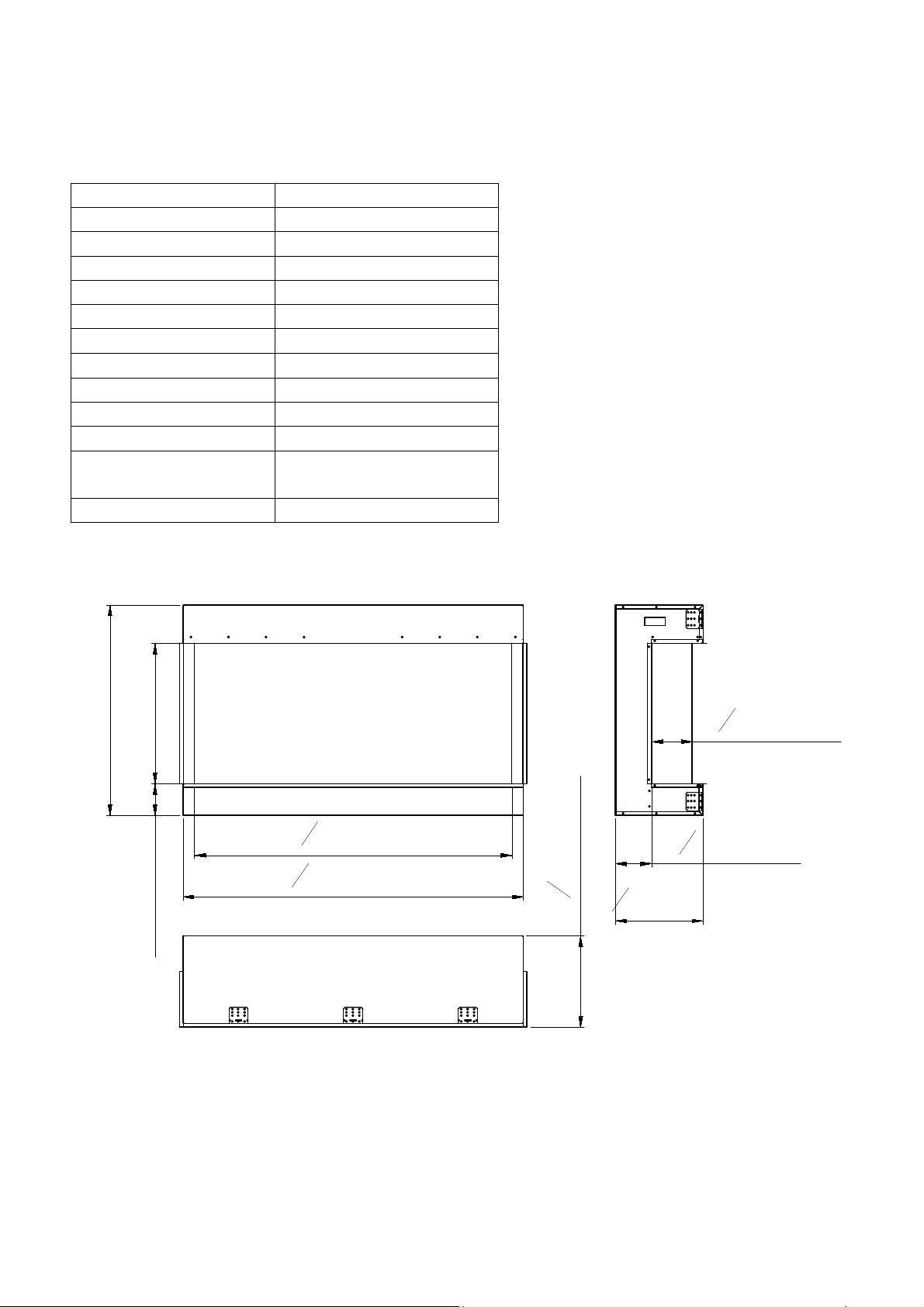

40-TRV-XL-XT
Description Built-inAppliance
Voltage 240V AC50-60Hz
Watts 1900WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 43 1/4”or109.8 cm.
ApplianceHeight 33”or83.7 cm
ApplianceDepth 13 3/4”or34.8 cm
Gross Weight 125.7 lbs or 57 kgs
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 43 3/4”34" or
111.1 cm 86.4 cm
BTU 6500
6
4314" [1097.6mm]
5" [126.8mm] 22" [558.8mm]
33" [837.2mm]
3958" [1007mm]
1334" [348mm]
614" [160mm]
1414" [363mm]
558" [144mm]

50-TRV-XL-XT
Description Built-inAppliance
Voltage 240V AC50-60Hz
Watts 1900WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 53 1/4”or 135.2 cm
ApplianceHeight 33" or 83.7 cm
ApplianceDepth 13 3/4" or 34.8 cm
Gross Weight 147.7 lbs or 67 kgs
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 53 3/4”34" or
136.5 cm 86.4 cm
BTU 6500
7
5314" [1351.6mm]
5" [126.8mm] 22" [558.8mm]
33" [837.2mm]
4958" [1261mm]
1334" [348mm]
614" [160mm]
1414" [363mm]
558" [144mm]

60-TRV-XL-XT
Description Built-inAppliance
Voltage 240V AC50-60Hz
Watts 1900WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 63 1/4 or 160.6 cm”
ApplianceHeight 33" or 83.7 cm
ApplianceDepth 13 3/4" or 34.8 cm
Gross Weight 169.8 lbs or 77 kgs
PlugLocation Left side
Cord Length 707/8" or180 cm
RoughWall OpeningSize 63 3/4" 34" or
161.9 cm 86.4 cm
BTU 6500
8
33" [837.2mm]
5" [126.8mm] 22" [558.8mm]
5958" [1515mm]
6314" [1605.6mm]
1334" [348mm]
614" [160mm]
1414" [363mm]
558" [144mm]

72-TRV-XL-XT
Description Built-inAppliance
Voltage 240V AC50-60Hz
Watts 1900WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 75 1/4”or 191 cm
ApplianceHeight 33" or 83.7 cm
ApplianceDepth 13 3/4" or 34.8cm
Gross Weight 200.6 lbs or 91 kgs
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 75 3/4" 34" or
192.4 cm 86.4 cm
BTU 6500
9
22" [558.8mm]5" [126.8mm]
33" [837.2mm]
7514" [1910.4mm]
7158" [1819.8mm] 1334" [348mm]
614" [160mm]
1512" [393mm]
558" [144mm]

88-TRV-XL-XT
Description Built-inAppliance
Voltage 240V AC50-60Hz
Watts 1900WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 91 1/4”or 231.7 cm
ApplianceHeight 33" or 83.7 cm
ApplianceDepth 13 3/4" or 34.8 cm
Gross Weight 231.5 lbs or 105 kgs
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 91 3/4”34" or
233 cm 86.4 cm
BTU 6500
0
22" [558.8mm]5" [126.8mm]
33" [837.2mm]
9114" [2316.8mm]
8758" [2226.2mm] 1334" [348mm]
614" [160mm]
1512" [393mm]
558" [144mm]

SAFETYDRILL SCREWAREA
Thereis asafetydrillscrewareaasshow below.
Pleasemakesurethat thefixscrewsare inthis area.
Themanualcontrolpadposition
Safetydrill screwarea
(Darkarea)

INSTALLATION
The TRV-XL-XT models are designed to be built-in and allow for the finishing material (drywall, stone,
tile, etc) to be built right down to the glass edge.
The rough wall opening size of the fireplace:
NOTE: Due to the many different materials used on different walls, it is highly recommended that
you consult your local builder before you install this appliance.
W(＂)D(＂) H(＂)
60-TRV-XL-XT 63 3/414 1/4 34
72-TRV-XL-XT 75 3/414 1/4 34
88-TRV-XL-XT 913/414 1/4 34
50-TRV-XL-XT 53 3/414 1/4 34

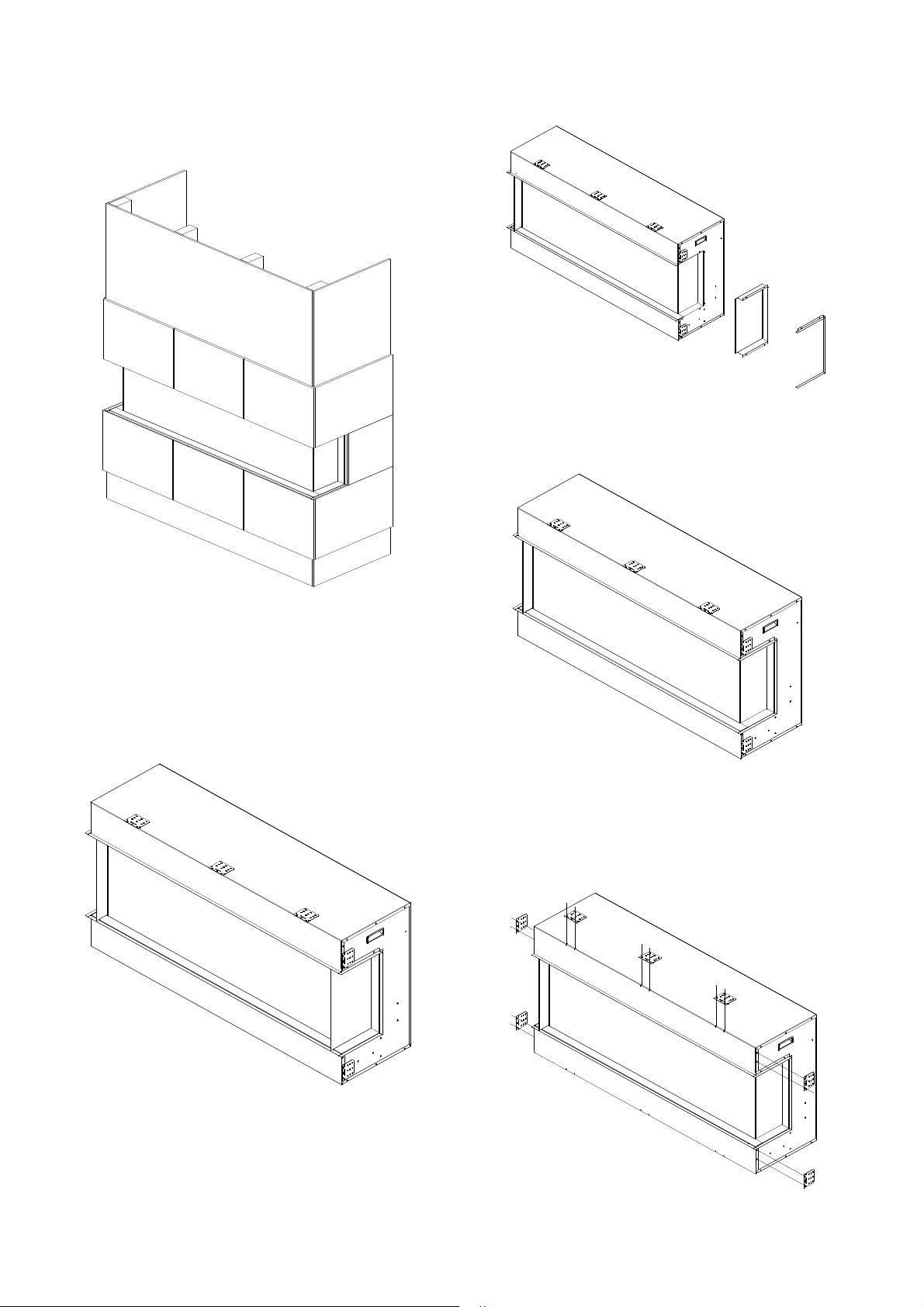

1. Product is fixed with fending bars and
panels on the left and right side.
2. Take off the fending bars and panels if you
want to view the fire from three angles.
3. Screw back the fending bar after the panel
is removed.
fending bar
fending panel
40-TRV-XL-XT 43 3/4 14 1/4 34
2
. Remove the framing plates from the
fireplace and fix them as the picture shows.
NOTE: After removing framing plates on the
left and right sides, screw back the screws.

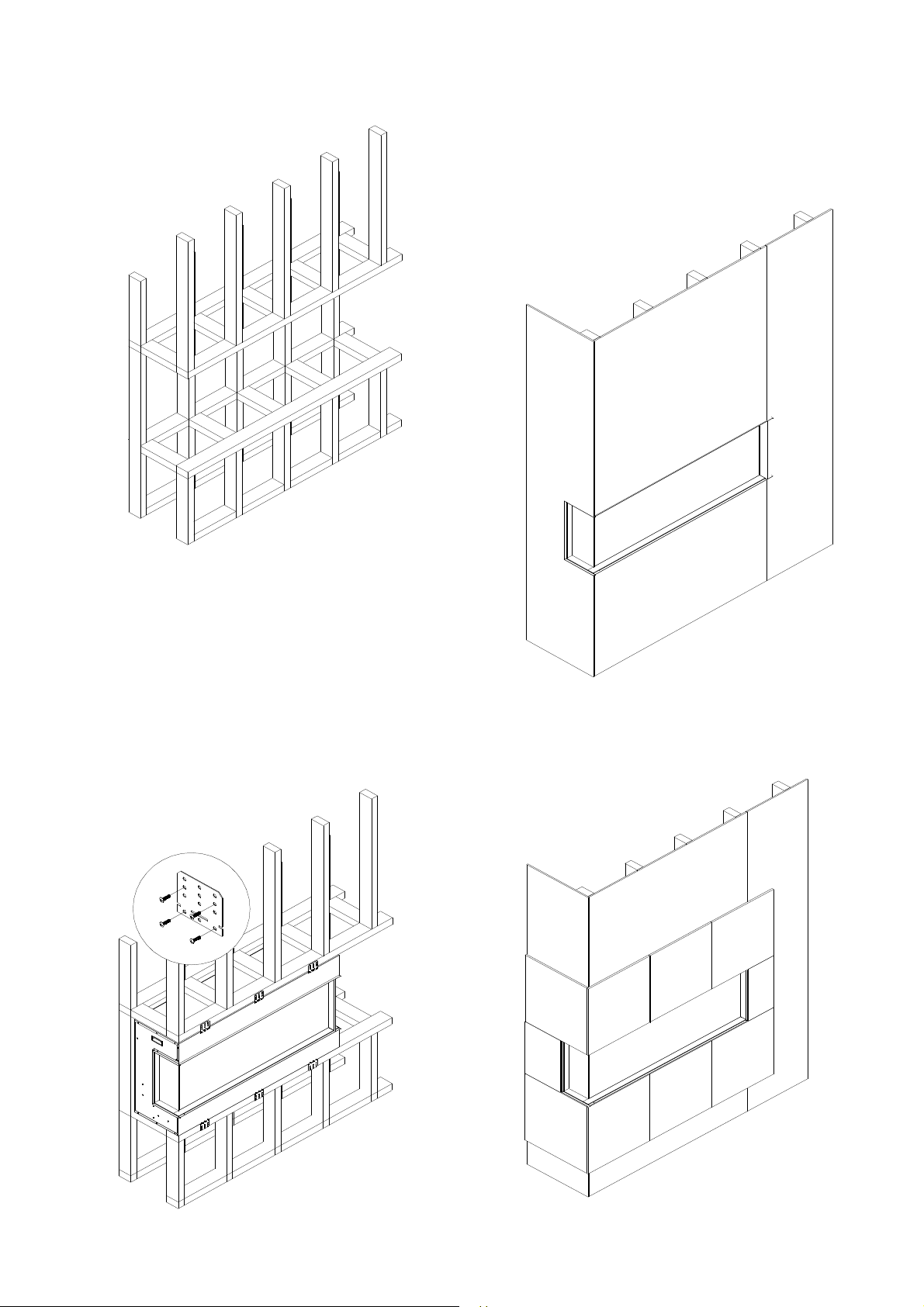

5. Make an opening for the fireplace according
to requested measurement.
6. Insert the fireplace into the wall opening.
Drive the mounting screws into the frame
plates on the unit and the wall studs. To fix
the bottom of the fireplace and the wall
studs with the framing plates that you’ve
removed from left and right side of the
fireplace at STEP . Plug in and check if the
fireplace works.
7. After checking that the fireplace operates
properly, cover the glass panels with
protective plastic bag and install plywood or
drywall.
framing plate
framing plate
3

8. Decorate the plywood or drywall with
glazed tile, wallpaper, etc.
Installation for Front and right side
Viewing
1. To install the fireplace where the left side is
close to a wall, and you want to view the
fire from front and right side, take off the
fending panel on the right.
2. Unscrew 7screws on the right side that fix
the fending bar and panel and then take off
the fending bar and panel.
3. After the fending panel is removed, screw
back the bar.
. Remove the framing plates from the
fireplace and fix them as the picture shows.
NOTE: After removing framing plates on the
left and right sides, screw back the screws.
5

5. Make an opening for the fireplace according
to requested measurement.
6. Insert the fireplace into the wall opening.
Drive the mounting screws into the frame
plates on the unit and the wall studs. To fix
the bottom of the fireplace and the wall
studs with the framing plates that you’ve
removed from left and right side of the
fireplace at STEP . Plug in and check if the
fireplace works.
7. After checking that the fireplace operates
properly, cover the glass panels with
protective plastic bag and install plywood or
drywall.
8. Decorate the plywood or drywall with
glazed tile, wallpaper, etc.
5

Installation for Front and Left Side
Viewing
1. Install the fireplace where the right side is
close to a wall, and you want to view the
fire from front and left side, take off the
fending panel on the left.
2. Unscrew 7 screws on the left side that fix
the fending bar and panel and then take off
the fending bar and panel.
3. After the fending panel is removed, screw
back the bar.
. Remove the framing plates from the
fireplace and fix them as the picture shows.
NOTE: After removing the framing plates on
the left and right sides, screw back the
screws.
5. Make an opening for the fireplace according
to requested measurement.
6

6. Insert the fireplace into the wall opening.
Drive the mounting screws into the frame
plates on the unit and the wall studs. To fix
the bottom of the fireplace and the wall
studs with the framing plates that you’ve
removed from left and right side of the
fireplace at STEP . Plug in and check if the
fireplace works.
7. After checking that the fireplace operates
properly, cover the glass panels with
protective plastic bag and install plywood or
drywall.
8. Decorate the plywood or drywall with
glazed tile, wallpaper, etc.
7

MEDIA OPTIONS
The TRV-XL-XT series models are shipped with no Media. Customers may purchase optional
decorative media if they choose. See dealer for more details.

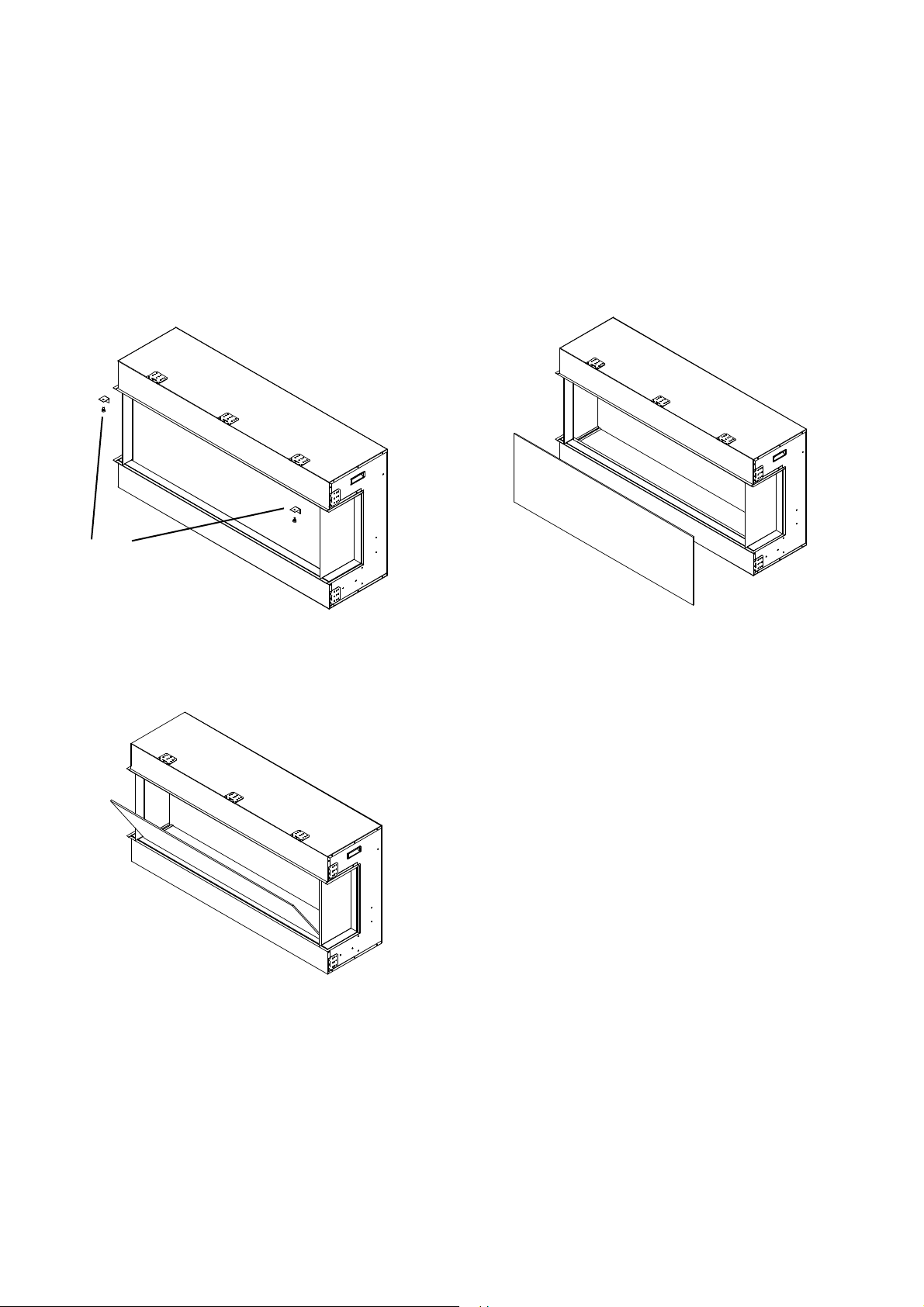

MEDIA OPERATION
1. Unscrew2screwsandtakeofftwobracketswhich
arefendingthefrontglasspanel.
Screwsandbrackets
2. Afterthebracketsareremoved,thefrontglasspanel
willfalldownautomatically.
4. Installingthefireglass media.Pourthefire
glass media intothetrayasshownbelow.
Feelfreetouseanycombination of fireglass
mediathatyoufind mostappealing.
3. Takeoffthefrontglasspanelandputitinsafeplace.
5. Putbackthefrontglassandscrewbackthebracket.
8

9
OPERATION
The fireplacecan be operated eitherbythe switcheslocatedontheleftbottomofthe fireplace
unitorbysupplied remotecontrol.
Plug thefireplaceintoa15 Ampwall socket.
1、 Press key . Press for the first time，heater work at 1900W, indicator ights red.
Press for the second time, heater work at 950W，indicator ights b ue. Press for the
third time, the heating e ement turns off, indicator extinguishes.
Note: after the heating e ements are turned on manua y, the heating e ements work but
are not contro ed by the temperature sensor.
2、Press key . Press for the first time and the charcoa and f ame is in the highest
brightness. Press for the second time ,the charcoa and f ame is in medium brightness.
Press for the third time ,the charcoa and f ame is in ow brightness. Press for the fourth time ,
the charcoa and f ame goes out. Then it circu ates in turn.
MANUAL OPERATION

20

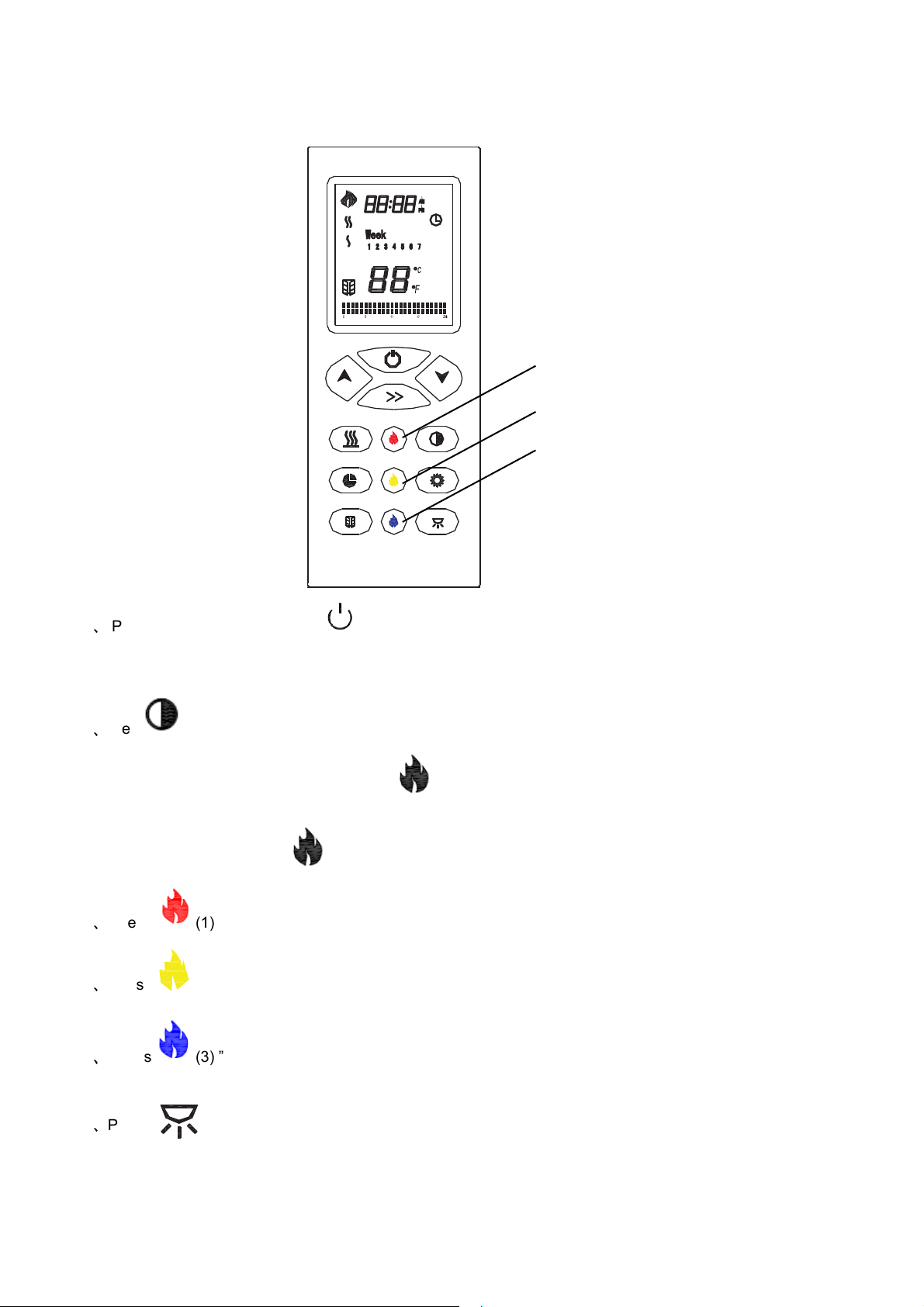

REMOTE CONTROL OPERATION
6 、 Press“ ”to turn on, turn off and adjust top ight co ors. The buzzer beeps once when the key is pressed;
1 、 Press the remote contro ’s key“ ”, its screen turns on, the f ame ignites and the f ame icon appears on
the LCD screen of the remote contro . Week, time (24h system), and temperature setting are disp ayed
norma y. Press it again, the screen of the remote contro wi turn off;
2
、 Key“ ”, f ame and charcoa contro switch. In case of ON, press once, the f ame and the charcoa bed
go out, the LCD screen does not disp ay . Press it again and the f ame and the charcoa bed turn on,
the LCD screen disp ays . The buzzer beeps once when the key is pressed;
3
、 Press“ (1) ”to adjust the red f ame. The buzzer beeps once when the key is pressed;
4 、 Press“ (2) ” to adjust the ye ow f ame. The buzzer beeps once when the key is pressed;
5
、 Press“ (3) ” to adjust the b ue f ame. The buzzer beeps once when the key is pressed;
1
2
3
