1. INTRODUCTION
1.1. General
Amate Audio would like to thank you for your confidence in our NITID Series. We
suggest you to carefully read the following instructions in order to obtain the best
results in performance.
1.2. Features and presentation
N12WP
- Passive subwoofer
- NL4MPR Speakon input & parallel output
- 800 W program power
- Sensitivity 1 W / 1 m: 96 dB
- 12” woofer with 3” voice coil
- Nominal impedance 8Ω
N18WP
- Passive subwoofer
- NL4MPR Speakon input & parallel output
- 2400 W program power
- Sensitivity 1 W / 1 m: 98 dB
- 18” woofer with 4” voice coil
- Nominal impedance 8Ω
N218W
- Passive subwoofer
- NL4MPR Speakon input
- 4800 W program power
- Sensitivity 1 W / 1 m: 102 dB
- 2 x 18” woofers with 4” voice coil
- Nominal impedance 4Ω
2. CONNECTIONS
2.1. Connection description (N18WP)
A) SPEAKON: The N18WP uses two
NL4MPR Speakon terminals and is duly
prepared for a perfect connection in a
parallel system. Terminal Pins +1/-1 must
be always used, disregarding the +2/-2
which are not internally connected.
Respect always the polarity +/-.
Fig. 1. N18WP connectors
A
A

NITID N12WP_N18WP_N218WP May 2018
4Amate Audio
2.2. Connection description (N218WP)
A) SPEAKON: The N218WP uses
one NL4MPR Speakon terminal.
Terminal Pins +1/-1 must be always
used, disregarding the +2/-2 which are
not internally connected. Respect
always the polarity +/-.
Fig. 2. N218WP connectors
2.3. Connection description (N12WP)
A) SPEAKON: The N12WP uses two NL4MPR
Speakon terminals and is duly prepared for a
perfect connection in a parallel system.
Terminal Pins +1/-1 must be always used,
disregarding the +2/-2 which are not
internally connected. Respect always the
polarity +/-.
Fig. 3. N12WP connectors
It is strongly recommended to use a two-conductor high quality wire, non-
shielded and two-coloured. We recommend using a minimum section of 4
mm2for each conductor. Avoid long wire distances as they induce to
important power and quality losses.
A
A
A

NITID N12WP_N18WP_N218WP May 2018
5Amate Audio
2.4. Recommended set-up for N12WP passive subwoofer
One unit of HD3200 (in stereo mode) can feed up to four units of N12WP.

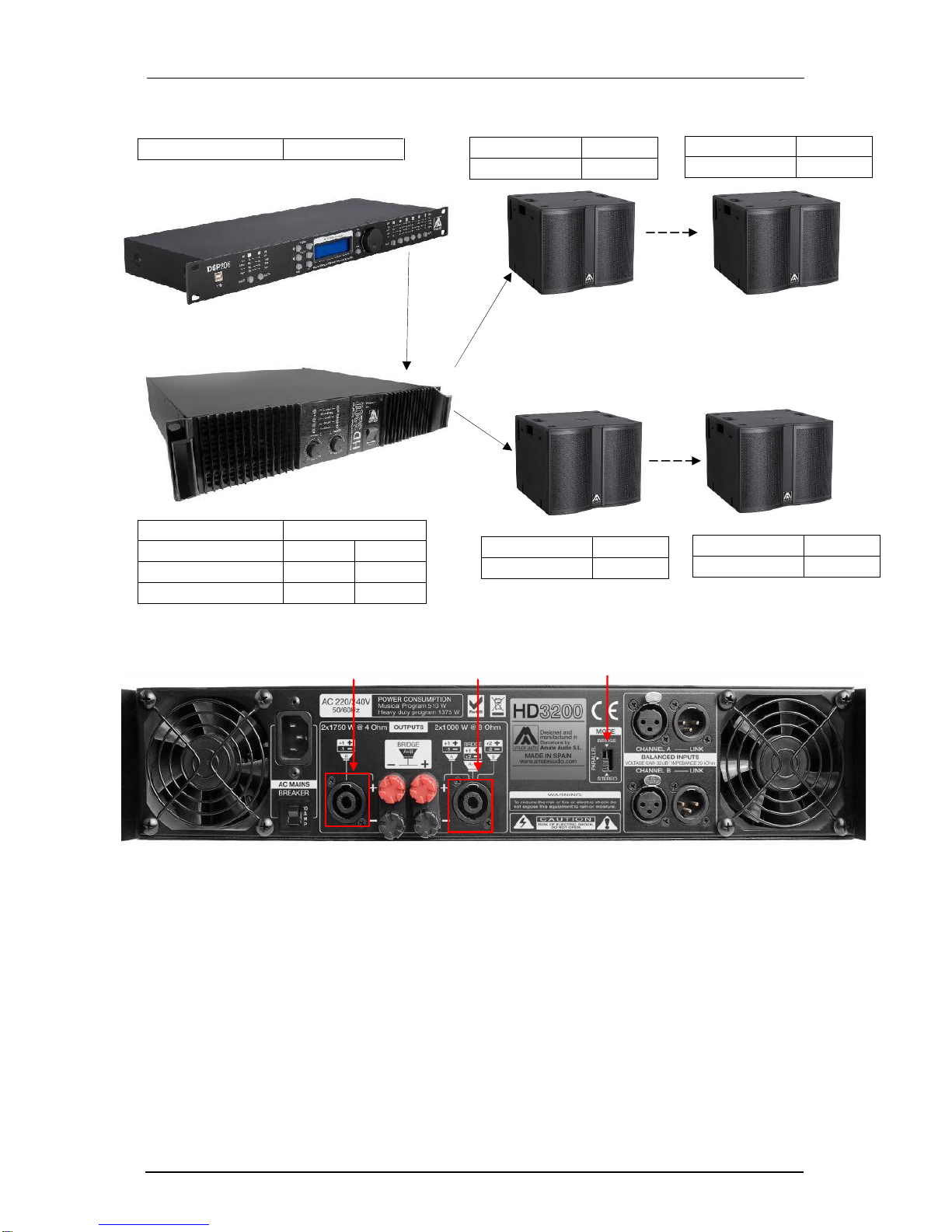

Fig. 4. N12WP configuration
Model
DSP206/608
Model
N12WP
Impedance
8Ω
Model
N12WP
Impedance
8Ω
Model
N12WP
Impedance
8Ω
Model
N12WP
Impedance
8Ω
Model
HD3200
Mode
Stereo
Stereo
Impedance
8Ω
4Ω
Program power
1000W
1750W

NITID N12WP_N18WP_N218WP May 2018
6Amate Audio
2.5. Recommended set-up for N18WP passive subwoofer
One unit of HD4000 (in bridge mode) can feed up to two units of N18WP
Fig. 5. N18WP configuration
Model
N18WP
Impedance
8Ω
Model
DSP206/608
Model
HD4000
Mode
Bridge
Bridge
Impedance
4Ω
8Ω
Program power
4000W
2400W
Model
N18WP
Impedance
8Ω

NITID N12WP_N18WP_N218WP May 2018
7Amate Audio
2.6. Recommended set-up for N218WP passive subwoofer
One unit of N218WP needs one unit of HD4000 (in bridge mode)
Fig. 6. N218WP configuration
2.7. Recommended presets for N12WP, N18WP, N218WP
The N12WP, N18WP and N218WP can be used with an external DSP206/608
(digital signal processor).
ATTENTION: When the N12WP, N18WP or N218WP are used in conjunction with
the Full-range NITID systems in SPEECH or XOVER presets, the N12WP, N18WP
and N218WP must operate in positive polarity.
When the N12WP, N18WP or N218WP are used in conjunction with the Full-range
NITID systems in FLAT, NEARFIELD, LONGTHROW, SMOOTH, MONITOR
presets, the N12WP, N18WP and N218WP must operate in negative polarity.
Model
DSP206/608
Model
HD4000
Mode
Bridge
Impedance
4Ω
Program power
4000W
Model
N218WP
Impedance
4Ω

NITID N12WP_N18WP_N218WP May 2018
8Amate Audio

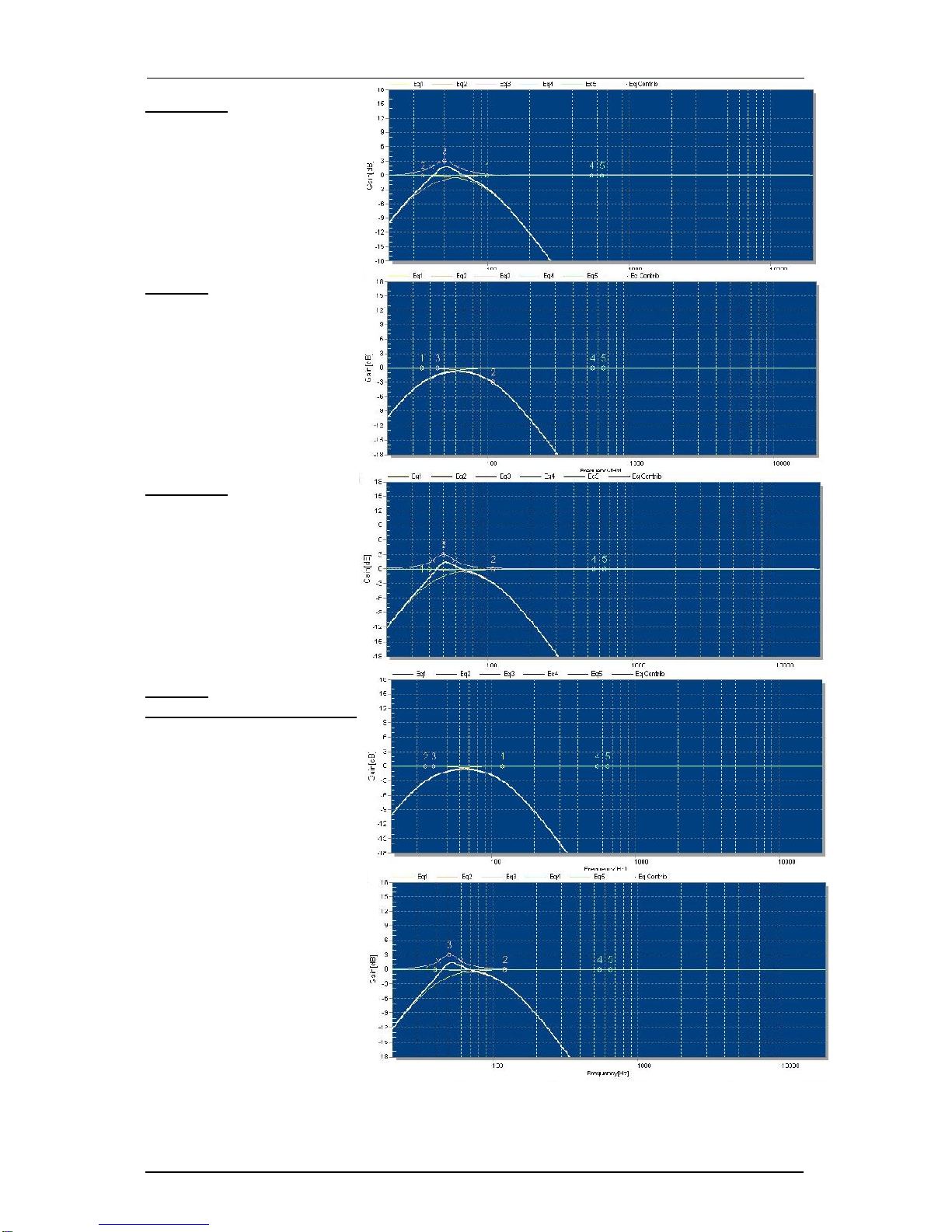

LPF80
80 Hz low pass filter
LPF80+3
80 Hz low pass filter
3) +3dB boost
at 50Hz (N12WP,N18WP)
3) +3dB boost
at 44Hz (N218WP)
LPF90
90 Hz low pass filter
LPF90+3
90 Hz low pass filter
a 90Hz
3) +3dB boost
at 50Hz (N12WP,N18WP)
3) +3dB boost
at 44Hz (N218WP)
LPF100
100 Hz low pass filter

NITID N12WP_N18WP_N218WP May 2018
9Amate Audio
LPF100+3
100 Hz low pass filter
3) +3dB boost
at 50Hz (N12WP,N18WP)
3) +3dB boost
at 44Hz (N218WP)
LPF110
110 Hz low pass filter
LPF110+3
110 Hz low pass filter
3) +3dB boost
at 50Hz (N12WP,N18WP)
3) +3dB boost
at 44Hz (N218WP)
LPF120
(only for N12WP, N18WP)
120 Hz low pass filter
LPF120+3
(only for N12WP, N18WP)
120Hz low pass filter
with +3dB boost
at 50Hz

NITID N12WP_N18WP_N218WP May 2018
10 Amate Audio
CARD80/90/100/110/120*
(*120 only for N18WP)
Cardioid polar pattern, with processing, delay
and inverse polarity
Fig. 7. Recommended PRESETS for N12WP, N18WP and
N218WP
3. MOUNTING AND PLACEMENT
For a proper installation of the acoustic cabinet systems, it is strongly recommended
to carefully read the following advices.
3.1. N12WP, N18WP and N218WP with full-range
systems
The N12WP and N18WP incorporate a M20 base-
plate on its upper side for the attachment of a
standard 35mm diameter bar.
.
Fig. 8. N18WP socket
The N218WP
incorporates a M10
base-plate on their
upper side for the
attachment of a
stacking frame (FR-
X208)
Fig. 9. N218WP socket

NITID N12WP_N18WP_N218WP May 2018
11 Amate Audio
The PA-2010 is an optional accessory to adapt an M20 thread distance rod bar to
the N218WP subwoofers.
Fig. 10. PA-2010

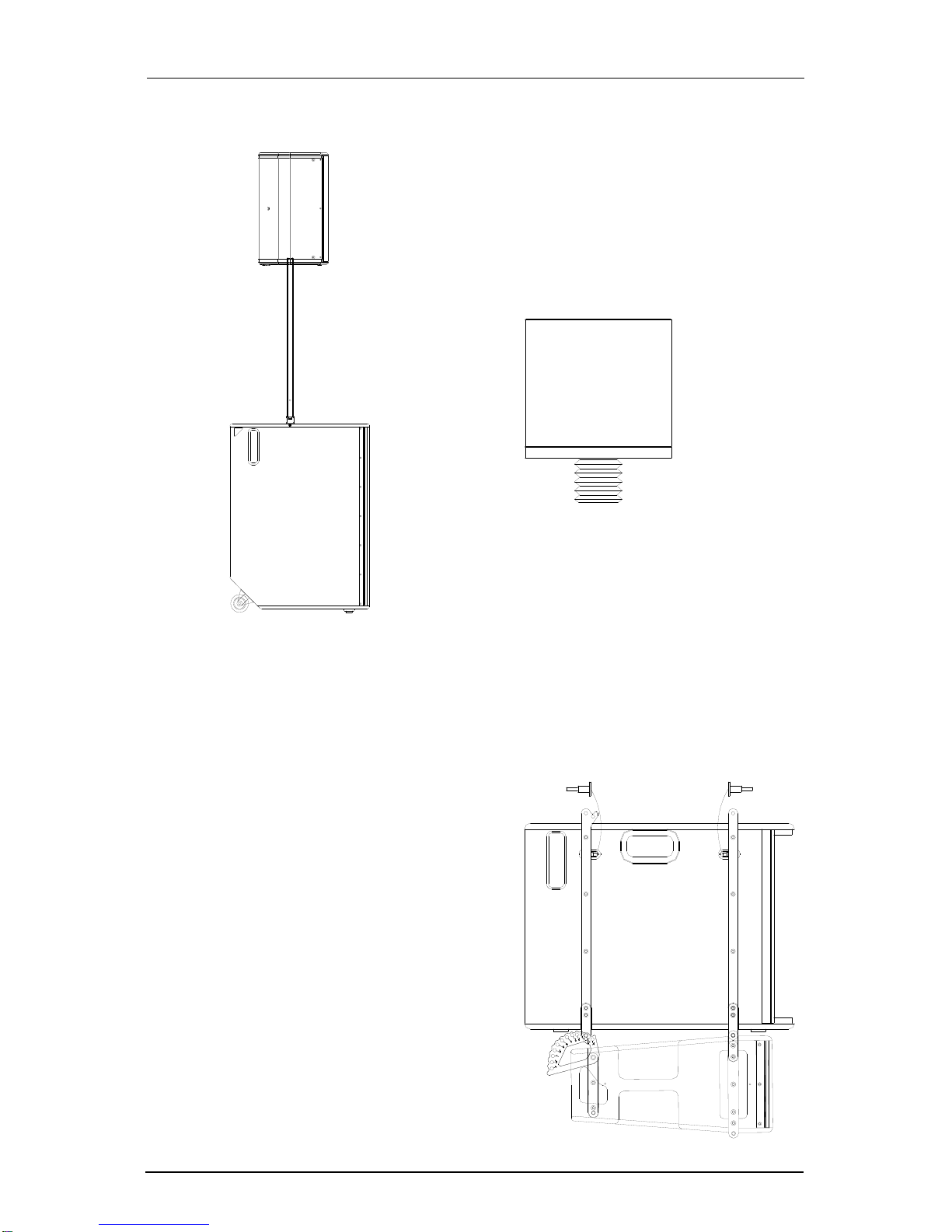

3.2. N18WP + N208 Flying
Flying a NITID system is easy, fast and secure. To perform any operations related to
flying the systems, read the present document, and act on the warnings and advice
given.
Only experienced installers with adequate
knowledge of the system and local safety
regulations should fly speaker cabinets.
It is the user's responsibility to ensure that
the systems to be flown and the flying
accessories (such as chains, eyebolts, lock
pins...) comply with state and local
regulations. They should be regularly
inspected and replaced if in doubt.
When flying enclosures from ceiling support
structures, extreme care should be taken to
assure the load bearing capabilities of the
structures. Do not fly systems from unsafe
structures.

NITID N12WP_N18WP_N218WP May 2018
12 Amate Audio
All flying accessories that are not supplied by Amate Audio are the user's
responsibility. Use at your own risk.
It is useful to fly low frequency reinforcement units on the top of the system, as they
are the heaviest enclosures. Place the subwoofers and cabinets as has been
explained in KR-18T user’s manual.
Fig. 11. N18WP + N208 flying with KR-18T accessory
4. CARDIOID SUBWOOFERS
N12WP, N18WP and N218WP enable the
combination of three or multiple of three
subwoofer cabinets in an array to provide
exceptional directivity at low frequencies. To get
the correct set-up parameters, please contact
[email protected]. High directivity at low
frequencies has two main effects on the sound
field: firstly, the low frequency level behind the
subwoofer cabinets is greatly reduced; secondly,
in closed venues the diffuse sound field at low
frequencies is reduced so the low frequency
reproduction is much more precise.

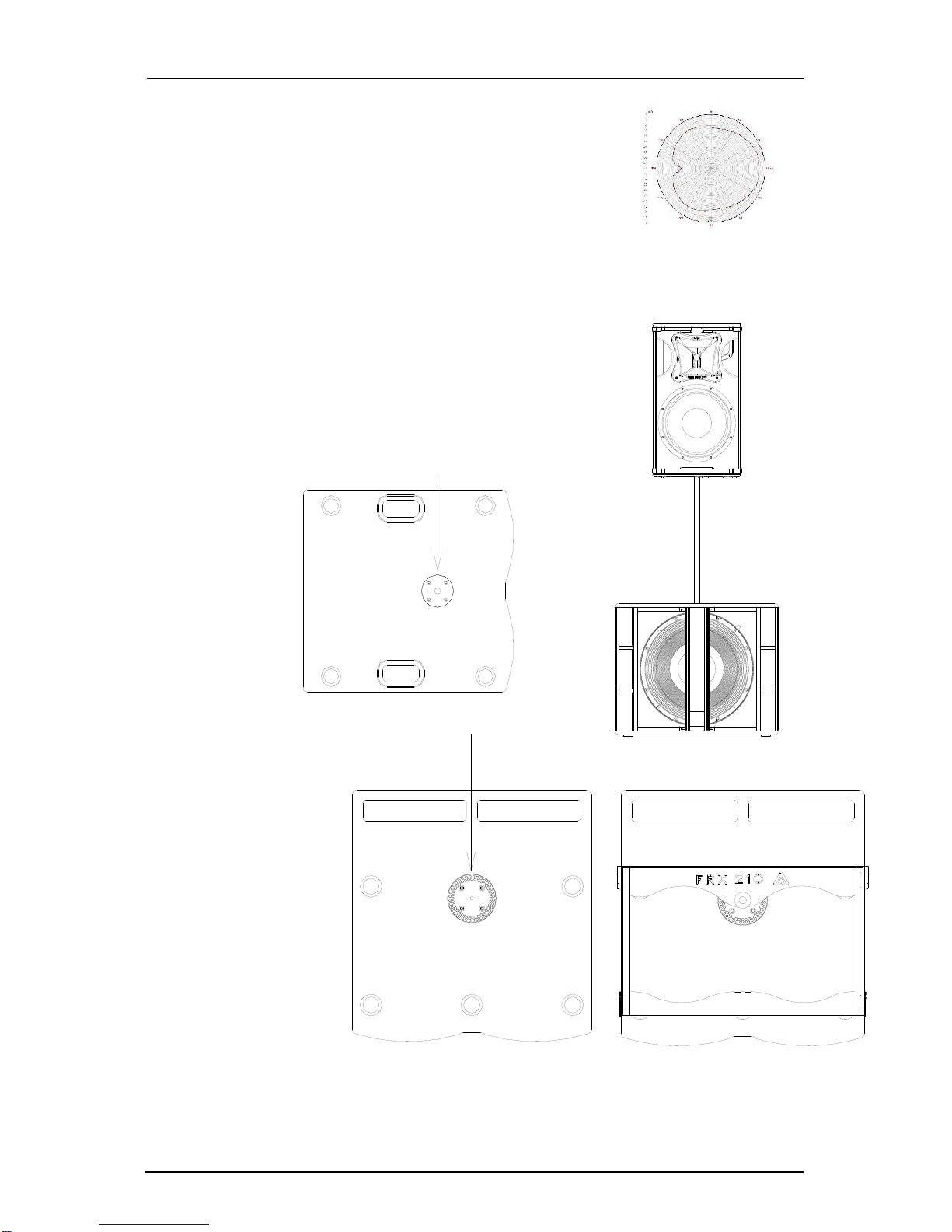

Fig. 12. Traditional polar pattern of a subwoofer at 40Hz
The typical operating range of a traditional subwoofer tends to be like a monopole,
i.e. tends to radiate with the same energy in all directions. This behaviour implies
that the control of radiation at low frequencies is very difficult because the
wavelengths are very large compared to the size of the source (8.5 m at 40Hz).

NITID N12WP_N18WP_N218WP May 2018
13 Amate Audio
To increase the directivity at low frequencies we
must transform the omnidirectional performance
into a cardioid performance. This can only be
achieved by various sources, arranged in a
certain position, to which we apply a specific
phase, filtering and delay. That is, we need to
reproduce two signals with the same frequency
and similar amplitude which will have a difference
in phase of approximately 180º at a certain point
of the sound field. If the phases and delays are
well calculated the result is a system in which we
cancel the energy of the back and not the one of
the front.

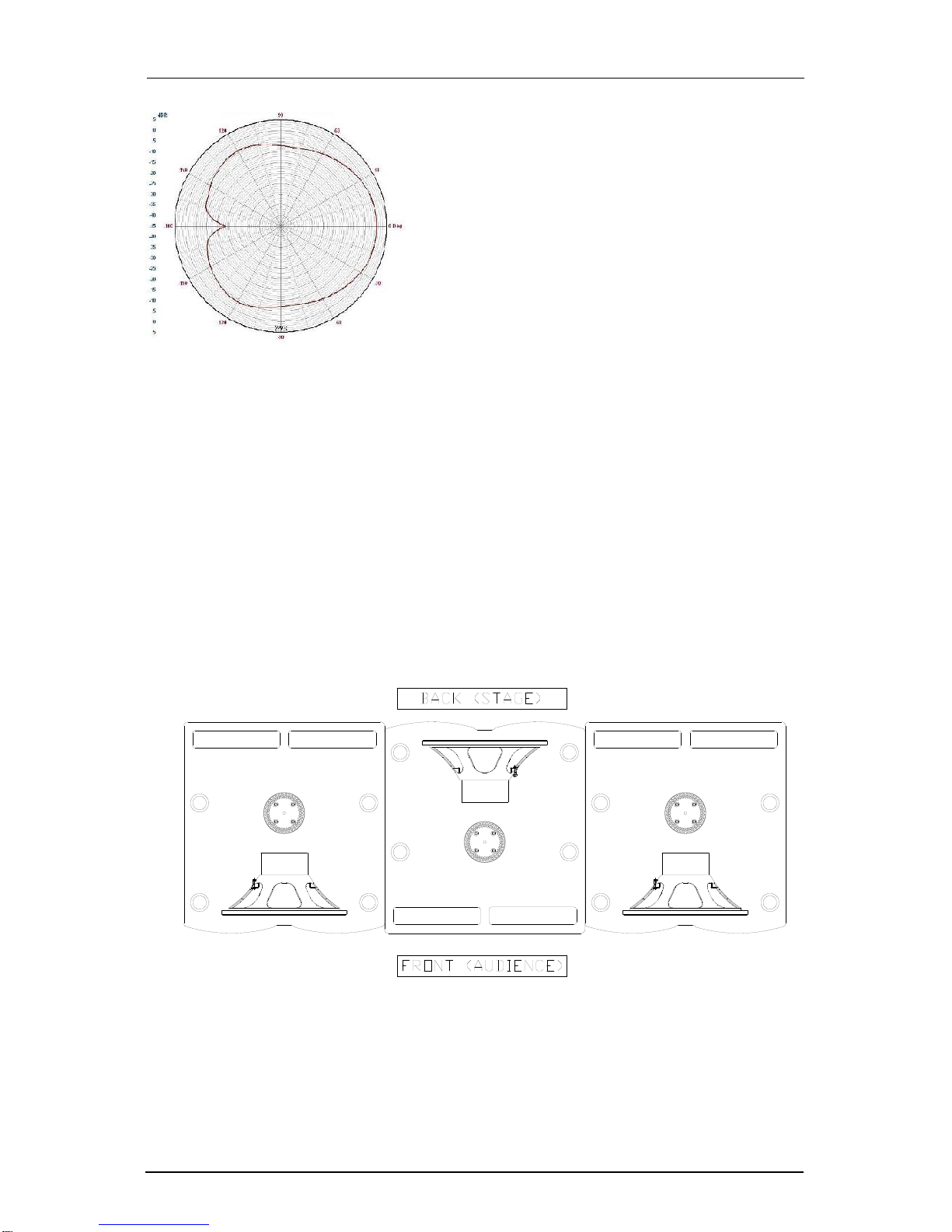

Fig. 13. Cardioid pattern
4.1. The CARDIOID presets
N12WP, N18WP and N218WP can generate an uncompromised cardioid behaviour
when used in conjuntion with an external Amate Audio DSP206/608 and their correct
set-up parameters.
In its minimum and standard configuration a Cardioid setup consists of a stack of
three subwoofer cabinets (for N12WP and N18WP) and of a horizontal line of three
subwoofer cabinets (for N218WP).
Only one subwoofer is needed to compensate for the energy of the other two
radiating to the front. Then, the cabinet facing to the back (to the stage) should be
located in the centre of the column.
Fig. 14. Cardioid configuration for N218WP subwoofer

NITID N12WP_N18WP_N218WP May 2018
14 Amate Audio

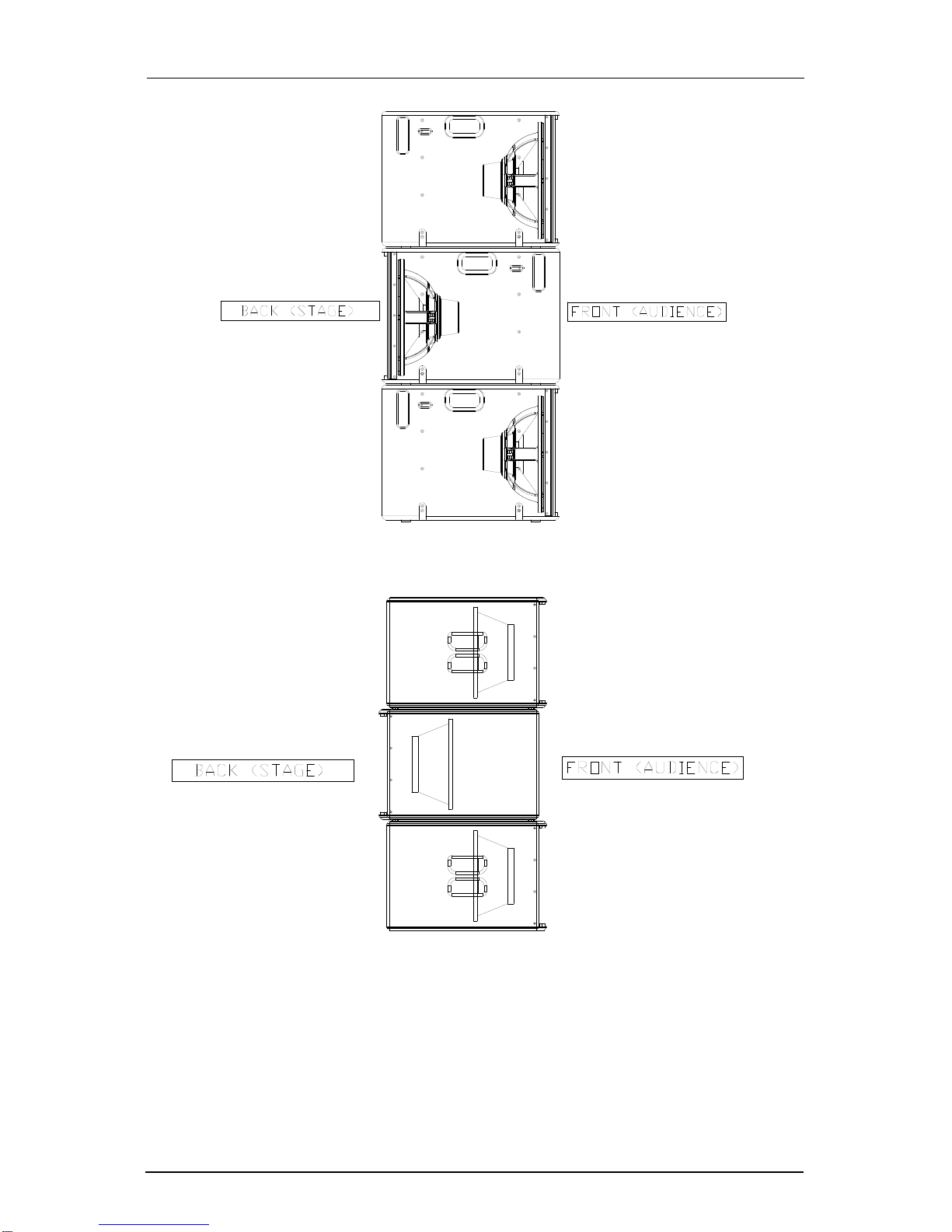

Fig. 15. Cardioid configuration for N18WP subwoofer
Fig. 16. Cardioid configuration for N12WP subwoofer

NITID N12WP_N18WP_N218WP May 2018
15 Amate Audio
When using N218WP choose one of the following options:
a) The front facing subwoofers must be driven with [LPF80] preset and the back
facing subwoofer must be driven with [CARD80] preset.
b) The front facing subwoofers must be driven with [LPF90] preset and the back
facing subwoofer must be driven with [CARD90] preset.
c) The front facing subwoofers must be driven with [LPF100] preset and the back
facing subwoofer must be driven with [CARD100] preset.
d) The front facing subwoofers must be driven with [LPF110] preset and the back
facing subwoofer must be driven with [CARD110] preset.
IMPORTANT NOTE:Due to the internal set-up of the cardioid presets, the
threshold level (limiter) of the front facing subwoofers must be reduced by -
3dB.
When using N18WP choose one of the following options:
a) The front facing subwoofers must be driven with [LPF80] preset and the back
facing subwoofer must be driven with [CARD80] preset.
b) The front facing subwoofers must be driven with [LPF90] preset and the back
facing subwoofer must be driven with [CARD90] preset.
c) The front facing subwoofers must be driven with [LPF100] preset and the back
facing subwoofer must be driven with [CARD100] preset.
d) The front facing subwoofers must be driven with [LPF110] preset and the back
facing subwoofer must be driven with [CARD110] preset.
e) The front facing subwoofers must be driven with [LPF120] preset and the back
facing subwoofer must be driven with [CARD120] preset.
IMPORTANT NOTE:Due to the internal set-up of the cardioid presets, the
threshold level (limiter) of the back facing subwoofers using must be reduced
by -1dB.
When using N12W choose one of the following options:
a) The front facing subwoofers must be driven with [LPF80] preset and the back
facing subwoofer must be driven with [CARD80] preset.
b) The front facing subwoofers must be driven with [LPF90] preset and the back
facing subwoofer must be driven with [CARD90] preset.
c) The front facing subwoofers must be driven with [LPF100] preset and the back
facing subwoofer must be driven with [CARD100] preset.
d) The front facing subwoofers must be driven with [LPF110] preset and the back
facing subwoofer must be driven with [CARD110] preset.
e) The front facing subwoofers must be driven with [LPF120] preset and the back
facing subwoofer must be driven with [CARD120] preset.

NITID N12WP_N18WP_N218WP May 2018
16 Amate Audio
[LPF80]
[LPF90]
[LPF100]
[LPF110]
[LPF120]
[CARD80]
[CARD90]
[CARD100]
[CARD110]
[CARD120]
[LPF80]
[LPF90]
[LPF100]
[LPF110]
[LPF120]
Fig. 17. Cardioid presets for N18WP subwoofer
[LPF80] [CARD80] [LPF80]
[LPF90] [CARD90] [LPF90]
[LPF100] [CARD100] [LPF100]
[LPF110] [CARD110] [LPF110]
Fig. 18. Cardioid presets for N218WP subwoofer

NITID N12WP_N18WP_N218WP May 2018
17 Amate Audio
[LPF90]
[LPF100]
[LPF110]
[LPF120]
[CARD80]
[CARD90]
[CARD100]
[CARD110]
[CARD120]
[LPF80]
[LPF90]
[LPF100]
[LPF110]
[LPF120]
Fig. 19. Cardioid presets for N12WP subwoofer
When placing the subwoofers in a cardioid configuration keep a distance to walls of at
least 60 cm in order not to affect the radiation of the central reversed cabinet.

NITID N12WP_N18WP_N218WP May 2018
18 Amate Audio
5. TECHNICAL FEATURES
N12WP
N18WP
N218WP
Impedance
Nominal
8 Ω
8 Ω
4 Ω
Power
R.m.s
400 W
1200 W
2400 W
Program
800 W
2400 W
4800 W
Connectors
2 x Speakon NL4MPR input
& link
1 x Speakon
NL4MPR input
Audio Performance
Frequency response
(-10 dB usable bandwith)
with external DSP
38 Hz – 140 Hz
35 Hz – 150 Hz
30 Hz – 140 Hz
SPL (1W / 1m)
96 dB
98 dB
102 dB
Nominal directivity (-6dB)
Omnidirectional
Omnidirectional
Omnidirectional
Components
LF
1 x 12” woofer
(3” voice coil)
1 x 18” woofer
(4” voice coil)
2 x 18” woofers
(4” voice coil)
Cabinet
Type
Bass-reflex
Bass-reflex
Bass-reflex
Height
384 mm
540 mm
1046 mm
Width
520 mm
664 mm
740 mm
Depth
552 mm
700 mm
780 mm
Weight (net)
24,9 Kg
49 Kg
96,8 Kg
Material
Multilayer birch plywood
Finish
Hi-resistance
black matt
Polyurea coating.
1,5 mm steel front
grilles with
black acoustic
mesh.
Hi-resistance
black matt
Polyurea coating.
2 mm steel front
grilles with
black acoustic
mesh.
Hi-resistance
black matt
Polyurea coating.
2 mm steel front
grilles with
black acoustic
mesh.
Note: Specifications subjected to change without prior notice.

The NITID loudspeaker systems have been designed,
engineered and manufactured in Barcelona – SPAIN
by
Amate Audio S.L.
Perpinyà, 25 · Polígon Industrial Nord · 08226 Terrassa
T. [phone] – F. [phone] –
[email protected]
R&D and FACTORY:
Violinista Vellsolà, 18 · 08222 Terrassa
T. [phone] – F. [phone]
Barcelona – SPAIN
www.amateaudio.com
© Copyright 2018 by Amate Audio S.L.
