Modern Pull-Down Kitchen Faucet
Grifo de Cocina Abatible Moderno
Robinet de Cuisine Rétractable Moderne

English .............................3
Español............................8
Français .........................13

3
Welcome Guide •English
Contents:
Before getting started, ensure the package contains the following components:
Faucet x1 Sprayer hose weight x1
Rubber washer x1 Sprayer hose quick connector x1
Metal washer x1 Hexagon key x1
Mounting nut x1 Flexible hose (hot and cold) x1
Deck plate x1 1/2” Adapter x2
Deck plate gasket x1 Spare rubber washer x2
O-ring washer x1
Recommended Tools:
• Safety goggles x1 • Adjustable wrench x1
Part List
Parts Description Qty
AFaucet x1
BCartridge (35 mm) x1
CPressing nut x1
DCartridge cap x1
EScrew (M5 x 6) x1
FRed and blue indicator x1
GHandle x1
HHot water inlet x1
ICold water inlet x1
JSprayer inlet x1
KDeck plate x1
LDeck plate gasket x1
MQuick connector x1
NO-ring (Ø14 x Ø7 x 2.5) x1
OThreaded tube x1
PRubber washer (Ø47.8 x Ø33 x 2) x1
QMetal washer (Ø47.8 x Ø33 x 2) x1
RMounting nut x1
SSprayer Hose Weight x1
TSprayer hose x1
UFilter O-ring (18.5 x 14 x 2.5 mm) x1
VSprayer head x1
WFlexible hose (hot) (M10 x 1-9/16-24UNEF-600) x1
XFlexible hose (cold) (M10 x 1-9/16-24UNEF-600) x1
YO-ring x2
ZAdapter x2
AA
O-ring x2
A
BCDEF
X
Y
Z
AA
G
H
V
W
IJ
K
L
M
N
O
P
Q
R
S
T
U

4
Before First Use
Check for transport damage.
Risk of suffocation! Keep any packaging materials away from children – these materials are a potential
source of danger, e.g. suffocation.
Installation
Step 1:
Shut Off Water Supply
• Locate water supply inlets and shut off the water supply
valves. These are usually found under the sink or near
the water meter. If you are replacing an existing faucet,
remove the old faucet from the sink and remove any dirt
and/or plumber’s putty from around the faucet holes.
Step 2:
Setup
O-ring
One (1) Hole Sink Three (3) Hole Sink
Deck plate
gasket (L)
Deck plate (K)
O-ring
For 1-Hole Installation
• Slide the hoses and threaded rod through the
sink hole.
For 3-Hole Installation
• Make sure the deck plate gasket (L) is inserted
into the bottom of the deck plate (K) and
position the deck plate over all 3 holes in the
sink.
• Slide the hoses and threaded rod through the
deck plate (K), deck plate gasket (L) and center
hole of the sink.
Step 3:
Mount in Place
Rubber washer (P)
Metal washer (Q)
Mounting nut (R)
Sprayer hose (T)
• Slide the rubber washer (P) first, then the metal
washer (Q) and mounting nut (R) over the water
lines and sprayer hose (T) and onto the shank.
Then hand-tighten.
Make sure the faucet or deck
plate (K) is centered over the sink hole(s) and
then finish tightening the mounting nut (R) by
hand.
DANGER
NOTICE

5
Installation
Step 4:
Install Quick Connector
J
M
• Insert the O-ring (N) into the sprayer inlet (J).
• Screw the quick connector (M) onto the
sprayer inlet (J) and tighten by hand.
Do Not Overtighten.
Step 5:
Connect Water Lines
H
I
H
I
H
I
• Screw the male end of the hot water hose
(with red stripe) into the hot water inlet (H) and
tighten by hand.
• Screw the male end of the cold water hose (with
blue stripe) into the cold water inlet (I) and tighten
by hand.
Step 6:
Connect Supply Lines
Flexible hose
(hot) (W)
Turn clockwise
Plumber’s
tape
Flexible hose
(cold) (X)
• Wrap plumber’s tape in a clockwise direction around the hot and cold
water inlet shank threads.
• Screw the faucet supply line with the red marking onto the hot water
inlet and screw the blue faucet supply line onto the cold water inlet.
• Tighten securely with a wrench.
If your water inlet valves have a 1/2” male threaded outlet,
use adapters (Z) to convert it to 9/16” threads.
CAUTION
NOTICE

6
Installation

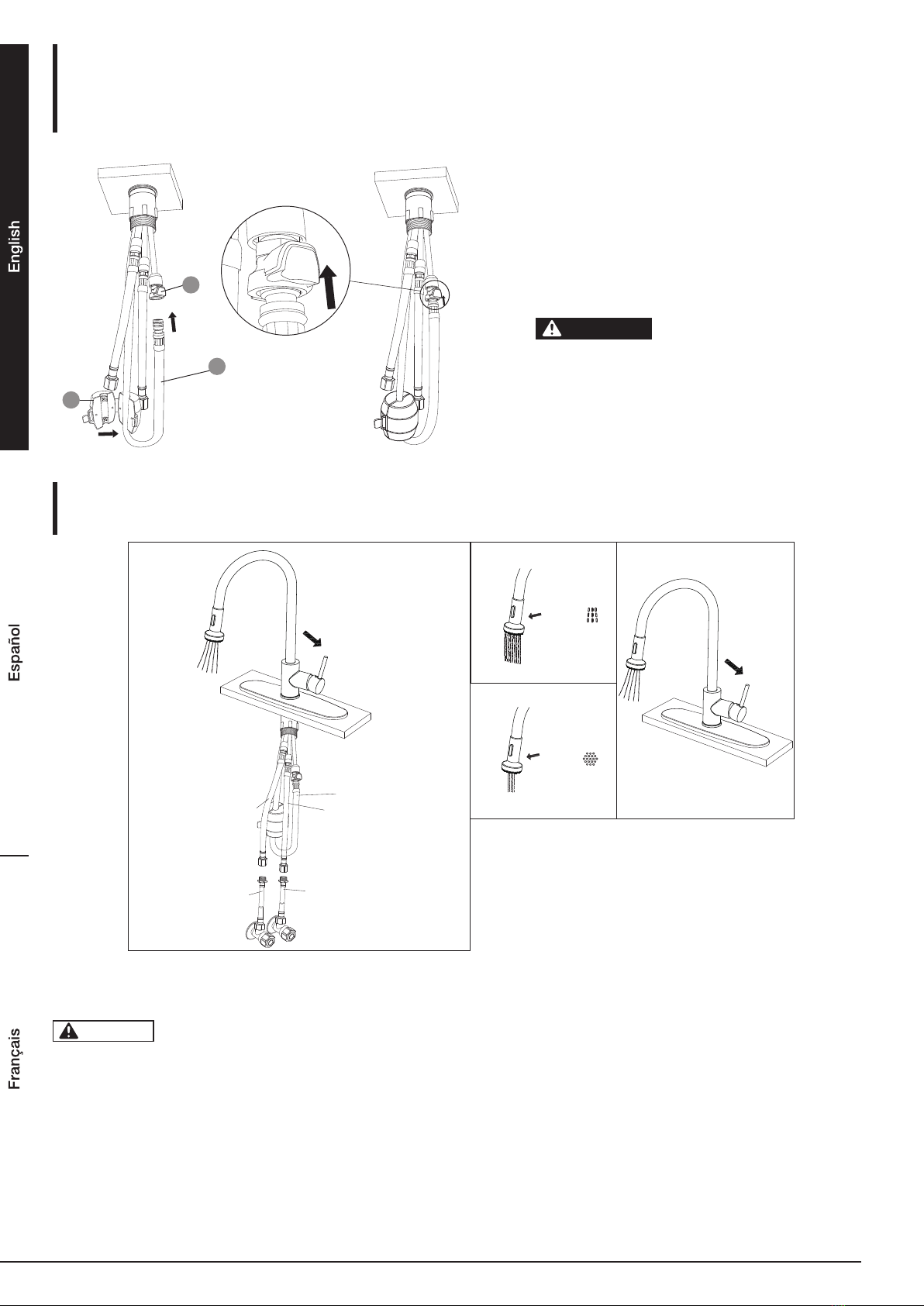

Step 7:
Attach Sprayer Hose Weight
M
T
S
• Open the sprayer hose weight (S) by pressing
on its release tab.
• Place the weight (S) around the “Weight Here”
label and clasp the weight. You will hear a snap
when the weight is closed.
Be careful not to pinch your
skin or fingers when closing the weight.
• Insert and push the pull-down hose (T) upward
into the quick connector (M).
Step 8:
Check and Run Water
Flexible
hose (hot)
Flexible hose
(hot) extension
(not provided) Flexible hose (cold)
extension (not
provided)
Sprayer hose
Spray
mode
Stream
mode
Flexible hose (cold)
• Check to make sure the faucet is tight.
• Slowly open one water inlet valve and check for leaks; if no leaks, open the valve all the way.
• Slowly open the other water inlet valve and check for leaks; if no leaks, open the valve all the way.
If a leak is spotted, close the valve and remove the water line, along with the plumber’s tape on the
threads. Then re-tape the threads and connect the water line and repeat the procedure.
• Pull the handle (G) in the direction away from you and make sure there is hot water coming out of the faucet.
• Pull the handle (G) towards you and make sure there is cold water coming out of the faucet.
• Remove the sprayer head (V) from the holder and pull the hose out. Make sure there is nothing obstructing the hose from
being pulled out or retracted.
• With the water running, make sure that the sprayer head (V) can properly switch between stream and spray modes.
WARNING
NOTICE

7
Cleaning and Maintenance
